Product Type	Induction hob
Brand	Küppersbusch
Model	VKIW3800.0SR

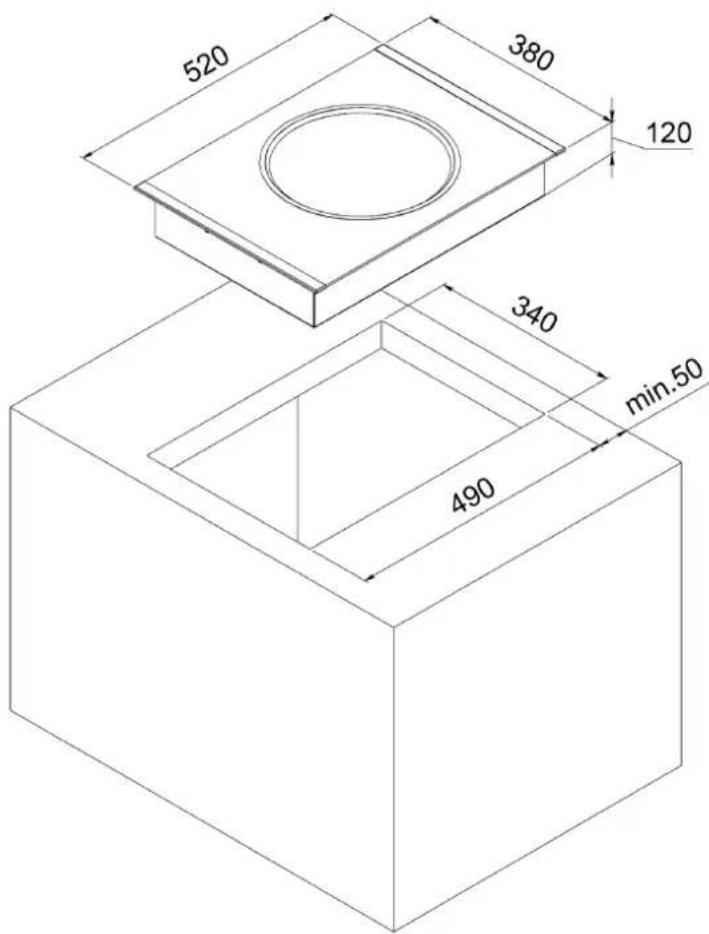

Dimensions (H x W x D)	120 x 380 x 520 mm
Worktop Cut-Out (W x D)	490 x 340 mm
Total Power	3.0 kW (2.5 kW standard, 3.0 kW with Booster)
Voltage / Frequency	220-240 V ~ 50-60 Hz
Number of Cooking Zones	4
Cooking Technology	Induction
Control Type	Touch controls with slider
Booster Function	Yes (max 10 minutes)
Timer	1 to 119 minutes, with automatic shut-off
Automatic Cooking	Yes (pre-set power reduction)
Stop & Go Function	Yes (pauses all zones for up to 10 minutes)
Memory Function	Yes (recalls last settings after accidental switch-off)
Keep Warm Function	Yes (42°C, 70°C, 94°C, up to 2 hours)
Pan Detection	Yes (displays [U] if no pan or unsuitable pan)
Residual Heat Indication	Yes (displays [H] until safe to touch)
Control Panel Lock	Yes (except On/Off key)
Overheating Protection	Yes (reduces power or displays error [E2])
Operating Time Limitation	Yes (varies by power level)
Suitable Cookware	Ferromagnetic (steel, cast iron, induction-compatible)
Cleaning Method	Glass ceramic cleaner, damp cloth, avoid abrasives
Installation Requirements	Ventilation clearance, no installation above dishwasher/dryer
Power Connection	Plug-in or hardwire (qualified electrician)

Frequently Asked Questions - VKIW3800.0SR Küppersbusch

What type of cookware is suitable for this induction hob?

Only cookware with a ferromagnetic base is compatible, such as steel, enamelled steel, cast iron, and stainless steel with a magnetic bottom. To check, see if a magnet sticks to the base. Non-adapted materials include aluminium, copper, glass, ceramic, and stainless steel without a ferromagnetic bottom.

How do I clean the glass ceramic surface?

After each use, clean with a damp cloth and a little washing-up liquid, then dry. For a thorough weekly clean, use a commercial glass ceramic cleaner. Avoid abrasive scouring agents. For burnt sugar or plastic, use a special glass scraper while the surface is still hot. Never use a steam cleaner.

What does the error code E2 mean?

Error E2 indicates that the electronic unit is too hot. This usually happens due to insufficient ventilation. Check that the installation meets the clearance requirements and that cooling openings are not blocked. If the problem persists, contact customer service.

How to activate the Booster function?

To activate Booster, slide your finger to the far right on the power selection slider or press directly on the end of the slider. The display will show [P]. The Booster runs for 10 minutes, then automatically reduces to power level 9. To stop, slide left to 0.

What is the pan detection feature?

Pan detection ensures safety by only supplying power when a suitable pan is placed on the cooking zone. If no pan or an unsuitable pan is present, the display shows [U]. Once a correct pan is placed, the symbol disappears and cooking resumes at the previous setting.

How do I lock the control panel to prevent accidental changes?

Press the lock key [ ] for 1-2 seconds. The locking control lamp will illuminate. The control panel is now locked, except for the On/Off key. To unlock, press the same key again for 1-2 seconds until the lamp turns off.

What are the timer settings and how do I use it?

The timer can be set from 1 to 119 minutes. After selecting a power level, press the [+] and [-] timer keys simultaneously. Then adjust the time using [+] or [-]. After a few seconds, the timer starts. When time ends, [0.00] blinks and a sound rings. To stop, press any timer key. The timer can also be used without cooking to time an event.

Can I install the hob above a dishwasher or oven?

No. The manual states that the induction hob may not be installed above a dishwasher, tumble-dryer, refrigerator, freezer, washing machine, or dryer. Steam from such appliances can damage the electronics. Additionally, the hob cannot be used during pyrolysis in a built-in oven.

What should I do if the glass ceramic cracks?

If the glass ceramic hob develops fractures, cracks, or tears, there is a risk of electric shock. Immediately switch off the appliance, disconnect the fuse, and call customer service. Do not attempt to use the hob until repaired.

How does the Stop & Go function work?

Press the [STOP/GO] key for 1 second to pause all cooking activity. The display shows [II] and the hob stops heating for up to 10 minutes. To resume with the same settings, press [STOP/GO] again for 1 second, then slide your finger on the slider from left to right. The hob will restart with previous power levels.

USER MANUAL VKIW3800.0SR Küppersbusch

Four white circles arranged in a 2x2 grid on a black background (no text or symbols)

VKIW3800.0

Please read the users and installation instructions carefully before installation of the appliance and before starting to use it.

Simple line drawing of a kettlebell with a handle and a curved neck, no text or symbols present.

DE 3 / BEDIENUNG

Line drawing of an open oven with a door and vent, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Illustration of hands connecting a cable to a car (no text or symbols)

Connection and operation 35

Concerning the hob 35

Concerning persons 38

2 / APPLIANCE DESCRIPTION 39

The hob 40

3 / USE OF THE APPLIANCE 41

Display 41

Sensitive touch 41

Power selection zone "SLIDER" 42

Starting-up 42

Pan detection 43

Residual heat indication 43

Booster function 43

Timer 44

Automatic cooking 46

Stop & Go function 47

Memory function 47

"Keep warm" function 48

Control panel locking 48

Operating time limitation 49

Protection against overheating 50

Pan quality 50

Examples of cooking power setting 51

4 / CLEANING AND CARE 52

Glass ceramic hob 52

Specific soiling 53

5 / WHAT TO DO IF TROUBLE OCCURS ? 54

GB CONTENTS

6 / ASSEMBLY INSTRUCTIONS 56

Note 56

Safety instructions for kitchen unit fitters 56

Ventilation 57

Installation 58

Electrical connection 61

Technical data 62

Start of operation 62

For your information...

Please read this manual carefully before using your appliance. It contains important information on safety and on how to use and look after your appliance so that it will provide you with many years of reliable service.

Should your appliance develop a fault, please first consult the section on “What to do if trouble occurs?” You can often rectify minor problems yourself, without having to call in a service engineer.

Please keep this manual in a safe place and pass it on to new owners for their information and safety.

Disposing of the packaging

Please ensure the environmentally-friendly disposal of the packaging that came with your appliance. Recycling the packaging material saves on resources and cuts down on waste.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Appropriate use

The hob is to be used solely for preparing food in the home. It may not be used for any other purpose and may only be used under supervision.

Connection and operation

- The appliances are constructed in accordance with the relevant safety regulations.

- Connecting the appliance to the mains and repairing and servicing the appliance may only be carried out by a qualified electrician according to currently-valid safety regulations. For your own safety, do not allow anyone other than a qualified service technician to install, service or repair this appliance.

Concerning the hob

- Never allow the induction hob to operate unattended, as the high power setting (“Booster” position) results in extremely fast reactions.

- Do not place empty pots and pans on cooking zones which have been switched on. Avoiding boiling the pots dry as there is a risk of the pots overheating!

- It is essential that after using a cooking zone you switch it off with the respective « On/Off » key and not just with the pan recognition device.

• Overheated fats and oils may spontaneously ignite. Always supervise the preparation of food with fats and oils. Never extinguish ignited fats and oils with water! Put the lid on the pan and switch off the cooking zone.

GB 1 / SAFETY INSTRUCTIONS

• The glass ceramic surface of the hob is extremely robust. You should, however, avoid dropping hard objects onto the glass ceramic hob. Sharp objects which fall onto your hob might break it.
• There is a risk of electric shocks if the glass ceramic hob develops fractures, cracks, tears or damage of any other kind. Immediately switch off the appliance. Disconnect the fuse immediately and call Customer Service.
• If the hob cannot be switched off due to a defect in the sensor control immediately disconnect your appliance and call Customer Service.
  • Take care when working with home appliances! Connecting cables must not come into contact with hot cooking zones.
• The glass ceramic hob should not be used as a storage area.
• Do not put aluminium foil or plastic onto the cooking zones. Keep everything which could melt, such as plastics, foil and in particular sugar and sugary foods away from hot cooking zones. Use a special glass scraper to immediately remove any sugar from the ceramic hob (when it is still hot) in order to avoid damaging the hob.
• Metal items (pots and pans, cutlery, etc.) must never be put down on the induction hob since they may become hot. Risk of burning!
• Do not place combustible, inflammable or heat deformable objects directly underneath the hob.

GB 1 / SAFETY INSTRUCTIONS

• Metal items worn on your body may become hot in the immediate vicinity of the induction hob. Caution! Risk of burns!
  Non-magnetisable objects (e.g. gold or silver rings) will not be affected.
• Never use the cooking zones to heat up unopened tins of food or packaging made of material compounds. The power supply may cause them to burst!
• Keep the sensor keys clean since the appliance may consider dirt to be finger contact. Never put anything (pans, tea towels etc.) onto the sensor keys!
  If food boils over onto the sensor keys, we advise you to activate the « On/Off » key.
• Hot pans should not cover the sensor keys, since this will cause the appliance to switch off automatically.
• Activate the control panel locking if there are any pets in the home which could make contact with the hob.
• The induction hob may not be used when pyrolysis operation is taking place in a built-in oven.
• The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.

Concerning persons

- This appliance is not intended to be used by persons (including children) with physical, mental or sensory impairments or who by persons (including children) who lack the required experience or know-how, unless such persons are supervised by a person responsible for their safety or have been given instructions on how to use the appliance by a person responsible for their safety.

Children should be supervised in order to ensure that they do not play with the appliance.

- Attention!

The surfaces of the heating and cooking zones become hot during use. Keep small children away at all times.

- Persons with cardiac pacemakers or implanted insulin pumps must make sure that their implants are not affected by the induction hob (the frequency range of the induction hob is about 20 kHz).

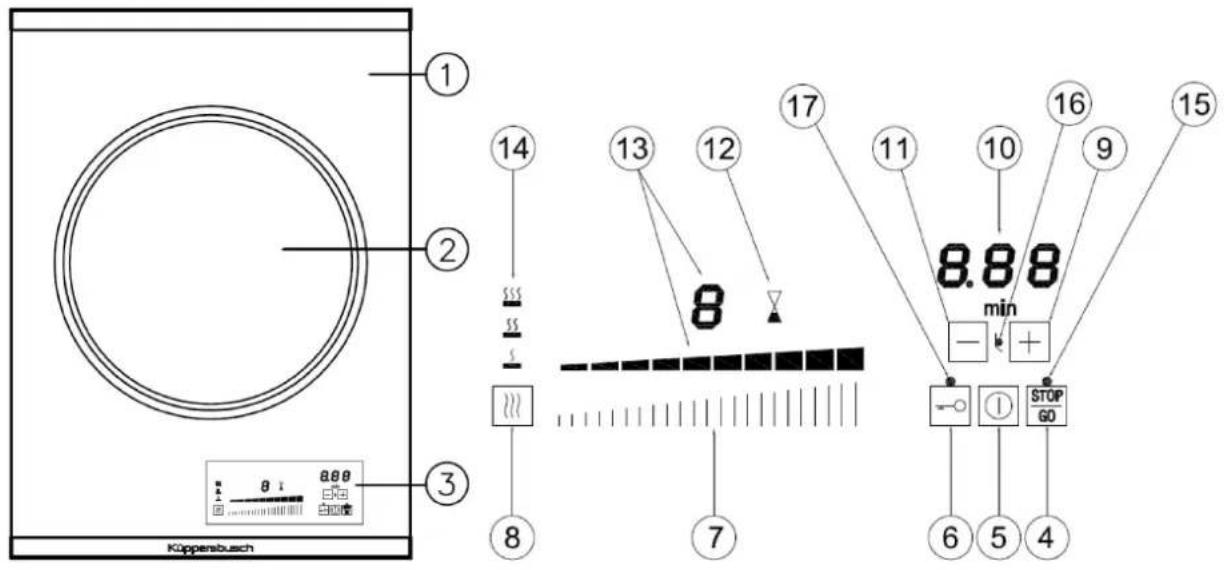

1. Glass ceramic hob
2. Wok cooking zone
3. Touch-control operating panel
4. Stop & Go / Memory key
5. On/Off key
6. Locking key
7. Power selection zone « Slider »
8. Keep warm key
9. Plus timer key (raise)
10. Timer display
11. Minus timer key (lower)
12. Timer control lamp (cooking)
13. Power display
14. Keep warm display
15. Stop & Go / Memory control lamp
16. Timer control lamp (outside cooking time)
17. Locking control lamp

The hob

The hob is equipped with an induction cooking mode. An induction coil underneath the glass ceramic hob generates an electromagnetic alternating field which penetrates the glass ceramic and induces the heat-generating current in the pot base.

With an induction cooking zone the heat is no longer transferred from a heating element through the cooking pot into the food being cooked; instead the necessary heat is generated directly in the container by means of induction currents.

Advantages of the induction hob

• Energy-saving cooking through the direct transfer of energy to the pot (suitable pots/pans made of magnetisable material are required).
• Increased safety as the energy is only transferred when a pot is placed on the hob.
• Highly effective energy transfer between an induction cooking zone and the base of a pot.
• Rapid heat-up.
• The risk of burns is low as the cooking area is only heated through the pan base; food which boils over does not stick to the surface.
  – Rapid, sensitive control of the energy supply.

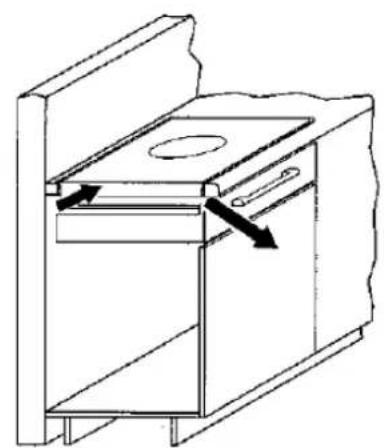

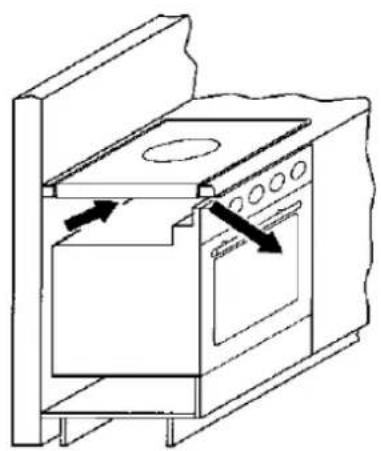

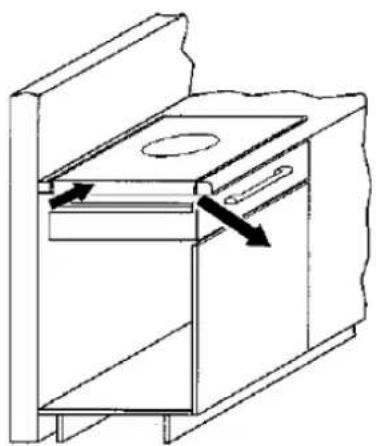

Ventilation

The cooling system is fully automatic. The cooling fan starts at a low speed when the calories generated by the electronic system reach a certain level. The ventilation starts its high speed level when the hob is intensively used. The cooling fan reduces its speed and stops automatically when the electronic circuit has cooled down enough.

Display

Display Designation Description
0.	Zero The heating zone is activated
1...9	Booster level Selection of the cooking level
U	No pan detection No pan or inadequate pan
A	Heat accelerator Automatic cooking
E	Error message Electronic failure
H	Residual heat The heating zone is hot
P	Booster The Booster is activated
U + S	Keep warm Maintain automatically 42°C
U + S S	Keep warm Maintain automatically 70°C
U + S S S	Keep warm Maintain automatically 94°C
II	Stop&Go The hob is in pause

Sensitive touch

Your induction hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key during 1 second, the corresponding command is activated. This activation is validated by a control lamp, a letter or a number in the display and/or a “beep” sound.

In case of normal use, press only one key at a time.

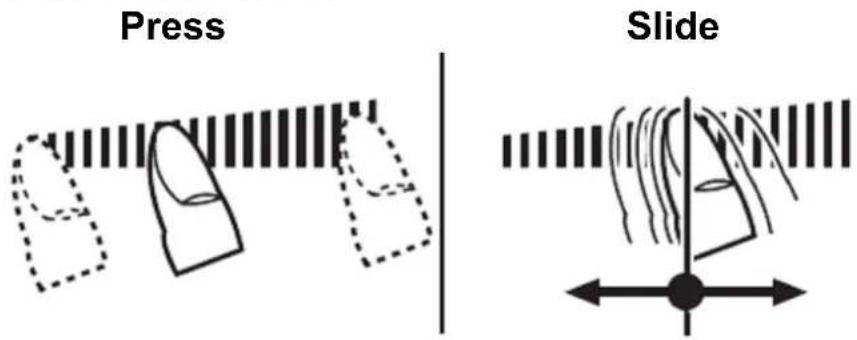

The slider works like a touch key. Once your finger is placed onto the slider, you can slide to the right hand or to the left hand side, in order to adjust the displayed value. As soon as the expected value has been reached, you can remove your finger from the slider.

To select the power, you can either slide your finger on the slider zone, or directly access a particular level if you put your finger directly on the chosen level.

Starting-up

- Start up / switch off the hob:

Action	Control panel	Display
To start Press key	[0/I] 1 sec. [0]
To stop Press key	[0/I] [0] or [H]

- Start up / switch off the heating zone:

Action	Control panel	Display
To set (adjust the power)	Press or slide on the «SLIDER» to the right or to the left	[1] to [P]
To stop Slide to [0] on the « SLIDER » [0] or [H]

If no action is taken within 10 seconds, the electronics return in waiting position.

Pan detection

The pan detection ensures perfect safety. The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not suitable to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a suitable pan is put on the heating zone.
• If the pan is removed from the heating zone. The operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back on the heating zone. The cooking continues with the power level set before.

After use, make sure that the heating elements have been switched off: don't leave the pan detection [U] active.

If no pot is placed on the cooking zone it will switch off after 10 minutes for reasons of safety.

Residual heat indication

After the switching off of the heating zone or the complete stop of the hob, the heating zone is still hot. This is indicated by displaying [H] symbol.

The symbol [H] disappears when the heating zone may be touched safely.

As long as the residual heat indicator is on, don't touch the heating zone and don't put any heat sensitive object on it. There are risks of burn and fire.

Booster function

The Booster function [ P ] add a boost of power to the selected heating zone.

Booster is needed for example to heat up rapidly big quantities of water, like rice, pasta or noodles.

The Booster function [P] works during 10 minutes, than the power is automatically switched down to 9.

- Start up / Stop the Booster:

Action	Control panel	Display
Start up the Booster	Slide to the end of the «SLIDER» or press directly on the end of the «SLIDER»	[1] to [P]
Stop the Booster	Slide on the «SLIDER» until [0] from right to left	[0] or [H]

Timer

Cooking times ranging from 1 minute to 119 minutes can be set.

- Setting and modification of the cooking time:

Action	Control panel	Display
Select the power level	Press or slide on the «SLIDER» to the right or to the left	[1] to [P]
Select the timer Press simultaneously key [-] and [+ ] of the timer
Adjust the time - press on [+ ] of the timer- press on [- ] of the timer		-time increase- time decrease

After a few seconds, the point _. _ is blinking.

The time is confirmed and the timer starts.

GB 3 / USE OF THE APPLIANCE

• To stop the cooking time:

Action	Control panel	Display
Select the Timer Press simultaneously key [-] and [ + ] of the timer		Timer display on
Stop the Timer Press on [-] of the timer Decrease the time at [ 0.00 ]

- Timer used outside cooking time:

This function makes it possible to time an event without actually cooking.

If the timer is on and the hob is switched off, the timer continues until time runs out.

Action	Control panel	Display
Activate the hob Press on [ 0/l ] 1 sec. [ 0 ]
Select the time Press simultaneously key [-] and [+ ] of the timer		[ + [ 0.00 ]
Adjust the time - press on [ + ] of the timer- press on [- ] of the timer		- time increase- time decrease

After a few seconds, the point _. is blinking.

The time is confirmed and the timer starts.

• Automatic stop at the end of the cooking time:

As soon as the selected cooking time has finished, the timer display is blinking [0.00] and a sound rings.

To stop the sound and the blinking, press the key [-] or [+] of the timer.

Automatic cooking

The cooking zone is equipped with an automatic cooking device. The cooking zone starts at full power (9) for a certain amount of time, then automatically reduces its power until it reaches the pre-selected power level (1 to 8).

Selected power Automatic cookingtime (Min : Sec)
1 00:40
2 01:12
3 02:00
4 02:56
5 04:16
6 07:12
7 02:00
8 03:12
9 - : -

• Start-up:

Action	Control panel	Display
Power level selection (for example « 5 »)	Press or slide on the «SLIDER» to « 5 » and stay 3 sec.	[ 5 ] is blinking with [ A ]

GB 3 / USE OF THE APPLIANCE

- Switching off the automatic cooking:

Action	Control panel	Display
Power level selection	Press or slide on the «SLIDER» to the right or to the left	[0] to [P]

Stop & Go function

This function stops the entire hob's cooking activity temporarily and allows restarting with the same settings

This function is available for 10 minutes, after which the hob will be switched off for reasons of safety.

- Start up/stop the stop & go function:

Action	Control panel	Display
Engage Stop&Go	Press on the key[ STOP/GO ] 1 sec.	Stop & Go control lamp+ [ II ]
Stop Stop&Go - press on the key [ STOP/GO ] 1 sec.- then slide on the animated «SLIDER» from left to right		- animated control lamps- previous settings

Memory function

After switching off accidentally the hob [0/1], it is possible to recall the last stettings :

• Cooking stage (power).
• Minutes et secondes programmed by the timer.
  • Automatic cooking.
• Keep warm function.

GB 3 / USE OF THE APPLIANCE

The recall procedure is following:

• Press the key [0/1] within 5 secondes of the accidental switch-off.
• Press on the key [ STOP/GO ] before the light stops blinking.

The previous settings are again active.

This function allows the hob to reach and maintain automatically a temperature of approximately 42, 70 or 94°C. The maximum duration of “keeping warm” is 2 hours.

This will avoid liquids overflowing and burning on the bottom of the pan.

Action	Control panel	Display
42°C to engage	Press once on key [ ]	[U] + [ ]
70°C to engage	Press twice on key [ ]	[U] + [ ]
94°C to engage	Press three times on key [ ]	[U] + [ ]
To stop - slide on the «SLIDER» to the right or to the left- or press on key [ ]		-[0] to [P]-[0]

Control panel locking

To avoid accidentally activating or interfering with the settings of the cooking zones, for instance when cleaning, the control panel can be locked (with exception of the On/Off key [0/I]).

GB 3 / USE OF THE APPLIANCE

Action	Control panel		Display
Locking the hob	Press on key [ econde		Locking control lamp on
Unlock the hob	Press on key [ econde		Locking control lamp off

Operating time limitation

The cooking zone is equipped with an operating time limitation. Duration of use of the cooking zone depends on the level of power selected.

The times shown correspond to a period of uninterrupted or change settings in the cooking. When the time limit is reached, the cooking zone automatically shuts.

Power level Operating time (H:Min)
1 08:36
2 06:42
3 05:18
4 04:18
5 03:30
6 02:18
7 02:18
8 01:48
9 01:30

Protection against overheating

If the hob is used at full power for a longer period, it will not be possible to cool down the electronics system as required at a high room temperature.

In order to ensure that no excessive temperatures occur in the electronics system the power of the cooking zones may be reduced automatically.

Should [ E2 ] be displayed frequently during normal use of the hob and at normal room temperature, it is likely that cooling is not sufficient.

The reason may be that there are no openings for cooling purposes in the kitchen units or that there is no insulation. It may be necessary to check the installation of the hob.

Pan quality

Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Non-adapted materials : aluminium and stainless steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain.

The manufacturers specify when their products are compatible induction.

To check if pans are compatible:

- Put a little water in a pan placed on an induction heating zone set at level [9]. The water will heat up in a few seconds when you are using the right induction pan.

- A magnet will stick on the bottom of an induction pan.

Simple line drawing of a kettlebell with a handle and a downward arrow, no text or symbols present.

GB 3 / USE OF THE APPLIANCE

Certain pans can make noise when they are placed on an induction cooking zone. This noise does not mean that there is something wrong with the appliance, nor does it influence its function.

The right wok

The functioning of the induction cooking zone is only then satisfying, if the wok is optimally adjusted to the glass ceramic surface.

The bottom of the wok must be bulged to fit to the cooking surface of the hob and must be suitable for induction wok cooking zones.

Only these wok pans offer an even heat distribution in the pan.

We recommend the use of wok pan delivered with the appliance.

With unsuitable cookware the cooking surface will not work or will only work insufficiently. In the worst case this will endanger you.

Examples of cooking power setting

(The values below are indicative)

1 to 2	MeltingReheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3	SimmeringDefrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4	Steam Vegetables, fish, meat
4 to 5	Water Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cookingSimmering	Meat, lever, eggs, sausagesGoulash, roulade, tripe
7 to 8	Cooking Potatoes, fritters, wafers
9 Frying	roostingBoiling water	Steaks, omelettes, fried dishesWater
P Frying	roostingBoiling water	Scallops, SteaksBoiling significant quantities of water

• Switch the hob off and let it cool down before you clean it.
• Never clean the glass ceramic hob with a steam cleaner or similar appliance!
• When cleaning make sure that you only wipe lightly over the ON/OFF key. The hob may otherwise be accidentally switched on!

Glass ceramic hob

Important! Never use aggressive cleaning agents such as rough scouring agents, abrasive saucepan cleaners, rust and stain removers etc.

Cleaning after use

1. Always clean the entire hob when it has become soiled. It is recommended that you do so every time the hob is used. Use a damp cloth and a little washing up liquid for cleaning. Then dry the hob with a clean dry cloth to ensure that there is no detergent left on the surface of the hob.

Weekly clean

1. Clean the entire hob thoroughly once a week with commercial glass ceramic cleaning agents.

Please follow the manufacturer's instructions carefully.

When applied, the cleaning agent will coat the hob in a protective film which is resistant to water and dirt. All the dirt will remain on the film and can then easily be removed. Then rub the hob dry with a clean cloth. Make sure that no cleaning agent remains on the surface of the hob since this will react aggressively when the hob is heated up and will change the surface.

Specific soiling

Heavy soiling and stains (limescaling and shiny, mother-ofpearl-type stains) can best be removed when the hob is still slightly warm. Use commercial cleaning agents to clean the hob. Proceed as outlined under Item 2.

First soak food which has boiled over with a wet cloth and then remove remaining soiling with a special glass scraper for glass ceramic hobs. Then clean the hob again as described under Item 2.

Do not use the cleaning scraper in the bulge as otherwise it will scratch the surface!

Burnt sugar and melted plastic must be removed immediately, when they are still hot, with a glass scraper. Then clean the hob again as described under Item 2.

Grains of sand which may get onto the hob when you peel potatoes or clean lettuce may scratch the surface of the hob when you move pots around. Make sure that no grains of sand are left on the hob.

Changes in the colour of the hob will not affect the function and the stability of the glass ceramic material. These colour changes are not changes in the material but food residues which were not removed and which have burnt into the surface.

Shiny spots result when the base of the cookware rubs on the surface of the hob, particularly when cookware with an aluminium base or unsuitable cleaning agents are used. They are difficult to remove with standard cleaning agents. You may need to repeat the cleaning process several times. In time, the decoration will wear off and dark stains will appear as a result of using aggressive cleaning agents and faulty pan bases.

Interference with and repairs to the appliance by unqualified persons are dangerous as they can result in an electric shock or a short circuit. Do not interfere with or try to repair the appliance; this could cause injury to persons and damage to the appliance. Always have such work done by an expert, e.g. a Customer Service technician.

Please note

If your appliance is faulty, please check whether you can rectify the problem yourself by consulting these instructions for use.

You may be able to rectify some problems yourself. They are described below.

The fuses blow regularly?

- Contact a technical customer service or an electrician!

You can't switch your induction hob on?

• Has the wiring system (fuse box) in the house blown a fuse?
• Has the hob been connected to the mains?
• Are the sensor keys locked, i.e. is the control key above the stop key illuminated?
• Are the sensor keys partly covered by a damp cloth, fluid or a metallic object? Please rectify.
• Are you using unsuitable cookware? See the section on "Cookware for induction hobs".

The symbol will blink and a time-limited continuous signal will sound.

Food which has boiled over, cookware or other items are causing the touch control sensor keys to be consistently operated.

Remedy: clean the surface or remove the item.

To delete the symbol ↗, press a key or On/off.

GB 5 / WHAT TO DO IF TROUBLE OCCURS ?

Error code E2 is indicated?

The electronic unit is too hot. Check the installation of the hob. Make sure that there is sufficient ventilation. See the section on "Protection against overheating".

Error code U400 is indicated?

The hob has been incorrectly connected. The controls will switch off after 1 s and a continuous signal will sound. Connect the appliance to the appropriate power supply.

An error code (ERxx or Ex) is indicated?

The appliance has developed a technical defect. Please call Customer service.

The pot sign [U] appears?

A cooking zone has been switched on and the hob is expecting a suitable pot or pan to be placed on the cooking zone (pan recognition). Only when a pot has been placed on the cooking zone will power be supplied.

The pot sign [U] still appears, even though a pot or pan (wok) was placed on the hob?

The cookware is unsuitable for induction cooking or the pot or pan is too small.

Is the cookware you are using making noises?

This is due to technical reasons; the induction hob and the pot are not at risk.

Does the cooling fan still operate after it has been switched off?

This is normal since the electronic unit is being cooled down.

Is the hob making noises (clicking or cracking sounds)?

This is for technical reasons and cannot be avoided.

Does the hob have tears or cracks?

There is a risk of electric shocks if the glass ceramic hob develops fractures, cracks, tears or damage of any other kind. Immediately switch off the appliance. Disconnect the fuse immediately and call Customer Service.

Note

The KÜPPERSBUSCH induction hob may only be built-in in accordance to the instructions included in this manual. In case of a failure to observe these instructions, KÜPPERSBUSCH shall decline any liability and the approved marks of conformity become invalid!

Safety instructions for kitchen unit fitters

• Veneers, adhesives and plastic surfaces of surrounding furniture must be temperature resistant ( >75^ ). If the veneers and surfaces are not sufficiently heat resistant they can become deformed.
• Ensure that all live connections are safely insulated when installing the hob.
• Cover strips between the wall and the worktop behind the hob which are made of solid wood are permissible as long as minimum clearances in accordance with the installation diagrams are maintained.
• Minimum clearances of the hob cut-out towards the rear are to be maintained in accordance with the installation diagram.
• For installation directly next to a tall cupboard, a safety distance of at least 40 mm must be ensured. The side surface of the tall cupboard should be fitted with heat resistant material. Due to working requirements, however, the distance should be at least 300 mm.
• The clearance between the hob and an extraction hood must be at least as large as that stipulated in the assembly instructions for the cooker hood.
• The packaging materials (plastic foil, polystyrene, nails etc.) must be kept out of reach of children as these parts are potentially dangerous. Small parts can be swallowed and there is a danger of plastic sheeting causing suffocation.

Ventilation

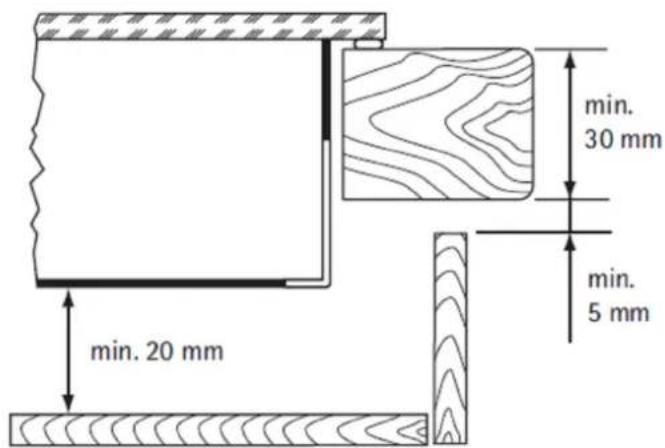

• Clearance between the induction hob and kitchen furniture or built-in units must provide for sufficient ventilation of the induction hob.
• If the power level of a cooking zone is automatically raised or lowered (see section on thermal cut-off device) it is likely that the cooling system does not cool sufficiently. In this case we recommend that the back wall of the bottom kitchen unit in the area of the worktop cut-out be opened and that the front transverse strip of the unit be removed over the entire width of the appliance in order to promote the circulation of air.

Line drawing of an open oven with a door and stove, showing airflow direction (no text or symbols)

Technical line drawing of a cabinet or oven with internal components and directional arrows indicating movement (no text or symbols)

• Remove any transverse strips underneath the worktop at least in the area of the worktop cut-out.
• Avoid excessive thermal development from below e.g. from a baking oven without a cross flow cooling device.
• The induction hob may not be used when pyrolysis operation is taking place in a built-in oven.
• When installing the appliance on top of a drawer it is essential to ensure that no sharp items are stored in the drawer since these could become bent on the underside of the hob and prevent the drawer from being opened and closed.
• If a shelf has been inserted underneath the hob, there must be a clearance of at least 20 mm to the underside of the hob in order to ensure that the hob is sufficiently ventilated.
• The hob may not be installed above refrigerators, freezers, dishwashers, washing machines or dryers.
• To avoid danger of fire, make sure that no combustible objects which could easily catch fire or become deformed on exposure to heat are directly next to or under the surface.

Sealing of the hob

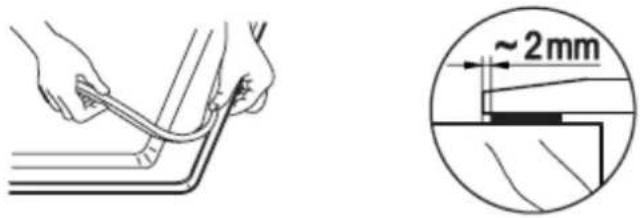

Before installation, correctly insert the sealing unit delivered with the hob.

• No liquids may penetrate between the edge of the hob and the worktop or between the hob and the wall and come into contact with any electrical appliances.
• When installing a hob into an uneven worktop, e.g. with a ceramic or similar covering (tiles etc.), the seal on the hob is to be removed and the seal between the hob and worktop made with plastic sealing materials (putty).
• The hob must under no circumstances be sealed with silicone sealant! This would make it impossible to remove the hob at a later date without damaging it.

Working surface cut-out

Cut out the worktop recess accurately with a good, straight saw blade or recessing machine. The cut edges should then be sealed so that no moisture can penetrate.

The area is cut out as illustrated.

The glass ceramic hob must have a level and flush bearing. Any distortion may lead to fracture of the glass panel. Make sure that the sealing of the hob is properly seated.

Dimensions of appliance: 520 x 380 mm

Dimensions of hole cut in work surface: 490 x 340 mm

Bracket

GB 6 / ASSEMBLY INSTRUCTIONS

• Insert the hob in the hole cut in work surface and align it.

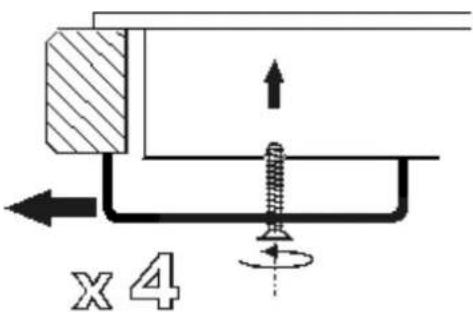

• From the bottom, insert the brackets with screws in the holes provided for fastening the brackets, align the brackets and screw them tight.
• Tighten the screws with a hand screw driver only; do not use a battery-operated screw driver.
• In the case of thin worktops make sure that the brackets are correctly positioned.

Important!

There is a risk of breakage if the hob is canted or subjected to stress during installation!

Electrical connection

• Statutory regulations and the connection specifications issued by the local power supply company must be strictly observed.
• Any superfluous cable must be removed from the installation area beneath the appliance.
• Make sure that the local mains voltage is the same as the voltage on the rating label.
• The induction hob has been fitted with a connection cable in the factory.
• The appliance is supplied ready to plug in. It should be connected only to a properly protected wall socket.
• If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.
• The wall-socket can be mounted under the working top below the hob or in a side cupboard in the wall. Do not mount it above the cooking area!

GB 6 / ASSEMBLY INSTRUCTIONS

• The plug must be accessible after installation.
• It is also necessary to provide a bipolar cut-off device in your power supply circuit, where the opening of the contacts is more than 3 mm.
• Full protection against accidental contact must be ensured on installation.
• Attention: Incorrect connection may result in the power electronics unit being destroyed.

Power supply

Mains voltage: 220 - 240V\~, 50-60 Hz

Technical data

Dimensions
Hob height / width / depth	mm	120 x 380 x 520
Power	Kw	2,5 (3,0*)
Hob, total	Kw	3,0

* Power when the booster function is activated

Start of operation

Once the hob has been installed and the power supply has been provided (mains connected) an automatic test of the controls will be carried out.

Briefly wipe over the surface of the hob with a sponge and soapy water and then dry with a clean cloth.

Küppersbusch
