BR-24B - Lighting BRESSER - Free user manual and instructions

Brand	Bresser
Model	BR-24B (Bi-color)
Product Type	Studio LED Light
Power Consumption	24W
Number of LEDs	240
Luminous Flux	2,400 lm
Color Temperature Range	3,200K – 5,600K
Dimmer Range	10% – 100% (digital, stepless)
Operating Voltage (Mains)	DC 8.0V via included power adapter
Battery Compatibility	1x NP-F750 or NP-F960 (not included)
Remote Control	Optional 2.4GHz remote (not included)
Operating Conditions	Dry, 0°C to +40°C
Storage Conditions	Dry, dust-free, 0°C to +40°C
Dimensions	Not specified in manual
Weight	Not specified in manual
LED Replaceability	Not replaceable (long lifespan)
Safety Features	Overheat protection, glare warning, burn hazard warning
Accessories Included	LED light panel, DC power adapter, user manual

Frequently Asked Questions - BR-24B BRESSER

How do I adjust the brightness?

Press the adjustment knob repeatedly until the Dimmer indicator lights. Then rotate the knob right (+) to increase brightness (10% to 99%) or left (-) to decrease.

How do I change the color temperature?

Press the adjustment knob repeatedly until the Color indicator lights. Rotate the knob right (+) for warmer (3200K) or left (-) for cooler (5600K) light.

Can I power this light with a battery?

Yes, you can use an optional NP-F750 or NP-F960 lithium battery. Insert it into the battery socket on the back. Ensure only one power source is active at a time.

How do I use the remote control?

The light has a built-in 2.4GHz receiver. Set the same channel on the light and the remote (optional, not included). Press the adjustment knob for 2 seconds to enter channel setting, then rotate to select a channel.

What safety precautions should I take?

Avoid looking directly into the light to prevent glare. Do not touch the device during operation; let it cool for 45 minutes after use. Keep flammable materials away. Never cover ventilation slots.

Can I change the LEDs?

No, the LEDs are not replaceable. They have a very long lifespan and do not need replacement.

What is the included power adapter specification?

The included DC power adapter provides 8.0V. Use only the supplied adapter to avoid damage.

How do I set the remote control channel?

Press the adjustment knob for about 2 seconds until two digits flash. Rotate the knob to change the channel (00-99). Wait for the display to stop flashing to save.

Is the light suitable for outdoor use?

No, the device is for indoor use only and in dry conditions. Avoid moisture and high humidity.

What should I do if the device is not working?

Check the power source (adapter or battery). Ensure only one source is connected. If problems persist, contact Bresser service at [e-mail] or call [phone].

USER MANUAL BR-24B BRESSER

Two black-and-white photoelectric equipment units with digital displays and control knobs, no visible text or symbols on the main body.

Studio Light · Studiolamp · Studiolicht ·

BR-24B

EN Instruction manual

Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

1 Validity information.... 5
2 About this Instruction Manual.... 5
3 Intended use 5
4 General safety instructions .... 5
5 Parts overview and scope of delivery 7
6 Establishing the power supply (mains operation) 8
7 Power supply via battery (optional)....8
8 Lighting settings.... 8
9 Remote control (optional).... 9
10 Setting a channel for remote control....9
11 Technical data....9
12 Disposal....9
13 EC Declaration of Conformity 10

1 Validity information

This documentation is valid for the products with the article numbers listed below:

F004238

Manual version: 0419

Manual description:

Manual_F004238_BR-24B_en-nl-de_BRESSER_v042019a

With any service inquiries, please state these information.

2 About this Instruction Manual

NOTICE

These operating instructions are to be considered a component of the device.

Please read the safety instructions and the operating instructions carefully before use.

Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.

3 Intended use

• This device is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities or those who lack the relevant experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions from this person as to how the device is used.
  • This device is for private use only.
• The device is for indoor use only.

4 General safety instructions

DANGER

Risk of electric shock

This device has electronic parts operated via a power source (power supply and/or batteries). Improper use of this product can cause an electric shock. An electric shock can cause serious or potentially fatal injuries. The following safety information must be observed at all times.

• Disconnect the device from the power supply by pulling the power plug when it is not used or in case of longer interruption of operation and before starting any work on maintenance and cleaning.
• Position your device so that it can be disconnected from the power supply at any time. The power socket should be installed near the device and should be easily accessible as the mains cable plug is used to disconnect the device from the power supply.
• To disconnect the device from the power supply, always pull on the plug. Never pull on the cable.
• Before starting up the device, check the device, the cables and the connections for signs of damage.
• Never use a damaged device or a device with damaged live parts. Damaged parts must be immediately replaced by an authorised service company.
• Discharge the device before maintenance work and cleaning.
• Only use the device in complete dry environment and do not touch it with wet or moist parts of your body.

- Never use the device with defective or damaged components (e.g. housing, cable, lamp, etc.).

! DANGER

Risk of suffocation

Improper use of this product can result in suffocation. This is particularly dangerous for children. The following safety information must be observed at all times.

- Keep packaging materials (plastic bags, rubber bands etc.) away from children. They can cause suffocation.

WARNING

Danger of glare!

Make sure people and animals do not stare into the light. Due to the high power of illumination, your eyes can be glared or after-images may achieve. This visual impairment can cause accidents.

CAUTION

Risk of burns!

Never touch parts of the device during operation or until it has sufficiently cooled down (about 45 min. after switching off)!

CAUTION

Danger of injury!

This device contains components and/or accessories that can cause minor to severe injuries in case of any improper use. Therefore please read the safety instructions below to avoid any bodily injury.

• Always handle flash tubes and lamps with special care. Pieces of glass may cause serious or fatal injury to eyes and skin!
- Tools with sharp edges and points are often used when working with this device. Because there is a risk of injury from such tools, store this device and all tools and accessories in a location that is out of the reach of children.

! DANGER

Risk of explosion

Improper use of this product can cause an explosion. The following safety information must be observed at all times to prevent an explosion.

- Do not expose the device to high temperatures. Use only the power supply provided. Never short-circuit the device or throw it into a fire. Excessive heat and improper handling of this product can result in short-circuits, fires or even explosions.

CAUTION

Fire hazard!

In case of any improper use of this device, there is a risk of fire. Therefore please read the safety instructions below to avoid the initiation of burning.

• Due to extreme heat development of some components of up to 250^ there is an acute FIRE HAZARD! Always set up the device securely, so that it may not turn over. Ensure for a safe storage.
• Keep children and animals away from the device! They could overturn the device.
• Make sure that no one can trip over the connection cables of the device. The device could be overturned.
• Never turn on the device with its protection cap fitted.
• Never cover the ventilation slots or cooling fins of the device while using it or as long as it has not sufficiently cooled down!
• Keep flammable materials away from the device!
• Operate this device only installed with open softboxes to prevent fire hazard due to heat build!

NOTICE

Risk of damage to property

Improper handling can result in damage to the device and/or to the accessories. Always observe the following safety information when using the device.

• Never disassemble the device. In the event of a fault, please contact your specialist retailer. The specialist retailer will contact the service centre and send the device for repair if necessary.
• Perform all cleaning and maintenance work at the device only as described in the instruction manual.
• Do not expose this device to higher temperatures and protect it from water and high humidity.
• Protect the device from severe shocks!
• For this device only use accessories and spare parts that comply with the technical information.
• Never touch flash tubes or lamps with bare hands! Use clean cotton gloves or a clean cloth when inserting or suspending them.

5 Parts overview and scope of delivery

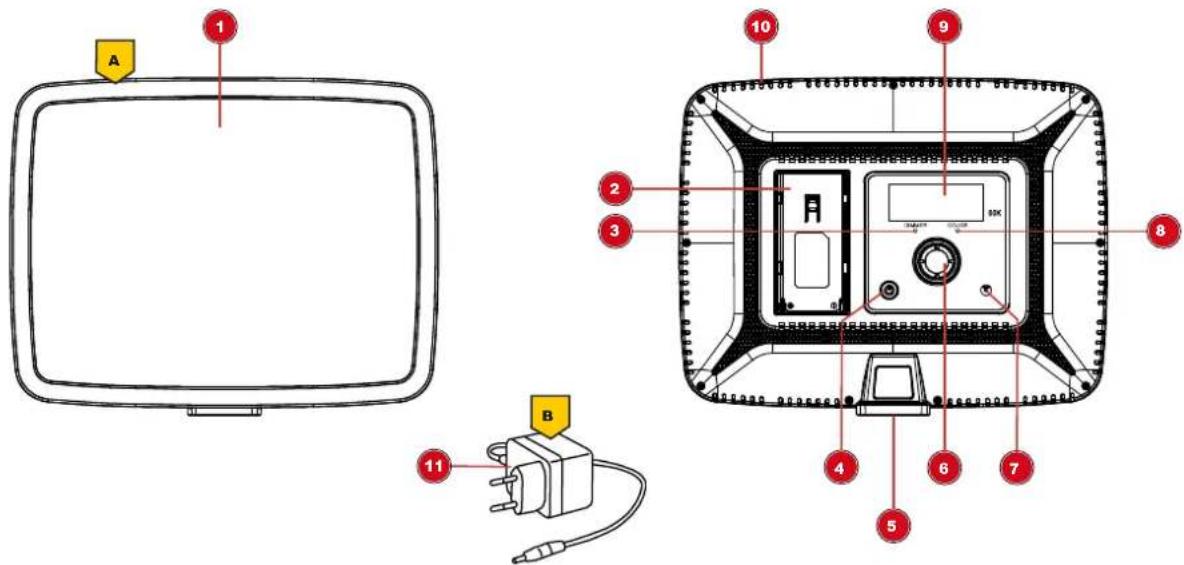

Illustration 1: All parts of the LED light

1 LED lighting panel 2 Battery socket (adding suitable batteries* for mobile use) (optional)

3 Funktion indicator (light intensity) 4 ON/OFF button (switch device on/off)

5 Connection thread 6 Adjusting knob (selecting setting mode or increasing or decreasing setting value)
7 DC connection socket for coaxial/barrel connector	8 Function indicator (colour temperature)
9 LED display (diplay of the settings) 10 Vents
11 DC power adapter with coaxial/barrel plug

* suitable battery types NP-F750 or NP-F960 not included

Scope of delivery:

LED light (A), power adapter (B)

6 Establishing the power supply (mains operation)

WARNING! The device can not be operated at the same time by mains power adapter and by battery!

1. Put the DC connector into the connection socket of the device.
2. Insert the mains plug into the power outlet.

CAUTION! Before switching on the device, make sure that only one voltage source is used (power adapter or battery)!

1. Press On/Off button to turn the device on or off.

NOTICE! If the device is not used for a long time, disconnect the device from the power supply (pull out mains plug or remove battery).

7 Power supply via battery (optional)

WARNING! The device can not be operated at the same time by mains power adapter and by battery! To avoid voltage damage, always operate with only one of the two possible voltage sources!

As an alternative to the power supply through mains voltage, the device can also be powered by a battery*.

NOTICE! Only use the type of battery described in this manual. Use of an unsuitable or unauthorized battery will damage the device and void the warranty.

1. Charge the rechargeable battery* completely.
2. Insert the battery into the battery socket at the backside of the housing.

CAUTION! Before switching on the device, make sure that only one voltage source is used (power adapter or battery)!

1. Move ON/OFF toggle switch to position 'I' to operate the device by battery and to turn on the device.
2. Move ON/OFF toggle switch to position '0' to turn off the device.

*not included

8 Lighting settings

1. Press adjustment knob several times to set the desired mode.
2. Depending on the selected mode, one of the following function indicators will light:

• function indicator 'Dimmer': light intensity from 10 (10%) to 99 (99%) settable stepless
• function indicator 'Color': colour temperature from 32 (3,200K) to 56 (5,600K) settable stepless

1. Rotate adjustment knob to the right (+) to increase the respective value. Rotate the adjustment knob to the left (-) to decrease the respective value.

9 Remote control (optional)

The device can be controlled with a suitable 2.4GHz remote control* over the built-in receiver. When using the same channel, different devices can be operated at the same time through the remote control*.

To control the device through a remote control, proceed as follows:

1. Turn on the device(s).
2. Set the desired receiving channel to all lights being controlled.
3. Set the channel also for the remote control.

NOTICE! Only use the remote control recommended for this type of light! If a light is not to be controlled synchronously, simply change the channel on the corresponding light.

*not included

10 Setting a channel for remote control

1. Press the djustment knob for approx. 2 seconds until two digits will flash in the display (currently set channel).
2. Rotate adjustment knob to the right (+) to increase the value. Rotate the adjustment knob to the left (-) to decrease the value.
3. Once the number on the display does not flash anymore the new channel value has been saved.

11 Technical data

Model BR-24B (bicolor)

Power consumption 24W

Number of LEDs 240

Luminous flux 2,400 LM

Lamps LED, not replaceable

Color temperature 3,200K to 5,600K

Dimmer digital, 10% to 100%

Operating voltage DC 8.0V via power adapter

or optional

via lithium battery

1x NP-F750/NP-F960

Operating conditions dry, 0°C to +40°C

Storage conditions dry and dust-free, 0^ C to +40^ C

Table 1: BR-24B

NOTICE! The LEDs used in this device have a very long lifespan and do not need to be changed. The LEDs can not be changed due to technical reasons!

12 Disposal

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!

As per Directive 2012/19/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

13 EC Declaration of Conformity

Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable guidelines and corresponding standards. The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/F004238/CE/F004238_CE.pdf

Inhoud

Please contact the service centre first for any questions regarding the product or claims, preferably by e-mail.

e-mail: [e-mail]

Telephone*: [phone]

BRESSER UK Ltd

Unit 1 starborough Farm,

Starborough Road, Nr Marsh Green,

Edenbridge, Kent TN8 5RB

Great Britain

* Number charged at local rates in the UK (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.

FR BE
