Product Type	Oil-filled radiator (oil heater)
Model Number	RACP-100D
Power Consumption	1000W
Voltage / Frequency	230V ~ 50Hz
Heat Settings	Adjustable thermostat with continuous control
Heating Elements	Multiple oil-filled columns (number not specified)
Control Type	Manual ON/OFF switch and thermostat dial
Indicator Light	Yes, lights when heating
Safety Features	Overheat protection (thermal cut-out), do not cover warning
Assembly Required	Attach front and rear base
Cleaning	Wipe with a dry or slightly damp cloth
Storage	Cool, dry place after cooling down
Operating Position	Vertical only
Minimum Distance from Walls	50 cm
Intended Use	Domestic indoor heating only
Disposal	Do not dispose with household waste; recycle at designated collection points
Oil Type	Special oil (factory sealed, non-serviceable)
Package Contents	Radiator, base parts, instruction manual

Frequently Asked Questions - RACP-100D Grunkel

How do I assemble the Grunkel RACP-100D radiator?

Attach the rear base to the bottom of the radiator, then snap the front base onto the lower front part until firmly fixed. Ensure the appliance is stable before plugging in.

How do I clean the oil heater?

Unplug the appliance and let it cool completely. Wipe with a dry or slightly damp cloth. Never immerse in water or allow water to enter the unit. Do not use chemical or abrasive agents.

Why does the indicator light turn on and off?

The thermostat cycles on and off to maintain the desired temperature. The indicator light illuminates when the heating elements are active and turns off when the set temperature is reached.

Can I refill the oil in the radiator?

No, the appliance is filled with a precise amount of special oil and is factory-sealed. Do not attempt to open the oil reservoir. If there is a leak, contact an Authorised Service Centre.

Can I use the heater in a bathroom?

No, do not use this heater near bathtubs, showers, or swimming pools to avoid electric shock risk. It is for indoor domestic use only.

How should I store the heater when not in use?

Allow the appliance to cool completely, then place it in the original box and store in a dry, ventilated place. Do not place heavy objects on top of the box.

What does the thermostat control do?

Turn the thermostat dial clockwise to increase temperature and counterclockwise to decrease. The thermostat will cycle on and off to maintain the set temperature.

What safety features does the heater have?

The heater includes overheat protection (thermal cut-out) and warnings against covering. Do not place near flammable materials or use as a drying rack.

Why does the heater make a clicking sound?

The thermostat clicking on and off is normal. The oil may also make soft gurgling sounds during operation, which is normal.

Is the heater suitable for commercial use?

No, this appliance is intended for domestic use only. Commercial use will void the warranty.

USER MANUAL RACP-100D Grunkel

White Grunkel air conditioner with coiled heat sink and control panel (no visible text or symbols on body)

RACP-80D | RACP-100D

Radiador de aceite

Two people smiling while looking at a document or book (no visible text or symbols)

Modern TV displaying a basketball player in action against an orange and yellow background (no text or symbols visible)

Exterior view of a modern espresso machine with two cups on the side (no visible text or symbols)

White microwave oven with control knobs and a black screen, set against an orange background (no visible text or symbols)

White electric heater with vertical cooling fins and a digital display on top, mounted on wheels against a solid brown background (no visible text or symbols)

White microwave oven with a biological organ inside, set against an orange background (no visible text or symbols)

White handheld vacuum cleaner with blue internal circuitry, shown against a solid green background (no text or symbols visible)

White standard 2<|im_start|> Guy's toaster with black lid and side buttons, set against a solid purple background (no text or symbols visible)

Close-up of a stainless steel and black coffee maker with a spool of liquid, set against a solid purple background (no text or symbols visible)

Close-up of a black frying pan with a metallic rim, set against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black stand against a blue background (no text or symbols)

White kitchen hand mixer on a pink background (no text or symbols visible)

Black iron iron with red handle and spout, displayed against a solid green background (no text or symbols visible)

Modern kitchen electric fryer with a side dish, placed on a purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRUNKEL

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable power supply.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow it to get in touch with sharp or blunt objects. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

GRUNKEL

Do not switch on the appliance near furniture, curtains, bed linen, cloths or papers.

Do not use the appliance near flammable liquids or materials.

Do not place the heater under a power socket.

Do not leave the appliance unattended.

Do not cover the appliance when it is operating to prevent overheating.

In case the cable is damaged, send it to the Official Service Centre for replacement.

CAUTION: Never cover the heater as this may cause fire. DO NOT USE AS A DRYING OR HEATING RACK FOR DRYING OR WARMING CLOTHES, TOWELS, LAUNDRY SHEETS etc. Covering the heater and heater vents may cause a fire.

Do not connect the appliance to extension cords or multiple sockets.

Never allow the cord to touch hot or wet surfaces, kink or become entangled in or near the reach of children.

Do not damage or bend the cord. Before cleaning the appliance or performing any maintenance, please switch it off, disconnect it from the mains and wait for it to cool down completely.

If the appliance is not working, turn it off without tampering. If any repairs are required please contact the manufacturer's approved after-sales service and ask for original parts. Otherwise the safety of the appliance may be compromised.

If the power cable is damaged it must be replaced. Please contact the official after-sales service.

Do not use this appliance near a bathtub, shower, or swimming pool.

Keep the appliance clean. Do not allow objects to enter through the vent or allow the vent to become covered, as this may cause an electric shock, fire or damage to the appliance.

Never attempt to open or disassemble the appliance or remove any of its parts.

WARNING: Some parts of this product may become very hot and cause burns. Pay particular attention if it is to be used by children or vulnerable persons.

After use, do not store the appliance until it has cooled down. Store in a cool, dry place when not in use.

GRUNKEL

Do not insert or allow any objects to enter any ventilation openings. This could cause an electric shock, result in fire or damage the appliance.

This appliance is filled with a precise amount of special oil. Servicing requires opening the oil reservoir. This should only be carried out by an Authorised Service Centre. Do not attempt to repair it yourself. If there is an oil leak, please contact the Service Centre.

Do not place the appliance on a carpet or cover the cable under a carpet. Place the cable away from common walking areas to avoid accidental tripping.

During operation the appliance should be at least 50cm away from walls.

Keep the appliance away from sources of heat, sharp objects or anything else that may cause damage.

Do not use the appliance outdoors.

Do not use the appliance with a damaged cord or plug or after the appliance has malfunctioned or has been damaged in any way. If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician in order to avoid a hazardous situation.

The appliance is not intended to be operated by means of an external timer or a separate remote control system.

Do not handle the appliance with wet hands.

During the first few uses the appliance may emit a soft sound. This is normal.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

CAUTION

Hot surface

GRUNKEL

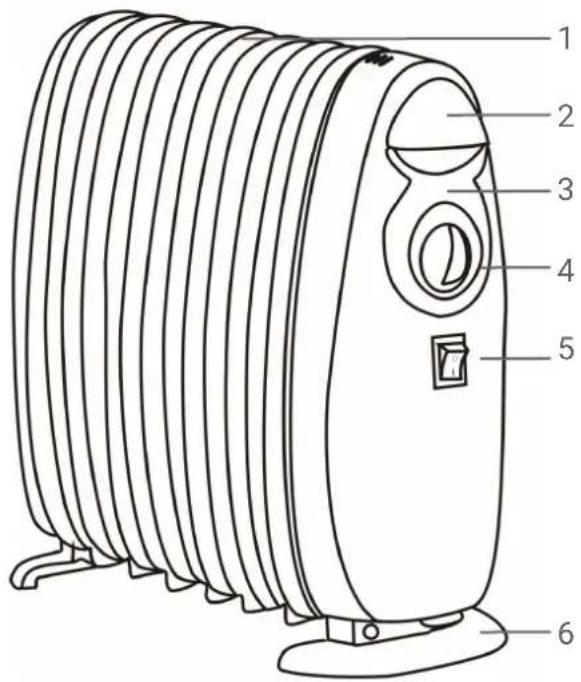

Part identification

Number Description
1 Heating elements
2 Handle
3 Panel
4 Thermostat
5 ON / OFF switch
6 Base

Assembly

Fit and secure the rear base to the bottom of the radiator until it is correctly installed.

To attach the front base, snap the piece onto the lower front part until it is firmly fixed.

Before plugging in and switching on the appliance, make sure that it is stable on the surface.

WARNING: Always keep the appliance in vertical position.

Operation

Connect the appliance to the mains. Make sure that the switch is turned off and the thermostat control is in the minimum position.

Press the switch and turn the thermostat control clockwise until you hear a click. This sound indicates that the radiator is on. The indicator light will also come on. Continue turning the thermostat control clockwise to the maximum setting.

To increase the temperature, rotate the thermostat clockwise. To decrease the temperature, turn the thermostat counterclockwise.

The thermostat will cycle on and off to maintain the desired temperature. The indicator light will illuminate when the thermostat is operating.

NOTE: This appliance is filled with oil which will cool slowly after it has been switched off. Allow the appliance to cool completely before moving or storing.

GRUNKEL

Cleaning and storage

This appliance only requires periodic exterior cleaning.

Before cleaning, make sure that the appliance is switched off and unplugged, and that it has cooled down completely after use.

Use only a dry or slightly damp cloth for cleaning.

Do not use chemical or abrasive agents directly on the appliance.

Never immerse the unit in water or allow water to enter the unit.

Always unplug the appliance and allow it to cool down completely before storing it.

If the appliance is not to be used for a long period of time, place the unit and the instruction manual in the original box and store it in a dry and ventilated place.

Do not place heavy objects on top of the box during storage, as this may damage the appliance.

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

RACP-80D: 230V \~50Hz / 800W | RACP-100D: 230V \~50Hz / 1000W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
