Type de produit	Tumble drier
Brand	Bomann
Model	WPT 7153
Capacity (max dry weight)	8.0 kg
Dimensions (H x W x D)	84.5 x 59.5 x 58.0 cm
Net weight	approx. 43.0 kg
Power supply	220-240 V~ / 50 Hz
Rated power	650 W
Energy consumption (Cotton full load)	1.92 kWh
Type	Heat pump with refrigerant R290
Programs	Cotton, Synthetics, Delicates, Express 30', Shirts, Towels, Bedding, Downwear, Sportswear, Auto Dry, Baby Care, Refresh, Wool, Time Dry, Allergy Care
Features	Program selector, display, delay end (1-24h), crease protection, child lock, mute, degree of drying selection, lint filter, condensate tank, heat exchanger, humidity sensors
Installation clearances	Sides: 10 cm, Rear: 5 cm, Front: door fully open
Drain options	Condensate tank or direct drain via hose
Filter cleaning	Before or after each use
Condensate tank emptying	After each drying process
Heat exchanger cleaning	Every 3 months
Humidity sensor cleaning	With vinegar regularly
Safety features	Child lock, overheating protection, refrigerant R290 handling warnings
Standby power consumption	0.59 W
Off-mode power consumption	0.49 W

Frequently Asked Questions - WPT 7153 BOMANN

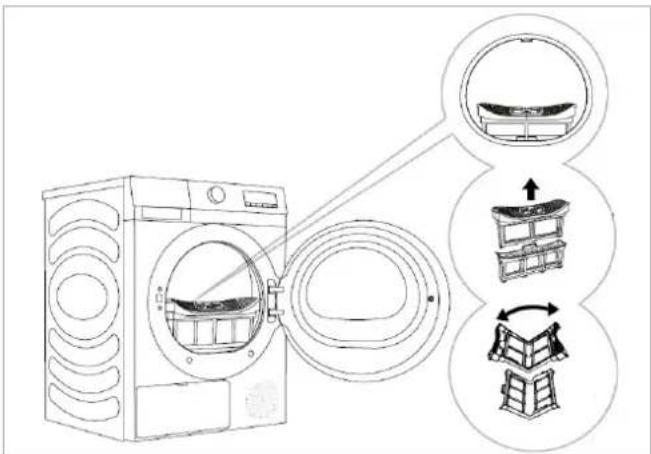

How do I clean the lint filter?

Remove the filter by pulling it upwards and unfolding it. Wipe off the fluff by hand or with a damp cloth, or clean it under running water. Dry thoroughly before reinserting.

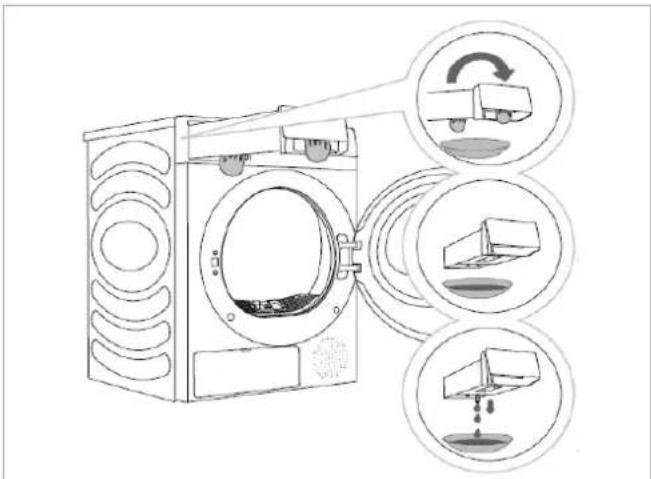

How do I empty the condensate tank?

Pull the drawer cover and carefully remove the water tank. Empty it through the drain opening above a sink. Optionally, rinse with a mixture of neutral detergent and lukewarm water. Replace the tank.

What does error code E50/51 mean?

E50/51 indicates a fault. Switch the appliance off and on again. If the error persists, contact an authorized technician.

Can I install the dryer under a worktop?

Yes, provided minimum clearances (10 cm sides, 5 cm rear) are maintained. The appliance door must be able to open fully.

What is the maximum load capacity?

The maximum dry weight is 8.0 kg. Do not overload, as it impairs drying performance and may cause damage.

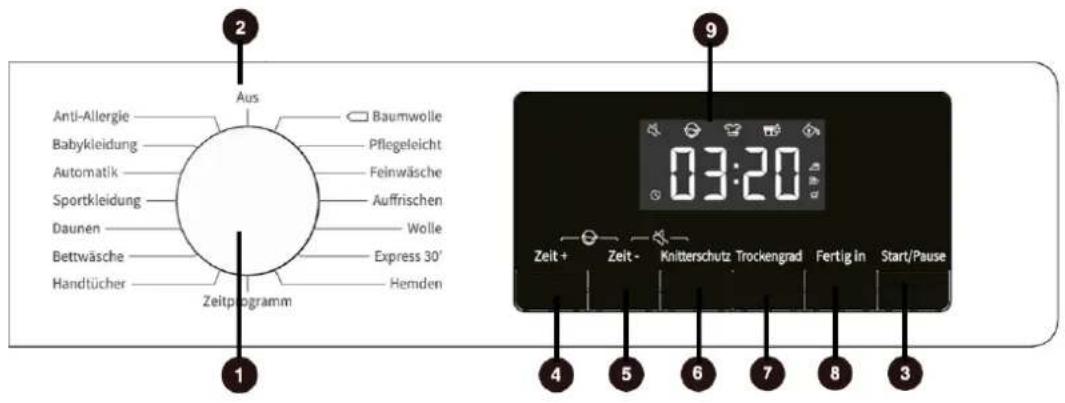

How do I activate the child lock?

After starting a program, press and hold the Increase time (button 4) and Reduce time (button 5) simultaneously until the child lock LED lights up. Repeat to deactivate.

What does the crease protection function do?

If laundry is not removed after drying, the drum rotates at intervals for up to 12 hours to prevent creases. Touch any button or open the door to end it early.

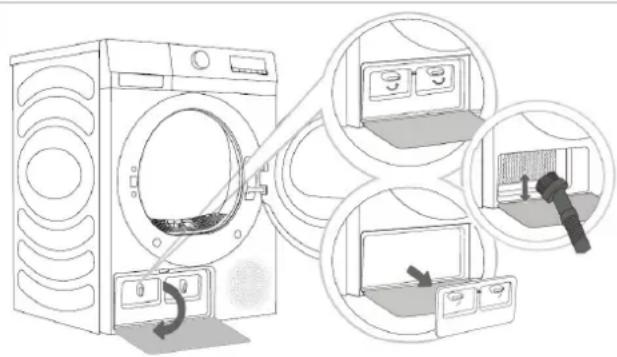

How do I clean the heat exchanger?

WARNING: Risk of injury from sharp edges. Open the base cover, unlock and remove the heat exchanger cover. Use a soft brush or vacuum cleaner with brush attachment to remove lint. Replace cover and close locking levers.

Why is the actual drying time longer than the displayed time?

The displayed time is an estimate based on standard conditions. The appliance adjusts automatically based on load, moisture, and temperature. Variations are normal to ensure optimal drying.

What should I do if the refrigerant circuit is damaged?

Avoid open flames or ignition sources, disconnect the plug, thoroughly ventilate the room, and contact an authorized technician. The appliance contains flammable refrigerant R290.

USER MANUAL WPT 7153 BOMANN

Illustration of a simple washing machine with front panel, grille, and button (no text or symbols)

! Before putting the device into operation, carefully read the safety information and instructions for use!

General notes page 23

Special safety information for this unit ...... page 24

Transport and packaging ...... page 25

Appliance equipment ...... page 26

Installation page 27

Startup / Operation ...... page 29

Cleaning and maintenance ...... page 36

Troubleshooting page 37

Technical data page 38

Disposal page 38

Einleitung

Top-down diagram of a washing machine with circular wheels and directional arrows indicating 90° rotation (no text or symbols on the device itself)

1 Kondensatbehälter

5 Flusenfilter

Line drawing of a washing machine with a hand adjusting its spring and valve mechanism (no text or symbols)

$$ \hookrightarrow 1: 0 0 \to 2: 0 0 \to 3: 0 0 \to 4: 0 0 \to 5: 0 0 \to 6: 0 0 \to \dots \to 2 4: 0 0 \leftarrow $$

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; functions and methods of use remain unchanged.
• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

WARNING: Hot surface! Danger of burns!

The touchable surfaces may become very hot during operation.

WARNING:

• In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.
• Never switch the appliance off before the end of the drying cycle unless all washing is taken out quickly and spread out so that the heat can be dissipated.
• The appliance must not be connected via an external switching device, such as a timer or be connected to a circuit that is regularly turned on and off by a device.

- The dry weight of laundry must not exceed the max. capacity of 8.0 kg.

- The ventilation openings in the appliance base (if existing) may not be blocked, e.g. by carpeting.

- Do not place the appliance behind a lockable door, a sliding door or a door with a hinge that is opposite the door hinge of the appliance in such a way that the appliance door is restricted from opening fully.

- Be sure to follow the "Drying instructions" given in the chapter "Startup / Operation".

- The appliance must not be used if industrial chemicals have been used for cleaning.

- Never use the appliance without installed filter. Clean the lint filter before or after each use.

• Make sure that fibres, dust and other debris do not accumulate around the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children under 3 years should be kept away unless they are constantly supervised.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children, unless they are older than 8 years and are supervised.
• Do not repair the appliance yourself, but consult an authorized specialist. If the mains connection cable of this appliance is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid hazards.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Refrigerant

WARNING: Risk of fire / flammable

materials

The appliance contains an environmentally friendly but flammable refrigerant R290. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the refrigerant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,

- thoroughly air the room in which the appliance is installed and

- contact an authorized technician.

Transport and packaging

Transport the appliance

If possible, transport the appliance in a vertical position.

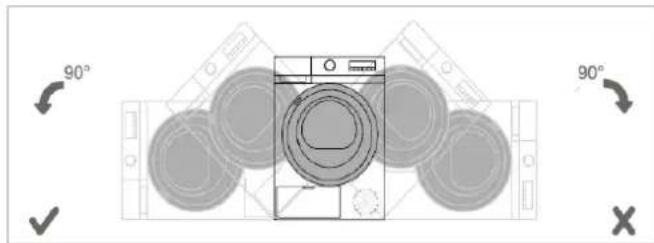

If the appliance needs to be laid down during transportation or maintenance, place it carefully and only on the left-hand side of the appliance.

Top-down architectural diagram of a washing machine with circular windows and directional arrows indicating 90° rotation (no text or symbols)

Secure the appliance sufficiently and protect it against weather during transport.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.

Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.

• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

Appliance overview

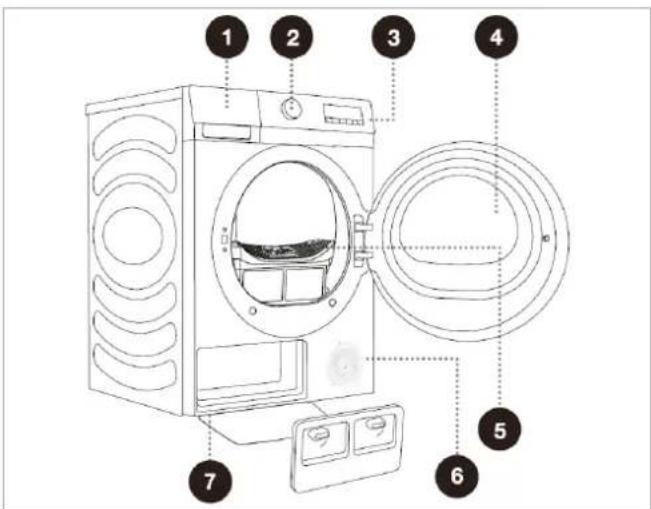

Front view

1 Condensate tank 5 Lint filter
2 Program selector switch 6 Ventilation grille
3 Control panel 7 Heat exchanger

4 Appliance door / cover bull's eye

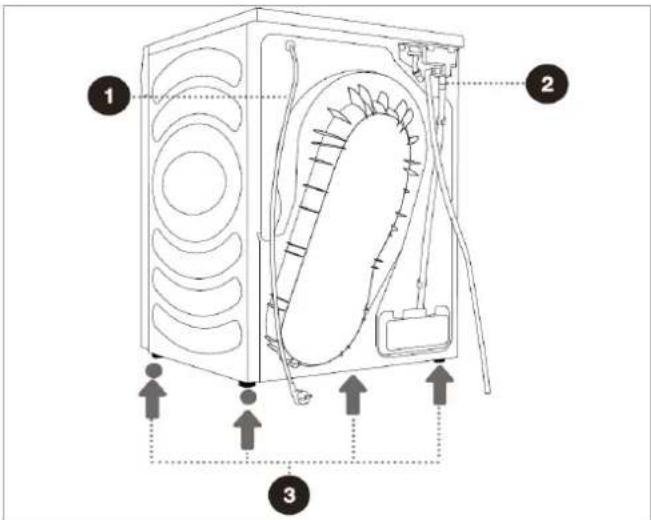

Back view

1 Mains connection plug
3 Feet
2 Condensate drain hose

Delivery scope

1x condensate drain hose

Working principle heat pump

Hot process air flows through the drum and thereby the therein wet laundry.

The humidity of the laundry is absorbed by the air, and then discharged in the heat pump. There, the air is cooled using a refrigerant, which stores the extracted energy.

Energy is not (hardly) getting lost, because this is used to warm the cooled air, which is then transferred to the laundry and thus the circle is closed.

Installation

WARNING:

The appliance must not be connected to the mains during installing. Otherwise, there is danger to life or electric shock hazard!

Installation location

• The site should be located near a properly grounded power socket. The socket must be freely accessible.
• Good ventilation around the appliance is required, to dissipate the heat properly. Enough clearance must be created for this purpose.
• The free space in front of the unit should be so that the appliance door can be opened without hindrance.
• Make sure that the floor on which the appliance is installed, is even, heat-resistant and clean.
• Take care of a solid and horizontal position of the appliance. If the appliance is not horizontally leveled, adjust the feet accordingly (see "Leveling the appliance").

Two identical line drawings of a washing machine with checkmarks indicating alignment (no text or symbols)

- Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;
• at locations with high humidity (e.g. outdoors), as metal parts would be susceptible to corrosion under such circumstances;
• in places where the temperature could drop below 5°C and rinse above 35°C. Do not expose the appliance any weather.
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.).

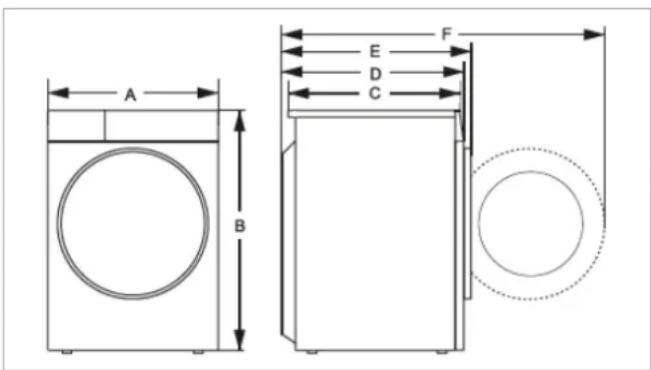

Appliance and installation dimensions

WARNING:

For reasons of electrical and mechanical safety, the appliance cover must not be removed!

Unit in mm

A	B	C	D	E	F
595	845	520	550	580	1060

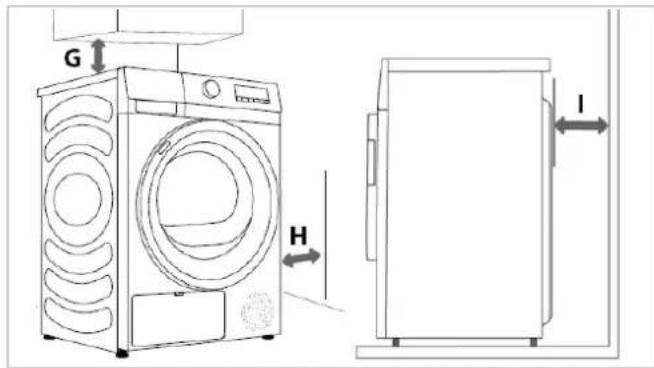

The appliance can only be positioned under a work-top if the minimum clearances around the appliance can be maintained.

G 10 cm

H 10 cm

I 5 cm

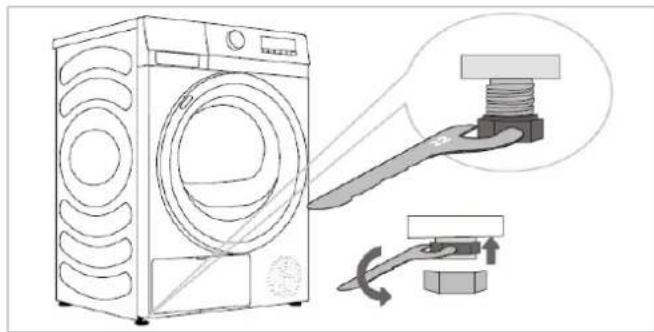

Aligning the appliance

The feet can be used to compensate for slight unevenness in the floor.

CAUTION:

The feet must never be removed. Do not restrict the floor clearance through carpets, strips of wood or similar. Danger of heat accumulation!

Line drawing of a washing machine with a hand operating a spring and a button press, showing mechanical components (no text or symbols)

• Loosen the lock nuts using a spanner no. 22. The appliance feet can be leveled by +/- 1 cm by turning them.
• Tighten the lock nuts if the appliance is level. The feet must be in firm contact with the floor.
• Use a spirit level to check that the appliance is level. If the appliance is not level, the feet must be readjusted.

Draining the condensate

The dryer's condensation water can optionally be drained into the condensate tank or directly via a drain connection.

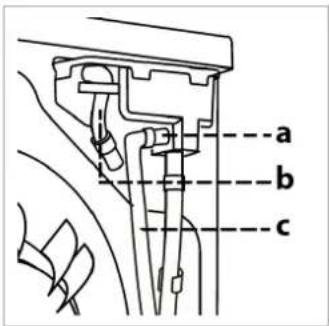

Delivery condition: hose (b) is attached to the connection piece (a) for draining the condensation water into the condensate tank.

• Detach the hose (b) from the connection piece (a). Then attach the enclosed drain hose (c) to the empty connection piece (a).
• Now connect the hose (c) to the desired drain connection, e.g. a drain pipe or a sink.
• Attach the hose securely to prevent it from changing position and causing water to escape.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not use multiple sockets or extension cords.
• It is not allowed to modify the plug provided with the appliance! If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must always be ensured to disconnect the device from the power supply in case of an emergency.

• Make sure that the voltage supply matches the specifications on the rating label (appliance back) before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Intended use

The appliance is intended for use in private households. It is used for drying and refreshing textiles that have been washed in water beforehand and are expressly marked as suitable for drying.

Prior using for the first time

• Remove any accessories and other materials from the appliance drum.
• Clean the appliance drum. Follow the instructions which we provide in the chapter "Cleaning and maintenance".
• Allow the appliance to dry the first time for about 30 minutes with old, damp clothes (see "Starting the program").

CAUTION:

After transport, the appliance should be left standing upright for approx. 2 hours so that the coolant can collect in the compressor. Nonobservance could lead to malfunction and causes an appliance breakdown.

Drying instructions

△ CAUTION: Do NOT dry in the appliance!

• Fabrics which are not tumble-dryer safe. Always follow the instructions on the care labels of your fabrics.
• Washing that has not been washed.
• Washing stained with cooking oil, acetone, alcohol, fuel, petrol, kerosene, stain remover, turpentine, wax, or wax remover. This must be washed first in the washing machine with hot water and detergent before drying.
• Objects such as foam rubber (latex), shower caps, waterproof fabrics, rubberized items, and items of clothing or pillows with foam rubber flakes.

- Softeners or similar products should be used as specified in the softener instructions.

- Remove all objects from pockets, such as matches and lighters.

• Close zips, buttons, or hooks before drying. Tie loose straps or loops together.
• Always follow the instructions on the laundry label when drying:

suitable for drying	non-iron	gentle drying	not suitable for drying
do not dry	no chemical cleaning	any temperatures	high temperatures
medium temperatures	low temperatures	without heat	hang up to dry
spread out to dry	hang up wet	spread out in the shade	suitable for chemical cleaning

Adding laundry

• Loosen the washed textiles and sort them according to the desired drying pattern, fiber and fabric type, same size and residual moisture after spinning. This makes drying especially smooth.
• Do not overload the appliance. Each load should correspond to the rated capacity of the appliance.
• Ensure that no items of washing are trapped in the door.
• Close the appliance door. Make sure that no laundry items are trapped between the appliance door and the gasket.

i NOTE:

Note that the settings, functions and additional options are program-dependent!

1 Program selector switch

To select a program, turn the program selector switch to the corresponding position. Details on the programs can be found in the "Program overview" section.

Estimated program times are shown on the display.

2 Off-position

To switch the appliance off, turn the program selector switch back to the off position.

3 Start/pause

Button to start/pause the selected or running program.

After the program has started, the expected remaining time is shown in the display as [x:xx] hours and minutes. If the appliance is in pause mode, the seconds dot symbol lights up continuously between the hours and minutes.

4 Increase time

Button to increase the drying time in the time-controlled programs.

5 Reduce time

Button to reduce the drying time in the time-controlled programs.

6 Crease protection

If the laundry cannot be removed in time after drying, select the crease protection program. During this time, the drum rotates at intervals to prevent the laundry from creasing.

Press the button to activate/deactivate the crease protection function. The corresponding LED lights up or goes out.

Touch any button or open the appliance door to end crease protection mode. If there is no activity on your part, the function will end automatically after about 12 hours.

Child lock

Activate the child lock to prevent careless pressing of buttons or incorrect operation.

To activate/deactivate, keep pressing the button combination 4+5 after starting the program until the corresponding LED lights up or goes out.

Mute

To activate/deactivate the signal tones, keep pressing the button combination 5+6 until the corresponding LED lights up or goes out.

7 Degree of drying

Button for selecting the drying effect. The corresponding LED indicates the selection.

	the laundry can be sorted immediately after drying
	very little moisture in the fibers of the fabric, clothes can be worn immediately
	with residual moisture, making the laundry easier to iron

8 Delay end time

The end of the program can be delayed between 1 and 24 hours by repeatedly pressing the button.

$$ \hookrightarrow 1: 0 0 \to 2: 0 0 \to 3: 0 0 \to 4: 0 0 \to 5: 0 0 \to 6: 0 0 \to \dots \to 2 4: 0 0 \leftarrow $$

Select and start a program. Based on the previously selected operating conditions, the program duration is calculated at which operation is automatically started in order to reach the selected end time preselection for switch-off.

Prerequisite: The delay time must be longer than the program duration of the selected drying program.

The estimated program end (time preselection + program duration) is shown in the display, the program is ended after [xx:xx] hours.

9 Display / LEDs

Display for settings and information
[150K]	Delay end time active
[65DK]	Child lock active
	Crease protection active
	Drying effect active
[DSGT]	Drying effect active
	Drying effect active
	Mute active
[KCTS]	Clean lint filter
[288T]	Empty condensate tank
End	End of drying program
various error codes are displayed in the event of a fault

various error codes are displayed in the event of a fault

Program overview

NOTE:

The listed values are approximate values and recommendations under normal conditions and therefore are non-binding. The consumption data and the running times may deviate from the specified values depending on the load, residual moisture and temperature.

Program	Recommended max. load	Default duration h:min	Time + / -	Crease protection	Degree of drying
Baumwolle / Cotton	8.0 kg	3:28	--	√	√
Pflegeleicht / Synthetics	4.0 kg	1:00	--	√	√
Feinwäsche / Delicates	1.0 kg	1:23	--	√	√
Express 30'	0.5 kg	0:30	--	√	--
Hemden / Shirts	2.0 kg	1:03	--	√	√
Handtücher / Towels	4.0 kg	1:43	--	√	√
Bettwäsche / Bedding	2.5 kg	2:56	--	√	√
Daunen / Downwear	2.0 kg	2:38	--	√	√
Sportkleidung / Sportswear	2.0 kg	1:33	--	√	√
Automatik / Auto Dry	4.0 kg	2:43	--	√	√
Babykleidung / Baby Care	2.0 kg	1:14	--	√	√

*the programs listed above have a reversing function especially for large loads.

Auffrischen / Refresh	no recommendation	predefined duration	√	√	--
Wolle / Wool	1.0 kg	predefined duration	√	√	--
Zeitprogramm / Time Dry	drying independent of load & humidity with predefined duration		√	√	--
Anti-Allergie / Allergy Care	2.0 kg	predefined duration	√	√	--

Consumption data

Program	Load	Washing machines spin speed	Duration	Energy consumption
Baumwolle / Cotton	8.0 kg	1200 rpm	3:28 h:min	1.92 kWh
	4.0 kg	1400 rpm	2:00 h:min	1.07 kWh
	2.0 kg	1400 rpm	1:35 h:min	0.64 kWh
Pflegeleicht / Synthetics	8.0 kg	1000 rpm	1:36 h:min	0.77 kWh
	4.0 kg	1000 rpm	1:00 h:min	0.46 kWh

The consumption data and running times may deviate from the specified values depending on the type of laundry, load, residual moisture, temperature and additionally selected functions.

Power consumption in off mode 0.49 W / in standby mode 0.59 W.

Notes on the standard program and general energy-saving tips

• Standard program: ◇ Cotton, with a full load and partial load, this drying program is used to determine the information on the energy label. This program is suitable for drying normal wet cotton textiles and is the most efficient in terms of energy consumption for cotton.
• Loading the household dryer up to the capacity specified for the respective programs helps to save energy. Use the maximum capacity of the respective program.
• Select the drying program according to the type of laundry and the degree of dryness required.
• Do not over-dry the laundry. This is gentle on your laundry, prevents creasing and saves energy.
• Clean the filters regularly to avoid excessive drying and high electricity consumption.
• Ventilate the room well. The room temperature should not exceed 35^ .

Program short description

Cotton	Normally damp cotton textiles, e.g. towels, sheets, covers, underwear, etc.Use this program for thicker, insensitive cotton laundry of approx. the same thickness.
Synthetics	Suitable for synthetic fibers and blended fabrics that need to be dried at lower temperatures.
Delicates	Gentle for delicate fabrics such as silk and lace at a lower temperature and shorter drying time.
Express 30'	A short program for small quantities or slightly damp clothing that dries in a short time.
Shirts	Suitable for drying shirts and blouses at a medium temperature, shorter drying time and gentle drum movements.
Towels	For robust textiles such as towels. Dries at high temperatures, textiles can be put away in the wardrobe immediately.
Bedding	Suitable for drying large, heavy textiles such as comforter covers, sheets and blankets at a higher temperature and longer drying time.
Downwear	Especially for drying down items such as jackets, comforters and pillows at a lower temperature, longer drying time and gentle drum movements. It is recommended to put drying balls in the dryer.
Sportswear	Suitable for drying functional and sports textiles, thin and light fabrics, microfiber, polyester.
Auto Dry	Suitable for different types of laundry. The degree of drying of the laundry is monitored and the drying time is automatically adjusted.
Baby Care	For drying delicate baby clothes so that they are ready to wear.
Time controlled programs
Refresh	For worn but not soiled clothing to remove and refresh odors.
Wool	Especially for wool clothing that needs to be dried gently to prevent shrinkage and felting.
Time Dry	Dries for a predefined duration regardless of load and humidity.Ideal for small quantities of laundry and post-drying multi-layered textiles.
Allergy Care	For removing allergens such as dust mites, pollen and animal hair at higher temperatures and longer drying times.

Automatic drying programs

The appliance has a humidity sensor, this detects the humidity of the load and automatically adjusts the optimal drying time. The electronic control guarantees the best drying results even with a low load.

Note: except for the time-controlled programs.

Capacity

Do not overload the appliance, otherwise the textiles will be strained and the drying will be impaired. Observe the information in the "Program overview".

Starting the program

i NOTE:

Humming sounds at the beginning of a drying process, which are generated by the compressor start-up, are normal.

• Connect the appliance to the power supply and switch it on.
• Put your laundry into the drum.
• Close the appliance door properly.

• Set the required operating conditions.
• Start the drying program.

Changing the program

A change is not possible after the program has been started. To be able to select a new program, you must switch the appliance off and on again.

End of program

At the end of the drying process, the display appears [End]. Several beeps sound (provided the mute is deactivated).

The control panel switches to standby mode and the appliance carries out an automatic crease protection phase.

Automatic crease protection phase

If the laundry is not removed after the end of the drying program, the appliance carries out an automatic crease protection phase of approx. 30 minutes (the crease protection LED flashes).

Note: except for the time-controlled programs.

The appliance continues its drum movements at intervals, thus protecting the textiles from creasing. Then operation is finally stopped. Laundry can be removed during the crease protection phase.

Switch off

• Switch off the appliance.
• Clean the lint filter and empty the condensate tank as described under "Cleaning and maintenance".
• Keep the appliance door slightly open until the next drying cycle to prevent odors from forming.
• If the appliance is not used for a longer period of time, disconnect the appliance from the power supply.

Cleaning and maintenance

WARNING:

• Always switch off the appliance and disconnect it from the power supply before cleaning and user maintenance.
• Allow the appliance to cool down enough before cleaning. Scalding!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.

Maintenance of the dryer

• Clean the appliance outer surfaces, the ventilation grille and the door sealing thoroughly with a soft, damp cloth. Use only mild cleaning agent.
• Check the drum regularly for dirt or fiber residues; also clean the drum and the inside of the door with a soft, damp cloth.
• Dry the appliance thoroughly before taking in operation again.

Cleaning the lint filter

The lint filter in the door opening catches all the lint that accumulates during drying.

△ COUTION:

• A dirty filter impairs the drying result. Check and clean the filter before or after each drying process.
• The appliance must never be operated without the filter in place. Incorrect insertion of the filter can impair performance and damage the appliance.

• Remove the filter by pulling it upwards and unfolding it.
• Wipe off the fluff by hand, use a damp cloth if necessary or clean the filter under running water.
• Dry the filter thoroughly and reinsert it correctly.

Emptying the condensate tank

Empty the condensate tank in the control panel after each drying process!

iNOTE:

It is not necessary to empty the condensate tank if the drain hose is connected directly to a drain.

• Pull the drawer cover and carefully remove the water tank.

• Empty the water tank through the drain opening above a sink.

• For occasional cleaning, fill the tank with a mixture of neutral detergent and lukewarm water and rinse thoroughly.

• Replace the water tank.

If the tank is overfilled while a program is running, the drying process stops and the corresponding message appears on the display.

- After emptying the water tank, press the start/pause-button to continue the drying process.

Cleaning the heat exchanger

The cleaning interval depends on the type and quantity of laundry but clean the heat exchanger (condenser) approx. every three months.

WARNING: Risk of injury!

DO NOT clean with bare hands as the heat exchanger fins have sharp edges.

• Open the base cover.
• Turn the opposite levers to unlock and remove the heat exchanger cover.
• Remove the lint carefully and without pressure using a soft brush or a vacuum cleaner with the appropriate brush attachment.
• Replace the heat exchanger cover and close the locking levers.
• Close the base cover.

Cleaning the humidity sensors

The residual humidity sensors are located in the interior below the door opening. The electronics use the residual humidity sensors to determine how damp or dry the laundry is.

The easiest way to clean is with vinegar. If it is carried out regularly, a layer of limescale cannot build up and impair the function.

• Wipe the metal surface of the sensors with a sponge soaked in vinegar or with a soft brush.
• Then rub them dry thoroughly.

Troubleshooting

Before you contact an authorized specialist

For some malfunctions, the display shows error codes to warn you:

Trouble / possible cause / measure

Appliance does not work or start

• Check the power supply.
• Is the door closed, is the appliance switched on or a program selected?
• Observe the maximum filling quantity.

Excessive drying time

• Check the program setting.
• Check lint filter and/or heat exchanger. Some programs have an air supply for cooling after drying.

Poor drying effect

• Make sure that the clothes have been centrifuged.
• Check the correct program selection.
• Observe the maximum load size.
• Check the lint filter and/or heat exchanger.

Trouble / possible cause / measure
Unusual noises and strong vibrations
- The appliance must stand level on a solid surface. Are the feet aligned?- Check the lint filter for objects that have become caught in it.
Housing is hot or there is a burnt smell
- Lint filter and/or heat exchanger needs cleaning.- Ventilation openings are blocked.
The operating time displayed differs from the actual program duration
For programs that stop automatically as soon as the laundry is dry, the drying time displayed is calculated according to the standard environment, initial laundry moisture, load quantity and load type. The drying time is automatically adjusted if the conditions change. The difference between the actual time and the displayed time is normal and ensures the best drying effect.
	LED lights up
Lint filter blocked, must be cleaned.
	LED lights up
Condensate tank full, must be emptied.
E50/51	Error code
Switch the appliance off and on again. If the error persists, call a specialist company.

i NOTE:

If a problem persists after following the steps above, contact your distributor or an authorized technician.

Technical data

Electrical connection....

Connection voltage: 220-240 V\~ / 50 Hz

Connection power: 650 W

Dimension H x W x D / Weight......

Unit size: 84.5 x 59.5 x 58.0 cm

Net weight: ....approx. 43.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

This symbol indicates that this product must not be disposed of with household waste in accordance with the Waste Electrical and Electronic Equipment Directive (2012/19/EU) and national legislation. Improper handling of waste electrical and electronic equipment can have negative effects on the environment and human health due to potentially hazardous substances that are often contained in waste electrical and electronic equipment.

Consumers are legally obliged to dispose of electrical and electronic appliances separately from unsorted municipal waste at the end of their service life. By disposing of this product properly, you are also contributing to the effective utilization of natural resources.

Information on collection points for old appliances can be obtained from your local authority, the public waste disposal authority, an authorized body for the disposal of old electrical and electronic appliances or your waste collection service.

This product must be returned to a designated collection point. This can be done, for example, by returning it when purchasing a similar product or by handling it in at an authorized collection point for the recycling of old electrical and electronic equipment. The return of old appliances is free of charge. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Before disposing of the product, remove all batteries and rechargeable batteries as well as all lamps that can be removed without destroying them.

Please note that you are responsible for deleting personal data from the product to be disposed of.

WARNING:

Remove or destroy any existing latches and bolt locks when you take the appliance out of operation or dispose of it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
