WK270 - Uncategorized Eldom - Free user manual and instructions

Product Type	Kitchen Appliance
Model	WK270
Brand	Eldom
Dimensions (approx.)	25 x 20 x 15 cm
Weight (approx.)	1.2 kg
Power Supply	220-240V, 50Hz, 1200W
Cord Length	0.8 m
Main Functions	Boiling, heating, automatic shut-off, keep-warm, boil-dry protection
Capacity	1.7 liters
Material	Stainless steel body, plastic lid
Control Type	One-touch button, indicator light
Cleaning and Maintenance	Wipe exterior with damp cloth; descale interior regularly
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts Availability	Replacement lid, base, and power cord available from manufacturer
Repairability	Moderate; user-replaceable parts include lid and cord
Included Accessories	Power base, user manual
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - WK270 Eldom

How do I descale the Eldom WK270?

Mix equal parts water and white vinegar, boil in the appliance, let sit for 30 minutes, then rinse thoroughly.

Can I boil milk in the WK270?

It is not recommended as milk can scorch and damage the appliance. Use only water.

What does the keep-warm function do?

After boiling, the appliance automatically keeps the water at a warm temperature (approx. 70°C) for up to 30 minutes.

Why does the kettle turn off before boiling?

Check for mineral buildup (limescale). Descale the appliance. Also ensure the lid is closed properly.

Is the WK270 cordless?

Yes, it sits on a power base and can be lifted off for pouring. The base has a short cord.

Can I open the lid while water is boiling?

It is not recommended as hot steam can cause burns. Wait for the cycle to finish.

How do I clean the filter?

If equipped with a removable filter, rinse it under running water. Refer to the manual for exact location.

What is the maximum water level?

Do not fill above the MAX mark inside the kettle (typically 1.7 liters).

Why does the kettle make unusual noise?

Normal boiling sounds are expected. A loud crackling may indicate limescale; descale the unit.

Where can I get spare parts?

Contact Eldom customer service or visit their website. Common spare parts include the lid and power base.

USER MANUAL WK270 Eldom

Three colored ELDOM kitchen scales with digital display showing 236°F, no visible text or symbols on the scales themselves.

WSKAZANIA BEZPIECZEŃSTWA

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

• For home use only
• Keep the scale in dark and dry place
• While storing do not press with other objects
• The precision of the scales measurements depends on the way of its maintenance
• Repairs can be made only by authorized service center. All modifications or use of parts other
  than original is forbidden and may have adverse effects on the operational safety of the appliance

TECHNICAL DETAILS

• weight capacity 5kg
• weight resolution: 1g, 1ml, 1/8 oz,
• accuracy of measurement: ±15g
• power: CR2032 battery

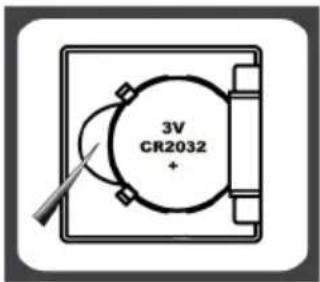

BATTERY

CR2032 lithium baterry (icluded).

Remove isolation sheet before use.

1. Open the battery case cover at the bottom of scale.
2. Take out the used battery
3. Install new battery by putting one side of the battery bebeath the battery baffle and then pressing down the other side.
   Used batteries should be thrown away the containers specially designed for this purpose.

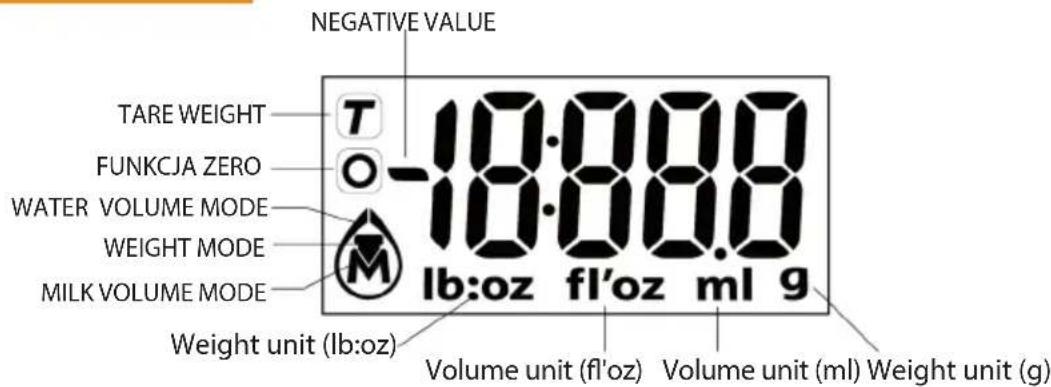

LCD

WEIGHING MODE

1. Please put the scale on a hard and flat surface.
2. Place bowl (if used) on the scale before turning on the unit.
3. Gently press on the scale by hand to turn on.
4. Wait until LCD shows all information.
5. Load weighing object on to start weighing, LCD will show the weight reading
6. If the weighing object is water or milk, press and hold [ZERO/MODE] button until the unit changes to choose volume and view the volume of weighing object.

Changes of measurement units In order to change measurement units from g/ml to pouns/ounce, after switching on the scales, the button [UNIT] should be pressed at the bottom of the device. Another pushing the [UNIT] button will cause the repeated change of the units.

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale.

Put first Load on the scale, get weight reading. Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. "ZERO" function

When total sum of all loads on scale ≤4% of scale's max weight capacity (4% = 200g when capacity is 5 kg).

LCD will show "____" lub "0g" each time [ZERO] button is pressed.

“——” means not stable, please wait for a moment.

"0g" and meanwhile an icon "o" on lower left corner of LCD mean "ZERO" function is active. Max weight capacity remains unchanged.

1. When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg).

LCD will show “____” lub “0g” each time [ZERO] button is pressed.

“” means not stable, please wait for a moment.

"0g" and meanwhile an icon "TARE" on lower left corner of LCD mean "TARE" function is active. Max weight capacity is reduced by total weight of all loads.

By pressing [ZERO] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [ZERO] to reset LCD reading to „0" again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 1 minute.

WARNING INDICATORS

1. Replace new battery

2. Scale overload. Remove item to avoid damage.

CLEANING

1. DO NOT immerse the scale in water.
2. Clean with soft moist cloth without detergents, wipe dry

SAFETY INSTRUCTIONS

• For home use only
• Keep the scale in dark and dry place
• While storing do not press with other objects
• The precision of the scales measurements depends on the way of its maintenance
• Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix

BEZPEČNOSTNÍ DOPORUČENÍ

To weigh different loads consecutively without removing loads from the scale.

Put first Load on the scale, get weight reading. Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. Функция "ОБНУЛЕНИЯ"
