Product Type	Electric Kettle
Model	Dina WK200S
Brand	Eldom
Capacity	1.7 liters
Power	2200 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	22 cm x 18 cm x 24 cm
Weight	1.2 kg
Housing Material	Stainless Steel
Lid	Removable, wide opening
Filter	Removable lime scale filter
Base	360° swivel base
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Concealed Heating Element	Yes
Water Level Indicator	Yes, transparent window
Power Cord Length	0.8 m
Cleaning	Descale regularly with vinegar or citric acid
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts Availability	Filter, lid, base available through service centers
Warranty	2 years

Frequently Asked Questions - Dina WK200S Eldom

How do I descale the Eldom Dina WK200S kettle?

To descale, fill the kettle with a mixture of water and white vinegar (1:1) or use a citric acid solution. Boil, let it sit for 30 minutes, then rinse thoroughly. Repeat if necessary. Do not use abrasive cleaners.

What is the capacity of the Dina WK200S?

The kettle has a capacity of 1.7 liters, suitable for boiling water for multiple cups at once.

Can I use the kettle without water?

No, never operate the kettle without water. It has boil-dry protection that automatically shuts it off, but repeated dry heating can damage the appliance.

How do I clean the lime scale filter?

The removable filter can be cleaned under running water with a soft brush. For stubborn scale, soak it in vinegar or descaling solution before rinsing.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° swivel base for easy lifting and pouring.

What material is the kettle made of?

The housing is stainless steel, offering durability and a sleek look. The lid and handle are plastic.

Why does the kettle turn off before boiling?

This may be due to limescale build-up. Descale the kettle as described above. If the problem persists, check the power base connection.

Can I open the lid while boiling?

It is not recommended to open the lid during boiling as steam can cause burns. Wait until the kettle has stopped boiling.

How do I replace the filter?

Contact Eldom service centers for a replacement filter. The filter is easily removed and snapped into place.

What is the power consumption?

The kettle operates at 2200 W (220-240 V), allowing fast boiling.

USER MANUAL Dina WK200S Eldom

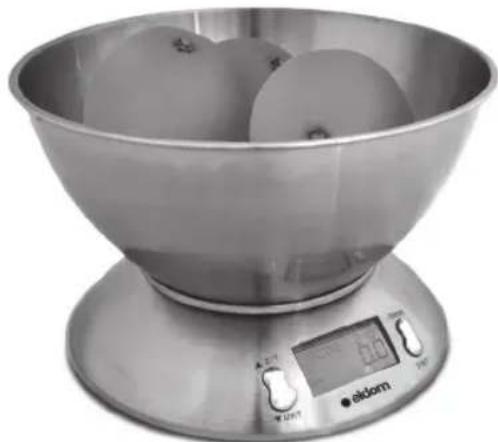

Digital kitchen scale with round apples in a bowl, showing digital display and control buttons (no text or symbols on the appliance)

WARUNKI BEZPIECZEŃSTWA

Close-up of a metallic kitchen scale with digital display and control buttons (no visible text or symbols)

OBSŁUGA

Eldom Sp. z o.o. 40-238 Katowice

Please read all these instructions carefully before using this appliance.

1. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

2. For home use only.

3. Keep the scale in dark and dry place.
4. While storing do not press with other objects.
5. The precision of the scales measurements depends on the way of its maintenance.
6. Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance.
7. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

TECHNICAL DATA

- weight capacity: 5kg

- weight resolution: 1g

- accuracy of measurement: 15g

- power: 2xAAA.

Batteries do not pose the equipment.

Digital kitchen scale with round food items and a digital display (no visible text or symbols)

BATTERY REPLACEMENT:

1. Open the battery case cover at the bottom of scale.

2. Take out the used battery.

3. Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side. Used batteries should be thrown away the containers specially designed for this purpose.

HOW TO USE

1. Please put the scale on a hard and flat surface.
2. Place bowl (if used) on the scale before turning on the unit.
3. Press and release [ON/OFF] button to turn on the unit.
4. Wait until LCD shows all information.
5. Load weighing object on to start weighing, LCD will show the weight reading.

CHANGES OF MEASUREMENT UNITS:

In order to change measurement units from g to pouns, after switching on the scales, the button [UNIT] should be pressed. Another pushing the [UNIT] button will cause the repeated change of the units.

THERMOMETER

The scale is fitted with a thermometer that reads the ambient temperature in the range from 0 +40^ with 2^ tolerance.

STOPWATCH

To facilitate counting out (e.g. baking time), the scale is fitted with a stopwatch. To start the stopwatch, press the button "T-SET" and set the required time with the buttons "▼" and "▲". The start the stopwatch, press the button "T-SET" again. Counting out may be stopped by pressing the button "T-SET". When the counting out is ended, the alarm will be triggered for about 30 seconds. The alarm may be turned off at any time with the button "ON/OFF".

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading.

Press [Z/T] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

2. "Z/T" function

When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4\% = 200g when capacity is 5 kg). LCD will show “_ _ _” or “0g” each time [Z/T] button is pressed. “_ _ _” means not stable, please wait for a moment. “0g” and meanwhile an icon “0” on lower left corner of LCD mean “ZERO” function is active. Max weight capacity remains unchanged.

2. "TARE" function

When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg). LCD will show “____” lub “0g” each time [Z/T] button is pressed. “____” means not stable, please wait for a moment. “0g” and meanwhile an icon “TARE” on lower left corner of LCD mean “TARE” function is active. Max weight capacity is reduced by total weight of all loads. By pressing [Z/T] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [Z/T] to reset LCD reading to „0” again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

WARNING INDICATORS

1. Replace new battery
2. Scale overload. Remove item to avoid damage.

1.

Lo

2.

Err

CLEANING

1. DO NOT immerse the scale in water.
2. Clean with soft moist cloth without detergents, wipe dry

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.
