ROBO R110 - Uncategorized Eldom - Free user manual and instructions

Product Type	Hand Mixer
Model	ROBO R110
Brand	Eldom
Power Consumption	400W
Supply Voltage	220-240V ~ 50Hz
Speed Settings	5 speeds + Turbo (maximum speed)
Maximum Continuous Operation	5 minutes
Rest Interval Between Cycles	10 minutes
Attachments Included	2 beaters, 2 dough hooks
Attachment Release	Push button release
Body Material	Plastic
Attachment Material	Stainless steel (assumed)
Cleaning Method	Body: wipe with damp cloth; attachments: wash in warm water with dish soap
Dishwasher Safe	No
Water Immersion	Do not immerse body or cord in water
Safety Features	Unplug before cleaning; not for use by children under 8 without supervision
Intended Use	Household only
Warranty	Subject to terms; misuse voids warranty
Disposal	Do not dispose as household waste; recycle at appropriate collection point

Frequently Asked Questions - ROBO R110 Eldom

How do I attach the beaters or dough hooks?

Ensure the mixer is unplugged and the switch is set to '0'. Insert the beaters or dough hooks into the corresponding sockets on the bottom of the mixer body. They must be inserted in pairs. Push them in until they click into place. Refer to diagram in the manual.

What is the maximum continuous operation time?

The maximum continuous operation time is 5 minutes. After that, allow a 10-minute rest interval before using again to prevent engine damage.

How do I clean the mixer?

Unplug the mixer before cleaning. Wipe the body with a damp cloth. Wash the beaters and dough hooks in warm water with dish soap. Do not wash the body or attachments in a dishwasher. Never immerse the body in water.

Can I use the Turbo button while mixing?

Yes, the Turbo button provides an immediate boost to maximum speed (equivalent to speed 5). It can be used at any time during operation.

What should I do if the mixer slows down during use?

If the mixer slows down, it indicates the mixture is too thick or the motor is overheating. Stop the mixer, unplug it, and allow it to rest for at least 10 minutes. You may also need to thin the ingredients.

Is the mixer suitable for kneading heavy dough?

Yes, the mixer can handle dough using the dough hooks, but observe the 5-minute continuous operation limit. For heavy dough, take breaks if needed.

Can I use the mixer for professional or commercial purposes?

No, this mixer is designed for household use only. Using it for professional purposes voids the warranty.

What is the power consumption of the mixer?

The power consumption is 400W at a supply voltage of 220-240V ~ 50Hz.

How do I store the mixer after use?

Unplug the mixer and clean it as instructed. Store it in a dry place away from heat sources. Keep the cord neatly coiled.

What should I do if the power cord is damaged?

Do not use the mixer. Contact an authorized service point for repair. A list of service points is available on the Eldom website or in the appendix of the manual.

USER MANUAL ROBO R110 Eldom

Exterior view of a modern electric mixer with a hand mixer (no text or symbols visible)

Eldom Sp. z o.o. • ul. Pawła Chromika 5a • 40-238 Katowice, POLAND tel: [phone] • fax: [phone] • www.eldom.eu

/PL/

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/DE/

Exterior view of a modern stainless steel mixing press with a hand mixer (no text or symbols visible)

Two metallic wire handles with coiled ends, no text or symbols visible

OPIS OGÓLNY

Close-up of a mechanical component with two hands adjusting a button (no text or symbols visible)

Please read all these instructions carefully before using this appliance.

1. Before the first use, read this entire user manual.
2. Plug in the connecting cable to an outlet with parameters specified in the manual.
3. Do not immerse the cable or the appliance in water.
4. Do not use in open air.
5. Do not place the appliance near heat sources.
6. Do not leave unattended children near the appliance.
7. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
8. Before turning the appliance on, make sure that all its components are properly mounted.
9. Do not grab the appliance with wet hands.
10. Always unplug the appliance if it is unattended,

before the assembly or disassembly of attachments and before cleaning,

1. Do not touch the dough hooks or beaters when the appliance is in operation, and after turning it off they can be touched only when they have stopped.
2. Do not use liquids of temperature higher than 50^ C.
3. Do not exceed the maximum time of continuous operation. Do not use when the power cable is damaged, when the appliance was dropped or damaged in a different manner. Repairs of the equipment can only be performed by an authorized servicing point; a list of servicing points is in the appendix and on the website www.eldom.eu.
4. Use the appliance only with original accessories supplied with it.
5. Any modernizations or the use of non-original spare parts or components of the appliance are prohibited and may cause a serious hazard to the user.
6. The company Eldom sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance.Any mending of the device should be held by authorised service providers.Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.

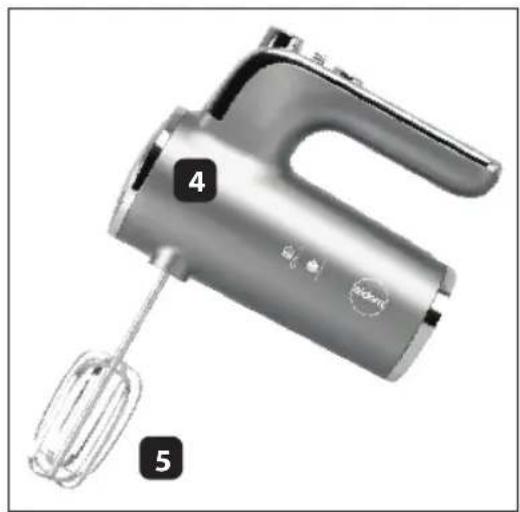

Close-up of a modern stainless steel mixing press with a hand mixer, labeled with parts 4 and 5 (no text or symbols on the device itself)

Two metallic laboratory pipettes with coiled tubing, no text or symbols visible

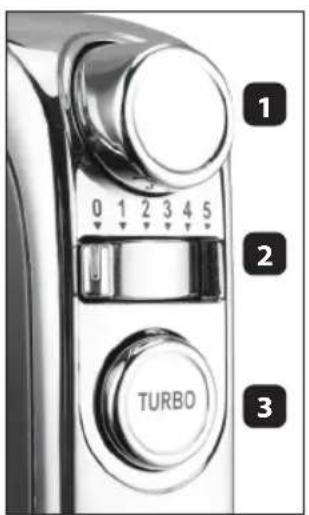

GENERAL DESCRIPTION

1. Dough hooks and beaters release button
2. Switch and speed control
3. TURBO button high speed
4. Body of the mixer
5. Beaters
6. Dough hooks

TECHNICAL DATA

• power: 400W
• supply voltage: 220-240V \~ 50Hz
• Maximum continuous operation with whipping and mixing accessories: 5 minutes
• Interval before another cycle of operation: 10 minutes

Before the first use wash the dough hooks (6), beaters (5). (see chapter: CLEANING AND MAINTENANCE).

ASSEMBLY

• Make sure the appliance is unplugged, and the switch (2) is set in the position "0".

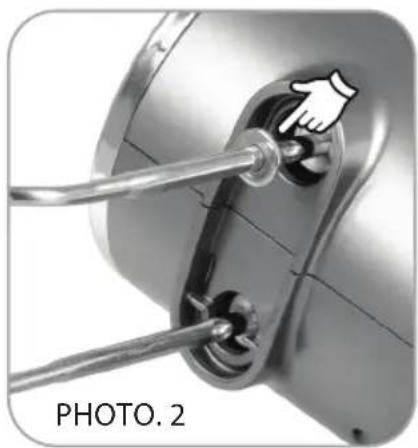

• Place the dough hooks (6) or beaters (5) in proper sockets on the bottom part of the mixer (4), photo 2. Attachments need to be assembled in pairs two dough hooks (6) or two beaters (5). Assemble the attachments in the order shown in the photo 2.

Close-up of a mechanical component with a hand pointing to a button, labeled 'PHOTO. 2' (no other text or symbols)

• Before the operation make sure that all the components were assembled properly.
• Plug in the appliance.
• The mixer starts its operation after a proper speed is selected with the switch (2).
• By changing its position 5 different speeds can be obtained.
• TURBO button is used to achieve immediately the maximum speed corresponding to the position "5" of the switch (2).
• When whisking or mixing is finished, one should:
• Slide the switch (2) to "0" position and unplug the mixer.
• Pull the attachments from the sockets by pressing the button (1).

CAUTION

Watch the continuous operation time of the appliance. The extended operation time and the lack of breaks may lead to the irreversible damage to the engine and loss of warranty. In the case of stopping the appliance while operation, before cleaning, unplug it and wait till the attachments stop to whirl.

If the appliance slows down while operation it needs a break and, if possible, liquefying ingredients.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance.

Do not wash the appliance in a dish-washer machine.

Do not immerse the body (4) in water.

Clean with a damp cloth or towel.

Other components of the appliance can be washed in warm water with a dishwashing liquid.

Do not clean the appliance with sharp, abrasive cloths or sponges as it may destroy the appliance.

PROTECTION

• The appliance is made of materials which can be recovered or recycled.
• The appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• The appliance is intended for personal use at a household.
• It is not intended for professional purposes.
• In case of misuse, the warranty is rendered null and void.

Close-up of a modern stainless steel mixing press with a hand mixer, labeled with parts 4 and 5 (no text or symbols on the device itself)

Two metallic laboratory pipettes with coiled tubing, no text or symbols visible

Close-up of a mechanical component with a hand pointing to a button, labeled 'BILD. 2' (no other text or symbols)

Close-up of a stainless steel mixing press with a hand mixer and whisk, labeled with numbers 4 and 5 (no text or symbols on the device itself)

Two metallic laboratory pipettes with coiled tubing, no text or symbols visible

Close-up of a mechanical component with a hand pointing to a button, labeled 'ФОТ. 2' (no other text or symbols visible)

Exterior view of a modern stainless steel mixing press with a hand mixer (no text or symbols visible)

Two metallic laboratory pipettes with coiled tubing, no text or symbols visible

DESCRIPCIÓN GENERAL

Close-up of a mechanical component with a hand pressing a button (no text or symbols visible)
