Product Type	Bagged vacuum cleaner
Brand	Teesa
Model	Eco 700 TSA5020
Energy Efficiency Class	A
Annual Energy Consumption	23.8 kWh
Nominal Power	700 W
Suction Power	160 W
Power Supply	230 V, 50 Hz
Dust Bag Capacity	3 L
Dust Bag Type	Paper
Exhaust Filter	HEPA H12
Sound Power Level	69 dB
Airflow	25 L/s
Max Vacuum	16 kPa
Operating Radius	10 m
Cord Length	7 m
Tube Type	Telescopic with lock
Tube Diameter	35 mm
Weight (Vacuum Cleaner)	5.1 kg
Dimensions (Vacuum Cleaner)	30 x 24 x 43 cm
Nozzles Included	2-step floor nozzle, crevice nozzle, round nozzle
Features	Automatic cord rewind, dust bag full indicator, 360° swivel hose, vertical and horizontal parking

Frequently Asked Questions - Eco 700 TSA5020 Teesa

How do I change the dust bag?

When the dust bag full indicator lights red, it is time to replace the bag. First, unplug the vacuum cleaner. Remove the hose by turning it counterclockwise, then open the front cover. Slide out the old paper dust bag and insert a new one. Close the cover until it clicks.

How do I clean the motor filter?

Unplug the vacuum cleaner. Open the front cover, remove the dust bag, then pull out the motor filter. Tap out the dirt or rinse under running water (not in washing machine). Let the filter dry completely before reinstalling.

How do I clean the outlet filter?

Unplug the vacuum cleaner. Remove the outlet filter cover, take out the filter, and tap out dirt. If heavily soiled, rinse under running water. Allow the filter to dry completely before putting it back and closing the cover.

What does the red indicator on the vacuum mean?

The dust bag full indicator lights red when the dust bag needs replacing, OR when the nozzle, tube, or filter is blocked. Clear any blockages and if the light remains, replace the dust bag.

How do I rewind the power cord?

After turning off and unplugging the vacuum, press the cord rewind button. Guide the cord with your hand to prevent whipping. Always pull the plug, not the cord.

What should I do if the vacuum loses suction?

Check for blockages in the hose, tube, or nozzles. Also ensure the dust bag is not full and the filters are clean. Clear any obstructions, replace the bag if needed, and clean filters.

Can I use the vacuum to pick up water?

No, this vacuum cleaner is intended for dry surfaces only. Do not use it to pick up water, liquids, hot ashes, or sharp objects.

How do I store the vacuum cleaner?

You can store it vertically by parking the floor nozzle in the fastener at the bottom, or horizontally using the fastener at the back. Ensure the hose is not tangled and the appliance is clean and dry.

Where can I buy replacement dust bags and filters?

Replacement paper dust bags and HEPA H12 exhaust filters are available from the online stores Teesa.pl or Ipelektronik.com.

What is the noise level of this vacuum?

The noise level is 69 dB, which is moderate for a vacuum cleaner. Use ear protection if sensitive to noise.

USER MANUAL Eco 700 TSA5020 Teesa

Bagged vacuum cleaner

ECO WHITE 700

TSA5020

Bedienungsanleitung

Owner's manual

Instrukcja obsługi

Manual de utilizare

Návod na použitie

DE

EN

PL

RO

SK

DE EN PL RO SK

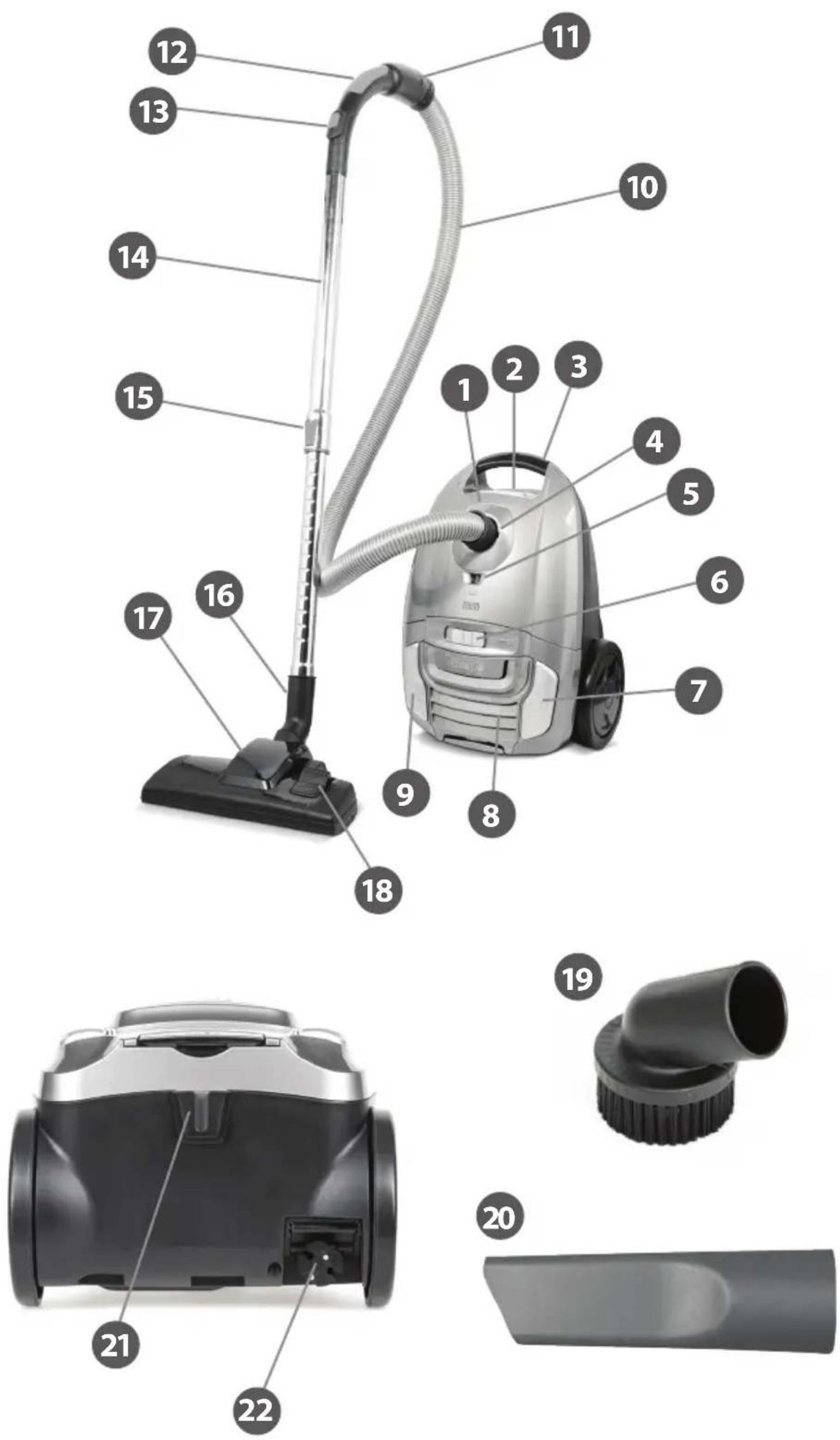

Vordere Abdeckung Front cover Pokrywa przednia Capac frontal Predný kryt
Verrieglung der vorderen Abdeckung	Front cover release button	Przycisk pokrywy przedniej	Buton de eliberare a capacului frontal	Aretačné tlačidlo predného krytu
Griff Handle Uchwyt Maner Rukovat'
Schlauchtülle Hose socket Otwór wlotowy węża Priza pentru furtun Otvor pre hadicu
Staubbeutel-Vollanzeige	Dust bag full indicator	Wskaźnik zapelnienia worka	Indicator grad umplere sac pentru praf	Indikátor naplnenia vrecka
Leistungs-Schieberegler	Power control slider	Suwak regulacji mocy	Comutator pornire	Posuvný regulátor výkonu
Taste Kabel zurückspulen	Cord rewind button	Przycisk zwijania przewodu	Buton de infășurare cordon alimentare	Tlačidlo navíjania snúry
Austrittsfilter-Abdeckung	Outlet filter cover	Pokrywa filtra wylotowego	Capacul filtrului de evacuare	Kryt výstupného filtra
Netzschalter	Power button	Przycisk zasilania	Buton pornire	Hlavný vypínač
Schlauch Hose	Wąż	Furtun Hadica
Schlauch-Verriegelungsknöpfe	Hose release buttons	Przyciski zwalniające blokadę węża	Buton de infasurare a cablului	Aretačné tlačidlá pre uvolnenie hadice
Griff Grip Uchwyt Sistem de prindere Rukovat'
Saugleistungsschieber	Suction power slider	Suwak regulacji mocy ssania	Glisiera pentru reglarea puterii	Posuvná regulácia sily sania
Teleskoprohr	Telescopic tube	Rura teleskopowa	Tub telescopic	Teleskopická rúrka
Längenverriegelung	Length lock	Blokada (długości rury teleskopowej)	Dispozitiv blocare teava	Poistka (regulácie dĺžky teleskopickej rúrky)
2-Stufen-Bodendüsehaken	2-step floor nozzle hook	Zaczep dwustopniowej ssawki podłogowej	Carlig cu 2 trepte pentru peria de podea	Západka podlahovej hubice
2-Stufen-Bodendüse	2-step floor nozzle	Dwustopniowa ssawka podłogowa	Perie cu 2 trepte pentru aspirare podea	Podlahová hubica dvojstupňová
Bodenoberfläche Schalter: Bodenreinigungsmodus Teppichreinigungsmodus	Floor surface switch:floor cleaning modecarpets cleaning mode	Przełącznik powierzchni:tryb czyszczenia podlóg twardychtryb czyszczenia dywanów	Comutator pentru aspirare suprafete:Mod aspirare podeaMod aspirare carpete	Prepínač podľa povrchu:režim čistenia tvrdých podláhrežim čistenia kobercov
Runde Düse	Round nozzle	Ssawka okrągła	Duza rotunda	Okrúhla hubica
Fugendüse	Crevice nozzle	Ssawka szczelinowa	Dispozitiv pentru aspirare spatii inguste	Štrbinová hubica
2-Stufen-BodendüsebefestigungsschlitzBodendüsebefestigungsschlitz	2-step floor nozzle fastener	Uchwyt postojowy	Sistem fixare perie podea cu 2 trepte	Držiak parkovacej polohy
Stecker und Kabel	Plug and cord Wtyczka i przewód		Stecher si cordon alimentare	Zástrčka s káblom

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use.

Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.

2. Before connecting the appliance to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

3. Never start vacuuming if the filters or dust bag are not mounted as this may damage the device.

4. Product intended for household use only.

5. Use the device only on dry surfaces.

6. Do not insert any objects into the ventilation slots.

7. Do not obstruct the airflow.

8. Prior to each use, always check if the hose, nozzles, tube or ventilation slots are blocked. If so, first remove the blocked object and then start vacuuming.

9. If the hose, nozzle or tube gets blocked during operation, turn off the appliance and remove jammed object before you turn on the vacuum cleaner again.

10. Clean this appliance in accordance to instructions listed in "Cleaning and Maintenance" section.

11. ALWAYS turn off the appliance and disconnect it from the mains supply:

• if it's not operating correctly,
- if there's an uncommon voice when using,
• before disassembling the device,
• before cleaning,
• when not in use.

1. When you disconnect the power cord of the appliance, grasp and pull the plug, not the cord/cable.

2. Before unplugging from the power supply socket, turn off the vacuum cleaner by pressing the appropriate button on the body of the appliance.

3. Keep the appliance out of the reach of children. Do not leave children unsupervised with the product. Children should not play with the device.

4. This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised by the person who is responsible for their safety.
5. Fixed power cable may only be replaced in an authorized service point.
6. Keep the appliance and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.
7. Do not use the vacuum cleaner too close to heaters or radiators.
8. Do not transport the vacuum cleaner by the power cord or the hose.
9. Do not pull the power cord over sharp edges or allow it to become trapped.
10. Do not allow the plug to whip when rewinding.
11. Do not stand or put weight on the hose.
12. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.
13. When vacuuming stairs, use extra caution and make sure that the appliance is positioned below you.
14. When in use, always keep the vacuum cleaner away from your head and other body parts as well as hair and clothes.
15. Do not point the vacuum cleaner at persons or animals when it is working.
16. Do not use this device to clean animals or people.

17. Do not use the appliance to vacuum up:

18. large, sharp-edged objects which could block and damage the appliance;

19. harming or erodent liquids or inflammable and explosive substances, as this could cause a fire;
    • hot or burning substances;
    • wet surfaces or wet objects;
    • water or any other liquid.

20. Do not use the product for purposes different from displayed in this operating manual.

21. Do not leave the appliance unattended when it's working.

22. Producer of this product is not responsible for damages caused by inappropriate handling and using of the appliance.

23. ALWAYS disconnect the product from the mains supply when it is not in use.

24. DO NOT use this appliance if the cord or the plug is damaged, or the appliance is broken.

25. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this appliance. Never disassemble this appliance.
26. Do not use unauthorized accessories.
27. Make sure the power cord does not touch any hot or sharp elements.

ASSEMBLY AND OPERATION

Note: Before assembling or disassembling accessories, always remove the plug from the power supply socket.

1. Insert the hose in the hose socket and turn it clockwise to lock it in place.
2. Connect the hose to the telescopic tube. Proper installation is indicated by an audible click.
3. Insert the telescopic tube into the selected nozzle.
4. Use the length lock to adjust the telescopic tube to the desired length.
5. Grasp the plug and pull it to remove the cord and connect it to the power supply socket.

Note:

• Always pull the plug, not the cord!
- A yellow mark on the cord indicates optimal length. Do not pull the cord beyond the red mark.

1. Press the Power button to turn on the vacuum cleaner.

2. Use the Power control slider to adjust the power.

3. Use the suction power slider to adjust the suction power. Move it forwards/backwards to reduce/increase suction power.

4. Start vacuuming.

Note:

• Never start vacuuming if the dust bag is not installed.
- While vacuuming make sure that you don't pull the power cord over sharp edges.
• Do not stand on the hose.

1. When you have finished vacuuming, press Power button to turn off the appliance.

2. Disconnect the plug from power mains supply and press Cord rewind button to rewind the cord.

Note:

• Always pull the plug, not the cord!
- While rewinding the power cord, guide it with a hand to ensure that it does not whip causing damage or injury.

Important

If any blockage is found in the hose, tube or the nozzles, the device can continue to operate only after the blockage is removed. Do this only when the device is turned off and disconnected from power supply.

Changing the dust bag

Note:

• When the Dust bag full indicator lights red, it indicates that the dust bag needs to be replaced.
• The Dust bag full indicator also lights red when the nozzle, tube or filter is blocked by dirt. Get rid of dirt or a blocked object and turn on the appliance again.

• Before changing the dust bag make sure the appliance is disconnected from the power supply socket.

• First, remove the hose from the hose socket. Grasp the end of the hose, turn it counterclockwise to release it from the hose socket and pull it out.

• Release the front cover fastening and open the front cover.
• Slide the dust bag out of the holder: • paper dust bag- it should be replaced with a new one each time.
• Insert a new paper dust bag in the holder.
• Close the front cover.

Removing and cleaning filters

Note: Before removing or changing the filters make sure the appliance is disconnected from the power supply socket.

Motor filter

1. Press the front cover release button and open the front cover.
2. Remove the dust bag.
3. Grasp the filter and pull it out.
4. Clean the filter by tapping out the dirt.
5. It is recommended to rinse the filter under running water once a six months or when the filter is so heavily soiled that it obstructs the suction. Do not wash the motor filter in a washing machine!
   Note: Let the filter dry completely before reassembly! Let it dry in an open area.
6. When the filter is clean and dry, put it back into place, install the dust bag and close the front cover.

Outlet filter

1. Remove the outlet filter cover.
2. Grasp the filter and remove it.
3. Clean it by tapping out dirt or if heavily soiled, rinse it under running water. Do not wash the outlet filter in a washing machine!

Note: Let the filter dry completely before reassembly! Let it dry in an open area.

1. When the filter is clean and dry, put it back into place and close the outlet filter cover until you hear a click.

CLEANING

• Bristle of the 2-step floor nozzle or small nozzle can be cleaned by tapping out dirt.
  • Clean the body of the vacuum cleaner with a soft, slightly damp cloth.
• Do not use any abrasives or chemical agents to clean this product.
• Non of the parts or accessories is suitable to be washed in a washing machine or a dishwasher.

Important! All filters should be regularly checked for any signs of damage, preferably after each cleaning. The filters must be replaced immediately if they become damaged. Before checking the filters, always disconnect the vacuum cleaner from the power supply socket.

STORAGE

• Before storing make sure the appliance is clean and dry.
• Store the appliance in a cool and dry area.
• The appliance can be stored in two positions:

• vertical: park the 2-step floor nozzle in the fastener at the bottom of the vacuum cleaner;
• horizontal: park the 2-step floor nozzle in the fastener at the back of the vacuum cleaner.

• Before storing, the appliance can also be disassembled.

• Disconnect the telescopic tube from the nozzle.
• Disconnect the telescopic tube from the hose. Press and hold hose release buttons and pull out the hose.
• Disconnect the hose from the vacuum cleaner. Grasp the end of the hose, turn it counterclockwise to release it from the hose socket and pull it out.

• Make sure that while storing the hose is not tangled or pressed.

Paper dust bag as well as exhaust filter HEPA H12 are available to be bought from the online store Teesa.pl or Ipelektronik.com

SPECIFICATION

Performance Energy efficiency rating A
Annual energy consumption	23,8 kWh
Carpet cleaning class D
Hard floor cleaning class	A
Dust re-emission class	A
Sound power level	69 dB
Airflow	25 l/s
Vacuum (max) 16 kPa
Nominal power	700 W
Suction power	160 W
Power supply 230 V; 50 Hz
Filtration Dust bag capacity 3 l
	Dust bag type Paper
	Exhaust filter HEPA H12
Usability Operating radius 10 m
	Cord length 7 m
	Power control Slider
	Tube type Telescopic with lock
	Tube diameter 35 mm
	360° swivel hose
	2 rubber and 1 rotary wheel
	Front carrying handle
	Dust bag full indicator
	Automatic cable rewind
	Vertical and horizontal parking
Physical parameters Weight (vacuum cleaner) 5,1 kg
Dimensions(vacuum cleaner)	30 x 24 x 43 cm
In set Crevice nozzle
	Round nozzle
	2-step floor nozzle
	User's manual

English
