Product Type	Induction Cooker
Brand	Toshiba
Model	IC-20R1THK
Dimensions (W x D x H)	350 x 280 x 53 mm
Weight	Approx. 2.5 kg
Power Consumption	2000 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Cooking Modes	Hot Pot, Fry, Deep Fry
Power Adjustment Range	120 - 2000 W
Timer Range	1 minute to 3 hours
Child Lock	Yes (press for 3 seconds to lock/unlock)
Display	Digital LED display
Control Type	Touch buttons
Cooktop Material	Ceramic glass
Suitable Cookware	Iron-based pots with flat bottom, diameter 15-18 cm
Safety Features	Overheat protection, auto shut-off, pot detection, child lock
Cleaning Method	Wipe with soft damp cloth and mild detergent
Air Intake / Exhaust	Front air intake, rear exhaust; do not block
Usage	Household indoor use only

Frequently Asked Questions - IC-20R1THK TOSHIBA

What type of cookware can I use on the Toshiba IC-20R1THK induction cooker?

Only use pots and pans made of iron-based materials with a flat bottom. The diameter should be between 15 cm and 18 cm. Non-magnetic cookware (aluminum, copper, glass) will not work.

How do I set the timer on the Toshiba IC-20R1THK?

Press the Timer button. When the display blinks, use the + and - buttons to set the desired time (from 1 minute to 3 hours). The cooker will automatically stop heating when the timer reaches zero.

Why is my Toshiba IC-20R1THK not heating up?

Possible causes: 1) No pot or an unsuitable pot is placed on the cooktop. 2) The pot's diameter is too small (<15 cm) or not centered. 3) The child lock is activated. 4) The appliance is in standby mode. Check these and try again.

How do I activate the child lock on the Toshiba IC-20R1THK?

Press and hold the Lock button for 3 seconds. The lock symbol will appear on the display. To unlock, press and hold the same button for 3 seconds again. When locked, only the Lock and On/Off buttons work.

Can I use the Toshiba IC-20R1THK for deep frying?

Yes, select the Deep Fry mode. Use at least 800 g (0.9 liters) of oil and a suitable frying pan. Never leave the cooker unattended during deep frying, as oil can overheat and catch fire.

What does the 'E' error code mean on my Toshiba IC-20R1THK?

The 'E' code indicates over-temperature protection. The internal temperature is too high. Turn off the cooker, unplug it, and allow it to cool down for several minutes. After cooling, it should resume normal operation.

How do I clean the ceramic cooktop?

First, turn off and unplug the cooker. Wait until the surface is cool. Wipe with a soft damp cloth and a little toothpaste or mild detergent. Then wipe with a clean damp cloth to remove any residue. Do not rinse with water.

Can I use the Toshiba IC-20R1THK with a pacemaker?

If you have a cardiac pacemaker, consult your doctor before using the induction cooker. The magnetic fields may interfere with the pacemaker's operation.

What should I do if the cooktop is cracked?

Immediately stop using the cooker and unplug it. A cracked cooktop can cause electric shock or further damage. Contact the store where you purchased the product or an authorized service center for repair.

How long is the default cooking time for each mode?

Default times: Hot Pot – 2 hours, Fry – 2 hours, Deep Fry – 2 hours. You can adjust the timer up to 3 hours.

USER MANUAL IC-20R1THK TOSHIBA

Thank you for purchasing this induction cooker.

Please thoroughly read through this instruction manual before use and store it carefully for future use.

The pictures are only for reference, pleasease keep the real product as a standard.

I.SAFETY INSTRUCTIONS

Warning

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • Children should be supervised to ensure that they do not play with the appliance.
• Do not disassemble, repair or modify It may cause fire, electric shock or injury. For repairs, contact the store where you purchased the product or the consultation center.
• Do not put foreign matter in the air intake / exhaust port In particular, metals such as pins and wires may cause electric shock or even move and cause injury.
• Do not soak or splash water. Do not get wet. It may cause a short circuit or electric shock
• Do not give a shock (such as dropping something) to the top plate If it is cracked or cracked, using it as it is may cause electric shock, overheating, or abnormal operation.

Power Cord/Outlet Related

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please turn off and unplug the appliance before cleaning maintenance or relocation and whenever it is not in use.
• Make sure to insert the power plug steady to the base.
• Remove dust from the plug on a regular period If dust accumulates, it may cause a fire due to poor insulation.
  • Make sure your hands are dry before touching the plug.
• Do not damage the cord, do not bend it forcibly, do not pull it, do not twist it. Do not bundle and energize, keep away from high temperature parts, do not put heavy objects on it. Do not pinch, do not process.
• When heating the liquid, mix it before heating

• Observe the following when stir-frying or grilling.

• Since a small amount of oil is used, the oil temperature rises sharply and may ignite.
  • Don't leave when cooking.

• Adjust the heat to a low level and do not overheat.

Cautions

• This appliance as well as the cooking utensils used and the surface of the appliance can become very hot, do not touch the hot surface of the ceramic hob.
• This appliance is for household use only. Do not use outdoors.
- Hold the power plug and pull it out from the outlet. It may cause fire due to electric shock or short circuit.
- Be careful when handling plugs and cords (Causes of fire, electric shock, and burns due to short circuit and electric leakage)
- Do not use for anything other than cooking (Cause of ignition due to overheating / abnormal operation)
- Be careful of splashing oil while cooking fried food. Oil may splatter and cause burns. Be careful especially with foods that with much more water.
- That appliances are not intended to be operated by means of an external timer or separate remote-control system.

Cautions

Caution, hot surface, The surfaces are liable to get hot during use.
- When frying food with induction cooker, the following precautions shall be observed: If there is too little oil, there will be a risk of fire caused by overheating of oil temperature. Please do not leave away when frying food in an induction cooker. Frying food with the "frying" menu. When the bottom of the pot is deformed, please do not use it. You must use a pan for frying food. Please do not fry with oil less than 800g (0.9l). Please put the pot in the middle of the induction cooker when frying food.

- If you are using a cardiac pacemaker, please use this induction cooker under the guidance of a doctor. The operation of this product will affect the operation of cardiac acemaker.

- Do not use on unstable places, heat-sensitive rugs, near flammable materials, or in slippery places. If the main body is tilted, the pan will slip off and the contents may spill, resulting in burns or injury.

- Keep your face away. It may cause burns.

- Do not bake or overheat. It may cause burns, ignition of cooked food, or damage to the pan.

- Unplug the power plug as soon as there is a lot of oily smoke, because The oil is hot. Continued heating may cause ignition.

- Please choose the course that suits your cooking Do not cook fried food on a heating course. The oil temperature will rise too high and may cause a fire.

- Do not use hot oil preheated with other appliances (gas stove, etc.) Do not preheat with hot oil. The temperature control device may not work properly and may overheat abnormally, causing ignition.

- Nothing is laid under the pan. Do not cook with water or foreign matter on the top plate or the bottom of the pan. Resins such as wraps, paper, cloth, foodstuffs, etc. can be burnt by the heat of the pan, It cannot be done and may cause the food to burn.

- Do not block the intake and exhaust ports. If you use it on something that can be easily sucked in, such as paper or table cloth, and block the exhaust and intake ports, the temperature inside the main unit will rise, which may cause a fire.

Cautions

- Do not put the IH cooker near water leakage, stove, gas stove and other heat sources. Otherwise, electric shock, electric leakage, furnace deformation and fire may be caused.

Other matters

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
  •farm houses;
  •by clients in hotels, motels and other residential type environments;
  • In bed and breakfast type environments;

- Do not use on IH cooking heaters. Also, do not use an electromagnetic induction heating cooker such as an IH jar rice cooker on the top plate.

- Since the lines of magnetic force are emitted, keep away from objects that are weak against magnetism. The memory of cash cards, IC cards, etc. may be lost. In addition, TV, radio, hearing aids, etc. may be interference with noisy.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

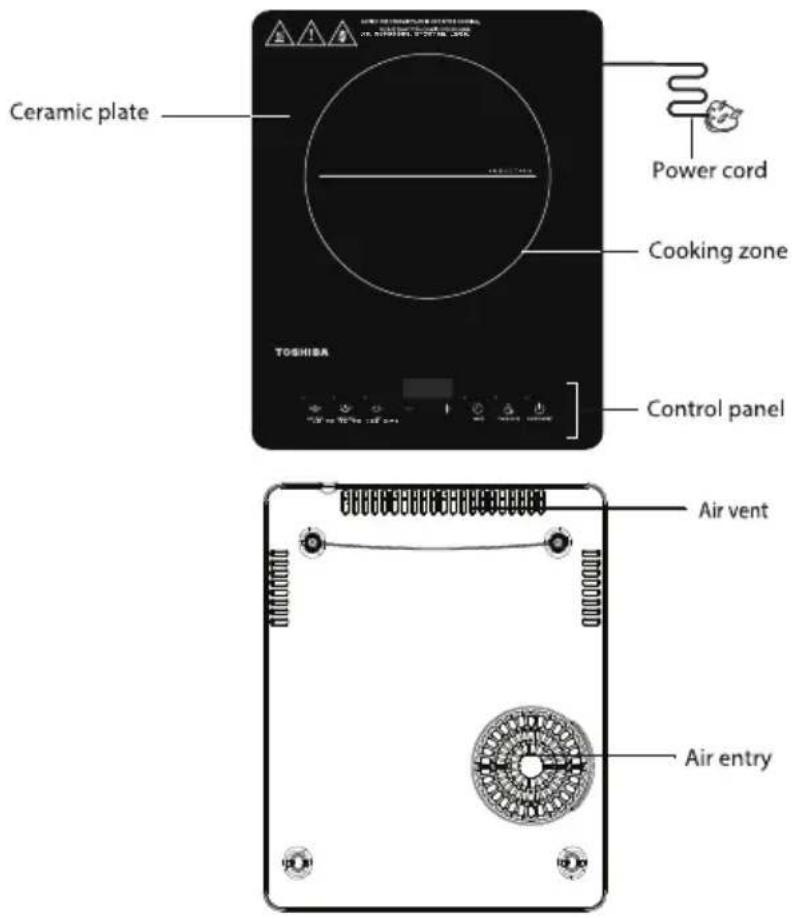

II.PRODUCT INTRODUCTION

The induction cooker is able to meet various kinds of cooking demands by electromagnetic heating, high thermal efficiency, is safe and reliable, easy to clean.

Performance Parameters

Model	Applied voltage/ frequency	Rated power	Weight(kg)	Dimension (mm)
IC-20R1THK	220-240V~ 50/60Hz			350x280x532000W

Performance Parameters

III. OPERATION INSTRUCTIONS

Function

• After switching on the induction cooker, press the corresponding function button to select the desired cooking mode.

Function cooking mode instructions

Note: Power in each cooking mode is restricted complying with the cooking requirement and you can use power mode if higher wattage is required.

Function	Icon	Default cooking time	Default wattage	Adjustable cooking time range	Adjustable wattage	Usage
Hot pot		2 hours	2000W	1min-3hours	120-2000W	This function is used for hot hot boiling, etc., and temperature can be adjusted.
Deep fry		2 hours	1800W	1min-3hours	120-2000W	This mode can be used for fry.
Fry		2 hours	1200W	1min-3hours	120-2000W	This mode can be used for deep fry.

Preparation

• Before using, please first check if the power plug connects well with the power outlet.
• Before placing the pot on the cooker plate, please clean up water stains, oil spots or any other adherent dirt from the outside surface of the pot and cooker plate.
• Please put the pot to be heated on the central part of the induction cooker. Do not put an empty pot on the cooker plate to be heated.

Instructions for use

• Before using, please first check if the power plug connects well with the power outlet.
• Before placing the pot on the cooker plate, please clean up water stains, oil spots or any other adherent dirt from the outside surface of the pot and cooker plate.
• Please put the pot to be heated on the central part of the induction cooker. Do not put an empty pot on the cooker plate to be heated.

IV. INSTRUCTIONS FOR USE

Connecting the power and switching on

• After press the "ON/STANDBY" key, press the function keys to select the required mode. The induction cooker enters working mode.
• After press the "ON/STANDBY" key, if no function key is pressed for ten seconds, the induction cooker will switch off automatically.
  • After press the function key, if there is no proper pot on the cooker plate, the induction cooker will not heat up and the alarm will sound to indicate that a pot is required. One minute later, it will switch off automatically.

Function selection

• After switching on the appliance, press the "Function" to enter the desired cooker mode.
• Please refer to "Function Cooking Mode Instruction" for the details of the corresponding heating process for each cooking mode.

Power adjustment

• After selecting a mode, you can press "+" or "-" to adjust the power.
• For some modes, during the heating procedure, the induction cooker can automatically adjust the power according to the cooking requirement.
• For certain modes, the power is restricted complying with the cooking requirement.

Timer adjustment

• If timer function is not activated, the induction cooker will heat the ingredients for the default time duration.
• If timer is needed, first press the "Timer" key. When the numbers blink on the display, press the key "+" or "-" to adjust the time duration. Max. Timer time is 3 hour.
• When the adjustment is finished, the number on the display will be shown after blinking for several seconds. The induction cooker starts counting down.
• When the counting down is over, the induction cooker automatically stops heating and switches off.

TIMER

Lock

- Locks the cooktop for further use. Press for three seconds to unlock. When locked, only the lock and the on/off button are available to usage.

CHILD LOCK

Switch off

• When the operating time is over, the induction cooker switches off automatically.
• If switch off is needed in advance, press the "ON/STANDBY" key to turn the appliance off.

ON/STANDBY

V. FUNCTIONAL COOKING MODE INSTRUCTIONS

Users can select among the different cooking modes according to cooking purpose. For your convenience, we provide the following instructions:

• The cooking modes of "Hot pot" individually fit to heating requirements, such as hotpot and boiling water. In the heating procedure, the time and power can be adjusted at any time. If the water in the pot dries up or the temperature is abnormally high, the induction cooker automatically switches off or starts protection function.
• The cooking modes of Fry and Deep fry fit to high temperature cooking. In the heating procedure, the time and power can be adjusted at any time. When the temperature of the ingredients reaches the temperature level provided by the selected mode (the highest temperature of various modes are different), the induction cooker will switch to interval heating or stops heating. After the temperature cools down, the induction cooker restarts heating.

HOT POT

FRY

DEEP FRY

VI. PROPER POTS

a

Iron stock pot

b

Iron milk pot

C

Iron water kettle

e

Iron steamer pan

d

Iron frying pan

• The maximum load for the frying pan is 4kg. When using it, do not let the weight of the ingredients exceed this weight to avoid danger.

• If other pots are used, please comply with the following conditions:

• Requirements for pot material: containing iron material.

• Requirement of pot shape: with even bottom, the diameter is not less than 15 cm while not more than 18 cm.

Note: For optimum performance, please use the standard pots provided.

VII. CLEANING AND MAINTENANCE

• Before cleaning, please switch off the appliance first and then disconnect the power plug from the power outlet. Wait ti ll the cooker plate of the induction cooker is not hot and start cleaning.
• After using the induction cooker for a long time, the opening of air inlet/air outlet wi ll pi le up with dust or other dirt, please wipe it with a soft dry cloth. Dust in the air inlet and outlet can be cleaned by using a soft brush or a mini vacuum cleaner.
• For oil spots on the cooker plate, wipe the cooker plate by using a soft moist cloth with a little tooth paste or mild detergent. And then use a soft moist cloth to wipe it until no stain remains.
• When not using it for a long time, please disconnect the power plug from the power outlet and protect the induction cooker from any dust or bugs.

Note: Please do not rinse it with water

VIII. SELF-DIAGNOSIS FOR ABNORMALITIES

Abnormalities			Key checking points and trouble shooting
After plugging in the power cord and pressing the "ON/OFF" or "ON/STANDBY" key. the indicator and display do not light up.			• Is the power plug properly connected?• Is the switch, power outlet, fuse or power cordamaged?
The "ON/OFF" indicator lights up and the display works normally, but heating does not start.			• Is the pot material proper?• Is the appliance in a "Preset" working status?• For other causes, please take the appliance to a repairing and maintenance site to be fixed.
Heating suddenly stops during the process.			• Is the temperature of the oil too high when fryingdishes?• Is the temperature of the surroundings very high?Is the air inlet or air outlet of the induction cookerblocked?• Is the default heating time of the induction cookerover?• The self-safety protection of the induction cookerstarts, wait for several minutes and connect powerto use it.
The protection codes appear		Protection for over-high temperature of the induction cooker	• The temperature inside the induction cooker is too high. When the temperature lowers, press the "ON/STANDBY" key, the heating can start normally.
		Protection for over-high temperature of the cooker plate	• The temperature of the cooker plate is too high. When the temperature lowers, press the "ON/STANDBY" key, the heating can start normally.
		Protection for the inner sensor of the induction cooker	• When using the induction cooker, if the temperature of the surroundings is too low or the voltage used abnormally, the auto protection function will start. With switching on the appliance again or switching after simple warm-up, the appliance can return to normal working status automatically.• Call the service number or the professional repair and maintenance site to make an inquiry.

• The description above is for diagnosing and checking common issues. If the problems cannot be solved, please send the product to a repair and maintenance site or inquiry by calling service number.
• In products without display function, switch/power indicators will blink to signal potential issues Please pay attention to the key points of checking to solve the problems.
• Do not disassemble or repair the product by yourself to avoid product damage or personal injury
