Product Type	Cooker Hood
Brand	Beko
Model	HNT 63322 WH
Color	White
Supply Voltage	220-240 V ~ 50/60 Hz
Motor Power	65 W
Lamp Power	1 x 2 W
Lamp Type	LED (L14 socket, 110-240 V, 4050 K, 81 lm)
Airflow at Maximum Speed	319.8 m³/h
Number of Speeds	3
Insulation Class	Class I
Grease Filter	Aluminium, washable monthly
Carbon Filter	Optional, replace every 3 months
Installation Type	Wall-mounted or under cabinet
Venting	Ducted or recirculating (with carbon filter)
Minimum Distance from Hob	65 cm
Control Type	Slider switches
Dimensions (Approximate)	Not provided in manual
Weight	Not provided in manual

Frequently Asked Questions - HNT 63322 WH BEKO

How do I clean the grease filter?

Remove the grease filter by pushing the lock forward, pulling it down and out. Wash it with liquid detergent and rinse with water. You can also wash it in the dishwasher. Allow it to dry before reinstalling. Clean it at least once a month under normal use.

How often should I replace the carbon filter?

The carbon filter should be replaced every 3 months. It cannot be washed. You can obtain replacement filters from authorized service agents.

How do I replace the lamp?

First, disconnect the power supply. Remove the old bulb and replace it with a new 2 W LED bulb (L14 socket, 110-240 V). Do not touch the bulb when hot. Use only bulbs recommended by the manufacturer.

What should I do if the hood does not work?

Check your fuse and ensure it is functioning. Verify the electrical connection and that the mains voltage is 220-240 V. Check if other kitchen appliances work. If the problem persists, contact an authorized service.

What is the minimum distance between the hob and the hood?

The minimum distance must be 65 cm. For gas hobs, measure from the grate surface; for electric hobs, from the glass surface.

Can I use the hood without ducting?

Yes, you can use the hood in recirculation mode by installing a carbon filter. The air is filtered and returned to the room. Ensure the flaps inside the flue adapter are removed for flue-less use.

How do I install the hood?

Installation can be done by wall mounting or under a cabinet. For wall mounting, drill holes, insert dowels and screws, and hang the hood. For under cabinet, drill holes in the cabinet bottom and secure with screws. Always follow the instructions in the manual and have installation done by an authorized service.

What speed setting should I use?

Use low speeds (1-2) for normal cooking and high speed (3) for strong odors and heavy steam. Adjust according to the intensity to save energy.

How do I turn on the lamp?

Use the lamp button (slider switch) on the control panel. The slider should be in the pulled position to turn on the lamp.

Is the grease filter dishwasher safe?

Yes, the aluminum grease filter can be washed in a dishwasher. However, it may discolor over time, which is normal and does not affect performance.

USER MANUAL HNT 63322 WH BEKO

HNT 63322 WH

HNT 63322 BH

HNT 63322 XH

EN - RO - PL

CONTENTS

ENGLISH		3-15
ROMÂNĂ	16-32
POLSKI		33-48

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

•Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

•This appliance is intended to be used in household

and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments; -Farm houses -By clients in hotels, and other residential type environments; -Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

•The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

1 Important safety and environmental instructions

given supervision or in- struction concerning use of the appliance in a safe way and understand the hazards involved.

•Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

•The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

- If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

- Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

- Never use the appliance if

the power cable or the ap- pliance itself is damaged.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

- Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

1 Important safety and environmental instructions

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot on the hob. Pans with hot may cause self combustion.

- Pay attention to your curtains and covers since may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

- Do not use non-fire-resistant filtering materials

instead of the current filter.

- Only use the original parts or parts recommended by the manufacturer.

- Do not operate the product without the filter and do not remove the filters while the product is running.

•In the event of be started any flame, de-energize your product and cooking appliances.

- In the event of be started any flame, cover the flame and never use water to extinguish.

- Unplug the appliance before each cleaning and when the appliance is not in use.

•The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

1 Important safety and environmental instructions

• In the environment where the appliance is being used, the exhaust of devices running on fuel or gas, such as room heater must be absolutely isolated or device must be hermetical type.

- When connecting the flue, use pipes with a diameter of 120 or 150 mm . Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

•The product outlet must not be connected to air channels that include other smoke.

•The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating

on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

- Objects placed on the product may fall. Do not place any objects on the product.

- Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To

find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs impor-

1 Important safety and environmental instructions

tant role in recovering and recycling of old appli- ance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

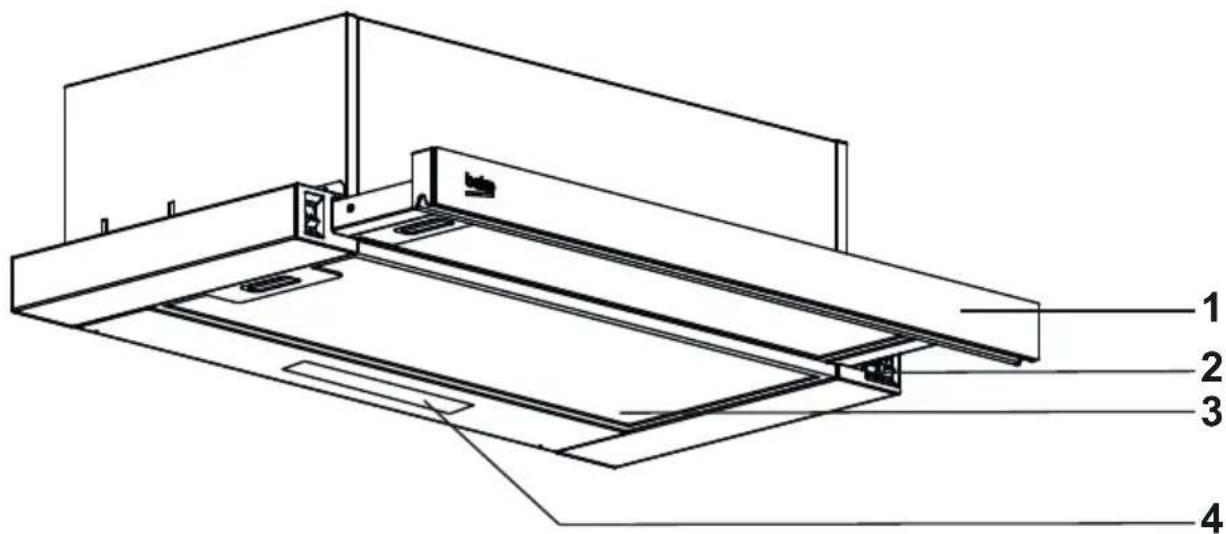

2.1 Overview

1. Front panel
2. Control panel
3. Grease filter
4. Lighting

2.2 Technical data

Model	HNT 63322 XH	HNT 63322 BH	HNT 63322 WH
Supply voltage and frequency	220-240V~50/60Hz
Lamp power	1×2 W
Motor power	65 W
Air flow – 3. Level	319.8 m3/h
Insulation class	CLASS I
Colour	Inox	Black	White

3 Using the appliance

3.1 Controlling the appliance

Lamp button To turn on the product lamp put the switch in lamp position. The slider set should be in pulled position in orderto turn on the lamp.
1st and 2nd speed switch.		Put the switch in down position to operate the product in the 1st speed and in up position to operate in the 2nd speed. To turn it off, set it to "0" position.
3. Speed switch		Put the switch in down position to operate the product in the 3rd speed. To turn it off, set it to "0" position.

3.2 Energy efficient usage

- When operating the hood, adjust the speed level according to the odour and vapour intensity in order to prevent unnecessary power consumption.

- Use low speeds in normal conditions (1–2), and high speed (3) when smell and vapours are intensified.

- Lamps on the hood are intended for illuminating the cooking zone.

- Using them to illuminate the ambient/kitchen will result in unnecessary power consumption and inadequate illumination.

- For your device to consume less energy, run it at a low speed level.

- Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.

- Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.

- Keep the lids of the cookware closed to reduce the steam evolving.

3.3 Operating the hood

- Your appliance contains a motor that has various speeds.

- For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour.

- You can start your appliance by pressing on the desired speed setting button. (1, 2, 3)

- You may illuminate the cooking area by pressing the lamp.

3.4 Replacement of Lamp

- Before replacing the light bulbs, disconnect the power supply of the hood.

- Do not touch the light bulbs when they are hot.

- Be careful not to touch the replaced light bulb directly with hands.

You may procure lamps from Authorised Service Agents.

Bulb
Bulb Power 2 W
Holder / Socket L14
Bulb Voltage 110 - 240 V

3 Using the appliance

Size 34.5*120 mm
Luminous flux 81 lm
Correlated colour temperature	4050 K

This product contains a light source of energy efficiency class "A".

3.5 Operation with chimney connection

cted through the

flue duct, which is fastened to the connection head on the hood.

•The diameter of the flue duct

must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10° ) so that the air can exit the room easily.

3.6 Operation without chimney connection

ough the carbon

filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house.

• In flue less use, remove the

flaps inside the flue adapter.

- Remove the aluminium grease filter. To install the carbon filter, fit the filter to the tabs by cent-ring it on the plastic piece on both sides of the fan body. Tighten it by turning right or left.

- Replace aluminium grease filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Clean using only a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol.

4.1 Cleaning of grease filter

This filter captures particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

- Push the grease filter lock forward.

- Then pull it slightly down and pull it out. Otherwise, you may bend the filter. Wash and rinse grease filter with liquid detergent and replace grease filter to their seats by carrying out the steps specified above in reverse order. These grease filter are used to retain the oil particles in the air.

You may also wash the grease filter in the dishwasher.

CAUTION: In case of normal use, clean your grease filter once in a month.

4.2 Replacement of Carbon Filters

Odour removing filters contain charcoal (Active carbon). Grease filter must be installed in the product, regardless of whether or not carbon filters are used.

• Remove the grease filter.
• To remove the carbon filter, remove the carbon filter from its housing by rotating it counter-clockwise from the tab.
  • Install the new carbon filter.
  • Install the grease filter.

CAUTION:

•Carbon filter shall never be washed.
-Replace carbon filters once every 3 months.
- You can obtain the carbon filter from the authorized services.

5 Installation of appliance

WARNING: Before starting the installation, read the safety information on User Manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

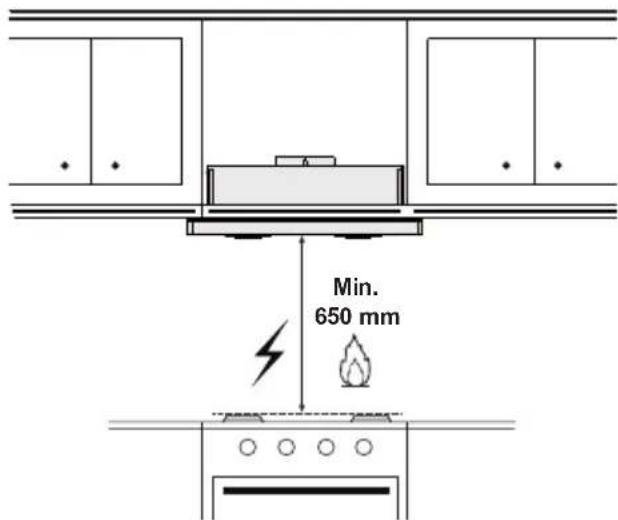

5.1 Position of the appliance

- Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.

- Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

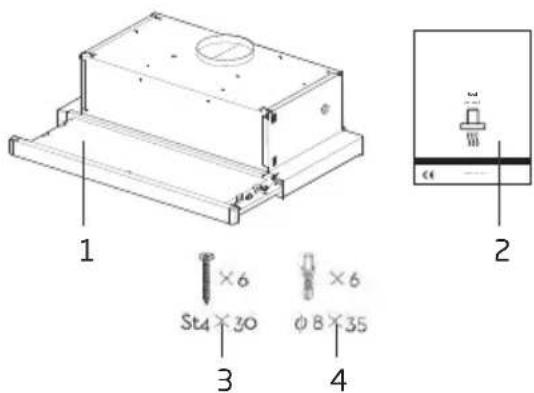

5.2 Installation accessories

1. Hood
2. User manual
3. Screws x6
4. Plastic dowel x6

5.3 Installation

Two methods for installation

Method A:

To install onto the wall drill 2 holes of ∅8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.

Insert the nut into the holes.

Insert the screws into the nuts and tight.

Put the cooker hood onto the tighten screws.

Fix the cooker hood with safety screw.

The two safety vents are positioned on the back casing, with diameter of 6mm.

Put the one way valve onto the cooker hood.

5 Installation of appliance

Method B:

Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard. Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the hanging cupboard, tighten the hood with enclosed 4 screws.

- The extensible pipe are optional accessory, not supplied.

• Take off protection film before installation.

5.4 Air outlet installation method

Installation method for 150mm diameter pipe: Insert the one-way-valve as the pic and fix the pipe.

ATTENTION: The bump of the one-way-valve must be upward.

Installation method for 120mm diameter pipe: Inse

the damper as the picture and fix the converter before placing the duct.

The pipe near the air outlet need to be fully extended.

5.5 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children

5.6 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6

Troubleshooting

Troubleshooting Reason Help
The product does not work.	Check your fuse. Your fuse might be closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The	lamp switch should be in the “on” position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Control și piese

1. Front panel
2. Panou de control
3. Filtru de grăsime
4. Iluminat

2.2 Date tehnice

•The carbon filter is never washed.
-Replace carbon filters once every 3 months.
•Carbon filter is available from Authorized Services.

5 Instalarea hotei

5 Instalarea hotei

Metoda B:

5.2 Installation accessories

Metoda B:
