Product Type	Refrigerator with freezer compartment
Model	HEKS8260GD
Dimensions (H x W x D)	818 mm x 595 mm x 545 mm
Net Weight	34 kg
Voltage / Frequency	220–240 V ~ 50 Hz
Rated Current	0.6 A
Rated Power	105 W
Refrigerant	R600a (isobutane)
Refrigerant Filling Capacity	28 g
Climate Class	SN-N-ST (ambient +10°C to +38°C)
Energy Efficiency Class (Light Source)	G
Temperature Range (Fridge)	+2°C to +8°C (recommended +6°C)
Freezer Compartment Stars	4 stars (-18°C)
Quick Refrigerating Function	Yes (activates for 6 hours)
Door Alarm	Activates after 60 seconds open
Auto-Defrost (Fridge)	Yes
Interior Light	LED (non-replaceable)
Shelves	1 adjustable glass shelf
Door Shelves	3 (including moveable door tray)
Vegetable Drawer	Yes (with glass cover)
Ice Cube Maker	Yes (supplied tray)
Egg Trays	2 supplied
Door Hinge Reversible	Yes (requires tools)
Installation Type	Built-in (not freestanding)
Protection Class	I (earthed plug)

Frequently Asked Questions - HEKS8260GD Hanseatic

How do I set the temperature on my Hanseatic HEKS8260GD?

Press the TEMP. button (14) repeatedly to cycle through temperatures from +2°C to +8°C. The display shows the selected temperature. Recommended fridge setting is +6°C.

What does the door alarm mean and how do I turn it off?

If the door is left open for more than 60 seconds, 3 beeps sound every 60 seconds for 10 minutes. Press the ALARM button (15) to silence it. Close the door to stop the alarm completely.

How do I activate Quick Refrigerating mode?

Press the SUPER button (12). The display shows the quick refrigerating indicator and temperature drops to +2°C. This mode automatically deactivates after 6 hours.

How do I clean the refrigerator interior?

Unplug the appliance. Remove all shelves and drawers. Clean with warm water and a mild detergent. Add a few drops of vinegar to prevent mould. Dry all parts before reassembling. Never use abrasive cleaners.

How do I defrost the freezer compartment?

Unplug the appliance and remove all food. Place a bowl of hot (not boiling) water inside to speed up defrosting. Leave the door open. Wipe away thaw water with a cloth. Clean and dry before restarting.

How do I make ice cubes?

Fill the supplied ice cube tray to 3/4 with fresh drinking water. Place it horizontally in the freezer compartment. To remove cubes, bend the tray slightly or hold it under running water briefly.

Can I change the door hinge direction?

Yes, the door hinges are reversible. You will need a medium cross-tip screwdriver. Follow the step-by-step instructions in the manual starting on page EN-25. Ensure the appliance is level after changing.

What should I do if the appliance is not cooling enough?

Check the temperature setting (recommended +6°C for fridge). Ensure the door is fully closed and the door seal is clean and intact. Allow space around the appliance for ventilation. If problem persists, contact service.

How do I replace the interior light?

The interior uses maintenance-free LEDs. Do not attempt to replace them. If the light fails, contact the service department (see manual page EN-34) for assistance.

What are the recommended storage tips for the refrigerator?

Store butter and cheese in the warmest part (door shelves). Place meat and fish on the vegetable drawer cover (coldest). Keep fruits and vegetables in the vegetable drawer. Allow hot food to cool before storing. Do not overfill to ensure air circulation.

USER MANUAL HEKS8260GD Hanseatic

Line drawing of a front view of a rectangular appliance with ventilation grilles and a door, no text or symbols present.

Gebrauchsanleitung

Line drawing of an open refrigerator with multiple compartments and a tray of ice cubes (no text or symbols)

Technical line drawing of a multi-chamber refrigerator with mounting brackets and ventilation slots (no text or symbols)

Diagram showing two mechanical components with a directional arrow, no text or symbols present

Technical line drawing of a cabinet or enclosure with internal components and a magnified inset showing a component labeled (32), no text or symbols present.

Line drawing of a front view of a rectangular appliance with ventilation grilles and a door, no text or symbols present.

User manual

Manual/version: 2201-00602 EN 20221219 Item no.: 24811525 Reproduction, even of excerpts, is not permitted!

Refrigerator with freezer compartment

Table of contents

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you

can use all the functions reliably and safely.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on setting up the appliance and starting it up for the first time from page EN-23.

Explanation of terms and symbols,

definitions....EN-3

Explanation of terms .....EN-3

Explanation of symbols .....EN-3

Definitions .....EN-3

Safety ....EN-4

Intended use ....EN-4

Safety notices ....EN-4

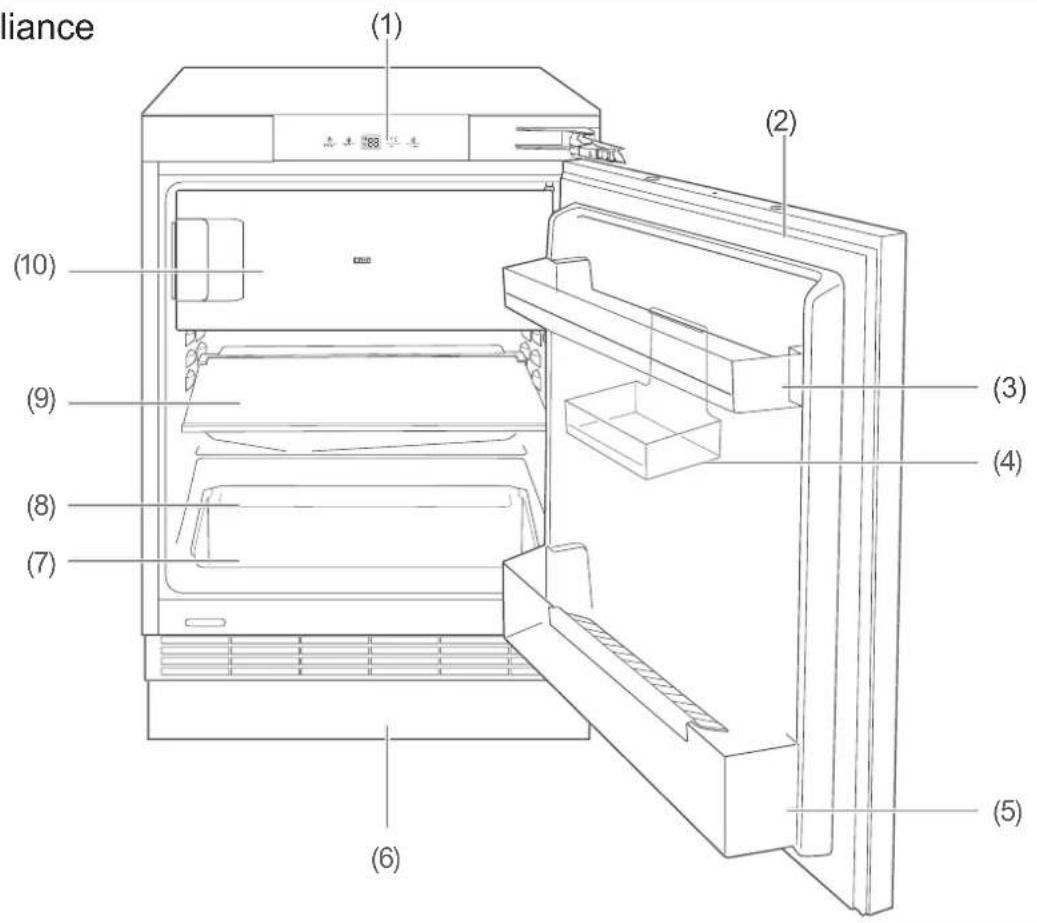

Appliance parts and control elements ....EN-11

Operation EN-12

Before getting started ..... EN-12

Switching the appliance on and off . . . EN-12

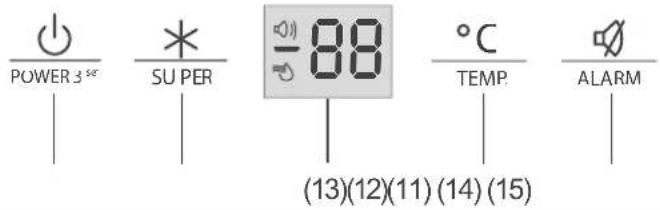

Setting the temperature ..... EN-12

Door alarm.... EN-13

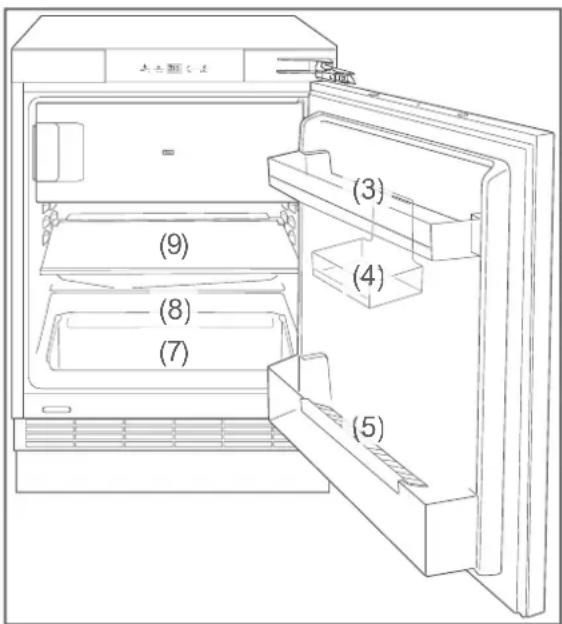

Rearranging the shelf ..... EN-13

Refrigerating food ..... EN-14

Refrigeration tips.... EN-14

Maintaining quality ..... EN-15

Freezing foods, storing frozen foods .... EN-16

Freezing EN-16

Storing frozen food..... EN-17

Defrosting food EN-18

Preparing ice cubes.... EN-18

Care and maintenance ..... EN-19

Checking and cleaning the door seals. EN-19

Cleaning the inside of the appliance ... EN-19

Defrosting and cleaning the freezer

compartment......EN-20

Interior light ...... EN-21

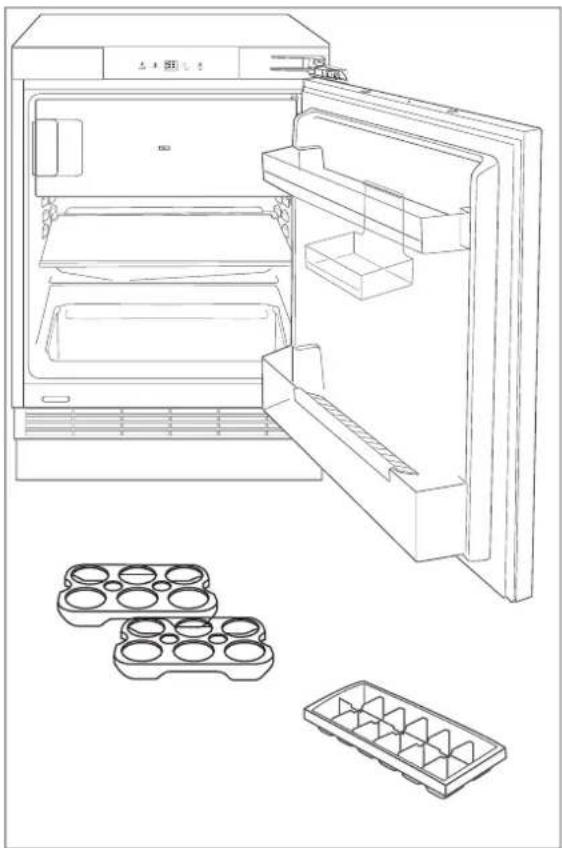

Delivery EN-22

Package contents ...... EN-22

Check the delivery ..... EN-22

First use EN-23

Before starting to use the appliance . . . EN-23

Unpacking and setup.... EN-23

Basic cleaning ..... EN-23

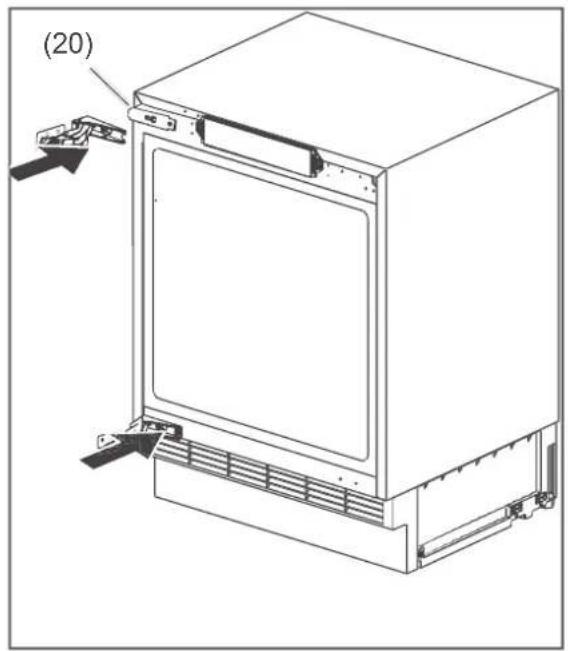

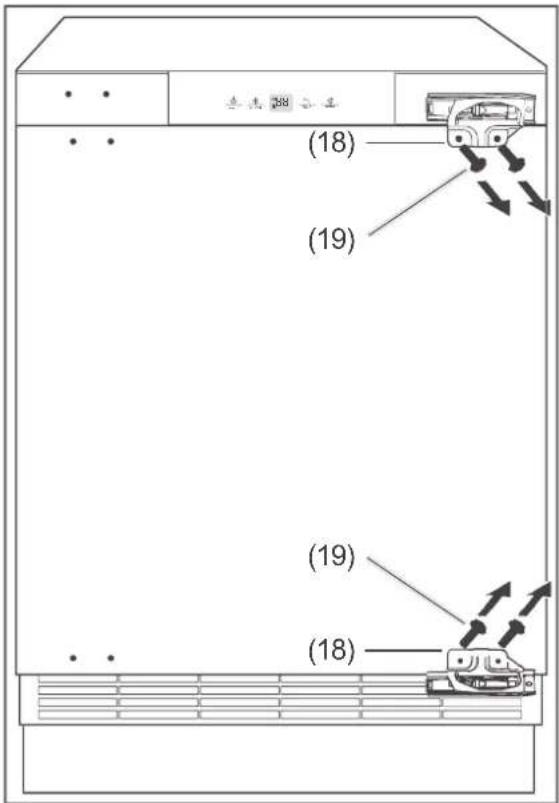

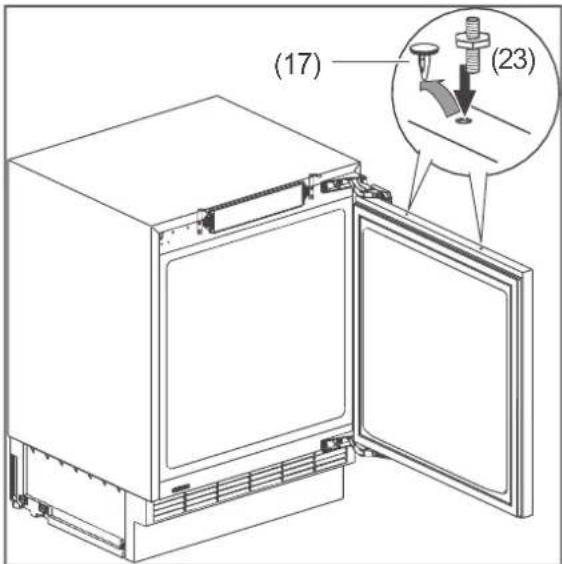

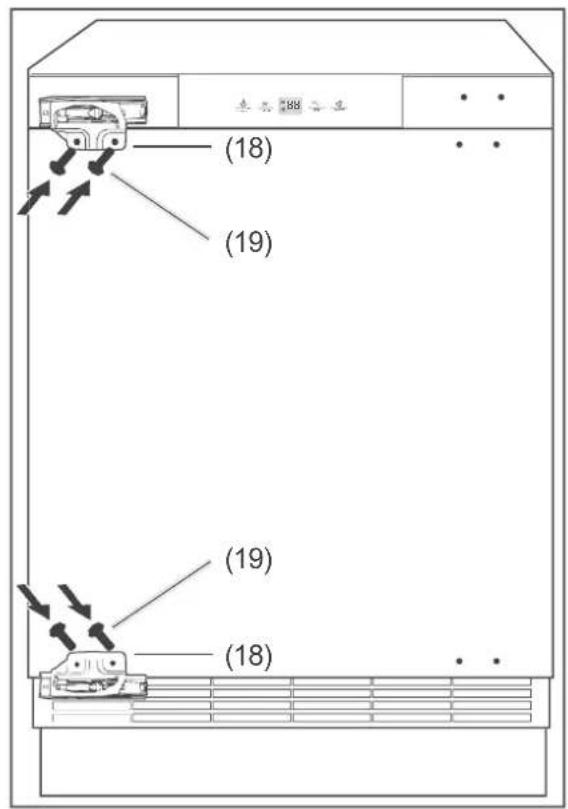

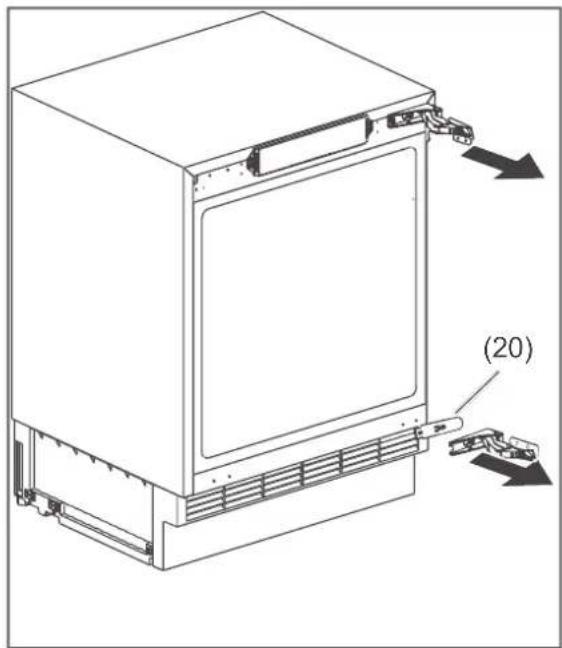

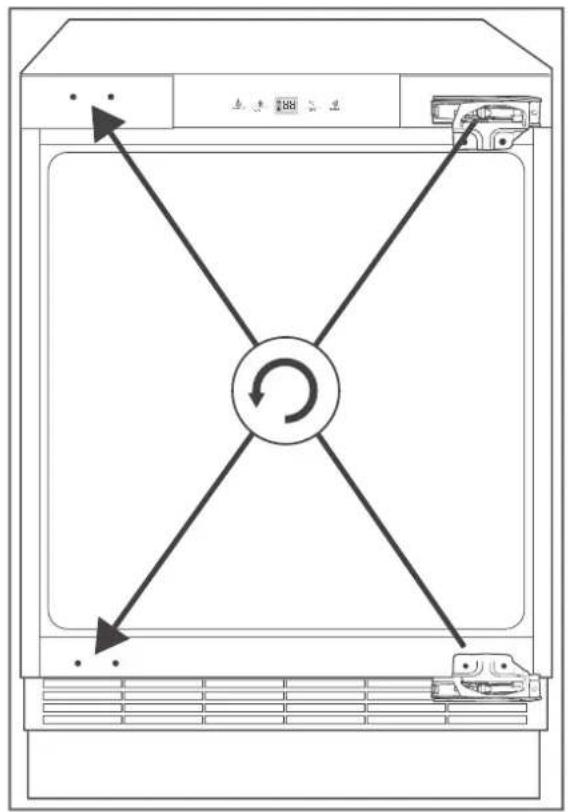

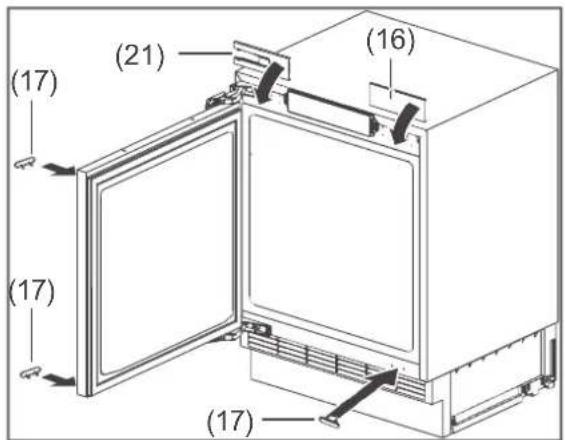

Changing the door hinges ..... EN-25

Electrical connections ..... EN-27

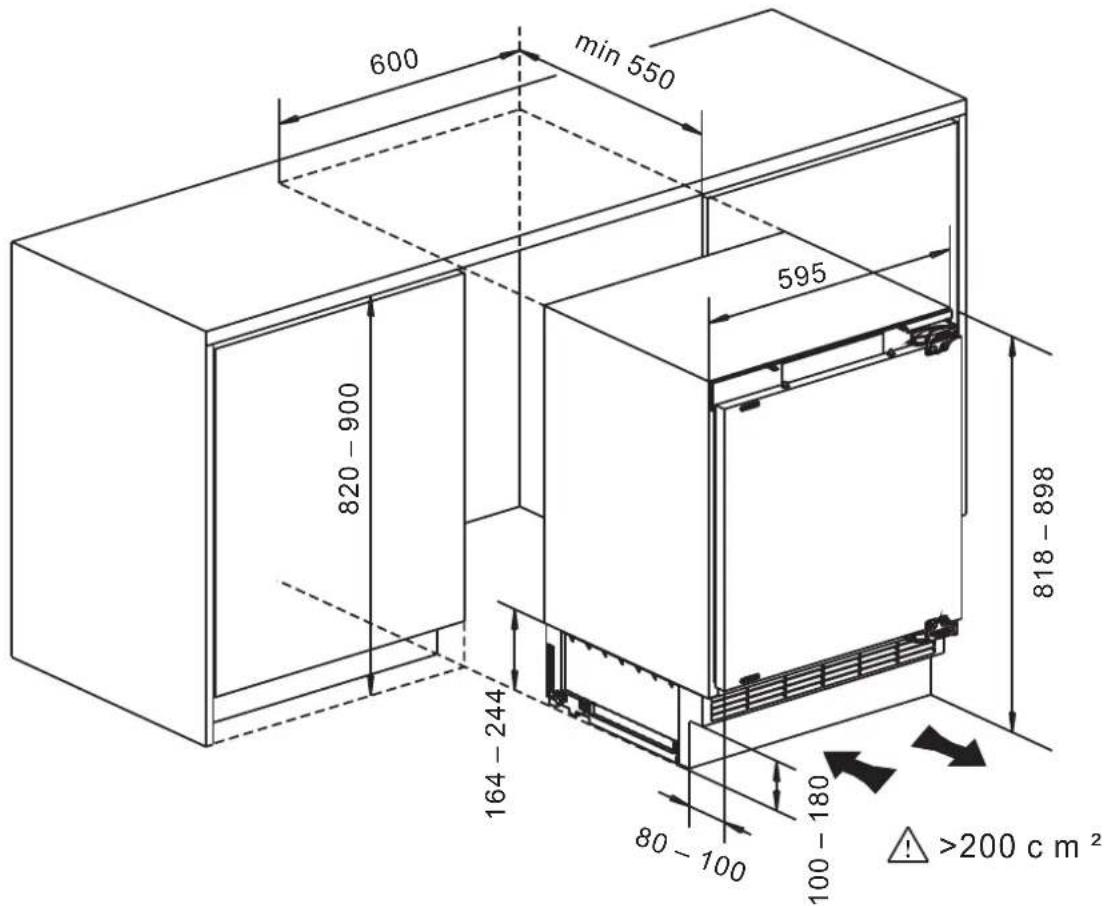

Installation.... EN-28

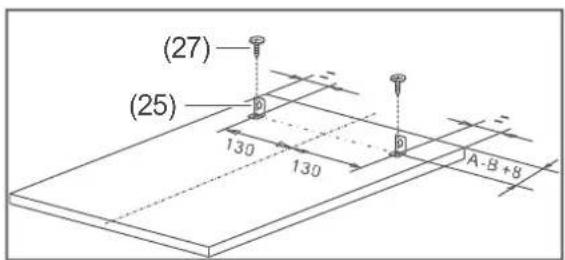

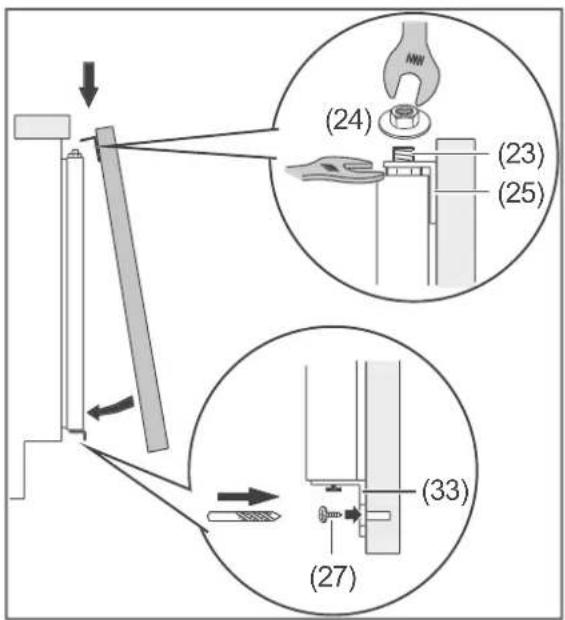

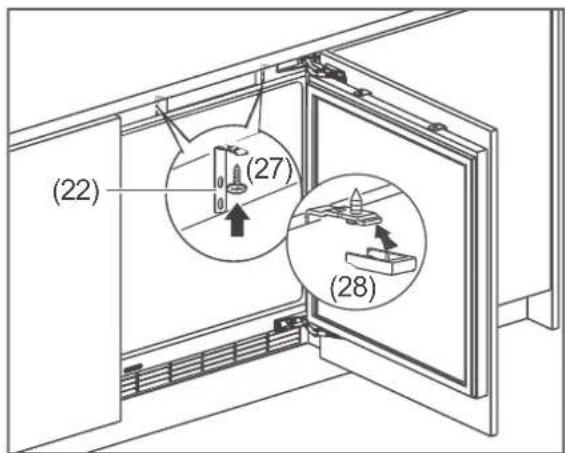

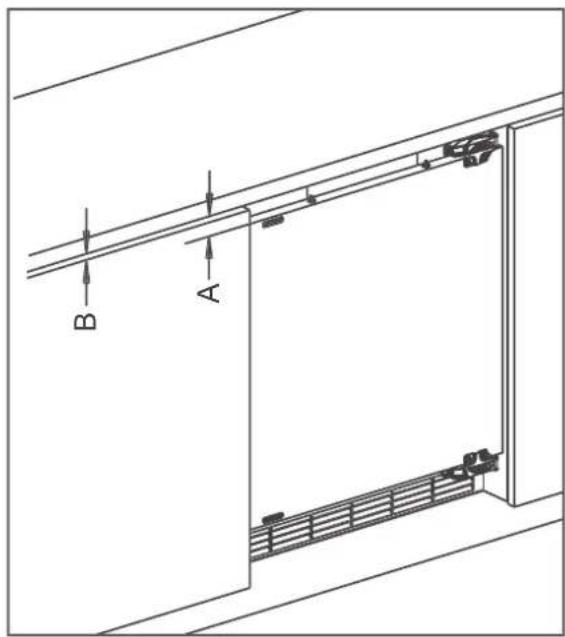

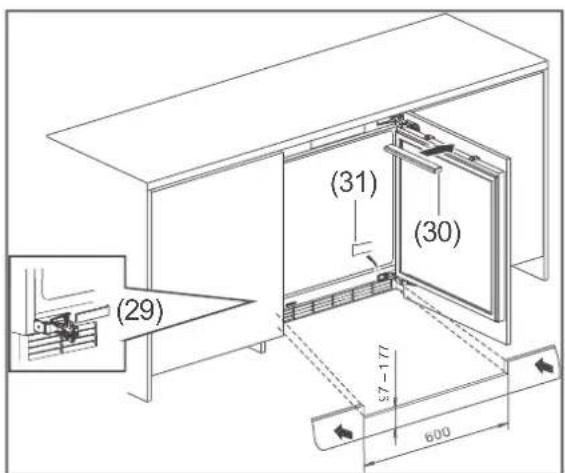

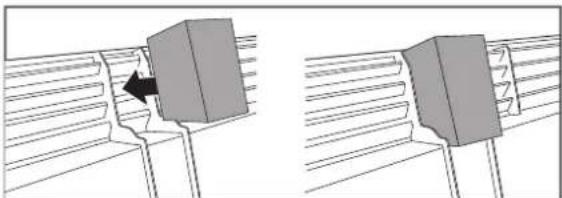

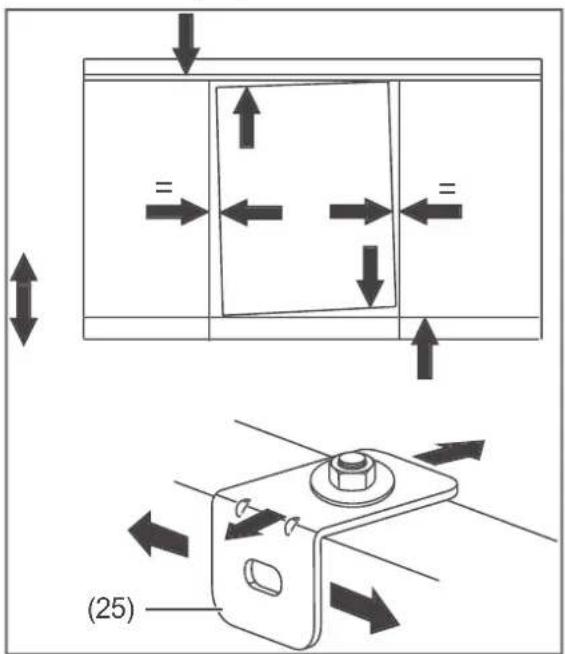

Installing the appliance ..... EN-29

Troubleshooting table ..... EN-33

Service EN-34

Advice, complaints and orders ..... EN-34

Repairs and spare parts ..... EN-34

Waste prevention, free return

and disposal.... EN-35

Waste prevention EN-35

Free return of old electrical appliances ..... EN-35

Disposal EN-35

Packaging EN-36

Appendix.... EN-37

Product fiche concerning

EU Directive no. 2019/2016 ..... EN-37

Technical specifications ..... EN-37

Explanation of terms and symbols, definitions

Explanation of terms

The following signal terms can be found in this user manual.

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This singal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This signal term warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

"4 star" symbol: Freezer at -18^ or colder

Definitions

“Food” refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

Safety

Intended use

The purpose of this appliance is to

– chill fresh food,
– to store ordinary commercially available deep-frozen food,
– to deep freeze fresh, room-temperature foods,
- make ice cubes.

This appliance is designed for use at ambient temperatures of +10°C to +38 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

The appliance is designed for installation in suitable built-in furniture units. It may not be used as a freestanding appliance. Ensure that the appliance is properly fixed in place. Never use adhesives or glue to fix the appliance in place.

The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not make any technical changes to the appliance.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter, you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, start-up, etc.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it
– shows visible signs of damage, e.g. the mains cable is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or switch off/unscrew the fuse and contact our Service department (see page EN-34).

■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the nameplate.

■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must, therefore, be connected to an easi-

ly accessible socket so that it can be quickly disconnected from the power supply in the event of a breakdown.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-34).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

- Keep the supply cord away from naked flames and hot surfaces.

■ Always pull on the mains plug and not the mains cable.

■ Never touch the mains plug with wet hands.

■ Never immerse the supply cord or plug in water or any other liquids.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. If necessary, contact our Service department (see page EN-34).

■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or switch off/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
■ Do not remove the cover from the interior lighting. Do not attempt to replace the interior light. If in doubt, contact our Service department (see page EN-34).
- Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire, to personal injury and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Risks associated with using refrigerants

! WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fins or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a fl am- mable gas-air mixture in the event of a leakage in the refrigeration cir- cuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of re- frigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fi re.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fi re.

■ Do not use any electric heating equipment, knives or devices with an open flame as well as candles.

■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks when dealing with fridge-freezers

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator so that so that it is not in contact with or drip onto other food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, and dry it, and leave the door open to prevent mould developing within the appliance.

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

- Pay attention to the star classifi cations in the freezer and the resulting storage periods for freezer products. - Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).

If there is a power failure, the frozen food may remain sufficiently cold for some time (see “storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.

■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.

■ Use only potable water to make ice cubes.

Risk of injury from frozen goods!

Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put them into your mouth straight from the freezer.

Risk of injury!

The frozen food's very low temperatures can freeze the hands, lips or tongue.

■ Do not put ice cubes, crushed ice or ice lollies straight into your mouth from the freezer.
- Do not touch the frozen food and freezer’s interior walls with wet hands.

! NOTICE

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
- Do not position the appliance directly against the wall and adhere to the minimum distances specified (see "First use" on page EN-23).

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ Do not store glass or metal containers containing water, lemonade, beer,

etc. Water expands when frozen and can burst the container.

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Risks associated with using built-in appliances

WARNING

Risk of injury!

Fastening the appliance inadequately can lead to injuries or damage to property.

■ This appliance must be secured in accordance with the instructions for use to avoid hazards resulting from inadequate stability.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

In order to guarantee sufficient air circulation, keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Observe the minimum measurements of the built-in cabinet (see “Installing the appliance” on page EN-29).

Risk of damage

NOTICE

Risk of damage to property!

If the cooling unit has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, only transport the appliance in a vertical position.
- Allow the refrigerating appliance to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ Do not pull or lift the appliance by its doors or door handles.
■ Place the appliance only on a level and firm surface that can support the weight of the appliance when it is filled.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.
- When cleaning, please note: - Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These damage the plastic

surfaces. All-purpose cleaners with a neutral pH are recommended.

• Door seals and plastic parts are sensitive to oil and grease. Remove stains as quickly as possible.
  – Use only soft cloths for cleaning.

■ Wait 5 minutes after switching off the appliance. Only then switch the appliance on again.

Appliance parts and control elements

Appliance

(1) Control panel
(2) Appliance door
(3) Upper door shelf
(4) Moveable door tray
(5) Lower door shelf

(6) Front panel
(7) Vegetable drawer
(8) Vegetable drawer cover
(9) Glass shelf
(10) Freezer

Control panel

(11) POWER button ⏻
(12) SUPER button *
(13) Display

(14) TEMP. button °C
(15) ALARM button ∅

Operation

Before getting started

• Read the "Safety" chapter from page EN-4.
• Set up and connect the appliance as described in chapter "First use" from page EN-23.

Switching the appliance on and off

NOTICE

Risk of damage!

If the cooling unit has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting.

Switching on

1. To switch the appliance on, insert the mains plug into the socket. The display (13) lights up for 1 second.
2. Press and hold the button ⏻ (11) for approximately 3 seconds.
   The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard.

If the appliance is making unusual noises, check that it is stable and remove any objects that may be on top of it.

Switching off

• To switch the appliance off, pull the mains plug out of the socket.
  Alternatively, press and hold the button ⏻ (11) for approximately 3 seconds.
  The indicator on the display (13) will show “--”.

If the appliance is switched off, leave the appliance door (2) open slightly to prevent mould from forming.

Setting the temperature

CAUTION

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. The temperature may increase in the fridge which may cause the foods stored within to spoil more quickly.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

If you set a lower temperature, you will require greater refrigeration performance. This increases energy consumption.

Switching on for the first time

The standard temperature setting for when the appliance is first switched on is +4 °C.

Change temperature

You can set the temperature to between +2 °C and +8 °C.

- Press the button °C (14) repeatedly until the desired temperature is shown.

The temperature is reduced by 1 °C each time you press the button. When the setting reaches +2 °C, the display jumps to +8 °C when pressed again.

The correct temperature in the fridge is +6 °C. The ideal storage temperature in the freezer is -18 °C.

Activating Quick refrigerating

The “Quick refrigerating” mode rapidly cools the inside of the refrigerator.

- To activate Quick refrigerating, press the button * (12).

The indicator will appear on the display (13).

The temperature indicator will show +2 °C.

Deactivating Quick refrigerating

Quick refrigerating is automatically deactivated after 6 hours.

- To deactivate Quick refrigerating manually, press the button * (12).

The indicator will go out. The temperature indicator will return to the original setting.

Door alarm

The energy consumption and the temperature inside the appliance can increase if the appliance door (2) is opened often or for long periods of time.

If the appliance door is left open for more than 60 seconds, 3 beeps will sound every 60 seconds for 10 minutes. The indicator Ⓞ will flash on the display (13).

• Close the appliance door.
• To disable the door alarm, press the button (15).

Rearranging the shelf

The glass shelf (9) can be removed and rearranged if necessary.

You will achieve the most efficient use of energy for your appliance if you combine the glass shelves and door shelves, as shown in the figure on page EN-11.

1. Lift up the glass shelf and remove it.
2. Slide the glass shelf into the new position.

Refrigerating food

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances, such as aerosol cans with a fl ammable propellant, in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Refrigeration tips

• To achieve the most efficient use of energy for your appliance, combine the glass shelves and door shelves as shown in the figure on page EN-11.
• A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.
• Set the temperature in the fridge to +6 °C and fill the fridge in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

The following tips show you how you can store foods in your appliance to keep them in the best possible condition over the longest possible period. This will mean that you avoid food waste:

• Store spreadable butter and cheese in the moveable door tray (4) in the upper section of the refrigerator. This is where the temperature is warmest.

• Store preserves, jars and eggs on the upper door shelf (3) in the refrigerator. Eggs are best stored on the supplied egg tray.

• Place drinks cartons and bottles on the lower door shelf (5). Position full containers closer to the hinge in order to reduce the strain on the appliance door.

• Store cooked and baked foods on the glass shelf (9).
• Store fresh meat, game, poultry, bacon, sausage and raw fish on the glass vegetable drawer cover (8) above the vegetable drawer (7). This is where the temperature is lowest.
• Store fresh fruit and vegetables in the vegetable drawer (7).
• Only store strong alcohol standing upright and closed tightly.
• Allow hot food to cool before placing it in the refrigerator.

The temperatures in the appliance and thus the energy consumption can increase

• if the doors are opened frequently or for a prolonged period.
• if the temperature falls below or exceeds the prescribed interior temperature.

Energy consumption is also dependent on the selected location.

Maintaining quality

• To maintain the flavour and freshness of food in the fridge compartment, only place packaged food in the fridge compartment. Use special plastic containers for food or commercially available film.
• Store the food

– in the refrigerator in a way that allows air to circulate freely. Do not cover the shelves with paper or anything similar.
- such that it does not touch the rear wall directly. Otherwise it may freeze onto the rear wall.

Freezing foods, storing frozen foods

WARNING

Danger of explosion!

Improper handling of the appliance may lead to an explosion.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed.

In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.
■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
If there is a power failure, the frozen food may remain sufficiently cold for some time. In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance. The maximum storage time in the event of a power failure is shown on the appliance's type plate.
■ After a malfunction, check whether the stored food is still edible. Con-

sume thawed and defrosted foods immediately, do not refreeze.

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put them into your mouth straight from the freezer.
- Follow the instructions in this section to store your food over the longest possible time in the best possible way.

Freezing

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results "flash-frozen". If not cooled quickly enough, the food will be "frost-bitten", i.e. the structure will be destroyed. A constant storage temperature of -18 ^ is needed to maintain the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will also help you avoid food waste.

Please observe the maximum freezing capacity when freezing larger amounts of food. The maximum freezing capacity is shown on the appliance's type plate.

Preparing the food

• Only freeze high quality food.
• Freeze fresh and prepared food unsalted and unseasoned. Unsalted foods are more durable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• Do not freeze fizzy drinks, as the carbon dioxide will escape during freezing.

Suitable packaging

Packaging is important when freezing. This will protect against oxidation, penetration by microbes, transfer of odours and flavourings and drying out (freezer burn).

- Only use packaging material that is strong, impermeable to air and liquid, not too stiff and which is possible to label. It should be designated as suitable for freezer use.

Portions

• Use flat portions as much as possible; these freeze through to the core faster.
• Expel the air from the freezer bag as this causes the contents to dry out and takes up space.
• Fill liquid containers no more 34 full, because liquids expand when frozen.
• Do not store glass or metal containers containing liquids such as water, lemonade, beer, etc. Water expands when frozen and may burst the container.
  Only high percentage alcohol (from 40% by volume) should be frozen; make sure that it is tightly sealed.
• Label the frozen food by type, quantity, amount and expiry date. Use waterproof

marker pens or adhesive labels wherever possible.

Freezing capacity

You will find the freezing capacity for your appliance on the appliance type plate.

- Adhere to the maximum freezing capacity if possible.

Up to the indicated maximum freezing capacity:

If you adhere to the maximum freezing capacity, the food will freeze at the fastest rate. The temperature in the freezer briefly rises after placing fresh goods inside. After 12 hours, the goods are frozen to the core.

Above the indicated maximum freezing capacity:

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food cannot be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods.

The temperature in the freezer briefly rises after placing fresh goods inside. After another 12 hours, the goods are frozen to the core.

Storing frozen food

The deep-freeze chain must not be broken between the manufacturer and your freezer. The temperature of the frozen food must always be at least -18 ^ .

• Therefore, do not buy any goods that
- are in frosty, over-icy chests.
– are stacked above the stipulated high-load marker.
– partially clumped (particularly easy to identify with berries and vegetables).
– have snow and juice traces.

• Transport frozen foods in special styrofoam boxes or insulated bags.
• Observe the storage conditions and times on the packaging

Defrosting food

- Observe the following basic rules when defrosting food:

• To defrost food, remove it from the freezer compartment and let it defrost at room temperature or in the refrigerator.
• To defrost food quickly, use the defrost function on your microwave, for example. Observe the manufacturer's instructions and note that bacteria and germs can multiply in this way.
• Cook or use thawed foods as soon as possible.
• Dispose of the defrosting liquid.
• If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid “freezer burn” and will reduce ice formation on the remaining foods.

• Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not immersed in its own thawing liquid.

Preparing ice cubes

CAUTION

Health hazard!

Eating ice cubes which have been prepared using impure or standing water can cause food poisoning.

■ Use only potable water to make ice cubes.

- Fill the supplied ice cube container to the 34 level with fresh drinking water and place it horizontally in the freezer compartment. The ice cubes are best removed by bending the ice cube container slightly or holding it under running water for a short while.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or switch off/un-screw the fuse.
■ When pulling out the mains plug, always hold the plug itself and not the cord.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These damage the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Door seals and plastic parts are sensitive to oil and grease. Remove stains as quickly as possible.
■ Only use soft cloths.

Checking and cleaning the door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places carefully with a hair dryer and pull it out with your fingers.
3. Clean dirty seals with clean water only.

Manual defrosting is not necessary, as the fridge compartment of your appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the inside of the appliance

1. Disconnect the mains plug from the socket or switch off the fuse.
2. Remove the chilled goods and place them in a cool room.
3. Remove the vegetable drawer cover (8), the vegetable drawer (7), the upper door shelf (3), the moveable door tray (4), the lower door shelf (5) and the glass shelf (9) and clean all these parts in soapy lukewarm water. Then dry everything thoroughly.
4. Wipe down the inside with warm water and dishwashing liquid.
   When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
5. Wipe the interior dry and leave the appliance door (2) open for a while to air it out.

6. Clean the door seals with clean water only; they are sensitive to oil and fat.

7. Put the vegetable drawer cover, the vegetable drawer, the upper door shelf, the moveable door tray, the lower door shelf and the glass shelves back in place.

8. Put the food back in the appliance.
9. Re-insert the mains plug or switch on the fuse.
10. Adjust the temperature to the desired level.

Defrosting and cleaning the freezer compartment

WARNING

Danger of explosion!

Improper handling of the appliance may lead to defl agration/explosion!

■ Never use defrosting sprays. They can generate explosive gases.

NOTICE

Risk of damage!

When cleaning, please note:

■ Never use harsh, granular, soda-based, solvent-based or abrasive cleaners. We recommend all-purpose cleaners with a neutral pH.
■ The door seal is sensitive to oil and grease - the rubber becomes porous and brittle as a result.
■ The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
■ Use only soft cloths for cleaning.

If possible, defrost the appliance in winter when the outside temperature is

low. You can then store the food on the balcony (or similar) while defrosting.

Alternatively, you can wrap up the frozen food in a thick layer of newspaper and store it in a cool room or insulated bag.

1. Disconnect the mains plug from the socket or switch off the fuse.
2. Remove the chilled food from the fridge and the frozen food from the freezer.
3. Ensure that your food is kept cool enough.
4. To accelerate defrosting, place a bowl of hot, but not boiling, water in the freezer compartment. This will accelerate the defrosting process.
5. Leave the door open while defrosting and place a floor cloth in front of the appliance to catch thaw water which may come out. The defrosting time depends on the thickness of the ice layer. Experience dictates that it is possible to start cleaning after approx. 1 hour.
6. Wipe down the inside with warm water and washing-up liquid.
7. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
8. Clean the door seals with clean water only; they are sensitive to oil and fat.
9. Wipe everything completely dry, including the door seals, and allow to air briefly.
10. Return the food to the fridge or freezer compartment.
11. Connect the mains plug to the socket or switch on the fuse again.
12. Set the temperature to +2 °C.
13. When this temperature is reached, return the temperature setting to its usual level.

Interior light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the cover from the interior lighting.
■ Do not attempt to replace the interior light.

Maintenance-free LEDs are used to light the appliance. If the interior light does not work, contact our service department (see page EN-34).

Delivery

Line drawing of an open refrigerator with multiple compartments and a tray of ice cubes (no text or symbols)

Package contents

1× Refrigerator

Fridge (device interior)

1× Vegetable drawer

1× Vegetable drawer cover

1× Glass shelf

2× Egg tray

Freezer

1× Ice cube maker

1× User manual

Various parts for installation (see

"Unpacking and setup" on page EN-23)

Check the delivery

1. Move the appliance to a suitable place and unpack it (see "First use" on page EN-23).

2. Remove all parts of the packaging, plastic profiles, tape and foam padding.

3. Check that the delivery is complete.

4. Check whether the appliance was damaged during transit.

5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service department (see page EN-34).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

You will find the type plate inside your appliance.

First use

Before starting to use the appliance

- Read the "Safety" chapter from page EN-4.

Unpacking and setup

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from taking small parts out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Do not pull or lift the appliance by its doors or door handles.
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

Improper use of the appliance may lead to injury or damage to health.

■ Do not damage the refrigeration circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.

■ Refrigerant is fl ammable when spurting out and can damage the eyes. In case of an accident, rinse your eyes in clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the cooling appliance horizontally.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. A temperature rise may occur inside.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Basic cleaning

In order to remove the odour which is present in all new appliances, wipe down the interior prior to first use with a solution made of 100 ml vinegar and 200 ml water. Then wipe it out with clean water and dry all the parts off afterwards.

About climate categories

Always ensure the prescribed ambient temperature is maintained (see “Intended use” on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature.

Zone description	Code	Definition
Extended temperate zone S	N This refrigerator	refrigerator is designed for use at ambient temperatures of +10 °C to +32 °C.
Temperate zone N This refrigerator	is designed for use at ambient temperatures of +16 °C to +32 °C.
Subtropical zone ST This refrigerator	is designed for use at ambient temperatures of +16 °C to +38 °C.
Tropical zone T This refrigerator	is designed for use at ambient temperatures of +16 °C to +43 °C.

If the room temperature drops significantly below this, the unit will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

Changing the door hinges

If your spatial conditions require it, you can change the door hinge of the appliance door (2). This work, however, requires you to have a certain degree of craftsmanship skills.

In addition to the package contents (see "Parts for installation" on page EN-28) you will also need the following material to change the door hinge:

– Medium size cross-tip screwdriver
- Please read through all of the following steps before starting work.

Removing the appliance door

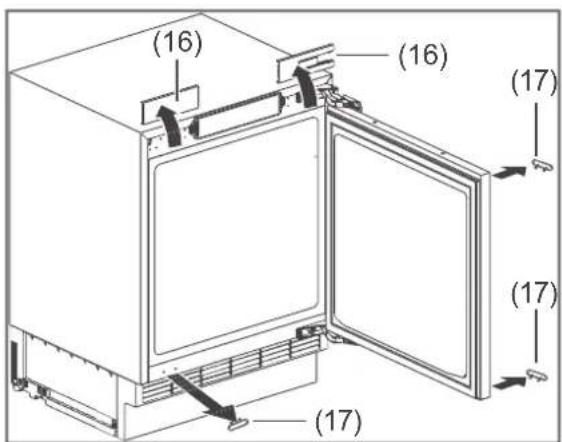

1. Remove the hinge covers (16).

2. Remove the blind plugs (17).

1. Loosen the screws (19) on the hinges (18).


Technical line drawing of a front-loading refrigerator with labeled parts (20), showing internal components and mounting brackets (no text or symbols beyond labels)

1. Remove the hinges (18) and the hinge plate (20).

1. Fasten the hinges (18) using the screws (19).


1. Replace the hinge covers (16) and (21), and the blind plugs (17).

2. Position the hinges (18) and the hinge plate (20) on the opposite side. Note that the hinges must be fitted diagonally opposite each other.

Electrical connections

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance if

• it shows visible signs of damage, e.g. the mains cable is defective,
• starts smoking or there is a smell of burning,
  – makes unfamiliar noises.

In such cases, remove the mains plug from the socket or switch off/unscrew the fuse and contact our service department (see page EN-34).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-34).

■ Do not kink or pinch the mains cable or lay it over sharp edges. This can result in a break in the cord.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage to property!

If the cooling unit has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, do not tilt the cooling appliance horizontally.

■ Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).

You will find all important information about operation from page EN-12.

Installation

Parts for installation

Housing cabinet

The housing cabinet must fulfil the following prerequisites:

Installing the appliance

- Before installation, check that the door hinges are on the correct side. Change the position of the door hinges if necessary (see "Changing the door hinges" on page EN-25).

Things you need for the installation

• a cross-tip screwdriver,
• a size 8 spanner,
• a size 13 spanner,

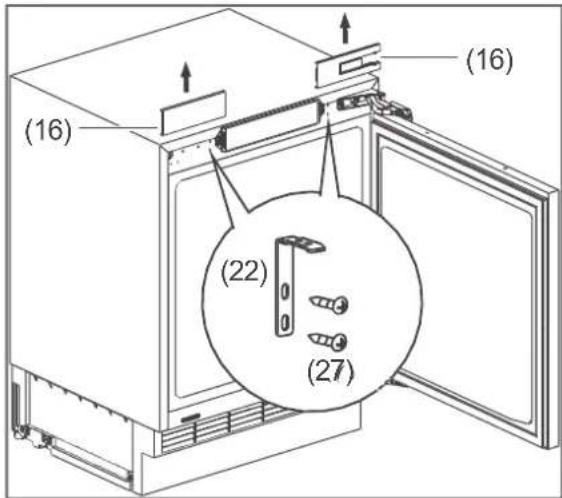

1. Remove the hinge covers (16).

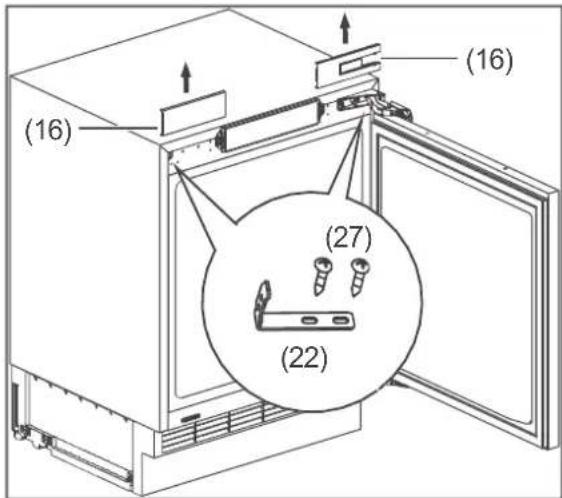

2. Attach both brackets (22) to the appliance using the screws (27).

The brackets can be used either to attach to a worktop or to a side panel.

1. Remove the blind plugs (17).
2. Screw the double-ended screws (23) into the appliance door.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

1. Remove the front panel (6) and insert the separation foam (26) in the middle of the front panel.
2. Replace the front panel.

Technical line drawing of a cabinet or enclosure with internal components and a magnified inset showing a component labeled (32), no text or symbols present.

1. Level the appliance by adjusting its screw feet (32) to the right height.
2. Use a spirit level to check whether the appliance is stable.
3. Slide the appliance into the housing cabinet.

1. Fasten both brackets (25) to the cabinet front panel using the screws (27).

The brackets must be positioned 130 mm from the centre of the cabinet front panel.

The distance from the brackets to the top edge of the cabinet front panel is calculated using the distance between the appliance door and worktop (A) and the distance between the adjacent cabinet and worktop (B). Subtract the latter from the former and then add 8 mm (i.e. A - B + 8 mm).

1. Attach the cabinet front panel to the double-ended screws (23) using the brackets (25).
2. Tighten the nuts (24) slightly.
3. Attach the pre-installed brackets (33) to the bottom of the cabinet front panel using the screws (27).

1. Align the bracket (25) such that the cabinet front panel is level.
2. Tighten the nuts.

1. Affix the brackets (22) to the worktop using the screws (27).
2. Put the bracket covers (28) on the brackets.

1. Put the hinge covers (16) back on.
2. If you have changed the direction the door opens, place the hinge cover (21) on the left side.

1. Put the screw cover (30) over the double-ended screws.
2. Insert the hinge faceplate (31) into the lower hinge.
3. If you have changed the direction the door opens, place the hinge faceplate (29) on the left side.
4. If you want to install a plinth, make sure that it has a height of 97–177 mm and a width of 600 mm and doesn't cover the ventilation grille of the appliance.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

- Never attempt to repair the appliance yourself. This may put your own and future users’ lives at risk. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor is off.	No electricity to socket. Check	the socket with another appliance.
	Mains plug is loose. Check the	tightness of the mains plug.
	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too much.	Temperature has been set too low.	Select a higher setting (see “Setting the temperature” on page EN-12).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting (see “Setting the temperature” on page EN-12).
	Appliance door not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page EN-19.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see “Intended use” on page EN-4).
	Compressor seems defective.	Activate “Quick refrigerating”. If the compressor isn’t switching on, please contact our service department (see page EN-34).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that	it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.
Water has accumulated at the bottom of the refrigerator.	Defrost drain is blocked. Rem	move blockage in defrost drain.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
Hanseatic Refrigerator with freezer compartment	white HEKS8260GD 24811525

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
- you would like to order additional accessories.

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our service department regarding this.

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Please contact our Technical Service: Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure "Waste Prevention Programme - of the German Government with the Involvement of the Federal States".

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface >100 cm^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or

to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to

be sent out for repairs, only the original packaging will provide sufficient protection. If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning EU Directive no. 2019/2016

The product fiche for your device is provided online.

Go to https://eprel.ec.europa.eu and enter the model identifier for your device to download the product fiche.

The model identifier for your device can be found in the Technical specifications.

Technical specifications

Item number 24811525
Name of appliance Refrigerator with freezer	compartment
Model identifier HEKS8260GD
Device measurements (Height × Width × Depth)	818 mm × 595 mm × 545 mm
Unloaded weight 34 kg
Refrigerant	R600a
Filling capacity refrigerant 28 g
Foaming agent cyclopentane
Rated power 105 W
Supply voltage / frequency / rated current 220 - 240 V ~ / 50 Hz / 0,6 A
Protection class I
Climate class: SN-N-ST. This appliance is intended to be used at an ambient temperature between + 10 °C and + 38 °C.

This product contains a light source of energy efficiency class G.
