Product Type	Refrigerator with freezer compartment
Brand	Hanseatic
Model	HKS17260CI
Dimensions (H x W x D)	177.5 cm x 54.6 cm x 54.5 cm
Weight	Approximately 55 kg
Energy Efficiency Class	E
Climate Class	SN-ST
Noise Level	38 dB(A)
Total Net Capacity	170 L
Refrigerator Capacity	120 L
Freezer Capacity	50 L
Freezing Capacity	3 kg/24h
Storage Time During Power Failure	17 hours
Defrost System	Automatic defrost in refrigerator, manual in freezer
Door Hinge	Right, reversible
Adjustable Thermostat	Yes, inside refrigerator
Interior Light	Yes, LED
Shelves	3 adjustable glass shelves
Crisper Drawer	1
Freezer Drawers	3
Egg Tray	Yes
Ice Cube Tray	Yes
Power Supply	220-240 V, 50 Hz, 0.5 A
Annual Energy Consumption	170 kWh/year
Cleaning	Wipe with mild detergent; avoid abrasive cleaners
Safety Features	Overheat protection, durable door seal
Spare Parts Availability	Replacement shelves, door bins, thermostats

Frequently Asked Questions - HKS17260CI Hanseatic

How do I set the temperature on my Hanseatic HKS17260CI refrigerator?

Turn the thermostat dial inside the refrigerator compartment to adjust the temperature. A higher number means a colder setting. We recommend setting it to medium (around 4-5) for normal use.

Why is my refrigerator not cooling properly?

Check if the door is fully closed and the seal is clean. Ensure the condenser coils (usually at the back or bottom) are free of dust. Verify that the thermostat is set correctly and not in a low position. Also, allow adequate airflow around the appliance.

How often should I defrost the freezer?

Defrost the freezer when ice buildup exceeds 5 mm. This can be done by turning off the appliance and letting the ice melt. Do not use sharp tools to remove ice.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Consult the manual for step-by-step instructions. Generally, you need to unscrew hinges, move them to the opposite side, and adjust the door handles accordingly.

What does the climate class SN-ST mean?

SN-ST indicates that the refrigerator is suitable for ambient temperatures from +10°C to +38°C. This means it can be placed in a cooler basement or a warmer kitchen within that range.

How can I save energy with this refrigerator?

Place the refrigerator away from heat sources (oven, direct sunlight). Keep the door closed as much as possible. Allow hot food to cool before placing inside. Clean the condenser coils regularly. Set the temperature to medium rather than maximum.

What should I do if the interior light is not working?

First, check if the door switch is functioning. If the light is an LED, it may need a replacement by a technician. If it's a standard bulb, turn off the appliance, remove the old bulb, and replace it with a new one of the same type (usually E14, 15W max).

Is it normal to hear clicking or gurgling noises?

Yes, these sounds are normal. The clicking comes from the thermostat or compressor starting/stopping. Gurgling is from refrigerant flowing. If you hear loud banging or hissing, contact service.

How do I clean the refrigerator?

Unplug the appliance. Remove all food and shelves. Wipe interior with a solution of warm water and mild detergent. Do not use abrasive cleaners. Rinse and dry thoroughly before replacing shelves and food.

Where can I find replacement parts?

Replacement parts such as shelves, door bins, and thermostats can be ordered through Hanseatic customer service or authorized dealers. Please have your model number (HKS17260CI) ready.

USER MANUAL HKS17260CI Hanseatic

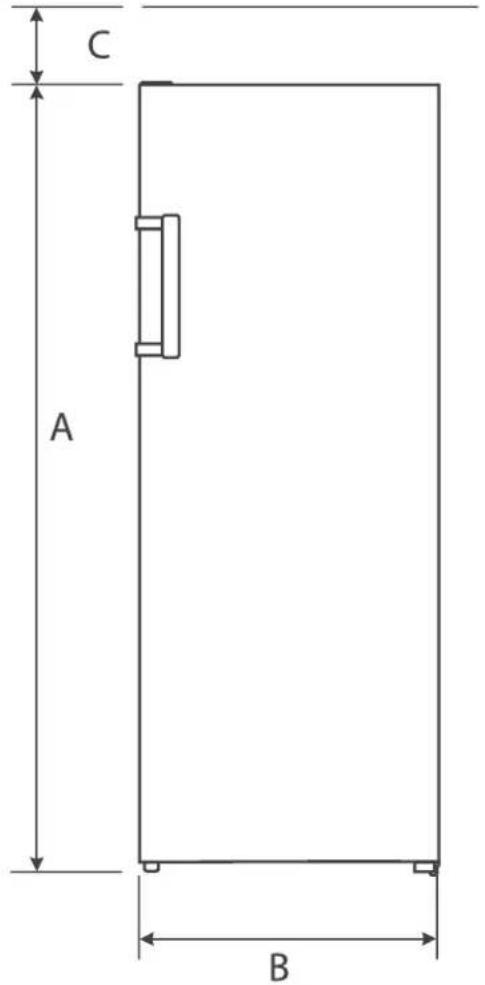

Simple line drawing of a door or cabinet with a handle and corner supports (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

2301-00666 20231030 DE

Bestell-Nr.:

18596906,

Line drawing of an open refrigerator with labeled compartments (no text or symbols on the image itself)

Simple line drawing of a rectangular frame with a square cutout and a vertical dimension labeled D (no text or symbols beyond the label)

E: 1145 mm F: 50–75 mm

G: 100 ~mm H: 130^

I: 1010 mm

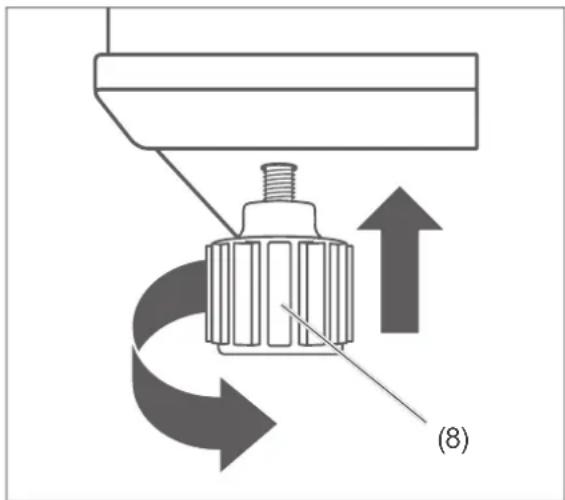

Mechanical diagram showing a gear-like component with directional arrows indicating motion (no text or symbols)

Pure diagram of two vertical objects with arrows pointing to them, no text or symbols present

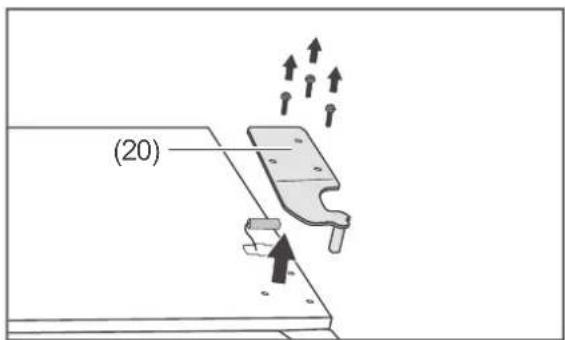

Technical line drawing of a door hinge assembly with two metal brackets and a vertical rail (no text or symbols)

Simple diagram showing two vertical panels with circular icons and arrows, no text or symbols present.

Simple line drawing of a door or cabinet with a handle and corner supports (no text or symbols)

User manual

Manual/version:

2301-00666_20231030_EN-UK

Order no.: 18596906

Reproduction, even of ex-

cerpts, is not permitted!

Refrigerator

Table of contents

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions safely and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on installation and start-up from page EN-10.

Explanation of terms and symbols,

definitions ...... EN-3

Explanation of terms ...... EN-3

Explanation of symbols ..... EN-3

Definitions ...... EN-3

Safety EN-4

Intended use ...... EN-4

Safety notices ...... EN-4

Delivery....EN-9

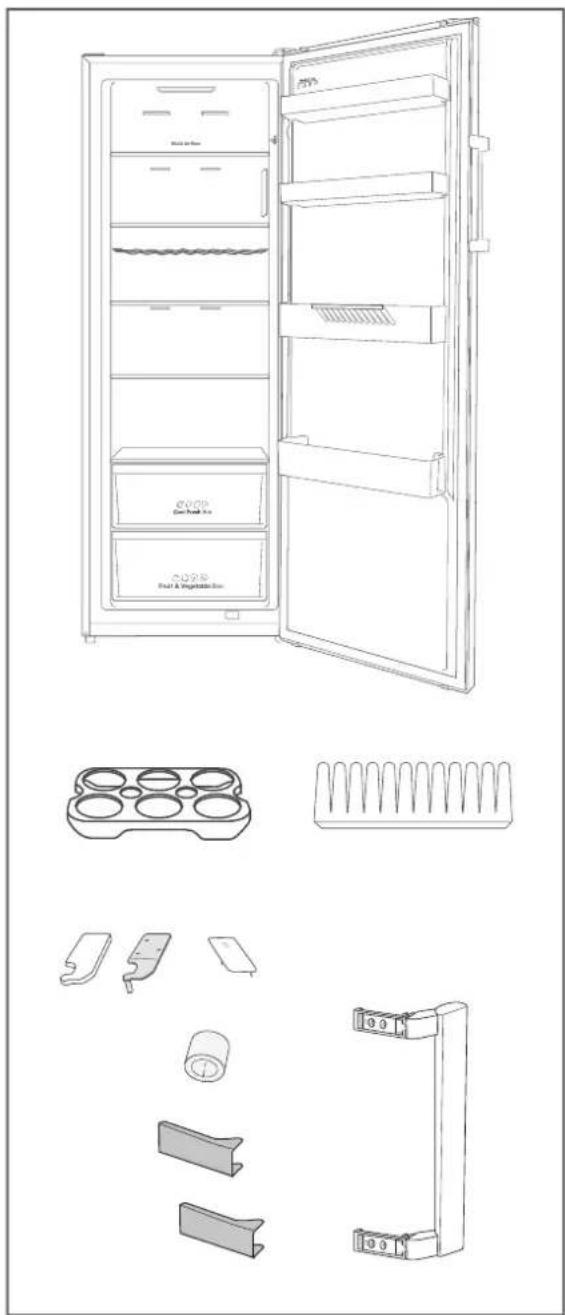

Package contents ...... EN-9

Checking the delivery .....EN-9

Start-up EN-10

Before starting to use the appliance ... EN-10

Unpacking and set-up ..... EN-10

Cleaning before use..... EN-12

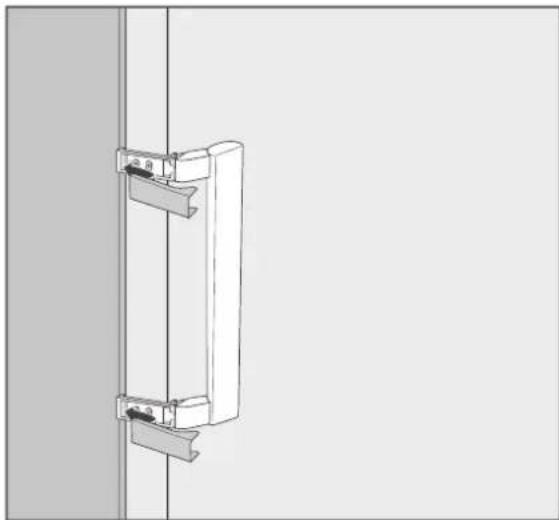

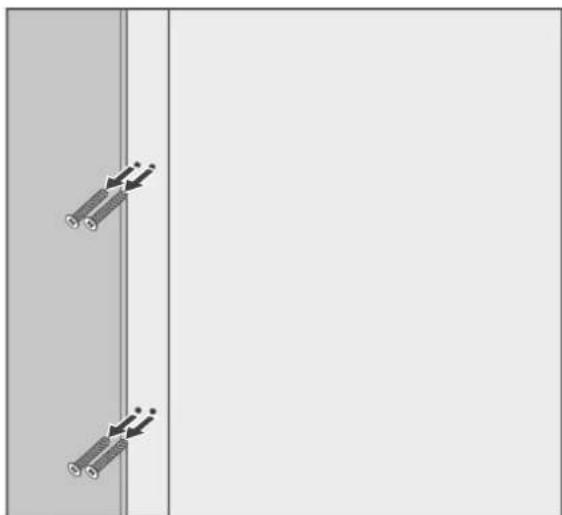

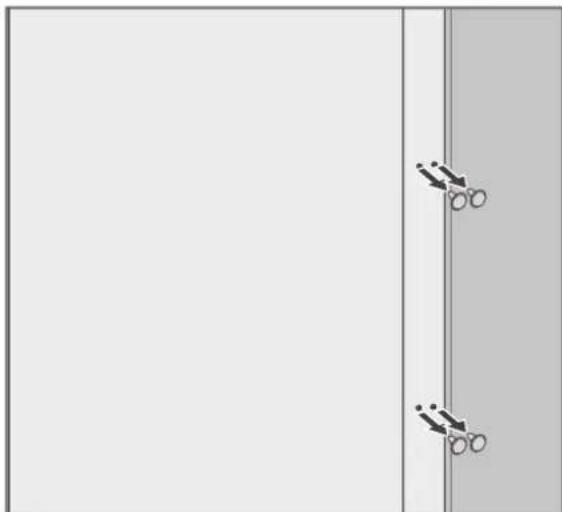

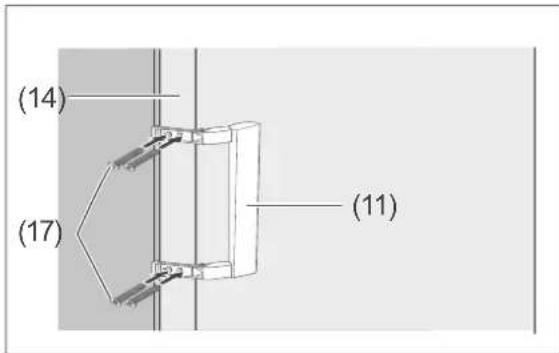

Attaching the door handle ..... EN-12

Connecting the appliance ..... EN-14

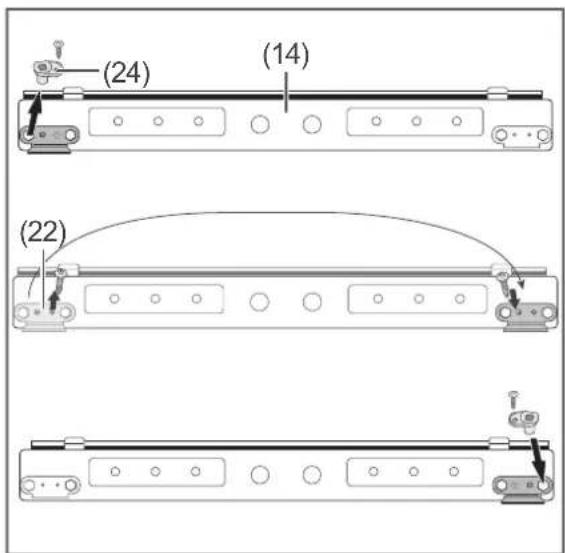

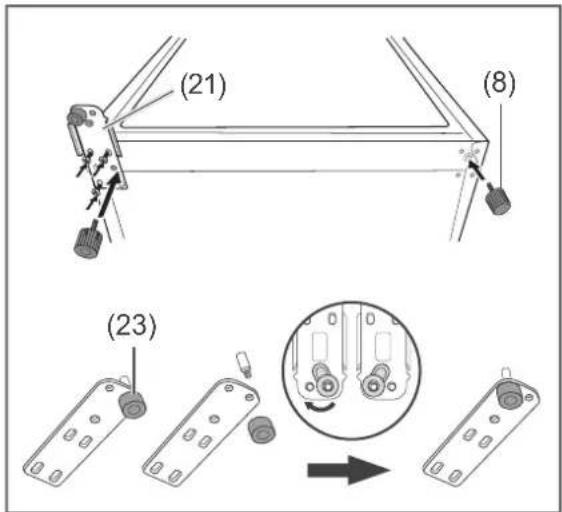

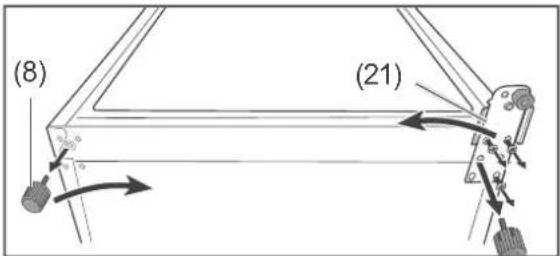

Reversing the door hinges ..... EN-15

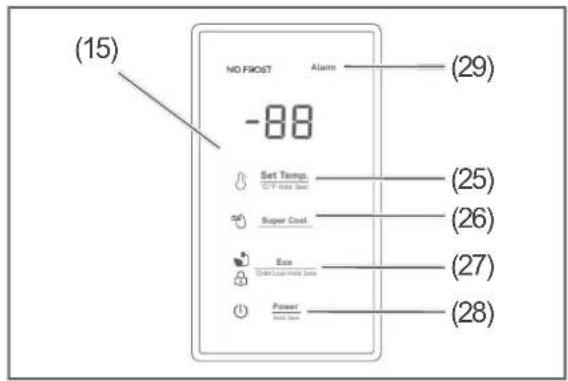

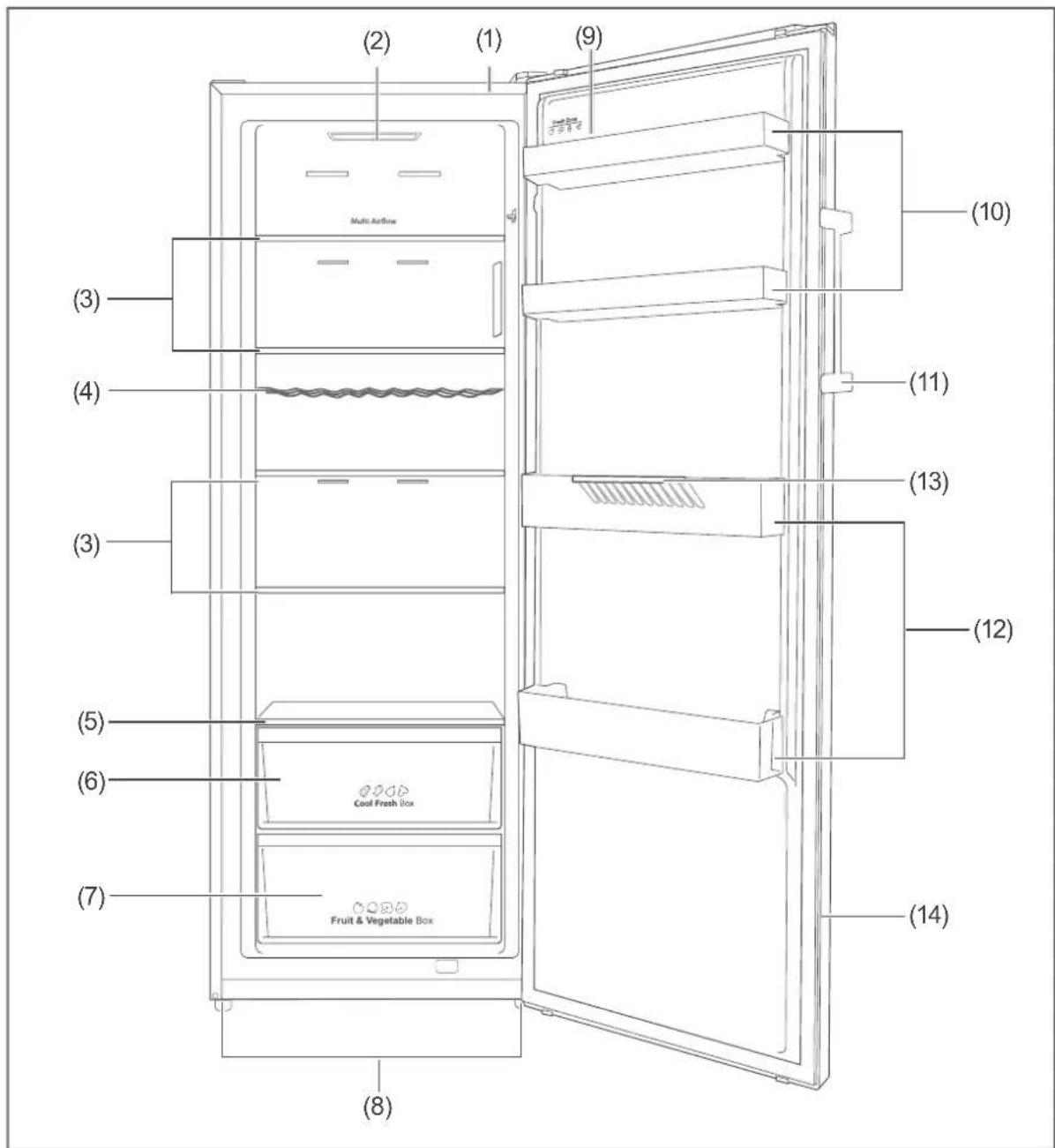

Appliance parts and control elements ... EN-17

Operation EN-18

Before getting started ..... EN-18

Switching the appliance on and off .... EN-18

Setting the cooling power ..... EN-18

Glass and door shelves.... EN-19

Pictograms.... EN-19

Super Cool mode.... EN-19

Eco mode..... EN-19

Child lock EN-19

Door alarm.... EN-20

Refrigerating food ..... EN-21

Filling the fridge ..... EN-21

Maintaining quality.... EN-22

Care and maintenance ..... EN-23

Checking and cleaning the door seals . . . EN-23

Cleaning the exterior ..... EN-23

Cleaning the reverse side ..... EN-23

Cleaning the interior..... EN-23

Interior light EN-24

Troubleshooting table ..... EN-25

Service EN-26

Advice, complaints and orders ..... EN-26

Repairs and spare parts ..... EN-26

Waste prevention, free return and

disposal...... EN-27

Waste prevention EN-27

Free return of old electrical appliances. . . EN-27

Disposal...... EN-27

Packaging EN-28

Appendix.... EN-29

Product fiche concerning Regulation

(EU) No. 2019/2016.....EN-29

Technical specifications.... EN-29

Explanation of terms and symbols, definitions

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

Definitions

'Food' refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

Safety

Intended use

The appliance is intended for chilling fresh food and is not suitable for freezing food.

This appliance is designed for use at ambient temperatures of +10 °C to +43 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This cooling appliance is not designed for use as a built-in appliance.

The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental capabilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

Risks to children and certain groups of individuals

! WARNING

Risk of suffocation for children!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it

• it shows visible signs of damage, e.g. the mains cord is defective,
• starts smoking or there is a smell of burning,
  – makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department (see „Service“ on page EN-26).

■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the type plate.
■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must, therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of malfunction.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage cate-

gory III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see „Service“ on page EN-26).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the mains cord or lay it over sharp edges.
■ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.
- Keep the mains cord away from naked flames and hot surfaces.
■ Always pull on the mains plug and not the mains cable.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our service department if necessary (see „Service“ on page EN-26).
■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or switch off/unscrew the fuse.

■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the covers from the interior light. Do not attempt to replace the interior light. Please contact our service department if necessary (see „Service“ on page EN-26).
- Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Risks associated with using refrigerants

WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant

channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.

■ Ensure that none of the cooling fins or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the type plate.

■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

■ If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fire.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fire.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks associated with using refrigerators

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.

■ Abide by the storage times recommended by food manufacturers.

! NOTICE

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
- Do not position the appliance directly against the wall and adhere to the minimum distances specified (see "Start-up" on page EN-10).

Risk of damage

! NOTICE

Risk of damage!

If the cooling appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, only transport the cooling appliance in a vertical position.

■ Allow the refrigerating appliance to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to damage to property.

■ Do not pull or lift the appliance by its doors or door handles.

■ Place the appliance only on a level and firm surface that can support the weight of the appliance when it is filled.

■ Do not use sharp or pointed objects to unpack it.

■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.

- When cleaning, please note: – Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

- Only use soft cloths.

■ Wait 5 minutes after switching off the appliance. Only then switch the appliance on again.

Delivery

You will find the type plate inside your appliance.

Package contents

1× Refrigerator

2× Small door shelf

2× Large door shelf

1× Fresh food drawer

1× Glass shelf as the fresh food drawer's cover

1× Fruit/vegetable drawer

4× Glass shelf

1× Bottle shelf

1× Egg tray

1× Bottle holder

Door support pad, door handle, screws, door hinge, hinge cover, and screw hole cover for changing the door hinge

Checking the delivery

1. Move the appliance to a suitable place and unpack it (see "Start-up" on page EN-10).

2. Remove all parts of the packaging, plastic profiles, tape and foam padding.

3. Check that the delivery is complete.

4. Check whether the appliance was damaged during transit.

5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service department (see page EN-26).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Start-up

Before starting to use the appliance

• Read chapter „Safety“ from page EN-4.
• Set up and connect the appliance as described in chapter „Start-up“ on page EN-10.

Unpacking and set-up

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from taking small parts out of the accessory bag and putting them in their mouths.

Risk of injury!

If the contents are extremely dispersed, the appliance may tip forwards.

■ Install the door support pad to stabilize the appliance.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance.
■ Drawers, doors etc. must not be used as steps or for support purposes.
■ Do not pull or lift the appliance by its doors or door handles.

Dangers from the refrigerant!

Improper use of the appliance may lead to injury or damage to health.

■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found in the data sheet at the end of this user manual.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the cooling appliance horizontally.

■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Minimum distances and room size

Simple line drawing of a rectangular frame with a square cutout and a vertical dimension labeled D (no text or symbols beyond the label)

1. Unpack the appliance and carefully remove all packaging, plastic profiles, adhesive strips, protective film and foam padding from the inside, outside and reverse of the appliance.
2. Place the appliance on as flat and as firm a base as possible. Observe the specified minimum distances (see „Minimum distances and room size“ on page EN-11).

Space requirement according to appliance dimensions

A: 1720 mm B: 595 mm
C: 100 mm D: 600 mm*)
E: 1145 mm F: 50-75 mm
G: 100 mm H: 130°
l: 1010 mm

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 3m^3 .
• Suitable locations are dry, well-ventilated areas that are as cool as possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
• The following minimum distances must be maintained:

to electric stoves 3 cm

to oil and coal burning

30 cm

stoves

to other cooling appliances 2 cm to washing machines and dishwashers 2 cm

1. If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.
2. Check the position with a spirit level.

1. Level out any unevenness in the floor using the two screw feet (8).
2. Close the appliance door (14).
3. Place the screw in the screw foot.

4. Tilt the appliance backwards slightly.

5. Using a cross-tip screwdriver, attach the screw foot to the holes on the bottom of the appliance.

6. Stand the appliance back up again and check the alignment with a spirit level.
7. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the appliance door.
8. Make sure the ambient temperatures correspond to the appliance's climate category (see 'Intended use' on page EN-4).

Cleaning before use

- In order to remove the odour which is present in all new appliances, wipe the interior with diluted vinegar prior to first use. Then wipe it out with clean water and dry all of the parts off afterwards.

Attaching the door support pad

1. Tilt the appliance slightly backwards.

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature.

Zone designation	Code Definition
extended temperate zone	SN	This cooling appliance is designed for use at ambient temperatures of +10 °C to +32 °C.
temperate zone	N	This cooling appliance is designed for use at ambient temperatures of +16 °C to +32 °C.
subtropical zone	ST	This cooling appliance is designed for use at ambient temperatures of +16 °C to +38 °C.
tropical zone T This cooling	appliance	is designed for use at ambient temperatures of +16 °C to +43 °C.

If the room temperature drops significantly below this, the appliance will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

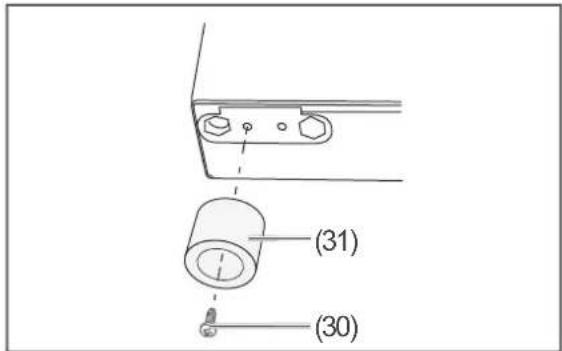

1. Insert the screw (30) into the hole in the door support pad (31).

1. Fasten the screw in the hole provided in the lower door cover.

Attaching the door handle

Attach the door handle (11) before starting to use the appliance.

Pure diagram of two vertical bars with arrows pointing to each bar, no text or symbols present

1. Unscrew the four screws from the side of the appliance door (14).

1. Screw the door handle (11) to the appliance door using the screws (17) provided.

Pure technical line drawing of a mechanical bracket or bracket assembly without any text, numbers, or symbols

1. Insert the door handle covers.

Simple diagram showing two vertical panels with circular icons and arrows, no text or symbols present.

1. If you wish to fit the door handle on the opposite side after changing the door hinge, you must first remove the blind plugs.

Connecting the appliance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance, if it
– shows visible signs of damage, e.g. the mains cord is defective,
- starts smoking or there is a smell of burning,
– makes unfamiliar noises.

In such cases, pull out the mains plug or unscrew/isolate the fuse and contact our service department (see page EN-26).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see „Service“ on page EN-26).
■ Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-

socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the cooling appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, do not tilt the cooling appliance horizontally.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

• Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).
• Switch the appliance on (see „Switching the appliance on and off“ on page EN-19). The interior light switches on and off automatically when the appliance door (14) is opened and closed.

You will find all important information about operation from page EN-19.

Reversing the door hinges

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Unplug the appliance before changing the door's opening direction.

If your spatial conditions require it, you can change the door hinge of the appliance door (14). However, this will require some manual skills.

Besides the parts included, you will need the following tools to reverse the door hinges:

– medium-size cross-tip screwdriver
– medium-size slotted screwdriver
– size 7 and 8 spanner as necessary

- Please read through all of the following steps before starting work.

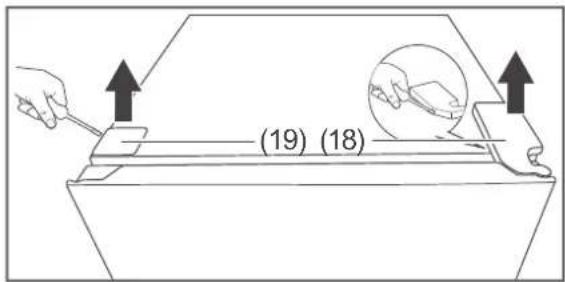

1. Remove the covers (18) and (19).

1. Loosen the screws on the upper hinge (20) and remove the hinge.
2. Remove the appliance door (14) and set it aside.

1. Tilt the appliance so that the lower hinge (21) can be accessed using the cross-tip screwdriver or a spanner.
2. Loosen the screws on the lower hinge, unscrew the screw feet (8) and remove the lower hinge.

1. Loosen the hinge pin and the support foot (23) from the lower hinge.
2. Attach the hinge pin and support foot to the adjacent side of the hinge.
3. Attach the lower hinge (21) to the left side with the screws.

Turn the screws in 2 or 3 turns with the screwdriver, then tighten them with the 8mm wrench.

1. Screw in the right screw foot and the left screw foot.

Note that the screw feet must also change sides.

1. Loosen the screws on the door support pad (31), the door closer (24) and the door stopper (22) and remove them.
2. Screw the door support pad, the door closer and the door stopper to the opposite side of the appliance door.
3. Place the unit upright.
4. Insert the appliance door with the bolt into the socket at the bottom of the appliance.
5. Re-tighten the upper hinge with the screws.
6. Put the covers supplied for changing the door hinge on.
7. Install the door handle on the other side of the door (see "Installing the door handle" on page EN-14).

Appliance parts and control elements

(1) Refrigerator
(2) LED light
(3) Glass shelf, 4×
(4) Bottle shelf
(5) Glass shelf as the fresh food drawer's cover
(6) Fresh food drawer
(7) Fruit/vegetable drawer

(8) Screw foot, 2×
(9) Egg tray
(10) Upper door shelf, 2×
(11)Door handle
(12)Lower door shelf, 2×
(13)Bottle holder
(14)Appliance door

(15) Control panel
(25) Set temperature
(26) Super Cool mode
(27) Eco mode
(28) Power
(29) Alarm

Operation

Before getting started

• Read the „Safety“ chapter from page EN-4.
• Set up and connect the appliance as described in chapter „Start-up“ from page EN-10.

Switching the appliance on and off

The control panel (15) is also used to switch the appliance on and off. It is located inside the appliance.

Switching on

1. Insert the mains plug into an easily accessible socket (220–240 V\~/50 Hz).
   The interior light will turn on.
   The appliance is then switched on. The control panel displays '04'. The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard. The interior light will switch on as soon as the appliance door (14) is opened and will switch off when the appliance door is closed.
2. If the appliance makes unusual noises, check that it is on a solid base and remove any objects that are on top of the appliance.

Switching off

1. Press and hold the Power (28) button on the control panel (15) for 3 seconds. The control panel displays “--”, the symbol lights up.
2. When the appliance is switched off, leave the appliance door (14) open slightly to prevent mould from forming.

Setting the cooling power

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This could then cause a rise in temperature inside the refrigerated area.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Set the temperature to +6 °C and fill the fridge in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.

Use the control panel (15) to set the temperature in the fridge.

• First set it to 4 °C to quickly achieve the desired cooling effect.
• If, for example in summer, the ambient temperature increases, select a lower temperature.
• To increase or decrease the cooling power in the fridge, press the Set Temp. (25) button. The temperature will cycle between 2 °C and 8 °C.
• To switch between °C and °F in the display, press and hold the Set Temp. (25) button for 3 seconds.

If you set a lower temperature, you will require greater refrigeration performance. This increases energy consumption.

Glass and door shelves

You will achieve the most efficient use of energy for your appliance if you combine the drawer, glass shelves and door compartments as shown in the figure on page EN-17.

The glass shelves (3) and (5) and the door shelves (10) and (12) can be removed and rearranged as necessary.

1. Lift up the glass or door shelf and remove it.
2. Place the glass or door shelf in the new position from above.

Pictograms

The following pictograms can be found inside the fridge door (14):

Fresh Zone

This means that you can store fresh fruit and vegetables, drinks and dairy products in the fridge section of the appliance (see „Refrigerating food“ on page EN-21). The fresh food drawer can reach minus temperatures.

Super Cool mode

In Super Cool mode, your food is cooled faster, keeping it fresh for longer.

Press the Super Cool (26) button to activate Super Cool mode. The symbol will light up, and the temperature will be set to 2 °C.

The Super Cool mode will terminate automatically after 6 hours.

You can terminate the Super Cool mode manually by pressing the Super Cool button. The temperature returns to the previous setting.

Eco mode

If you are absent for a long time, you can activate the Eco mode to save energy.

Press the Eco (27) button to activate Eco mode. The symbol will light up, and the temperature will be set to 6 °C.

Press the Eco button to terminate the Eco mode.

Child lock

If 20 seconds pass without a button being pressed, the child lock will activate. The ⚙ symbol will light up.

Before operation, disable the child lock. Press the _boxSIZE WITH FORCE AND (27) button for 3 seconds to disable the child lock.

Door alarm

If the appliance door (14) is left open for more than 2 minutes, the alarm will sound 3 times each minute. The indicator will display 'dr'. The · Alarm (29) symbol will flash.

After 10 minutes, the alarm will terminate automatically. You can terminate the alarm manually by closing the door.

Avoid keeping the door open for prolonged periods in order to save energy.

Refrigerating food

WARNING

Danger of explosion! Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
■ Store raw meat and fish in suitable containers in the refrigerator so that it does not come into contact with or drip onto other food.

Filling the fridge

• Combine the drawers, glass shelves and door shelves as shown in the diagram on page EN-17 to achieve the most efficient use of energy for your appliance.
• A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.
• Set the temperature in the fridge to +6 °C and fill the fridge in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

The following tips show you how you can store foods in your appliance to keep them in the best possible condition over the longest possible period. They will help prevent food from being wasted.

• Store spreadable butter and cheese in the small upper door shelves (10). This is where the temperature is warmest.
• Store any preserves, glass jars and eggs in the lower door shelves (12). Eggs are best stored on the supplied egg tray (9).
• Position full drink cartons and bottles closer to the hinge in order to reduce the strain on the appliance door (14).
• Store cooked and baked foods on the glass shelves (3).
• Store fresh meat, game, poultry, bacon, raw sausage and raw fish in the fresh food drawer (6). This is where the temperature is lowest.
• Store fresh fruit and vegetables in the fruit/vegetable drawer (7).
• Store bottles on the bottle rack (4) or the bottle holder (13).
• Only store strong alcohol standing upright and tightly closed.
• Allow hot food to cool before placing it in the fridge.

The temperatures in the appliance and thus the energy consumption can increase

- if the appliance door (14) is opened frequently or for a prolonged period.

- if the temperature falls below or exceeds the prescribed interior temperature.

Energy consumption is also dependent on the selected location (for more detailed information, see page EN-10).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge, only place packaged food in the fridge. Use special plastic containers for food or customary films.
• Place the food
  – in the fridge in a way that allows the air to circulate freely. Do not cover the shelves with paper or anything similar.
  – somewhere that is not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling out the mains plug, always take hold of the mains plug itself and never the mains cord.

CAUTION

Risk of injury!

Hazards for children and people with limited physical, sensory or mental capacity.

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

■ Only use soft cloths.

Checking and cleaning the door seals

The door seals must be checked regularly so that no warm air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Cleaning the exterior

- Use only gentle, pH-neutral soapy water.

Cleaning the reverse side

Remove dust and clean the back of the appliance and the compressor once or twice a year.

- Carefully brush the reverse side of the appliance and the compressor with a soft brush.

Cleaning the interior

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fire.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fire.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

1. Switch off the appliance.
2. Disconnect the mains plug from the socket.
3. Ensure that your food is kept cool enough.
4. Take the drawers (6) and (7) and the glass shelves (3) and (5) out of the fridge.
5. To remove the door shelves (10) and (12) and the bottle shelf (4), push them together slightly at the sides and simultaneously pull them upwards out of the holders.
6. Clean all of the parts in lukewarm soapy water. Then dry everything thoroughly.
7. Wash the interior with warm water and washing up liquid.
8. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
9. Wipe the interior dry and leave the appliance door (14) open a while to air.
10. Only clean the door seals with clean water; they are sensitive to oil and fat.
11. Replace the glass shelves, the drawers and the door shelves.
12. Return the food to the fridge.
13. Insert the mains plug back into the socket and switch the appliance on again.

Interior light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the cover from the interior lighting.
■ Do not attempt to replace the interior light.

The interior light switches on automatically when the appliance door (14) is opened and goes out when the door is closed.

Maintenance-free LEDs are used to light the appliance. If the interior light does not work, contact our Service department (see page EN-26).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the table to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

- Never attempt to repair the appliance yourself. This may put your own and future users' lives at risk. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Power level is too high. Select a lower setting (see „Setting the cooling power“ on page EN-19).
The appliance doesn’t cool sufficiently.	Power level is too low. Select a higher setting (see „Setting the cooling power“ on page EN-19).
	Appliance door not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page EN-23.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Ambient temperature too low or too high.	Adjust ambient temperature (see „Intended use“ on page EN-4).
	Compressor is defective. Set minimum cooling temperature. If the compressor does not switch on within an hour, please contact our service department (see page EN-26).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that it is stable.
Condensation in the cabinet.	Door does not close well, or door seal damaged.	Ensure the door is fully closed. Check the door seal (see “Checking and cleaning the door seals” on page EN-23).

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from failure to follow this manual will unfortunately not be covered.

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
hanseatic Refrigerator	Stainless steel	HKS17260CI 18596906

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
–you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
–you would like to order further accessories.

You can find the contact details of your product advisor online on the service pages of your mail order company. The various sections of product advice are listed here.

Please have your appliance invoice ready.

For more information, visit www.hanseatic.de

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our Customer Service department.

Please have your appliance invoice ready (date of purchase and item no.).

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Place an order at

by E-mail: [e-mail]

Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the ‘Waste Prevention Programme of the German Government with the Involvement of the Federal States’ brochure.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority

or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to

be sent out for repairs, only the original packaging will provide sufficient protection. If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning Regulation (EU) No. 2019/2016

The product fiche for your device is available to you online.

Visit https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier for your appliance can be found under Technical specifications.

Technical specifications

Item number	18596906
Name of appliance	Refrigerator
Model identifier	HKS17260CI
Device measurements (Height × Width × Depth)	1720 mm × 595 mm × 600 mm
Unloaded weight	61 kg
Refrigerant	R600a
Filling capacity refrigerant	38 g
Foaming agent	cyclopentane
Rated power	110 W
Supply voltage / frequency / rated current	220-240 V ~ / 50 Hz / 1 A
Protection class	I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.

This product contains a light source of energy efficiency class F.
