Product Type	Refrigerator-Freezer Combo
Model Number	HKS8555GDI-2
Brand	Hanseatic
Total Capacity	350 L
Refrigerator Capacity	250 L
Freezer Capacity	100 L
Energy Efficiency Class	F
Annual Energy Consumption	262 kWh
Noise Level	39 dB(A)
Climate Class	SN-N-ST-T
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	75 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Cooling System	Static
Defrosting Method	Automatic (refrigerator), Manual (freezer)
Shelves Material	Tempered Glass
Door Reversibility	Yes
Control Type	Mechanical Thermostat
Interior Light	LED
Cleaning and Maintenance	Clean with mild detergent and soft cloth
Spare Parts Availability	Available through Hanseatic service
Repairability Index	6.5/10

Frequently Asked Questions - HKS8555GDI-2 Hanseatic

What is the ideal temperature for the refrigerator and freezer compartments?

The recommended temperature for the refrigerator is between 4°C and 5°C, and for the freezer it is -18°C. Use the thermostat dial to adjust.

How do I change the door hinge to open from the other side?

Door reversibility is supported. Refer to the manual for step-by-step instructions. You will need a screwdriver and spanners.

Why is my refrigerator not cooling properly?

Check if the power supply is connected, the thermostat is set correctly, and the door is sealed properly. Clean the condenser coils if dusty.

How often should I defrost the freezer?

Defrost the freezer when frost is more than 5 mm thick. Use a plastic scraper and collect the water. Do not use sharp objects.

What should I do if the interior light doesn't turn on?

Check if the bulb is burned out. Replace it with an identical LED module recommended by Hanseatic. Contact service if needed.

How can I reduce energy consumption?

Place the appliance away from heat sources, keep the door closed, and set the temperature correctly. Clean the rear condenser periodically.

Is the appliance suitable for use in a garage?

Check the climate class. This model is rated SN-N-ST-T, meaning it can operate in ambient temperatures from 10°C to 38°C.

What do the letters in the model number mean?

HKS likely stands for Hanseatic Cooling Series, 85 may refer to capacity or series, 55 to type, and GDI to specific features like glass door or inverter.

How do I clean the appliance?

Unplug the appliance. Clean the interior with a soft cloth and mild soap solution. Do not use abrasive cleaners. Rinse and dry.

Where can I find spare parts or service?

Contact Hanseatic customer service or an authorized repair center. Provide the model number HKS8555GDI-2 for correct parts.

USER MANUAL HKS8555GDI-2 Hanseatic

Line drawing of a simple rectangular cabinet or enclosure with a lid and handle (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

2201-01008 DE 20221107

Bestell-Nr.

66409936,96816912

Grid of nine black-and-white icons representing various food items including milk carton, eggs, milk bottle, strawberries, pear, carrot, and broccoli (no text or symbols)

Line drawing of an open refrigerator with various compartments and accessories (no text or symbols)

Line drawing of an open refrigerator with a label pointing to the door (no text or symbols on the refrigerator itself)

Diagram of two rectangular metal panels with horizontal supports, showing a curved arrow indicating rotation or movement (no text or symbols present)

Top-down diagram of a vehicle with a circular arrow indicating clockwise motion (no text or symbols)

Line drawing of a simple rectangular cabinet or enclosure with a lid and handle (no text or symbols)

User manual

Manual/version:

2201-01008 EN 20221107

Order no.:

66409936, 96816912

Reproduction, even of ex-

cerpts, is not permitted!

Refrigerator with freezer compartment

Table of contents

Please read through the safety instructions and user manual carefully before using the appli- is the only way you can use all tions reliably and safely.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on installation and start-up from page EN-22.

Explanation of terms and symbols,

definitions....EN-3

Explanation of terms .....EN-3

Explanation of symbols .....EN-3

Safety .EN-4

Intended use ....EN-4

Safety notices ....EN-4

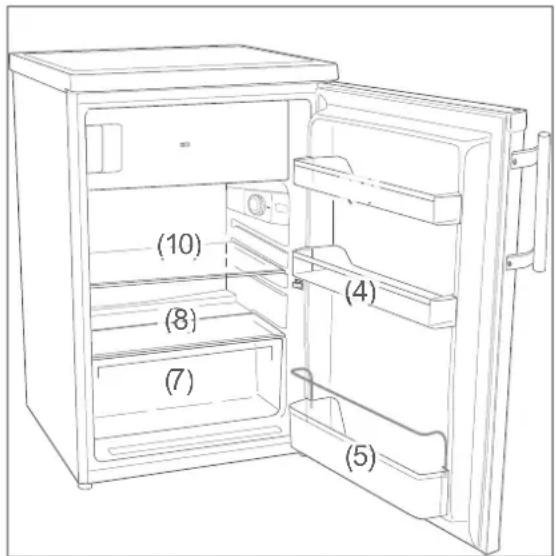

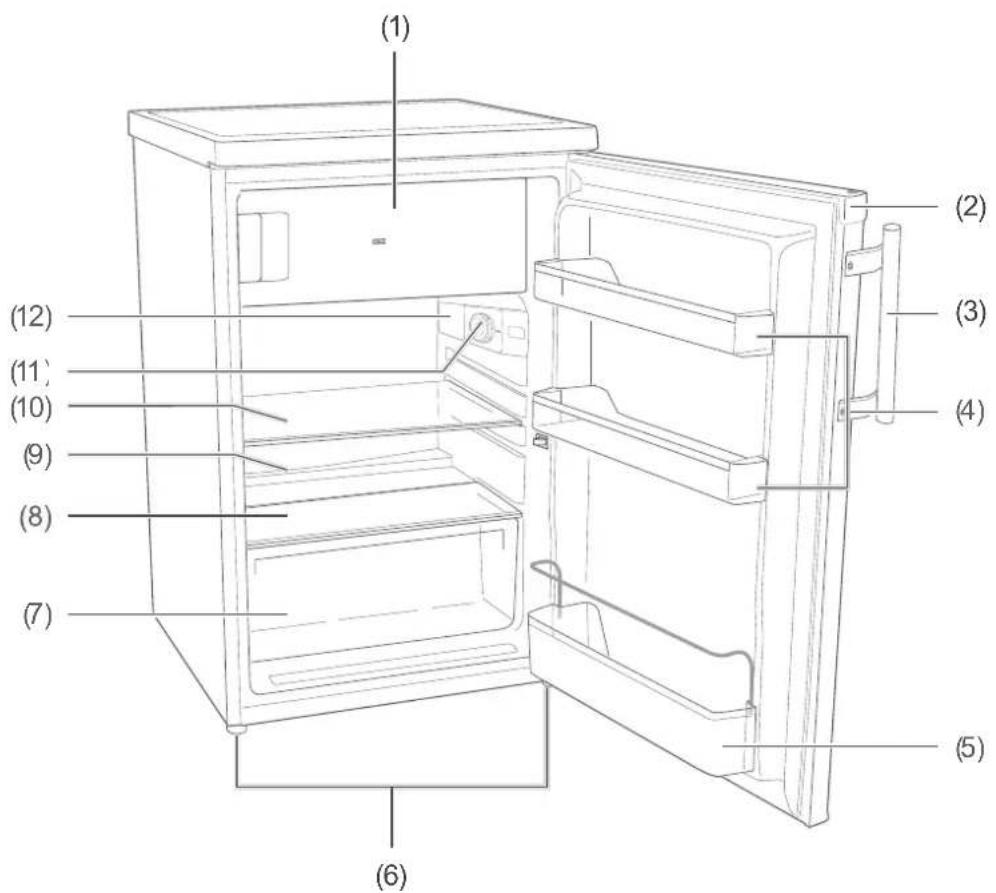

Appliance parts and control elements ... EN-10

Operation .....EN-11

Before getting started .....EN-11

Switching the appliance on and off . . . . EN-11

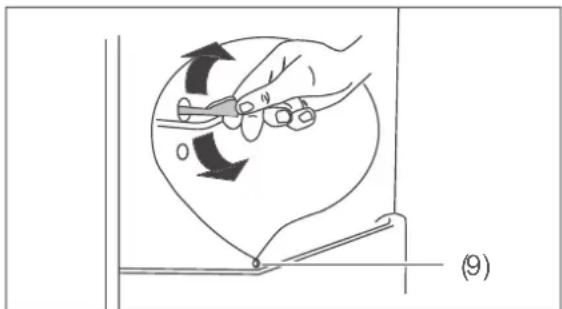

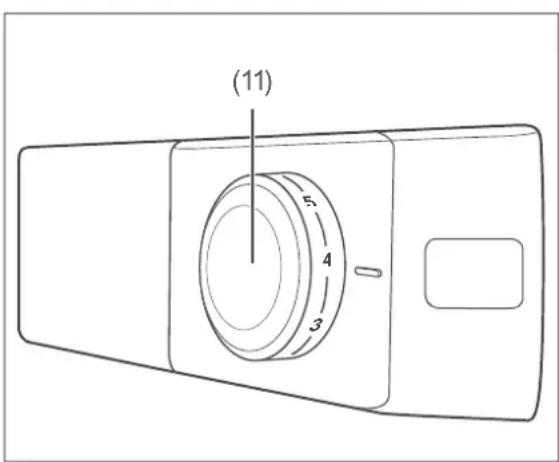

Setting the power level .....EN-11

Door alarm EN-12

Rearranging the shelves ..... EN-12

Pictograms.... EN-12

Refrigerating food EN-13

Refrigeration tips ...... EN-13

Maintaining quality ..... EN-14

Freezing foods, storing frozen foods .... EN-15

Freezing EN-15

Storing frozen food. EN-16

Defrosting food EN-17

Preparing ice cubes.... EN-17

Care and maintenance ..... EN-18

Checking and cleaning the door seals. EN-18

Cleaning the exterior ..... EN-18

Cleaning the back ..... EN-18

Defrosting the refrigerating compartment.... EN-18

Cleaning the refrigerating compartment.... EN-19

Defrosting and cleaning the freezer compartment.... EN-19

Delivery....EN-21

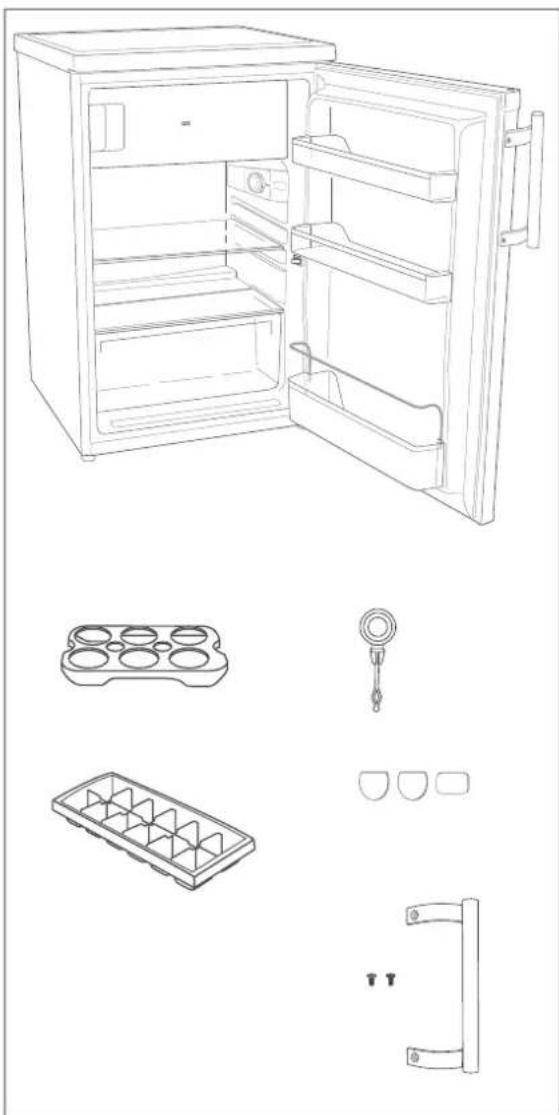

Package contents ...... EN-21

Checking the delivery ..... EN-21

Start-up EN-22

Moving and unpacking ..... EN-22

Cleaning before use ..... EN-23

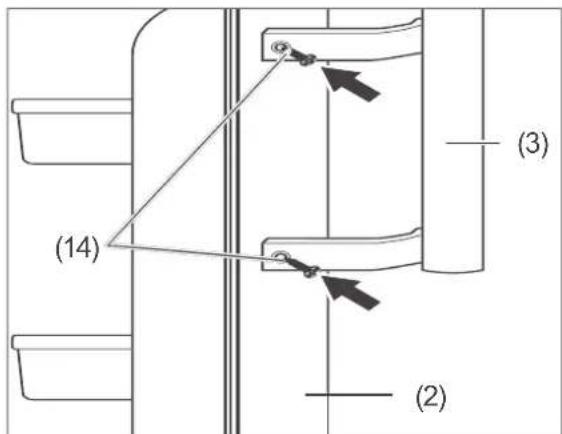

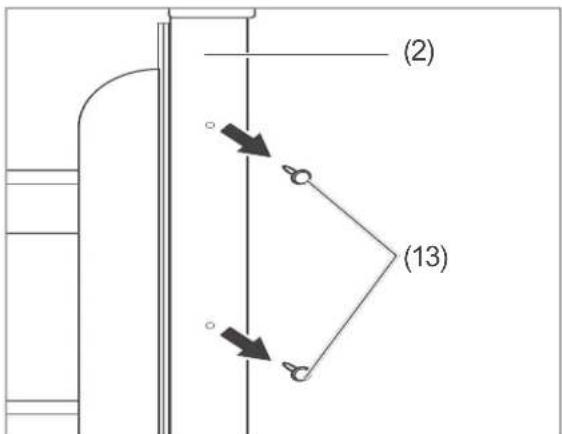

Attaching the door handle ..... EN-24

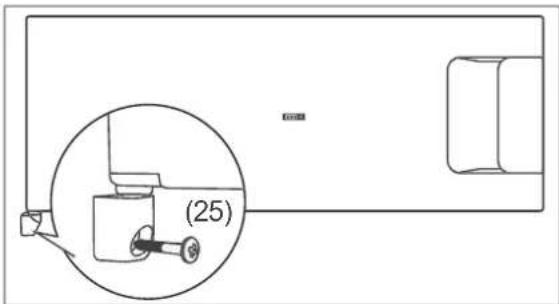

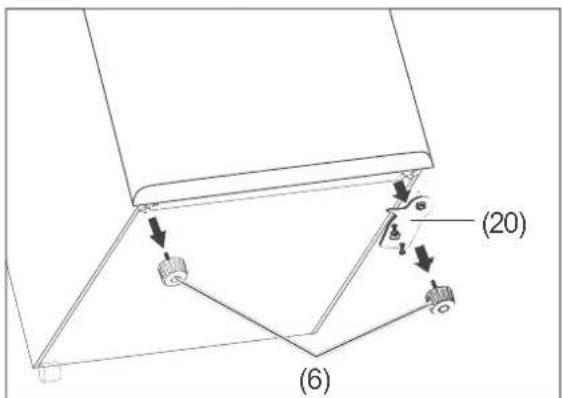

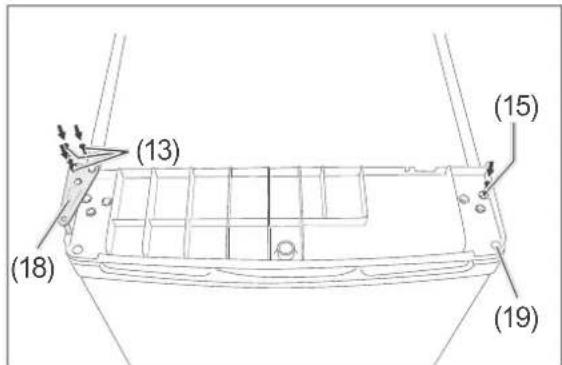

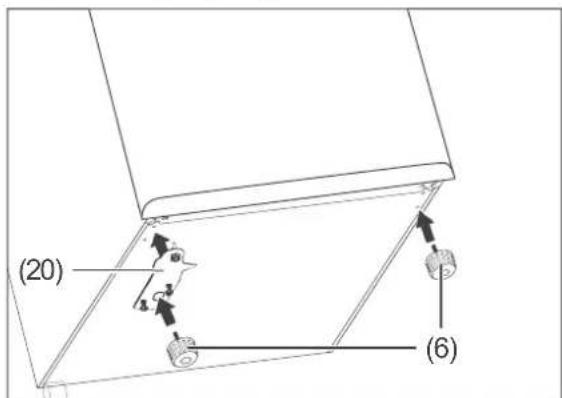

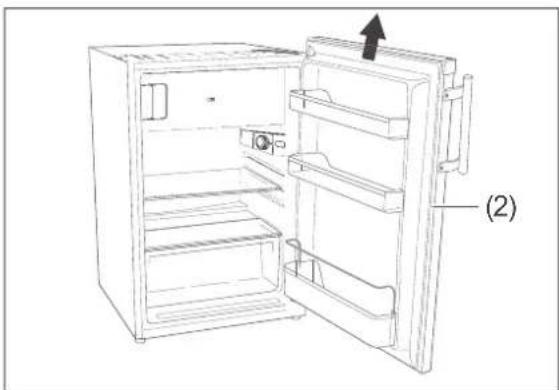

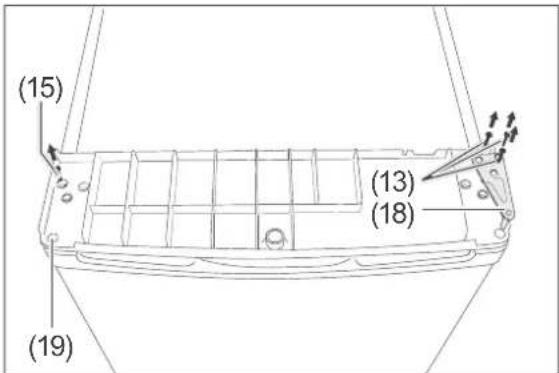

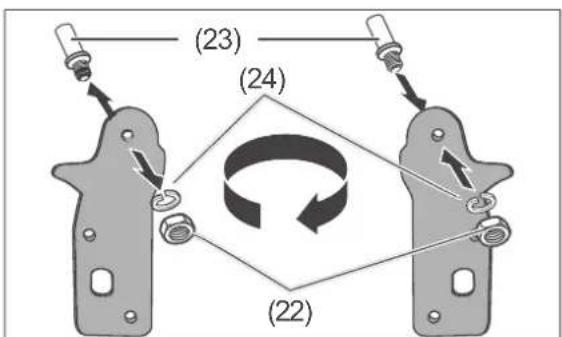

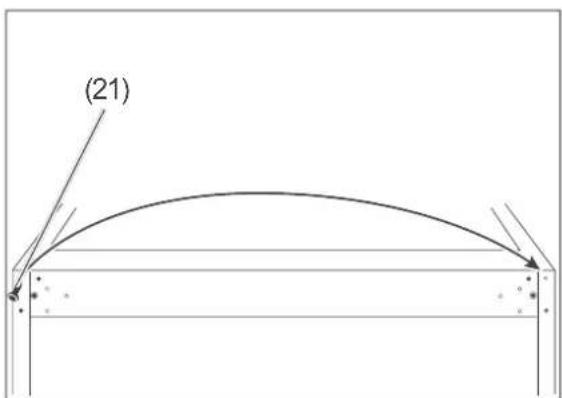

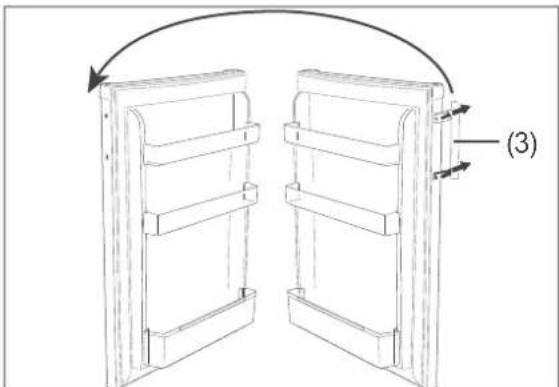

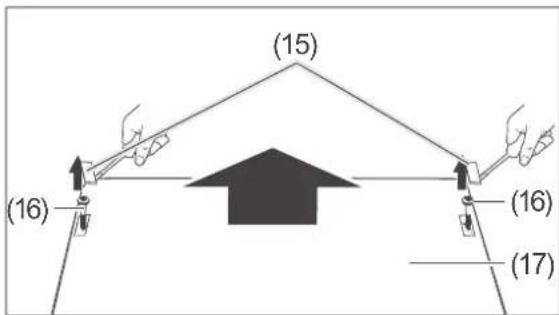

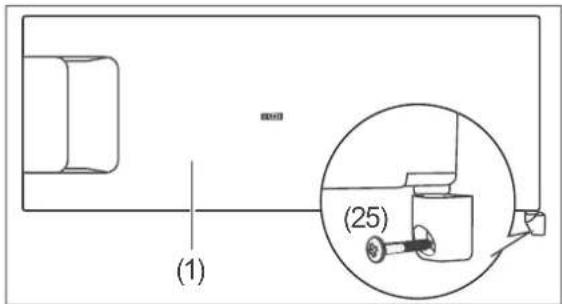

Changing the door hinges ..... EN-25

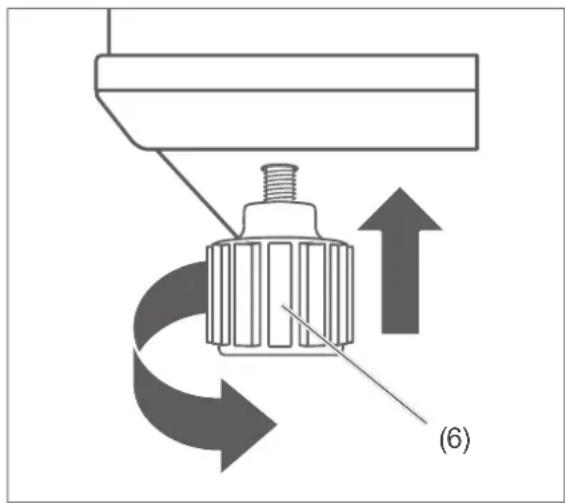

Starting up the appliance ..... EN-28

Troubleshooting table ..... EN-29

Service EN-31

Advice, complaints and orders ..... EN-31

Repairs and spare parts ..... EN-31

Waste prevention, free return

and disposal.... EN-32

Waste prevention EN-32

Free return of old electrical appliances ..... EN-32

Disposal EN-32

Packaging EN-33

Appendix EN-34

Product fiche concerning EU Directive no. 2019/2016 ..... EN-34

Technical specifications ..... EN-34

Explanation of terms and symbols, definitions

Explanation of terms

The following signal terms can be found in this user manual:

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This signal term warns against possible damage to property.

Definitions

“Food” refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

"Food to be frozen" means fresh, room-temperature food to be frozen throughout as quickly as possible – for best results "flash-frozen".

"Deep-frozen food" means food which has already been frozen and for which the cool chain should not be broken.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Caution: Fire hazard / flammable materials

"4 star" symbol: Freezer at -18^ or colder

Safety

Intended use

The purpose of this appliance is to

• chill fresh food,
  – store ordinary commercially available deep-frozen food,
  – deep freeze fresh, room-temperature foods
• make ice cubes.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This cooling appliance is not designed for use as a built-in appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This cooling appliance is designed for use at ambient temperatures of +16 °C to +38 °C.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter, you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, start-up, etc.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it
– shows visible signs of damage, e.g. the mains cable is defective,
- starts smoking or there is a smell of burning,
– makes unfamiliar noises.

In such cases, remove the mains plug from the socket or switch off/unscrew the fuse and contact our service department (see "Service" on page EN-31).

■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the type plate.

■ To disconnect this appliance from the power supply, pull the mains plug out

of the socket. The appliance must, therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of a breakdown.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-31).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep the supply cord away from naked flames and hot surfaces.

■ Always pull on the mains plug and not the mains cable.

■ Never touch the mains plug with wet hands.

■ Never immerse the supply cord or plug in water or any other liquids.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our service department if necessary (see “Service” on page EN-31).
■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or switch off/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the covers from the interior light. Do not attempt to replace the interior light. Please contact our service department if necessary (see "Service" on page EN-31).
■ Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Risks associated with using refrigerants

! WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fins or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a fl am- mable gas-air mixture in the event of a leakage in the refrigeration cir- cuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of re- frigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fi re.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fi re.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.

■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks when dealing with fridge-freezers

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ Pay attention to the star classifi cations in the freezer and the resulting storage periods for freezer products.

■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).

If there is a power failure, the frozen food may remain sufficiently cold for some time (see “storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.

■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.

■ Use only potable water to make ice cubes.

Risk of injury from frozen goods! Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

Risk of injury!

The frozen food's very low temperatures can freeze the hands, lips or tongue.

■ Do not put ice cubes, crushed ice or ice lollies straight into your mouth from the freezer.
- Do not touch the frozen food and freezer’s interior walls with wet hands.

! NOTICE

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.

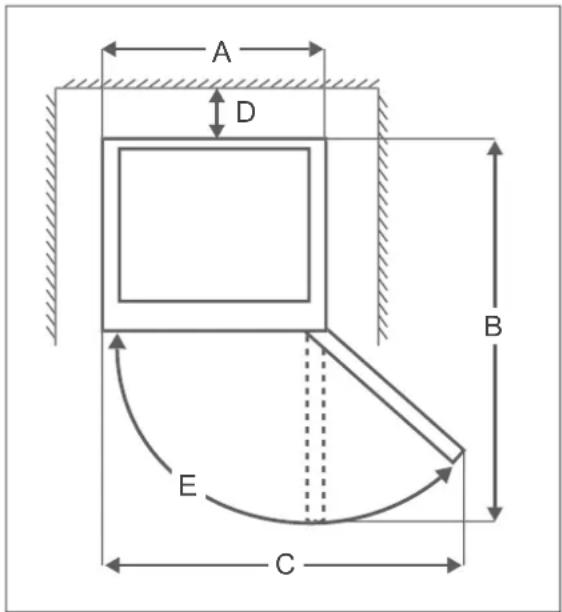

- Do not position the appliance directly against the wall and adhere to the minimum distances specified (see "Start-up" on page EN-22).

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ Do not store glass or metal containers containing water, lemonade, beer, etc. Water expands when frozen and can burst the container.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Appliance parts and control elements

(1) Freezer compartment
(2) Appliance door
(3) Door handle
(4) Small door shelves
(5) Large door shelf
(6) Screw feet
(7) Fruit/vegetable drawer

(8) Glass shelf as a cover for the fruit/ vegetable drawer
(9) Defrost drain
(10) Glass shelf
(11) Temperature control dial
(12) Interior light

Operation

Before getting started

• Read the chapter "Safety" on page EN-4.
• Set up and connect the appliance as described in chapter "Start-up" on page EN-22.

Switching the appliance on and off

Switching on

• Set the temperature control dial (11) to a setting between "1" and "7".
  The interior light (12) comes on.
  The appliance is switched on.

Switching off

• Set the temperature control dial (11) to "0".
  The interior light (12) goes out. The appliance is switched off.

If the appliance makes unusual noises when it is switched on, check that it is in a stable position.

Setting the power level

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature in the fridge and freezer compartment.

■ Always ensure the ambient temperature is kept within the specified range (see “Intended use” on page EN-4).

If you set a lower temperature, you will require more power. This increases energy consumption.

- To set the temperature, use the temperature control dial (11).

When the temperature control dial is set to "0", the compressor stops working and the interior light goes out.

The following table gives a general overview of the interior temperatures that can be achieved with the individual settings ( ± 2 ^ ):

Setting Temperature
0	—
1 approx. 9	°C
2 approx. 7	°C
3 approx. 5	°C
4 approx. 4	°C
5 approx. 3	°C
6 approx. 2	°C
7 approx. 0	°C

• First select a medium setting.
• If, for example in summer, the ambient temperature increases, select a lower setting accordingly.
• Turn the temperature control dial (11) towards "7" to increase the cooling power in the fridge and freezer.
• Turn the temperature control dial (11) towards "1" to reduce the cooling power in the fridge and freezer.

To be able to check the cooling power, ideally you will need 2 refrigerator/freezer thermometers.

Place one in the fridge above the fruit/vegetable drawer (7) and one in the freezer compartment (1).

The proper fridge temperature is +6 °C. The ideal storage temperature in the freezer is -18 °C. This temperature can be achieved by adjusting the temperature control dial (11) to "3". It is highly recommended to use fridge/freezer thermometers to find out the actual temperatures.

Door alarm

The use of energy and the temperature inside the appliance can increase if the appliance door is opened often or for long periods of time.

If the appliance door (2) is left open for more than 60 seconds, the interior light (12) will begin to flash: 0.5 seconds on, 0.5 seconds off; 3-second break; followed by another 0.5 seconds on, 0.5 seconds off.

- Close the appliance door (2).

Rearranging the shelves

The glass shelf (10) can be removed and repositioned as necessary.

You will achieve the most efficient use of energy for your appliance if you combine the drawer, glass shelves and door shelves as shown in the diagram on page EN-13.

- Remove the glass shelf by lifting the back slightly and pulling it out from the front, then reinsert it in the position desired.

Pictograms

The following pictograms can be found inside the appliance door:

Grid of nine black-and-white icons representing various food items including milk carton, apple, soda can, milk bottles, strawberries, pear, carrot, and broccoli (no text or symbols)

This indicates that fresh fruit and vegetables, milk, drinks and eggs can be stored in the refrigerating compartment of the appliance (see "Refrigerating food" on page EN-13).

Refrigerating food

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Refrigeration tips

• Combine the drawer, glass shelves and door shelves as shown in the diagram above to achieve the most efficient use of energy for your appliance.
• A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.
• Set the temperature in the fridge to +6 °C and fill the fridge in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

The following tips show you how you can store foods in your appliance to keep them in the best possible condition over the longest possible period. This will mean that you avoid food waste:

• Store spreadable butter and cheese on the upper door shelf (4). This is where the temperature is warmest.
• Store preserves, jars and eggs on the lower door shelf (4). Eggs are best stored on the supplied egg tray.
• Place drinks cartons and bottles on the large door shelf (5). Position full containers closer to the hinge in order to reduce the strain on the appliance door.
• Store cooked and baked foods on the glass shelf (10).
• Store fresh meat, game, poultry, bacon, sausage and raw fish on the glass shelf (8) above the fruit/vegetable drawer (7). This is where the temperature is lowest.
• Store fresh fruit and vegetables in the fruit/vegetable drawer (7).
• Only store strong alcohol standing upright and tightly closed.
• Allow hot food to cool before placing it in the fridge.

The temperatures in the appliance and thus the energy consumption may increase if

– the appliance door is opened frequently or for a prolonged period.
- if the temperature falls below or exceeds the prescribed interior temperature.

Energy consumption is also dependent on the selected location (for more detailed information, see page EN-22).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge, only place packaged food in the fridge. Use special plastic containers for food or customary films.
• Place the food
  – in the fridge in a way that allows the air to circulate freely. Do not cover the shelves with paper or anything similar.
  — somewhere that is not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Freezing foods, storing frozen foods

WARNING

Danger of explosion!

Improper handling of the appliance may lead to an explosion.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed.

In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.
■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
If there is a power failure, the frozen food may remain sufficiently cold for some time. In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance. The maximum storage time in the event of a fault is shown on the appliance's type plate.
■ After a malfunction, check whether the stored food is still edible. Con-

sume thawed and defrosted foods immediately, do not refreeze.

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.
- Follow the instructions in this chapter to store your food over the longest possible time in the best possible way.

Freezing

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results "flash-frozen". If not cooled quickly enough, the food will be "frost-bitten", i.e. the structure will be destroyed. A constant storage temperature of -18 ^ is needed to maintain the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will also help you avoid food waste.

Please observe the maximum freezing capacity when freezing larger amounts of food. The maximum freezing capac-

ity is shown on the appliance's type plate.

Preparing the food

• Only freeze high quality food.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods last longer.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• Do not freeze fizzy drinks, as the carbon dioxide will escape during freezing.

Suitable packaging

Packaging is important when freezing. This will protect against oxidation, penetration by microbes, transfer of odours and flavourings and drying out (freezer burn).

- Only use packaging material that is strong, impermeable to air and liquid, not too stiff and labelled. It should be designated as suitable for freezer use.

Portions

• Use flat portions as much as possible; these freeze through to the core faster.
• Expel the air from the freezer bag as is causes the contents to dry out and takes up space.
• Fill liquid containers no more 3/4 full, because liquids expand when frozen.
• Do not store glass or metal containers containing liquids such as water, lemonade, beer, etc. Water expands when frozen and may burst the container. Only high percentage alcohol (from 40% by volume) should be frozen; make sure that it is tightly sealed.
• Label the frozen food by type, quantity, amount and expiry date. Use waterproof marker pens or adhesive labels wherever possible.

Freezing capacity

You will find the freezing capacity for your appliance on the appliance type plate.

- Adhere to the maximum freezing capacity if possible.

Up to the indicated maximum freezing capacity:

If you adhere to the maximum freezing capacity, the food will freeze at the fastest rate. The temperature in the freezer briefly rises after placing fresh goods inside. After 12 hours, the goods are frozen to the core.

Above the indicated maximum freezing capacity:

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food cannot be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods.

The temperature in the freezer briefly rises after placing fresh goods inside. After another 12 hours, the goods are frozen to the core.

Storing frozen food

The deep-freeze chain must not be broken between the manufacturer and your freezer. The temperature of the frozen food must always be at least -18^ .

• Therefore, do not buy any goods that – are in frosty, overly icy chests
• are stacked above the stipulated max load marker
  – partially clumped (particularly easy to identify with berries and vegetables)
  – have snow and juice traces.

- Transport frozen foods in special styrofoam boxes or insulated bags.

- Observe the storage conditions and times on the packaging.

Defrosting food

- Observe the following basic rules when defrosting food:

• To defrost food, remove it from the freezer compartment and let it defrost at room temperature or in the refrigerator.
• To defrost food quickly, use the defrost function on your microwave, for example. Observe the manufacturer's instructions and note that bacteria and germs can multiply in this way.
• Cook or use thawed foods as soon as possible.
• Dispose of the thawing liquid.
• If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid “freezer burn” and will reduce ice formation on the remaining foods.
  • Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not immersed in its own thawing liquid.

Preparing ice cubes

- Fill the supplied ice cube container to the 3 14 level with fresh drinking water and place it horizontally in the freezer compartment.

The ice cubes are best removed by bending the ice cube container slightly or holding it under running water for a short while.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or switch off/un-screw the fuse.
■ When pulling the mains plug out of the socket, always take hold of the mains plug itself and never pull the mains cord.

CAUTION

Risk of injury!

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

Door seals and plastic parts are sensitive to oil and grease.

■ Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning the door seals

The door seals must be checked regularly so that no warm air can enter the appliance.

1. To test them, clamp a thin piece of paper at various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal at the appropriate places carefully with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Cleaning the exterior

- Use only a mild, pH-neutral soap solution.

Cleaning the back

Remove dust and clean the back of the appliance and the compressor once or twice a year.

- Carefully brush the back of the appliance and the compressor with a soft brush.

Defrosting the refrigerating compartment

This is not necessary, as the refrigerating compartment of your appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the back of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the refrigerating compartment

1. Switch the appliance off by turning the temperature control dial (11) to the "0" position.
2. Disconnect the mains plug from the socket or switch off the fuse.
3. Remove the chilled goods and place them in a cool room.
4. Remove the fruit/vegetable drawer (7), door shelves (4) and (5) and glass shelves (8) and (10) and wash all the parts in lukewarm soapy water. Then dry everything thoroughly.
5. Wipe out the interior with a cloth lightly moistened in soapy water. Make sure that no liquid gets into the control unit (interior light and temperature control dial).
6. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
7. Wipe the interior dry and leave the door open a while to air.

1. Clean the opening of the defrost drain (9) using the supplied cleaning rod.

2. Reinsert the fruit/vegetable drawer, the door shelves and the glass shelf.

3. Place the food back in the fridge.

4. Plug in the mains plug again or switch on the fuse.

5. Set the temperature control dial to a setting between "1" and "7" (see "Setting the power level" on page EN-11).

Defrosting and cleaning the freezer compartment

WARNING

Danger of explosion! Improper handling of the appliance may lead to defl agration/explosion!

■ Never use defrosting sprays. They can generate explosive gases.

NOTICE

Risk of damage!

When cleaning, please note:

■ Never use harsh, granular, soda-based, solvent-based or abrasive cleaners. We recommend all-purpose cleaners with a neutral pH.
- The door seal is sensitive to oil and grease – the rubber becomes porous and brittle as a result.
■ The surfaces can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
■ Use only soft cloths.

If possible, defrost the appliance in winter when the outside temperature is low. You can then store the food on the balcony (or similar) while defrosting.

Alternatively, you can wrap up the frozen food in a thick layer of newspaper and store it in a cool room or insulated bag.

1. Before defrosting, reduce the temperature of the food even further by leaving the temperature control dial (11) in the "7" position for 3 hours.
2. Then switch the appliance off by turning the temperature control dial to the "0" position.

3. Disconnect the mains plug from the socket or switch off the fuse.

4. Take the food out of the fridge and take the frozen food out of the freezer compartment.

5. Ensure that your food is kept cool enough.
6. To accelerate defrosting, place a bowl of hot, but not boiling, water in the freezer compartment. This will accelerate the defrosting process.
7. Leave the appliance door (2) open while defrosting and place a floorcloth in front of the appliance to catch any water that may come out.
   The defrosting time depends on the thickness of the ice layer. Experience dictates that it is possible to start cleaning after approx. 1 hour.
8. Wipe down the inside with warm water and washing-up liquid.
9. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
10. Only clean the door seals with clean water; they are sensitive to oil and fat.
11. Wipe everything completely dry, including the door seals, and allow to air briefly.
12. Return the food to the fridge or freezer compartment.
13. Connect the mains plug to the socket or switch on the fuse again.
14. Turn the temperature control dial (11) to "7".
15. As soon as a temperature of -18 ^ is reached in the freezer compartment, reset it to your usual setting.

Delivery

Line drawing of an open refrigerator with various internal compartments and accessories (no text or symbols)

You will find the type plate inside your appliance.

Package contents

1× Refrigerator

Fridge: (interior of the appliance)

1× Glass shelf

1× Glass shelf as a cover for the fruit/vegetable drawer

1× Fruit/vegetable drawer

2× Small door shelf

1× Large door shelf

Freezer compartment:

1× Ice cube container

1× Egg tray

1× Cleaning rod

2× Round cover sticker

1× Rectangular cover sticker

1× Door handle

2× Screw

1× User manual

Checking the delivery

1. Move the appliance to a suitable place and unpack it (see "Start-up" on page EN-22).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see "Service" on page EN-31).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Start-up

Moving and unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from taking small parts out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Do not pull or lift the appliance by its doors or door handles.
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

Improper use of the appliance may lead to injury or damage to health.

■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Refrigerant is fl ammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the cooling appliance horizontally.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

1. Move the appliance using a dolly or with the help of a second person.
2. Place the appliance on as flat and as firm a base as possible. Observe the specified minimum distances (see "Space requirement according to appliance dimensions" on page EN-23).

Space requirement according to appliance dimensions

A: 550 cm B: 1130 cm
C: 940 cm D: 50 cm
E: 135^

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 3m^3 .
• Suitable locations are dry, well-ventilated areas that are cool if possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
• The following minimum distances must be maintained:

to electric stoves 3 cm

to oil and coal burning

stoves 30 cm

to other cooling appliances 2 cm

to washing machines and

dishwashers 2 cm

1. If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.
2. Check the position with a spirit level.

1. Level out any unevenness in the floor using the two screw feet (6).
2. Close the appliance door (2).
3. Tilt the appliance slightly back and screw in/unscrew the screw feet (6).
4. Stand the appliance back up again and check the alignment with a spirit level.
5. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the appliance door.

Cleaning before use

- In order to remove the odour which is present in all new appliances, wipe the interior with diluted vinegar prior to first use. Then wipe it out with clean water and dry all of the parts off afterwards.

Attaching the door handle

Attach the door handle (3) before starting to use the appliance.

1. Lift out both blind plugs (13) from the side of the appliance door (2).

1. Screw the door handle (3) to the appliance door (2) using the screws provided (14).

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature.

Zone description	Code	Definition
Extended temperate zone SN	This refrigerator is designed for use at ambient temperatures of +10 °C to +32 °C.
Temperate zone N This refrigerator is designed for use at ambient temperatures of +16 °C to +32 °C.
Subtropical zone ST This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.
Tropical zone T This refrigerator is designed for use at ambient temperatures of +16 °C to +43 °C.

If the room temperature drops significantly below this, the unit will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

Changing the door hinges

The door hinges are on the right upon delivery. If the available space requires, you can change the direction in which the appliance door opens. Changing the direction of opening of the appliance door requires a little manual skill.

To change the door hinges, you will need the following tools:

• Cross-head screwdriver
• 8 and 10 mm open-end wrench or socket wrench

Changing the direction of opening of the appliance door

1. Switch the appliance off by turning the temperature control dial (11) to the "0" position.
2. Unplug the appliance from the mains.

1. Loosen both screw covers (15) on the top of the cover (17) using a flat-head screw-driver.
2. Unscrew the two screws (16) on the left and right of the top of the cover.
3. Remove the cover.

1. Unscrew the three fixing screws (13) of the upper hinge plate (18) and the single screw (15) on the opposite side.
2. Lever out the blind plugs (19) on the left of the appliance door (2).
3. Remove the upper hinge plate.

Line drawing of an open refrigerator with a black arrow pointing to the door (no text or symbols present)

1. Remove the appliance door (2) and set it aside carefully.

1. Reposition the door handle (3). Proceed as described in chapter "Attaching the door handle" on page EN-24.

2. Tip the appliance backwards (maximum 45^ ) so that you can also reposition the lower door hinge.

1. Turn both screw feet (6) outwards.
2. Unscrew the lower hinge (20).

1. Unscrew the screw (21) on the bottom left of the housing and reinsert it on the opposite side.

1. Loosen the nut (22) on the hinge bolt (23) with a 10 mm spanner.

Put the nut, the washer and the spring ring (24) carefully to one side.

1. Reverse the hinge; push the hinge bolt through from the other side and fix it, and put the spring ring back in place.

1. Screw the hinge (20) back on the opposite side.

Use the screwdriver to tighten the screws by just 2 to 3 turns, and then use the 8 mm spanner to tighten them fully.

1. Screw the screw feet (6) back in too.
2. Reinsert the appliance door (2).

1. Reattach the upper hinge (18) with the three fixing screws (13).

Also refit the screw (15) on the opposite side, and reinsert the blind plugs (19) on the other side of the appliance door.

1. Place the cover (17) back on the appliance. Push down on both sides (left and right) of the front of the cover until you hear it click into place.

2. Refit the two screws (16).

3. Put the two covers (15) back in place.

4. Align the appliance as described in chapter "Moving and unpacking" on page EN-22.

Changing the door hinges of the freezer compartment

1. Unscrew the hinge screw (25) under the freezer compartment (1). Use a cross-tip screwdriver.
2. Open the freezer compartment door and remove the door and hinge.
3. Remove the hinge from the door pin.

1. On the door latch, remove the covers on the screws (26) and unscrew the two screws.
2. Turn the door latch 180° and fix it to the opposite side. Use the screws (26) to do so.

Make sure that the locking tappet screw holes are placed exactly over the markings in the appliance wall.

1. Push the two covers into the door latch again.

Simple line drawing of a vehicle with a rectangular body and a curved arrow indicating rotation (no text or symbols)

1. To install the freezer compartment door on the other side, turn it 180°.
2. Insert the freezer compartment door with the upper door pin in the opening at the top of the freezer compartment.

1. Place the hinge on the lower door pin and screw it securely to the appliance using the hinge screw (25).

Make sure that the locking tappet screw hole is placed exactly above the markings in the appliance wall.

1. Cover the holes left by unscrewing the bearing plate and locking tappet on the opposite side of the freezer compartment with the two round and the rectangular cover stickers.
2. Close the freezer compartment door.

Starting up the appliance

! NOTICE

Risk of damage!

If the appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting.

Risk of damage!

Improper handling of the appliance can lead to damage to property.

■ The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the table to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

- Never attempt to repair the appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	Appliance is switched off. Set	the temperature control dial (11) to a setting between “1” and “7”.
	No electricity to socket. Check	the socket with another appliance.
	Mains plug is loose. Check the	tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Cooling power has been set too high.	Select a lower setting (see “Setting the power level” on page EN-11).
The appliance doesn’t cool sufficiently.	Cooling power has been set too low.	Select a higher setting (see “Setting the power level” on page EN-11).
	Appliance door not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page EN-18.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Too many goods stored. Maintain maximum freezing capacity. The maximum freezing capacity is shown on the appliance’s type plate.
	Ambient temperature too low or too high.	Adjust ambient temperature (see “Intended use” on page EN-4).
	Compressor seems defective.	Set the appliance to maximum refrigeration (see “Setting the power level” on page EN-11). If the compressor does not switch on within an hour, please contact our service department (see page EN-31).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check the stability of the appliance and adjust as necessary.
Water has accumulated in the refrigerating compartment at the bottom.	The defrost drain (9) is blocked.	Unblock the defrost drain using the supplied cleaning rod.

Service

Please note! You are responsible for the condition of the appliance and its proper use in the household.

- If you call customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

The statutory warranty of 24 months applies for this article.

– Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Model Colour Order number
hanseatic Refrigerator with freezer compartment	HKS8555GDW-2	White 66409	936
	HKS8555GDI-2	Stainless steel	96816912

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
- you would like to order additional accessories.

Repairs and spare parts

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

- Please contact our technical service: Phone [phone]

Customers in Austria

- Please contact your mail order company's customer service centre or product consultancy.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure ‘Waste Prevention Programme - of the German Government with the Involvement of the Federal States’.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority

or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to

be sent out for repairs, only the original packaging will provide sufficient protection. If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning EU Directive no. 2019/2016

The product fiche for your device is provided online.

Go to https://eprel.ec.europa.eu and enter the model identifier for your device to download the product fiche.

The model identifier for your device can be found in the Technical specifications.

Technical specifications

Item number	6640993696816912
Name of appliance	Refrigerator with freezer compartment
Model identifier	HKS 85 55GDW-2HKS 855 5G DI-2
Device measurements (Height × Width × Depth)	850 mm × 550 mm × 580 mm
Unloaded weight	30 kg
Refrigerant	R600a
Filling capacity refrigerant	27 g
Foaming agent	cyclopentane
Rated power	100 W
Supply voltage / frequency / rated current	220 - 240 V ~ / 50 Hz / 0,75 A
Prote dion class	I
Climate class: N-ST. This appliance is intended to be used at an ambient temperature between + 13 °C and + 38 °C.
