Type de produit	Range hood (cooker hood)
Modèle	RODAS9100
Marque	Corbero
Tension et fréquence	220-240 V~, 50 Hz
Puissance totale	296 W
Éclairage	4 x 1.5 W LED
Classe de protection	II
Poids net	22.5 kg
Classe énergétique	A++
Débit d'aspiration maximal	979 m³/h
Type de commande	Touch control
Fonction minuterie	Delay-off (5/4/3 min selon vitesse)
Filtre à graisse	Aluminium haute densité, lavable en machine (40-50°C)
Filtre à charbon	Remplacement tous les 3 mois (optionnel)
Installation	Îlot (island hood)

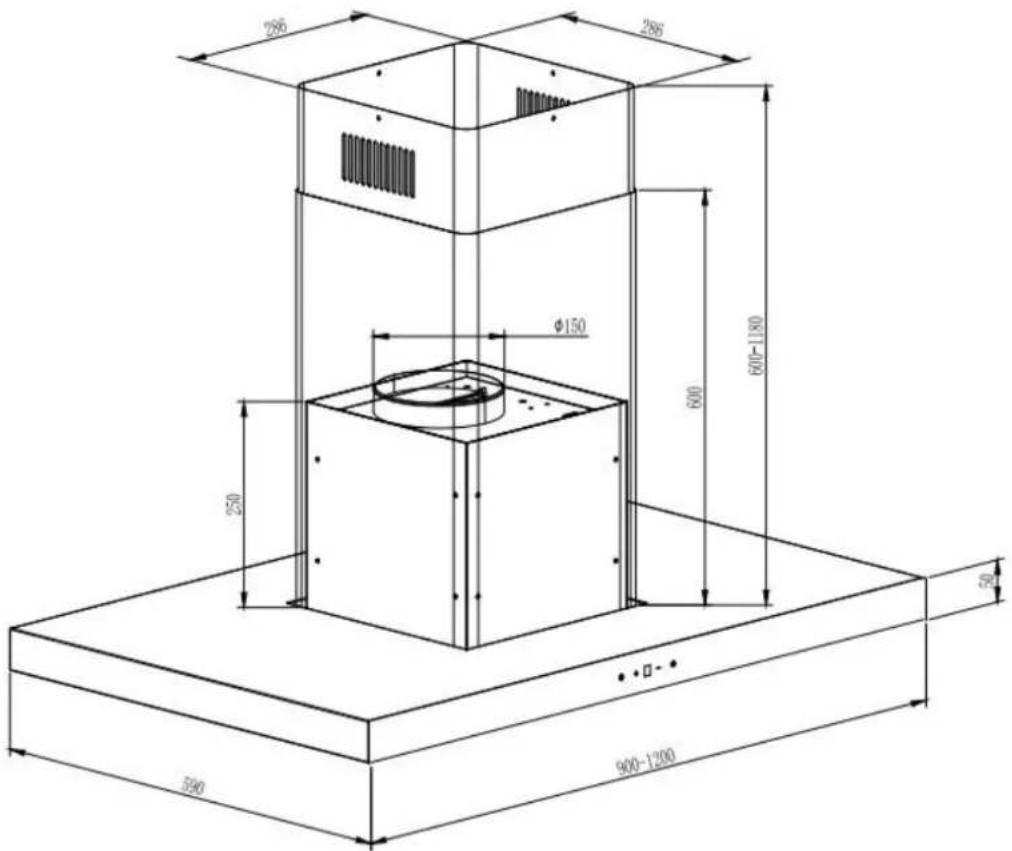

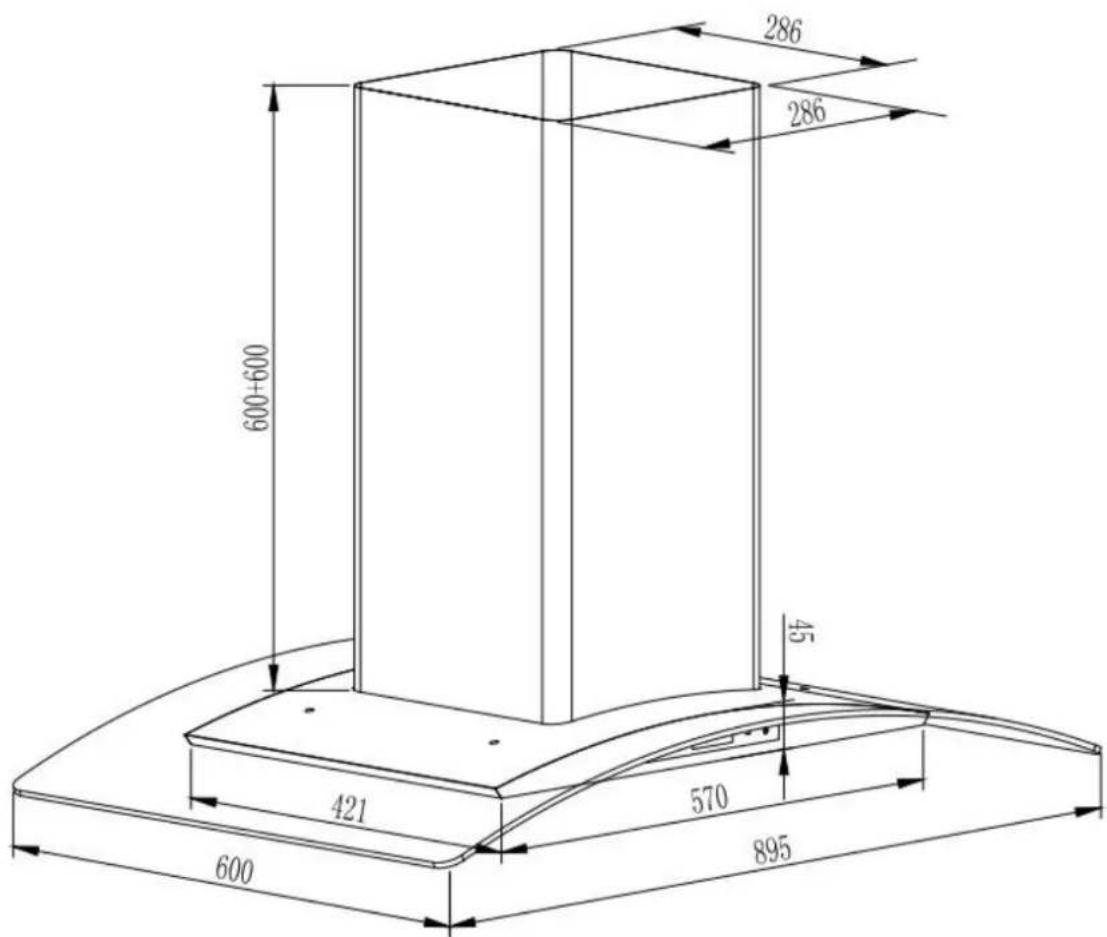

Hauteur d'installation	600-1180 mm (ajustable)
Diamètre conduit d'évacuation	150 mm
Matériau	Acier inoxydable
Garantie	36 mois (avec facture)

Frequently Asked Questions - RODAS9100 CORBERO

How to clean the grease filter mesh?

Soak in 40-50°C water with detergent for 2-3 minutes, then gently brush with a soft brush. It can also be cleaned in a dishwasher. Avoid corrosive detergents.

How often should I clean the cooker hood body?

Every two months with hot water and non-corrosive detergent. Do not use abrasive cleaners. Keep motor and parts free from water.

How to replace the carbon filter?

Replace every 3 months. The carbon filter is available via special order. Contact customer helpline to order. Do not expose to heat.

What should I do if the motor does not work but light is on?

Check if the leaf is blocked. If not, the capacitor or motor may be damaged. Contact qualified service personnel.

Can I install this hood over a gas hob?

Yes, but the room must have adequate ventilation. The negative pressure must not exceed 4 Pa when using other appliances. Do not flame under the hood.

What is the delay-off timer function?

Press ‘+’ and ‘-’ simultaneously to activate timer. At speed 1 it delays 5 min, speed 2: 4 min, speed 3: 3 min.

How do I adjust the speed?

Press ‘+’ to increase speed, ‘-’ to decrease. The hood has multiple speeds.

What is the warranty period for Corbero RODAS9100?

36 months from invoice date (starting Jan 1, 2022) for domestic use. Requires purchase invoice. Excludes damages from misuse, unauthorized repair, wear items.

Can the duct share with other appliances?

No, it cannot share the same air ventilation tube with gas tube, warmer tube, or hot wind tube. The bending should be ≥120°.

What does the control panel include?

On/Off button, speed ‘+’ and ‘-’, light button, and timer function via simultaneous press of ‘+’ and ‘-’. LED display shows speed.

USER MANUAL RODAS9100 CORBERO

Modern kitchen interior with white cabinetry, stainless steel HVAC unit, and glass table (no visible text or symbols)

Corberō

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood with ventilation grilles (no text or symbols visible)

Es....1\~10

Pt....11\~20

En....21\~30

(1) AVISO

Filtro de grasa

Fig. 7

Exterior view of a stainless steel kitchen air conditioner unit (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood with ventilation grilles and a mounted fan (no text or symbols visible)

(1) AVISO

8.2 Aviso de limpeza do exaustor

Range hood Instruction Manual

RODAS

SIROS

Exterior view of a stainless steel kitchen air purifier with a tall chimney and control panel (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood with ventilation grilles and control panel (no text or symbols visible)

(1) NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manu carefully before use.

2. The installation work must be undertaken by a qualified and competent fit

3. The manufacturer disclaims all liability for any damage or injury caused as result of not following instructions for installation contained in the following text.

The cooker hood is used on AC220-240V, 50Hz.

(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a streamline design.
2. Equipped with a large power low noise electric motor and centrifugal leaf, produces strong suction, low noise, non stick grease filter and easy to clean.
3. With the isolated low voltage circuit board control, 12vDC input, the lights therefore safer.
4. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

(3). Installation

- Clamps and hooks for installation

	inner chimney holder
	outer chimney holder
	Wall hook

(3). Installation

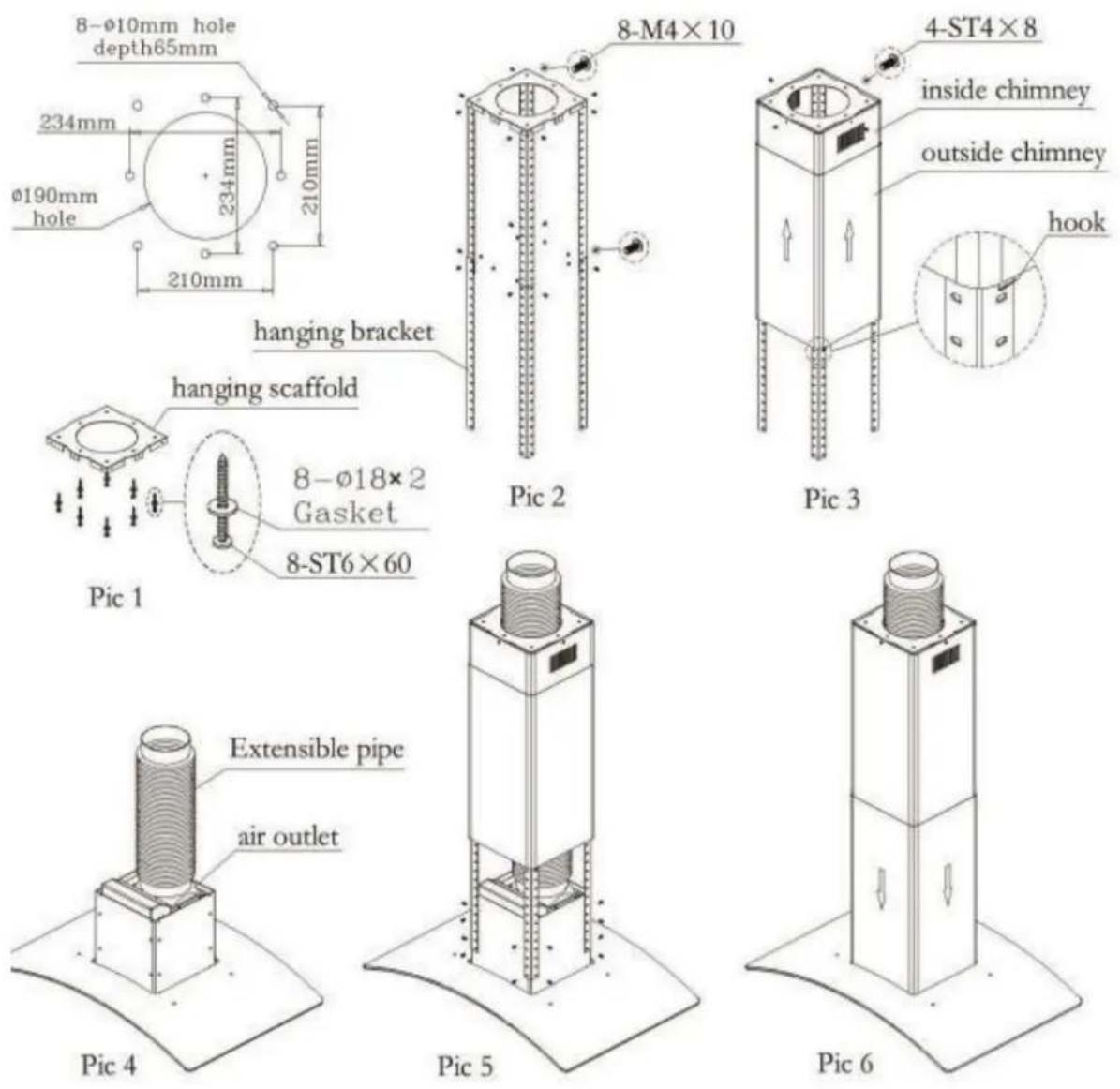

Island hood:

3.1 Make sure of installation position, fix the hanging scaffold at proper position, and check firmness smoothness of installation. See the pic 1.

3.2 Adjust to proper height, joint the bracket, install on hanging scaffold. See the pic 2.

3.3 Fix inside chimney on hanging scaffold, enclose outside chimney on it at proper position, insert hook into bracket to fix outside chimney temporarily. See the pic 3.

3.4 Fix air outlet in the vent on hood's body, connect extensible pipe with air outlet. See the pic 4.

3.5 Extend the hose out off hanging scaffold, fix hood's body on bracket. See the pic5.

3.6 Detach the hook, move outside chimney downward till reaching hood's body. Pay attention not to strike the glass. See the pic 6.

---- Warning: Failure to install the screws or fixing device in accordance with tl instructions may result in electrical hazards.

Model: SIROS9100

(5) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.

2. It cannot share the same air ventilation tube with other appliance such as ga tube, warmer tube, and hot wind tube.

3. The bending of ventilation tube should be ≥slant120^ , parallel or above the start point and should be connected to the external wall.

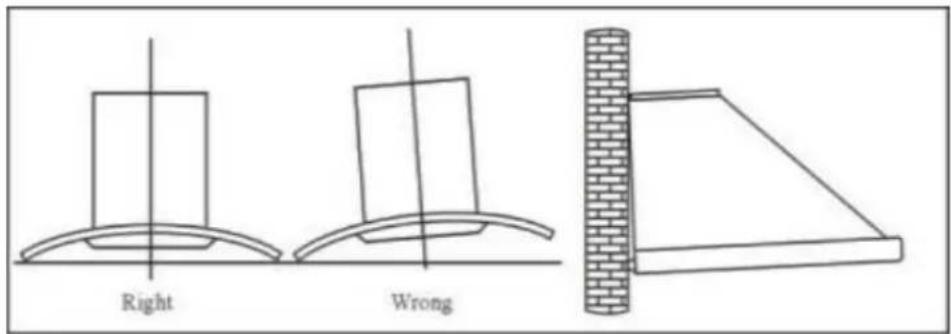

4. After installation, make sure that the extractor is level to avoid grease collection at one end.

Pic5

(6) SAFETY WARNING

- Never let the children operate the machine.

- The cooker hood is for home use only, not suitable for barbecue, roast shop and other comme purpose.

• The cooker hood and its filter should be clean regularly in order to keep in good working co

- Clean the cooker hood according to the instruction manual and keep the unit from danger of b

- Forbid the direct baking from the gas cooker.

- Please keep the kitchen room a good convection.

- Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels

• Regulations concerning the discharge of air have to be fulfilled.

• Do not flame under the range hood.

• The range hood is not intended to be installed over a hob having more than four hob elements

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

- Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

- Failure to follow these instructions can result in death, fire, or electrical shock.

(11) Touch control switch:

	On/Off	Press the On/Off button to turn on the cooker hood.TI display lights up and the cooker hood runs at speedPress the button again to turn off the cooker hood.
+	Speed	“+” Increase speed“-” Decrease speed
-
	Light	Press the light button to turn on LED lights,press it again,the LED lights are off.
Press ‘+’ & “	Timer (delay-off)	Speed 1=5 minutesdelay-offSpeed 2=4 minutesdelay-offSpeed 3=3 minutesdelay-off

( 8 ) MAINTENANCE

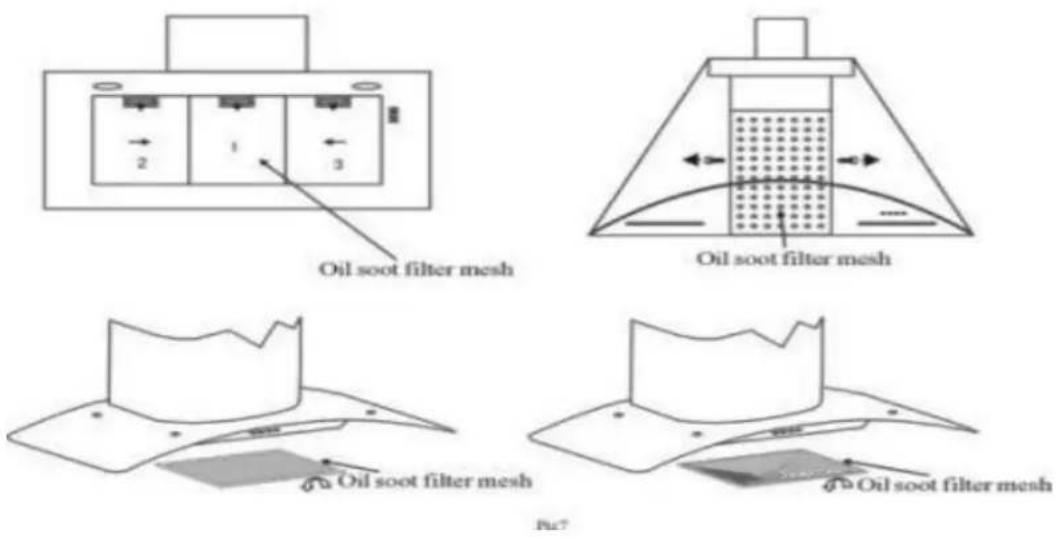

8.1 The cleaning of the grease filter mesh

The filter mesh is made of high-density aluminum. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves an with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher.

8.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the c hood should be cleaned with hot water plus non corrosive detergent every two months.

B. Please do not use abrasive detergent for it will damage the body.

C. Keep the motor and other spare parts free from water, as this will cause da to the appliance.

D. Before cleaning the appliance please remember to cut offpower

E. The carbon filter shouldn't be exposed to heat.

F. Please don't tear open the fixed bar around the carbon filter

G. If the plug or cord is damaged, please replace it with special soft cord.

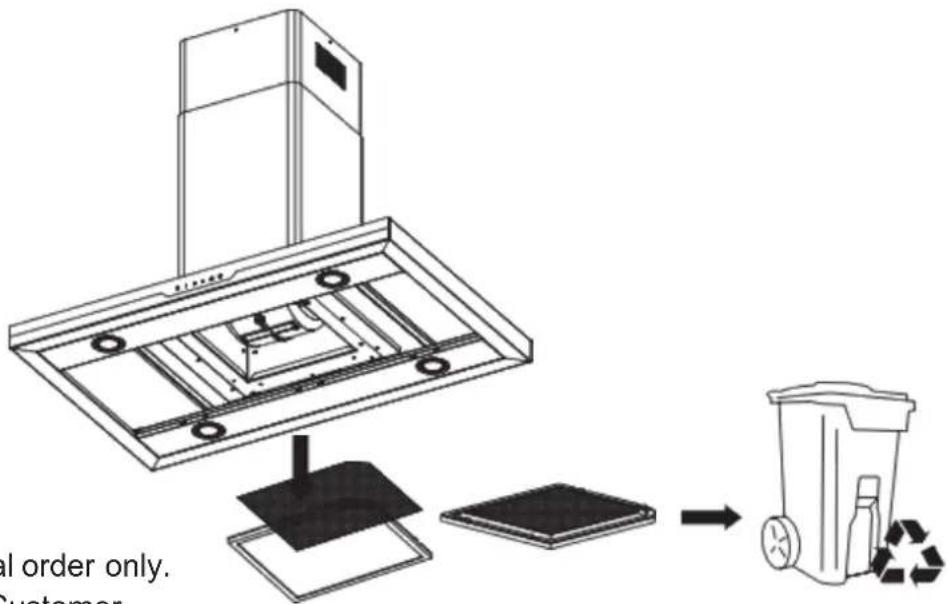

(12) Carbon filter replacement

Carbon filter: Replace every 3 months.

3 MONTHS

1x carbon filter, is available via special order only. Please contact the Customer helpline to order this item.

(9). Abnormality and Solution

Fault	Cause		Solution
Light on, but motor does not work	The leaf blocked		Get rid of the blocking
	The capacitor damaged		Replace capacitor
	The motor jammed bearing damaged		Replace motor
	The internal with of motor off or a bad smell from the motor		Replace motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged	Replace lights
	Power cord looses	Connect the wires as per the electric diagram
Oil drops from the metal grease filter	Heavily fouled filter	Immediately clean or replace the metal grease filter
Shake of the body	The leaf damaged and causes shaking	Replace the leaf
	The motor is not tightly hanged	Lock the motor tightly
	The body is not tightly hanged	Fixed the body tightly
Insufficient suction	The distance between the body and the gas top too long	Readjust the distance
	Too much ventilation from open doors or windows	Choose a new place and resemble the machine
The machine inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw not tight enough	Tighten the hanging screw and make it horizontal

Technical data

Model	RODAS9100	RODAS12000	SIROS9100
Voltage and Frequency	220-240 V~, 50 Hz	220-240 V~, 50 Hz	220-240 V~, 50 Hz
Lighting	4*1.5W LED	4*1.5W LED	4*1.5W LED
Total Power	296W	296W	296W
Protection Class	II	II	II
Net weight	22.5	25	25.5
Energy Class	A++	A++	A++
Max Aspiration	979M3/H	969.6M3/H	946M3/H

Environment Protection

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information

about recycling of this product, please check with your Local Authority or retailer for recycling advice.

CERTIFICADO DE GARANTÍA

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
  • Faults produced by blow, by fall or any other cause of force majeure.
  • If the device has been manipulated by unauthorized personnel.
• Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
• Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.
• Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.
• Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.
• Guarantee of pellet stoves, Gas Stoves, it is necessary to have the start-up accreditation from Corberó SAT, to benefit from the 3-year guarantee service.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service: 911 08 08 08

Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact [e-mail] web_ www.corbero.es

Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
