CH 5320 - Blender GRUNDIG - Free user manual and instructions

Product Type	Blender
Brand	Grundig
Model	CH 5320
Power Consumption	600 W
Capacity	1.5 L
Dimensions (H x W x D)	40 x 16 x 16 cm
Weight	1.5 kg
Bowl Material	Tritan plastic (BPA-free)
Blade Material	Stainless steel
Speed Settings	2 speeds + pulse
Functions	Blending, crushing ice, mixing
Safety Features	Lid lock, non-slip feet, overload protection
Cleaning	Removable blades, dishwasher-safe pitcher
Cord Length	1.0 m
Spare Parts	Available from Grundig service centers
Warranty	2 years

Frequently Asked Questions - CH 5320 GRUNDIG

Can I blend hot liquids in the Grundig CH 5320 blender?

No, do not blend hot liquids (above 60°C) as pressure may build up and cause the lid to pop off. Allow liquids to cool before blending.

How do I clean the blender effectively?

Fill the pitcher halfway with warm water and a drop of dish soap, then run the blender on pulse for 30 seconds. Rinse thoroughly. The pitcher is dishwasher-safe, but the blade assembly should be washed by hand.

What is the maximum capacity for dry ingredients?

For dry ingredients like grains or nuts, do not exceed 2 cups (500 ml) to avoid overloading the motor. Use the pulse function for better control.

Why does the blender stop during operation?

The blender has an overload protection feature. If it stops, unplug and let it cool for 15-20 minutes. Reduce the load before restarting.

Can I crush ice in this blender?

Yes, the Grundig CH 5320 is designed for crushing ice. Add ice cubes with some liquid, and use the pulse function in short bursts.

How do I replace the blade assembly?

Do not disassemble the blade unit yourself. Contact Grundig customer service for replacement parts and instructions.

Is the blender BPA-free?

Yes, the pitcher is made from Tritan plastic, which is BPA-free and safe for food contact.

What should I do if the lid leaks?

Check that the lid is securely locked and the sealing ring is properly placed. If leaks persist, replace the sealing ring via Grundig spare parts.

Can I use the blender for making dough?

No, this blender is not suitable for heavy dough mixing. Use a stand mixer for dough preparation.

How should I store the blender?

Store the blender with the pitcher upside down on the base, or separate. Keep the power cord wrapped under the base. Avoid placing heavy objects on top.

USER MANUAL CH 5320 GRUNDIG

Simple line drawing of a knife and a ring (no text or symbols)

CH5320

EN / DE / NO / SV / HR / FI

CONTENTS

ENGLISH	03-17
DEUTSCH 18-36
NORSK	37-52
SVENSKA	53-67
HRVATSKI	68-82
SUOMI	83-98

Please read this guide first!

Dear Customer,

Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

WARNING: Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage. Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
  •Appliance may be used by persons with limited physical, perceptual or mental abilities or persons with a lack of experience and knowledge if they are supervised or given instructions on the operation of the appliance and any relevant risks they may be encountered. Children shall not play with the appliance.
  •This appliance cannot be used by children.
• Do not use the appliance if the power cord, appliance or the appliance blade is damaged. Contact authorized service.
• If unsupervised, unplug the appliance during accessory mounting/removal or prior to cleaning.

1 Important safety and environmental instructions

• Use only original parts or parts recommended by the manufacturer.
• Do not disassemble the appliance.
  -Your mains power supply shall be in align with the specified information on the type tag.
• Do not use the appliance with an extension cord.
• Do not unplug the appliance by pulling on the cord.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Do not touch the plug of the appliance while your hands are damp or wet.
• Do not use the appliance for hot food.
• Use the appliance only with the provided rubber base or the chopping bowl.
• Do not operate the appliance with the empty bowl.
  •To avoid damaging the blades and the appliance, remove bones and seeds from foods.

1 Important safety and environmental instructions

•The appliance is not suitable for dried or rough food that may lead the blades to become blunt very rapidly.
•To prevent overheating, do not use the appliance continuously for more than 5 seconds. Cool the appliance for 2 minutes between each 5 seconds of operation.
•To prevent injuries due to misuse, observe all warnings.
- Misuse during emptying the bowl, cleaning or contacting the chopper blades with bare hands may cause serious injuries. Exercise caution by trying to hold the chopper blade only from its plastic part.
•After cleaning, prior to energizing or assembling the parts, dry the appliance and all of its parts.
- Do not immerse the appliance, the power cord or the plug in water or in any other liquids.
- Do not operate the appliance or the parts on or near hot surfaces or do not place them on hot surfaces.
- If you keep the packaging materials, keep them out of the reach of children.

1 Important safety and environmental instructions

• Store the appliance and its power cord out of the reach of children.
  •Always use the appliance on a stable, flat, clean and dry surface.
  •This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments,

- farm houses, by clients in hotels, motels and other residential type environments,

- bed and breakfast type environments

- Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.

- Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning” section.

1 Important safety and environmental instructions

• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.
• Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of

1 Important safety and environmental instructions

used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging

material collection points designated by the local authorities.

2 Your Chopper

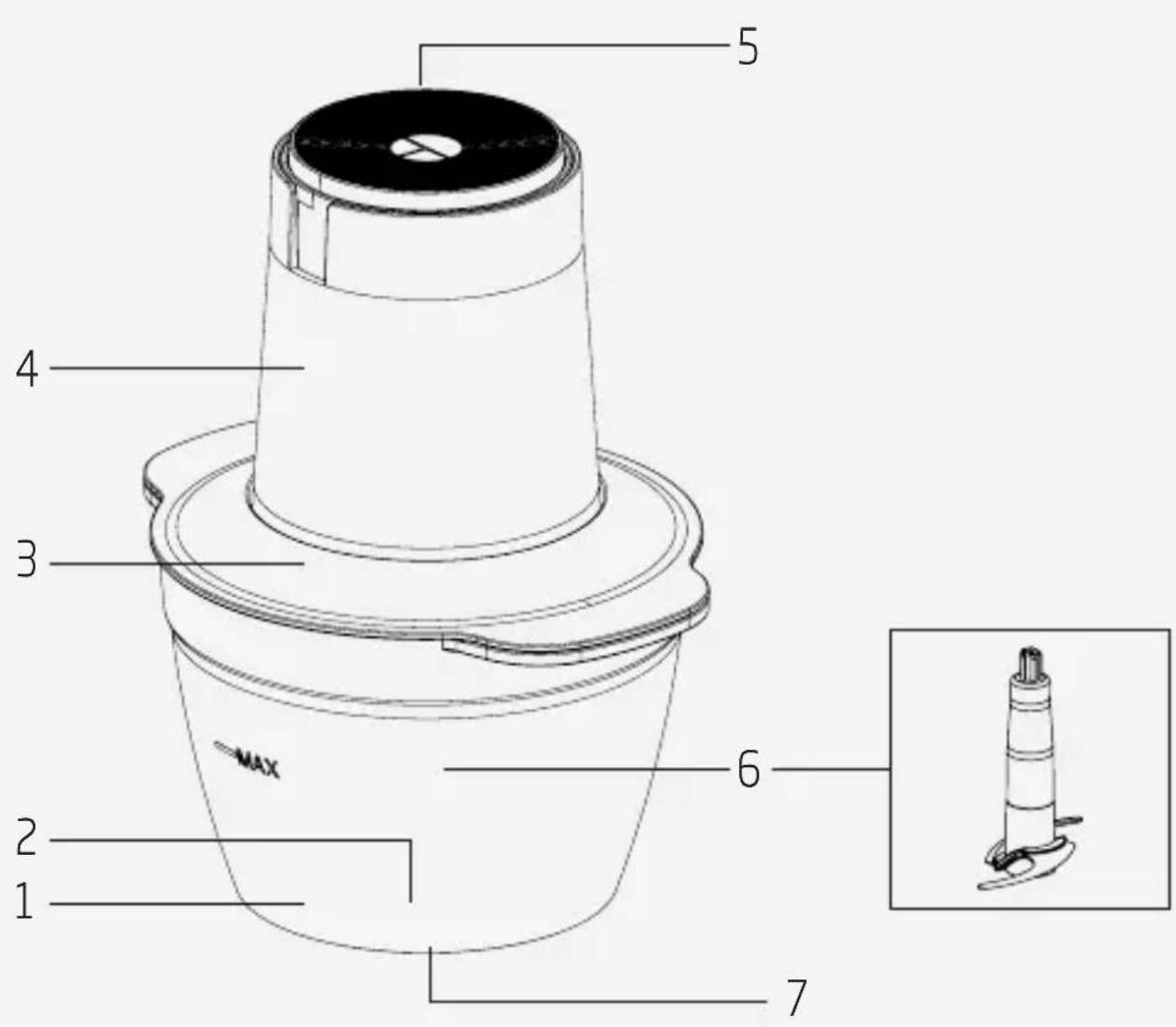

2.1 Overview

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

2 Your Chopper

1. Chopping bowl
2. Fixed shaft
3. Lid
4. Motor unit
5. Operation button
6. Chopper blade
7. Anti slip base

2.2 Technical data

Power supply:

220-240 V\~, 50-60 Hz

Power: 500 W

The rights to make technical and design changes are reserved.

3 Operation

3.1 Intended use

The appliance is intended for domestic use only, it is not suitable for professional use.

The appliance is designed for chopping small amounts of solid food.

3.2 First operation

Clean the parts of the appliance before the first use (see 4.1).

3.3 Start Up

Technical line drawing of a mechanical component or housing with a central shaft and top frame (no text or symbols)

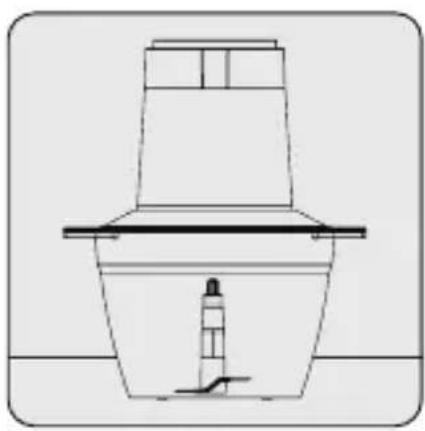

Place the appliance on a fixed and level surface, on the anti-slip base.

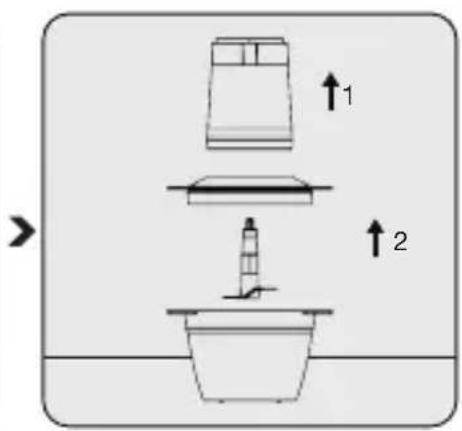

Remove the motor unit (4) and lid (3) from the chopping bowl.

Simple line drawing of a piston on a platform with an arrow indicating downward motion (no text or symbols)

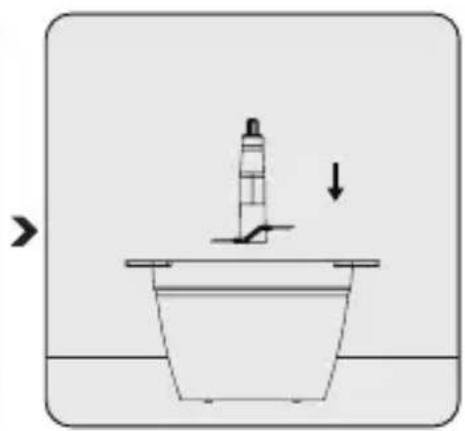

Place the chopper blade (6) on the fixed shaft (2) by holding the blade from the plastic section.

3 Operation

Illustration of a basket containing three fruit pieces, with one item above it and another above it (no text or symbols)

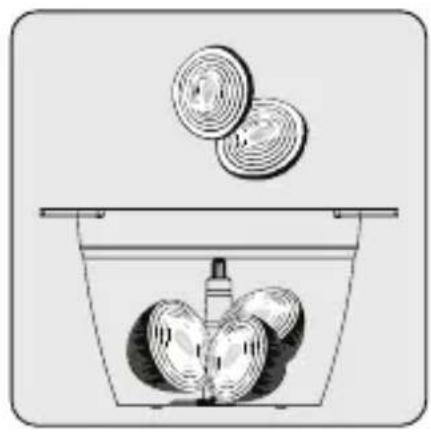

Place the ingredients that you want to prepare into the chopping bowl (1).

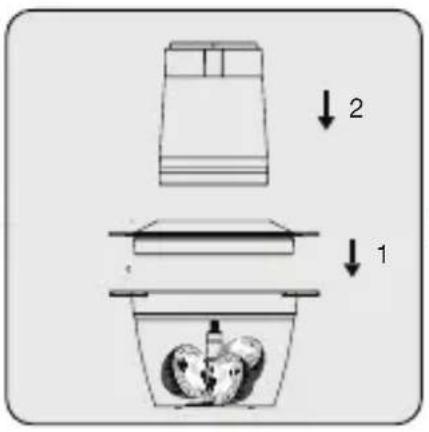

After placing the lid (3) (with the silicon gasket facing down) on the chopping bowl (1), place the motor unit (4) on the assembly.

Diagram of a cylindrical device with a black lid and a small inset showing an electrical outlet (no text or symbols)

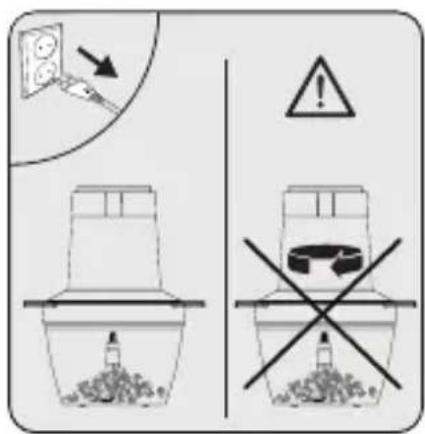

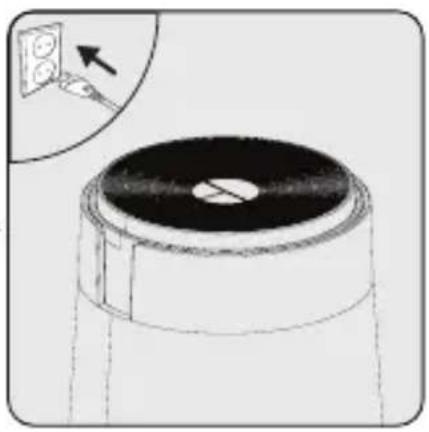

Plug in the appliance. Run the appliance by pressing the operation button (5).

- Place the lid (3) right on the chopping bowl. Otherwise, the motor unit (4) will not be placed correctly and the appliance will not run.

- In continuous use under 10 seconds, you can proceed using by a few second intervals until the process is completed. - For softer food such as parsley or onion, one second bursts may be used.

3 Operation

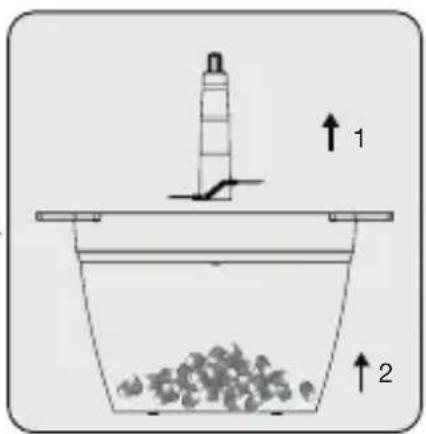

When the operation is completed, stop pressing the operation button. Unplug the appliance and wait until the blade is completely stops.

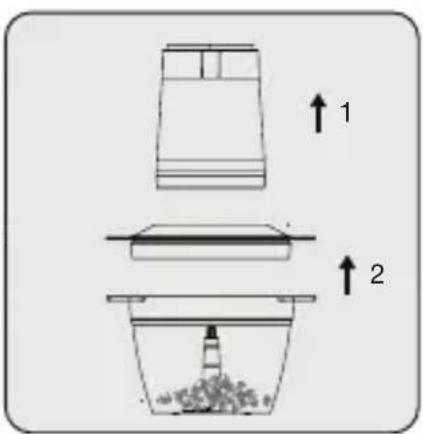

First pull and remove the motor unit (4), then the lid (3).

Hold the chopper blade (6) from the plastic part and remove it from the chopping bowl (1).

Remove the processed food from the chopping bowl (1).

• The internal section of the blade has a spring. You may feel a spring action as you place the blade on the fixed shaft. If you turn the blade a quarter of a rotation to the right or to the left, the blade would be fixed.
• To remove the blade from the shaft, turn the blade a quarter of a rotation to the right or to the left; then the blade will be released.

Do not touch the blades with bare hands.

3 Operation

3.4 Maximum amounts and processing time

The table below provides a general view for various foods in terms of maximum amounts and the average periods for suitable chopping process. The recommended times and amounts should be taken as reference.

Material Max. amount Processing time
Beef 100 g. 5 secs

3.5 What to do for energy saving

Observe the recommended periods specified in the manual during use. Unplug the appliance after each use.

4 Cleaning and maintenance

4.1 Cleaning

• Prior to cleaning, unplug the appliance and ensure that the blades are completely stopped.
• Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.
• Exercise caution when cleaning the chopper blade (6); it is sharp.
• Do not submerge the motor unit or the power cord in water or any other type of liquid.

The chopping bowl, chopper blade and lid can be washed on the upper rack of the dish washer.

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a faucet spraying water onto a bucket (no text or symbols)

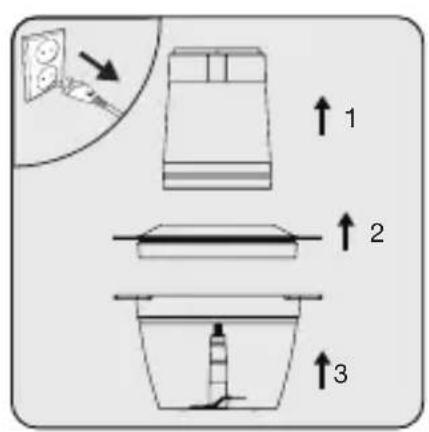

Unplug the appliance. Remove the motor unit (4), lid (3) and then the blades (6).

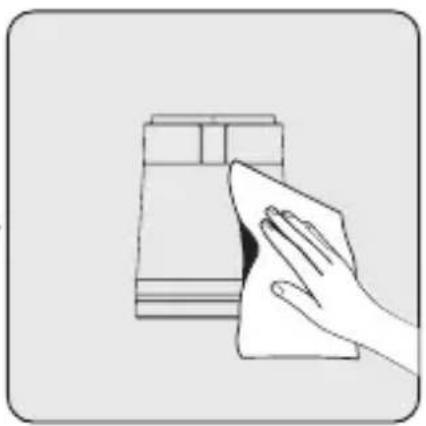

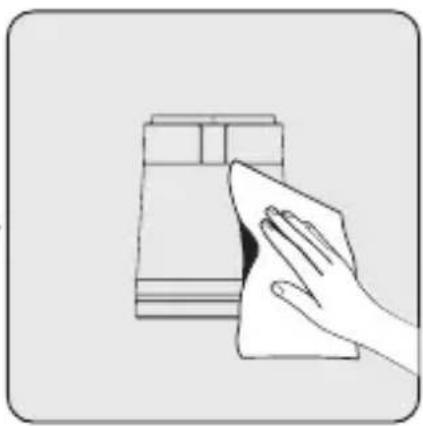

Use a slightly damp cloth to clean the outside of the motor unit (4).

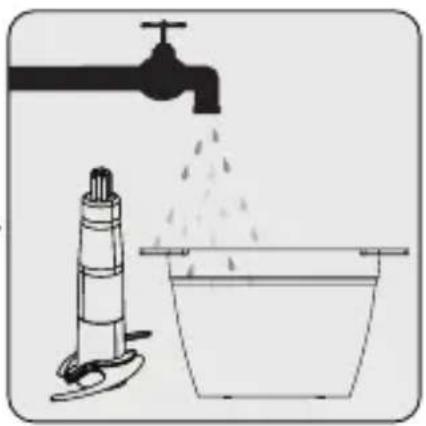

You can wash the chopping bowl, chopper blade and the lid with detergent and warm water.

After cleaning, thoroughly dry all parts of the appliance.

4 Cleaning and maintenance

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before storing.
• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.

4.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a piston on a platform with an arrow indicating downward motion (no text or symbols)

Illustration of a basket containing three round objects, with one falling above (no text or symbols)

Diagram of a cylindrical container with a central slot, showing an arrow pointing to it (no text or symbols present)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a faucet spraying water into a bucket with a tool nearby (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

220–240 V\~, 50–60 Hz

Effekt: 500 W

Technical line drawing of a mechanical component or housing with a central shaft and top frame (no text or symbols)

Sett bordmikseren på en jevn og trygg overflate, stående på gummiknottene.

Simple line drawing of a piston on a platform with an arrow indicating downward motion (no text or symbols)

Illustration of a basket containing three fruit pieces, with one item above it and another above it (no text or symbols)

Putt ingrediensene du vil tilberede i miksebollen (1)

Diagram of a cylindrical device with a black lid and internal components, showing an inset view of a wall socket (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a faucet spraying water onto a bucket (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Technical line drawing of a mechanical component or housing with a central shaft and top frame (no text or symbols)

Simple line drawing of a piston on a bucket with an arrow indicating downward motion (no text or symbols)

Illustration of a basket containing three fruit pieces, with one item above it and another above it (no text or symbols)

Diagram of a cylindrical device with a black lid and internal components, showing an inset view of a wall socket (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a faucet spraying water onto a bucket (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Technical line drawing of a mechanical component or housing with a central shaft and top frame (no text or symbols)

Uređaj postavite na fiksnu i ravnu površinu i na podlogu koja se ne kliže.

Uklonite jedinicu motora (4) i poklopac (3) sa zdjele sjeckalice (1).

Simple line drawing of a piston on a bucket with an arrow indicating downward motion (no text or symbols)

Oštricu sjeckalice (6) stavite na fiksnu osovinu (2) dreči oštricu za plastični dio.

3 Rukovanje

Illustration of a basket containing three fruit pieces, with one item above it and another above it (no text or symbols)

Nakon što stavite poklopac (3) (sa silikonskom brtvom okrenutom prema dolje) na zdjelu sjeckalice (1), na sklop stavite motornu jedinicu (4).

Diagram of a cylindrical device with a black lid and a small inset showing an electrical outlet (no text or symbols)

Prvo povucite i uklonite jedinicu motora (4), a zatim poklopac (3).

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a faucet spraying water onto a bucket with a lighthouse, no text or symbols present

Iskopčajte uređaj iz strujne mreže. Uklonite jedinicu motora (4), poklopac (3), a zatim oštrice (6).

Za čišćenje vanjskog dijela jedinice motora (4) koristite vlažnu krpu.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical line drawing of a mechanical component or housing with a central shaft and top frame (no text or symbols)

Simple line drawing of a piston on a platform with an arrow indicating downward motion (no text or symbols)

Illustration of a basket containing three fruit pieces, with one item above it and another above it (no text or symbols)

Diagram of a cylindrical device with a black lid and a small inset showing an electrical outlet (no text or symbols)

Illustration of a hand cleaning a rectangular object with a cloth (no text or symbols)

Illustration of a faucet spraying water onto a bucket with a lighthouse, no text or symbols present
