HPM-1000WHCH - Hand blender Heinner - Free user manual and instructions

Product Type	Stand Mixer (Planetary Mixer)
Brand	Heinner
Model	HPM-1000WHCH
Power Consumption	1000 W
Voltage / Frequency	220-240 V ~ 50 Hz
Number of Speeds	12
Bowl Material	Stainless Steel
Bowl Capacity	Approximately 4 L (estimated)
Included Accessories	Flat Beater, Wire Whisk, Dough Hook
Dishwasher Safe Parts	Bowl, Beater, Whisk, Dough Hook
Max Continuous Operation Time	4 minutes
Recommended Rest Time Between Cycles	At least 20 minutes
Safety Features	Tilt-back head with lock, automatic shut-off when lifted, non-slip feet (assumed)
Cleaning Instructions	Wipe body with damp cloth; immerse bowl and accessories in warm soapy water
Certifications	CE compliant, RoHS

Frequently Asked Questions - HPM-1000WHCH Heinner

What is the maximum continuous operating time for this mixer?

The mixer should not run for more than 4 minutes continuously. After each cycle, allow it to rest for at least 20 minutes before using again.

Can I wash the mixer body in water?

No, the mixer body must never be immersed in water or any liquid. Only wipe it with a damp cloth. The bowl, beaters, whisk, and dough hook can be washed in warm soapy water or a dishwasher.

How do I attach the beater or dough hook?

Ensure the mixer is unplugged and the speed dial is at 0. Insert the accessory directly into the socket until it clicks into place. Make sure it is fully inserted for best results.

What should I do if the dough hook gets stuck during kneading?

Stop the mixer immediately and turn the speed to 0. Unplug the unit, then carefully remove the dough hook. Scrape off excess dough and restart at a low speed before increasing gradually.

Can I use metal utensils in the bowl while mixing?

No, never insert metal objects like knives, forks, or spoons into the bowl while the mixer is operating. They can damage the bowl or cause injury. Use a plastic spatula if needed.

Why does the bowl sometimes not lock into place?

The bowl must be placed on the base and turned clockwise until it locks with a click. If it still doesn't lock, check that the base is clean and the bowl is not deformed.

How do I lift the mixer head?

Press the tilt button located on the head. The head will automatically release and lock into the tilted position. Ensure the beaters are positioned at the sides before lifting to avoid contact with the bowl.

What is the correct speed for kneading yeast dough?

Start at the lowest speed and gradually increase to a higher speed for best results. The manual suggests using low speed initially, then high speed to achieve proper kneading.

Are there any special tips for achieving good mixing results?

Use ingredients at room temperature (e.g., butter and eggs). Scrape the bowl sides occasionally with a spatula. Do not overmix; combine dry ingredients just until incorporated. Start at lowest speed.

What should I do if the mixer stops working?

Check that it is plugged in and the speed dial is not at 0. If it still doesn't work, the thermal overload protector may have tripped. Allow the mixer to cool down for at least 20 minutes before restarting.

USER MANUAL HPM-1000WHCH Heinner

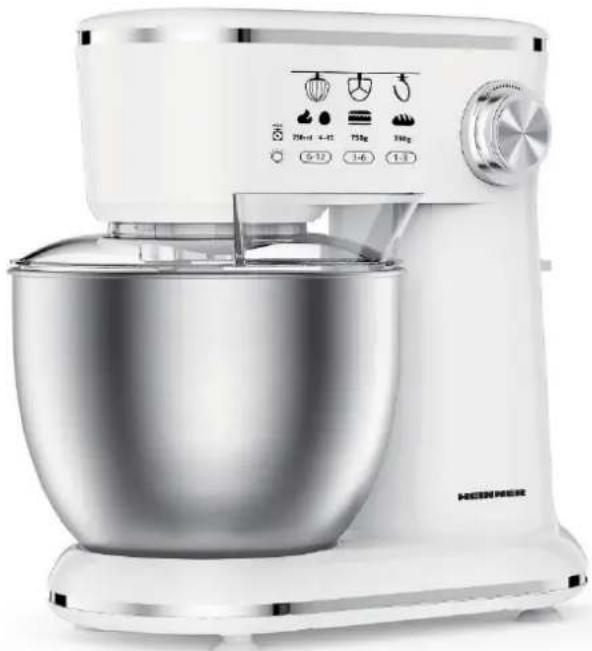

White kitchen mixer with stainless steel bowl and control knobs (no visible text or symbols)

- Power: 1000 W

- 12 speeds

- Accessories: whisk, dough hook, kneading blade

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Planetary mixer
→ Accessories: whisk, dough hook, kneading blade
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. SAFTEY MEASURES

GENERAL

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use, check that the voltage of your wall outlet corresponds to the one on the rating plate which is on the bottom of the appliance.
3. Do not operate the appliance with a damaged cord or after malfunction or has been damaged in any manner.
4. Do not let cord hang over edge of table or counter or hot surface.
5. Do not immerse cord or the body of mixer into water as this would give rise to electric shock.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
7. Close supervision is necessary when your appliance is being used near children or infirm persons.
8. Do not place an appliance on or near a hot gas or on a heated oven.
9. Never eject beaters or dough hooks when the appliance is in operation.
10. Do not leave the mixer unattended while it is operating.
11. Unplug from outlet while not in use, before putting on or taking off parts, and before cleaning.
12. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury
13. Remove beaters from mixer before washing.
14. Always check that the control is OFF before plugging the cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.

15. Avoid contact with moving parts.

16. Keep hands, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the mixer.

17. Always disconnect the appliance from the supply if it is left unattended before assembling, disassembling or cleaning.
18. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
19. Switch off the appliance before changing accessories or approaching parts which move in use.
20. This appliance is intended to be used in household only.

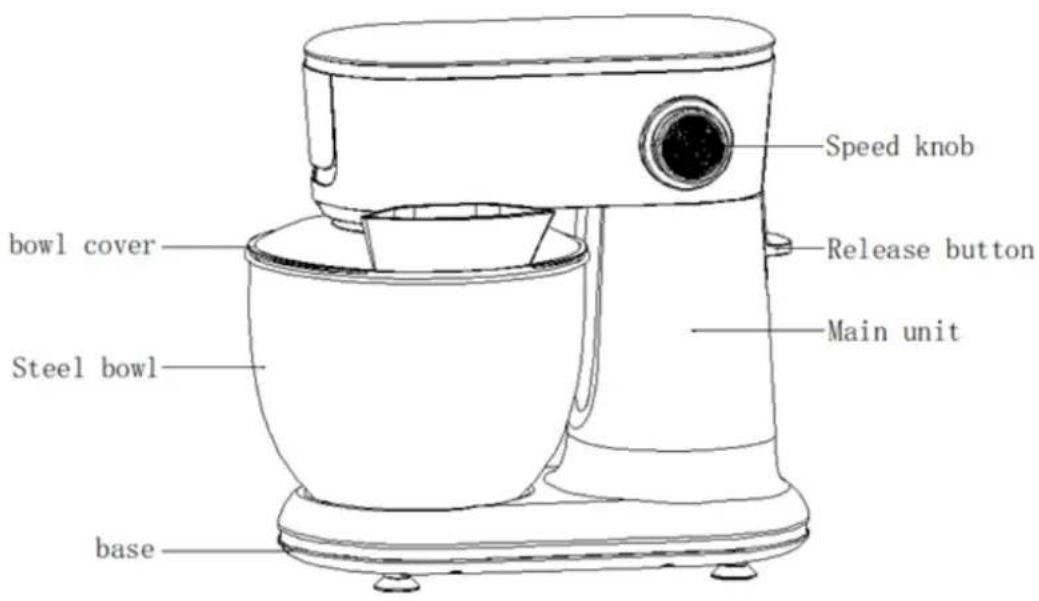

4. PRODUCT DESCRIPTION

Beater

Wisker

Dough hook

5. USING THE APPLIANCE

Before assembling the mixer, be sure the power cord is unplugged from the power outlet and the speed selector is in the 0 position.

1. Depressing the tilt button, the head of mixer will automatically release and lock into tile position.
2. Select the desired attachments, which depend on the mixing task to be performed: beater for mixing and beating egg, and dough hook for kneading, the whisk for beating and frothing egg white.
3. Inserting the Beater/ dough hook/whisk directly, until it locks into position.

Note: Ensure the beater or dough hook or whisk is fully inserted into the socket, otherwise your mixing results may be affected.

1. Place bowl on position. First place the bowl on the base, then turn the bowl clockwise until it locks into position (see fig.1).

2. To lower the head and place beater / dough hook/whisk into the bowl by holding the head with one hand and ease the head down.

3. A click sound will be heard when the head has reached the correct position (see fig. 2).

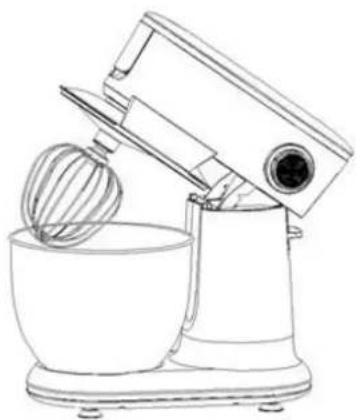

Line drawing of a kitchen mixer with two buckets (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with a bowl of batter (no text or symbols)

Fig.2

1. Ensure that the speed selector is at the 0 position, then plug in the power source.
2. Turn the speed selector to your desired setting.

Warning: Do not stick knife, metal spoons, fork and so on into bowl when operating.

1. The max operation time per time shall not exceed 4 minutes and minimum 20 minutes rest time must be maintained between two consecutive cycles. When kneading yeast dough, suggest the speed selector first use a low speed and then use high speed to achieve the best results.

Note: during kneading, some flour may be adhered on the inside of the bowl, and scrape the flour on the inside wall of bowl by spatula to obtain well kneading results.

1. When mixing is completed, turn the speed selector to 0 position, unplug the cord from power outlet.

2. Hold down the tilt button, the head of the mixer will automatically lift and lock into the tilt position.

Caution: Before pressing down the tilt button (namely before lifting the head of mixer), make sure the beater or whisk or dough hook rest on the two sides of the head of mixer, otherwise, when lifting the head of mixer, the beater or whisk or dough hook will intervene the mixing bowl; if the beater or whisk or dough hook is resting on the front of the head of mixer, you shall turn on the speed selector again, let the mixer rotate for a few seconds, then turn off the speed selector to stop the beater or whisk or dough hook on the two sides of the head of mixer.

1. If necessary, you can scrape the excess food particles from the beaters or dough hooks with a plastic spatula.
2. Pull out the beater/dough hook/whisk with a little force. It is recommended to resisting against the washer on the beater/dough hook/whisk to easily pull out the beater/dough hook/whisk.

Caution: The speed selector must be at 0 position and the power outlet must be unplugged before pulling out the beater / dough hook / whisk.

6. CLEANING AND MAINTENANCE

1. Unplug the appliance and wait it completely cool down before cleaning.

Caution: the mixer cannot be immersed in water or other liquid.
2. Wipe over the outside surface of the head and base with a dampened cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Immerse the bowl, beater, spatula, dough hook and whisk in warm soapy water for complete cleaning. Then rinse under running water and wipe dry. They also can be placed in the dishwasher.

COOKERY TIPS

1. Refrigerated ingredients, such as butter and eggs, then should be at room temperature before mixing begins. Set these ingredients out ahead of time.
2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate containers first, then adding to the mixture.
3. Do not overbeat. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold into dry ingredients only until just combined. Always use the low speed.
4. Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.
5. Always start mixing at lowest speed. Gradually increase to the recommended speed as stated in the recipe.

RECIEPE

Test items	Material recommended	Weight
Beater	Flour	150g
	Sugar	150g
	Butter	150g
	Eggs	3pcs
	Baking soda	3g
Dough hook	Flour	500g
	Water	300g
Whisk	Eggs	4pcs

TECHNICAL DATA

Voltage	220-240V~50Hz
Power	1000 W

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
