Product Type	Waffle maker with interchangeable plates
Model	HWM750BD
Brand	Hanseatic
Power Supply	220–240 V~, 50/60 Hz
Power Consumption	750 W
Weight	3.048 kg
Protection Class	I
Cord Length	75–83 cm
Included Plates	Waffle plates, toastie plates, grill plates (2 each)
Lock Positions	2 positions: for approx. 22 mm and 35 mm thickness
Indicators	Red operating indicator, green ready indicator
Heating Plate Material	Non-stick coating
Baking Time (Waffles)	Approximately 6–8 minutes
Toasting Time	Approximately 6–8 minutes
Cleaning	Heating plates dishwasher safe; housing wipe with damp cloth
Safety Features	Auto shut-off by unplugging; hot surface warning; cool-touch handle
Intended Use	Household only; indoor use
Order Number	51769049

Frequently Asked Questions - HWM750BD Hanseatic

How do I insert the heating plates?

Open the lid by releasing the handle lock. Place the top and bottom heating plates into their corresponding slots and press until they click into the clasps. To remove, open the clasps and lift out.

What is the lock position for different sandwich thicknesses?

The lock on the back has two positions: Position 1 for approx. 22 mm thick sandwiches or waffles, and Position 2 for approx. 35 mm thick sandwiches.

Can I clean the heating plates in the dishwasher?

Yes, the heating plates are dishwasher safe. Alternatively, you can wash them in warm water with mild detergent. The appliance itself must never be immersed in water.

What should I do before first use?

Clean all parts as described. Operate the appliance empty for 5 minutes with each set of plates. Allow to cool, then clean the plates again.

Why does the ready indicator light up green then go out?

The green ready indicator lights up when the plates reach the desired temperature. It goes out during cooking and lights up again when the cooking time is complete.

Can I use metal utensils on the plates?

No, never use sharp metal objects as they will damage the non-stick coating. Use wooden or plastic utensils.

How do I store the appliance?

Ensure all parts are completely dry. Store in a dry place away from direct sunlight, at a temperature between 5°C and 20°C, out of reach of children.

What is the baking time for waffles?

Baking time is approximately 6–8 minutes. You can adjust based on recipe and preference.

The appliance does not heat up. What could be wrong?

Check that the mains plug is properly inserted into a working socket. If it still doesn't work, contact customer service.

Where can I find the model identifier for EU energy label?

The model identifier is HWM750BD. Go to https://eprel.ec.europa.eu and enter it to access the product fiche.

USER MANUAL HWM750BD Hanseatic

Line drawing of a Kansaik portable food grater with control panel and buttons (no text or symbols)

Gebrauchsanleitung

Line drawing of a Hangsak food grater with control panel and side buttons (no text or symbols on body)

User manual

Manual/Version: 2301-01165_EN_20230927 Order no.: 51769049 Reproduction, even of excerpts, is not permitted!

Waffle maker

Table of contents

Explanation of terms/

symbols......EN-3

Explanation of terms ......EN-3

Explanation of symbols .....EN-3

Safety ......EN-4

Intended use ......EN-4

Safety notices......EN-4

Delivery ......EN-8

Package contents......EN-8

Checking the delivery......EN-8

Appliance parts and

control elements......EN-9

First use......EN-10

Cleaning before use......EN-10

Setting up

the appliance......EN-10

Inserting the

heating plates......EN-10

Switching the

heating plates......EN-11

Initial operation......EN-11

Operation ...... EN-12

Before getting started.....EN-12

Lock......EN-13

Switching on

the appliance......EN-13

Switching off

the appliance......EN-13

Baking waffles ...... EN-14

Toasting and grilling ..... EN-15

Cleaning and

maintenance......EN-16

Cleaning the appliance .. EN-16

Cleaning the

heating plates......EN-16

Storage......EN-17

Troubleshooting ...... EN-18

Service ...... EN-19

General customer

service......EN-19

Spare parts......EN-19

Waste prevention,

free return, disposal ...... EN-20

Waste prevention ...... EN-20

Free return of old

electrical appliances......EN-20

Disposal......EN-21

Packaging......EN-22

Appendix ...... EN-24

Product fiche

concerning EU Directive

no. 2019/2016 ...... EN-24

Technical specifications.. EN-24

Explanation of terms/symbols

Please read through the safety instructions and this user manual carefully before using the appliance. This is the only way you can use all the functions reliably and safely.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Give all safety notices and instructions to the next user of the appliance.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Hot surface!

Explanation of terms

The following signal terms can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

Safety

Intended use

The appliance is intended exclusively for toasting or grilling sandwiches and baking waffles.

It is intended for private household use and similar applications, e.g. staff kitchens in offices and shops as well as guest rooms in hotels, motels and bed-and-breakfasts.

Only use the appliance in dry indoor areas, but never in cup-boards.

Use the appliance only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The appliance is not a children's toy.

The manufacturer or retailer accepts no liability for damage caused by improper or incorrect use.

Do not use the appliance in wet rooms or outdoors.

The appliance is not approved for commercial use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging wrapper. Children could become entangled when playing and suffocate.
- Keep children away from the small parts. Children could swallow small parts and choke.

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ Appliances can be used children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
■ Keep the appliance and its cord out of reach of children aged less than 8 years.
■ Do not let the mains cord hang down from the work-

top. Children could pull on it and pull the appliance down.

Risks when using electronic household appliances

by

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only connect the appliance if the mains voltage at the socket corresponds to what is indicated on the type plate.
■ Ensure that you plug the appliance only into an easily accessible socket so that it can be quickly disconnected from the mains in the event of a fault.
■ Use the appliance only in doors; never operate it in damp rooms or expose it to rain.
■ Do not operate the appliance if it is visibly damaged (e.g. cracks or deformation in the housing) or if the mains cord/plug is defective.

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ The appliance must always be disconnected from the mains if it is not supervised and before assembly, disassembly or cleaning.
■ Do not open the housing; in stead, have repair work carried out in a specialist workshop. Liability and warranty claims will be rejected in the event of repairs performed by the user, improper connection or incorrect operation.
■ Only parts that comply with the original device data may be used for repairs.
■ Never immerse the appliance, the mains cord or the mains plug in water or in any other liquid.
■ Never touch the mains plug with damp hands.
■ Never pull the mains plug out of the socket by the mains

cord; always hold the mains plug itself.

■ Never use the mains cord as a carrying strap.
- Keep the appliance, mains plug and mains cord away from open flames and hot surfaces.
■ Lay out the mains cord in such a way that it does not become a trip hazard.
■ Do not kink the mains cord or lay it over sharp edges.
■ Never store the appliance in such a way that it can fall into a bathtub or sink.
■ Never touch an electrical appliance if it has fallen into water. In such a case, immediately unplug the mains plug from the socket.
■ In the event of a fault, always disconnect the appliance from the mains supply.
■ Note that appliances are not intended to be operated by means of an external timer or separate remote-control system.

Risks when handling the appliance

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance must always be disconnected from the power supply if it is not supervised and before assembly, disassembly or cleaning.

■ Never place aluminium foil or other objects in the appliance.

■ Never touch the hot surface of the appliance during operation. Only touch the handle bar.

Risk of damage

NOTICE

Risk of damage!

Improper handling of the appliance may cause it to become damaged.

■ Set up the appliance on an easily accessible, level, dry

and sufficiently stable work surface.

■ Bread may burn, therefore do not use the appliance near or below combustible material, such as curtains.

■ Do not place the appliance on the edge of the work surface.

■ Never place the appliance on or near hot surfaces (hotplates, etc.).

■ Ensure that the mains cord does not come into contact with hot parts.

■ Never expose the appliance to high temperatures (heating, etc.) or weather conditions (rain, etc.).

■ Never attempt to clean the appliance by immersing it in water, and do not use a steam cleaner to clean it. This could damage the appliance.

■ Do not put the appliance in the dishwasher under any circumstances.

Delivery

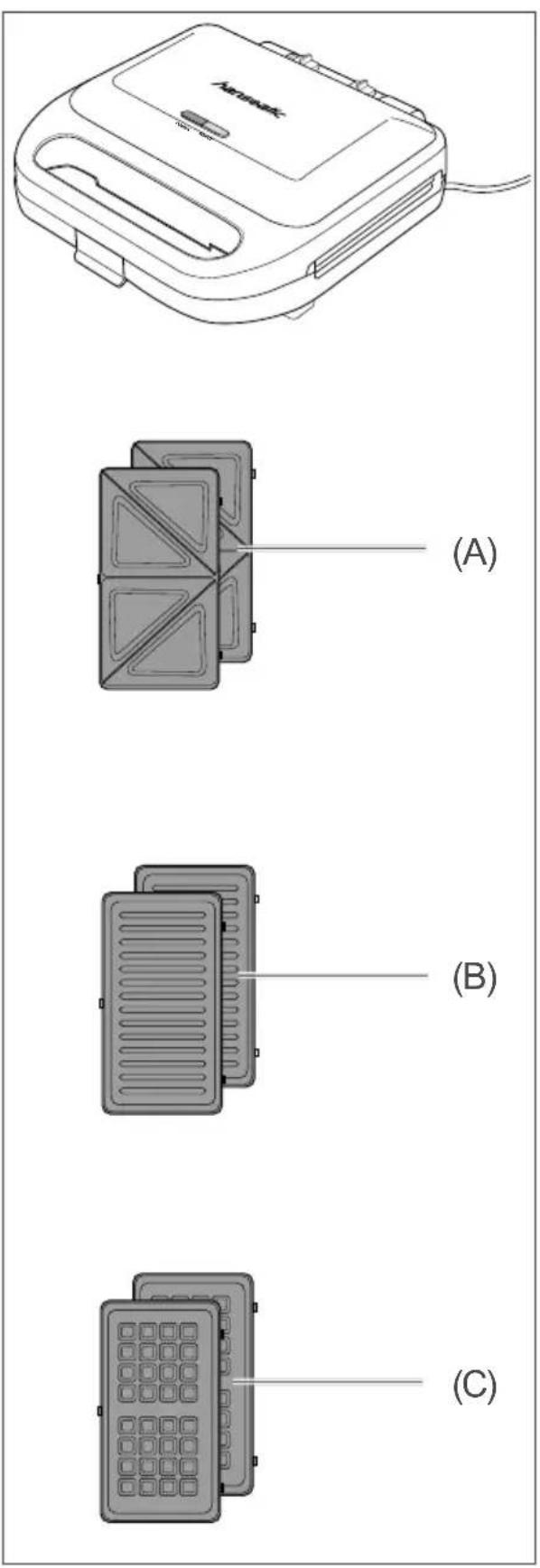

Package contents

• 1× Waffle maker
• 2× Toastie plate (A)
• 2× Grill plate (B)
• 2× Waffle plate (C)

Checking the delivery

1. Unpack the appliance. Do not use sharp or pointed objects to do this. Carefully remove all parts of the packaging, plastic profiles, tape and foam padding.
2. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service department (see page EN-19).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate the appliance if any damage is visible.

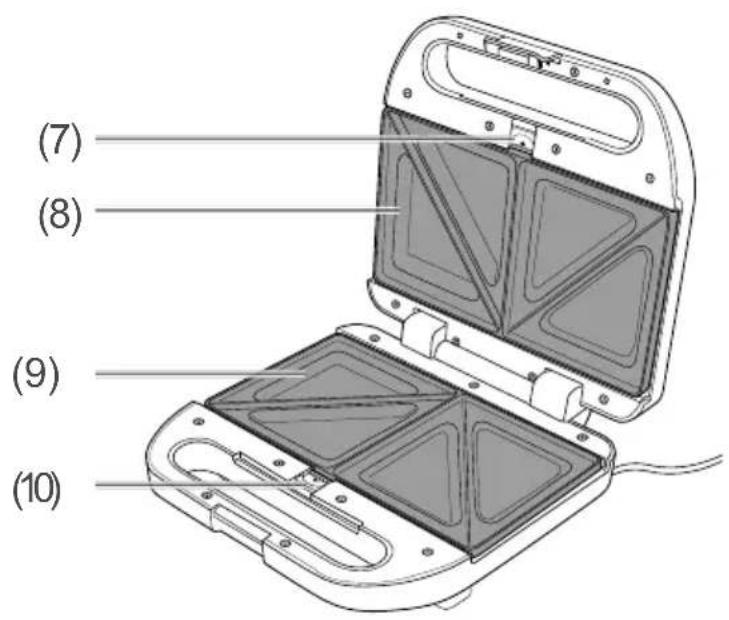

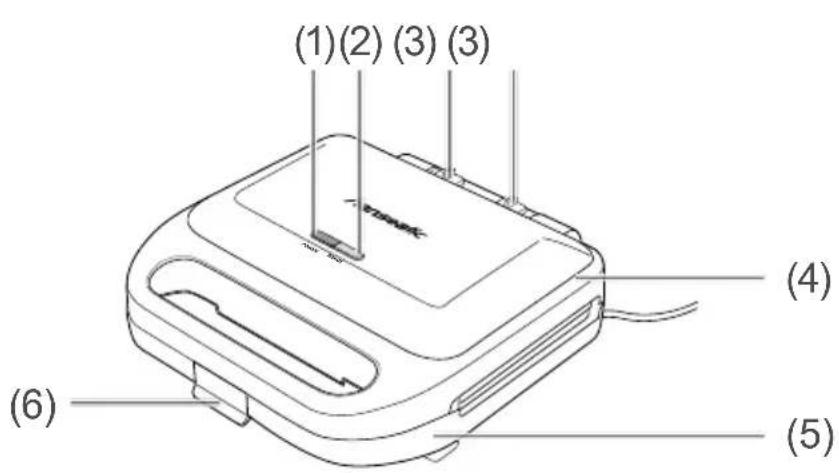

Appliance parts and control elements

(1) Operating indicator
(2) Ready indicator
(3) Lock
(4) Lid
(5) Bottom part of the appliance
(6) Handle lock

(7) Top clasp
(8) Top heating plate
(9) Bottom heating plate
(10) Bottom clasp

First use

Cleaning before use

Before first use, clean all parts as described in chapter „Cleaning and maintenance“ (see page EN-16).

Setting up the appliance

Place the appliance in a location that meets the following requirements:

• The work surface must be flat, stable, heat-resistant and dry.
• The location should be easy to clean, well lit and easily accessible.

Inserting the heating plates

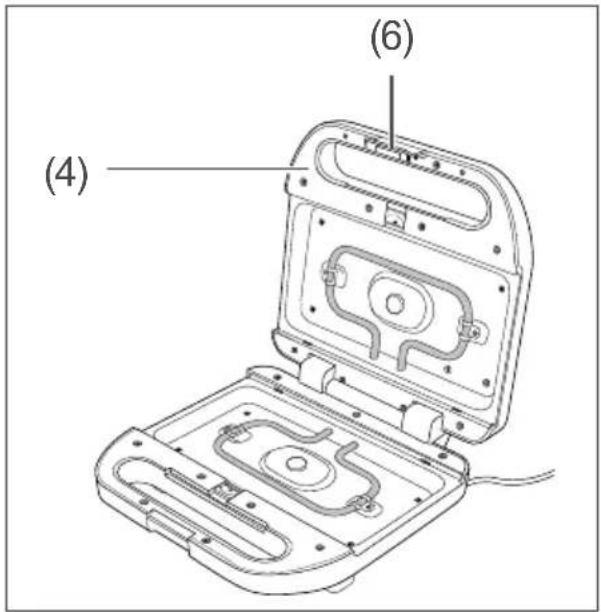

1. Open the appliance by opening the handle lock (6) and lifting up the lid (4).

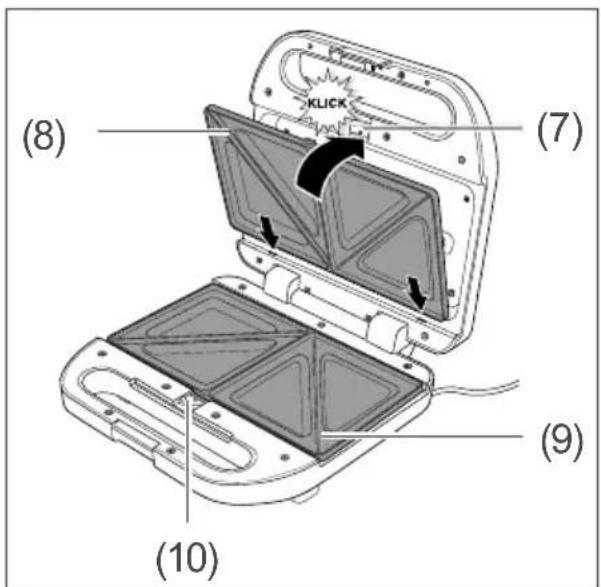

1. Place the top heating plate (8) and the bottom heating plate (9) into their corresponding slots.

2. Press the heating plates into the slots until they click into place in the clasps (7)(10).

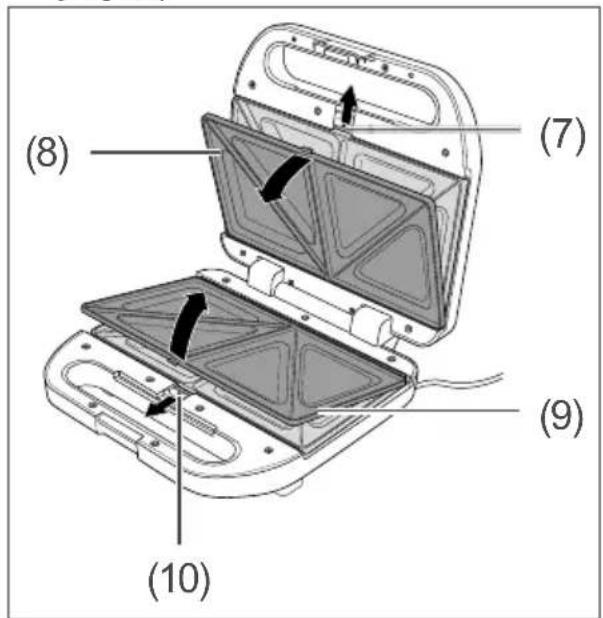

- Open the clasps (7)(10) and remove the heating plates from their slots.

Switching the heating plates

CAUTION

Risk of burns!

The heating plates will become very hot during operation.

■ Make sure the heating plates have cooled completely before touching them.

Initial operation

Before using the device for the first time, operate it once with each heating plate empty.

1. Insert the toastie plates (A), the grill plates (B) and the waffle plates (C) into the appropriate slots (see„Inserting the heating plates“ on page EN-10) g one after another.
2. Close the lid (4) each time and insert the mains plug into the socket. The operating indicator (1) will light up red, and the appliance will start to preheat.
3. Switch off the appliance after 5 minutes by removing the mains plug from the socket.
4. Allow the appliance and the heating plates to cool down.
5. Remove the heating plates from the slots.
6. Clean the heating plates with a soft sponge and a mild detergent.
7. Dry the heating plates thoroughly.

Operation

Before getting started

• Read the „Safety notices“ chapter from page EN-4.
• Prepare the appliance as described in chapter „First use“ on page EN-10.

CAUTION

Risk of burns!

The heating plates will become very hot during operation.

■ Do not touch the heating plates during operation.
■ Disconnect the mains plug from the socket and allow the heating plates to cool down before removing them from the slots.

The outer surface of the appliance can become very hot during operation. Touching it with bare hands can lead to burns.

■ Do not touch the outer-surface of the appliance with your hands during operation.

■ To protect your hands, use oven mitts or similar to touch the appliance.

NOTICE

Risk of damage!

Improper handling of the appliance can lead to damage.

■ Do not use any sharp metal objects to remove the food, as these would damage the non-stick coating of the heating plates.

■ Only use heat-resistant-cut lery that is made from either wood or plastic.

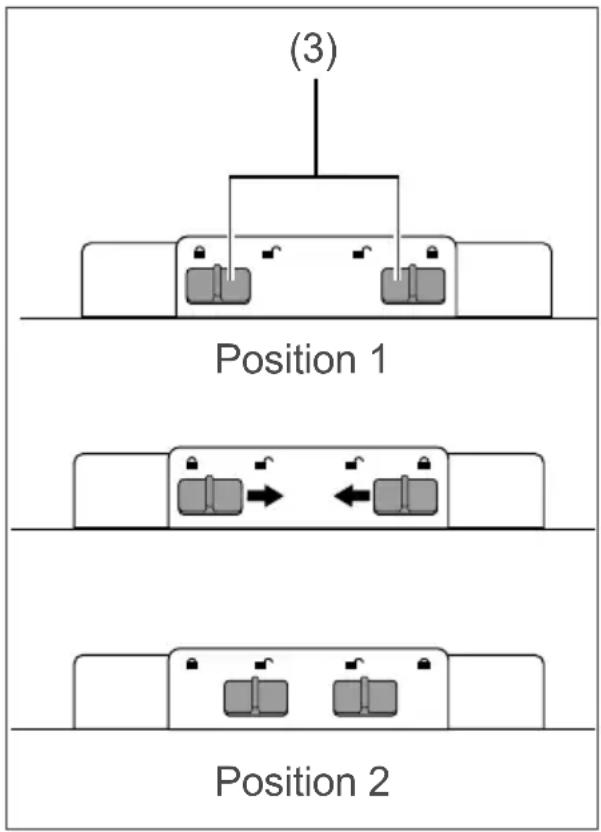

Lock

The lock (3) on the back of the appliance allows you to adjust the height of the lid (4) to 2 possible positions.

- Position 1

For baking waffles and toasting or grilling sandwiches approximately 22 mm thick.

- Position 2

For toasting or grilling sandwiches approximately 35 mm thick.

Switching on the appliance

- Insert the mains plug into the socket to switch on the appliance.

Switching off the appliance

- Pull the mains plug out of the socket to switch off the appliance.

Baking waffles

NOTICE

Risk of damage!

If you use too much batter or add too much oil to the batter, batter or oil may spill out during baking and drip into the heating elements or the interior of the appliance. This will make the cleaning process more difficult and can damage the appliance.

■ Start with a smaller amount of dough the first few times to get a feel for the right amount. 9
■ Use kitchen roll to soak up excess oil on the heating plates.

1. Insert the waffle plates (C) into their corresponding slots (see „Inserting the heating plates“ on page EN-10).

2. Set the lock (3) to position 1.

3. Close the lid (4) and insert the mains plug into the socket. The operating indicator (1) will light up red, and the appliance will start to preheat.

4. Once the heating plates have reached the desired temperature, the ready indicator (2) will light up green.

5. Coat the heating plates with butter or oil.
6. Place the waffle batter on the bottom heating plate (9) and close the lid.
7. The baking process starts and the ready indicator goes out. Baking time is approximately 6–8 minutes. You can adjust the baking time for different recipes or according to your preference.
8. When the waffles are done baking, the ready indicator will light up green again.
9. Open the lid and remove the waffle.

Use wooden picks or bamboo sticks to remove the waffles.

Toasting and grilling

For toasting or grilling sandwiches.

1. Insert the toastie plates (A) or the grill plates (B) into their corresponding slots (see „Inserting the heating plates“ on page EN-10).
2. Close the lid (4) and insert the mains plug into the socket. The operating indicator (1) will light up red, and the appliance will start to preheat.
3. Once the heating plates have reached the desired temperature, the ready indicator (2) will light up green.
4. Coat the heating plates with butter or oil.
5. Place the sandwiches on the bottom heating plate (9) and close the lid.
6. The toasting process starts and the ready indicator goes out. Toasting time is approximately 6–8 minutes. You can adjust the toasting time for different recipes or according to your preference.

7. When the sandwiches are done toasting, the ready indicator will light up green again.

8. Open the lid and remove the sandwiches.

Use wooden picks or bamboo sticks to remove the sandwiches.

i Select position 1 for the lock (3) to toast sandwiches with a regular amount of filling (approx. 22 mm thick). If you want to toast sandwiches with extra filling (approx. 35 mm thick), set the lock to position 2 by sliding both sliding latches inwards (see chapter „Lock“ on page EN-13).

Cleaning and maintenance

WARNING

Risk of electrocution and short circuit!

Improper handling of the appliance can lead to serious injuries or to death.

■ Do not put the appliance in the dishwasher under any circumstances. This would destroy it.

■ Pull the mains plug out the socket.
■ Never immerse the appliance in water or other liquids.
■ Make sure that no water other liquids get into the housing.

NOTICE

Risk of damage!

Improper cleaning of the of the appliance may dam- age the surface.

of Cleaning the appliance

Clean the appliance after every use.

1. Before cleaning, pull the mains plug out of the socket.
2. Allow the appliance to cool down completely.
3. Wipe the housing with a slightly damp cloth.
4. Allow all parts to dry completely.
5. Shut the lid (4) and close the handle lock (6) after cleaning.

■ Do not use any harsh clean

ers, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces.

Cleaning the heating plates

The heating plates can be cleaned in the dishwasher or in warm water.

Storage

All parts must be completely dry before being stored.

• Always store the appliance in a dry place.
- Keep the appliance away from direct sunlight.
- Store the appliance at a storage temperature between 5°C and 20°C (room temperature) in a place that can be securely closed and is out of the reach of children.

Troubleshooting

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the table to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

- Never attempt to repair the defective appliance yourself. You can put your own and future users’ lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solution
The appliance does not work.	The mains plug has not been inserted into a socket.	Insert the mains plug into a properly installed socket.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this user manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Model Order number
hanseatic Waffle maker HWM750BD 51769049

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact the company Hermes Fulfilment GmbH:

Phone: [phone]

Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return, disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure “Waste Prevention Programme – of the German Government with the Involvement of the Federal States”.

sumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the con-

Disposal

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling center.

Contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

$$ \mathrm{Cd} = \text { C a d m i u m } $$

$$ \mathrm{Hg} = \text { Mercury } $$

$$ \mathrm{Pb} = \text { Lead } $$

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning EU Directive no. 2019/2016

The product fiche for your device is available online.

Go to https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier of your device can be found under Technical specifications.

Technical specifications

Manufacturer hanseatic
Name of appliance Waffle maker
Model HWM750BD
Supply voltage 220–240 V~, 50/60 Hz
Power 750 W
Protection class I
Length of power cord (including plug) 75–83 cm
Weight 3.048 kg
Order no. 51769049
