Product Type	Electric Food Steamer
Brand	MPM
Model	MPA-02
Color	White (typical)
Material	Plastic body, stainless steel heating element
Dimensions (Approx.)	28 x 28 x 35 cm (11 x 11 x 13.8 in)
Weight (Approx.)	2.0 kg (4.4 lbs)
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption (Approx.)	800 W
Number of Bowls	3 stacking bowls + 1 loose food container
Bowl Capacities	Bottom: 3.1 L, Middle: 3.3 L, Top: 3.6 L
Loose Food Container Capacity	1.0 L
Water Tank Capacity	300 ml (min) - 1200 ml (max)
Timer Range	0 to 60 minutes
Safety Features	Auto shut-off (via timer), overheat protection (likely), cool-touch handles
Dishwasher Safe Parts	Bowls, lid, loose food container, drip tray
Cleaning	Base: wipe with damp cloth; bowls: dishwasher safe; descaling with vinegar/citric acid
Power Cord Length	1.0 m (3.3 ft)
Additional Features	Water level indicator, audible alert, cord storage, anti-slip feet
Intended Use	Household only

Frequently Asked Questions - MPA-02 MPM

How do I set the cooking time on the MPM MPA-02 steamer?

Turn the clock dial (10) to the desired time between 0 and 60 minutes. The indicator light (9) will turn on and a sound will signal the end of cooking.

What is the minimum and maximum water level?

The water container must have between 300 ml (minimum) and 1200 ml (maximum). Check the water level indicator (11) on the base.

Can I use the steamer without water?

No, operating without water can permanently damage the heating element. Always ensure water level is between min and max marks.

How do I clean the steamer?

Unplug and let cool. The bowls, lid, container, and drip tray are dishwasher safe. Clean the base only with a damp cloth; never immerse in water. Descale periodically with vinegar solution.

Can I cook frozen meat in the steamer?

No, the manual advises against cooking frozen meat, seafood, etc. They must be defrosted before steaming.

How do I add water during cooking?

Use the water inlet (12) on the steamer base to top up water without lifting the bowls. Be cautious of steam.

What is the proper order for stacking bowls?

Always place the bottom bowl (1) first, then middle (2), then top (3). The lid (4) goes on the top bowl. For storage, reverse order to save space.

Why does my food take longer to cook than expected?

Steam cooking occurs at lower temperatures than boiling. Also, the first 3 minutes are needed to reach optimal temperature. Place foods needing longer time in the lowest bowl where temperature is highest.

Can I use the steamer if the power cord is damaged?

No, never use a damaged appliance. Have it repaired by an authorised service centre to avoid risk of injury.

Is the steamer safe to leave unattended?

No, do not leave the appliance unattended during operation, especially near children. Always monitor and use caution with hot steam.

USER MANUAL MPA-02 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

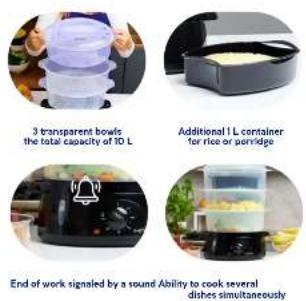

Modern kitchen steamer with three-tiered storage unit (no visible text or symbols)

MPM and S.A.

Food preparation scene with a person preparing vegetables and a steamer in the background (no visible text or symbols)

Healthy smoking adult at a general radio

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁ

Read the instructions carefully before use.
The appliance is used for the thermal treatment of food, use it as intended.
The appliance is intended for domestic use only.
Before connecting the appliance, make sure that the voltage indicated on the appliance matches the mains voltage.
The appliance should be connected to a mains socket outlet with a grounding pin!
The appliance is not designed to operate using external timers or a separate remote control.
Do not connect the plug to the power socket with wet hands.
Do not pull the plug out of the power socket by pulling the cord.
Always remove the plug from the mains socket when the appliance is not in use, before cleaning or maintenance.
Do not hang the power cable on sharp edges, do not allow it to come into contact with hot surfaces or hang from the surface of the countertop.
The appliance should be placed on a smooth, heat- and moisture-resistant and stable surface.
Do not place the appliance near flammable materials such as curtains, tablecloths etc., because this may lead to a fire.
Do not place the appliance near electric or gas cookers, burners, ovens, etc.
Position the appliance at a sufficient distance from electrical sockets to avoid exposure to accidental contact with water/steam coming from the appliance.

Care must be taken to prevent flooding/splashing of the appliance controls (switches, dials, etc.).

Do not immerse the base of the appliance, cable or charger in water or other liquids.

Do not move the running appliance.

The water level in the container must always remain in a range between the minimum and maximum markings.

Using the appliance with too little water (below the minimum level), can cause the heating elements of the steamer to overheat, with consequent damage to the appliance.

Do not leave the appliance unattended during operation.

Take special care when children are near the appliance.

Opening a running appliance will release hot steam - use caution.

The temperature of the appliance's surfaces may be higher during operation.

Use caution, the components of the appliance heat up to high temperatures and remain hot, for a long time, after the appliance is switched off.

When handling a running appliance, touch only the surfaces intended for that purpose (buttons, dials, handles, etc.) and use protective accessories, e.g. oven gloves, etc.

Use of accessories not recommended by the manufacturer may cause damage to the appliance, fire or personal injury.

Allow the appliance to cool down completely before it is dismantled.

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if

supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning/maintenance of the product.

The appliance is not a toy and should not be used as such by children.

Keep the appliance and its cord out of reach of children under 8 years of age.

In order to maintain the efficiency of the appliance and avoid the growth of microorganisms, clean the appliance regularly according to the instructions contained in the “CLEANING AND MAINTENANCE” section.

- You must not use steam washers to clean the appliance.

Never use a damaged appliance, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.

The appliance may only be repaired by qualified personnel with the appropriate qualifications and licences.

An improperly executed repair can result in serious risks for the user.

For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

WARNING! Do not allow children to play with the film. Danger of suffocation!

CAUTION! Hot surface! The symbol placed on the appliance indicates that its components may become hot during operation.

DESCRIPTION OF THE APPLIANCE

1. Bottom bowl with handles, with a capacity of 3.1 l
2. Middle bowl with handles, with a capacity of 3.3 l
3. Top bowl with handles, with a capacity of 3.6 l
4. Steamer lid
5. Container for loose products - 1.0 l
6. Drip tray with handles
7. Steam generator cover

8. Steamer base

9. Operating status indicator light

10. Clock dial - 0-60 min.
11. Water level indicator
12. Water inlet
13. Steam generator unit
14. Internal water level indicator
15. Water container (min. 300 ml, max. 1200 ml)
16. Cord winding space
17. Anti-slip feet

BEFORE FIRST USE

1. Unpack the appliance and all accessories, remove any transport locks, tapes and foils.
2. Wash all the parts of the steamer which are in direct contact with food (see section: Cleaning and Maintenance). Wipe the steamer base and water container with a damp cloth. Never immerse the steamer base (8) in water.
3. Wipe dry the appliance after it is washed.

USE OF THE STEAMER

1. Make sure the appliance is not connected to the mains.
2. Place the steamer base (8) on a flat, stable and even surface.
3. Put the steam generator cover (7) on the steam generator unit (13).
4. Pour the desired amount of water directly into the water container (15), but not less than minimum amount (300 ml) and not more than the maximum amount (1200 ml). When pouring the water, its level can also be read from the water level indicator (11).
5. Put the drip tray with handles (6) on the steam generator cover (7). Make sure that the tray (6) properly matches the steamer base (8).
6. Put the food articles that you wish to cook into bowls (1), (2) and (3). When cooking a smaller amount of food, you can only use the bottom bowl (1) or the bottom bowl (1) and the middle bowl (2). The markings can be found on the handles of the bowls.
7. Place the bowls filled with food onto the drip tray (6), making sure that they are in the correct order, and place the steamer lid (4) on the bowl that is placed on top.
8. When cooking loose products (rice, groats), insert the container (5) into the bowl (1), (2) or (3) and place the steamer lid (4) on top.
9. Connect the appliance to the mains.
10. Use the clock dial (10) to set the desired cooking time for the products - the cooking process will be signalled by the indicator light (9). You can set the steamer running time between 0

and 60 minutes. Bear in mind though, especially when setting short times, that for the first 3 minutes of operation, the steamer will need to reach the right temperature.

1. While the appliance is running, check the water level in the steamer - if it falls below the minimum level, top it up using the water inlet (12).

CAUTION! The operation of the steamer without water can lead to permanent failure of the appliance. Control the water level on a current basis.

CAUTION! Lift the bowls and the lid while the appliance is in operation using kitchen gloves only (lift the bowls and the lid using the handles). Risk of burns from hot steam!

1. Control the state of the cooked dishes.
2. The end of the cooking process will be signalled by a sound signal and the indicator light (9) going out.
3. Unplug the appliance from the mains.
4. Remove the bowls from the steamer using handles and kitchen gloves. Remove the food and leave the appliance to cool down. Pour the remaining water out of the container (15) and the drip tray (6) and wash them thoroughly.

CLEANING AND MAINTENANCE

1. Unplug the appliance from the mains and wait for it to cool down completely.
2. Wash the bowls (1), (2) and (3), the container for loose products (5), the steamer lid (4), the drip tray (6) and the steam generator cover (7) with a mild detergent, then rinse them in water and dry.
3. Pour out any water remaining in the water container (15) that has not been used by the steamer. Then wipe the inside of the water container (15) and the steam generator unit (13) dry with a cloth.

CAUTION! Never immerse the steamer base (8) in water or put it under running water. Clean it only with a damp cloth.

1. Depending on the intensity of use of the steamer and the hardness of the water used, the water container (15) and the steam generator unit (13) periodically need to be descaled. To do this, fill the water container (15) with an aqueous solution of vinegar or citric acid and switch on the appliance for about 30 minutes. All bowls, tray, steam generator cover should be in place at this time. After 30 minutes, unplug the appliance from the mains, wait for it to cool down and then pour the solution out of the water container. After the descaling process, rinse the water container several times and then dry.
2. The appliance should be stored in dry premises and should not be exposed to sunlight. Stack the bowls on top of each other in the order that is opposite to that when the steamer is running. This will allow space to be saved during storage.
3. The bowls (1), (2) and (3), the steamer lid (4), the container for loose products (5) and the drip tray (6) are dishwasher safe.

TIPS AND HINTS FOR STEAM COOKING

1. Steam cooking may require more time as the process takes place at a lower temperature than standard cooking.
2. If you want to prepare food with different cooking times in one process, always place the food requiring the longest cooking time in the lowest bowl as this is where the temperature is highest.

3. It is recommended that the products being prepared are of the same size - this will keep all portions of a given product uniformly cooked.

4. Pour only clean water into the water container. Do not add any spices or salt. Add these to the dishes only after the cooking process is finished.

5. The liquid collected in the drip tray can be used successfully when making other dishes (soups or sauces).
6. Do not cook frozen meat, seafood, etc. in the steamer. The products must be defrosted before cooking.

TECHNICAL DATA

Technical specifications are given on the product nameplate.

Length of mains cable: 1,0 m

CAUTION! MPM agd S.A. reserves the right to technical changes.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
