USER MANUAL Rinfresco 46 G90046 G3 Ferrari

Black multifaceted refrigerator with 'GFERRARI' branding on top (no other text or symbols visible)

Safety instructions.... p. 8

General information.... p. 10

Energy saving and storage.... p. 10

G90046....p. 11

Principle of operation.... p. 11

Operating the unit.... p. 11

Installation.... p. 11

Cleaning and Maintenance.... p. 11

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive).... p. 18

PORTUGUESE...... p. 12

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Before every use, unroll the power cord.

• Use original spare parts and accessories only.

• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

On first use, wash with care the inner parts and operate it for about an hour with the door open in order to ventilate the interior. Do this even when you turn on the fridge after a long period of inactivity.

Do not place the unit in warm places and avoid direct exposure to sunlight.

Place the refrigerator on a flat and stable surface. Before using appliance, remove all inner and outer packaging.

Allow adequate space to the sides, especially in the back (10cm), where there are the air vents.

Do not place anything in the ventilation holes in the back of the unit to prevent overheating and damage to the unit.

Do not place hot items inside the refrigerator; allow them to cool down. Close the door gently. Do not use as a shelf support for objects.

For cleaning, unplug the unit and follow the instructions. It is recommended to periodically clean the air inlet filter. If refrigerator emits an unusual odor or stops working, disconnect the power cord and contact a service center.

Keep at least 2 meters from microwave ovens.

The temperature range is 3^ C to 18^ C. Test condition is to reach 3^ C with a room temperature of 30^ C and refrigerator empty.

ENERGY SAVING AND FOOD STORAGE

• Don't open the door more than necessary. Do not leave the appliance door open for too long.
• Do not obstruct the air circulation inside the unit: Do not block the ventilation slots placed in the inner and outer walls of the refrigerator.
• Formation of frost or dirt could increase consumption of electrical energy. Clean the refrigerator regularly.

• In case of gasket damage, replace it with a similar one, in order to avoid a higher consumption of energy.

• Set the thermostat knob (5) depending on the environmental conditions: a warm environment will require more power (knob to 3), while in a cool room, you can lower the power consumption and thus the refrigerant unit.

• The back of the device must be cleaned from dust or cooking fumes.
• The quality of the food storage depends on the correct use of the appliance, food hygiene, adequately packed foods and constant temperature.
• Cool foods at room temperature before putting them into the refrigerator.
• Do not overfill the refrigerator to ensure good indoor ventilation and the proper storage.
• Food should not stay in contact with the rear wall of the refrigerator.
• Before placing food inside the unit, put them in jars or seal them in bags for preserving the aroma and prevent odors from mixing.
• It is recommended to take the foods out the refrigerator if you are leaving for a long time.

DESCRIPTION G90046

1. Reversible Door 2. External structure 3. Rear part with air vents

2. Gasket 5. Thermostat knob 6. Internal light

3. Internal compartment 8. Coverage ventilation fan 9. Shelf 10. Water draining tray

This refrigerator uses an innovative method of refrigeration, based on a physical phenomenon typical of metals and semiconductors, called "Peltier Effect".

The discovery of this phenomenon occurred in 1834, it is due to the French physicist Jean Peltier who applied to different pairs of wires connected to one another by passing an electric current within these metals, which results in a potential difference increasing the temperature difference; such a system is called Thermocouple.

The temperature difference depends on the direction and on the amount of current flowing in the metals and it generates heat on one hand since on the other, this heat is absorbed.

Putting the material that absorbs heat in contact with the inside of the refrigerator, you can obtain the effect of cooling the interior compartment; there is a real transfer of heat to the outside, where there is the head thermocouple. The innovative method of semiconductor refrigeration is in constant development: in a short time it may replace the compressor refrigeration, providing less power consumption and environment friendly.

OPERATING THE UNIT

• The capacity of model G90046 is 46 liters.
• On first use, clean the inside and the outside with a cloth.
• Plug the unit to the power outlet. Before using it, operate the unit for 30 minutes with the door open, setting the thermostat (5) to 3. The refrigerator will turn on and the internal lamp (6) will light on.
• Increase and/or decrease the temperature using the thermostat knob (5). 3 is the coldest temperature (3 degrees) and 1 is the highest (18 degrees).
• The minimum temperature (3 degrees) is reached in 1 hour (fridge empty at room temperature of 20^ ). If

the outside temperature is higher, the cooling will be slower.

- Wait 2 hours before placing food inside the unit.

Reversible door

The refrigerator door is designed to open from both sides. Far perform the inversion of the opening of the door by a competent person.

INSTALLATION

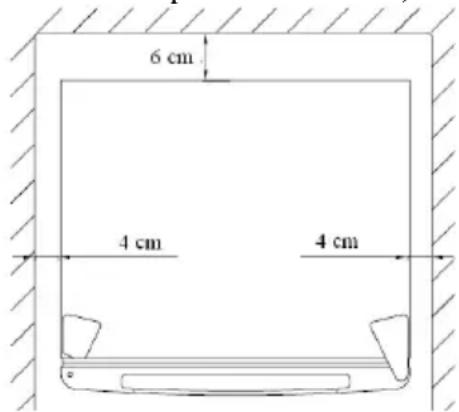

Leave some space around the unit, as shown in the figure.

CLEANING AND MAINTENANCE

- Unplug the refrigerator from the electrical outlet before performing any cleaning operation.

6 cm 4 cm 4 cm

• Never throw water on the inside.
• Regularly clean ventilation slots placed on the rear of the unit, especially if you notice any dust.
• Periodically empty the water draining tray (10).

TECHNICAL FEATURES

• Power supply: AC 100-240V\~50-60Hz. 65W
• Power consumption: 73 KWh/annum
- Adjustable temperature from 3 to 18 °C
- Semi-conductor cooling system
- Reversible door
• Capacity 46 lt - Dimensions: (42 x 42 x 50) cm

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.
