USER MANUAL OVEM-14-H-B-QO-CE-N-LK Festo

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

FESTO

Operating instructions

Translation of the original instructions

Table of contents

1 About this document.... 5

1.1 Applicable documents.... 5

2 Safety....5

2.1 Safety instructions.... 5

2.2 Intended use.... 5

2.3 UL certification.... 5

3 Further information.... 6

4 Service....6

5 Product overview.... 6

5.1 Product design.... 7

5.1.1 Product variants....7

5.1.2 Display components....9

5.2 Function.... 11

5.2.1 Switching functions.... 12

5.2.2 Valve control....12

5.2.3 Air saving function....14

5.2.4 Monitoring and diagnostics.... 15

5.2.5 Measured variables.... 16

5.2.6 Teach function....17

5.2.7 Data storage....18

5.2.8 Block parameterisation....18

5.2.9 Operating statuses and menu structure....19

6 Assembly.... 22

7 Installation.... 25

7.1 Pneumatic installation.... 25

7.2 Electrical installation.... 26

8 Commissioning.... 27

8.1 Commissioning the vacuum generator.... 27

8.2 Setting the intensity of the ejector pulse.... 28

9 Operation and use.... 28

9.1 Mechanical manual override.... 28

9.2 Electrical manual override.... 29

9.3 Activating the security code.... 29

9.4 Restoring factory settings.... 29

10 Maintenance and care.... 30

11 Fault clearance.... 31

11.1 Status messages.... 31

11.2 Diagnostic levels.... 31

11.3 Error messages and error codes.... 32

11.4 Malfunctions.... 33

12 Disassembly....34

13 Disposal....35

14 Technical data....35

14.1 Technical data for parameterisation interface.... 37

14.1.1 General information, IO-Link.... 38

14.1.2 Identification of parameters.... 38

14.1.3 Process data.... 39

14.1.4 Smart Sensor profile parameters.... 40

14.1.5 Device parameters.... 44

14.1.6 Observation parameters.... 45

14.1.7 Diagnostics.... 47

14.1.8 Device commands.... 48

1 About this document

1.1 Applicable documents

All available documents for the product → www.festo.com/sp.

Document Product Contents
Instruction manual Manifold rail OABM-P Assembly

Tab. 1 Applicable documents

2 Safety

2.1 Safety instructions

– The product may only be used in its original status without unauthorised modifications.
- Only use the product if it is in perfect technical condition.
– Use the product only inside buildings.
- Take into consideration the ambient conditions at the location of use.
- The product is intended for use in industrial environments. This product can generate high frequency malfunctions, which may make it necessary to implement interference suppression measures in residential areas.
- Observe the specifications on the product labelling.
– Comply with all applicable national and international regulations.
- Observe the local regulations for environmentally friendly disposal.

2.2 Intended use

The intended use of the product is to generate a vacuum.

2.3 UL certification

In combination with the UL inspection mark on the product, the information in this section must also be observed in order to comply with the certification conditions of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information
Product category code QUYX (USA)	QUYX7 (Canada)
File number E322346
Standards taken into account UL 61010-1	C22.2 No. 61010-1
UL symbol	c US LISTED

Further information

The unit shall be supplied by a power source which fulfils the requirements on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.

3 Further information

• Accessories → www.festo.com/catalogue.
  – Spare parts → www.festo.com/spareparts.

4 Service

Contact your regional Festo contact person if you have technical questions → www.festo.com.

5 Product overview

5.1 Product design

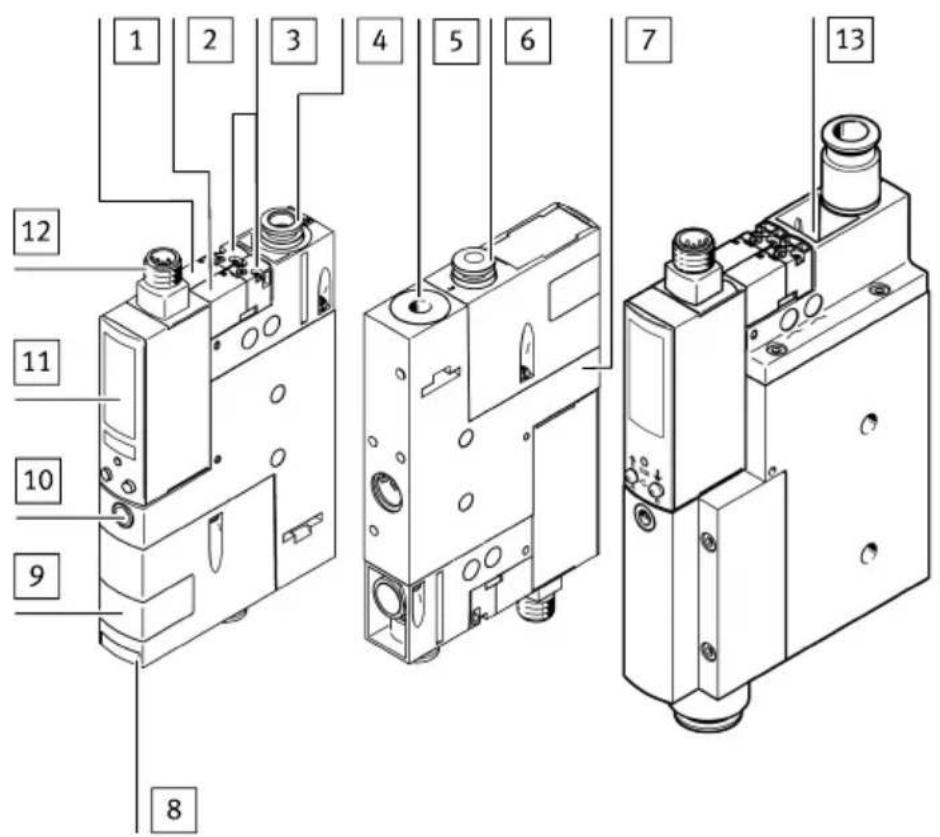

1 Solenoid valve for ejector pulse (Eject)
2 Solenoid valve for vacuum
3 Mechanical manual override of the solenoid valves
4 Supply port (1)
5 Exhaust port/silencer (3)
6 Vacuum port (6)
7 Housing with mounting holes

Fig. 1 Operating elements and connections

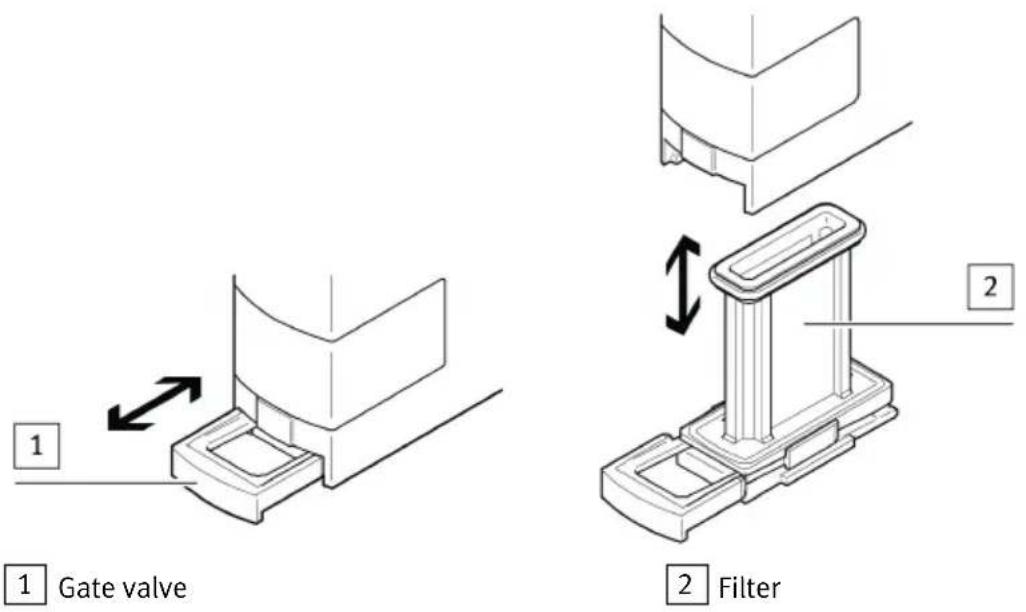

8 Gate valve for changing the filter
9 Filter housing with inspection window

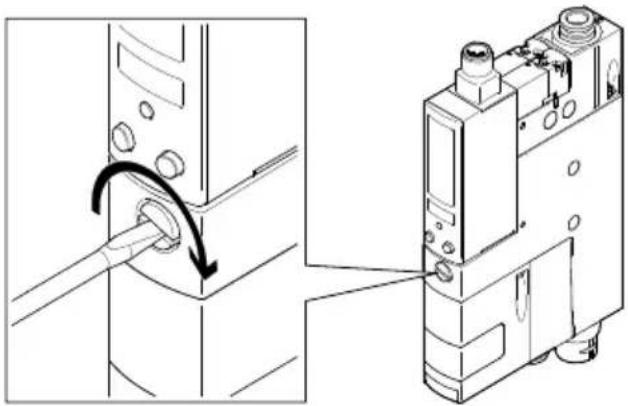

10 Flow control screw for regulation of the ejector pulse
11 Vacuum sensor with LCD display and operating buttons
12 Electrical connection
13 Size OVEM-...-C

i

Filter housing with inspection window only with OVEM-...-B

5.1.1 Product variants

Product variant Code Meaning
Vacuum generator OVEM Vacuum generator with solenoid valve ON/OFF and electric manual override
Nominal width of Laval nozzle	-05 0.45 mm
	-07 0.7 mm
	-10 0.95 mm
	-14 1.4 mm
	-20 2.0 mm
	-30 3.0 mm
	-H high negative pressureVacuum type
	-L high suction volume
	-B 20 mm wide, ISO standardHousing size/width
	-C 36 mm wide, ISO standard
Pneumatic ports	-QS all ports with QS push-in fittings
	-QO Supply/vacuum port with QS push-in fittings, exhaust port with open silencer
	-GN all ports with G female thread
	-GO Supply/vacuum port with NPT female thread, exhaust port with open silencer
	-PL prepared for common supply manifold, vacuum and exhaust port with QS push-in fittings (-B-PL/-C-PL)
	-PO prepared for common supply manifold, vacuum port with QS push-in fittings, exhaust port with open silencer (-B-PO/-C-PO)
Normal position of the vacuum generator	-OE N/O, normally open (vacuum generation) with ejector pulse
	-OPE N/O, normally open (vacuum generation) with power ejector pulse
	-CE N/C, normally closed (no vacuum generation) with ejector pulse
	-CPE N/C, normally closed (no vacuum generation) with power ejector pulse
Electrical connection	-N M12 plug (5-pin)
Vacuum sensor	-LK IO-Link
Alternative vacuum display	- bar
	-H InHg (indication on display)

Tab. 3 Overview of variants

5.1.2 Display components


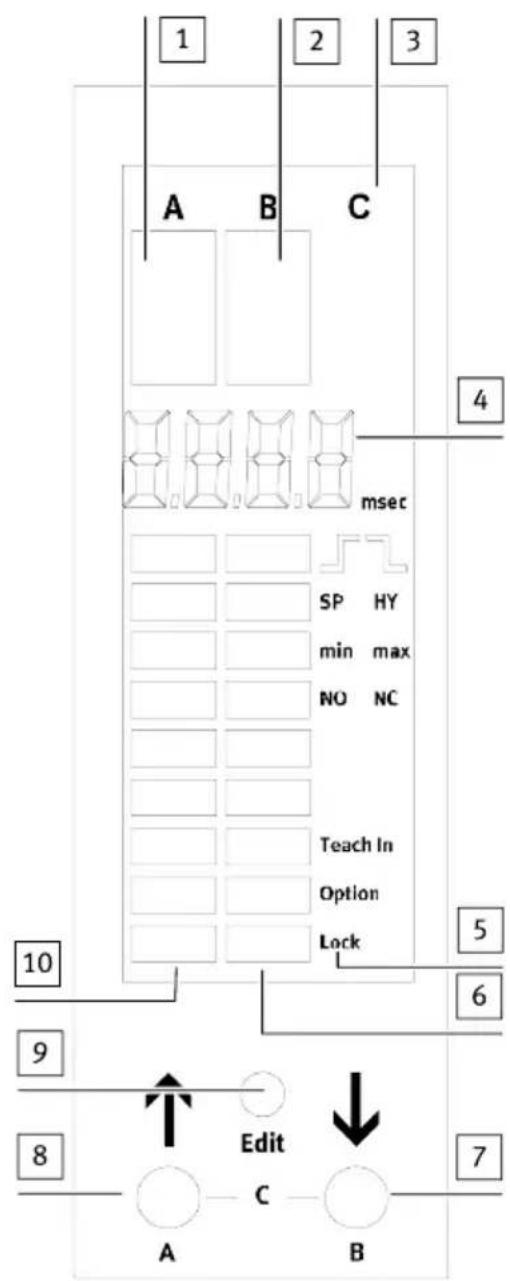

1 Status BDC1 (Out A, air save)/BDC2 (Out A)
2 Status BDC3 (Out B)/diagnostics level 1-2
3 IO-Link communication status
4 4-digit alphanumeric display
5 Toolbar for functions
6 Segment bar to the right: graphic display of the current status of the digital inputs or valve status
7 B pushbutton
8 A pushbutton
9 EDIT button
10 Segment bar to the left: graphic display of the current pressure value related to the maximum measured value of the measuring range

Fig. 2 LCD display and operating buttons

Symbol Description
	C flashes: IO-Link mode active
	Threshold value comparator selected
"[SP]" Switching point
"[SP]" + "[min]" lower switching point	Window comparator selected
"[SP]" + "[max]" upper switching point
"[HY]" Hysteresis
"[NO]/"[NC]" Switching logic N/O contact (normally open) / N/C contact (normally closed)
"[TeachIn]" Teach function (teach-in) active
"[Option]" Air saving function active
"[Lock]" Security code active
+[IOL]+" [Lock]" Device access lock activeThe device can only be configured and parameterised in IO-Link mode.
	Segments of the graphic display of the current status of the digital inputs or valve status.- Segment L10: status of the vacuum solenoid valve. Valve is switched when the segment is lit.- Segment L12: status of the ejector pulse solenoid valve. Valve is switched when the segment is lit.- Segment L16: status of the digital switching input DI1 (suction).Switching input set when segment is lit.- Segment L18: status of the digital switching input DI2 (ejection).Switching input set when segment is lit.

Tab. 4 Symbols in display

Display	Description
	Segment L17 + "[A]" lit and "[min]" flashing	Minimum pressure value display
	Segment L17 + "[A]" lit and "[max]" flashing	Maximum pressure value display
	Segment L18 + "[B]" lit and "[msec]" + "[_I~-I_]" flashing	Duration of ejector pulse
Display Description
	Segments L1, L3, L4, L5 lit and Diagnostics of evacuation and pressurisation times
	"[msec]" + "[_l-"] + "[min]" flashing Display of minimum evacuation time
	"[msec]" + "[_l-"] + "[max]" flashing Display of maximum evacuation time
	"[msec]" + "[^l-]" + "[min]" flashing Display of minimum pressurisation time
	"[msec]" + "[^l-]" + "[max]" flashing Display of maximum pressurisation time
	"[msec]" + "[_l-"] + "[SP]" + "[max]" flashing	Display/setting of evacuation time critical limit value
	"[msec]" + "[^l-]" + "[SP]" + "[max]" flashing	Display/setting of pressurisation time critical limit value
	Segments L1, L2, L5, L6 lit and display " "- "[Option]" flashing	Setting of air saving function (EDIT mode)": air saving function active": air saving function not active
	Segments L1, L2, L5, L6 lit and "[Lock]" flashing	Setting the security code (1...9999): security code is not active
	Segment L10 + "[B]" lit + display " " Additional function of the electrical manual override via operating buttonsVacuum solenoid valve switched
	Segment L12 + "[B]" lit + display " " Additional function of the electrical manual override via operating buttonsEjector pulse solenoid valve (Eject) switched

Tab. 5 Examples for additional displays of segment bars

5.2 Function

Function overview

The OVEM-LK is a vacuum generator with digital transmission of setpoint and actual value as well as diagnostics and parameterisation options. Communication takes place in IO-Link mode. SIO mode is supported.

– IO-Link parameters and functions in accordance with Smart Sensor profiles
- 2 binary data channels for programming switching functions and switching characteristics.

i

SIO mode: local configuration via the operating buttons. In the SIO mode, OVEM has the function of a 2P variant (1 switching input, 2 switching outputs).

• Control of the compressed air supply with 2 valve functions 5.2.2 Valve control
• Auto-drop function: generation of an automatic ejector pulse/power ejector pulse for accelerated vacuum purging and safe set-down 5.2.2 Valve control
  – Air saving function → 5.2.3 Air saving function
  – Electrical and mechanical manual override
• → 9.1 Mechanical manual override
• → 9.2 Electrical manual override

- Monitoring of vacuum build-up by integrated pressure sensor. If the setpoint value is reached, or if it is not reached due to malfunctions (e.g. leakage, dropped workpiece), the vacuum generator sends an electrical signal and a status message.

- Internal check valve prevents vacuum purging if vacuum generation is interrupted.

– Data storage and expanded monitoring function.

5.2.1 Switching functions

The binary outputs can be configured via the switching functions. The switching status information is thereby made available at the electrical connection as a process value or binary signal.

- IO-Link mode: 3 BDC (binary data channels), bit 0: BDC1 or BDC2, bit 1: BDC3

→ 14.1.3 Process data

– SIO mode: 2 switching outputs Out A and Out B

The switching logic of the binary outputs can be configured as normally open (N/O contact) or normally closed (N/C contact). The switching mode of the binary outputs can be specified as threshold value or window comparators.

Threshold value comparator Normally open (N/O contact) Normally closed (N/C contact)

Switching function:– 1 switching point (SP1)TEACH mode1):– 2 teach points (TP1, TP2)– SP1 = 1/2 (TP1+TP2)

1) TP1 = minimum pressure value, TP2 = maximum pressure value, independent of the teach-in sequence
Tab. 6 Threshold value comparator: setting of switching point SP1 and hysteresis HY

Window comparator Normally open (N/O contact) Normally closed (N/C contact)

Switching function:– 2 switching points (SP1, SP2)TEACH mode ^1) :– 2 teach points (TP1, TP2)

1) TP1 = minimum pressure value, TP2 = maximum pressure value, independent of the teach-in sequence
Tab. 7 Window comparator: setting of switching points SP1, SP2 and hysteresis HY

5.2.2 Valve control

The vacuum solenoid valve or the ejector pulse solenoid valve is controlled as defined by the input signal.

Product overview

• IO-Link mode: 2 BCS (binary control signals), bit 0: BCS1, bit 1: BCS2 → 14.1.3 Process data
• SIO mode: 1 switching input DI1 ( BCS1). Switching input positive switching (PNP)

Control of the ejector pulse

- Auto-drop function

The ejector pulse is generated after the “Suction” signal change (BCS1).

The pulse length can be set by the "Auto-drop time" parameter Tab. 27 Device parameters

i

Destruction of the vacuum sensor due to overpressure (-CPE/-OPE)

The exhaust duct is sealed tightly during the power ejector pulse. This can cause overpressure at the vacuum port and destroy the vacuum sensor.

- Use power ejector pulse only in open vacuum systems.

1 Control signal BCS1/switching input DI1
2 Control signal BCS2
3 Switching position of vacuum solenoid valve

Fig. 3 Valve control switching characteristics

4 Switching position of ejector pulse solenoid valve

5 Vacuum port (2)

t_12 Duration of ejector pulse

5.2.3 Air saving function

The air saving function reduces air consumption during the evacuation phase.

Product overview

1 Hysteresis
3 Threshold value "Switch on suction"
2 Threshold value "Switch off suction" = switching point SP_A1
4 Ejector pulse

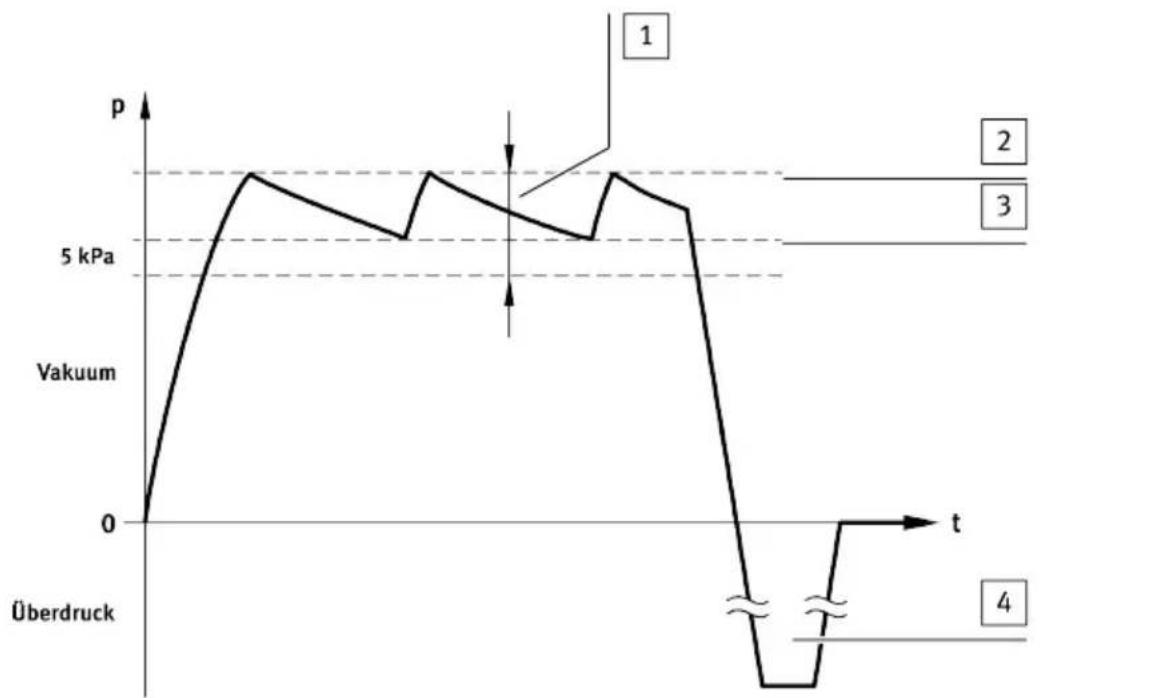

Fig. 4 Mode of operation of the air saving function

If the pressure value has reached switching point SP1 2, vacuum generation is deactivated. An internal check valve prevents reduction of the vacuum. Vacuum can still be reduced slowly due to leakage in the overall system (e.g. due to rough workpiece surfaces). To reduce power consumption, vacuum generation is not switched on until it falls below the lower threshold value 3.

The air saving function is activated in the factory.

If air-permeable workpieces are transported, the vacuum is reduced more quickly, which would cause the vacuum generation to switch unnecessarily often. In this case, it makes sense to deactivate the air saving function.

5.2.4 Monitoring and diagnostics

The vacuum generator has monitoring functions that enable early detection of malfunctions or faults during operation.

- Monitoring of process parameters (pressure value at the vacuum connection, switching points, switching outputs and switching inputs, evacuation time t_E , pressurisation time t_B and critical limit values)

- Diagnostic messages 11.2 Diagnostic levels

– Fault detection → 11 Fault clearance

The monitoring functions are activated at the factory (except monitoring of the evacuation and pressurisation times). The time monitoring can be activated through setting of the critical limit values SP1 (evacuation time) and SP2 (pressurisation time) in BDC4 → Tab. 26 Smart Sensor profile parameters

i

The switching status information of the BDC4 is not included in the process input data (Process data IN).

5.2.5 Measured variables

Pressure value (vacuum)

The pressure value (vacuum) between the vacuum port and filter is continuously measured.

i

In the OVEM-...-20/30-C, the pressure value (vacuum) between the filter and the check valve is continuously monitored.

The minimum and maximum measured pressure values are saved. If the operating voltage of the vacuum generator is switched off, these values are reset.

Cycle time

A cycle covers the time from the start of evacuation through ejection to the start of the new evacuation.

Evacuation time and pressurisation time

The evacuation time t_E is measured from the start of evacuation until reaching of the switching point SP1 by BDC1 or BDC2.

The pressurisation time t_B is measured from the start of pressurisation to the time at which the pressure value (vacuum) falls below -50 mbar.

Product overview

1 Switching point SP1 (BDC1 or BDC2)
tE Evacuation time
2 Reset point RSP1 (BDC1 or BDC2)
tB Pressurisation time

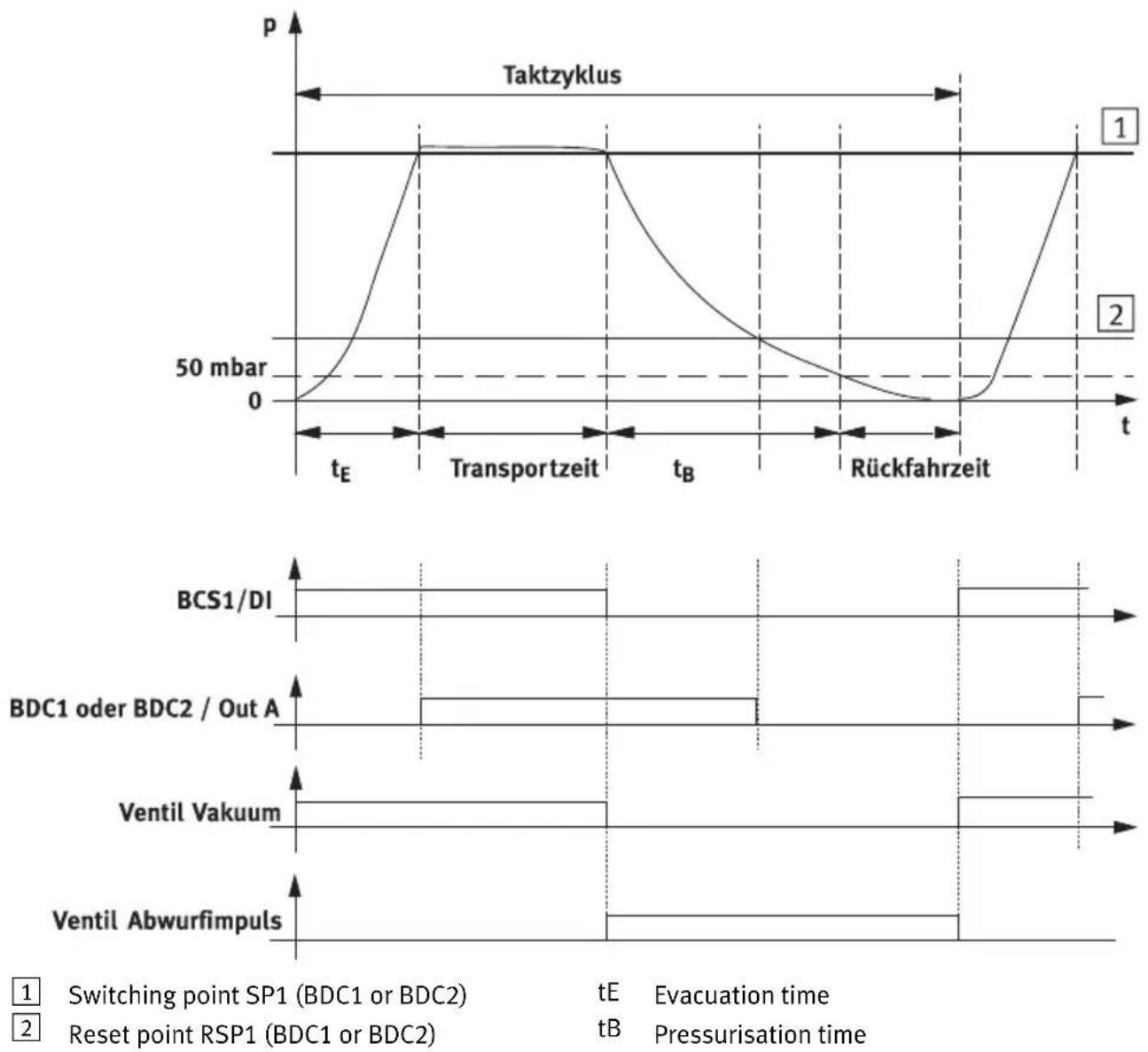

Fig. 5 Cycle time - example for Out A (air save)

5.2.6 Teach function

The Teach function enables configuration of the switching points and time monitoring during runtime.

Static teach-in

Depending on the Teach command, one switching point (SP) or 2 switching points (SP1, SP2) are determined from 2 teach points. The switching points are determined statically, that is, the measurement value remains constant during the entire teach-in procedure. The air saving function is deactivated during execution of the teach-in procedure.

- Teach commands Tab. 32 Command code

- Simplified Teach commands "BDCx Start" (Start Teach), "BDCx Stop" (Stop Teach) can be used independently of the switching function. The sequence of the teach points need not be considered.

- For all commands, the desired channel must first be selected.

Dynamic teach-in

Setpoint values are calculated within the teach-in procedure from a time period. The procedure is used to determine evacuation and air supply times. Fig.6

After the start of the teach-in, time t_E and t_B are measured at every cycle. The times are averaged over multiple cycle times. At the end of the teach-in, a function reserve of 100% is added to the averaged values.

1 Transport time

4 Cycle time 2

2 Return time

5 Cycle time N

3 Cycle time 1

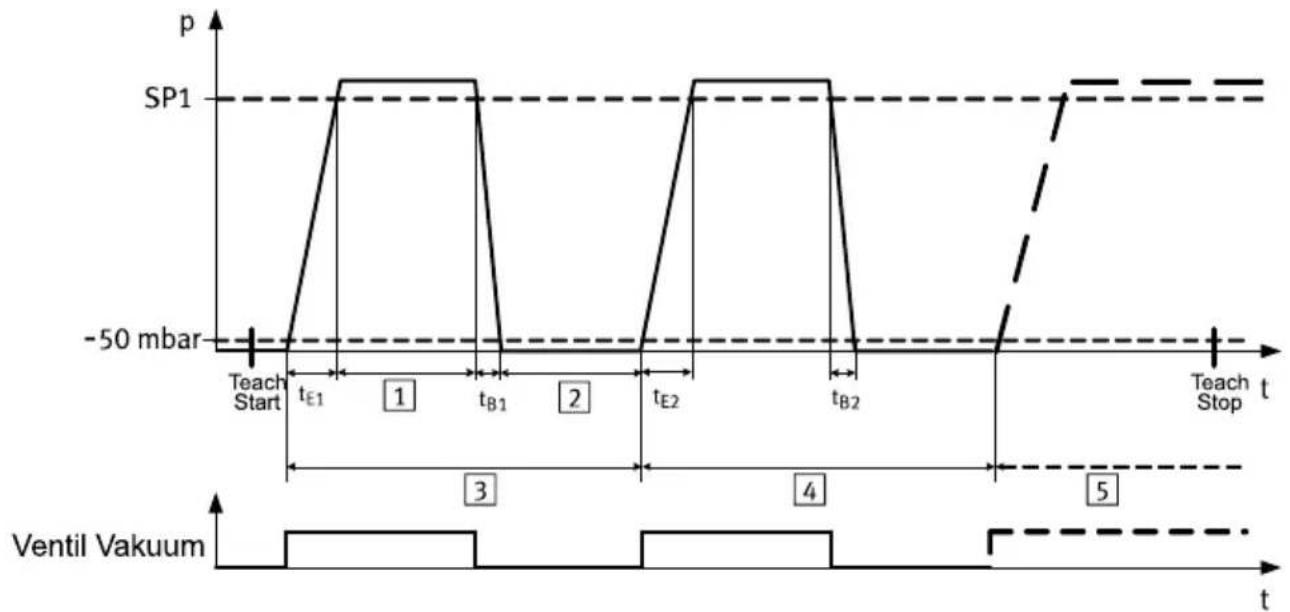

Fig. 6 Dynamic teach-in mode of operation

5.2.7 Data storage

The data storage mechanism (DS) permits consistent and updated saving of device parameters to higher levels, such as PLC programs or fieldbuses. The vacuum generator sends changes to the parameters to the IO-Link Master, which receives the parameter, saves it in a higher-order system and can make it available to the new device if the vacuum generator is replaced.

- Parameters that can be saved 14.1 Technical data for parameterisation interface

- The data storage mechanism is supported at the device, but is administered by the application (IO-Link Master).

5.2.8 Block parameterisation

Block parameterisation permits uniform access to parameters over multiple indexes or subindexes as well as transfer of entire parameter sets.

- Transfer of block parameters by start and end commands Tab. 32 Command code

- Parameter changes (e.g. through teach-in) are blocked during the transfer.

– In case of an invalid parameter set, the changed parameters are discarded and the previous parameter set is reactivated.

5.2.9 Operating statuses and menu structure

Meaning of symbols for representing the menu structure

Symbol Meaning
	Automatic return to the RUN mode when the monitoring time has expired (here 80 seconds)
	Press EDIT button for 3 seconds: manual return to RUN mode
	Symbol on the display flashes (here display segment for switching output Out A)
	Input blocked/not blocked
	Press individual pushbutton (here A pushbutton)
	Press A or B pushbutton, set value
	Press buttons simultaneously (here: B pushbutton and EDIT button)
	Press the EDIT button
	Branching
	Error display
	Reset values
	Cycle
	Vacuum solenoid valve switched
	Ejector pulse solenoid valve switched
	Teach point is accepted
	Special menu (SPEC) is active (setting air saving function, security code, max. evacuation and max. air supply time)

Tab. 8 Meaning of symbols for representing the menu structure

RUN mode

– Basic status after the operating voltage is applied
- Display of the current measured value (relative pressure)
– Display of the signal statuses of the solenoid valves
- Display of the selected inputs and outputs

SHOW mode

• Display of the current settings
  – Display and delete minimum and maximum pressure values
• Display and delete minimum and maximum evacuation and pressurisation time
• Display of diagnostic messages


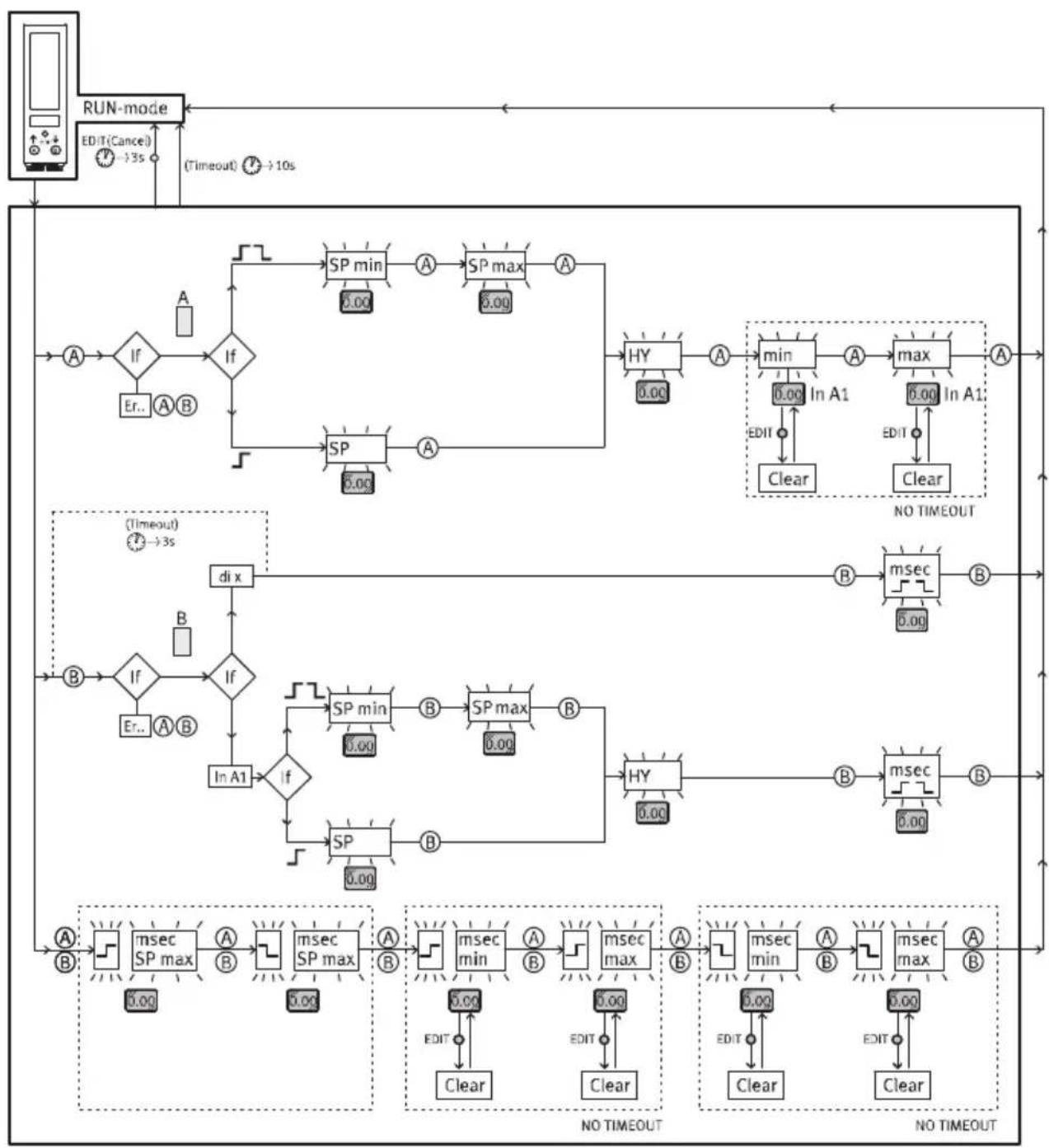

Fig. 7 Menu structure for SHOW mode in SIO mode

EDIT mode

• Setting of parameters
• Operation of the electrical manual override (FORC)


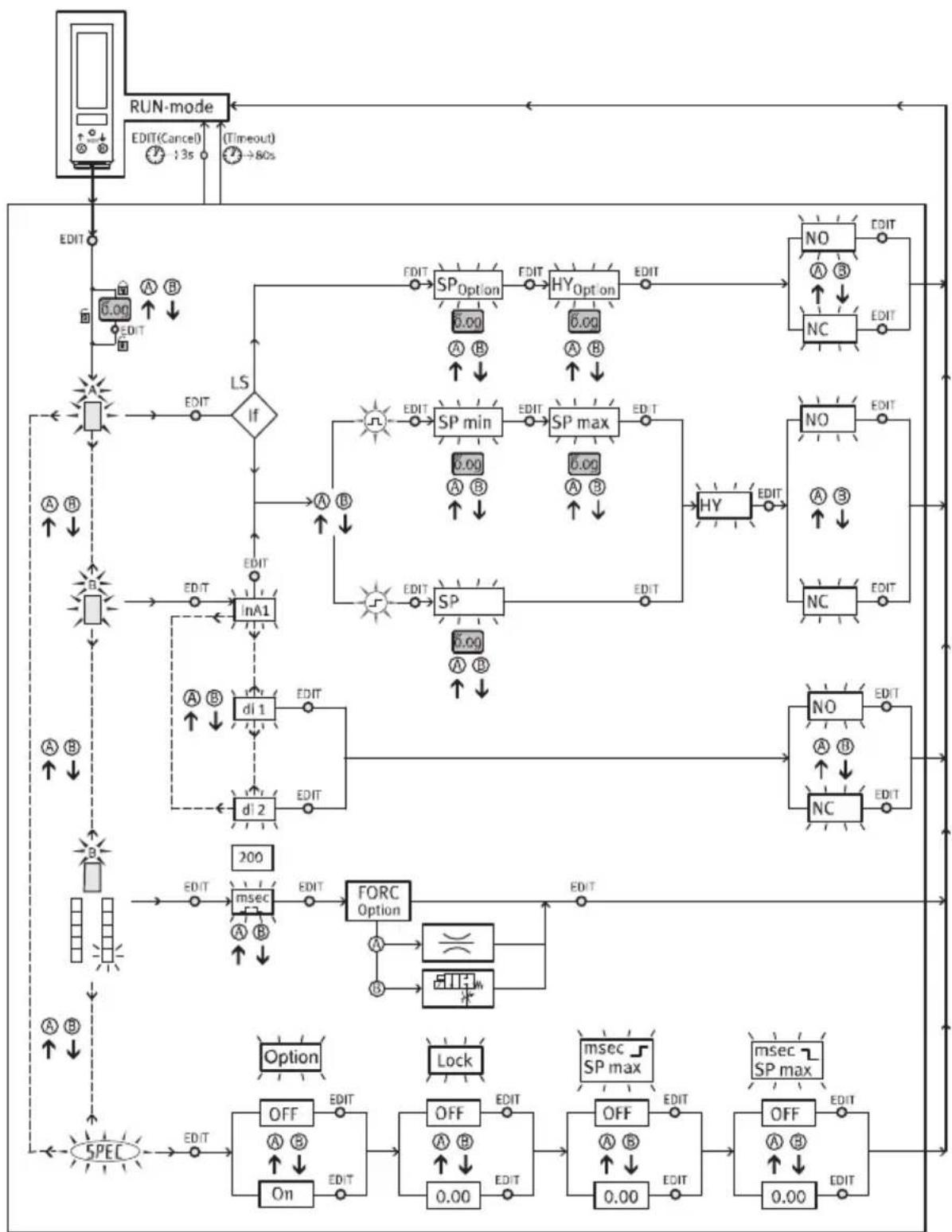

Fig. 8 Menu structure for EDIT mode in SIO mode

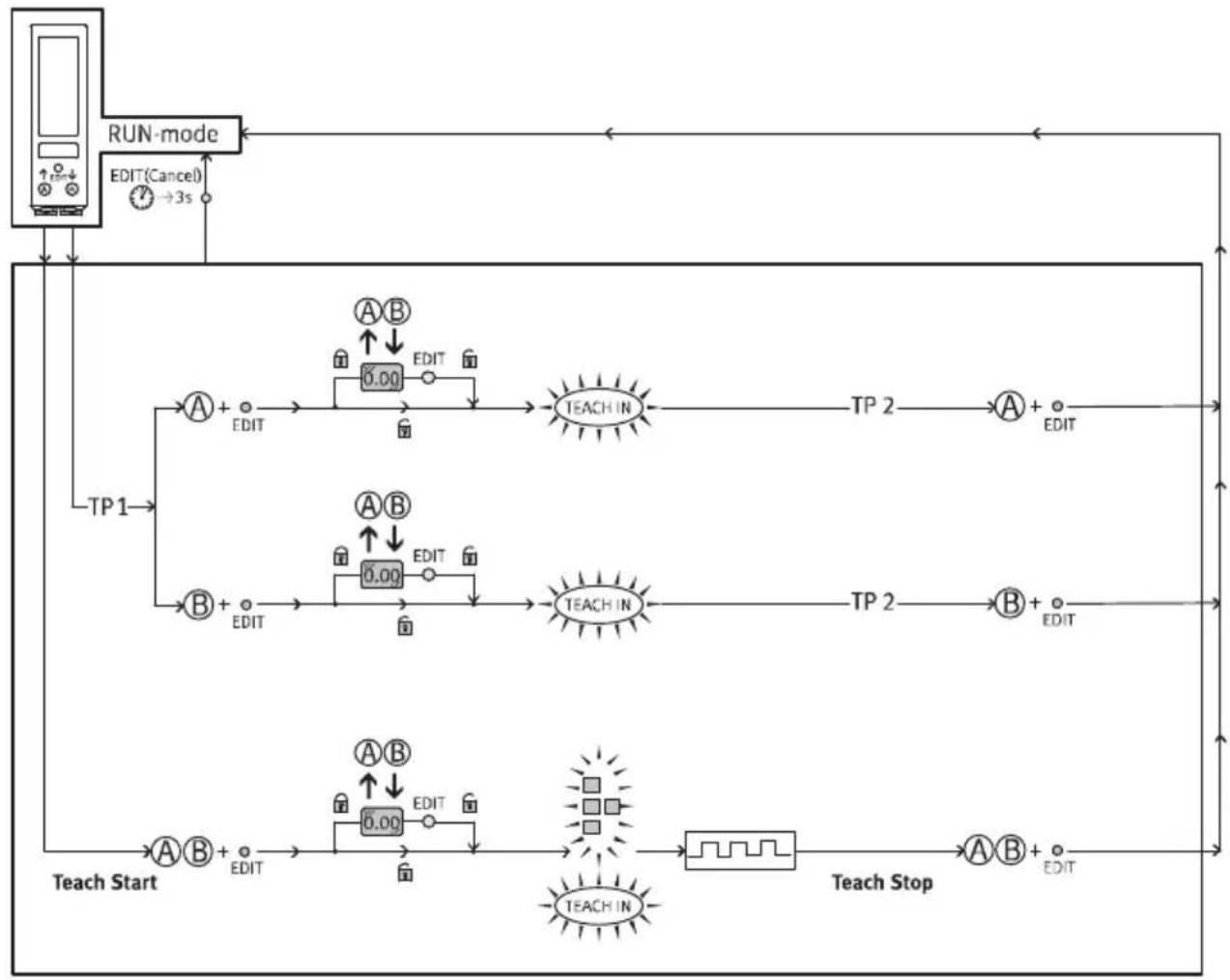

TEACH mode

- Acceptance of the current measured value to determine switching points

Fig. 9 Menu structure for TEACH-IN mode in SIO mode

6 Assembly

i

An unfavourable mounting position may impair the function of the product.

• Avoid condensate accumulation in the device through a suitable mounting position.
• Exhaust air must be able to flow out unhindered.

Assembly

Direct mounting

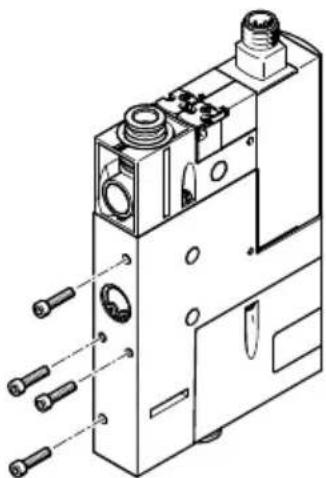

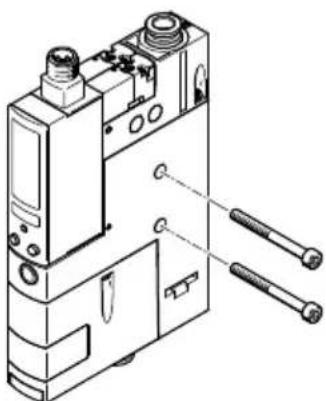

Technical line drawing of a mechanical device with two cylindrical components and mounting ports (no text or symbols)

Fig. 10 Direct mounting on the side

Variant Screws Tightening torque
OVEM-...-05/-07/-10-...-B M5 max. 2.5 Nm
OVEM-...-14/-20-...-B M4 max. 2.5 Nm
OVEM-...-20/-30-...-C M6 max. 2.5 Nm

Tab. 9 Size and tightening torque of the screws for direct mounting on the side

Technical line drawing of a mechanical component with multiple ports and mounting holes (no text or symbols)

Fig. 11 Direct mounting on the back

Variant Screw Tightening torque
OVEM-...-05/-07/-10/-14/-20-...-B M3 max. 0.8 Nm
OVEM-...-20/-30-...-C M4 max. 0.8 Nm

Tab. 10 Size and tightening torque of the screws with direct mounting on the back

H-rail mounting

i

Type of mounting permissible only for sizes OVEM-...-05/-07/-10/-14/-20-...-B

H-rail mounting accessories → www.festo.com/catalogue

1 H-rail mounting

2 Screw

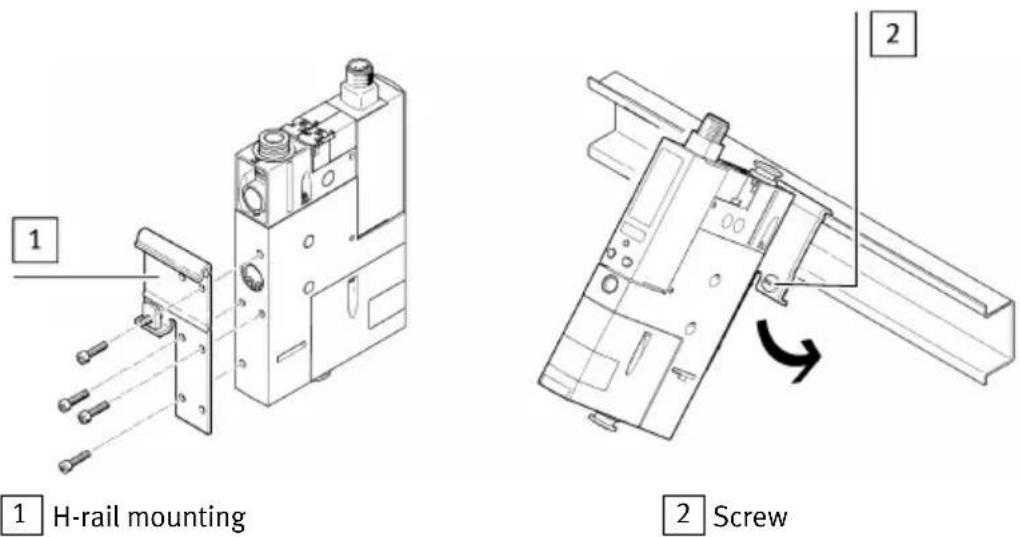

Fig. 12 H-rail mounting

1. Attach mounting plate on H-rail mounting 1.
2. Attach OVEM with H-rail mounting to the H-rail and press in the direction of the arrow.
3. Secure to the H-rail with screw 2.

Mounting with mounting bracket

i

Type of mounting permissible only for sizes OVEM-...-05/-07/-10/-14/-20-...-B

Accessories for mounting bracket → www.festo.com/catalogue

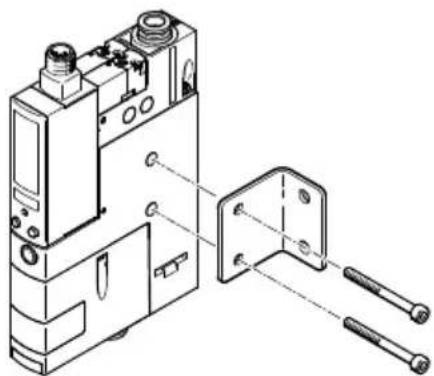

Technical line drawing of a mechanical assembly with mounting bracket and two screws (no text or symbols)

Fig. 13 Mounting with mounting bracket

Variant Screws Tightening torque
OVEM-...-05/-07/-10-...-B M5 max. 2.5 Nm
OVEM-...-14/-20-...-B M4 max. 2.5 Nm

Tab. 11 Size and tightening torque of the screws for mounting with mounting bracket

Mounting on common supply manifold

OVEM-...-B: Mounting is possible on a common supply manifold with a maximum of 8 places. OVEM-...-C: Mounting is possible on a common supply manifold with a maximum of 4 places. Assembly instructions for common supply manifold OABM-P → www.festo.com/sp

7 Installation

7.1 Pneumatic installation

Variant Circuit symbol Variant Circuit symbol
OVEM-...-QO-CEOVEM-...-GO-CE		OVEM-...-QO-OEOVEM-...-GO-OE
OVEM -...- QO-CPEOVEM -...- GO-CPE		OVEM -...- QO-OPEOVEM -...- GO-OPE
OVEM-...-QS-CEOVEM-...-GN-CE		OVEM-...-QS-OEOVEM-...-GN-OE
OVEM -...- QS-CPEOVEM -...- GN-CPE		OVEM -...- QS-OPEOVEM -...- GN-OPE

Tab. 12 Circuit symbols, pneumatic

OVEM-... -05-...

GN -07-...-GN

-10-...-GN -14

...-GN -20-...-GN

-30-...-GN

-05-...-GO -07

...-GO -10-...-GO

-14-...-GO

-20-...-GO -30-...-GO

Tube length [m]

<0.5

<2

<0.5

<2

<0.5

<2

<0.5

<2

<0.5

<2

<0.5

<2

OVEM-... -05-...

GN -07-...-GN

-10-...-GN -14

...-GN -20-...-

GN -30-...-GN

-05-...-GO -07

...-GO -10-...-

GO -14-...-GO

20-...-GO -30-...-

GO

Min. internal diameter of tubing [mm]

- Supply port 1 2

1.5 2

2 3 3 4

4 5 6 7

- Vacuum port 2

3 3 4 4

5 5.5 6

6 7 9 1

1

- Exhaust port 2

3 3 4 4

5 5.5 6

6 7 9 1

1

Tab. 13 Minimum inside diameter of the connection tubes for connections with G-female thread

Notes on the pneumatic connection

– Maximum permissible tube length 2 m
- OVEM-...-GN/-GO: minimum inside diameter of the connection tubes

→ Tab. 13 Minimum inside diameter of the connection tubes for connections with G-female thread.

• Do not seal exhaust port.
• OVEM-...-07/-10/-14/-20/-30: If necessary, lengthen silencers with a silencer extension

→ www.festo.com/catalogue.

- Recommendation: Use type PUN tubes www.festo.com/catalogue.

7.2 Electrical installation

WARNING!

Risk of injury due to electric shock.

• For the electrical power supply, use only PELV circuits in accordance with IEC 60204-1/EN 60204-1 (Protective Extra-Low Voltage, PELV).
• Observe the general requirements of IEC 60204-1/EN60204-1 for PELV circuits.
• Only use voltage sources that ensure a reliable electric separation from the mains network in accordance with IEC 60204-1/EN 60204-1.

- Connect the vacuum generator to the electrical connection.

• 5-pin plug, M12x1
• Maximum tightening torque of M12 plug: 0.5 Nm
  – Maximum permissible cable length: 20 m

Plug Pin Wire colour	1)	Function
2354	1 brown (BN) L+ +24 V
	2 white (WH) DO2 digital output Out B (PNP)
	3 blue (BU) L- 0 V
	4 black (BK) C/Q IO-Link co mmunication or digital output Out A (PNP) ^2)

Commissioning

Plug Pin Wire colour		1)	Function
	5 grey (GY) DI1 Not assigned or digital input (PNP)			3)

1) When using the connecting cable as per Accessories

2) After a fallback or in the SIO-mode this pin has the configuration of a digital switching output

3) This pin is not assigned in the IO-Link mode. After a fallback or in the SIO-mode, this pin has the configuration of a digital input

Tab. 14 Pin allocation

8 Commissioning

i

Commissioning by qualified personnel.

8.1 Commissioning the vacuum generator

At initial commissioning, the vacuum generator is placed in operation with the factory settings.

Requirement

Vacuum generator is fully mounted and connected 6 Assembly.

Checking operating conditions

- Check operating conditions and critical limits 14 Technical data.

Commissioning the vacuum generator OVEM-...-OE/-OPE

1. Apply operating pressure to supply port (1).
   Negative pressure is generated at the vacuum port (2).
2. Switch on the operating voltage.
   The current pressure is displayed and the vacuum generator is ready for operation.

Commissioning the vacuum generator OVEM-...-CE/-CPE

1. Apply operating pressure to supply port (1).
2. Switch on the operating voltage.
3. Activate suction: apply input signal to pin 5.

Negative pressure is generated at the vacuum port (2). The current pressure is displayed and the vacuum generator is ready for operation.

Changing the operating pressure changes the power of the negative pressure at the vacuum port. This allows the vacuum to be adjusted.

Functions and parameters can be specified:

• manually at the device EDIT mode
  -by teach-in TEACH mode
  -by teach-in TEACH mode

8.2 Setting the intensity of the ejector pulse

Technical diagram showing a mechanical component with a close-up view of its connection to a door panel (no text or symbols present)

Fig. 14 Set the intensity of the ejector pulse

Requirement

– Vacuum generator is in operation

Procedure

1. Completely screw in flow control screw for regulation of the ejector pulse.

2. Switch on vacuum generation.

Negative pressure is generated at the vacuum port (2).

1. Switch off vacuum generation.

2. Switch on solenoid valve for ejector pulse.

An ejector pulse is not generated.

1. Switch off solenoid valve for ejector pulse.

2. Slightly unscrew the flow control screw to regulate the ejector pulse.

3. Switch on solenoid valve for ejector pulse.

An ejector pulse is generated.

1. Repeat steps 1 to 7 until the required intensity of the ejector pulse is set.

i

The use of large suction cups with connectors can create a device-independent vacuum due to the interference resistance when the suction cup with connector is detached from the workpiece.

Set up the ejector pulse accordingly.

9 Operation and use

Communication takes place in IO-Link mode. SIO mode is supported.

- Parameter description IO-Link mode 14.1 Technical data for parameterisation interface

- Meaning of the displays 5.1.2 Display components

- Menu structure in SIO mode TEACH mode

9.1 Mechanical manual override

Both solenoid valves can be manually switched with the manual override.

Operation and use

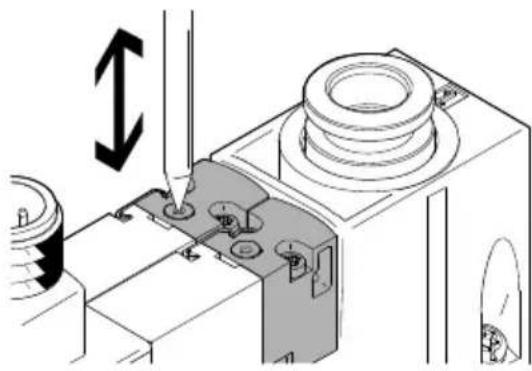

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 15

1. Press in the plunger of the manual override with a blunt pin.

The solenoid valve switches.

1. Remove pin.

The plunger of the manual override is automatically reset. The solenoid valve returns to the initial position.

9.2 Electrical manual override

The electrical manual override is actuated using the operating buttons. (Submenu FORC → Fig.8)

9.3 Activating the security code

A security code can be set up and activated to prevent changes to parameter settings and configurations from being made locally on the device by unauthorised persons.

• The security code protects against entries made locally through the operating buttons on the device. IO-Link parameterisation is not affected.
• Factory setting: "OFF"
• The security code is reset when factory settings are restored.
• Input and activation in Edit mode EDIT mode

9.4 Restoring factory settings

Restoring the factory settings resets the parameters, configuration and security code to the delivery status. Tab. 15 Factory settings

– The current settings are lost.
- The parameters and configurations that can be restored are marked in the parameter description with “FR” (factory reset) 14.1 Technical data for parameterisation interface

Reset by IO-Link command

Execute system command "Restore factory settings" → Tab. 32 Command code

Resetting using operating buttons on the device

1. Switch off operating voltage.
2. Press and hold the A pushbutton + B pushbutton + EDIT button simultaneously.
3. Switch on the operating voltage.
4. Release A pushbutton + B pushbutton + EDIT button.

LCD display shows [CLEAR]

The factory settings are restored.

Parameter OVEM-...-H OVEM-...-L
Switching mode of the electrical output Threshold value comparator
Switching logic of the electrical output N/O (normally open)
Air saving function Active
Security code OFF
	SP1 [bar] -0.7 -0.4BDC1 - Out A (air save)
	Hysteresis [bar] 0.25
BDC2 - Out A	SP1 [bar] -0.7 -0.4
	SP2 [bar] -0.97 -0.67
	Hysteresis [bar] 0.25 0.1
BDC3 - Out B	SP1 [bar] -0.5 -0.2
	SP2 [bar] -0.71 -0.41
	Hysteresis [bar] 0.2 0.1
Duration of ejector pulse	[ms] 200

Tab. 15 Factory settings

10 Maintenance and care

Clean device

1. Switch off energy sources:

- Operating voltage

- Compressed air

1. Clean device with non-abrasive cleaning agents.
2. Check air filter through the display window for dirt.

Replace air filter

i

The air filter cannot be replaced in the vacuum generator OVEM-...-20/-30-C

Fault clearance

Fig. 16 Remove/install air filter

1. Exhaust the vacuum generator.

2. Carefully pull gate valve 1 out to the first detent. The gate valve must stay in this position on the filter.

3. Pull filter 2 out. Clean with white spirit.

4. Push filter into the housing.

5. Push in gate valve.

The gate valve pushes the filter into the vacuum generator.

11 Fault clearance

The diagnostic messages are shown as event code in the IO-Link mode and as error code in the display. Diagnostic messages can also be signalled via switching output Out B. A wide range of diagnostic and monitoring functions is available in the IO-Link mode.

11.1 Status messages

Status Type Definition
0 Device is OK
1 Notification	Check required
2 Warning Outside the specification
3 Error Malfunction

Tab. 16 Status messages for IO-Link diagnostics

11.2 Diagnostic levels

There are 4 diagnostic levels. The backlight of the display shows red for messages of diagnostic levels 1 to 3.

The vacuum generator has an additional diagnostic option in the form of a diagnostic message channel. This can be set with the configuration of pin 2 → EDIT mode

Configuration options for pin 2:

– definition as switching output (In A1)
– diagnostic message channel 1 (di1)
– diagnostic message channel 2 (di2)

The diagnostic message channel can be configured as a normally open (N/O contact) or a normally closed (N/C contact).

Diagnostic level	Diagnostic message channel Description
0 no message Device is OK.
1 logical channel dl 1 is active no restriction in function yet but operating parameters are deteriorating
2 logical channel dl 1 or dl 2 is active	Function still ensured, but with restrictions (e.g. higher power consumption).Emergency operation, maintenance urgently required.
3 logical channel dl 1 or dl 2 is active	Function no longer ensured.All controllable outputs of the device are inactive.

Tab. 17 Diagnostic levels for switching output Out B and display

11.3 Error messages and error codes

Display Event	codeIO-Link	D^1)	S^2)	Description Remedy
Er1 0x5000 3	3 Hardware error in device – Replace device
Er17 0x5100 3	3 Supply voltage is too high or too low (error)				– Check supply voltage
Er20 0x4210 2	2 Permissible device temperature exceeded				– Keep device away from sources of heat
Er21 0x1815 2	2 Short-circuit Out A				– Check output for overload– Check installation
Er22 0x1816 2	2 Short-circuit Out B
Er32 0x1820 2	2 Vacuum solenoid valve			does not switch or does not switch correctly	– Press mechanical manual override several times– Check supply voltage– Replace device
Er33 0x1821 2	2 Ejector pulse solenoid			valve does not switch or does not switch correctly
Er34 0x1822 1	2 Evacuation	time exceeded		in 3 of 5 cycles (warning)	– Check for leakage– Check parameterisa-tion of SP1 of BDC4
Er35 0x1823 2	2 Evacuation	time exceeded		by a factor of two in 3 of 5 cycles
Er36 0x1824 1	2 Air supply time	time exceeded in		3 of 5 cycles (warning)	– Check for leakage– Extend air supply time– Check flow control set-ting– Check parameterisa-tion of SP2 of BDC4
Er37 0x1825 2	2 Air supply time	time exceeded		by a factor of two in 3 of 5 cycles
Er38 0x1826 2	2 Switching frequency of air			saving function >1 Hz (warning)	– Check for leakage– Check parameterisa-tion of BDC1
[Option] 0x182	A 0 2 Air saving function dea			activated because outside the critical limit value	– Check for leakage– Check parameterisa-tion of BDC1
Er39 0x1827 2	2 SP1 for Out A not reached			after 10 s	– Check for leakage– Check parameterisa-tion of BDC1 / BDC2
Er40 0x5110 2	2 Supply voltage too high			(warning)	– Check supply voltage
Er41 0x5111 2	2 Supply voltage too low			(warning)

1) Diagnostic levels display
2) Status of IO-Link

Tab. 18 Error messages, error codes, diagnostic levels and error description

11.4 Malfunctions

Malfunction Possible cause	Remedy
Workpiece is not released by the suction gripper	device-independent vacuum between workpiece and suction gripper, ejector pulse not activated or sufficiently dimensioned	- Activate ejector pulse when lifting the suction gripper. - Increase duration and intensity of ejector pulse.
	Tubing dimensioned incorrectly - Replace tubing (tubing dimensions → 7.1 Pneumatic installation).
Workpiece is not released by the suction gripper	Flow control screw closed – Open flow control screw.
Switching output does not react in accordance with the settings	Short circuit or overload at the output	– Eliminate short circuit/overload.
	Device faulty – Replace device.
	Incorrect switching point taught (e.g. at 0 bar)	Repeat teach procedure
No display	Operating voltage faulty – Apply permissible operating voltage → 7.2 Electrical installation.
	Electrical connections swapped – Connect device correctly → 7.1 Pneumatic installation.
	No control signal Check controller
	Device faulty – Replace device.
Incomplete display Display fault – Replace device.
Pressure indicator incorrect	Pneumatic connections swapped – Connect device correctly → 7.1 Pneumatic installation.
Settings cannot be edited, "[Lock]" is displayed	Security code is active – Enter the security code → 9.3 Activating the security code.
"[min]" + "[max]" flashing simultaneously	Diagnostic level 1 active → 11.2 Diagnostic levels
Display + "[min]" + "[max]" flashing simultaneously	Diagnostic level 2 active → 11.2 Diagnostic levels
Display flashes and error code appears	Diagnostic level 3 active → 11.2 Diagnostic levels
"[Option]" flashing Teach-in faulty – Set hysteresis larger, repeat teach-in

Tab. 19 Malfunctions

12 Disassembly

1. Switch off energy sources:

2. Operating voltage

3. Compressed air

4. Disconnect pneumatic and electrical connections from the device.

5. Loosen mountings and remove device.

13 Disposal

ENVIRONMENT!

Send the packaging and product for environmentally sound recycling in accordance with the current regulations → www.festo.com/sp.

14 Technical data

OVEM-... -05 -07/-10 -14/-20-B/-			BN	-20/-30-C
General
Approvals	c UL us - listed (OL)
	RCM compliance mark
	KC mark
Characteristic values
Operating pressure [bar] 2 ... 6 OVEM-...-QS/-GN/-PL
Operating pressure [bar] 2 ... 8 OVEM-...-QO/-GO/-PO
Pressure measuring range [bar] -1 ... 0
Overload pressure at [bar] ≤ 5 vacuum port
Ready-state delay [ms] ≤ 500
Dead time (evacuation [ms] ≤ 35 and ejection)	≤ 60
Electronics
Nominal operating voltage [V DC] 24 ± 15 %
Max. output current [mA] 100 (per switching output)
Voltage drop (for all [V] ≤ 1.5 switching outputs)
No-load supply current [mA] < 70
Coil characteristics 24 [W] 0.3 V DC – low current phase
Coil characteristics 24 [W] 2.55 V DC – high current phase
Time until current [ms] 80 reduction
Capacitive load maxim- [mF] ≤ 100 um DC
Overload protection Present
Inductive protective cir-uit	adapted to MZ, MY, ME coils
Insulation voltage [V] 50
Surge resistance [kV] 0.8
Max. current consumption
Accuracy [% FS] ± 3
[% FS] ± 0.1
Short circuit current rating	Yes
Reverse polarity pro-tection	For all electrical connections
Display/operation
Setting range threshold [bar]–0.999 ... 0 values	999 ... 0
Hysteresis setting [bar]–0.9 ... 0 range	9999 40 ... 9999
Setting range ejector [ms] 20 ... 9999 40 ... 9999 pulse duration	9999 40 ... 9999
Environment
Ambient temperature [°C] 0 ... 50
Temperature of medi- [°C] 0 ... 50 um
Contamination level 3
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on the operating medium	Lubricated operation not possible
Shock resistance (in accordance with IEC 60068/EN 60068)	30 g acceleration with 11 ms duration (half-sine)
Vibration resistance (in accordance with EN 60068-2)	10...60 Hz: 0.35 mm/60...150 Hz: 5g
Protection class III
Degree of protection IP 65	1)
Relative humidity [%] 5 ... 85
Interference emission as per EN 61000-6-4
Immunity to interference	as per EN 61000-6-2
Maximum permissible [m] 20 signal line length
Materials
Information on materials – seals	NBR HNBR
Information on materials – housing	Die-cast aluminium, PA reinforced Wrought alu-minium alloy
Information on materials – plug housing	Nickel-plated brass

1) Degree of protection has not been evaluated by UL
Tab. 20 Technical data

14.1 Technical data for parameterisation interface

i

Associated device description file (IODD) → www.festo.com/sp. For detailed information on the IO-Link specification and for the Smart Sensor profile → www.io-link.com

14.1.1 General information, IO-Link

Characteristic Specification
Protocol version Device V1.1
Profile Smart Sensor profile
Function class → Tab. 26 Smart Sensor profile parameters
Communication mode COM2 (38.4 kbaud)
Port class A
Process data width IN 2 bytes → Process data IN
Process data content IN 2 bit BDC (pressure monitoring), 14 bit PDV (pressure measurement value)
Process data width OUT 1 bytes → Tab. 25 Process data OUT
Process data content OUT 1 bit (vacuum ON/OFF), 1 bit (ejector pulse ON/OFF)
Block parameterisation Supported
Data memory required 0.5 KB
Minimum cycle time 3.5 ms
SIO mode support Yes

Tab. 21 General IO-Link specification

14.1.2 Identification of parameters Identification of direct parameters

Index Name Value	Description		Info	1)
0x07	VendorID1 (MSB)	0x01	Manufacturer identification	R
0x08	VendorID2 (LSB)	0x4D
0x09	DeviceID1 (MSB)	0x00	Device identification
0x0A	DeviceID2 0x00
0x0B	DeviceID3 (LSB)	3C	Device variant OVEM-...-H-...-OE
		3D	Device variant OVEM-...-L-...-OE
		3E Device var	variant OVEM-...-H-...-CE
		3F	Device variant OVEM-...-L-...-OE
		104	Device variant OVEM-...-H-...-OPE
		105	Device variant OVEM-...-L-...-OPE
		106	Device variant OVEM-...-H-...-CPE

Technical data

Index Name Value	Description Info			1)
0x0B DeviceID3 (LSB)	107 Device variant	OVEM-...-L-...-CPE R

1) R = read
Tab. 22 Identification of direct parameters

Identification of device parameters

Index Sub- ex	Name Value Description Info		1)
0x0010 0	Vendor Name Festo AG Co. KG Vendor name		R
0x0011 0	Vendor text http://www.festo.com includes additional information
0x0012 0	Product name e.g. OVE M-05-H-B-Q0-CE-N-LK	complete order code of the product
0x0013 0	Product ID e.g. OVE M-H-CE Device variant/order reference
0x0014 0	Product Text Vacuum generator Device characteristic
0x0015 0	Serial number XXXXXXXXXX Product key
0x0016 0	Hardware Revision e.g.8037693REV00101	Part number and revision status of the product
0x0017 0	Firmware revision e.g. V00.23.03.23	Firmware version of the device
0x0018 0	Application SpecificTag ***	Application-specific marking, can serve as functional identification.	R/W FR DS

1) R = read, R/W = read and write, FR = factory reset, DS = data storage possible Tab. 23 Identification of device parameters

14.1.3 Process data

Process data IN

Bit 15 (MSB)	2 (LSB) 1	0
Process data ^1)	Process Data Variable (PDV)	BDC3	BDC1/BDC2 ^2)
Data content ^1)	Pressure value ^3)	Out B	Out A (air save) / Out A

1) R = read

2) Allocation of the BDC is dependent on the parameter "Air saving function": Air-save ON = BDC1, Air-save OFF = BDC2

3) Current pressure value) standardised and scaled to 14 bit. Formula: p2 = pressure value*(1000 mbar/16383)

Tab. 24 Process data IN

Process data OUT

Bit 7 2 1 0
Process data ^1)	Reserved BCS2	^2)	BCS1 ^3)
Data content ^1)	Reserved Drop Vacuum

1) W = write, no data storage

2) Values: BCS2 = 0: ejector pulse solenoid valve not switched, BCS2 = 1: ejector pulse solenoid valve switched

3) Values: BCS1 = 0: vacuum solenoid valve not switched, BCS1 = 1: vacuum solenoid valve switched

Tab. 25 Process data OUT
14.1.4 Smart Sensor profile parameters

Index Sub- ex	Name Value Description Length			(byte)	Info1)
0x000D	0 List of profile characteristics 12				R
	1 0x0001 Smart Sensor profile device identification Binary data channel Process data variable Diagnostics 2	2
			(PDV)	2
	4 0x8002
	5 0x8003
	6	0x8004 Teach channel 2
0x000E	0 Data structure of the process descriptor 200 BDC1, BDC2 3	ss input data 6
	1 0x0102
	2	0x020E02 Process data variable (pressure)		3
	0 Data structure of the process descriptor	ss output data 3
	1	0x010200 BCS1, BCS2 3
0x003A	0 Teach-In channel	0	Default value;BDC1 with activated air saving function (air-save = ON);BDC2 with deactivated air saving function (air-save = OFF)	1	R/WDRDS
		1	BDC1 - Out A (air save)
		2	BDC2 (Out A)
		3	BDC3 (Out B)

Index	Subindex	Name	Value	Description Length	(byte)	Info1)
0x003A	Teach-In	channel 4 BDC4 (m		monitoring of evacuation time/air supply time)	1 R/W	DRDS
0x003B	0 Teach-In status 0 Current status of the activated teach-in channel				1	RDR
	1 Teach flag TP2 for SP2	0 Teach point		TP2 for SP2 not adopted
		1 Teach point		TP2 for SP2 adopted
	2 Teach flag TP1 for SP2	0 Teach point		TP1 for SP2 not adopted
		1 Teach point		TP1 for SP2 adopted
	3 Teach flag TP2 for SP1	0 Teach point		TP2 for SP1 not adopted
		1 Teach point		TP2 for SP1 adopted
	4 Teach flag TP1 for SP1	0 Teach point		TP1 for SP1 not adopted
		1 Teach point		TP1 for SP1 adopted
	5 Teach state Current status of the teach-in
BDC1 - Out A (air save) air saving function
0x003C	Setpoint	SP1 0...16383	(0...-1 bar)	Lower switching point default values: OVEM-...-L: 6553 (-0.4 bar) OVEM-...-H: 11468 (-0.7 bar)	2	R/WFRDS
	2 Setpoint	SP2 0 Upper switching point		default value: 0	2
	1 Switchpoint logic			Switching point logic	10x003D
				0 N/O (default)
				1 Switching point logic N/C
	2 Switchpoint Switching point mode 1
Index	Subindex	Name Value	Description Length		(byte)	Info1)
			1 Single point	mode (default)2 mode	10x003D	R/W FR DS
			2 Window mode
	3 Switchpoint hysteresis	0...14745(0...-0.9 bar)	Hysteresis default value:4096 (0.25 bar)		2
BDC2 - Out A
0x003E 1	Setpoint	SP1 0...16383	(0...-1 bar)	Lower switching point default values:OVEM-...-L: 6553 (-0.4 bar)OVEM-...-H: 11468(-0.7 bar)	2
	2 Setpoint	SP2 0...16383	(0...-1 bar)		2
0x003F	1 Switchpoint logic			Switching point logic	1	R/W FR DS
			0 N/O (default)
			1 N/C
	2 Switchpoint mode			Switching point mode	1
			1 Single point	mode (default)
			2 Window mode
	3 Switchpoint hysteresis		0...14745(0...-0.9 bar)	Hysteresis default value:OVEM-...-L: 1638 (0.1 bar)OVEM-...-H: 4096 (0.25 bar)	2
BDC3 - Out B
	1 Setpoint	SP1 0...16383	(0...-1 bar)	Lower switching point default values:OVEM-...-L: 3227 (-0.2 bar)OVEM-...-H: 11468(-0.5 bar)	20x4000	R/W FR DS
	2 Setpoint	SP2 0...16383	(0...-1 bar)	Upper switching point default values:OVEM-...-L: 6717(-0.41 bar)OVEM-...-H: 15892(-0.71 bar)	2
				Switching point logic0x4001	1 Switchpoint logic
			0 N/O (default)

Index	Subindex	Name	Value	Description	Length	(byte)	Info1)
0x4001	1 Switch	point logic 1 N/C 1					R/W FR DS
	2 Switch	point mode			Switching point mode	1
				1 Single point	mode (default)
				2 Window mode
	3 Switch	point hysteresis		0...14745(0...-0.9 bar)	Hysteresis default values: OVEM-...-L: 1638 (0.1 bar)OVEM-...-H: 3227 (0.2 bar)	3
BDC4 - Evacuation time t_E and pressurisation time t_B (time monitoring evacuation/ventilation)
0x4002	1 Setpoint	SP1(evacuation timeout)		0...4000(0...10000 - ms)	Critical limit value for evacuation time t_E^2 Standard: 0	2	R/W FR DS
	2 Setpoint	SP2(ventilation timeout)		0...4000(0...10000 - ms)	Critical limit value for air supply time t_E^2 Standard: 0	2
0x4003	1 Switch	point logic			Switching point logic for diagnostic output 1/2	1
				0 N/O (default)
				1 N/C
	2 Switch	point mode		128 Switching	point mode BDC44)Default value: 128	1
	3 Switch	point hysteresis		0 Hysteresis value 2

1) R = read, W = write, R/W = read and write, DR = device reset, DS = data storage possible
2) Time = 2.5 ms * Value
3) Time = 2.5 ms * Value
4) Value = 128: vendor specific. Five measurements are recorded; if the limit is exceeded 3 times, an event is created as a warning

Tab. 26 Smart Sensor profile parameters

14.1.5 Device parameters

Index Subindex		Name Bit Value Description Info				1)
0x000C	Device	Access Lock			Controls the blocking function of the device	R/W FR DS
			0	0 (Write)	access to parameters unblocked
				1 (Write)	access to parameters blocked
				0 Data storage (DS) unblocked1
				1 Data storage (DS) blocked
				0 Local parameterisation unblocked2
				1 Local parameterisation blocked
			3	0 Local user interface unblocked
				1 Local user interface blocked
0x01E2	Air saving function		0 Air saving function is deactivated. Switching status of BDC2 (Out A) is output to Process data IN.
				1 Air saving function is activated (default). Switching status of BDC1 (Out A air save) is output to Process data IN.
0x011F	Pin-2 configuration		1 Switching status of BDC3 is output to pin 2 (default)
				5 Switching status of diagnostic message channel 1 (di1) is output to pin 2.
				6 Switching status of diagnostic message channel 2 (di2) is output to pin 2.
0x0130	Pin-2 switchpoint logic		0 Switching point logic of pin 2 - N/O (default)
				1 Switching point logic of pin 2 - N/C
0x01EA	Lock Code		0 Local parameterisation is enabled (default)
				≥1 Local parameterisation is blocked by security code (max. 9999)

Technical data

Index Sub-index	Name Bit Value	Description Info		1)
		time	0 Auto-drop not active0x0198 Auto-Drop	R/W FR DS
			Length of the automatic ejector pulse2);Default: 80 (200 ms)

1) R/W = read and write, FR = factory reset, DS = data storage possible.
2) Length of automatic ejector pulse = 2.5 ms * value
Tab. 27 Device parameters

14.1.6 Observation parameters

Index Subindex Name Value Description Info					1)
Process data
0x00282 Process data	0 Process data input 0...65535 Includes the last BDC3 statusBDC3 statusBDC1/BDC2status2)		0 BDC3 not active1 Process data input1 BDC3 active
			0 BDC1 or BDC2 not active
			1 BDC1 or BDC2 active
	3 Process data inputPressure value		0...16383(0...1 bar)	Last valid pressure value
0x0029	1 Process data output		0...3	Includes the last valid process output data; default: 0
	2 Process data output BCS1		0 Vacuum solenoid valve not switched
			1 Vacuum solenoid valve switched
	3 Process data output BCS2		0 Ejector pulse solenoid valve not switched
			1 Ejector pulse solenoid valve switched
Index Subindex Name		Value Description Info			1)
Runtime parameters
0x2005 0 Minimum process value		value	0...16383(0mbar...1 ba-r)	Minimum measured pressure value as process value	RDR
0x2006 0 Maximum process value		value	0...16383(0mbar...1 ba-r)	Maximum measured pressure value as process value
0x2001 0 Last process value		0...16383	(0mbar...1 ba-r)	Last measured pressure value as process value
0x2021 0 Minimum evacuation time		ation time	0...4000(0...10 s)	Minimum measured evacuation time t_E^3)
0x2022 0 Maximum evacuation time		ation time	0...4000(0...10 s)	Maximum measured evacuation time t_E^3)
0x2020 0 Last evacuation time		time	0...4000(0...10 s)	Last measured evacuation time t_E^3)
0x2024 0 Minimum ventilation time		tion time	0...4000(0...10 s)	Minimum measured air supply time t_B^3)
0x2025 0 Maximum ventilation time		tion time	0...4000(0...10 s)	Maximum measured air supply time t_B^3)
0x2023 0 Last ventilation time		time	0...4000(0...10 s)	Last measured air supply time t_B^3)

1) R = read, DR = device reset
2) With air saving function activated (=ON), the status of the BDC1 is output With air-saving function deactivated (=OFF), the status of the BDC2 is output
3) Time = 2.5 ms * Value

Tab. 28 Observation parameters

14.1.7 Diagnostics

General diagnostic parameters

Index Subindex	Name Value Description Info
0x0020 0 Error count 0 Number of errors (device status) since the device was switched on or reset
0x0024 0 Device status	0 Device is working correctly (default)
	1 Service required
	2 Device outside specification
	3 ... 4 Function test or failure
0x0025 0 Detailed device status	0 Detailed device status→Tab. 30 Index 0x0025: detailed device status (event codes)
0x2010 0 Supply voltage 7864	24 V	Current power supply to the device as process value

Tab. 29 General diagnostic parameters

Detailed device status (event codes)

Subindex	Name Event Code	Description Info		1)
1 Device failure 0x5000 Hardw are error in device				RDRF
2 Supply fault 0x5100 General error in power supply
3 Temperature over-run		0x4210 Device temperature exceeded		RDRW
4 Pin-4 overload 0x1815 Overload at plug, pin 4
5 Pin-2 overload 0x1816 Overload at plug, pin 2
6 Evacuation solenoid failure		0x1820 Vacuum solenoid valve faulty
7 Ventilation solenoid failure		0x1821 Ejector pulse solenoid valve faulty
8 Evacuation time overrun		0x1822 Evacuation time t _E exceeded 3 times out of 5 measurements
Subindex	Name Event Code D	Description Info		1)
9 Evacuation time explicit overrun		0x1823 Evacuation	time t _E exceeded 3 times out of 5 measurements by at least twice the value	RDRW
10 Ventilation time overrun		0x1824 Pressurisation	on time t _B exceeded 3 times out of 5 measurements
11 Ventilation time explicit overrun		0x1825 Pressurisation	on time t _B exceeded 3 times out of 5 measurements by at least twice the value
12 Air-save max. frequency		0x1826 Max. switching	ing frequency of the air saving function exceeded, air saving function deactivated
13 Vacuum low level 0x1827			SP1 at BDC1/BDC2 not reached after 10 s
			RSP1 at BDC1/BDC2 not reached
			SP2 at BDC2 exceeded
14 Supply voltage overrun		0x5110 Supply voltage	age too high
15 Supply voltage underrun		0x5111 Supply voltage	age too low
16 Air-save failure 0x182A BDC1 outside the min. critical limit values, air saving function deactivated

1) R = read, DR = device reset, F = event type fault, W = event type warning

Tab. 30 Index 0x0025: detailed device status (event codes)

14.1.8 Device commands

System commands

Index Subir	Index Name D	Description Info		1)
0x0002 0 System		Command	System command, is sent with a command code → Tab. 32 Command code	W

1) W = write

Tab. 31 System commands

Command code	Name	Description
0x00	Reserved	-
Command code	Name Description
0x01 Param	UploadStart Start of the parameter upload
0x02 Param	UploadEnd End of the parameter upload
0x03 Param	DownloadStart Start of the parameter download
0x04 Param	DownloadEnd End of the parameter download
0x05 Param	DownloadStore Complete parameterisation and start data storage
0x06 Param	Break Cancel all “Param” commands
0x41 SP1 Single Value Teach Determines teach point TP1 for switching pointSP1 for the specific BDCx in the window comparator
0x42 SP2 Single Value Teach Determines teach point TP1 for switching pointSP2 for the specific BDCx in the window comparator
0x43 SP1 Two Value Teach TP1 Determines teach point TP1 for switching pointSP1 for the specific BDCx in the threshold value comparator
0x44 SP1 Two Value Teach TP2 Determines teach point TP2 for switching pointSP1 for the specific BDCx in the threshold value comparator
0x4B BDCx Teach Start Starts the teach-in sequence for the specificBDCx
0x4C BDCx Teach Stop Stops the teach-in sequence for the specificBDCx
0x4F Teach Cancel Cancel all teach-in sequences
0x80 Device Reset Warm start of the device, reset of runtime parameters
0x82 Restore factory settings Reset the configuration and the parameters to the original condition (default values)

Tab. 32 Command code

Copyright:

Festo SE & Co. KG

73734 Esslingen

Ruiter Straße 82

Germany

Phone:

[phone]

Internet:
