USER MANUAL GS 2271 Nabo

Front view of a white stainless steel refrigerator with control panel and side-mounted door (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Front view of a white stainless steel refrigerator with a single door and control panel (no visible text or symbols)

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 17

Declaration of Conformity 17

Safety Instructions 18

Before first Use 20

Installation 20

Use and Operation 23

Care and Cleaning 26

Troubleshooting 27

Hints on Disposal 30

Declaration of Conformity:

Hereby the manufacturer declares that the device (GS 2271) is in compliance with the following requirements: European Low Voltage Directive 2014/35 / EU EU Electromagnetic Compatibility Directive 2014/30 / EU

Ecodesign Directive 2009/125 / EC

RoHS Directive 2011/65 / EU

The complete declaration of conformity can be found at www.nabo.at

SAFETY INSTRUCTIONS

• The appliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
  • Risk of fire / flammable materials.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.
  • Do not use extension cords or ungrounded two prong adapters
• Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Cut off the power supply cable and make the door closing device unusable.
• The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.
• Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

Electricity related warnings

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.

• Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

• Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.
  • The power plug should be firmly contacted with the socket or else fires might be caused.

• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer. Hersteller empfohlen.

Warnings for using

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.
• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minute

Warnings for placement

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents. Do not place flammable items near the refrigerator to avoid fires.
• The refrigerator is intended for household use, such as storage of foods; it shall not be used for (other purposes, such as storage of blood or drugs, etc.
• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.
• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.
• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.
• Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

Warnings for energy:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments the appliance.
• Clean regularly surface that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Warning part:

1. Warning: risk of fire / flammable materials

2. When positioning the appliance, ensure the supply cord is not trapped or damaged.

3. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Any replacement or maintenance the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. The energy efficiency class of the lamp is grade G.

BEFORE FIRST USE

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
• The top space of the refrigerator shall be greater than 30cm, and The refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

INSTALLATION

Door handle installation

Tools to be provided by the user: Cross screwdriver

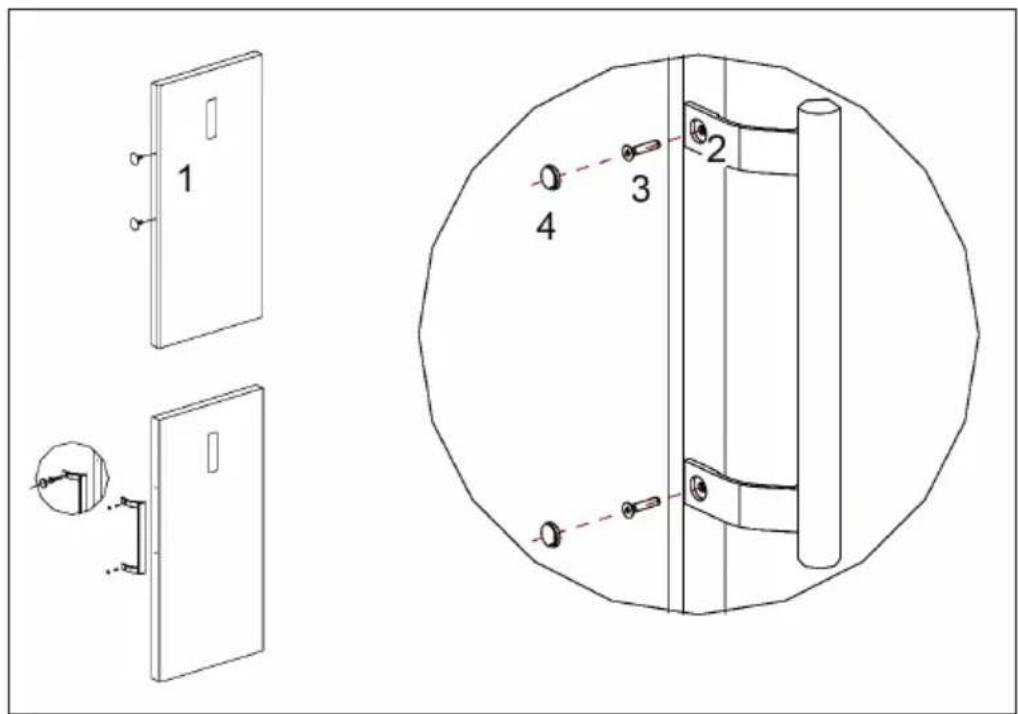

1 Remove the screw hole caps (1) from the door, and use cross screwdriver to fix screws (3) into the screw hole (2) tightly.
2 Assemble the screw hole caps (4) on the screw hole of handle.
3 The reverse operation is for disassembly.

Levelling feet

1 Turn the feet clockwise to the refrigerator;
2 Turn the feet counterclockwise to lower the refrigerator;
3 Adjust the right and left feet based on the procedures above to a horizontal level.

Door Right-Left Change

Tools to be provided by the user: Cross screwdriver, 5/16" socket and ratchet, Putty knife, thin-blade screwdriver, Masking tape

1 Power off the refrigerator, and remove all objects from the door trays.
2 Dismantle the screw hole caps, screws and handle, and remove the plastic screw hole caps from the other side.

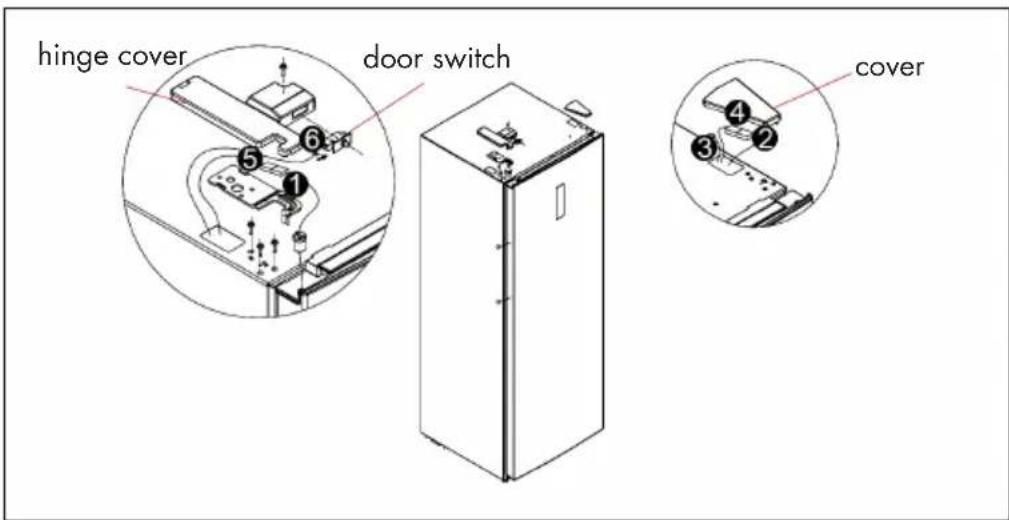

3 Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side. unplug the wiring connector on the right side of refrigerator top.

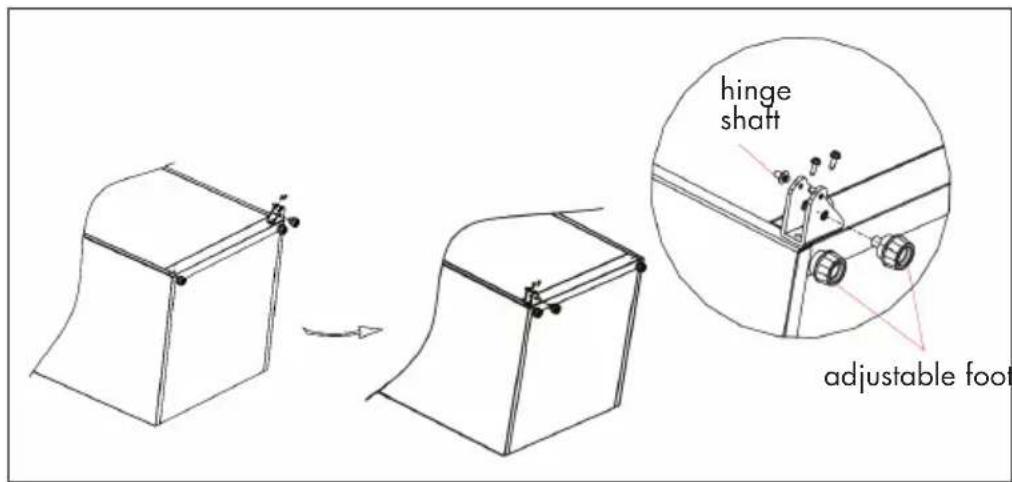

4 Dismantle the door and right bottom hinge assembly (hinge shaft & adjustable foot & hinge), disassemble the right bottom hinge assembly, and assemble the hinge shaft and adjustable foot on the other side of hinge, then assemble the whole hinge assembly on the other side of refrigerator

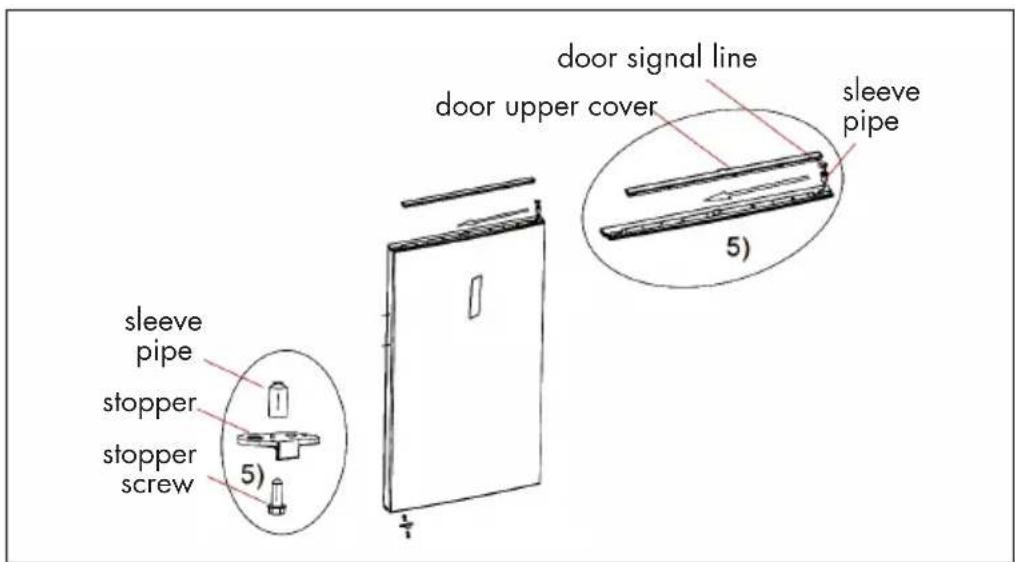

5 Remove the door upper cover, install the upper hinge sleeve, door signal line to the other side and install the door upper cover. Dismantle the right door stopper, sleeve pipe from the right bottom of door, insert the sleeve pipe into hinge hole of left bottom of door, and take out left door stopper from the accessory bag, and assemble it on left bottom of door, the right door stopper could be reserved for future use.

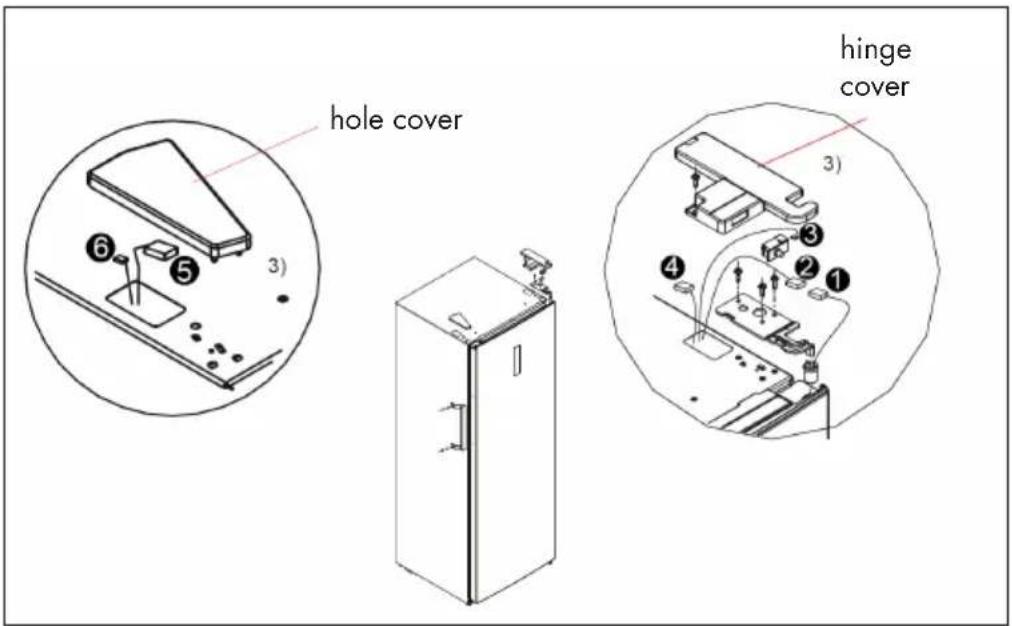

6 Take out the left top hinge, left top hinge cover from accessories package; Place the door on bottom hinge, and mount left top hinge. Connect signal line terminal (5) with sinal line terminal (1). Connect signal line terminal (6) to the door switch. Connect signal line terminal (2) with signal line terminal (4); Mount top hinge cover and hole cover.

7 For the assembly of handle, please refer to chapter.

USE AND OPERATION

Important Hints

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.
• Spare enough space for convenient opening of the doors and drawers.

Product Overview

Refrigerator

• The refrigerator is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
  • Foods are recommended to be sealed up before putting into the refrigerator.

Freezer

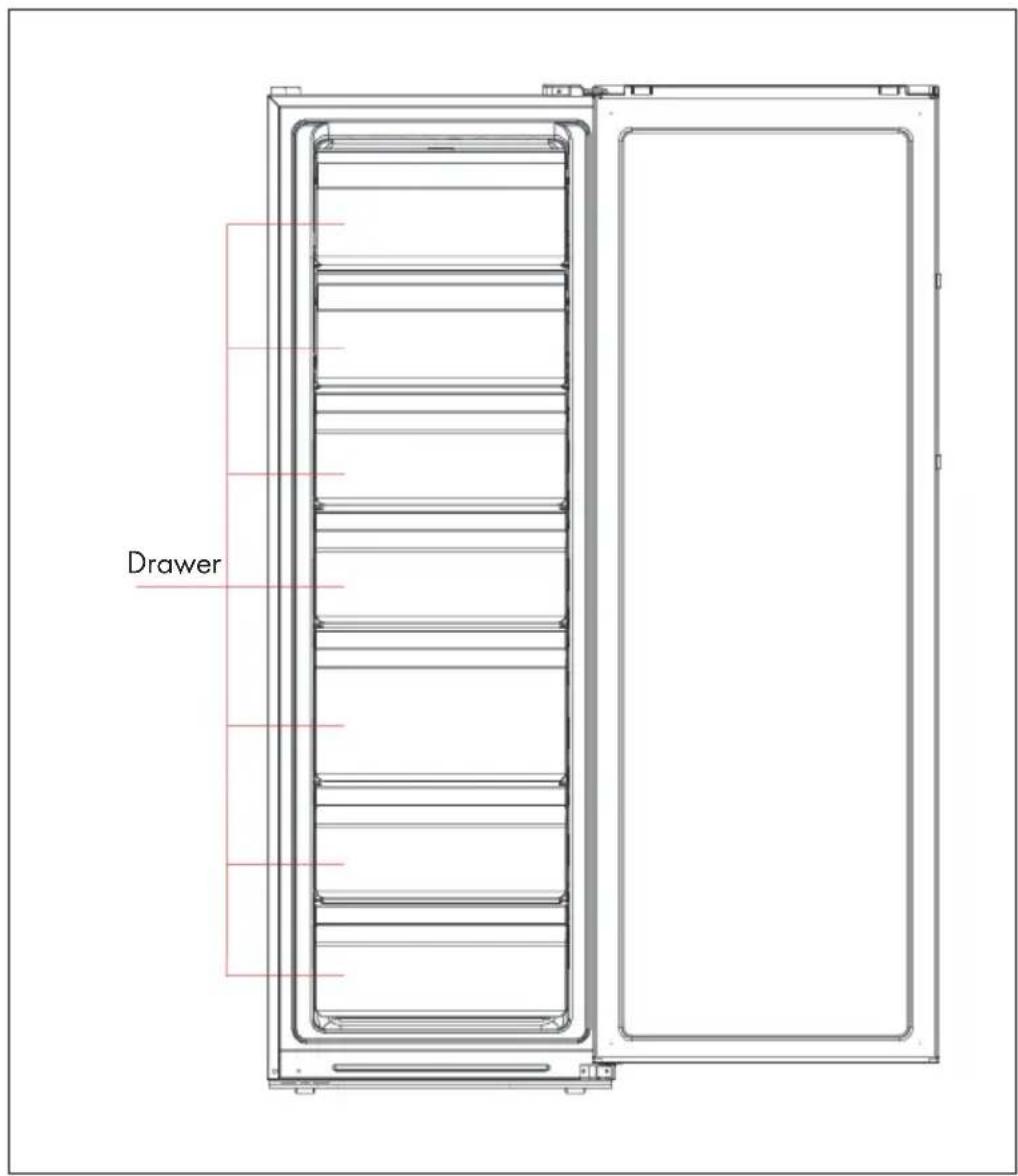

• Thefreezermay keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time. Drawers, food box and shelves are the most energy sacing when placed in the factory. Please refer to the above pictures.

The appliance has the function of refrigerator -freezer transition, by operating on display panel, end-consumers could select refrigerator or freezer in accordance with their requirement

Functions and Operation

1 Setting 1: the setting temperature is 8 or -16°C.
2 Setting 2: the setting temperature is 6 or -18°C.
3 Setting 3: the setting temperature is 4 or -20°C.
4 Setting 4: the setting temperature is 3 or -22°C.
5 Setting 5: the setting temperature is 2 or -24°C.
6 Setting 6: quick cooling or quick freezing.

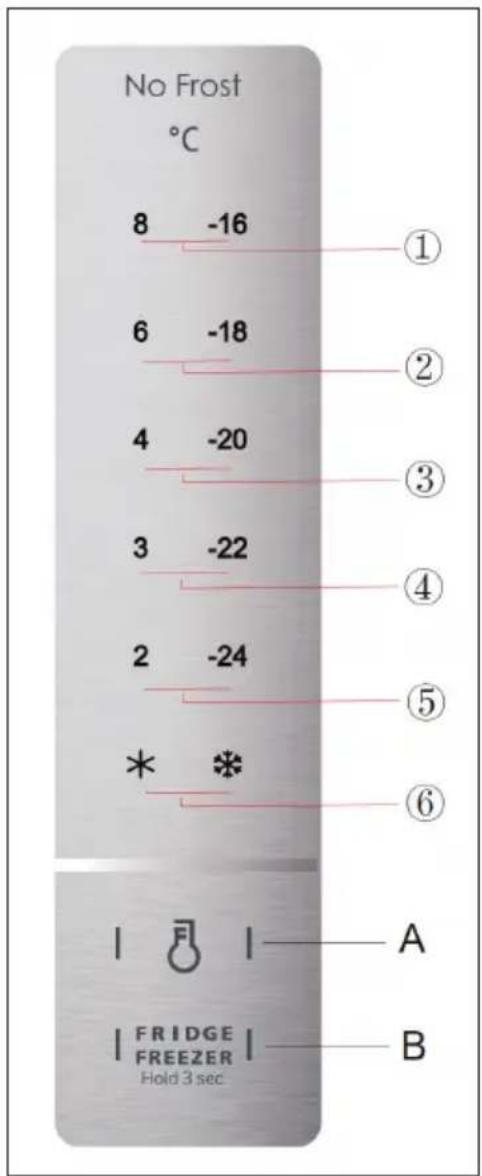

A Temperature setting button
B Fridge/Freezer switch button

When the fridge power is on:

All temperature icons shine within 3s after power on, for power on at the first time, the default set temperature is -20°C. After that, every time you start the fridge, it will run in accordance with the set temperature before last power of

The temperature setting will be changed once you press the [Fridge/Freezer] button. Then, the refrigerator will run according to the new temperature setting after 15s.

Temperature setting

If no failure, the screen displays the setting temperature of the refrigerator room. Press the temperature bottom for 3 seconds to achieve Fridge/Freezer conversion, the corresponding temperature icons shine.

Quick cooling mode

Under refrigerator mode: press the temperature button until the icon * lighten During quick cooling mode, the refrigerator runs according to the temperatures set at 2°C, and it will exit this mode automatically after running for 150 minutes or temperature setting or mode setting.

Quick freezing mode

Under freezer mode, press the temperature button until the icon lighten. During quick freeze mode, the refrigerator runs according to the temperature set at -24°C, it will exit this mode automatically after running for 24 hours or temperature setting or mode setting.

CARE AND CLEANING

Defrosting

The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

- Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

- The interior of the refrigerator should be cleaned regularly to avoid odor.

- Check the door gasket regularly to make sure there are no debris.

- Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

- Clean the door gasket with mild soap and water.

- Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean and open the door and dry it naturally before the power is turned on.

- For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.

- Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

- Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

- Do not rinse with water so as not to affect the electrical insulation properties.

TROUBLESHOOTING

Error Codes (Refrigerator:)

Error Code Error Description	Display
E1 Temperature sensor of	Refrigerator room fail.	Icon “*” & Icon “2” shine at same time.
E5 Defrosting sensor of	Refrigerator room fail.	Icon “*” & Icon “3” shine at same time.
E6 Communication error.	Icon “2” & Icon “4” shine	at same time.
E7 Ambient temperature	sensor fail.	Icon “*” & Icon“4” shine at same time.
E10 Sticking problem with	Button.	Icon “2” & Icon “3” shine at same time.

Error Codes (Freezer:)

Error Code Error Description	Display
E1 Temperature sensor of	Refrigerator room fail.	Icon “*” & Icon “-24” shine at same time.
E5 Defrosting sensor of	Refrigerator room fail.	Icon “*” & Icon “-22” shine at same time.
E6 Communication error.	Icon “-24” & Icon “-20”	shine at same time.
E7 Ambient temperature	sensor fail.	Icon “*” & Icon “-20” shine at same time.
E10 Sticking problem with	Button.	Icon “-24” & Icon “-22” shine at same time.

Troubleshooting

Problem Possible cause and suggested solution
Failed operation. Check whether the appliance is connected to power or whether the plug is in well contact.
Odor. Odorous foods shall be tightly wrapped.
Long-time operation of the compressor.	Long operation of the refrigerator is normal in summer when the ambient temperature is high.
	It is not suggestible having too much food in the appliance at the same time.
	Food shall get cool before being put into the appliance.
	The doors are opened too frequently.
Doors cannot be properly closed.	The door is stuck by food packages Too much food is placed.
	The refrigerator is tilted.
Loud noise.	Check whether the floor is level and whether the refrigerator is placed stably.
	Check whether accessories are placed at proper locations.
Door seal fails to be tight.	Remove foreign matters on the door seal.
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Water pan overflows.	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housing. Heat dissipation	of the built-in condenser via the housing, which is normal.
	When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation.
Surface condensation. Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise. Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Vertrieb durch:

Hotline: [phone] (45 Cent/Min) www.nabo.at
