Product Type	Compressor Dehumidifier
Capacity	20 pints/day (at 80°F, 60% RH)
Water Tank Capacity	4.5 liters
Power Consumption	240 W
Power Supply	120 V ~ 60 Hz
Dimensions (W x D x H)	35 cm x 25 cm x 60 cm
Weight	12 kg
Humidity Control	Electronic with digital display, adjustable from 40% to 80% RH
Fan Speed	2 speeds (low/high)
Timer	1-24 hours
Auto Shut-Off	Yes, when tank is full or bucket removed
Continuous Drain	Yes, via included drain hose (1.5 m)
Defrost Function	Automatic defrost in low temperature operation
Filter	Washable mesh filter
Noise Level	≤ 45 dB(A)
Refrigerant	R410A
Certifications	ETL, GS
Warranty	1 year
Package Contents	Dehumidifier, drain hose, user manual
Operating Temperature Range	41°F – 95°F (5°C – 35°C)

Frequently Asked Questions - JDE002167 Jocel

How do I set the desired humidity level?

Press the HUMIDITY button repeatedly to select a level from 40% to 80%. The display will show the set value. The dehumidifier will stop automatically when the ambient humidity reaches the set level.

Can I use a continuous drain instead of the tank?

Yes, connect a garden hose (not included) to the continuous drain outlet at the back of the unit. Make sure the hose is directed to a floor drain, and the tank will not fill. The dehumidifier will still run and drain continuously.

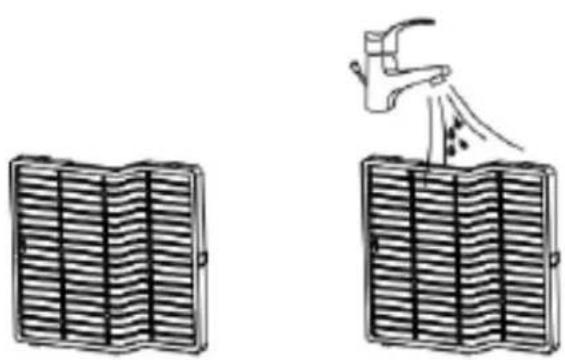

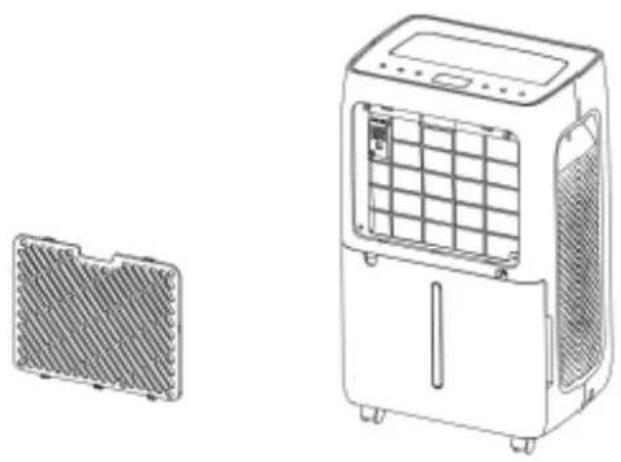

How often should I clean the filter?

Clean the washable filter every two weeks under normal use. Remove the filter from the back panel, rinse under lukewarm water, let it dry completely, and reinstall. A dirty filter reduces efficiency.

What does the 'defrost' light mean?

The defrost light indicates the unit is in automatic defrost mode. When the coil temperature gets too low, the compressor stops and the fan runs to melt ice. This is normal, especially in cool environments.

The dehumidifier is loud, what should I do?

Ensure the unit is placed on a level, solid floor. Check that the filter is clean and the tank is properly inserted. Vibration can be reduced by placing a rubber mat underneath. Normal noise level is ≤45 dB(A).

How much electricity does it use?

The dehumidifier consumes 240 W at full operation. In continuous mode, this is about 0.24 kWh per hour. Actual usage depends on humidity levels and fan speed.

What is the water tank capacity and how do I empty it?

The tank holds 4.5 liters. When full, the unit beeps and shuts off. Pull out the tank, pour out the water, and replace it. The tank has a handle for easy carrying.

Can I use the dehumidifier in a basement?

Yes, it is suitable for basements as long as the temperature is above 41°F (5°C). Below that, the unit may not operate efficiently due to ice formation.

Where can I buy replacement filters?

Replacement filters can be ordered from Jocel customer service or authorized dealers. Use the model number JDE002167 to ensure compatibility. Alternatively, generic 10x10 inch mesh filters may fit.

The display shows an error code 'E1' or 'E2'. What does it mean?

E1 indicates a humidity sensor error; unplug and restart. E2 indicates a coil sensor error. If the error persists, contact Jocel support. Do not attempt to repair yourself.

USER MANUAL JDE002167 Jocel

CE

JDE002167

MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES INSTRUCTION MANUAL

Warning symbol of a flame inside a triangle (no text or numbers)

POR SU SEGURIDAD

Line drawing of a portable air conditioner unit in a corner with a wavy surface above (no text or symbols)

Technical line drawings of a device housing and panel, showing front, side, and top views (no text or symbols)

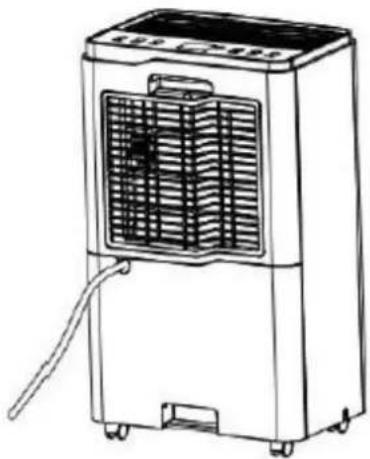

DRENAJE CONTINUO

Line drawing of a portable air conditioner unit with cooling fan and control panel (no text or symbols)

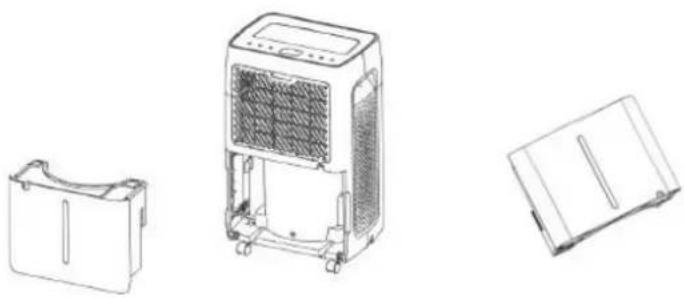

PARA EVITAR DERRAMES DE AGUA:

Line drawing of a portable air conditioner unit with a side panel and its side view (no text or symbols)

Illustration of two panels showing a hand pouring liquid into a container (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Telef. 00 34 914 879 573

E-mail: [e-mail]

http://www.jocel.es

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a portable air conditioner unit in a corner with a wavy surface above (no text or symbols)

TECLAS DE FUNÇÃO E INDICADORES

Technical line drawings of three electronic devices: a front panel, a side panel, and a closed panel (no text or symbols)

DRENAGEM CONTÍNUA

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

DE MODO A EVITAR O DERRAME DE ÁGUA:

Line drawing of a portable air conditioner unit with a side panel and front panel (no text or symbols)

Diagram showing two panels of a ventilation grille with a hand pouring liquid from a spray bottle into the top panel (no text or symbols)

Blue square icon with a white house and wireless signal symbol (no text or numbers)

Download Smart Life App

Please keep this manual carefully for further reference!

Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it. Any questions, please contact the professional service for help.

BEFORE YOU BEGIN

Please read the operating instructions carefully before using your dehumidifier for the first time.

PRODUCT DESCRIPTION

The dehumidifier is used to remove excessive moisture from the air. The resulting reduction in relative humidity protects buildings and their contents from the adverse effects of excess humidity. The environmentally friendly R290 is used as the refrigerant. R290 has no damaging influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide. Because of its efficient energy properties, R290 is highly suitable as a coolant for this application. Special precautions must be taken into consideration due to the coolant's high flammability.

SYMBOLS FROM THE UNIT AND USER MANUAL

warning	This unit uses a flammable refrigerant. If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
	Read the USER MANUAL carefully before operation.
	Further information is available in the USER MANUAL or similar documents.
	Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.

THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY

• This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The unit is designed only for use with R-290(propane) gas as the designated refrigerant.
• The refrigerant loop is sealed. Only a qualified technician should attempt to service!
• Do not discharge the refrigerant into the atmosphere.
  • R-290 (propane) is flammable and heavier than air.
• It collects first in low areas but can be circulated by the fans.
• If propane gas is present or even suspected, do not allow untrained personnel to attempt to find the cause.
• The propane gas used in the unit has no odor.
• The lack of smell does not indicate a lack of escaped gas.
• If a leak is detected, immediately evacuate all persons from the room, ventilate the room and contact the local fire department to advise them that a propane leak has occurred.
• Do not let any persons back into the room until the qualified service technician has arrived and that technician advises that it is safe to return.
• No open flames, cigarettes or other possible sources of ignition should be used inside or in the vicinity of the units.
• Component parts are designed for propane and non-incentive and non-sparking. Component parts shall only be replaced with identical repair parts.

FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMA

Warning symbol of a flame inside a triangle (no text or numbers)

Your safety is the most important thing we concerned!

Please read this manual carefully and fully understand before operating your dehumidifier.

OPERATIONAL PRECAUTIONS

WARNING - to reduce the risk of fire, electric shock or injury to persons or property:

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance shall be disconnected from its power source during maintenance.
• Always operate the unit from a power source of equal voltage, frequency and rating as indicated on the product identification plate.
  • Always use a power outlet that is grounded.
• Unplug the power cord when cleaning or when not in use.
• Do not operate with wet hands. Prevent water from spilling onto the unit.
• Do not immerse or expose the unit to rain, moisture or any other liquid.
• Do not leave the unit running unattended. Do not tilt or turn over the unit.
• Do not unplug while the unit is operating.
• Do not unplug by pulling on the power cord.
• Do not use an extension cord or an adapter plug.
• Do not put objects on the unit.
• Do not climb or sit on the unit.
• Do not insert fingers or other objects into the air outlet.
• Do not touch the air inlet or the aluminum fins of the unit.
• Do not operate the unit if it is dropped, damaged or showing signs of product malfunction.
• Do not clean the appliance with any chemicals.
• Ensure the unit is far away from fire, inflammable, or explosive objects.
• The unit shall be installed in accordance with national wiring regulations.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacture.
• The appliance shall be stored in a room without continuously operation sources (for example: open flames, an operating gas appliance or an operating electric heater).
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• Do not piece or burn, even after use.
• Be aware that refrigerants may not contain an odor.
• Pipe-work shall be protected from physical damage and shall not be installed in an unventilated space, if that space is smaller than 4m^2 .

• Compliance with national gas regulations shall be observed.

• Keep any required ventilation openings clear of obstruction.

• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry, recognized assessment specification.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. If you don't understand something or need help, please contact the dealer services.

SAFETY PRECAUTIONS ON SERVICING

Please follow these warnings when to undertake the following when servicing a dehumidifier with R290.

CHECKS TO THE AREA

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

WORK PROCEDURE

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.

GENERAL WORK AREA

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

CHECKING FOR PRESENCE OF REFRIGERANT

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or intrinsically safe.

PRESENCE OF FIRE EXTINGUISHER

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

NO IGNITION SOURCES

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

VENTILATED AREA

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

CHECKS TO THE REFRIGERATION EQUIPMENT

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
• The ventilation machinery and outlets are operating adequately and are not obstructed;
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

CHECKS TO ELECTRICAL DEVICES

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

• those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• that there no live electrical components and wiring are exposed while charging, recovering or purging the system;
• that there is continuity of earth bonding.

PRODUCT OVERVIEW

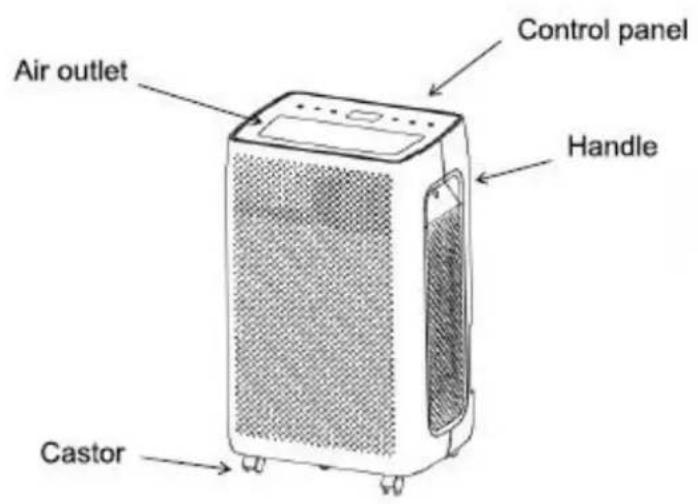

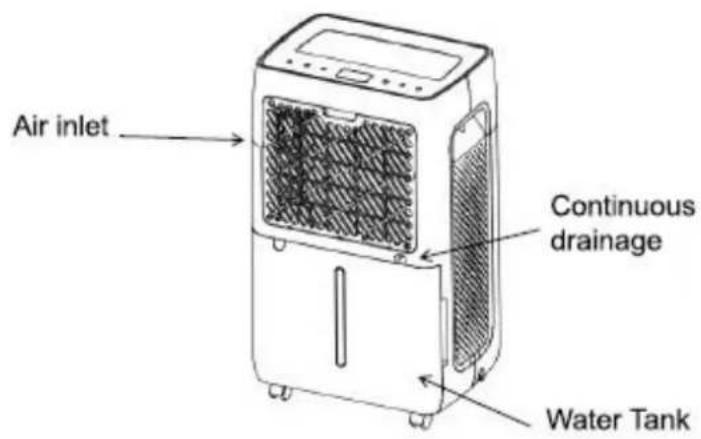

PRODUCT VIEW

SPECIFICATIONS

MODEL	JDE002167
Dehumification Capacity	20L/D(30°C, RH80%)
Rated Voltage	AC220-240V/50Hz
Max .rated Input Power Current	330W/2.3A (30°C, RH80%)
Noise	≤41dB(A)
Water Tank Capacity	4.5L
Maximum Refrigerant Charge	R290
Net weight	13.5 kg
Maximum Design Pressure	High Side: 3.2MPa, Low Side:0.7MPa
Recommended room size	Until 40 m2

INSTALLATION

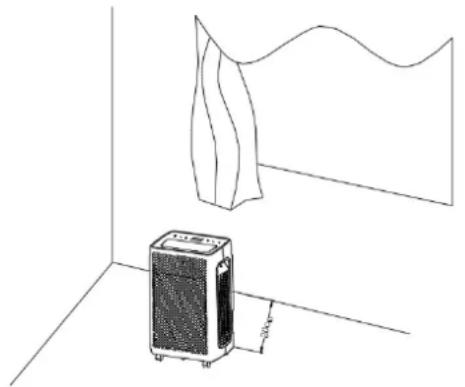

LOCATION

1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow for proper air circulation.

2. Never install the unit where it could be subject to:

3. Heat sources such as radiators, heat registers, stoves or other products that products that produce heat.

4. In an area where oil or water may be splashed.
5. Direct sunlight.
6. Mechanical vibration or shock.
7. Excessive dust.
8. Lack of ventilation, such as cabinet or bookcase.
9. Uneven surface.

Line drawing of a portable air conditioner unit in a corner with a wavy fabric background (no text or symbols)

Install the unit in rooms which exceed 4 m^2 .

Do not install the unit in a place where inflammable gas may leak.

NOTE

The manufacture may provide other suitable example or may provide additional information about the refrigerant odour.

• Check the device after unpacking for any damages or scratches on it.
• Operate this unit in an ambient temperature from 5^ to 35^ .
• Do not use in the outdoors. This dehumidifier is intended for indoor residential applications only.
• Do not operate in close proximity to walls, curtains, or other objects that may block inlet and outlet.
• Keep the air inlet and outlet free of obstacles.
• Adjusting the wind deflector in the upward direction prior to start up.
• If tipped more than 45^ , allow the unit to set upright for at least 24 hours before start up.
• Keep doors and windows close for better energy saving.
• Do not operate or store the unit in direct sunlight or rain.
• It is normal for air outlet to feel warm to touch after continuous operation on hot days.
  • Empty the water tank before moving the device.
• Make sure the Water tank is correctly fitted otherwise the unit will not operate properly.
• The dehumidifier starts up in the mode selected when the unit was last used.
• The dehumidifier starts dehumidifying if the room humidity is 3% higher than the selected humidity.
• There is a protective 3-minutes time delay of the compressor. Wait 3 minutes for the dehumidifier to resume dehumidification.

OPERATION

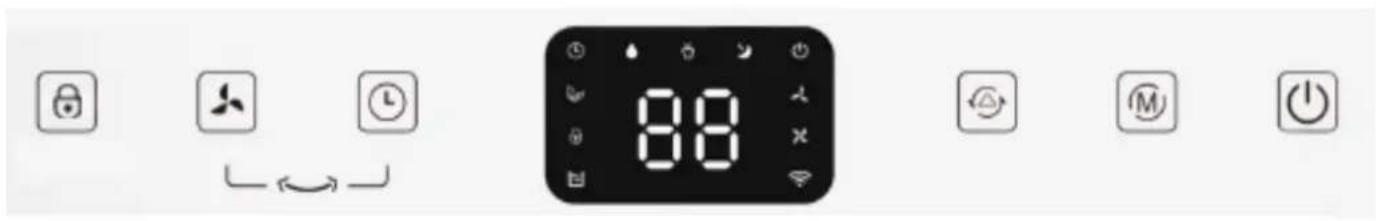

CONTROL PANEL

FUNCTION KEYS AND INDICATORS

	POWER button	Press to switch the machine on or off.
	Mode Button	Press to choose Auto and Continuous/Drying mode.Long press 3 seconds to go in and out of Sleep mode.
	Adjust Button	Press to set the humidity or timing.
	Timer button	Sets a time for the unit to automatically start or stop.
	Fan speed button	Press to select fan speed between high and low.
	Lock button	Hold this button for 3 seconds to turn child lock function on or off.
	Swing button	Press both of Fan & Timer button to turn Swing function on or off.

SETTINGS

Power

In the standby state, press the power button to turn on, the operation indicator lights up and the default fan speed is high, and the default humidity is 50%. In the power-on state, press the power button to turn off, the running indicator light goes off and the compressor stops immediately, and then the fan shut down after 30 second's delay.

Mode

Auto Mode – Continuously/Drying Mode - Sleeping mode cycle, press once to switch the mode from one to another, the corresponding indicator lights up.

- Auto mode ☐: when environmental humidity ≥ set humidity +3%, the fan starts working and compressor starts working after 2 seconds.

When environmental humidity ≤ set humidity -3% , the compressor stops working and the fan delay shutdown.

Both fan speed and humidity can be adjusted under auto mode.

- Continuously drying mode 📋: The machine continues to run, but the humidity cannot be adjusted.

- Sleeping mode 📋: Long press “Mode” button for 3 seconds, the button lights up and start the sleep function, and the default humidity is 60%. After no operation in 10 seconds, all indicators turns dark gradually and the wind speed is automatically switched from high to low. Touch any button to wake up the indicator. Touch sleep button again to exit the sleep mode. In sleep mode, the buzzer won’t sound.

Timer

Press the "Timer" button to set the 0-24 hour timing function. Each time you press Adjust button, the value increase 1 hour, the value displayed on the "88" display screen. In the running state, use the timer function to "turn off the machine regularly", press "Timer" button to display remaining timing. In the standby state, use the timer function to "turn on the machine regularly". Whatever the state is, the timer indicator lights up when the timer is set. Set the time to "00" to cancel the timing function.

Adjust

In automatic mode or sleep mode, you can operate this key to adjust the set humidity: every time you press the set humidity increase by 5%, according to the cycle of 20%-90%. Long press this key for 3 seconds to query the current room temperature, “88” display the current room temperature 5 seconds after the automatic return to display the current humidity.

Child Lock

Hold the child lock button for 3 seconds to turn on or off the child lock function, the lock indicator lights up accordingly.

Fan Speed

High speed - low speed cycle, press button once to switch and then the corresponding indicator lights up.

Swing

Press both of Fan & Timer button to turn Swing function on or off.

WATER TANK FULL ALARM

Water Tank Indicator

• When the tank is full for 5 seconds, it sets the alarm. The water tank indicator 📋 turns red, the “88” display “FL”, and the unit buzzes for 5 times.
• The signal is detected for 5 seconds after water drainage when put the water tank back, run according to the setting state before the water is full, no need for power recovery (Meet the 3-minutes delay compressor protection).

MAINTENANCE

DRAINAGE

There are two ways of removal collected water produced by the unit.

A. Manual draining: Empty water tank by manual.
B. Continuous draining: Use gravity to drain condensate water by attaching a drain hose.

EMPTYING THE WATER TANK

The water tank built in unit will fill up and shut the unit down once it is full. It will run again once you empty the water tank and installed properly.

• When the tank is full, the unit will make a buzzing sound, and the "Water Full" light 📋will turn on.
• Press the POWER button to turn off the unit.
• Pull on the water tank and simply slide out of the body of the dehumidifier and remove the water tank cover.
  • Empty the water into an area with a drain or outside.
• Clean the inside of the tank as well as the outside.
• Replace the empty tank back into the unit.
• Press the POWER button to resume operating.
• If the Water Full light does not extinguish, check that the float is correctly in place.

Technical line drawings of three electronic devices: a front panel, a rear panel with ventilation grille, and a side panel (no text or symbols)

CONTINUOUS DRAINING

For continuous operation or unattended dehumidification, please connect the attached drain hose to the unit. Condensate water can be automatically flow into a bucket or drain by gravity.

• Set the unit in a horizontal surface and stable position.
• Switch off the unit before operating.

Remove the plug of the water outlet opening, and keep it in safe area.

• Securely and properly connect the drain hose and make sure it is not kinked and clear of obstruction.
• Place the outlet of hose over a drain or bucket and ensure that water could freely flow out of the unit.

Do not submerge the end of hose into water; otherwise, it can cause "Air Lock" in the hose.

Line drawing of a portable air conditioner unit with control panel and cooling pipes (no text or symbols)

TO AVOID WATER SPILLAGE:

As the negative pressure of condensate drain pan is large, tilt the drain hose downward toward the floor. It is appropriate that the degree of inclination should exceed 20 degrees.

Straighten the hose to avoid a trap existing in the hose.

CLEANING THE AIR FILTER (every two weeks)

Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit.

The air filter requires regular cleaning. The air filter is removable for easy cleaning. Do not operate the unit without an air filter, or the evaporator may be contaminated.

1. Remove the filter frame and take off the filter.

Line drawing of a portable air purifier with a side panel and its exterior panel (no text or symbols)

1. Use a vacuum cleaner to gently absorb the dust on the surface.

If the filter is very dirty, wash it with water and a soft detergent and dry it thoroughly afterwards.

Illustration of a showerhead spraying water onto a grid-patterned surface (no text or symbols)

1. Put the filter back.

TROUBLE SHOOTING

FUNCTIONING TEMP.

5^ C ≤ Ambient Temp. ≤ 35^ C

When the ambient temp is lower or higher than the functioning temp, the dehumidifier stops.

When 5^ ≤ Ambient temp. ≤ 16^ , the compressor automatically defrosts at intervals; during defrosting, the compressor stops and the fan keeps running.

BEFORE CALLING FOR SERVICE

Before contacting professional service, please review the trouble shooting list that includes common occurrences that are not the result of a defect in workmanship or materials.

Problem	Possible Cause	Solution
Not working	No power supply.	Connect to a functioning outlet and switch on.
	Water Full Indication Flashes.	Drain water tank and reset it, or re-position the water tank to right place.
	Room temperature < 5°C, or >35 °C.	Self-Protection designed to protect the unit. Can not work under such temperature.
Bad functioning	Is the air filter clogged?	Clean the air filter as instructed.
	Is the intake duct or discharge duct obstructed?	Remove the obstruction from the discharge duct or intake duct.
No air intake	Is the filter clogged?	Wash the filter.
Loud noise when running	Is the machine put in the plat place?	Put the machine on the plat ground.
	Is the filter clogged?	Wash the filter.
E1	Humidity sensor problem	Change a sensor.
LO	Environmental humidity is below 20%	The dehumidifier shuts down for self-protection.
CL	Low temperature protection, the environmental temperature <5°C
CH	High temperature protection, the environmental temperature >38°C

DECOMMISSIONING

STORAGE

Long-term storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps:

1. Press power button to switch off and unplug the unit.
2. Drain the remaining water from the unit.
3. Clean the filter and let the filter dry completely in a shaded area.
4. Collect the power cord at the water tank.
5. Re-install the filter at its position.
6. The unit must be kept in upright position when in storage.
7. Preserving the machine in ventilating, dry, non-corrosive gas and safe place indoor.

ATTENTION:

The evaporator inside the machine has to be dried out before the unit is packed to avoid component damage and molds. Unplug the unit and place it in a dry open area for days to dry it out. Another way to dry the unit is to set the humidity point more than 5% higher than the ambient humidity to force the fan to dry the evaporator for a couple of hours.

DISPOSAL

WARNING!!!

Releasing refrigerant into atmosphere is strictly forbidden!

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

INFORMATION ON THE APP "SMART LIFE"

The "Smart Life" app is available for android and iOS.

Scan the corresponding QR code to get directly to the download.

Download Smart Life App

INFORMATION ON HOW TO USE THE APP

This appliance allows you to operate the appliance via your home net-work. A prerequisite is a permanent WIFI connection to your router and the free app "Smart Life".

1. Install the "Smart Life" app. Create a user account.
2. Activate the WIFI function in the settings of your appliance.

3. Place the appliance at a distance of about 5 meters to your router.

4. As long as the power is turned on, the WIFI indicator flashes. After 3 minutes, the status will be canceled if there is no network configuration, and the indicator light is off. If you need to reconnect the WIFI, long press the "timer" button for 5 Second to start the network configuration, the WIFI indicator flashes again.

WIFI CONNECTED

- Method 1

Connected via Bluetooth

Open the bluetooth of your mobile phone or other device.

When WIFI indicator flashes, open “Smart Life” APP, the unit will connected via bluetooth automatically.

- Method 2

When WIFI indicator flashes, select "Add Device"- "Small Home Appliances"- "Dehumidifier", and follow the instructions on the display.

Check the status of the WIFI indicator and choose the correct status.

If the WIFI indicator flash rapidly, it can connected directly.

If the WIFI indicator flash slowly, press "Go to Connect" to connect the WIFI named "SmartLife-XXXX".

REMARKS:

Once the appliance has been successfully connected, the WIFI lamp lights up. Now you can operate the appliance using the app.

Press and hold the Timer button for about 5 seconds, the appliance disconnect, the WIFI lamp lights off.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.

2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.

3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.

4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.

5. Lose warranty, all appliances that are not being used according to the instructions or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.

6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.

7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.

2. Exceeded the period for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

3. With the modification or disappearance of the nameplate of the appliance.

NOTE: GLASSES AND LAMPS ARE NOT COVERED BY WARRANTY.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product DEHUMIDIFIER

Brand JOCEL

Model JDE002167

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/EU

EN 60335-2-40:2003+A11+A12

+A1+A2+A13

EN 60335-1:2012+A11+A13+A1

+A14+A2+A15

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 300328:2019

EN 301489-1:2019

EN 301489-17:2020

EN IEC 62311:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-3:2013+A1+A2

EN IEC 61000-3-2:2019+A1

MADE P.R.C.
