DBL 2340 - Iron VOX - Free user manual and instructions

Product Type	Steam Iron
Brand	VOX
Model	DBL 2340
Power Consumption	Approx. 2000 W
Voltage	220-240 V
Frequency	50/60 Hz
Water Tank Capacity	250 ml
Soleplate Material	Stainless Steel (with steam vents)
Anti-Calc System	Resin filter inside water reservoir (permanent)
Anti-Drip System	Automatic activation at low temperatures
Steam Output	Variable (adjustable steam selector)
Shot Steam Function	Yes, powerful burst for vertical steaming
Spray Function	Dense or vaporized spray
Self-Cleaning Function	Yes, recommended every 10-15 days
Thermostat Control	Adjustable knob with fabric guide
Pilot Light	Indicates heating and temperature maintenance
Cord Length	Approx. 1.8 m
Weight	Approx. 1.2 kg
Dimensions (L x W x H)	Approx. 30 x 12 x 15 cm
Safety Features	Automatic shut-off (not specified), thermal protection

Frequently Asked Questions - DBL 2340 VOX

How do I fill the water tank?

Unplug the iron, set steam selector to '0', open the filler door, tilt the iron tip upward, and slowly pour water using the measure cup up to the MAX level (250 ml). Close the door.

What type of water should I use?

Distilled water is recommended. Do not use chemical additives, scented substances, or decalcifiers as they may damage the iron and void the warranty.

How do I select the temperature?

Adjust the thermostat knob according to the fabric type: synthetic (low), silk/wool (medium), cotton/linen (high). The pilot light turns off when the selected temperature is reached.

How does the anti-drip system work?

At low temperatures, the anti-drip system automatically prevents water from dripping onto the fabric, allowing you to iron delicate fabrics without stains.

How do I use the shot steam function?

Press the shot-steam button for a powerful burst of steam to remove tough creases. This can also be used for vertical steaming on hanging garments. Use only at high temperatures.

How do I clean the iron?

Unplug and let it cool. Wipe the soleplate with a damp cloth (no abrasives). Clean plastic parts with a damp cloth and dry. Use the self-cleaning function every 10-15 days: fill to MAX, set thermostat to max, wait for pilot light off, unplug, hold over sink, press self-clean button until steam and impurities exit.

Can I use the iron vertically?

Yes, by pressing the shot-steam button at intervals, you can remove creases from curtains, hung garments, etc. Use only at high temperatures.

How do I store the iron?

Unplug, empty the water tank by tilting the iron upside down, let it cool completely, loosely loop the cord around the iron, and store it upright.

Why does the iron emit smoke or noise on first use?

A slight emission of smoke and sounds from expanding plastics is normal. It stops after a short time. Pass the iron over an ordinary cloth before first use.

What should I do if the iron is not producing steam?

Check that the water tank is filled, the steam selector is not set to '0', the temperature is high enough for steam (above minimum), and the iron is held horizontally. If the pilot light is on, wait for it to turn off. Also ensure the anti-drip system is not active due to low temperature.

USER MANUAL DBL 2340 VOX

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

When using your flatiron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to 'Off' before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. The device can be used by children over the age of 8 as well as people with reduced physical, sensory and mental capabilities or people with a lack of experience and knowledge if supervised or have been explained by responsible persons how to safely use the device and if they understand all potential hazards associated with handling this device. Children must not play with this device. Children must not clean or maintain this device without supervision.
8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. If the malfunction indicator goes on, the flatiron is not operating normally. Disconnect from the power supply and have the flatiron serviced by qualified service personnel.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specifically:

DO NOT let children or untrained persons use the appliance without supervision.
NEVER immerse the iron, cable or plug in any liquid.
DO NOT leave the hot iron touching fabrics or very inflammable surfaces.
DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
NEVER touch the appliance with wet or damp hands.
DO NOT use the power cord or the appliance in order to pull the plug out of the socket.
DO NOT leave the appliance exposed to the weather (rain, sun, etc.).
DO NOT leave the iron without supervision when it is connected to the power supply.
DO NOT fill the reservoir with water before removing the plug from the socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

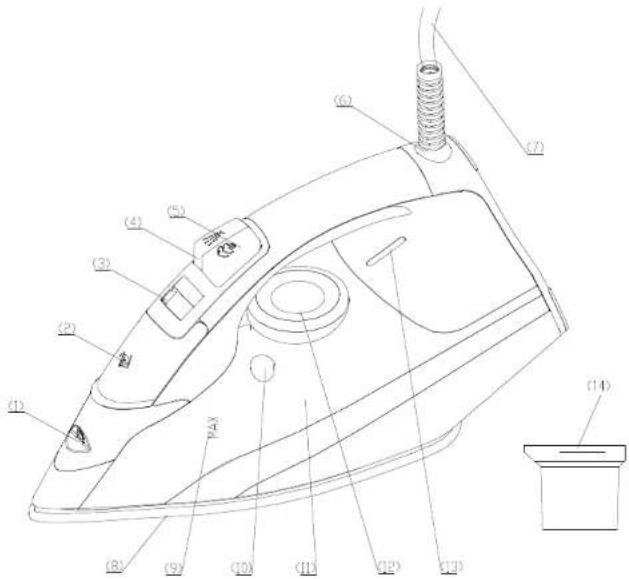

DESCRIPTION OF DEVICE

(1). Spray nozzle
(3). Steam dial
(5). Shot-steam button
(7). Supply cord
(9). Maximum filling level
(11). Transparent water tank
(13). Pilot light

(2). Filler door
(4). Spray button
(6). Cord bushing
(8). Plate with steam vents
(10). Self-cleaning button
(12).Thermostat knob
(14). Water measure

ANTI-CALC SYSTEM

A special resin filter inside the water reservoir softens the water and prevents scale build-up in the plate. The resin filter is permanent and does not need replacing.

Note:

Distilled water use recommended.

Do not use chemical additives, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

ANTI-DRIP SYSTEM

With the anti-drip system, you can perfectly iron even the most delicate fabrics.

Always iron these fabrics at low temperatures. The plate may cool down to the point where no more steam comes out, but rather drops of boiling water that can leave marks or stains. In these cases, the Anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them.

GENERAL INSTRUCTIONS

When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.

PREPARATIONS

Soft the laundry to be ironed according to the international symbols on the garment label, or if this is missing, according to the type of fabric.

GARMENTLABEL	FABRICTYPE	THERMOSTATREGULATION
	synthetic	•low temperature
	silk - wool	••medium temperature
	Cotton - linen	• • •high temperature
	Fabric not to be ironed

Start ironing the garments requiring a low temperature.

This reduces the waiting times (the iron takes less time to heat up than to cool down) and eliminates the risk of scorching the fabric.

STEAM IRONING

Filling the reservoir

• Check that the plug is disconnected from the socket.
• Move the steam selector (3) to "0" [Fig. 1].
• Open the lid (2).
• Raise the tip of the iron to help the water enter the opening without overflowing.
• Slowly pour the water into the reservoir using the special measure (14) and taking care not to go over the maximum level (about 250ml) indicated by "MAX" on the reservoir [Fig. 2].
• Close the lid (2).

Selecting the temperature

• Put the iron in a vertical position.
• Put the plug in the socket.
• Adjust the thermostat knob (12) according to the international symbol on the garment label [Fig. 3]. The plate temperature pilot light (13) indicates that the iron is heating up. Wait until the plate temperature pilot light goes off before ironing.

Warning: during ironing, the plate temperature pilot light (13) comes on at intervals, indicating that the selected temperature is maintained. If you lower the thermostat temperature after ironing at a high temperature, do not start ironing until the plate temperature control light comes on again.

Selecting the steam

The quantity of steam is regulated by the steam selector (3).

- Move the steam selector to a position between minimum and maximum depending on the quantity of steam required and the temperature selected [Fig. 1].

Warning: the iron gives off steam continuously only if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or by moving the steam selector to "0". As indicated on the thermostat knob (12) and in the initial table, you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate.

Selecting Shot-steam and steam when ironing vertically

Press the shot-steam button (5) to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again [Fig. 4].

By pressing the shot-steam button at intervals you can also iron vertically (curtains, hung garments, etc.) [Fig. 5].

Warning: the shot-steam function can only be used at high temperatures. Stop the emission when the plate temperature pilot light (13) comes on, than start ironing again only after the light has gone off.

DRY IRONING

To iron without steam, follow the instructions in section "steam ironing", leaving the steam selector (3) on position "0".

Spray Function

Make sure that there is water in the reservoir. Press the spray button (4) slowly (for a dense spray) or quickly (for a vaporized spray) [Fig. 6].

Warning: for delicate fabrics, we recommend moistening the fabric beforehand using the spray function (4), or putting a damp cloth between the iron and the fabric. To avoid staining, do not use the spray on silk or synthetic fabrics.

CLEANING

Please note: before cleaning the iron in any way, make sure that the appliance plug is not connected to the socket.

Any deposits, starch residue or size left on the plate can be removed using a damp cloth or an unabrasive liquid detergent.

Avoid scratching the plate with steel wool or metallic objects.

The plastic parts can be cleaned with a damp cloth then wiped over with a dry cloth.

SELF-CLEANING

The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10-15 days. Directions:

-Fill the reservoir up to the maximum level indicated and set the steam selector (3) to "0"
-Set the thermostat knob (12) to the maximum temperature and wait for the pilot light (13) to turn off.
-Pull the plug out of the socket and hold the iron horizontally over the sink.
-Hold the cleanout button (10) setting until all the boiling water, steam, impurities come out [Fig. 7].
-When the soleplate has cooled down, you can clean it with a damp cloth.

HOW TO PUT IT AWAY

• Disconnect the plug of the iron from the socket.
• Empty the reservoir by turning the iron upside down and gently shaking it.
• Leave the iron to cool down completely.
• Roll up the power cord. [Fig. 8].
• Always put the iron away in a vertical position.

ADVICE FOR GOOD IRONING

We recommend using the lowest temperatures with fabrics that have unusual finishes (sequins, embroidery, flush, etc.).

If the fabric is mixed (e.g. 40% cotton 60% synthetics), set the thermostat to the temperature of the fiber requiring the lower temperature.

If you don't know the composition of the fabric, determine the suitable temperature by testing on a hidden corner of the garment. Start with a low temperature and increase it gradually until it reaches the ideal temperature.

Never iron areas with traces of perspiration or other marks: the heat of the plate fixes the stains on the fabric, making them irremovable.

The size is more effective if you use a dry iron at a moderate temperature: excess heat scorches it with the risk of forming a yellow mark.

To avoid marking silk, woolen or synthetic garments shiny, iron them inside out.

To avoid marking velvet garments shiny, iron in one direction (following the fibre) and do not press down on the iron.

The heavier the washing machine is loaded, the more garments come out creased.

This also happens when the spin drying revolutions are very high.

Many fabrics are easier to iron if they are not completely dry.

For example, silk should always be ironed damp.

VOX

ELECTRONICS

ITA

FERRO A VAPORE
DBL 2340

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

ISTRUZIONI DI SICUREZZA IMPORTANTI

SISTEMA ANTICALCARE

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

ANTI-KALK-SYSTEM

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

VAŽNA BEZBEDNOSNA UPUTSTVA

SISTEM ZA SUZBIJANJE KAMENCA

Specijalan smolni filter unutar rezervoara za vodu omekšava vodu i sprečava nakupljanje kamenca u ploči. Smolni filter je trajan i ne zahteva menjanje.

Napomena:

Preporučujemo upotrebu samo destilovane vode.

Ne koristite hemijske aditive, mirisne supstance i dekalcifikatore.

Nepoštovanjem gore navedenih propisa gubite garanciju.

SISTEM ZA SUZBIJANJE KAPANJA

Sa sistemom protiv kapanja možete savršeno da peglate i najosetljivije tkanine.

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

SISTEMA ANTICAL

Line drawing of a steam iron with screw head and side button (no text or symbols)

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

SISTEMA ANTI-CALCÁRIO

Line drawing of a steam iron with handle and screw (no text or symbols)

PARNI LIKALNIK
DBL 2340

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

POMEMBNA VARNOSTNA NAVODILA

Pri upotabi likalnika je trehavedno upoltevatni oasovne vamoistne sikrepe, vključno z naslodnjimi:

PRED UPORABO PREBERITE VSA NAVODILA

Line drawing of a steam iron with handle and screw (no text or symbols)

VAŽNE SIGURNOSNE UPUTE

Line drawing of a steam iron with handle, screw, and mounting bracket (no text or symbols)

VAŽNA SIGURNOSNA UPUTSTVA

SISTEM ZA SUZBIJANJE KAMENCA

Specijalan smolni filter unutar rezervoara za vodu omekšava vodu i spriječava nakupljanje kamenca u ploči. Smolni filter je trajan i ne zahtjeva mijenjanje.

Napomena:

Preporučujemo upotrebu samo destilovane vode.

Ne koristite hemijske aditive, mirisne supstance i dekalcifikatore.

Nepoštovanjem gore navedenih propisa gubite garanciju.

SISTEM ZA SUZBIJANJE KAPANJA

Uvijck peglajte ove tkanine na niskim temperaturama. Ploča se može ohladiti do tačke kada više ne izlazi para, već samo kapi ključale vode koje mogu ostaviti mrlje. U ovim slučajcvima, automatski se aktivira sistem za suzbijanje kapanja kako bi se spriječilo isparavanje, tako da možete peglati najosetljivije tkanine bez rizika da napravite mrlje.

OPŠTA UPUTSTVA

Kada koristite peglu prvi put, možda osjetite blagu emisiju dima i čujete zvuk uslijed širenja plastike. Ovo je normalna pojava i prestaje nakon kratkog vremena. Takođe preporučujemo da prije prve upotrebe predete peglom preko obične krpe.

PRIPREME

Sortiranje veša za peglanje uradite u skladu sa međunarodnim simbolima na etiketi odjeće, ili u skladu sa vrstom tkanine ukoliko etikete nedostaju.

OZNAKA ODJEĆE	VRSTA TKANINE	REGULATOR TEMPERATURE
	sintetika	niska temperatura
	svila- vuna	srednja temperatura
	pamuk- lan	visoka temperatura
	NE PEGLATI TKANINU

Line drawing of a steam iron with handle and screw (no text or symbols)

ВАЖНИ БЕЗБЕДНОСНИ ИНСТРУКЦИИ

Line drawing of a steam iron with visible internal components and a threaded spool (no text or symbols)

UDHËZIME TË RËNDËSISHME SIGURIE

SISTEMI PËR PASTRIMIN E GURËVE
