RF270 - Fridge Khind - Free user manual and instructions

Product Type	Refrigerator
Brand	Khind
Model	RF270
Capacity	270 Liters
Dimensions (H x W x D)	1700 mm x 600 mm x 650 mm
Net Weight	60 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	150 W
Energy Class	A+
Climate Class	N-ST
Cooling System	Static (Manual Defrost)
Temperature Control	Adjustable Thermostat
Interior Light	Incandescent Bulb
Door Reversibility	Yes (User-Reversible)
Shelves Material	Glass
Number of Shelves	3
Vegetable Crisper	Yes
Freezer Compartment	Yes (Small Freezer)
Defrost Method	Manual
Refrigerant	R600a
Noise Level	42 dB(A)
Maintenance	Clean with mild detergent and water; avoid abrasive cleaners
Safety Features	Stabilizers, proper ventilation required
Spare Parts Availability	Contact authorized service centers
Repairability Index	7/10 (estimated)

Frequently Asked Questions - RF270 Khind

How do I set the temperature on my Khind RF270 refrigerator?

To set the temperature, locate the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperature (usually 1-7). Setting '5' is recommended for normal use.

How do I defrost the freezer compartment?

The RF270 requires manual defrost. Remove all food, unplug the appliance, and leave the freezer door open. Place towels to absorb melting water. Do not use sharp tools to remove ice.

Why is my refrigerator making unusual noises?

Common noises include gurgling (refrigerant flow), clicking (thermostat), or vibration (uneven floor). Ensure the appliance is leveled and not touching the wall. If noise persists, contact service.

How do I clean the interior of my Khind RF270?

Unplug the fridge, remove all items and shelves. Wash interior with a mild detergent and warm water. Rinse and dry thoroughly before plugging back. Avoid using harsh chemicals.

What should I do if the refrigerator is not cooling?

Check if it's plugged in and the thermostat is not set to '0'. Ensure the condenser coils (back) are clean and there is adequate ventilation. If problem persists, call a technician.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and basic tools.

What type of refrigerant does the RF270 use?

The refrigerator uses R600a (isobutane) refrigerant, which is environmentally friendly. It is flammable, so handle with care and ensure proper ventilation.

How much space should I leave around the refrigerator?

Leave at least 10 cm behind and above the unit for proper airflow. Keep it away from direct sunlight and heat sources like ovens.

What is the energy consumption of the RF270?

The annual energy consumption is approximately 250 kWh based on standard usage. Actual consumption may vary depending on settings and ambient temperature.

Where can I find spare parts for my Khind refrigerator?

Contact Khind's authorized service centers or check online retailers. Common spare parts include door gaskets, shelves, and thermostats.

USER MANUAL RF270 Khind

model/型号 RF200/RF270/RF350

KHIND

Delivering Happiness

Abstract grayscale illustration of a world map with continents and a human silhouette, no text or symbols present.

••• Refrigerator / 冰箱 / Peti Ais

Instruction Manual / 说明指示书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书。并将之收藏以作日后参考。

This manual is also available online.

Safety Precaution Information

Attentions

Before using this product, please read through the instruction manual, and preserve the booklet for the later reference.

Safety & warning information

1. Always operate the appliance from a power source of the same voltage, frequency and rating as indicated on the appliance's rating marking.
2. This appliance is intended for household use only. Do not use outdoors. Do not use the appliance for any other purposes other than its intended use.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.
4. WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING! Do not damaged the refrigerant circuit.
7. WARNING! Do not use other electrical appliances (such as ice cream makers) inside of food storage compartment of the appliances, unless they are of the type recommended by the manufacturer.
8. WARNING! Any electrical components (plug, power, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
9. WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
10. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
11. WARNING! Do not locate multiple portable socket outlet or portable power supplies at the rear of the appliance.
12. WARNING! ▲ Risk of fire/ flammable materials
13. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
14. Do not stored bottled or canned drinks (especially carbonated drinks) in the freezer compartment.
15. The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
16. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and or electric shock.
17. This appliance should be placed in a cool dry place where there is no vicinity of water splashing or high humidity. This appliance should not be used in the immediate vicinity of water, such as bathtub, washbowls, swimming pools etc.
18. Always switch off and unplug the plug from outlet when not in use and before cleaning.
19. When the appliance is operating, the condenser and compressor will be hot.
20. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/frozen burns.
21. This appliance will create frost in the freezer compartment if the environment has high humidity or the appliance door is opened frequently.

Installation

1. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
2. This appliance must be grounded and the ground wire should not be connected to any heating pipe and gas pipe.
3. It is advisable to wait at least 4 hours before connecting the appliance to allow the oil to flow back in the compressor.
4. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

Safety Precaution Information

1. Avoid open flames and sources of ignition. The appliance must not be located to radiators or cookers.
2. Thoroughly ventilate the room in which the appliance is situated. Adequate air circulation should be around the appliance.
3. Never put the product against the wall or other products to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn. There should be at least 10 cm of free space from the back side, left/right sides, and the upper side of the product. Do not put things on top of the product. Make sure that the mains plug is accessible after installation of the appliance.

Daily Use

1. Do not put hot on the plastic parts in the appliance.
2. Frozen food must not be re-frozen once it has been thawed out.
3. Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
4. Appliances manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
5. Do not place carbonated of frizzy drinks in the freezer compartment as it creates pressure on the
   container, which may cause it to explode, resulting in damage to the appliance.
6. Ice lollies can cause frost burns if consumed straight from the appliance.

Energy Saving

1. Do not put hot food in the appliance.
2. Do not pack food close together as this prevents air circulating.
3. Make sure food don't touch the back of the compartments.
4. If the electricity goes off, don't open the door.
5. Do not open the doors frequently.
6. Do not keep the doors open for too long time.
7. Do not set exceeding cold temperatures.
8. Some accessories, such as drawer can be removed to get larger storage volume and lower energy consumption.

Service

Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized service centre and only genuine spare parts must be used.

Disposal

If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Safety Precaution Information

Cleaning & Maintenance

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

1. Always switch off the appliance and disconnect the mains plug from the mains socket before maintenance or cleaning the appliance.
2. Wrap the food and keep them in cool place.
3. Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.
4. Do not clean the appliance with metal objects.
5. Do not use sharp objects to remove frost or ice from the appliance. Use a plastic scraper.
6. Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid. Do not allow such substance to come into contact the appliance parts.
7. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
8. Clean the appliance and the interior accessories with a cloth and lukewarm water.
9. Use warm water to clean the oil and stains on the gasket in order to keep its elasticity.
10. After cleaning, wipe the appliance until it is completely dry. The appliance must be dry before it is placed back into service.
11. Regularly examine the drain in the refrigerator for defrosted water. If the drain is blocked, water will collect in the bottom of the appliance.

Setting the humidity in the crisper.

Low humidity: move the regulator to the left.

High humidity: move the regulatory to the right.

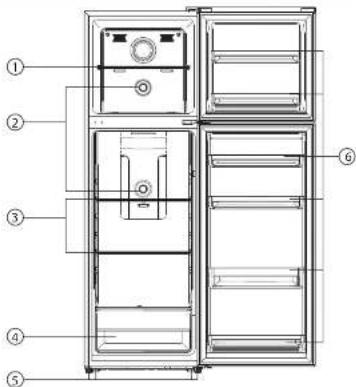

Parts Identifications

1. Shelf
2. Temperature Control Knob
3. Shelves
4. Crisper
5. Level Feet
6. Balconics

3
* Pictures are for illustration purpose only.

Specifications

Model	RF200	RF270	RF350
Voltage	220-240V~ 50Hz	220-240V~ 50Hz	220-240V~ 50Hz
Current	0.7A	0.7A	0.7A
Total Input Power	110W	110W	110W
Total Defrost Power	150W	150W	150W
Refrigerant	R600a(51g)	R600a(52g)	R600a(52g)
Compressor Type & Number	Hermatic/1	Hermatic/1	Hermatic/1
Condenscr Type	Hidden	Hidden	Hidden
Temperature Control	Electronic	Electronic	Electronic
Net Weight	46kg	50kg	57kg
Gross Weight	50kg	54kg	63kg
Net Volume	197L(Fridge:144L ; Freezer: 53L)	251L(Fridge:198L ; Freezer: 53L)	333L(Fridge:256L ; Freezer: 77L)
Gross Volume	216L	269L	356L
Product Dimension(LxWxH)mm	550 x 600 x 1430mm	550 x 600 x 1670mm	600 x 660 x 1700mm
Box Dimension (LxWxH)mm	575 x 622 x 1462mm	575 x 622 x 1710mm	640 x 702 x 1764mm

* Specifications are subject to change without prior notice.

How to Use

Installation

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag;

Left hinge x 1		left middle stopper x 1

1. Close upper door, take out the screw from the top hinge covers by cross screwdriver. Take off hinge cover, then unscrew top hinge and take off upper door.
2. Unscrew from the middle hinge by cross screwdriver, then take off the lower door.

4

How to Use

1. Laying down the refrigerator, take out the adjusting feet as below, then unscrew the lower hinge by cross screwdriver.

1. Unscrew and remove the bottom hinge, turn the bracket over and replace it.

→

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

1. Make the middle hinge reverse the direction 180°C, then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the screws.

1. Unscrew right middle stopper with metal block from bottom of upper door and then install left middle stopper and metal block in left side of bottom of upper door.

How to Use

1. Install the upper door, fix the upper door hinge onto the cabinet.

1. Take left hinge cover from accessories bag and install it with top hinge. Then install hole cover at right side.

Space Requirement

1. Select a location without direct exposure to sunlight.
2. Select a location with enough space for the refrigerator doors to open easily.
3. Select a location with level (omearly level) flooring.
4. Allow sufficient space to install the refrigerator on a flat surface.
5. Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

Levelling the unit

To do this adjust the 2 levelling feet at front of the unit.

- If the units is not level, the doors and magnetic seal alignments will not be covered properly.

How to Use

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100mm. Ideally, however the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical Connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestics power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C.Directives.

Using the Control Panel

Freezer compartment temperature setting

• Plug on your appliance. The internal temperature is controlled by a sensor. There are 3 settings: Cold, Colder & Coldest.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Fridge compartment temperature setting

• Plug on your appliance. The internal temperature is controlled by a sensor. There are 4 settings: OFF, COLD, COLDER & COLDEST. COLD is warmest setting and COLDEST is coldest setting, OFF is off
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.
  Neither fridge or freezer compartment works when the setting is OFF.

How to Use

First use cleaning the interior

Before using the appliance for the first time, wash the interior and all the internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep frozen food for a long time.
- Place the fresh food to be frozen in the bottom compartment.
- The maximum amount of food taht can be frozen in 24 hours is specified on the rating plate. - The freezing process lasts 24 hours during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics under "risingtime", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after-cooked).

Thawing

Deep frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories- Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

How to Use

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

1. The maximum quantity of food which can be frozen in 24 hours, is shown on the rating plate.

2. The freezing process takes 24 hours. No further food to be frozen should be added during this period.

3. Only freeze top quality, fresh and thoroughly cleaned, foodstuffs.

4. Prepare food in small portions to enable to be rapidly and completely frozen and to make it possible

subsequently to thaw only the quantity required

1. Wrap up the food in aluminium foil or polythene ans make sure that the package are airtight

2. Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of

the latter.

1. Lean foods store better and longer than fatty ones, salt reduces the storage life of food.

2. Water ices, if consumed immediately after removal from the freezer comparment, can possibly cause the skin to

be freeze burnt

1. It is advisable to show the freezing in date on each individual pack to enable you removal from the freezer

compartment, can possibly cause the skin to be freeze burnt

1. It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage

time.

Hints for stroage of frozen food

To obtain the best performance from this appliance, you should

- Make sure that the commercially frozen foodstuffs were adequately stored by the retailer, be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.

- Not open the door frequently or leave it open longer than absolutely necessary.

- Once defrosted, food deteriorates rapidly and cannot be refrozen.

- Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance :

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong flavour.

Hints for refrigeration

Useful hints

- Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

- Cooked foods, cold dishes, etc... these should be covered and may be placed on any shelf.

- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.

- Butter and cheese: there should be placed in special airtight containers or wrapped in aluminium foil of polythene bags to exclude as much air as possible.

- Milk bottle: these should have a cap and should be stored in the balconies on the door.

- Bananas, potatoes, onions and garlic, if not packed must not be kept in the fridge.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There will be some sound/noise during normal operation (compressor or refrigerant circulation)

Problem	Possible Cause Solution
Appliance does not work	Main plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains multifunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold.	Turn the temperature regulatory to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial temperature setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking section of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

△ 安全注意事项

注意事项

* 图片仅供参考。

规格

如何使用 如何使用

定位

* Gambar-gambar atau hal berugama jahisasi selujin

Spezifikasi

Model	RF200	RF270	RF350
Fokian	229-240V~50Hz	220-240V~50Hz	220-240V~50Hz
Aros	6.7A	9.7A	6.7A
Jenduk Injot Kausa	119W	110W	119W
Jenduk Injot Pencairon	150W	150W	150W
Penyejok	R600a(51g)	R600a(52g)	R600a(52g)
Jenis & Nombar Kompressor	Hermatic/l	Hermatic/l	Hermatic/l
Jenis Kondenser	Tersembanyi	Tersembanyi	Tersembanyi
Kasvaloa Suba	Elektronik	Elektronik	Elektronik
Beraat Bersih	46kg	36kg	57kg
Beraat Kaxar	26kg	54kg	65kg
Ispiala Berath	197L (Peli Ats:194L,Penyejok Belu: 53L)	251L(Peli Ats:198L;Penyejok Belu: 53L)	333L(Peli Ats:256L;Penyejok Belu: 77L)
Fripada Kaxar	216L	260L	356L
Dimensi Produk(LxWx1)mm	539 x 600 x 1430mm	550 x 600 x 1670mm	609 x 660 x 1700mm
Dimensi Kolak (LxWx1)mm	573 x 622 x 1462mm	573 x 622 x 1710mm	649 x 702 x 1783mm

Technical line drawing showing a mechanical assembly before and after assembly (no text or symbols)
