Product Type	Display Chiller (Refrigerator)
Model	KDS250
Brand	Khind
Capacity	250 L
Voltage	220-240 V ~ 50 Hz
Power Consumption	220 W
Current	1.4 A
Refrigerant	R134a (110 g)
Temperature Range	0°C to 10°C
Temperature Control	Manual Thermostat (0-7 positions)
Number of Shelves	4
Lamp Power	5 W + 5 W (Display and Compartment)
Lock & Key	Yes
Product Dimensions (L x W x H)	545 x 620 x 1727 mm
Net Weight	60.4 kg
Gross Weight	64.9 kg
Wheels	Yes (with adjustable foot screws)
Installation Clearance	At least 10 cm from walls for ventilation
Defrosting	Manual (do not use mechanical devices)
Cleaning	Use soft cloth with mild detergent; avoid water splashing
Safety Features	Child safety (lock door), electrical insulation, refrigerant circuit protection

Frequently Asked Questions - KDS250 Khind

What is the recommended waiting time before turning on the fridge after receiving it?

After receiving the fridge, do not switch it on for 12 hours. This allows the refrigerant to settle and prevents damage.

How long should I wait before restarting after a power cut?

Wait at least 5 minutes before restarting to avoid damaging the compressor.

What is the temperature range of the KDS250?

The inner temperature range is 0°C to 10°C, controlled by a manual thermostat.

Can I store hot food directly in the fridge?

No, hot food should be cooled completely before storing to maintain performance and avoid temperature fluctuations.

How should I clean the fridge?

Disconnect power, use a soft cloth dampened with mild detergent, then wipe dry. Never use harsh chemicals or hot water.

What should I do if there is water condensation on the glass door?

Condensation is normal in humid conditions. Wipe it away with a dry soft cloth.

Is the fridge equipped with a lock?

Yes, it has a key lock to secure the door, especially useful for child safety.

How many shelves does the KDS250 have?

It comes with 4 shelves. Maximum load per shelf is 20 kg.

What type of refrigerant does it use?

It uses R134a refrigerant (110 g). Do not damage the refrigerant circuit.

What are the dimensions of the product?

The product dimensions (LxWxH) are 545 x 620 x 1727 mm. Allow at least 10 cm clearance around for ventilation.

USER MANUAL KDS250 Khind

Abstract grayscale illustration of a globe with Earth and oceans, no text or symbols present

Display Chiller/冷冻陈列柜/Peti Pendingin

Instruction Manual / 说明指示书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

1. All repairs, disassembly and modifications must be performed by qualified technicians. Attempting to perform these operations by yourself can result in fire, mal-function and injury.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. Do not splash water directly onto unit or wash unit with water. These actions can result in short circuit or electrical leakage.

2. Do not put inflammable liquids or volatile substances into unit. Fire or explosion may occur.

3. Do not modify, damage, excessively bend, strain, twist or bundle power cord.

4. Do not place heavy objects on power cord.

5. This unit is intended to cool or store bottled water or canned beverages. Do not use this unit for other purposes as it can adversely affect performance.

6. Do not attempt to insert fingers or objects into air suction compartment.

7. Do not place objects or items containing water on top of unit.

8. If gas leakage is detected near or around unit, do not touch or open unit's door. Open windows or door to ventilate air. Find gas and plug leakage before operating the unit.

9. Should the unit need to be placed in temporary storage, ensure that the location is not accessible to children. And lock or tape the door from opening. This will minimize risk of children trapped in the air tight compartment.

10. When moving unit to another location, always unplug from mains.

11. Do not place more than 20 kg on top of each shelf.

12. Connecting the power to check the showcase before using. The showcase can be used when the temperature decreases obviously after 30 minutes.

13. If power cut-off is needed, you should wait for at least 5 min before plugging in again to avoid damage to the compressor.

14. Adjust the dial according to the real room temperature, the quantity of the foodstuff stored.

15. Hot food should be stored only after it is completely cold.

16. Packing foods with plastic bag to avoid tastes mixing and frost.

17. WARNING: Keep ventilation opens, in the appliance enclosure or in the built-in strutre, clear of obstruction.

18. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

19. WARNING: Do not damage the refrigerant circuit.

20. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer.

Cleaning & Maintenance

1. Do not open the door frequently and too long to save energy.

2. Never leave heavy or hot objects on top panel or the showcase to avoid deforming.

3. Cut off the power before cleaning.

4. To clean the showcase, please use soft cloth dampened in some moderate detergent. After cleaning, wipe in dry, never use all kinds of detergent and hot water.

5. Use warm water to clean oil fruit juice stain on the magnetic gasket in order to keep its elasticity.

6. The showcase should not be left unused for a long time. To stop using the showcase, disconnect the main power first, then clean the inside and leave the door open for 2-3 days to dry it.

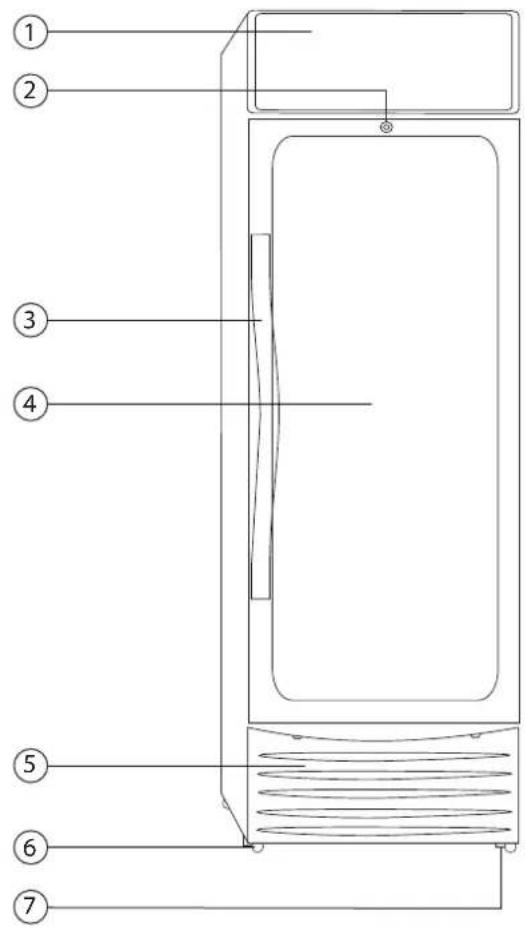

Product Identification

① Display Light Box
② Key Lock
③ Handle
④ Door
⑤ Door Pad
⑥ Wheel
⑦ Adjustable Foot Screw

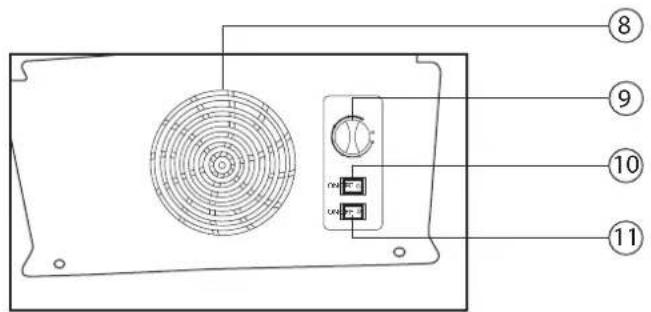

⑧ Evaporator Fan
⑨ Thermostat Box Knob
⑩ Display Light Box Button
⑪ Compartment Light Button

*Pictures are for illustration purpose only.

Specifications

Model	KDS250	KDS350
Voltage	220-240V~ 50Hz	220-240V ~ 50Hz
Power	220W	230W
Lamp Power	5W + 5W	5W + 5W
Current	1.4A	1.45A
Capacity	250L	350L
Refrigerant	R134a(110g)	R134a(127g)
Number of Shelves	4	5
Temperature Controller Type	Manual	Manual
Inner Temperature Range	0-10°C	0-10°C
Lock & Key	Yes	Yes
Net Weight	60.4kg	71.4kg
Gross Weight	64.9kg	76.4kg
Product Dimension (LxWxH)	545 x 620 x 1727mm	600 x 675 x 1877mm
Box Dimension (LxWxH)	585 x 630 x 1756mm	645 x 675 x 1916mm

* Specifications are subject to change without prior notice.

WARNING! INSTALLATION SHOULD BE PERFORMED BY THE DEALER OR A QUALIFIED EXPERT. ATTEMPTING TO INSTALL THE UNIT YOURSELF COULD RESULT IN WATER LEAKAGE, REFRIGERANT LEAKAGE, ELECTRIC SHOCK OR FIRE.

1. When you transport the showcase, the angle between the compartment body and the ground should be no less than 45^ and you should never place the showcase upside down.
2. Do not use any of the external part as loading points, such as the door.
3. When the showcase is installed or used, the entire package(Including board and foam plastic) should be got rid of.
4. Keeping the showcase stable to avoid vibration and noise.
5. The showcase should be installed in the place with good ventilation. A space of at least 10cm (4 inches) should be allowed between the surrounding wall and the cabinet wall for air circulation.
6. It should be placed far from heating resource and not under direct sunshine to avoid decrease of the efficiency of refrigeration.
7. Install the showcase in a dry place so as to prevent rust on the compartment body, which may affect the electric insulation.
8. Water condensation may appear on the exterior and on the glass door during hot and humid days or depending on the place of installation. This is normal. Wipe away condensation with a dry soft cloth.

WARNING! DO NOT SWITCH ON THE DISPLAY CHILLER FOR 12 HOURS AFTER RECEIVING IT.

WARNING! RESTARTING THE UNIT IMMEDIATELY AFTER SWITCHING OFF POWER MAY CAUSE THE UNIT TO MAL-FUNCTION. WAIT 5 MINUTES BEFORE RESTARTING THE UNIT.

How to Use Wheel & Foot Screw

1. You can use the wheels and the foot screws to stop moving of the showcase.
2. Remember to lift the foot screws when moving the showcase.

Notes :

1. There will be sound of flowing water when the refrigerant is running.
2. When the environment humidity is too high, there will be dew condensed on the surface of the showcase.
3. While working, the condenser and the compressor will be hot.

Tip

1. Do not allow items to obstruct the cold air inlets or the suction outlets.
2. Placed items should not protrude from shelves.
3. Make sure that there are adequate gaps between shelves for air circulation.
4. Place items evenly on all shelves
5. All items must be placed on shelves and not on bottom of compartment.

The cabinet temperature is controlled by the thermostat on the panel. The thermostat can set a suitable temperature range according to different ambient temperatures and different kinds and quantity of goods.

On the thermostat knob, there are positions from 0 to 7.

(Note: Position 0 - 7 identify refrigerations, not temperatures.)

Position 1 = Highest setting temperature

Position 7 = Lowest setting temperature (keep cooling all the time)

Position 0 = The compressor stops working

The display light box button and compartment light button are placed under the panel.

Press"O" to off

Press“I” to on

Tip

1. Adjust the thermostat knob to maximum position, to cool down the display chiller.
2. Do not put in any food-stuff for 4\~5 hours.

Troubleshooting

Trouble	Reason Solution
Do not cooling - The plug does not fit the socket well- The protector or the fuse has broken off- The power is off	Fit the plug wellChange the fuse
Loud noise - The placing base is too soft, or the unit is inclining- The wheels do not touch the floor well- The cabinet is too close to the wall- There are other objects directly touching the unit	Mount wood at the bottomAdjust the wheel screwKeep a certain distance from the wallTake the objects away
There are smells inside the unit	- The cool air exit is blocked- Food with strong smell is not packed	Take away the food near to the exitPack the food well
The compressor does not stop	- The food temperature is too high or there are too much food inside- Open the door too frequently or the door is not well closed- Directly under the sunshine or too close to the heat resource- The ventilation is not good	Put the food in after cooling or reduce the quantityClose the door tightlyKeep off the heat resourceKeep certain space for ventilation
