Brand	Caretero
Model	Fortis
Product Type	Car Seat (Group 0+/1/2/3)
Suitable for	Children from 40 to 150 cm height (approx. birth to 12 years)
Weight Capacity	Up to 36 kg
Installation Methods	ISOFIX + stabilizing leg + 5-point harness; ISOFIX + 3-point vehicle belt; 3-point vehicle belt only
Orientation	Rear-facing (40-105 cm) and Forward-facing (76-150 cm)
Harness Type	5-point adjustable harness (stowable for 3-point belt use)
Headrest Adjustment	Adjustable height via pull ring
Recline Positions	4 positions (forward-facing)
Safety Standard	ECE R129/03 approved
ISOFIX Indicators	Green (correct) / Red (incorrect) on rails
Stabilizing Leg	Adjustable with green indicator for correct positioning
Seat Rotation	Yes, via lever for easy orientation change
Cleaning Instructions (Upholstery)	Remove cover; hand wash or machine wash delicate 30°C; do not bleach, tumble dry, or iron
Cleaning Instructions (Plastic)	Wipe with damp cloth and mild soap
Materials	High-quality plastic shell, fabric upholstery
Weight (Seat Only)	Approx. 12 kg
Dimensions (Approx.)	65 x 48 x 58 cm
Spare Parts	Available from Caretero (contact via www.caretero.pl)
Warranty	Subject to terms; modifications void warranty

Frequently Asked Questions - Fortis Caretero

How do I install the car seat using ISOFIX?

First, straighten the stabilizing leg and place the seat in the car. Connect the ISOFIX guides to the car's anchors, extend the ISOFIX rails, push the seat until you hear a click, and ensure both ISOFIX indicators turn green. Adjust the leg so it rests on the floor with green indication.

Can I use this seat rear-facing for a newborn?

Yes, the seat is suitable rear-facing for children from 40 cm (approx. newborns). Use the reducing insert and additional headrest for children 40-75 cm tall, and always use the 5-point harness.

How do I switch from rear-facing to forward-facing?

Pull the seat rotation lever to rotate the seat. Ensure the stabilizing leg is adjusted correctly. You may also need to adjust the recline position (1-4) for forward-facing.

How do I adjust the headrest?

Simply pull the headrest ring to raise or lower the headrest. It should be positioned close to your child's head for maximum safety.

How do I clean the upholstery?

The upholstery cover is removable. Wash it by hand or in a machine on a delicate cycle at max 30°C. Do not use bleach, tumble dry, or iron. Plastic parts can be wiped with a damp cloth and mild soap.

What are the weight and height limits for this seat?

The seat is designed for children from 40 cm up to 150 cm in height. Weight capacity is up to 36 kg. Always follow the orientation guidelines: rear-facing from 40-105 cm, forward-facing from 76-150 cm.

Can I use the seat with a 3-point vehicle belt without ISOFIX?

Yes, the seat can be installed forward-facing using only the 3-point car seat belt. For rear-facing, ISOFIX and stabilizing leg are required. Refer to the manual for proper belt routing.

How do I know if the ISOFIX is properly installed?

Check the ISOFIX indicators on both sides of the seat: they must be green. If red, reinstall the seat. Also shake the seat to ensure it is firmly attached.

Is the seat compatible with my car?

The seat is suitable for vehicles fitted with approved 3-point safety belts (ECE R16 or equivalent) and ISOFIX anchors if used. Check your car manual for ISOFIX positions. Do not use in seats with 2-point lap belts.

What should I do after an accident?

After even a minor accident (at speeds >10 km/h), the car seat may be damaged without visible signs. You should replace the seat with a new one. Do not use it again.

USER MANUAL Fortis Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Blue circular logo with a stylized white abstract shape inside, resembling a stylized brain or organ (no text or symbols)

FORTIS

Line drawing of a CARETE car seat assembly (no text or symbols on the diagram itself)

CARETERO

FORTIS

Thank you for choosing the Caretero FORTIS car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

Simple line drawing of a mechanical component with a green checkmark icon (no text or symbols)

Simple line drawing of a mechanical part with a red circular warning symbol (no text or labels)

Three abstract shapes: a curved bracket, an orange left-pointing arrow, and a gray plastic housing (no text or symbols)

Line drawing of a hand pressing down on a curved mechanical component (no text or symbols)

Line drawing of a person using a device on a seatbelt, with no visible text or symbols

TYŁEM DO KIERUNKU JAZDY + ISOFIX + NOGA STABILIZUJĄCA + 5-PUNKTOWE PASY

REAR FACING + ISOFIX + STABILIZING LEG + 5-POINT BELTS

RÜCKWÄRTSGERICHTET + ISOFIX + STABILI-SIERENDES BEIN + 5-PUNKT-GURTE

PL

Straighten the seat leg and place the seat in the car. Adjust the length of the leg so that it rests on the floor in the car.

The correct positioning of the leg is signaled by the green color.

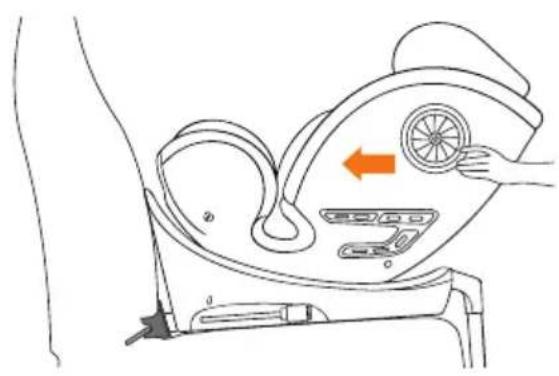

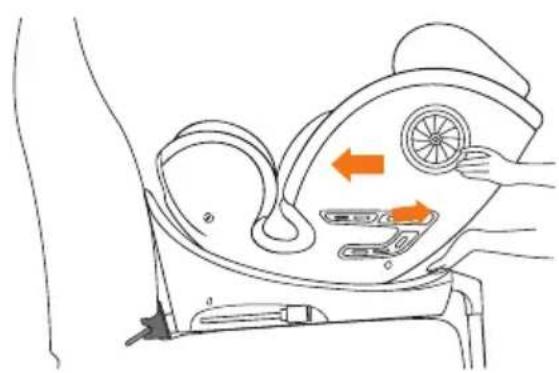

Pull the seat rotation lever and set the seat rearward facing.

Connect the ISOFIX guide to the hook.

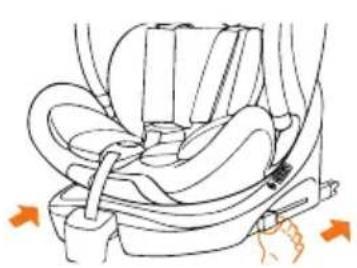

Use the buttons to release the ISOFIX on both sides of the seat and slide the rails out of the seat to the end.

Install the seat by connecting the ISOFIX of the seat to the car's hooks.

DE

Line drawing of a car seatbelt device with orange arrow indicating left side (no text or symbols)

PL

Push the seat until you hear a "click".

Make sure that the ISOFIX indicators on both sides of the seat are green - this means that the hooks are installed correctly. If the indicator is red you need to connect the car seat again.

Carefully push the seat against the backrest.

Shake the seat to make sure it is properly installed.

DE

Squeeze the belt adjuster and pull the seat belts (not the shoulder pads).

Press the red button on the buckle of the 5-point belts to unfasten them.

Open the belts and place the child in the seat.

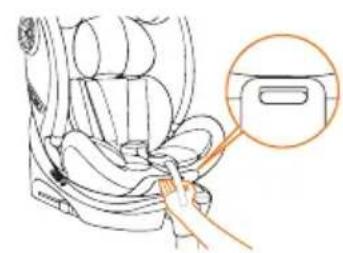

Adjust the headrest height by pulling the headrest ring.

The headrest should always be well adjusted to the child's head to ensure the highest level of safety.

Fasten the belts by connecting the 2 metal parts and inserting them together into the buckle of the 5-point belts.

DE

Anatomical illustration of pelvic and hip joint structures with a hand pointing to a specific area (no text or labels present)

Illustration of a child wearing a car seatbelt, with a hand pointing to the seatbelt and a green checkmark (no text or symbols)

Illustration of a car seat assembly with two seats and a highlighted seatbelt (no text or symbols)

PL

Tighten the 5-point harness.

Check if you are able to put your hand between the belts and the child's body. The straps must not be too tight or too loose.

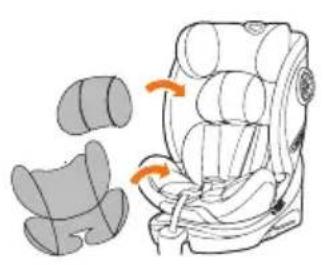

Always use the reducing insert and additional headrest when transporting children 40-75 cm tall.

DE

Simple line drawing of a mechanical bracket with a green checkmark icon (no text or symbols)

Simple line drawing of a mechanical part with a red X symbol indicating absence or error (no text or symbols present)

Line drawing of a car seat with a hand inserting a clip, showing no text or symbols

Three abstract shapes: a curved bracket, an orange left-pointing arrow, and a gray irregular shape (no text or symbols)

Line drawing of a car seatbelt with hand and foot movement arrows (no text or symbols)

PRZODEM DO KIERUNKU JAZDY + ISOFIX + NOGA STABILIZUJĄCA + 5-PUNKTOWE PASY FORWARD FACING + ISOFIX + STABILIZING LEG + 5-POINT BELTS

Straighten the seat leg and place the seat in the car. Adjust the length of the leg so that it rests on the floor in the car.

The correct positioning of the leg is signaled by the green color.

Pull the car seat rotation lever and set the car seat facing forward. Set the inclination of the seat in positions 1 to 4.

Connect the ISOFIX guide to the hook.

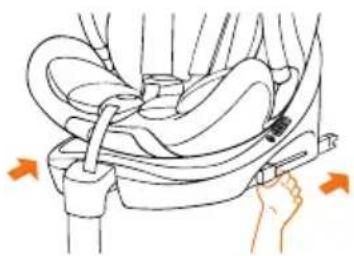

Use the buttons to release the ISOFIX on both sides of the seat and slide the rails out of the seat to the end.

Install the seat by connecting the ISOFIX of the seat to the car's hooks.

DE

While holding the seat, insert the ISOFIX anchors into the anchors in the car.

A "click" will mean the ISOFIX engages.

Make sure that the ISOFIX indicators on both sides of the seat are green - this means that the hooks are installed correctly. If the indicator is red you need to connect the car seat again.

Push the car seat against the backrest in the car.

DE

Shake the car seat to check if it is correctly installed. Squeeze the belt adjuster and pull the seat belts (not the shoulder pads).

Press the red button on the buckle of the 5-point belts to unfasten them.

Open the belts and place the child in the seat.

Adjust the headrest height by pulling the headrest ring.

DE

The headrest should always be well adjusted to the child's head to ensure the highest level of safety.

Fasten the belts by connecting the 2 metal parts and inserting them together into the buckle of the 5-point belts.

Tighten the 5-point harness.

Check if you are able to put your hand between the belts and the child's body. The straps must not be too tight or too loose.

DE

Illustration of a car seatbelt buckle being held, showing hand positioning and color change (no text or symbols)

Line drawing of a mechanical device with an orange arrow indicating direction (no text or symbols)

Illustration of two hands holding a tool, one with orange arrows indicating direction (no text or symbols)

Diagram of a mechanical component with orange arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with two vertical cylindrical elements inside a housing (no text or symbols)

Illustration of a handheld device with a red button and a coiled cable (no text or symbols)

PRZODEM DO KIERUNKU JAZDY + 3-PUNKTOWE PASY SAMOCHODOWE

FORWARD FACING + 3-POINT CAR BELTS

NACH VORNE GERICHTET + 3-PUNKT-AUTOGURTE

PL

Rozepnij 5-punktowe pasy fotelika.

Unfasten the 5-point harness of the seat.

Lift the flap on the backrest of the seat.

Press the belt tension release button and pull the shoulder parts of the 5-point belts (not the shoulder pads).

Release the button and open another flap in the backrest.

Store the shoulder straps inside the backrest.

Pass the crotch part of the belt with the buckle through the seat upholstery.

DE

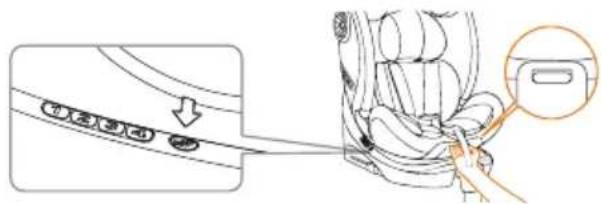

Set the backrest angle to position 1 and place the child in the seat.

Adjust the headrest height by pulling the headrest ring.

The headrest should always be well adjusted to the child's head to ensure the highest level of safety.

Fasten the 3-point car belts so that the diagonal part of the belt passes through the guide between the backrest and the headrest, the transverse part of the belt should pass over the child's pelvis.

Tighten the belt properly for your child's safety.

Make sure the belt is not knotted or twisted.

DE

Line drawing of a car comfort seat with seatbelt and seatbelt seat (no text or symbols)

Line drawing of a car seatbelt buckle being adjusted for a button (no text or symbols)

Three abstract shapes: a bent pipe, an orange left-pointing arrow, and a gray bracket with three vertical tick marks (no text or symbols)

Line drawing of a car seat assembly with orange arrows indicating force or movement (no text or symbols)

Line drawing of a person's abdomen with a hand holding the seat, showing no text or symbols

PRZODEM DO KIERUNKU JAZDY + ISOFIX + 3-PUNKTOWE PASY SAMOCHODOWE

FORWARD FACING + ISOFIX + 3-POINT BELTS

VORWÄRTSGERICHTET + ISOFIX + 3-PUNKT-GURTE

PL

Remove the reducing insert and hide the 5-point harness of the seat.

Adjust the seat tilt to 1 position.

Connect the ISOFIX guide to the anchor in the car's backrest.

Fully extend the ISOFIX rails on both sides of the seat.

Hold the seat and connect the ISOFIX to the anchors in the car's backrest.

A "click" will indicate a successful ISOFIX installation.

DE

Line drawing of a person using a bicycle seatbelt device with an orange arrow indicating motion (no text or symbols)

Line drawing of a person using a device on a vehicle, with two orange arrows indicating motion direction (no text or symbols)

Line drawing of a child seated in a car seat, no text or symbols present

PL

Check the indicators on the ISOFIX rails each time you install them. Green color means correct assembly, red means incorrect assembly - re-install the car seat.

Push the car seat against the backrest of the car.

Shake the seat to make sure it is properly installed.

Put the child in the seat.

DE

Adjust the headrest height by pulling the headrest ring.

The headrest should always be well adjusted to the child's head to ensure the highest level of safety.

Fasten the 3-point car belts so that the diagonal part of the belt passes through the guide between the backrest and the headrest, the transverse part of the belt should pass over the child's pelvis.

Tighten the belt properly for your child's safety.

Make sure the belt is not knotted or twisted.

DE

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

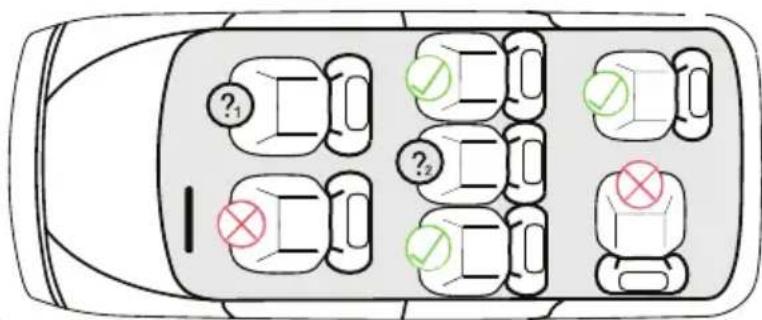

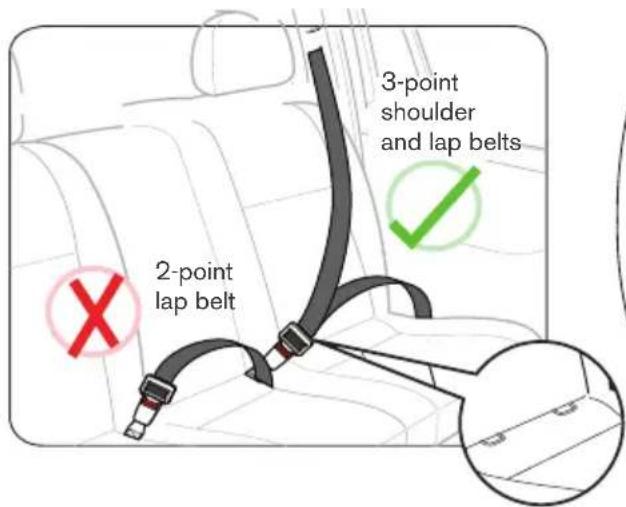

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

• The shoulder belt pads are important in keeping the child safe. Please use them at all times.
• While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.
• In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).
• Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

• Please use the Caretero Huggi seat only to secure your child in the car.
• The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.
• It is forbidden to use the car seat as a chair or a toy.
• During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.

- Please remember to recycle the seat properly when it won't be used anymore.

- Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).

- Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.

• It is forbidden to lubricate any parts of the seat.
• Check if the car seat is installed properly before each trip.
• Do not use or transport the car seat when it is not properly installed in the car.
• Do not use other fixing points other than those described in this manual and marked on the car seat itself.
• Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.

- Never leave the child in the car seat unattended.

- Make sure that the child enters and exits the car on the sidewalk side of the street.

- Protect the car seat against sunlight while it's not in use.

- The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.

- The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.

- Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.

- When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).

- Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

This car seat has been designed, tested and certified according to the European Norm for baby car seats (ECE R 129/03). The evaluation mark E (in a circle) and the certificate number are located on an orange sticker placed on the seat shell.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX (found between the seating and backrest of a car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

Installation of the child seat is FORBIDDEN if the passenger seat is equipped with a 2-point seat belt only.

7 CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero FORTIS seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C).

Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

Learn more about brand Caretero.

Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Street, 43-190 Mikolow, Poland

[phone]

e-mail: [e-mail], www.caretero.pl

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Str., 43-190 Mikolow, Polen

[phone]

e-mail: [e-mail], www.caretero.pl
