Tiger i-Size - Car seat Caretero - Free user manual and instructions

Product Type	Car Seat
Model	Tiger i-Size
Brand	Caretero
Weight Group	Group 1/2/3 (approximately 9-36 kg)
Height Range	76-150 cm
Age Range	Approximately 15 months to 12 years
Installation Method	ISOFIX + Top Tether or Vehicle Seat Belt
Dimensions (H x W x D)	Approx. 63 x 44 x 54 cm
Net Weight	Approx. 8.5 kg
Forward-Facing	Yes
Side Impact Protection	Integrated side protection system
Headrest Adjustment	11 positions, height-adjustable
Recline Positions	3 positions (including sleep position)
Harness System	5-point harness for Group 1; vehicle belt for Groups 2/3
Cover Removal	Removable and machine washable at 30°C
Cleaning Instructions	Hand wash plastic parts with mild soap; do not use abrasive cleaners
Safety Certification	ECE R129 (i-Size) compliant
Expiration Date	6 years from date of manufacture
Spare Parts Available	Contact Caretero customer service
Warranty	2 years

Frequently Asked Questions - Tiger i-Size Caretero

How do I install the Caretero Tiger i-Size car seat?

The seat can be installed using ISOFIX connectors and a top tether for forward-facing mode, or using the vehicle's 3-point seat belt with the seat in belt installation mode. Always refer to the vehicle and seat manuals for proper installation.

What is the height and weight range for the Tiger i-Size?

It covers children from 76 cm to 150 cm tall (approximately 9-36 kg), suitable from around 15 months to 12 years.

Can I use the Tiger i-Size in a rear-facing position?

No, the Tiger i-Size is designed for forward-facing use only, from 76 cm onwards.

How do I clean the car seat cover?

The cover is removable and machine washable at 30°C on a gentle cycle. Do not bleach or tumble dry. Plastic parts can be wiped with a damp cloth and mild soap.

What safety certifications does this seat have?

It complies with the ECE R129 (i-Size) regulation, providing enhanced side impact protection and improved installation standards.

When does the car seat expire?

The seat has a lifespan of 6 years from the date of manufacture. Check the label under the seat for the production date and expiry.

Can I use the Tiger i-Size on an airplane?

Yes, it is FAA-approved for use on aircraft when installed with the vehicle belt. Check with your airline for specific requirements.

What is the difference between i-Size and previous standards?

i-Size (ECE R129) uses height-based fitting instead of weight, requires ISOFIX installation, and includes stricter side impact tests and mandatory rear-facing until 15 months.

How do I adjust the headrest and harness height?

Squeeze the lever at the top of the headrest and slide it up or down. The harness height and headrest adjust simultaneously.

Where can I find the user manual?

The manual is included in the box or can be downloaded for free from the Caretero website or notice-facile.com in PDF format.

USER MANUAL Tiger i-Size Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Simple line drawing of a stylized object resembling a bag or container, no text or symbols present

TiGER.

I-SIZE

CARETERO

TiGER.

I-SIZE

Thank you for choosing the Caretero TIGER I-SIZE car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure his or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

EN This booster seat is meant to be used with children between 125 and 150cm . Do not use the seat if the child's height exceeds these limits!

EN To properly secure your child in the seat, place the child in the seat and fasten the seat belt, making sure that the lap section of the belt is under the seat armrests and the entire belt is not twisted.

Illustration of a person lying down on a cushion with a red arrow indicating compression or force (no text or symbols)

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 125 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

• The shoulder belt pads are important in keeping the child safe. Please use them at all times.
• While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.
• In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).
• Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

• Please use the Caretero TIGER I-SIZE seat only to secure your child in the car.
• The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.
• It is forbidden to use the car seat as a chair or a toy.
• During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.
• Please remember to recycle the seat properly when it won't be used anymore.
• Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).
• Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.
• It is forbidden to lubricate any parts of the seat.
• Check if the car seat is installed properly before each trip.
• Do not use or transport the car seat when it is not properly installed in the car.
• Do not use other fixing points other than those described in this manual and marked on the car seat itself.
• Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.
• Never leave the child in the car seat unattended.
• Make sure that the child enters and exits the car on the sidewalk side of the street.
• Protect the car seat against sunlight while it's not in use.
• The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.
• The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.
• Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.
• When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).
• Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

This car seat has been designed, tested and certified according to the European Norm for baby car seats (ECE R 129/03). The evaluation mark E (in a circle) and the certificate number are located on an orange sticker placed on the seat shell.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

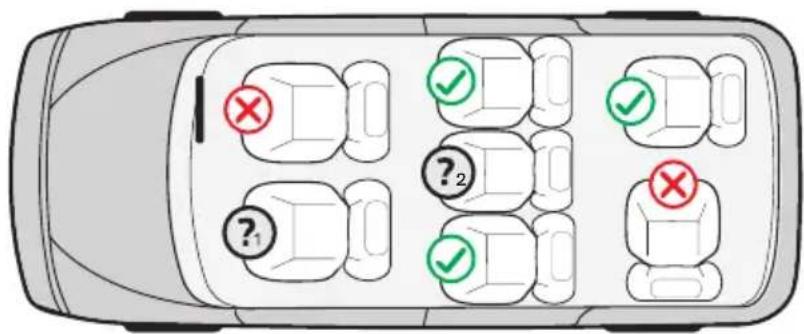

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX (found between the seating and backrest of a car seat) and 3-point car safety belts	Yes

Proper placement

Improper placement

Do not place the seat on a seat with an active airbag.

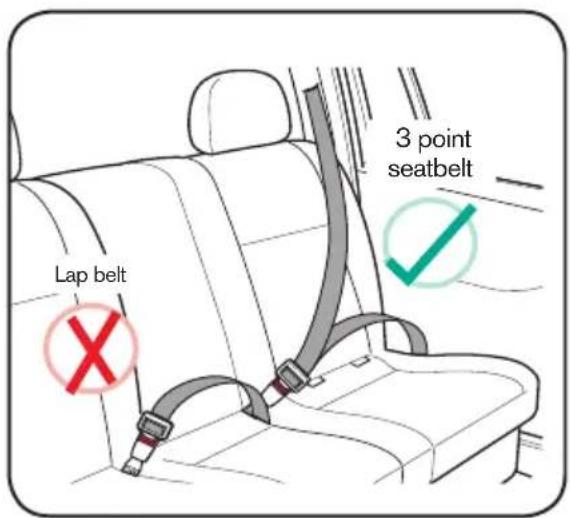

Installation is only possible if the seat is equipped with 3-point seat belts.

4

EN

CLEANING AND MAINTENANCE

Remember to use only the original Caretero TIGER I-SIZE cover (upholstery), as it is an integral part of the seat and plays an important role in its proper functioning.

• It is forbidden to use the child seat without a cover

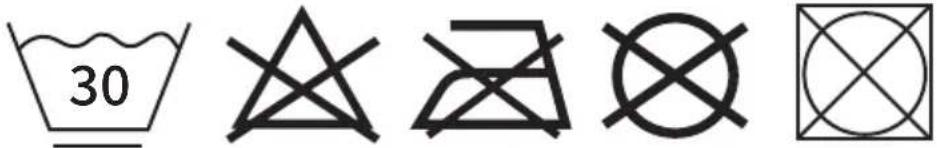

• It is recommended to hand wash the cover in water with a mild detergent (at a temperature of up to 30^ )
• Plastic elements can be cleaned using soapy water (it is forbidden to use aggressive cleaning agents, e.g. solvents)
  • The belts can be cleaned using lukewarm soapy water
  • The shoulder pads can be cleaned using lukewarm soapy water
  • The plastic parts of the seat should be cleaned with a damp cloth
• Do not use strong detergents to clean the plastic elements of the seat, as this may lead to degradation and damage to these elements

Illustration of a person lying down on a car seat with a red arrow indicating motion (no text or symbols)

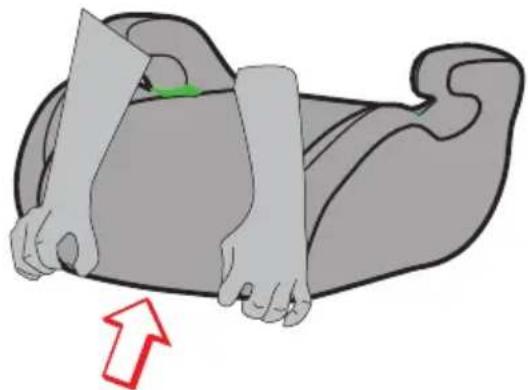

To remove the cover from the seat, hold the cover as shown in the picture and pull in the direction of the arrow.

Illustration of a person lying down on a dog's back with a red arrow indicating movement (no text or symbols)

Learn more about brand Caretero.

Scan the code QR.

MANUFACTURER:

IKS 2 MUCHA SP. J.

9 Rybnicka Street, 43-190 Mikolow, Poland

[phone]

e-mail: [e-mail], www.caretero.pl
