EXSI SG300 - Food Dehydrator Eldom - Free user manual and instructions

Product Type	Food Dehydrator
Brand	Eldom
Model	EXSI SG300
Number of Trays	5
Tray Material	Plastic, BPA-free
Temperature Range	35°C – 70°C
Temperature Control	Adjustable thermostat
Timer	0 – 24 hours
Power Consumption	500 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	34 x 34 x 27 cm
Weight	3.5 kg
Cord Length	1.2 m
Overheat Protection	Yes
Dishwasher Safe Trays	Yes (top rack)
Maintenance	Wipe body with damp cloth; wash trays with mild detergent
Spare Parts Available	Trays and mesh sheets sold separately
Repairability	Modular design; motor and heating element replaceable
Certifications	CE, RoHS
Included Accessories	5 stacking trays, mesh sheet, user manual
Warranty	2 years

Frequently Asked Questions - EXSI SG300 Eldom

How do I use the Eldom EXSI SG300 food dehydrator?

Place sliced food on trays, set temperature (35-70°C) and timer (up to 24h), then press start. Refer to manual for recommended times.

Can I dehydrate meat or jerky?

Yes, but ensure meat is lean and cut thin. Set temperature to at least 65°C to meet food safety guidelines.

How do I clean the dehydrator?

Unplug and let cool. Wash trays in warm soapy water or dishwasher (top rack). Wipe the base with a damp cloth. Do not immerse in water.

What is the maximum load per tray?

Do not overload; spread food in a single layer for even drying. Typically 300-500g per tray depending on food type.

Why is the dehydrator not heating?

Check power connection and ensure timer is set. If still no heat, overheat protection may have activated; let cool and reset.

Can I dry herbs and flowers?

Yes, use low temperature (35-40°C) to preserve essential oils. Check often to avoid over-drying.

Is the dehydrator noisy?

The fan produces a low hum. Normal operation is around 45 dB, similar to a quiet conversation.

Can I use parchment paper inside?

Yes, but cut to fit and ensure it does not block airflow. Perforated silicone mats are recommended for sticky foods.

How long does it take to dry fruit?

Typically 6-12 hours depending on thickness, moisture, and temperature. Apple slices take about 8 hours at 60°C.

Where can I buy spare trays?

Spare trays are available from Eldom authorized dealers or online stores. Use model EXSI SG300 to find compatible parts.

USER MANUAL EXSI SG300 Eldom

Modern outdoor steamer with multi-tiered food preparation unit (no visible text or symbols)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

Read the operating instructions carefully before use.

1. Connect the connecting cable to the socket according to the specifications given in the instructions.

2. Using an extension cord with this appliance is not recommended. However, if it is necessary to use an extension cord, make sure that its ratings are compatible with those of the device to avoid overheating. Do not use the extension cord to supply any other device at the same time. Do not use the extension cord where it can be pulled by children or animals, or cause a risk of tripping

3. Do not use for more than 40 hours at a time. When the appliance has operated continuously for 40 hours, turn it off (the switch should be in the "OFF" position), unplug it from mains and allow it to cool down.

4. Do not use the device outdoors.

5. Do not hold the device with wet hands.

6. Do not leave the device in use unattended.

7. This equipment may be used by children at least eight years of age and by persons with reduced physical and mental capabilities and persons lacking experience and knowledge of equipment, if supervision or instruction is provided regarding the safe use of the equipment so that threats related thereto were understandable. Children should not play with equipment. Unattended children should not perform cleaning and maintenance of the equipment.

8. Take special care when children are near the device. Children should be supervised to ensure that they do not play with the device.

9. Place the device on a flat, stable and heat-resistant surface.

10. Always disconnect the device from the power supply by pulling on the plug and not on the power cord.

11. Do not hang the cord on sharp edges and do not let it touch hot surfaces.

12. Disconnect the device from the power supply if it is not in use and before cleaning it.

13. Turn off the device first before removing the plug from the wall socket.

14. Do not immerse the base with the motor, cord and plug in water or other liquids.
15. Do not use a damaged device even if the power cord or plug is damaged. In this case, have your device repaired by an authorized service centre.
16. This appliance is intended for home use only. Do not use the device for any purpose other than intended use.
17. Do not move or displace the device during use.
18. Do not place anything on the device cover.
19. Do not cover the device during operation.
20. Do not use the device near flammable materials such as furniture, bedding, paper, clothes, curtains, etc.
21. Do not place the device near other electrical appliances, burners, stoves, ovens, etc.
22. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.
23. Eldom Sp. z o. o. shall waive any liability for any damages resulting from user's operating the device improperly.

EN

INSTRUCTION MANUAL

ROTARY FOOD DEHYDRATOR SG300

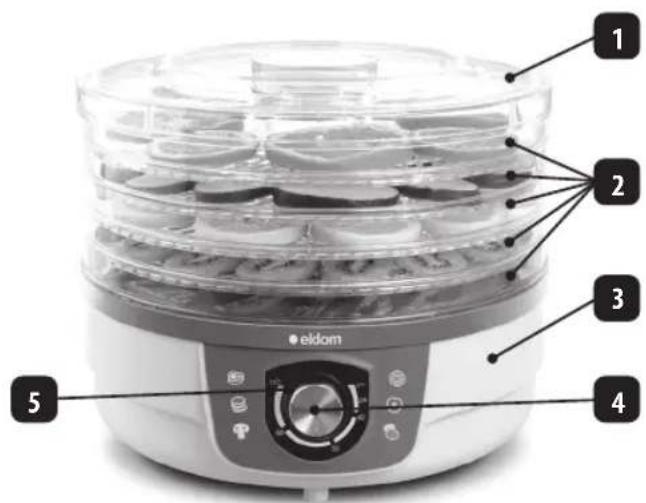

GENERAL DESCRIPTION

1. Lid
2. Screens (5 pcs)
3. Base
4. Power switch/temperature control
5. Indicator light

TECHNICAL DATA

• power output: 250 W
• power supply voltage: 220-240 V, \~ 50 Hz
• temperature control: 40-70°C
• acceptable continuous use: 40 hours
• break before resuming to use: 2 hours

INTENDED USE

Drying is an effective way to preserve food. Warm air at a constant and adjustable temperature circulates freely inside the appliance between the top and bottom covers, the screens and the power base. Therefore, the products in the appliance sections are dried evenly and with minimal loss of health-promoting vitamins. Drying efficiency in the SG300 dryer is increased by rotary screens. This way you will enjoy fruits, vegetables and mushrooms that are prepared without unhealthy substances all year round.

You can use the SG300 dryer to dry most food products including:

• mushrooms,
• fruits,
• meat (beef, poultry),
• pasta,
• vegetables - e.g. to prepare healthy instant meals (without preservatives),
• plants (flowers, leaves),
• herbs, spices,
• candied fruits for later processing into instant juice.

USE

After unpacking the appliance, make sure that it has not been damaged during transport. In case of any doubts, do not use the appliance until the service station has been contacted. Connect the power cord to the mains with specifications matching those on the rating plate.

Wash the screens (2) and lid (1) before the first use.

OPERATION

• Make sure that the appliance is disconnected from the mains, and the power switch (4) is set to the "OFF" position,
• Place the base (3) on a flat, stable and heat-resistant surface
• Put the screens (2) with the products onto the base (3).
• The products should be washed and then wiped before drying.

CAUTION. Do not place wet products on the screens.

• Cut the food into pieces to fit feely between the stacked screens.
• When the appliance is powered on, the screens rotate and warm air circulates inside the dryer between the lid, screens and the base. Therefore, products should be placed on the screens so as not to obstruct the rotation and allow the air to flow freely.

CAUTION. It is recommended to put all 5 screens on the base while drying, regardless of how many of them are empty.

• Place the lid (1) on the uppermost screen (2).
• Plug the appliance into the mains, then use the knob (4) to switch it on (the screens start to rotate) and set the temperature.
• Recommended temperatures for some products:
• herbs: 40°C
• bread: 40-50°C
• vegetables: 50-55°C
• fruits: 55-60°C

• meat, fish: 65-70°C

• Operation of the appliance is indicated by the indicator light (5).

• After use, turn the appliance off by turning the switch (4) to the "OFF" position and disconnect it from the mains.

- HELPFUL HINTS

• the table below presents approximate drying times for some products. Draying time depends on the kind of product, thickness of the slices and water content,
• the drying time depends also on the temperature and humidity of the room,
• the products should be washed before drying,
• any overripe parts or pits and stones should be removed,
• in the case of herbs, only the young leaves should be dried,
• the dried products should be stored in glass containers with metal lids in a dark and dry place; dried herbs can be stored in paper bags,
• only cooled down products should be stored,
• the storage containers should be clean and dry,

PRODUCTS PREPARATION		DESIRED DRYING EFFECT	DRYING TIME
APPLES Wash, peel and slice. Can be left in a pretreatment solution for two minutes. Drain and place on the trays.		pliable 4-15 hours.
PRUNES Wash, dry whole or cut into halves, remove stones.		no moist 5-25 hours
BANANAS Peel and cut into 3 mm slices.		no moist 5-25 hours
STRAWBERRIES Wash and cut into 3 mm slices.		no moist 5-25 hours
PINEAPPLE (FRESH)	Peel and slice or dice. tough 6-36 hours
PINEAPPLE (TINNED)	Drain and dry before placing on the trays.	pliable 6-36 hours
CHERRIES Remove the pits before drying		tough 6-36 hours
ORANGE PEEL Cut the peel into stripes. brittle 6-15 hours
PEARS Peel and remove the core. Cut into slices, halves or quarters.		tough and pliable	5-24 hours
RHUBARB	Dry only the soft stems	brittle	4-16 hours
MUSHROOMS	Pick ones with ball-shaped caps. Clean from sand or peel. Dry sliced or whole.	tough and brittle 3-10 hours
PARSLEY	Place the leaves on the trays.	flaky	2-10 hours
CARROTS	Pick tender and crunchy roots. Steam till tender. Slice or dice and then drain.	tough	4-12 hours

CLEANING AND MAINTENANCE

• before cleaning, unplug the appliance and wait until it cools down,
• do not immerse the base (3) in water,
• do not use aggressive cleaning agents,
• the base (3) can be cleaned with a slightly damp cloth and wiped dry,
• wash the sieves (4) and the cover in lukewarm water,
• do not wash the appliance in a dish-washer machine.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recovered or recycled

- the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void.
