Product Type	Refrigerator
Model	RCB359WH2
Brand	Comfee
Dimensions (H x W x D)	84.5 x 55.0 x 55.0 cm
Weight	24.5 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	A+
Total Gross Capacity	95 L
Refrigerator Capacity	85 L
Freezer Capacity	10 L
Climate Class	N-ST
Noise Level	42 dB(A)
Refrigerant	R600a
Defrosting	Manual (freezer)
Interior Lighting	LED lamp
Adjustable Thermostat	Yes
Reversible Doors	Yes
Number of Shelves	3 glass shelves
Door Storage	2 door balconies + 1 egg tray
Annual Energy Consumption	110 kWh/year

Frequently Asked Questions - RCB359WH2 COMFEE

How do I adjust the temperature on my Comfee RCB359WH2 refrigerator?

To adjust the temperature, locate the thermostat dial inside the refrigerator compartment. Turn it to a higher number for colder temperature and a lower number for warmer. Typically, a setting of 3-4 is recommended for normal use.

Why is my refrigerator making unusual noises?

Some noise is normal due to the compressor and refrigerant flow. Common sounds include gurgling, clicking, or humming. If the noise is loud or constant, ensure the fridge is level and not touching any walls or cabinets. If it persists, contact customer support.

How often should I defrost the freezer?

The Comfee RCB359WH2 has a manual defrost freezer. Defrost when the ice layer reaches about 5mm thickness, usually every few months. Unplug the fridge, remove food, and let the ice melt naturally. Never use sharp objects to remove ice.

What is the proper clearance for installation?

Ensure at least 5 cm of space behind and on the sides for proper ventilation. Keep the top clear of obstructions. Place the fridge on a level floor away from heat sources and direct sunlight.

How do I clean the interior and exterior?

Unplug the fridge first. For interiors, use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners. For the exterior, wipe with a damp cloth and dry thoroughly. Clean the door seals regularly to maintain a tight seal.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and may require assistance due to the weight of the door.

What should I do if the refrigerator is not cooling enough?

Check that the thermostat is set correctly. Ensure the door seals are clean and intact. Verify that the condenser coils at the back are dust-free. Also, allow 24 hours after installation for the temperature to stabilize.

Is the refrigerator energy efficient?

The Comfee RCB359WH2 is rated A+ energy class, consuming approximately 110 kWh per year. This is considered efficient for a compact refrigerator. Optimize usage by keeping the door closed and avoiding overloading.

Can I install the fridge in a garage or outdoor area?

The climate class is N-ST, suitable for ambient temperatures between 16°C and 38°C. Avoid extreme cold or heat. Garages without temperature control may not be ideal. For outdoor use, ensure it's under a cover and protected from rain.

Where can I find spare parts for my Comfee refrigerator?

Spare parts can be ordered from Comfee authorized service centers or online retailers. Common parts such as shelves, door bins, and thermostat are available. Refer to the user manual for part numbers and contact information.

USER MANUAL RCB359WH2 COMFEE

65760 Eschborn, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Homepage: www.mideagermany.de

Im Servicefall:

Simple line drawing of a two-tier refrigerator (no text or symbols)

RCB359WH2/RCB359IX2

Warning:

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

CONTENTS

1 Safety warnings

2 Proper use of the refrigerator

3 Structure and functions

4 Maintenance and care of the appliance

risk of fire / flammable materials Warning:

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and equipment, no text or symbols present

Simple line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator with a handle and tools, no text or symbols present

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Line drawing of a child hanging from an open refrigerator with no text or symbols

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objects may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 War nings for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

1.7 War nings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerator

2.1 Placement

Simple line drawing of a person handling a cardboard box next to an refrigerator (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a smiling refrigerator and a refrigerator with doors (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

Simple line drawing of a refrigerator with a smiling face and two windows (no text or symbols)

- The top space of the refrigerator shall be greater than 30cm, and The refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

2.2 le inglfeet

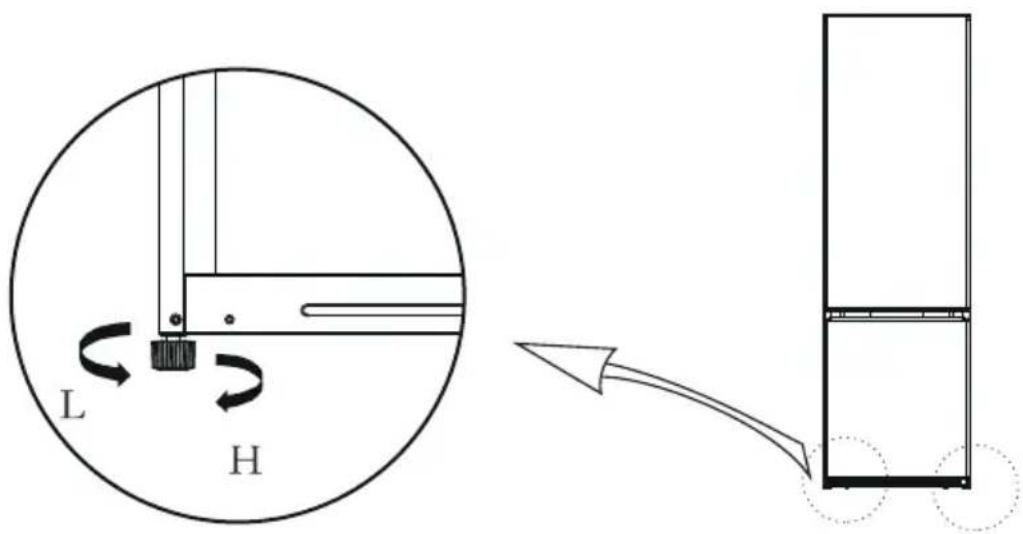

Schematic diagram of the leveling feet

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2. 3Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16"socket and ratchet		Masking tape

Parts to be used for door reverse
SN	parts	Quantity	Notes
1	Right upper hinge	1	Pre-installed on the refrigerator, still used when door is reversed
2	Upper hinge screw	3	Pre-installed on the refrigerator and to be used when changing the door
3	Middle hinge screw	2	Pre-installed on the refrigerator and to be used when changing the door
4	Middle hinge	1	Pre-installed on the refrigerator and to be used when changing the door
5	Hole plug	2	Pre-installed on the refrigerator and to be used when changing the door
6	Adjustable fool	1	Pre-installed on the refrigerator and to be used when changing the door
7	Lower hinge screw	3	Pre-installed on the refrigerator and to be used when changing the door
8	Lower hinge assembly	1	Pre-installed on the refrigerator and to be used when changing the door
9	Lower end cover screw of freezing door	1	Pre-installed on the refrigerator and to be used when changing the door
10	Lower end cover limiting block of freezing door	1	Pre-installed on the refrigerator and to be used when changing the door
11	Lower end cover screw of refrigerator door	1	Pre-installed on the refrigerator and to be used when changing the door
12	Refrigerator door right stopper	1	Pre-installed on the refrigerator and to be used when changing the door
13	Refrigerator door left stopper	1	In the attached plastic bag, take them out for use when door is reversed

1) Remove all food from the inner door liner.

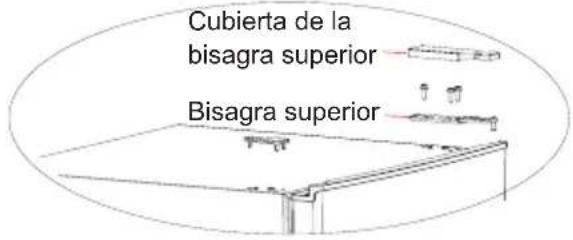

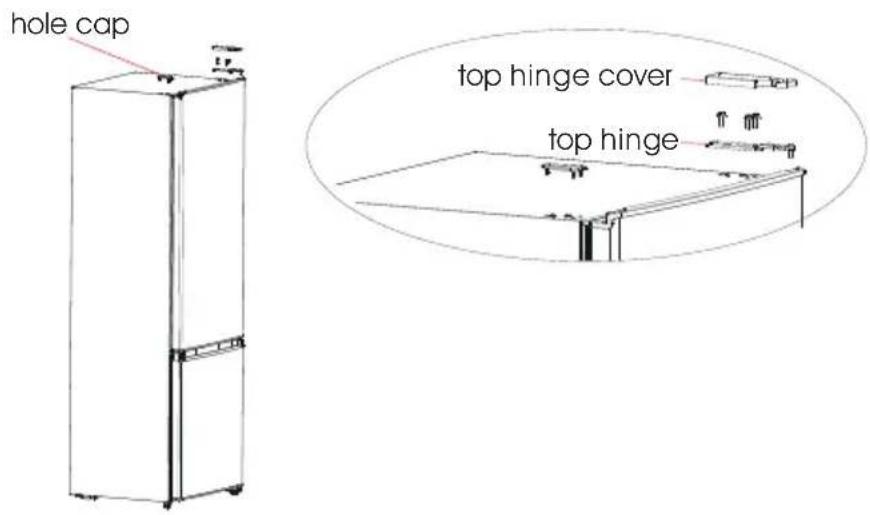

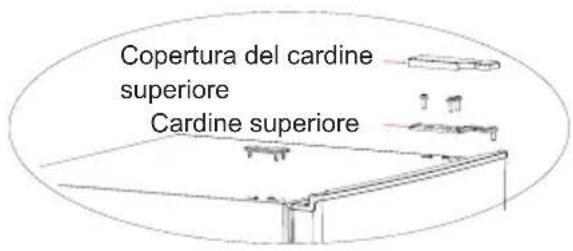

2) Dismantle top hinge cover, top hinge and hole cap of the other side.

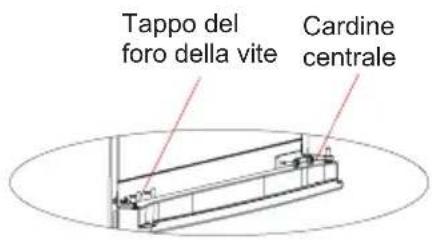

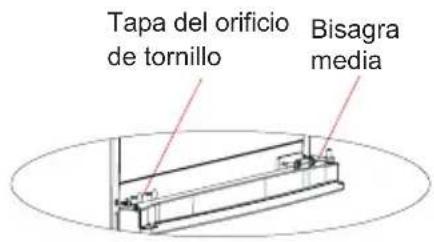

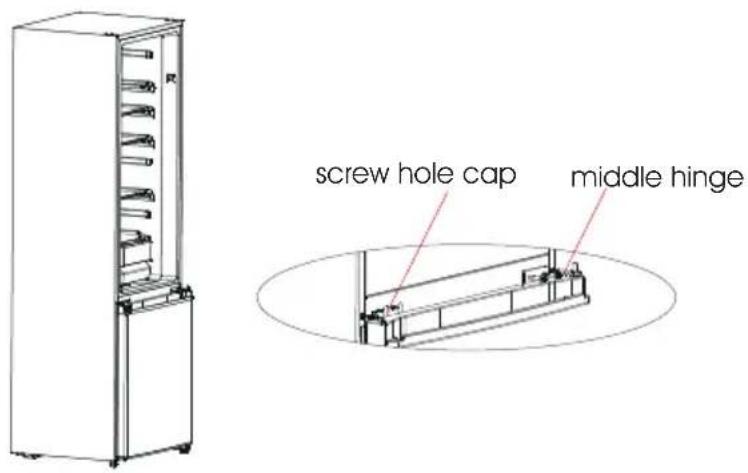

3) Remove the refrigerator door, middle hinge, and screw hole caps of the other side.

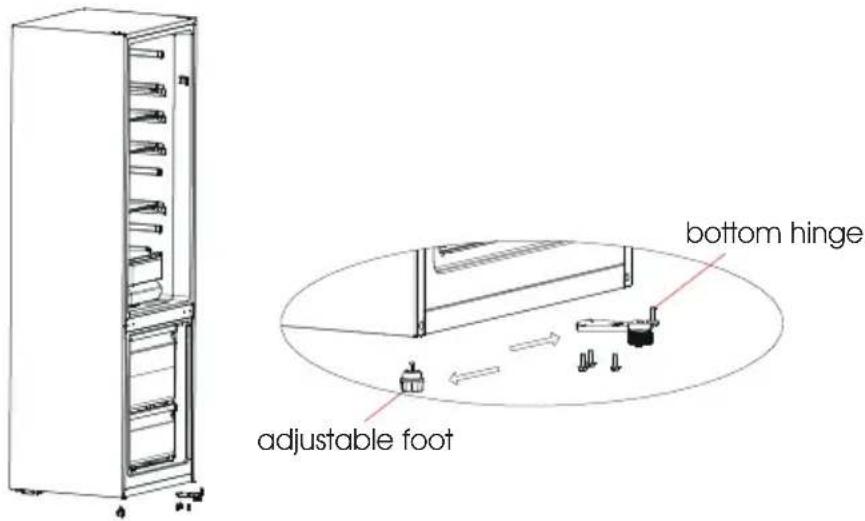

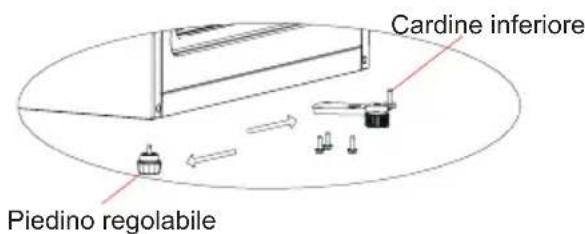

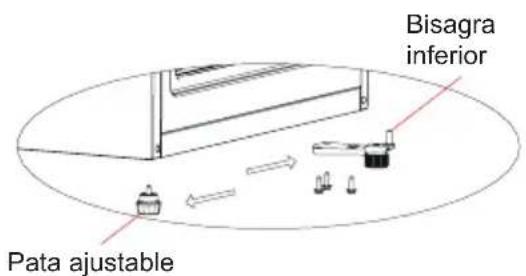

4) Remove the freezer door and dismantle bottom hinge and left adjustable foot. Exchange the installation position of bottom hinge and adjustable foot, and fix the bottom hinge by fitting screws.

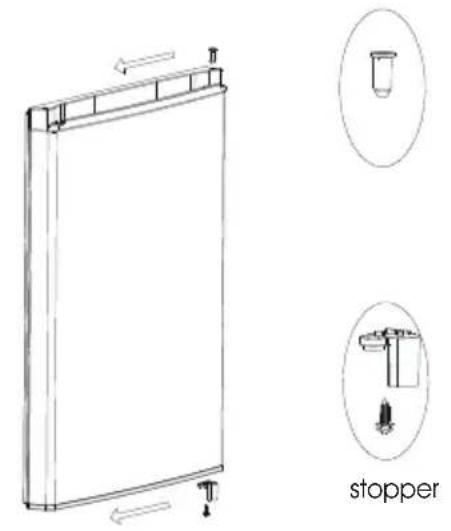

5) Dismantle the door stopper of freezer door, and install it on other side by fitting screw.

6) Put the freezer door on bottom hinge, then install the middle hinge and screw hole caps (a). Dismantle the door stopper of refrigerator door, and install it on other side by fitting screw (b).

Line drawing of a refrigerator with doors open and shelves inside (no text or symbols)

(a)

Pure technical line drawing of a structural frame or enclosure without any text, numbers, or symbols

Simple line drawing of a rectangular frame with no text, numbers, or symbols

(b)

Simple line drawing of a vertical oval shape with two small icons at the bottom (no text or symbols)

7) Change the installation position of top hinge shaft as shown as below, then put the refrigerator door on middle hinge, and fix the top hinge by fitting screws, finally to install the top hinge cover and hole cap.

Line drawing of a refrigerator with front panel and side door (no text or symbols)

2.4 the LightChanging

Any replacement or maintenance of the LED lamps is intended to be made by the manufacture, its service agent or similar qualified person.

2.5 Starting

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

- Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or pa per toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

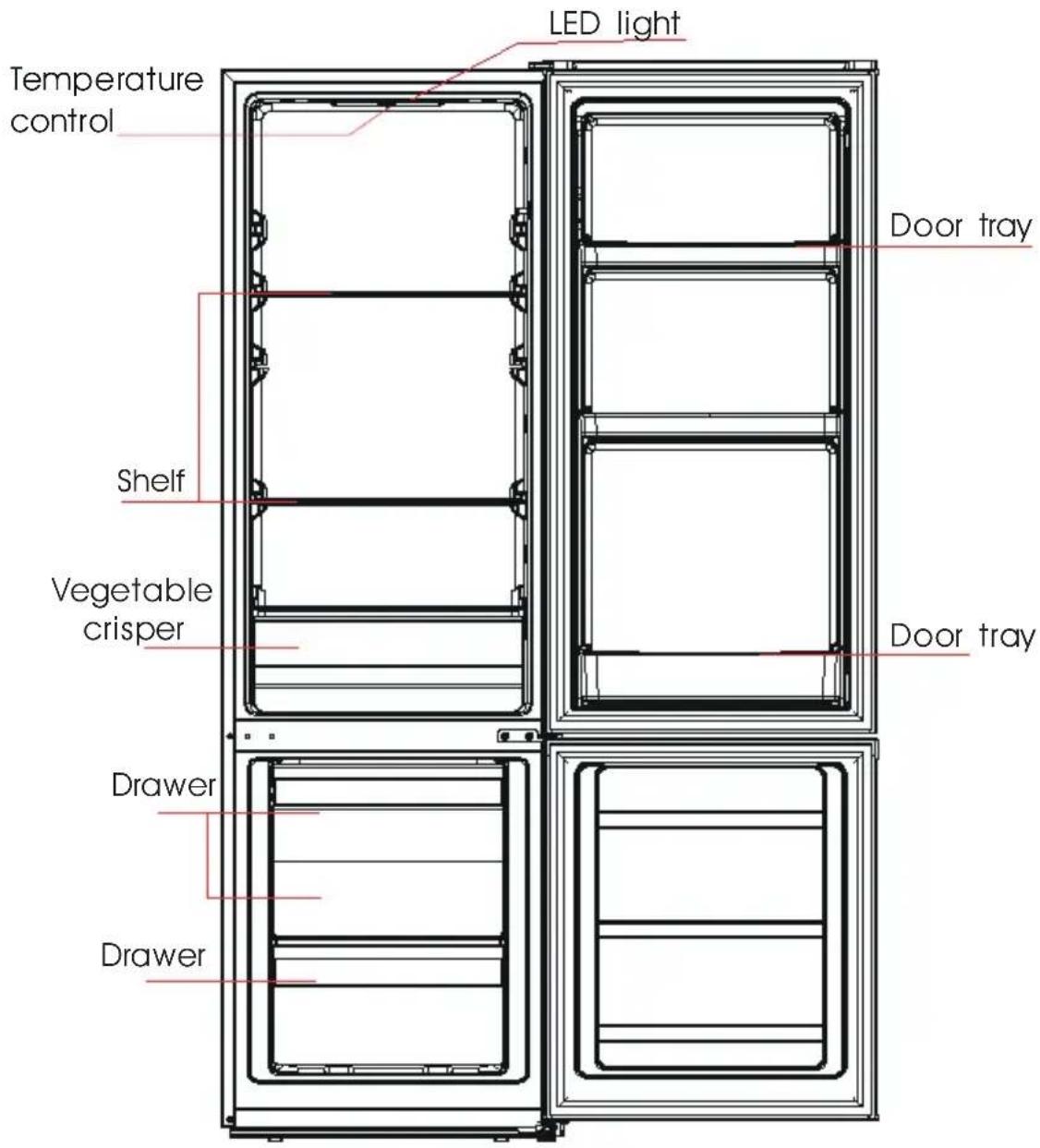

3.1 Key components

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

- The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.

- The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.

- Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

- The maximum amount of food that can be frozen in 24 hours is specified on the rating plate of the appliance.

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

3.2 Functions

Temperature control

• Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower.
• Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
• Please adjust the temperature between "MAX" and "MIN".

4. Maintenance and care of the appliance

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

⚠️ Please unplug the refrigerator for defrost and cleaning.

Illustration of various household items including a gas cylinder, alcohol spray bottle, and kettle with a smoke (no text or symbols)

4.2 Defrosting

• Power off the refrigerator.
- Remove the food from the refrigerator and place it properly to prevent food from melting.
- Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water containers for defrosting.(pay attention to clean the compressor compartment water draining tray, Avoding overflow to the ground).
- You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (to use plastic or wooden ice shovel, for avoiding damage to the liner or pipe)
- You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.
- After defrosting, put back the foods in cabinet, and power on the refrigerator.

4.3 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

5 Trouble shooting

5.1 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class Symbol		Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’;

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from channel _.

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

The shortest period for providing after-sales spare parts is

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

Telephone:

Email address:

INHALT

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and a door, no text or symbols present

Line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)

Simple line drawing of a refrigerator with tools and a crossed-out door, no text or symbols present

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Line drawing of a refrigerator with an open door and a person climbing the door (no text or symbols)

Cartoon illustration of a distressed character with a frowning expression, surrounded by symbols (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Line drawing of a refrigerator with doors open and shelves inside (no text or symbols)

(a)

Pure technical line drawing of a structural component without any text, numbers, or symbols

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Simple line drawing of an oval shape with two small icons, one above and one below, both without any text or symbols.

(b)

Line drawing of a single refrigerator with front and back panels (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a cabinet and monitor, no text or symbols present

Line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)

Simple line drawing of a refrigerator, tools, and a crossed-out box (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Line drawing of a refrigerator with an open door and a person climbing the window (no text or symbols)

Simple line drawing of a sad, anthropomorphic object with a frowning face and a warning symbol (no text or labels)

Symbol of a trash bin with crossed-out lanes and a blank rectangular base (no text or labels)

Line drawing of a double refrigerator with front panel and side door (no text or symbols)

Line drawing of a refrigerator with multiple side bays and a front panel (no text or symbols)

Line drawing of a tall refrigerator with multiple side drawers and glass doors (no text or symbols)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

(a)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Simple line drawing of an oval shape with two small icons, no text or symbols present

(b)

Line drawing of a double refrigerator with front panel and side door (no text or symbols)

2.4 Cambio de luz

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and a door, no text or symbols present

Line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)

Simple line drawing of a refrigerator with tools and a crossed-out refrigerator, no text or symbols present

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

Line drawing of a person hanging from an open refrigerator with no text or symbols

Simple line drawing of a distressed trash can with a sad face and warning symbols (no text or labels)

Line drawing of a two-tier refrigerator with front panel and side door (no text or symbols)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Line drawing of a tall refrigerator with multiple side shelves and top door (no text or symbols)

Technical line drawing of a rectangular device with internal components and two inset views labeled 'Fermo' (no text or symbols on the device itself)

Line drawing of a tall rectangular refrigerator with multiple side drawers (no text or symbols)

(a)

Technical line drawing of a structural frame or panel assembly (no text or symbols)

Simple line drawing of a rectangular frame with no text, numbers, or symbols

(b)

Simple line drawing of a vertical object with two small items inside an oval frame (no text or symbols)

Line drawing of a double refrigerator with front panel and side door (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

4.2 Scongelamento
