Product Type	Refrigerator with freezer compartment
Brand	COMFEE
Model	RCD50RE2RT
Climate Class	SN, N, ST, T (ambient temperature range: +10 °C to +43 °C)
Energy Supply	220-240 V ~ 50 Hz (standard household)
Temperature Control	Manual knob with settings: Off, Cold (warmest), Normal, Colder (coldest)
Defrost Type	Manual defrost (recommended plastic scraper, natural melting)
Refrigerant	Flammable (R600a or similar, not explicitly stated)
Insulation Material	Cyclopentane foam (flammable)
Adjustable Feet	Yes, front levelling feet (turn clockwise to raise, counterclockwise to lower)
Storage Compartments	Refrigerating chamber, door shelves (for bottles/cans), convenient compartment (quick cooling), optional two-star freezer compartment
Coldest Zone Indicator	Optional OK-temperature indicator (to verify internal temperature)
Cleaning Recommendations	Use soft cloth with baking soda solution; do not use abrasive cleaners or organic solvents
Door Gasket	Check regularly, clean with soapy water
Safety Features	Child entrapment prevention (door removal for disposal), flammable material warnings, key lock (if applicable)
Energy Saving Tips	Place in coolest area, allow hot food to cool, wrap food, minimize door openings
Troubleshooting	Check power, temperature setting, food load, door seal, leveling; for persistent issues contact service
Ordered Parts Availability	Thermostats, sensors, PCBs, lights, door handles, hinges, trays, baskets, door gaskets available for at least 7-10 years after last model launch

Frequently Asked Questions - RCD50RE2RT COMFEE

How do I adjust the temperature on my Comfee RCD50RE2RT refrigerator?

Turn the temperature control knob inside the refrigerator. The settings range from Cold (warmest) to Colder (coldest). The recommended setting is Normal. The knob also has an Off position to stop cooling.

How do I defrost the refrigerator?

Unplug the refrigerator and remove all food. Open the door and let the frost melt naturally, or use a plastic scraper to remove ice. Place a drain tray to collect melting water. After defrosting, wipe dry and plug the unit back in. Do not use mechanical devices or damage the refrigerant circuit.

What should I do if the refrigerator is not cooling?

First, check if the power cord is plugged in and the socket has power. Ensure the temperature control knob is not set to Off. If the voltage is low or a circuit has tripped, reset it. If the problem persists, contact after-sales service.

How do I clean the interior of the refrigerator?

Turn off the power and remove all food, shelves, and drawers. Use a soft cloth or sponge with a solution of 2 tablespoons of baking soda and a quart of warm water. Rinse with water and wipe dry. Do not use soap, detergent, or abrasive cleaners. Clean door gaskets with soapy water.

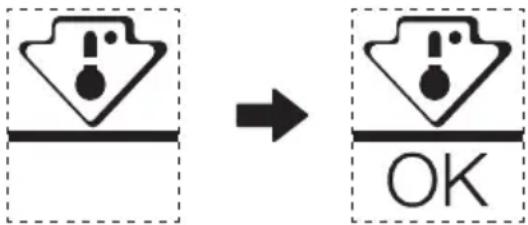

What does the OK-temperature indicator mean?

The optional OK-temperature indicator monitors the temperature in the coldest zone. If it shows OK, the thermostat is correctly adjusted. If it turns WHITE, the temperature is too high; increase the temperature setting and check again after 12 hours.

How can I save energy with my refrigerator?

Place the refrigerator in a cool area away from heat sources and direct sunlight. Let hot foods cool to room temperature before storing. Wrap foods properly and wipe containers dry. Avoid overloading and minimize door openings. Keep the back and sides clean for heat dissipation.

How do I level the refrigerator?

Use the two adjustable front feet. Turn them clockwise to raise the refrigerator and counterclockwise to lower it. Adjust both feet until the refrigerator is stable and level.

What should I do if there is an odor inside the refrigerator?

Odors can come from spoiled food or poor wrapping. Remove any rotten food and ensure all items are sealed. Clean the interior thoroughly using the baking soda solution. Regular cleaning helps prevent odors.

Can I store flammable items in the refrigerator?

No. Do not store explosive substances such as aerosol cans with flammable propellants. The refrigerator uses flammable refrigerant and insulation materials, so keep away from fire sources.

How long will replacement parts be available?

According to the manual, thermostats, sensors, PCBs, light sources, door handles, hinges, trays, baskets, and door gaskets are available for at least 7 to 10 years after the last model is launched on the market. Contact professional repairers or the manufacturer for parts.

USER MANUAL RCD50RE2RT COMFEE

Line drawing of a rectangular box with rounded corners and a flat top (no text or symbols)

RCD50WH2RT(E)

RCD50DK2RT(E)

RCD50RE2RT(E)

[Non-Text]

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

comfee

CE

CONTENTS

1 Safety warnings

1.7 Warnings related to disposal 5

2 Proper use of refrigerator

3 Maintenance of refrigerator

Thank you for buying this refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

When disposing of any refrigerator equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

1 Safety warnings

1.1 Warning

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Rerigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

For EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

Warning: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Warning: Connect to potable water supply only. (Suitable for ice making machine)

To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

1.2 Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a cardboard box with a small labeled object on top (no text or symbols)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacturer-authorized maintenance stations.

- The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances on the top of the refrigerator, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pan.

1.4 Related warnings for use

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst design and a hand holding a pen (no text or symbols)

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when open the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Illustration of a child climbing inside a cube with a broken floor and a warning symbol (no text or labels)

• Do not allow children to enter or climb the refrigerator to prevent that children are sealed in the refrigerator or children are injured by the falling refrigerator.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Cartoon character with a sad expression, surrounded by warning symbols (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objects may fall when open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings related to placing items

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

- This product is household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerator shall not be used for other purposes, such as storage of blood, drugs or biological products.

- Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the refrigerator to prevent bursts and other losses.

1.6 Warnings for energy

1) Refrigerator might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerator appliance is designed.
2) The fact that effervescent drinks should not be stored in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-refrigerator and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings related to disposal

The refrigerator's refrigerant and cyclopentane foam materials are combustible materials and discarded refrigerators should be isolated from fire sources and can not be burned. Please transfer the refrigerator to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the door of the refrigerator and shelves which shall be properly placed to avoid accidents of children entering and playing in the refrigerator.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerator

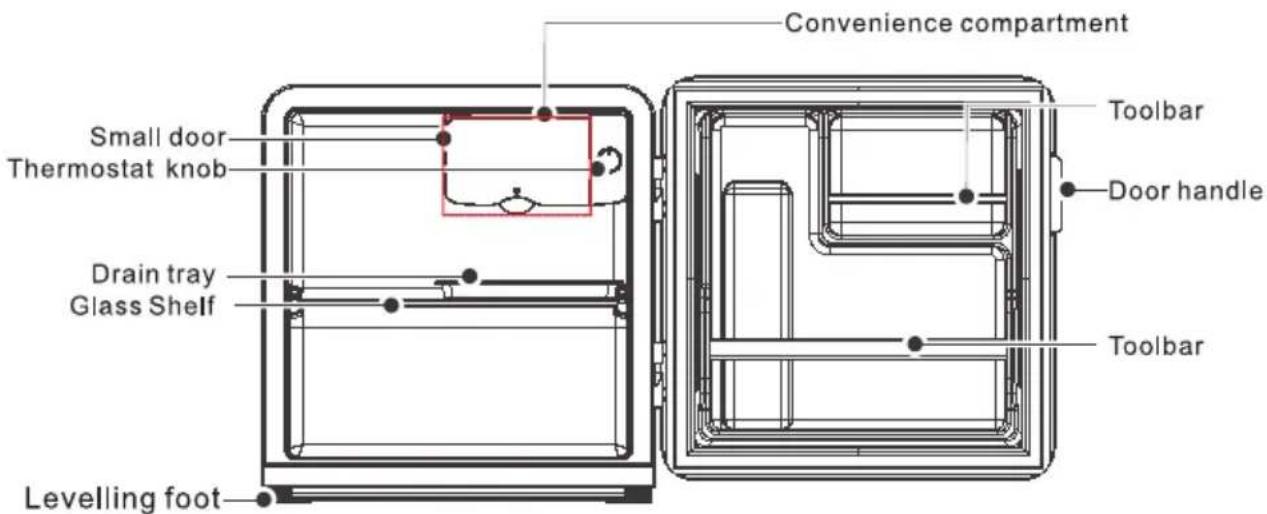

2.1 Names of components

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consume in the short term. Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature. Suggested storage time 3 days to 5 days. It is the most energy efficient to place food in the position shown in the picture above.
• Foods are recommended to be sealed up before putting into the refrigerator.
• It is recommended to put bottled or canned drinks and other items on the door;
• Convenient compartment, it can store food or drinks that need to be cooled quickly in a short time, please do not put food that needs to be frozen into it for storage.

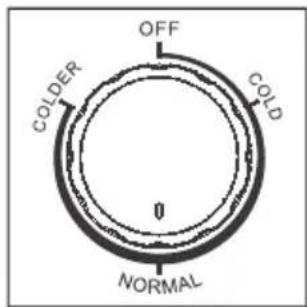

2.2 Temperature Control

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

- The figures do not mean specific set temperature, but temperature level.

"COLD" means the warmest setting

"COLDER" means the coldest setting

The higher the figure is, the lower the actual temperature inside refrigerator shall be.

"OFF" means stop running.

- Please adjust between "cold" and "colder" gear.

- Recommended gear: "normal"

2.3 Placement

Simple line drawing of a person lifting a large box next to a 3D cube (no text or symbols)

- Before using the refrigerator, remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and the refrigerator body.

Simple line drawing of a cube next to a door with a handle (no text or symbols)

● The refrigerator should be placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

Cartoon illustration of a sad cube with a sun and an exclamation mark (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.

● The top space of the refrigerator shall be greater than 30cm, and the distances from bothsides and backside shall be more than 10cm to facilitate heat dissipation.

2.4 Start to use

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)

• The refrigerator shall stay for half an hour before connecting power when it is firstly started.
• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

2.5 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
  ● Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

2.6 Levelling feet

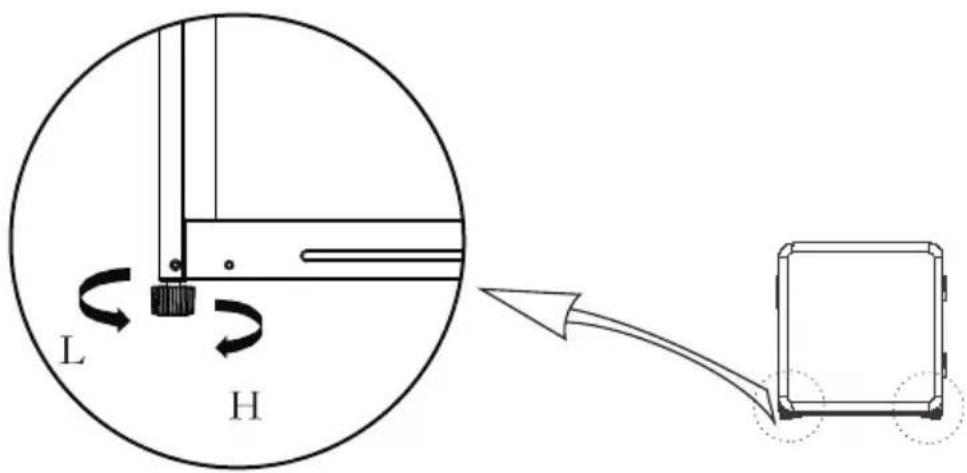

Schematic diagram of the leveling feet

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

3 Maintenance of refrigerator

3.1 Cleaning

- Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

- Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

● The interior of the refrigerator should be cleaned regularly to avoid odor

- Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

- Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

- For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, softbrush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

- Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

- Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Illustration of various cooking and cooking items including a gas, beer, sauce, kettle, and a kettlebell (no text or symbols present)

Please unplug the refrigerator for defrost and cleaning.

3.2 Defrost

• Refrigerator shall be manually defrosted.

Disconnect the plug from the wall socket, open the door and remove all the food to a cool place. It is recommended to remove the frost by a plastic scraper, or let the temperature rise naturally until the frost melts. Then wipe away the remaining ice and water, and plug in socket for switching on the refrigerator.

It is normal for the evaporator in the refrigerator to frost in use. When you manually defrost, please use the drain tray to connect the defrosting water

Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the

refrigerant circuit.

3.3 Stop using

Power failure: Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the refrigerator. Long-time nonuse: Please unplug the refrigerator left unused for a long time for cleaning.

Keep the door open to avoid the bad odor.

Moving: Do not turn upside or vibrate the refrigerator, the carrying angle can not be greater than 45^ . Do not hold the door and hinge when moving this unit.

Continuous operation is recommended when the refrigerator is started. Please do not stop the refrigerator under normal circumstances so as not to affect the refrigerator's service life.

4 Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the refrigerator is plugged and connected to power; Low voltage; Whether temperature control knob is in the work area; Failure power or tripping circuit.
Odor	Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the refrigerator at one time; Do not put foods until they are cooled; Frequent opening of refrigerator door; Thick frost layer (defrost is needed).
The refrigerator door can not be properly closed	The refrigerator door is stuck by food packages; Too much food; Unbalanced refrigerator.
Loud noises	Whether the floor is flat, whether the placement of refrigerator is stable; Whether the refrigerator accessories are properly placed.
Transient difficulty in door opening	After refrigeration, there will be pressure difference between the inside and outside of the refrigerator to result in transient difficulty in door opening. This is a normal physical phenomenon.
Refrigerator enclosure heat Condensation	The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the refrigerator when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Airflow sound Buzz Clatter	Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz will be generated by running compressor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

Coldest zone in the refrigerator

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below +4^ . Gradually reduce the temperature if the sign does not indicate "OK".

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

- To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

- WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

- With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

- When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.

- If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

Table 1 Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard

The ordered parts in the following table can be acquired from channel :

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

SOMMAIRE

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and appliances (no text or symbols)

Simple line drawing of a rectangular box with a small object on top and a circular symbol below (no text or symbols)

Simple line drawing of a cube with a starburst and flame symbol on its face (no text or labels)

Illustration of a child climbing inside a cube with a broken floor and a warning symbol (no text or labels)

Cartoon illustration of a sad, anthropomorphic character with a stack of boxes and a frowning expression, accompanied by a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, blocks, and an exclamation mark (no text or symbols on the objects)

Simple line drawing of a person lifting a large box next to a cube (no text or symbols)

Simple line drawing of a cube and a cabinet (no text or symbols)

Cartoon illustration of a sad cube with a frowning face, sun, and an exclamation mark (no text or symbols)

Simple line drawing of a smiling cube with a small plug attached to its side (no text or symbols)

Illustration of various cooking and beverage items including a glass, beer bottle, instant noodles, and a kettle (no text or symbols)

Simple line drawing of a plug with a cable, next to an exclamation mark (no text or symbols on the plug itself)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a cardboard box with a small box on top and a warning symbol (no text or labels)

Simple line drawing of a cube with a candle and starburst symbol on its side, no text or labels present.

Illustration of a child climbing inside a cube with a falling object and warning symbols (no text or labels)

Cartoon illustration of a sad, anthropomorphic object resembling a block with a bandage, standing on a surface with a warning symbol (no text or labels)

Illustration of a person handling a large cardboard box next to a smaller cardboard box (no text or symbols)

Simple line drawing of a cube and a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face, sun, and an exclamation mark (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a door and counter, no text or symbols present

Simple line drawing of a cardboard box with a small box on top and a circular symbol below (no text or labels)

Simple line drawing of a cube with a flame and starburst symbol on its side, no text or labels present.

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon illustration of a sad, anthropomorphic character with broken legs and arms, surrounded by warning symbols (no text or labels)

Illustration of a person lifting a large box next to a smaller 3D block (no text or symbols)

Cartoon illustration of a sad cube with an exclamation mark and sun in the background (no text or symbols)

Simple line drawing of a cube next to a door (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)

Illustration of various household items including a gas vial, alcohol spray bottle, and a kettle with a cup (no text or symbols)

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and appliances, no text or symbols present

Simple line drawing of a cardboard box with a small box on top and a circular symbol below (no text or labels)

Simple line drawing of a cube with a flame and starburst symbol, no text or labels present.

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon illustration of a sad, anthropomorphic character with a bandaged top and arms, surrounded by a warning symbol (no text or labels)

Simple line drawing of a person lifting a large box next to a 3D cube (no text or symbols)

Simple line drawing of a 3D cube and a cabinet with a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and sun in the background (no text or symbols)

Simple line drawing of a cube with a smiling face and a small plug, no text or symbols present.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a door and counter, no text or symbols present

Simple line drawing of a cardboard box with a small box on top and a circular symbol below (no text or labels)

Simple line drawing of a box with a starburst and flame symbol, no text or labels present

Illustration of a child climbing inside a cube with a falling object, accompanied by a warning symbol (no text or labels)

Cartoon illustration of a sad, anthropomorphic object resembling a block with a bandage, surrounded by a warning symbol (no text or labels)

Simple line drawing of a person lifting a large box next to a cube (no text or symbols)

- Antes de utilizar o frigorífico, remova todos os materiais de embalagem, incluindo almofadas inferiores e almofadas e fitas de espuma dentro do frigorífico, rasgue a película protectora da porta e do corpo do frigorífico.

Simple line drawing of a cube next to a door with drawers (no text or symbols)

Cartoon illustration of a sad cube with arms and facial expressions, surrounded by sun and an exclamation mark (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a door and counter, no text or symbols present

Simple line drawing of a cardboard box with a small box on top and a circular symbol below (no text or labels)

Simple line drawing of a cube with a flame and starburst symbol, no text or labels present.

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, surrounded by blocks and a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and an icon (no text or symbols)

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Cartoon illustration of a sad cube with a frowning face, surrounded by sun and an exclamation mark (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached to its side (no text or symbols)

Simple line drawing of a plug with a cable, next to an exclamation mark (no text or symbols on the plug itself)

Simple line drawing of a room interior with a monitor and equipment, no text or symbols present

Simple line drawing of a box with a small electronic device on top and a circular symbol below (no text or labels)

Simple line drawing of a box with a starburst and a hand pointing at it, no text or symbols present.

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, surrounded by blocks and an exclamation mark (no text or symbols)

Simple line drawing of a person lifting a large box next to a cube (no text or symbols)

Cartoon illustration of a sad cube with a sun and an exclamation mark above it (no text or symbols)

Simple line drawing of a cube next to a door with drawers (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached to its side (no text or symbols)

Illustration of various household items including a glass, alcohol spray bottle, and kettle (no text or symbols)

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and fan, no text or symbols present

Simple line drawing of a box with a small object on top and a circular symbol below (no text or labels)

Simple line drawing of a cube with a flame inside and a warning symbol (no text or labels)

Illustration of a child climbing inside a cube with motion lines indicating movement (no text or symbols)

Cartoon character with a sad expression, surrounded by blocks and an exclamation mark (no text or symbols)

Simple line drawing of a person lifting a large box next to a cube (no text or symbols)

Simple line drawing of a cube next to a door with drawers (no text or symbols)

Cartoon illustration of a sad cube with an exclamation mark above its face, under a sun (no text or symbols)

Simple line drawing of a smiling cube with a small attached cable (no text or symbols)

Illustration of various household items including a glass, alcohol spray bottle, and kettle (no text or symbols)

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room with a monitor and a hanging device, no text or symbols present

Simple line drawing of a cardboard box with a small rectangular object on top and a circular symbol below (no text or symbols)

Simple line drawing of a cube with an arrow and a magnified inset showing a magnified view (no text or symbols)

Simple line drawing of a cube with a flame inside and a warning symbol (no text or labels)

Illustration of a child climbing inside a cube with motion lines indicating movement (no text or symbols)

Cartoon illustration of a sad, anthropomorphic character with a stack of blocks and a frowning expression, accompanied by a warning symbol (no text or labels)

Simple line drawing of a person lifting a large box next to a 3D cube (no text or symbols)

Simple line drawing of a cube and a door with a handle, no text or symbols present

Cartoon illustration of a sad cube with an exclamation mark above its head, under a sun (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)
