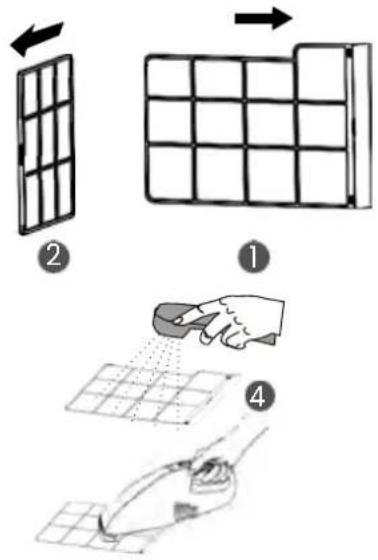

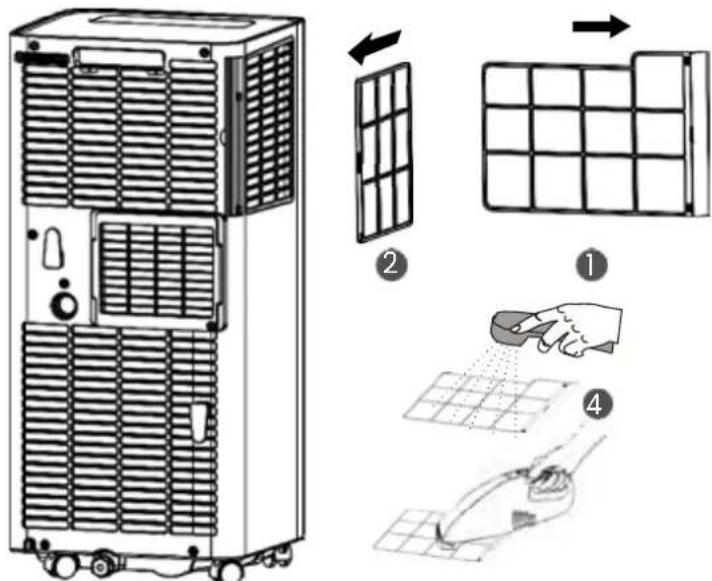

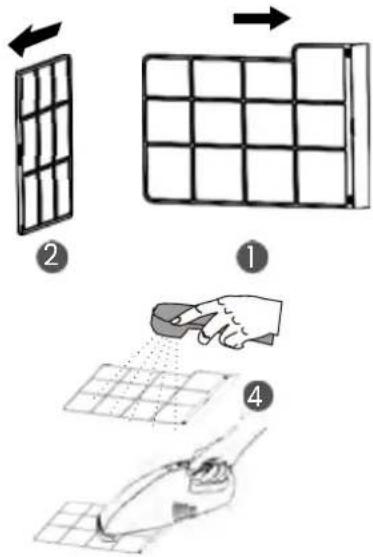

How to clean the air filter?

Remove the grille covering the filter, take out the filter, and clean it with lukewarm water (max 40°C) or a neutral detergent. For light dirt, use a vacuum cleaner. Do not use alcohol, gasoline, or benzene. Reinstall the filter only when completely dry.

What does 'FL' on the display mean?

'FL' indicates that the water tank is full. The unit will beep and the compressor will stop. Unplug the unit, remove the drain plug, and drain water into a container. Replace the plug and restart.

How to use the timer function?

Press the Timer button. In standby, use Up/Down to set the auto-on time (0-24h). While running, set the auto-off time. The timer indicator lights up.

How to switch between Celsius and Fahrenheit?

Press the Increase and Decrease buttons together simultaneously to toggle between °C and °F on the display.

What is sleep mode?

Sleep mode adjusts the fan to low speed and gradually changes the temperature for comfortable sleeping. It operates silently and can be combined with the timer.

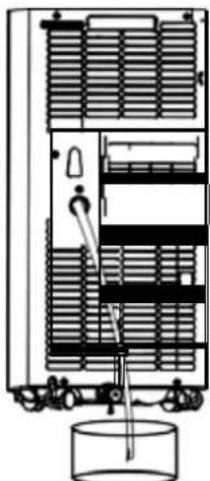

How to drain water from the unit?

When 'FL' appears, unplug the unit. Remove the drain plug from the rear drainage hole, attach a rubber hose, and let water flow into a container. Replace the plug after draining.

Which refrigerant does this air conditioner use?

It uses R290 refrigerant gas, approximately 160 g. R290 is flammable, so the unit must be installed in a room larger than 7.7 m² and kept away from ignition sources.

What room size is this unit suitable for?

The recommended application area is up to 30 m². For best performance, choose a model with slightly higher frigories than calculated (multiply room m³ by 50).

What do the error codes mean?

E1: Coil temperature sensor error. E2: Indoor temperature sensor error. E4: Antifreeze protection (coil too cold, resumes when >8°C). E5: Water motor failure. Contact support if issues persist.

USER MANUAL PAC-A202B Infiniton

Illustration of a white portable air purifier in a living room with sofa and wall panels (no text or symbols)

PAC-A202B/PAC-F75/PACSF17A

Line drawing of a portable air conditioner unit with labeled buttons C and E (no text or symbols on the device itself)

Pure electrical circuit lines without any symbols

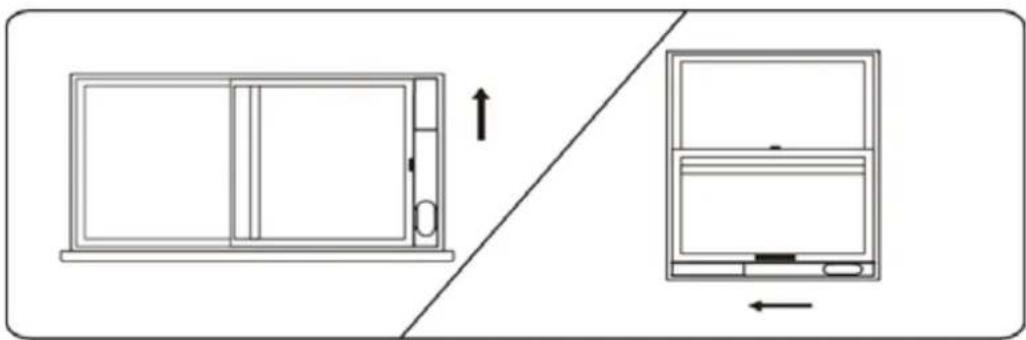

Paso 2:

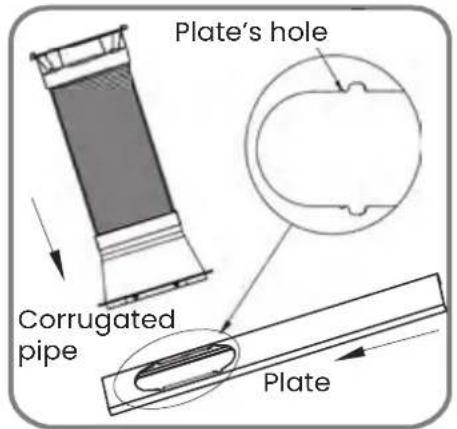

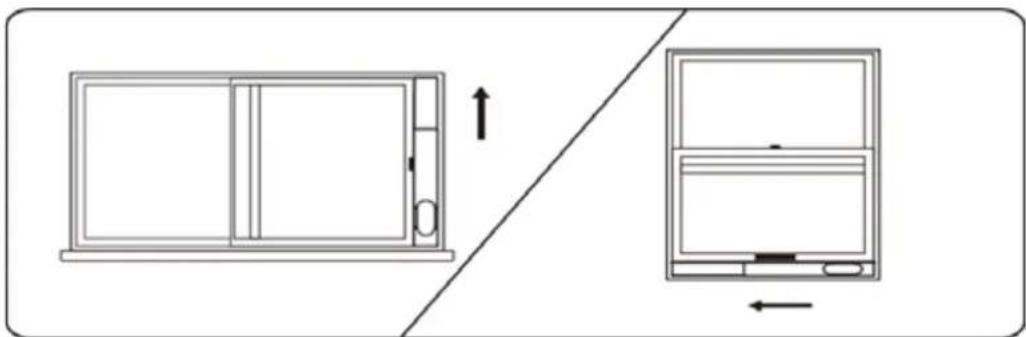

Fije la placa a la ventana

Diagram showing two views of a double door with an arrow indicating upward motion (no text or symbols)

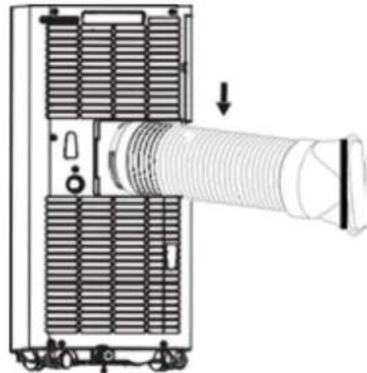

Paso 3:

Technical diagram of a mechanical device with internal components and a pipe connection (no text or symbols)

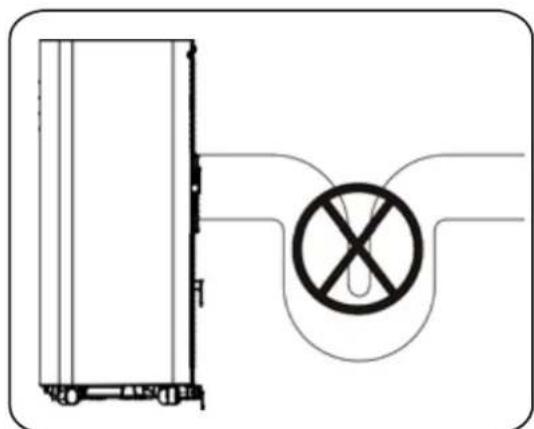

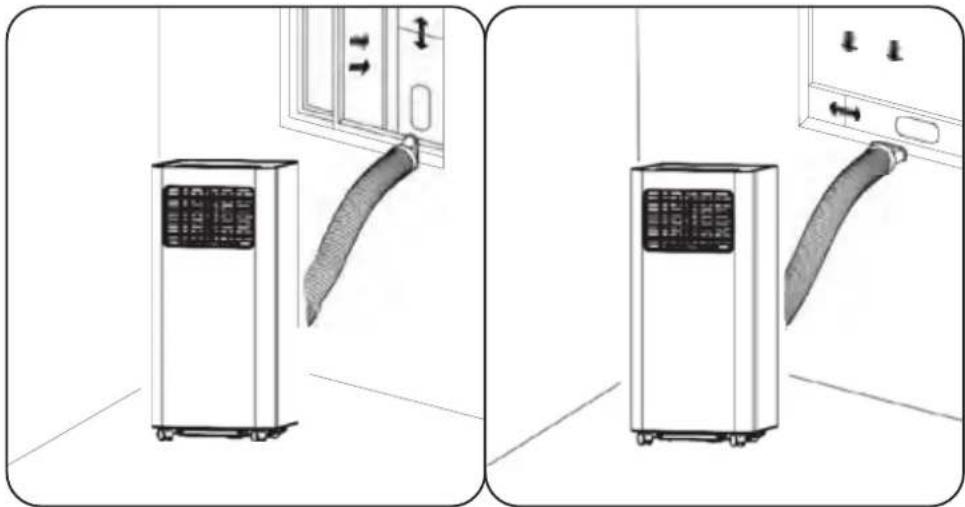

Paso 4:

Two-panel illustration showing a small air conditioner unit and its attached device, both without any text or symbols.

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical line drawing of a car body panel with internal components and mounting holes (no text or symbols)

Technical line drawing of a laboratory apparatus with a beaker and heating element (no text or symbols)

Line drawing of a multi-tiered industrial air conditioner unit with ventilation grilles and wheels (no text or symbols)

Illustration of a white portable air conditioner unit in a living room with sofa and wall panels (no text or symbols)

PAC-A202B/PAC-F75/PACSF17A

Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

Content	English
Before use	26
Technical specifications	30
Installation	31
Safety instructions	34
How to use	36
Troubleshooting	38
Maintenance and cleaning	39

The Infiniton portable air conditioner does not require a fixed installation, as it can be moved from one room to another. You plug it in, unplug it and transport it wherever you want.

They have become very fashionable in offices, second homes and increasingly as the main air conditioner in our home. Its advantages are that it does not require installation, its low consumption and, in addition, you can transport it to any room in just seconds. A whole world of advantages!

The Infiniton portable air conditioner is powerful, silent and you can cool spaces of up to 35 m^2 , achieving the programmed temperatures according to your needs.

Get a good night's sleep with sleep mode

During the summer there are nights when it is difficult to fall asleep. Heat, open windows and noise from outside make it more difficult to get a good night's sleep. Infiniton offers you the chance to sleep soundly.

The sleep mode is a great invention, through this mode, the air continues to work, but without making any sound during operation. You will no longer have any problems when studying, reading, watching your favourite series or simply enjoying absolute silence.

You will also be able to sleep soundly as it offers you the possibility of programming the timer to turn it off when you want. That easy!

Dehumidifying function

An air conditioner should not only cool a room, but also have more functions that allow its use to be outstanding.

An air dehumidifier reduces the ambient humidity by filtering the air in a room, thus making the atmosphere in the room much more comfortable and healthy, here it comes inside the Infiniton portable air conditioner..

How does it improve your quality of life?

In summer it reduces the heat considerably, but it does much more for you.

• It reduces the formation of mould, mites, fungi and bacteria.
• It improves the health of the respiratory system.
  • Prevents skin problems.
• Eliminates unpleasant odours.
• Not bad, is it?

How many frigories do I need according to the size of my room?

There is a very effective and approximate way to calculate how many frigories you need according to the size of the room in which you are going to place the portable air conditioner:

Multiplying the cubic metres of the room by 50.

To find out how many cubic metres a room has, you have to multiply:

• Its height.
• Its square metres.
  That is to say, a room of 20m^2 by a height of 2.5m is a room of 50m^3 .
  To find out how many frigories this room requires, the maths would be as follows:

$$ 5 0 \mathrm{m} ^ {3} \times 5 0 = 2. 5 0 0 \text { frigories. } $$

To avoid damage, place the unit in an upright position for at least 24 hours before start-up. Make sure that the air outlet and air inlet are never blocked.

Only operate the unit on a horizontal and perfectly level surface to ensure that no water escapes.

WARNINGS BEFORE USE

Do not exceed an impedance level greater than 0.236 ohms in the supply to which the appliance is connected. Failure to comply may lead the supply authority to impose restrictions on the connection. Connection. Consult the power supply authorities if use of the equipment exceeds 0.236 ohms.

• Any person involved in the handling or breakdown of a refrigerant in a refrigerant circuit must hold a valid and up-to-date certificate issued by an industry-accredited assessment authority. This authorises their competence to handle refrigerant safety in accordance with industry-recognised assessment specifications.
• Respect the environment when disposing of the device packaging and when the device has reached its expiry date.
• The device must be stored in a well-ventilated area whose size corresponds to the area of the room specified for its use.
• The device must be stored in such a way as to prevent mechanical damage.
• Piping must be protected against physical damage; in the case of flammable refrigerants, the installation of piping must be kept to a minimum; piping must not be installed in an unventilated space.
• Observe national gas regulations.
• Mechanical connections must be accessible for maintenance;
• For products containing flammable refrigerants, the minimum floor area of the room must be mentioned in tabular or single-digit form without reference to a formula;
• When the portable air is switched on, the fan can operate continuously and stably under normal conditions to provide the minimum air volume of 100 m3/h, even when the compressor is switched off;
• Pipes connected to the product must not contain any potential ignition source nearby;
• Do not pierce or burn.
• Use only materials recommended by the manufacturer for proper operation of the portable air.
• Do not puncture any of the components of the refrigerant circuit. Refrigerant gas may be odourless.
  • Take care when storing the product to avoid mechanical failure.
• All repairs should be carried out in accordance with the manufacturer's recommendations.
• Maintenance and repairs requiring the assistance of other qualified personnel must be carried out under the supervision of flammable refrigerant specialists.

PLEASE READ THE MANUAL CAREFULLY BEFORE USING THE PRODUCT.

R290 refrigerant gas complies with European environmental directives.

This product contains approximately 160 g of R290 refrigerant gas.

The product must be installed, operated and stored in a room with an area of more than 7.7 m^2 .

Important safety instructions for devices containing GAS R290

Workplace checks

Before starting work on installations containing flammable refrigerants, safety checks must be carried out to ensure that the risk of fire is minimised. In the case of refrigeration system repair, the following precautions should be taken before carrying out any work on the installation.

Work procedure

Work should be carried out under a controlled procedure to minimise the risk of flammable gases or vapours being present while the work is being carried out.

Work area

All maintenance personnel and others working in the area must be informed of the nature of the work being carried out. Avoid working in enclosed spaces.

Check for the presence of refrigerant

Before and during work, the area should be checked with a suitable refrigerant detector to ensure that the technician is aware of the existence of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e. non-sparking, properly sealed or intrinsically safe.

Presence of a fire extinguisher

If any work is to be carried out on the refrigeration equipment or any part thereof, suitable fire extinguishing equipment must be available. Have a dry powder or CO2 fire extinguisher next to the loading area.

There are no sources of ignition

No person performing work in connection with a refrigeration system involving exposure of any piping shall use sources of ignition in such a manner as to cause a fire or explosion. All possible sources of ignition, including cigarette smoking, shall be kept sufficiently far away from the installation, repair, removal and disposal site, during which time refrigerant may be released into the surrounding space. Before work is carried out, the area around the equipment must be inspected to ensure that there are no ignition hazards or ignition risks. No smoking" signs shall be posted.

Ventilated area

Ensure that the area is in the open air or adequately ventilated before accessing the system or performing any hot work. A certain degree of ventilation must be maintained during the work period. Ventilation should safely disperse any refrigerant that is released and preferably expel it outside into the atmosphere.

Checking refrigeration equipment

When electrical components are replaced, they should be fit for purpose and to the correct specification. The manufacturer's maintenance and service guidelines shall be followed at all times. If in doubt, consult the manufacturer's technical department for assistance. The following controls shall apply to installations using flammable refrigerants.

Checks of electrical devices.

Repair and maintenance of electrical components should include initial safety checks and component inspection procedures. If there is a fault that may compromise safety, no electrical supply should be connected to the circuit until it is satisfactorily resolved. If the fault cannot be corrected immediately, but continued operation is necessary, a suitable temporary solution must be used. This shall be communicated to the owner of the equipment so that all parties are informed.

Initial safety checks shall include:

• that capacitors are discharged: this must be done in a safe manner to avoid the possibility of sparking;
• that no electrical components or wiring are exposed while charging, recovering or purging the system;
• That there is continuity of grounding.

Repair of sealed components.

During repairs to sealed components, all electrical supplies should be disconnected from the equipment being worked on before removing sealed covers, etc. If it is absolutely necessary to have power supply to the equipment during repairs, permanent leak detection must be carried out. This should be done at the most critical point to warn of a potentially dangerous situation.

Special attention must be paid to the following to ensure that, when working with electrical components, the enclosure is not altered in such a way as to affect the level of protection. For example, damage to cables, excessive number of connections, terminals not made to the original specification, damage to seals, incorrect mounting of bushings, etc.

Ensure that the product is properly assembled.

Ensure that gaskets or sealing materials have not degraded to the point where they are no longer suitable for preventing the ingress of flammable atmospheres. Spare parts must conform to the manufacturer's specifications.

Repair of intrinsically safe components.

Do not apply any permanent inductive or capacitive load to the circuit without ensuring that it will not exceed the permissible voltage and current for the equipment in use.

Intrinsically safe components are the only ones that can be worked on in the presence of a flammable atmosphere. Test apparatus must be in the correct classification.

Replace components only with parts specified by the manufacturer. Other parts may cause ignition of the refrigerant in the atmosphere due to leakage.

Wiring

Check wiring for wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check should also take into account the effects of ageing or continuous vibration from sources such as compressors or fans.

Detection of flammable refrigerants.

Under no circumstances should potential ignition sources be used when searching for or detecting refrigerant leaks. A halide torch (or any other detector using an open flame) must not be used.

Extraction and evacuation

When entering the refrigerant circuit for repairs, or for any other purpose, conventional procedures should be used. However, in the case of flammable refrigerants it is important that the procedure is the most appropriate, as combustion is a factor to be taken into account. The following procedure should be followed:

1. remove the refrigerant
2. purge the circuit with inert gas
3. evacuate
4. purge with inert gas

Open the circuit by cutting or welding

The refrigerant charge shall be recovered in suitable recovery cylinders. For products containing flammable refrigerants, the system must be purged with oxygen-free nitrogen to make the product safe for flammable refrigerants. This process may need to be repeated several times. Compressed air and oxygen should not be used to purge refrigerant systems.

For products containing flammable refrigerants, refrigerant flushing should be performed by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until working pressure is reached, then venting to atmosphere and finally lowering to vacuum. This process must be repeated until there is no refrigerant in the system. When the final charge of oxygen-free nitrogen is used, the system must be vented to atmospheric pressure in order to perform the work. This operation is absolutely vital for brazing operations on piping.

brazing operations to be carried out on the piping.

Make sure that the vacuum pump outlet is not close to any possible source of ignition and that ventilation is available.

Charging procedures

In addition to conventional charging procedures, the following requirements must be followed:

Ensure that you do not contaminate yourself with different refrigerants when using the charging equipment. Hoses or lines should be kept as short as possible to minimise the amount of refrigerant they contain.

Cylinders should be kept in the proper position according to the instructions.

Ensure that the refrigeration system is grounded before charging with refrigerant.

Label the equipment when charging is complete (if not already done).

Extreme care must be taken not to overcharge the refrigeration system.

Note: Before refilling the system, the system shall be pressure tested with the appropriate purge gas. The system shall be leak tested at the end of charging but before commissioning. A follow-up leak test shall be carried out before leaving the site.

Disassembly

Before carrying out this procedure, it is essential that the technician has a thorough knowledge of the equipment and all its details. It is recommended as good practice that all refrigerants are safely recovered. Before carrying out the task, a sample of oil and refrigerant should be taken in case an analysis is required before reusing the recovered refrigerant. It is essential that electrical power is available before starting the task.

Familiarise yourself with the equipment and its operation.

Electrically isolate the system.

Before attempting the procedure, ensure that technical equipment is available for handling refrigerant cylinders, if necessary;

Pump out the refrigerant system, if possible.

If vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

Make sure that the cylinder is placed on the scale before recovery.

Start the recovery machine and operate it according to the instructions.

Do not overfill the cylinders (no more than 80% of the liquid charge volume).

Do not exceed the maximum working pressure of the cylinder, even temporarily.

When the cylinders have been correctly filled and the process has been completed, ensure that the cylinders and equipment are removed from the site promptly and that all isolation valves on the equipment are closed.

Recovered refrigerant should not be charged to another refrigeration system unless it has been cleaned and checked.

Labelling

Equipment shall be labelled indicating that it has been decomposed and drained of refrigerant. The label shall be dated and signed. In the case of equipment containing flammable refrigerants, it shall be ensured that there are labels on the equipment indicating that the equipment contains flammable refrigerant.

Recovery

When refrigerant is removed from a system, either for service or for shutdown, it is recommended as good practice that all refrigerants are disposed of safely.

When transferring refrigerant to cylinders, ensure that only suitable refrigerant recovery cylinders are used. Ensure that the correct number of cylinders are available to maintain the total system charge. All cylinders used are designated for the refrigerant recovered and labelled for that refrigerant (i.e. special refrigerant recovery cylinders). Cylinders must be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled prior to recovery.

Recovery equipment must be in good working order, with a set of equipment instructions at hand, and must be suitable for the recovery of all appropriate refrigerants, including, where appropriate, flammable refrigerants. In addition, a set of calibrated scales in good working order shall be available. Hoses shall be complete with disconnect couplings free of leaks and in good condition. Before using the recovery machine, check that it is in good working order, that it has been properly maintained and that all associated electrical components are sealed to prevent ignition in the event of refrigerant discharge.

Consult the manufacturer if in doubt. Recovered refrigerant shall be returned to the refrigerant supplier at the correct recovery site.

Data sheet

Model	PAC-A202B / PAC-F75 / PACSF17A
Product dimensions (mm) 702x325x295mm (height x width x depth)
Cooling capacity (Btu/h) 2050
Cooling capacity (W) 7000
Dehumidifier capacity (L/h) 0,7
Application area (m2) 30
Weight (Kg)	21
Noise (dB)	56-65

Product introduction

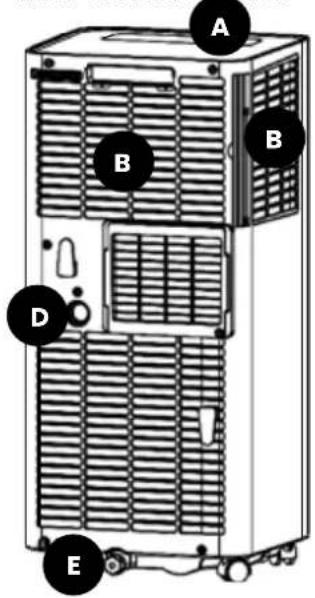

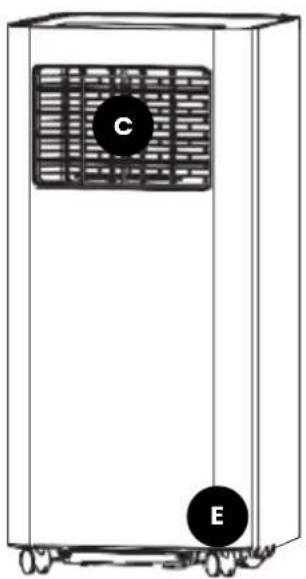

Rear view Front view

Line drawing of a rectangular industrial machine with labeled components C and E (no text or symbols beyond labels)

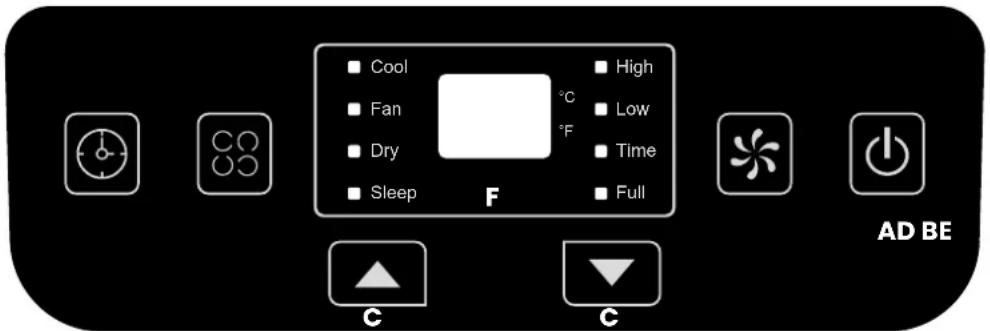

A Control panel

B Air inlet

C Air outlet

D Drainage holes

E Wheels

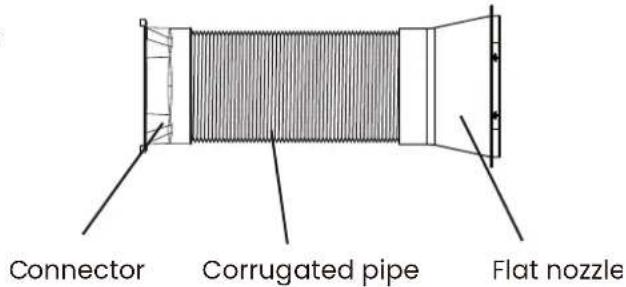

F Window sealing kit and corrugated tube for air outlet

Tips to place your Infiniton portable air conditioner

Use more frigories than theoretically necessary

Normally, when it comes to split type devices, we usually recommend equipment capable of providing between 100 and 140 frigories per square metre to be covered. In the case of a portable device, we can recommend a little more than 140 frigories per square metre without fear of overdoing it.

So, for a room of about 20 square metres where 2,000 or 2,500 frigories would normally be sufficient, we should opt for a model that achieves at least 3,000 frigories if we want equivalent performance.

Make sure it is on a well levelled floor and on a carpet.

Noise is one of the main drawbacks of portable air conditioners and one way to help reduce the noise they produce is to place it on a carpet or insulating surface. This way, every time the compressor starts, unwanted vibrations are not transmitted directly to the floor, but are partially dampened.

Whenever possible, try to avoid placing the unit right in the corners of a room, as this position will excite low-frequency standing waves that will further increase the noise of the appliance. It should also be well shimmed so that it does not vibrate constantly.

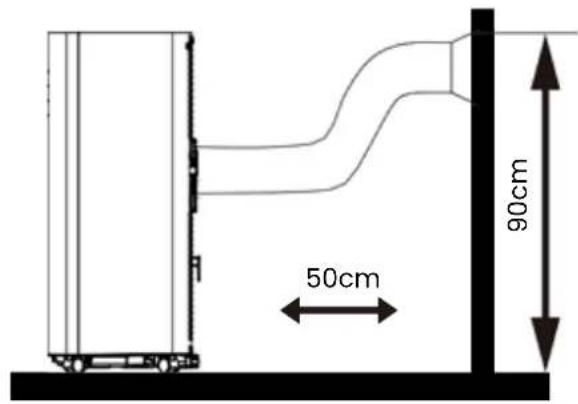

Keep the air outlet pipe as short as possible.

One of the main reasons for the ineffectiveness of this type of air conditioner is the ducting responsible for removing the hot air from the room. They are usually made of uninsulated plastic and dissipate part of the heat in the room, heating the room to be cooled.

They are usually retractable tubes with some flexibility for easy fitting in any type of window, but as far as possible we should try to use the shortest possible tube lengths to minimise the heat radiation surface in the room.

In addition, corners should be minimised, because every corner is an obstacle to the air outlet, which will reduce the performance of the equipment.

Don't install in front of a door or window

Since air must be continuously drawn out of the room to the street, a pressure difference occurs, which creates an airflow that flows from the room or surrounding corridors. To prevent these draughts from bringing air in from outside or into another warm room, try not to place the air directly against a poorly insulated door (which homes often do not have) or uninsulated windows. If we do this, it is easy to check how warm air is coming in from outside by outside by reaching into the cracks of poorly insulated doors and windows, which will prevent us from reaching the desired temperature faster and keeping the compressor running, which means more noise.

Install window sealing kit and corrugated air exhaust pipe.

Place the portable air conditioner on the floor horizontally and well leveled near the window.

For proper ventilation and better performance of the unit, ensure that the portable air conditioner is at least 50 cm away from nearby objects.

Insert the corrugated air exhaust hose into the connector on the rear of the unit.

Mount the window sealing kit as shown below.

Screw modelC lip model

Step 1:

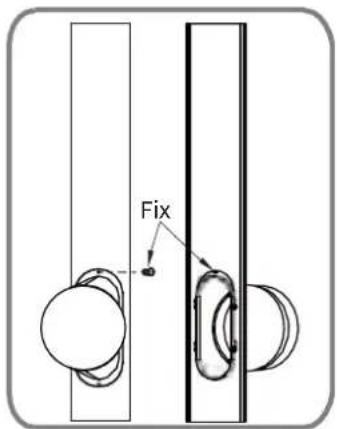

A. Screw fixing type

1. Measure the size of the window
2. Adjust the length of the plate according to the window size
3. Fix the plate with a screw

B. Clip-on type

1. Measure the size of the window
2. Adjust the length of the plate according to the size of the window.
3. Lock the plate with the help of the clip

Pure electrical circuit lines without any symbols

Step 2:

Attach the plate to the window.

Diagram showing a door frame with an arrow indicating upward motion, and a separate view of a device with bidirectional arrows (no text or symbols)

Step 3:

Turn the exhaust pipe assembly (exhaust fitting end) into the rear panel outlet (counterclockwise).

Make sure that the parts fit snugly.

Do not force the connections, as this may damage parts of the unit and the corrugated pipe.

Any damage caused by improper pipe connection is exempt from warranty.

Diagram of a vertical cylindrical device with internal heat exchanger and cooling unit, showing no text or symbols

Step 4:

Insert the exhaust pipe assembly (exhaust port end) into the window seal panel assembly and secure with either a screw or clip.

The corrugated tube can be stretched up to 1500mm. To avoid bending it, make it as short as possible.

RIGHT INSTALLATION

Two-panel illustration showing a small air conditioner unit and its internal air duct system, both without any text or symbols.

WRONG INSTALLATION

Pure electrical circuit lines without any symbols

Prevent the duct from bending sharply, ensuring that air can flow smoothly through the duct. This duct is designed solely and exclusively for this model, please do not replace it with a non-Infiniton duct.

• Read this user manual carefully before use.
• Never touch the product with wet hands.
• Use extreme caution when children are near the product.
• Use this product only for its intended use.
• Do not immerse the product, power cord or plug in water or other liquids.

- Do not leave the product unattended when in use.

• Always unplug the power cord from the outlet when the product is not in use or before cleaning.

- Do not use the product when it is damaged and/or its power cord or plug is damaged; have it repaired by an authorized service agent.

- Do not use the product outdoors.

- Never leave the power cord hanging over sharp edges and keep it away from hot surfaces.

- The portable air conditioner is designed for indoor use.

• The rated operating parameters require the product to be powered with a 220-240 V / 50 Hz mains supply.
• Install the portable air conditioner in accordance with the requirements of the local power company or grid operator to ensure a safe and effective protective earth connection. If you are in any doubt about the compliance of your electrical system, follow this user manual or have the product installed by a qualified professional.
• Place the portable air conditioner on a level, flat, dry floor at least 50 cm away from other objects and walls.
• After installation, make sure that the power cord plug is not damaged and is securely connected to the power outlet. Check the position of the power cord to avoid tripping or pulling the plug.

- Do not place anything on the air conditioner's supply and return air grilles.

- Keep the supply and return air grilles clear and unobstructed.

- If you need to install a hot air exhaust duct, make sure its connections are tight and the duct is not kinked.

- Keep the air conditioner upright when moving it.

- Keep the air conditioner away from gasoline, flammable gases, cookers, ovens and other heat sources.

- The product is designed for household use only.

• The product is not designed to be operated by an external timer or separate remote control system.

• Always switch off the product before unplugging the power cord from the wall outlet.

- Do not attempt to open, disassemble or modify the air conditioner without authorization; otherwise, the product may fail or cause injury and/or damage. If the air conditioner fails or malfunctions, have it repaired by the manufacturer or a qualified professional.

- Do not install or operate the air conditioner in a bathroom or other damp rooms. This product is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Cleaning and user maintenance must not be carried out by children without supervision.

- Please note that children should never play with this product. Do not pull the plug to turn the product off.

• Do not place containers with liquids (e.g. glasses) on top of the air conditioner; otherwise, the inside of the product may be accidentally flooded.
• Do not use insect sprays or other flammable substances near the air conditioner. Do not clean the air conditioner with chemical solvents such as gasoline, alcohol, etc. Before cleaning the air conditioner, make sure that the power supply is disconnected. Wipe with a slightly damp cloth. If the product is very dirty, clean it with a neutral cleaning agent.
• Do not use agents other than those recommended by the manufacturer to accelerate the defrosting process. to accelerate the defrosting process or for cleaning.
• Keep the product in a room without any continuously operating device that could be a possible source of ignition (e.g. an open fire, an operating gas appliance or an operating electric heater). Do not puncture the refrigerant circuits. The refrigerant is flammable and odourless. The product must be installed, operated and maintained in a room with a floor area larger than 13m2.
• Keep the product in a well-ventilated room.
• Do not place any objects on the supply and return air grilles. Keep the grilles free of obstructions.
• When connecting a drain hose, make sure that it is properly connected and that it is not deformed or kinked.
• To protect your children, do not leave any part of the packaging easily accessible (e.g. plastic bags, cardboard boxes, polystyrene inserts, etc.).

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🎨 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Control panel

on/off button

Press the button to turn on/off the portable air conditioner.

Button for fan speed control

Press the button to select the fan speed. Each press will increase the speed, which will be indicated on the display and the fan speed indicators will light up: Fan on the left and High / Low on the right. and High / Low on the right hand side..

Increase / Decrease buttons for temperature and for timer

In Cool Air mode, press the keys to increase or decrease the temperature.

Pressing the keys together will toggle between ^ C and ^ F.

Press the key to choose between the different modes offered by the portable air conditioner:

Cooling (Cool):

The temperature setting ranges from 16^ C to 30^ C. Combine this mode with the fan button to regulate the fan speed, thus achieving a high or low airflow according to your needs.

Fan:

Press this button to regulate the fan speed. When only this mode is selected, the temperature cannot be adjusted.

Dehumidifier (Dry):

The Dehumidifier (Dry) indicator will light up in this mode.

- Remove the plug from any of the drain holes on the rear of the portable air, insert one end of the hose into one of the drain holes, and the other end into a water tank or water channel.

- If the ambient temperature is ≥ 17^ the compressor starts and follows the following sequence: if the ambient temperature is ≤ 15^ the compressor stops, when it reaches ≥ 17^ , the compressor starts again.

There may be a delay of 3 minutes at start-up.

- The fan runs at a fixed low speed.

- The temperature is fixed.

Very Important: When using this mode, disassemble the air outlet duct, as the performance may be affected and the alarm indicating that the water tank is full "FL" may sound.

Sleep:

The sleep mode is designed to make sleeping conditions much more pleasant, without the need to adjust the unit while you are resting, ensuring the best sleeping conditions.

E Timer

In standby mode, press the timer button to set the power-on time. A range of 0 to 24 hours can be set with the Up/Down keys. The timer indicator will illuminate in this mode.

When in operation, press the timer button to set the off time. A range of 0 to 24 hours can be set with the Up/Down keys. The timer indicator will be illuminated in this mode..

F Display

This display will show the temperature values in ^ C / ^ F and time set on the portable air in their corresponding modes.

Remote control

This device comes with a remote control included, which will make your Infiniton portable air experience easier.

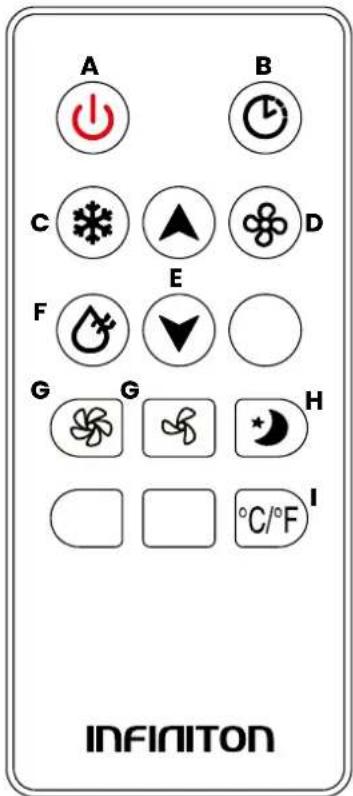

A on/Off button

B Timer

© Cool mode (Cool)

D Fan

E Increase / Decrease temperature and time buttons

F Dehumidifier mode

G High / Low speed buttons for fan mode

H Sleep mode

Button to toggle between °C and °F temperature values

Install the battery correctly before using the remote control.

The specific steps are as follows:

Slide open the battery cover on the back.

Insert 2 new AAA batteries (DC 1.5V) and install the electrodes correctly.

Place the batteries in their proper place.

Important notes:

Only 1.5V DC AAA batteries are allowed, never use rechargeable or other types of batteries.

Replace both batteries; never mix a new battery with an old one.

Remove the batteries if the device will not be used for a long time.

Never use damaged or leaking batteries.

Chemicals in batteries can cause health hazards such as burns. If battery fluid splashes on skin or clothing, wash it off with clean water immediately. If batteries are swallowed, rinse mouth immediately with clean water and then seek medical attention.

Technical line drawing of a battery pack assembly with internal components (no text or symbols)

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, contact customer service.

DESCRIPTION POSSIBLE CAUSE SOLUTION
The air conditioning does not works.	· The display does not light up.· The display shows “FL”.· The display shows “Time OFF”.	· Reset the circuit breaker on the power cord.· Turn off the air, drain the water tank and restart.· Turn the air off and on after 3 minutes.
The air conditioner turns on and off frequently.	· Direct sunlight.· Doors and windows are open, there are many people in the room or there is a large heat source near the air conditioner.· Filters are dirty.· The air inlet/outlet is blocked.	· Cover the source of direct sunlight.· Close doors and windows and remove heat source.· Clean and replace.· Remove objects obstructing the air inlet/outlet.
The air conditioner makes a lot of noise.	The air conditioner is not on an even surface.	Place the air conditioner on a firm floor and on a carpet.
The compressor does not work.	Room temperature is too high. Turn off the air conditioner and wait 3 minutes before turning it on again after the air conditioner has cooled down.

ERROR CODE DESCRIPTION
E1 Coil temperature sensor error
E2 Indoor temperature sensor error.
E4	Antifreeze protection: the coil temperature is too low and all air conditioning is switched off. When the temperature exceeds 8°C, the protection is released and the previous working state is restored.
E5 Water motor failure.

Note: Any electrical repairs to this product must comply with local, state, and federal laws. Please contact the Technical Support Center if you have any questions before performing any of the above steps. before performing any of the above steps. Always disconnect the unit from the power source when opening the unit.

iATTENTION! Before servicing or cleaning, the portable air conditioner must be disconnected from the mains.

Note: The exterior surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to achieve the best possible result without damage.

General cleaning

Clean the surface of the device with a soft, damp cloth. Do not use chemical reagents such as alcohol, benzene and petrol, as they may damage the surface of the portable air conditioner.

Draining

The air conditioner will show "FL" on the display, accompanied by a beep when the water tank is full. Once the compressor stops, drain the water as follows:

1. Unplug the portable air conditioner and unscrew the hose from the air outlet of the unit.
2. Move the air conditioner to a clear place.
3. Remove the plug from the drain hole and using a rubber hose, drain all the water into a container.
4. Replace the plug back into the drain hole.
5. Reinstall the air outlet hose and put the air conditioner back in place.

Technical line drawing of an electrical cabinet with cooling fans and a gas cylinder (no text or symbols)

Cleaning the filters

The filter should be cleaned once every two weeks. If the indoor air quality is poor, it must be washed more frequently or the performance of the appliance will be reduced because the filters may be clogged. If the indoor air quality is poor, it must be washed more frequently or the performance of the appliance will be reduced because the filters may be clogged. Follow the instructions below for cleaning:

1. Remove the grille covering the filter

2. Remove the filter

3. Clean the filter in lukewarm water ( 40^ C is recommended) or in water with neutral detergent. If the filter is not so dirty, you can clean it with the help of a hoover.

Note: Do not wash the filter at temperatures above 40^ C or with abrasive and flammable products such as alcohol, petrol and benzene. alcohol, petrol and benzene. The filters should be kept away from heat sources, as they may become deformed. Never switch on the appliance without the filters installed correctly.

Storage

If the portable air conditioner will not be used for a long time:

Remove the drain hole plug and run the fan mode (FAN) for 2 hours.

Then switch off and unplug the unit. After unplugging, remove the filters and clean them. Remove the sealing kit and corrugated tube and store them in a safe place. Remove the batteries from the remote control and wrap the entire unit in a plastic bag. Keep the entire air conditioner assembly in a cool, dry place.

Keep the entire air conditioner assembly in a cool, dry place.

INFINITON

Illustration of a white portable air purifier in a living room with sofa and wall panels (no text or symbols)

PAC-A202B/PAC-F75/PACSF17A

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular industrial machine with labeled components C and E (no text or symbols beyond labels)

Pure electrical circuit lines without any symbols

Passo 2:

Diagram showing a door frame with an arrow indicating upward motion, and a separate view of a monitor with an arrow (no text or symbols)

Passo 3:

Diagram of a vertical cylindrical device with internal heat exchanger and cooling unit, showing airflow direction (no text or labels)

Passo 4:

Two-panel illustration showing a small air conditioner unit and its attached device, both without any text or symbols.

INSTALAÇÃO INCORRECTA

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Botão On/Off

Technical line drawing of a mobile phone casing with internal components and a battery (no text or symbols)

Technical line drawing of a mechanical or electrical device with no visible text, numbers, or symbols.

Limpeza dos filtros

Technical line drawing of a multi-tiered industrial air conditioning unit with ventilation grilles and wheels (no text or symbols)

¿Necesitas ayuda?

Silhouette icon of a person wearing a headset with a crossed wrench symbol (no text or numbers)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
