Product Type	3x 3.5" SATA/SAS HDD Backplane for 2x 5.25" Bays
Supported Drive Interfaces	3x SATA III (6 Gbit/s) or 3x SAS III (12 Gbit/s)
Host Connector	3x SATA data interfaces (up to 6 Gbit/s); optional Mini SAS HD (SFF-8643) adapter for 12 Gbit/s support
Power Connectors	2x 15-pin SATA power ports
Cooling	60x60 mm fan with auto/high speed modes and temperature-controlled start at 30°C
LED Indicators	Blue (power), blue flashing (access), orange flashing (fan failure), red flashing (temperature alarm)
Key Lock	Yes, to secure each inserted drive
Hot Swap	Yes, Plug & Play
Temperature Alarm	Adjustable to 55°C, 60°C, or 65°C
Alarm Buzzer	ON/OFF switch for audible alarm
LED Hard Disk Activity Switch	ON/OFF switch to enable/disable activity indicator
Compatible Operating Systems	Windows® and macOS®
Material	Full aluminium and steel
Safety Features	Overheating and fan failure monitoring, electrical shock protection (de-energize before working)
Cleaning Instructions	Use a dry, anti-static cloth; disconnect device before cleaning
Disposal	WEEE compliant; do not dispose as domestic waste

Frequently Asked Questions - IB-573SSK-12G Icy Box

How many drives does the IB-573SSK-12G support?

It supports up to three 3.5-inch SATA or SAS hard drives.

What is the maximum data transfer speed?

It supports SATA III at 6 Gbit/s directly, and SAS III at 12 Gbit/s with an optional Mini SAS HD adapter cable.

Does the backplane support hot swapping?

Yes, it supports HotSwap and Plug & Play, allowing you to swap drives without powering down the system.

How do I install the IB-573SSK-12G?

Turn off the PC, unplug power, remove the cover, insert the backplane into two 5.25-inch bays, secure with screws, connect the SATA data and power cables, then close the PC.

What do the LED indicators mean?

Blue constant LED indicates power on. Blue flashing indicates drive activity. Orange flashing indicates fan failure. Red flashing indicates temperature alarm.

Can I adjust the temperature alarm threshold?

Yes, you can set the temperature alarm to 55°C, 60°C, or 65°C using a switch on the backplane.

Is the IB-573SSK-12G compatible with macOS?

Yes, it is compatible with both Windows® and macOS®.

How should I clean the device?

Disconnect the device, then clean using a dry, anti-static cloth. Avoid aggressive cleaning agents and solvents.

What happens if the fan fails?

The buzzer will sound and the orange LED will flash. Once the fan is replaced or fixed, the alarm stops automatically.

What cables are included in the box?

The package includes three 7-pin SATA data cables. Power cables are not included; you need to use two 15-pin SATA power cables from your PSU.

USER MANUAL IB-573SSK-12G Icy Box

3x 3.5" SATA/SAS HDD Backplane

Handbuch IB-573SSK-12G

3x 3.5" SATA/SAS HDD Backplane

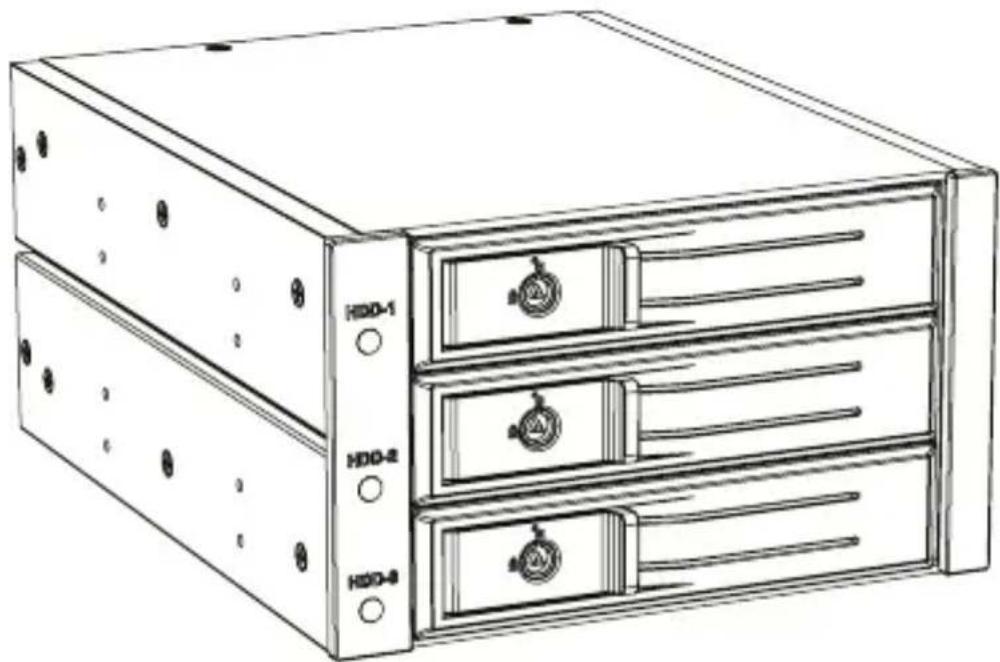

Line drawing of a server rack unit with three HDDs (HDD-1, HDD-2, HDD-3) and mounting holes, no text or symbols present.

Manual IB-573SSK-12G

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
  • Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements

Manual IB-573SSK-12G

• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
  • Exclusively use the product once the specifications have been met
  • Back up data prior to commissioning
  • Back up data prior to connecting new hardware
  • Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.icybox.de.

Handbuch IB-573SSK-12G

• Full aluminium and steel backplane for 2x 5.25" bays
- Host connector: 3x SATA data interfaces with up to 6 Gbit/s
• Supports 3x SATA III (6 Gbit/s) or 3x SAS III (12 Gbit/s) drives
• Key lock to secure each inserted drive
• HotSwap and Plug & Play, no capacity limit
• LED indicators for power, HDD access, fan failure, temperature alarm
- 60x60 mm cooling fan
• Temperature alarm adjustable to 55 °C, 60 °C or 65 °C
• Supports Windows® and macOS®

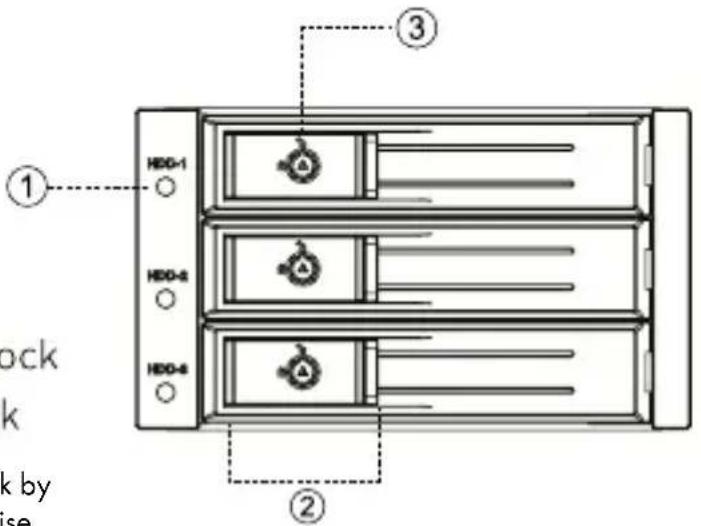

Front view

1. LED indicator
2. Handle for unlocking
3. Lock

Lock

Use the key to unlock the lock by turning it 90 degrees clockwise.

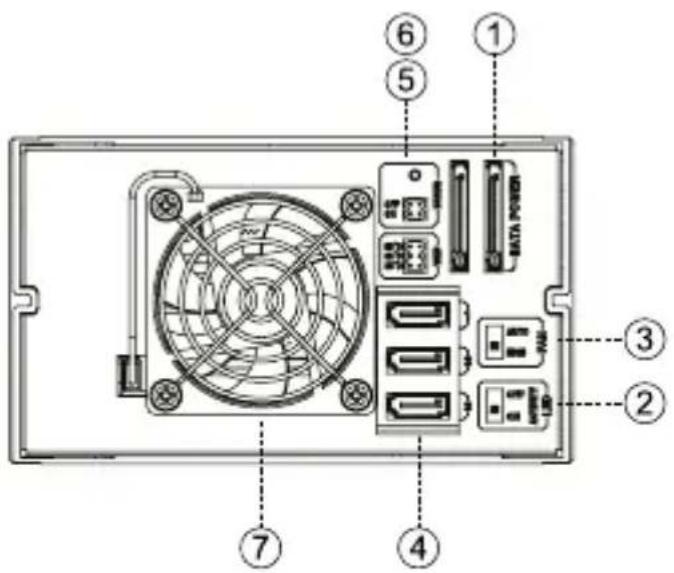

Back view

1. 2x 15-pin SATA power port
2. ON/OFF switch for LED hard disk activity
3. Switch for fan speed (Auto/High)
4. 3x 7-pin SATA data interfaces
5. Setting of the range for temperature alarm
6. Setting (ON/OFF) alarm buzzer
7. 60x60 mm fan

Manual IB-573SSK-12G

Hardware installation

1. Switch OFF the PC and all other connected peripheral devices.
2. Unplug the power cable from the back of the PC and remove the cover of your PC.

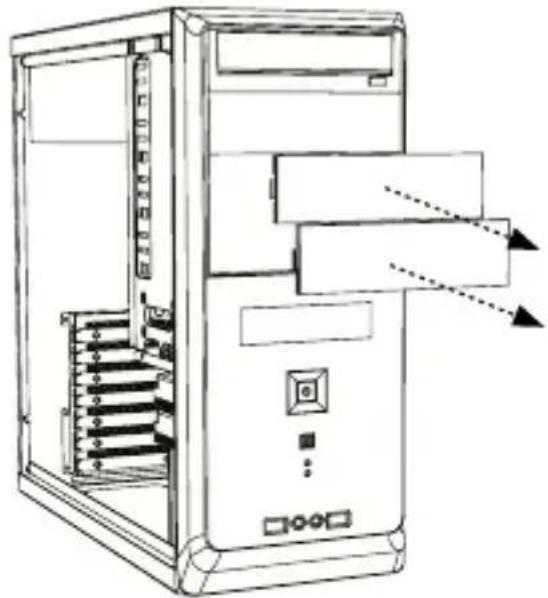

3. Remove the covers of the available 2x 5.25" bays.

Line drawing of a desktop computer tower with visible internal components and ventilation slots (no text or labels)

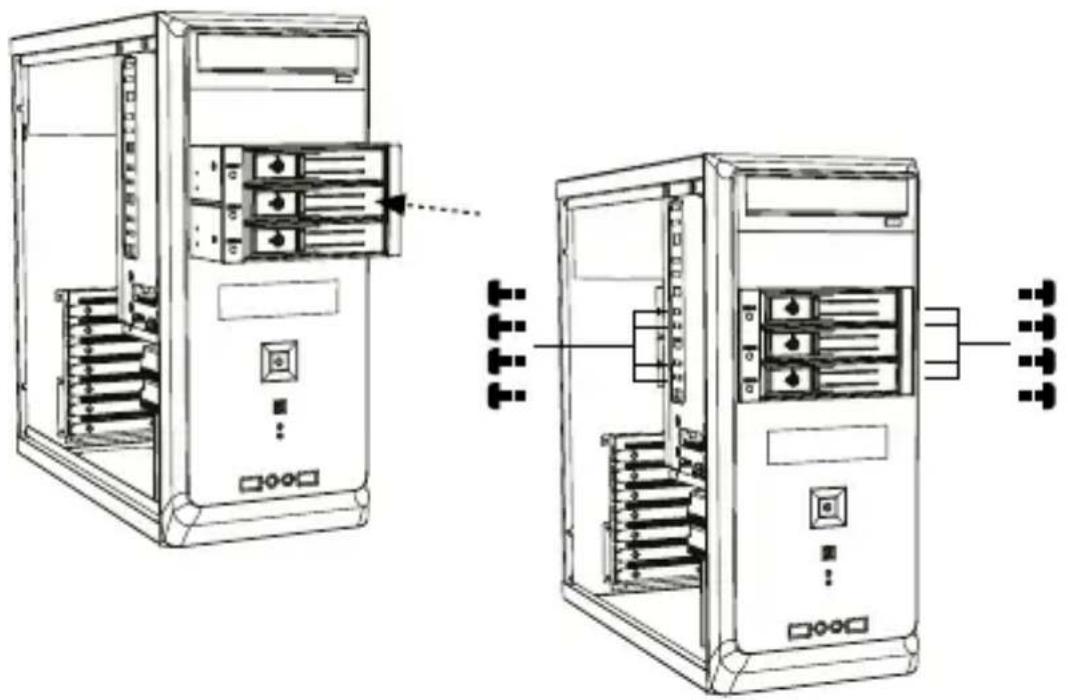

1. Insert the backplane into the bay and fix it with 4 screws on each side.

Technical line drawing of two desktop computer cabinets with internal server racks and ventilation slots (no text or labels)

Manual IB-573SSK-12G

5. 6 Gbit/s support

Connect the three 7-pin SATA data interfaces of the backplane to three 7-pin SATA data interfaces of the host PC with included cables.

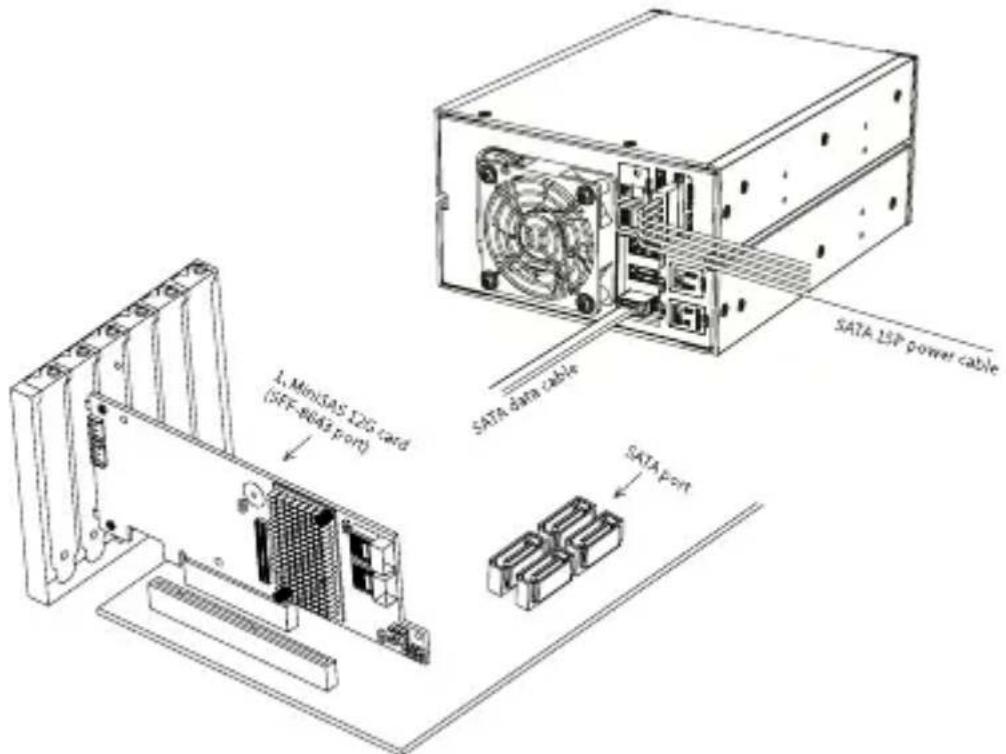

12 Gbit/s support

Connect the three 7-pin SATA data interfaces of the backplane with a three 7-pin SATA data interfaces to Mini SAS HD (SFF-8643) adapter cable (not included) to the supported host PC (Mini SAS HD PCIe card is not included).

1. Then connect the two 15-pin SATA power ports with two 15-pin SATA power cables to two 15-pin SATA power connectors on the host PC.

Note: It requires more power to allow three 3.5" drives working at the same time.

1. Replace the PC cover and reconnect the power cable of the PC.

Manual IB-573SSK-12G

Drive installation

Attention

• Do not force to close the door if inserting the drive in the wrong direction, or the drive and/or the backplane will be damaged.

• Drives should be handled carefully, especially when you transport them, otherwise you may experience lost or corrupted data.

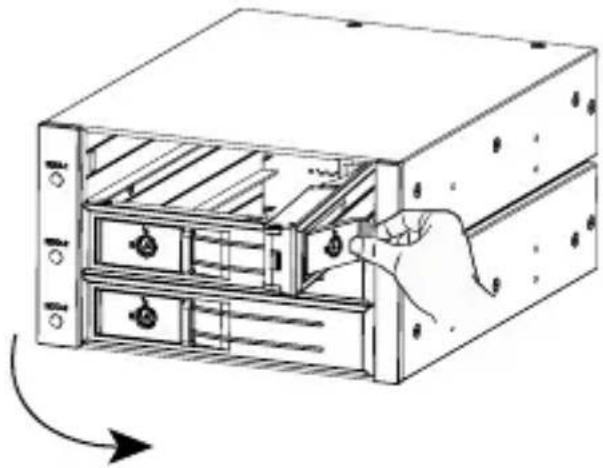

• If the door is locked, use the key to unlock. Then pull the door handle open.

Illustration of a computer rack with a hand inserting a component into the drawer (no text or symbols)

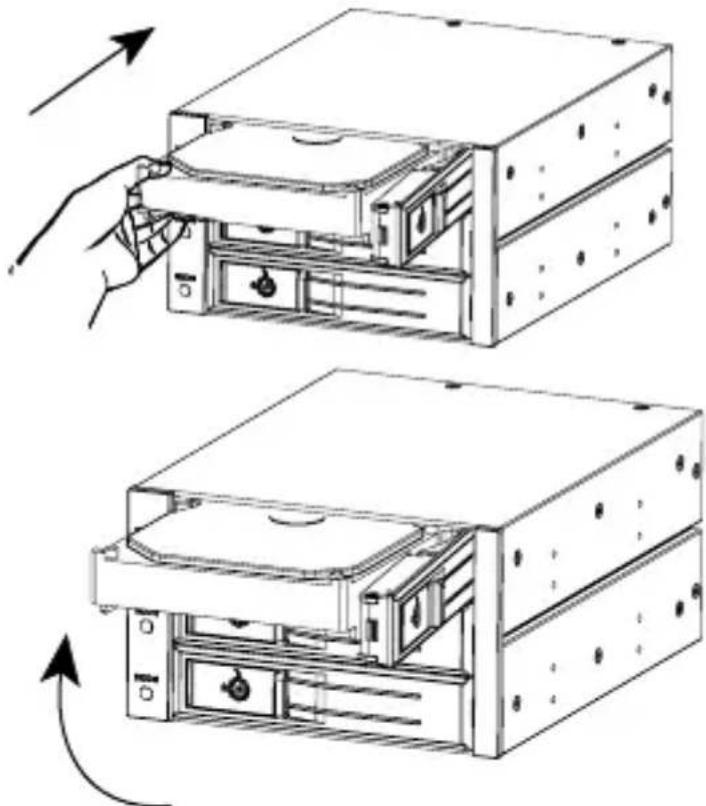

1. Gently insert the drive (printed side up) into the enclosure and close the door.

Technical line drawing of a computer drive showing internal components and assembly (no text or symbols)

1. Lock the door by key if needed.

Manual IB-573SSK-12G

During operation

1. LED indicators

Power indicator: Blue LED lights up constantly Access indicator: Blue LED flashes Fan failure: Orange LED flashes Temperature notice: Red LED flashes

2. Fan failure alarm

If the fan fails, the buzzer activates and the orange LED flashes. The orange LED stops flashing when the function returns to normal. Attention Note: The built-in fan works with the integrated temperature control system of the backplane. Changing the fan with other models may affect the function.

3. Temperature alarm

If the temperature is above the setting, the buzzer activates and the red LED flashes. The red LED stops flashing when the temperature returns below the setting. Attention Note that the drives can reach temperatures of 50^ C or higher during operation. Risk of injury when removing the drives!

4. ON/OFF switch for LED hard disk activity

OFF: Switching off the activity indicator ON: Switching on the activity indicator

AUTO: When the internal temperature reaches 30^ C, the fan starts running. The fan speed is automatically adjusted to temperature changes. The fan rotates at the highest speed when the temperature reaches 40^ C.

HIGH: The fan already rotates at the highest speed when the temperature reaches 30^ C.

(When the backplane is just powered on, the fan will run for a few seconds as self-test and then stops.)

6. Setting (ON/OFF) for alarm buzzer

OFF: Deactivating the buzzer sound ON: Switch on the buzzer sound

7. Setting the temperature alarm range

Temperature alarm can be set to 55°C, 60°C or 65°C
