| Product Type | 4-Bay U.2 SSD Backplane for 5.25" Bay |
| Form Factor | 5.25" Internal Drive Bay |
| Host Connector | 4x U.2 / Mini SAS HD (SFF-8643) |
| Supported Drives | 4x 2.5" U.2 SSD (SFF-8639) |
| Data Transfer Rate | Up to 32 Gbit/s per port |
| Material | Aluminum and Steel |
| Cooling | 2x 40x40x10 mm Cooling Fan |
| Security | Key Lock to Secure SSDs |
| LED Indicators | Power and Access |
| Power Supply | SATA 15 Pin Power Connector |
| Operating System Compatibility | Windows, macOS |
| Safety | Read manual; risk of electric shock; avoid humidity; use specified power unit |
| Cleaning | Disconnect before cleaning; use dry anti-static cloth; avoid aggressive solvents |
| Disposal | WEEE compliant; do not dispose with household waste |
| Package Contents | 1x IB-2242U2K, 8x frame screw, 16x HDD tray screw, 2x key, 1x manual (cables not included) |
| System Requirements | 4x free U.2 port (SFF-8643) on host; PCIe 3.0 x4 support; HotPlug for HotSwap |
Frequently Asked Questions - IB-2242U2K Icy Box
User questions about IB-2242U2K Icy Box
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Computer Case in PDF format for free! Find your manual IB-2242U2K - Icy Box and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IB-2242U2K by Icy Box.
USER MANUAL IB-2242U2K Icy Box
Manual IB-2242U2K

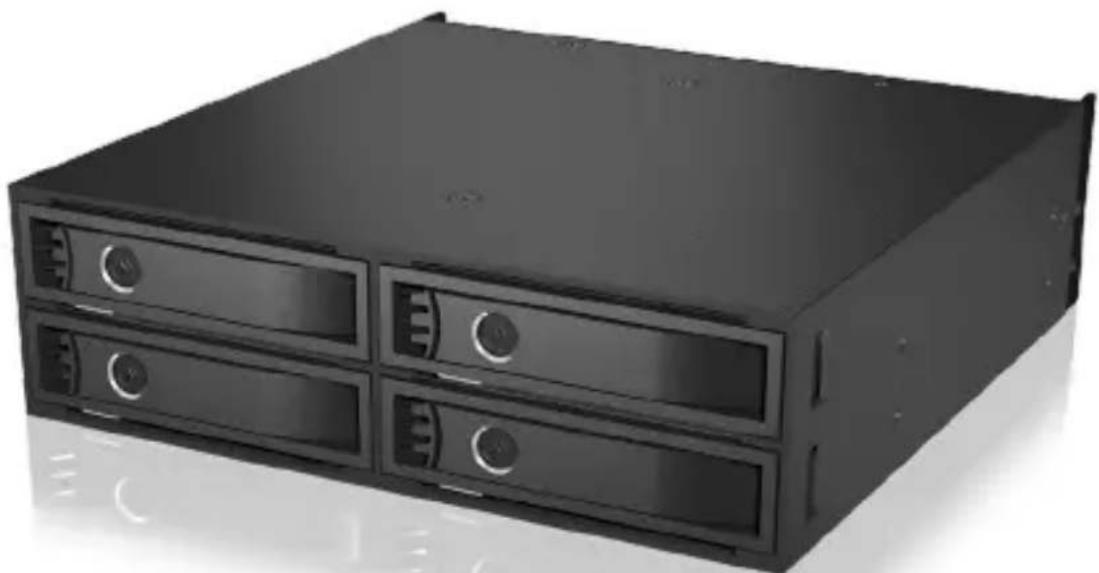

4x 2.5" U.2 SSD Backplane
Handbuch IB-2242U2K
4x 2,5" U.2 SSD Backplane
Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:
Warning levels
Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER
Warns of a directly hazardous situation causing death or serious injury.

WARNING
Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION
Warns of a potentially hazardous situation that may cause minor injury.

PORTANT
Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.
1. Risk of electrical shock

WARNING
Contact with parts conducting electricity
Risk of death by electrical shock
- Read the operating instructions prior to use
• Make sure the device has been de-energised prior to working on it - Do not remove contact protection panels
- Avoid contact with conducting parts
- Do not bring plug contacts in contact with pointed and metal objects
• Use in intended environments only - Operate the device using a power unit meeting the specifications of the type plate only!
- Keep the device/power unit away from humidity, liquid, vapour and dust
- Do not modify the device
- Do not connect the device during thunderstorms
- Approach specialist retailers if you require repairs
2. Hazards during assembly (if intended)

CAUTION
Sharp components
Potential injuries to fingers or hands during assembly (if intended)
- Read the operating instructions prior to assembly
- Avoid coming into contact with sharp edges or pointed components
- Do not force components together
- Use suitable tools
• Use potentially enclosed accessories and tools only
3. Hazards caused by a development of heat

IMPORTANT
Insufficient device/power unit ventilation
Overheating and failure of the device/power unit
- Prevent externally heating up components and ensure an exchange of air
- Do not cover the fan outlet and passive cooling elements
Safety information IB-2242U2K
- Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit - Do not place objects on the device/power unit
4. Hazards caused by very small parts and packaging

WARNING
Risk of suffocation
Risk of death by suffocation or swallowing
- Keep small parts and accessories away from children
- Store/dispose of plastic bags and packaging in an area that is inaccessible to children
- Do not hand over small parts and packaging to children
5. Potential data loss
IMPORTANT
Data lost during commissioning
Potentially irreversible data loss
• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product
6. Cleaning the device
IMPORTANT
Harmful cleaning agents
Scratches, discolouration, damage caused by moisture or short circuit in the device
- Disconnect the device prior to cleaning
- Aggressive or intense cleaning agents and solvents are unsuitable
• Make sure there is no residual moisture after cleaning
• We recommend cleaning devices using a dry, anti-static cloth
7. Disposing of the device
IMPORTANT
Environmental pollution, unsuitable for recycling
Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.
If you have any questions, please do not hesitate to contact our support at support@raidsonic.de or visit our website at www.raidsonic.de.
- LED indicator/ LED Anzeige
- Lock/ Schloss
- Tray release latch/ Schachtverriegelung
- Tray door/ Schachttür
2314
Key Features
• Host connector: 4x U.2 / Mini SAS HD (SFF-8643)
• Supports U.2 (SFF-8639) SSD, up to 32 Gbit/s
• Full aluminium and steel backplane for 5.25" bay
• Key lock to secure the SSDs
• LED indicator for power and access
• 2x 40x40x10 mm cooling fan
• Supports Windows ^® and MacOS ^®
System requirements
4x free U.2 port (SFF-8643) on your host computer, 4x U.2 cable (SFF-8643 to SFF-8643). Other U.2 ports on the motherboard with PCIe 3.0 x4 support, e.g. Slimline SAS (SFF-8654), Oculink (SFF-8611), can be used with the appropriate cables or adapters. If a PCIe expansion card with 4x Mini SAS HD (SFF-8643) port is used, the motherboard must support PCIe x4x4x4x4 model! The host on the motherboard must support the HotPlug function to support the HotSwap function of the U.2 SSD!
Manual IB-2242U2K
Hardware installation
- Turn OFF the PC and any other connected peripheral devices.
- Unplug the power cable from the back of the PC and remove the cover of your PC.

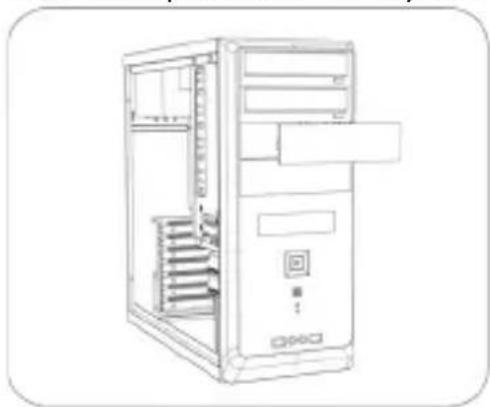

- Remove the panel from the available 5.25" bay.

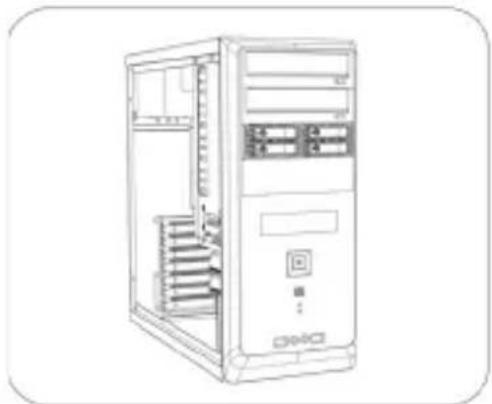

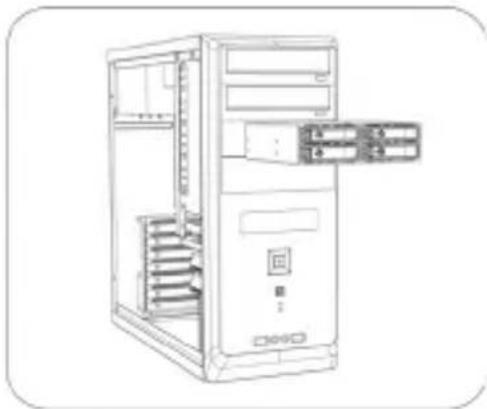

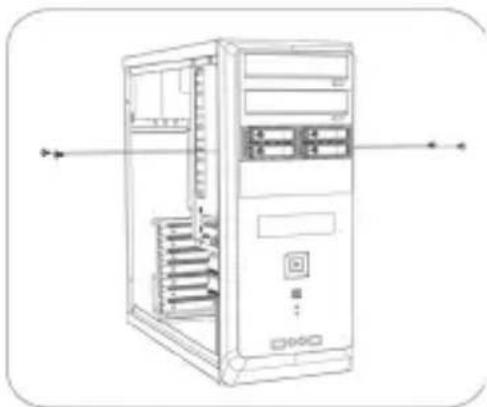

- Insert the Backplane into the bay and fix it with 2 screws on each side.


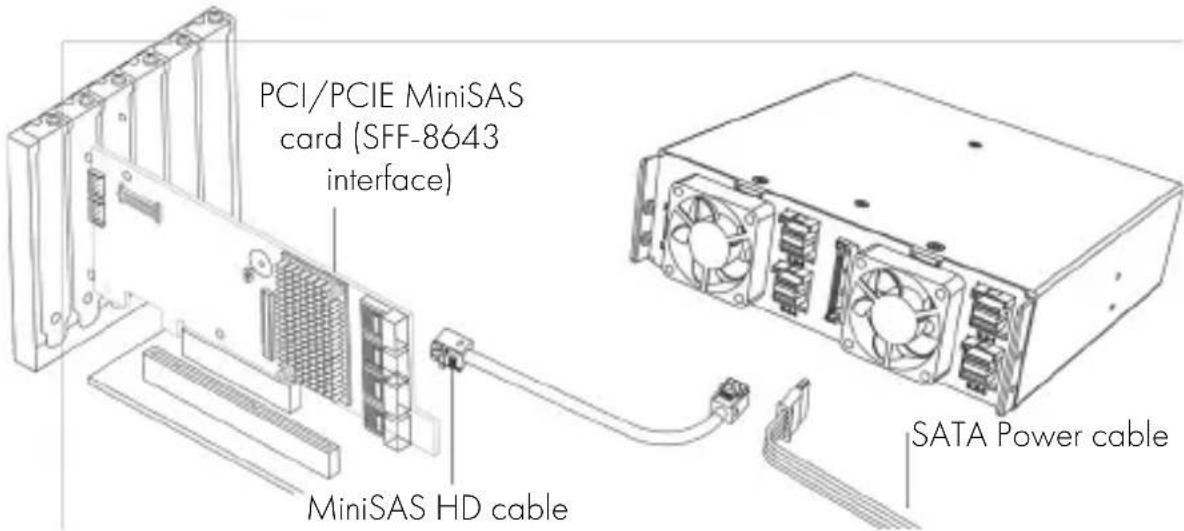

Connect the four Mini SAS HD host connectors of the housing to your U.2 connectors on your mainboard or PCIe adapter cards.
-
Connect a SATA 15 pin power cable to the SATA power connector on the back of the housing.

Manual IB-2242U2K

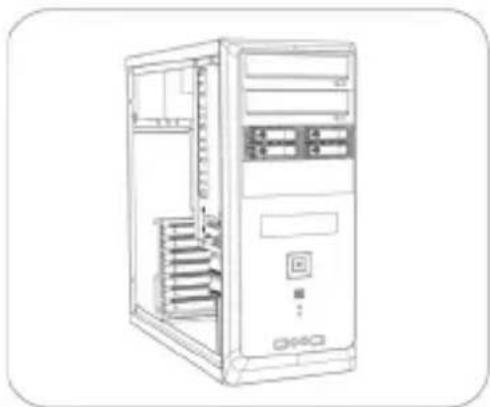

- Replace the PC cover and reconnect the power cable of the PC.
- The backplane is now ready for use.
Note: A new SSD must first be initialized, partitioned and formatted in the operating system in order to be recognized and displayed by the system.
Drive installation
Attention! The host must support the HotPlug function to support the HotSwap function for the U.2 SSD. If your motherboard does not support the HotPlug function, you must first install the SSD and then turn on the computer. Otherwise, the SSD will not be recognized.

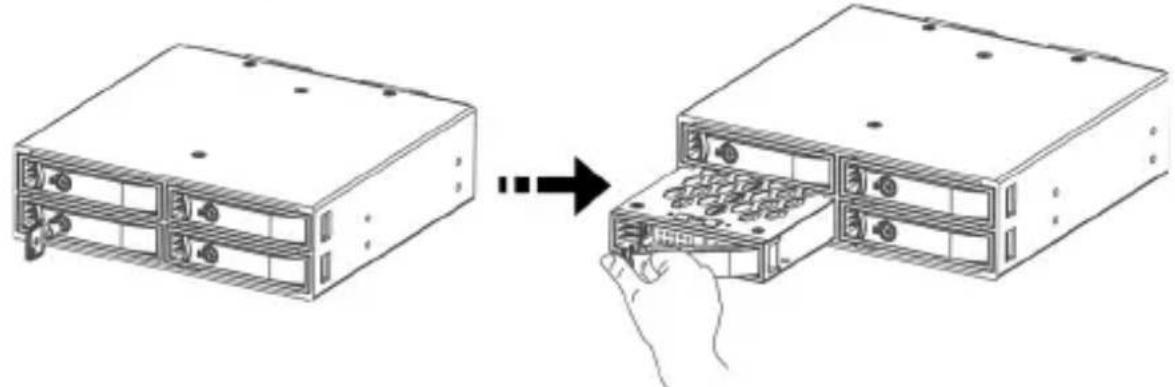

- If the door is locked, use the key to unlock. Press the latch to release the door handle.

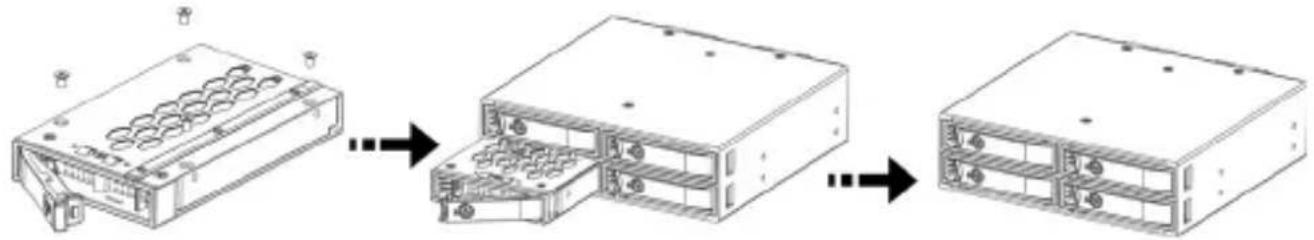

- Slide the tray out of the housing and insert the SSD into the tray gently.
- Slide the tray back into the housing and close the door. Lock the door if needed.
Handbuch IB-2242U2K
Verpackungsinhalt
Hardware Installation
Diagram showing a computer tower case being processed from a device to a final internal storage unit (no text or symbols present)flowchart

© Copyright 2019 by RaidSonic Technology GmbH. All Rights Reserved.
The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. Apple and macOS, MAC, iTunes and Macintosh are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation.
