Product Type	Oven
Brand	Hyundai
Model	CHN-FE60VGB
Functions	Upper and lower heating, rotisserie, convection
Control Type	Knobs
Timer	Mechanical timer (up to 60 minutes)
Temperature Range	Up to 230°C
Capacity	Approximately 60 liters
Accessories Included	Baking tray, grill, rotisserie spit with forks, removable handle
Installation	Countertop
Power Supply	220-240 V, 50/60 Hz
Power Consumption	Approximately 2000 W
Dimensions (W x D x H)	Approximately 60 x 45 x 35 cm
Weight	Approximately 12 kg
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Automatic shut-off (timer), cool-touch handle
Certification	CE, WEEE compliant

Frequently Asked Questions - CHN-FE60VGB HYUNDAI

How do I use the rotisserie function?

Insert the spit through the food, secure with skewers and thumbscrews, then place the pointed end into the drive socket and the square end on the support. Set the thermostat to 230°C, timer to desired time, and select the rotisserie or rotisserie + convection setting. Use the removable handle to remove the spit after cooling.

What accessories are included with the CHN-FE60VGB?

The oven includes a baking tray, a grill, a rotisserie spit with two forks, and a removable handle for the tray and grill.

Can I use aluminum foil inside the oven?

No, covering interior parts with aluminum foil can cause overheating. Use baking paper on the tray if needed.

How do I clean the oven?

Unplug and let it cool completely. Wipe the interior and exterior with a damp cloth. Do not use abrasive cleaners or immerse the appliance in water.

What is the maximum temperature of this oven?

The maximum temperature is 230°C.

Is the oven suitable for baking and roasting?

Yes, the oven has upper and lower heating elements for baking, and a rotisserie function for roasting meats.

What should I do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its service agent, or a qualified person.

Can I place the oven on a wooden surface?

No, it must be placed on a heat-resistant surface. The feet may leave marks on some surfaces.

How much space should I leave around the oven during use?

Keep at least 10 cm of space on all sides for proper air circulation.

Does the oven have a convection fan?

Yes, it has a convection setting that can be used alone or with the rotisserie function.

USER MANUAL CHN-FE60VGB HYUNDAI

GENJINE PRODUCT OF HYUNDAI CORPORATION

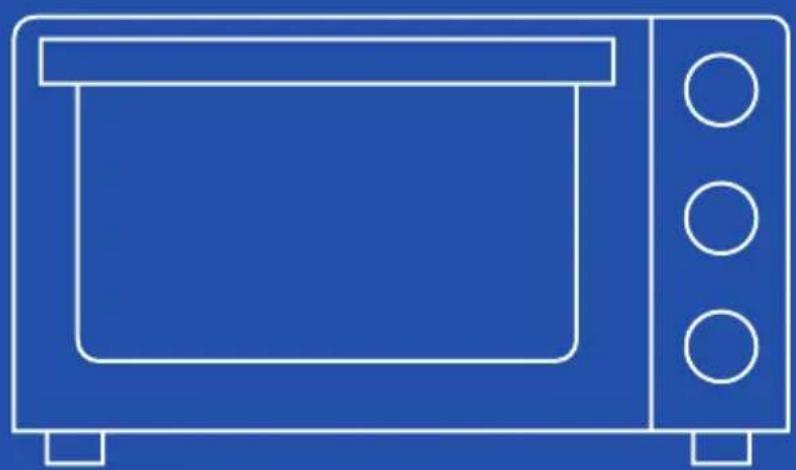

Blue line drawing of a microwave oven with three circular control knobs (no text or symbols)

Plain gray rectangular baking tray with no text or markings

TEGLIA*

Simple rectangular frame with vertical lines inside, no text or symbols present

GRIGLIA

Simple line drawing of a tool with a handle and lever (no text or symbols)

MANICO REMOVIBILE PER TEGLIA/GRIGLIA

Simple line drawing of two abstract shapes with no text or symbols

SET ACCESSORI GIRARROSTO

Ready carefully use instructions and keep this manual for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose. Make sure that the appliance is connected to a power outlet with an adequate power. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.
2. Do not touch the hot surfaces of the appliance.

Do not move the oven when in use.

1. Careful supervision is necessary if the appliance is used near children. Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers.

Make sure children do not play with the appliance. Cleaning and maintenance operations should not be carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.
2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. If it happens, disconnect the plug and verify the integrity of the cable. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.
3. Do not use the appliance if the cable or plug are damaged.

Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.

1. During oven operation, keep at least 10 centimeters of space on all sides of the oven to allow proper air circulation.

2. Disconnect the cable from the mains when the oven is not in use and before proceeding with any cleaning operation.

3. To disconnect the power cord, pull it out by plug.

4. Particular attention should be paid when moving a tool containing hot oil or other hot liquids inside it.

5. Do not cover the inside parts of the oven with aluminum paper. This may cause the oven to overheat.

6. Use extreme caution when removing the tray inside the oven.

7. Do not clean the appliance with metal sponges. Follow the instructions indicated on CLEANING AND MAINTENANCE paragraph.

Let cool before inserting or disconnecting part of the device before cleaning operations.

1. Never leave the appliance unattended during use.

2. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.

3. Do not place any element over the oven or cover the oven with flammable material during operation as it may cause fire. Do not use accessories different than those recommended. by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

4. Extreme caution should be exercised when using containers whose composition is different from metal or glass.

5. Do not place any of the following materials in the oven: cardboard, plastic, paper.

6. When the product is not in use, do not store anything other than the accessories recommended by the manufacturer in the oven.

7. Always wear protective and insulating gloves when inserting or removing objects from the hot oven.

8. Do not use the appliance for purposes other than those that were intended in this instruction manual. Any other use is to be considered improper and dangerous.

9. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.

10. Do not dismantle the product, try to repair or change the power plug in any way. Address to a customer assistance center, in order to receive technical assistance.

11. This appliance must not be used with an external timer or separate remote control.

1. The temperature of accessible surfaces can be high during use.
2. Do not place appliance on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.
3. The aluminum tray is not suitable for contact with strongly acidic or salty food

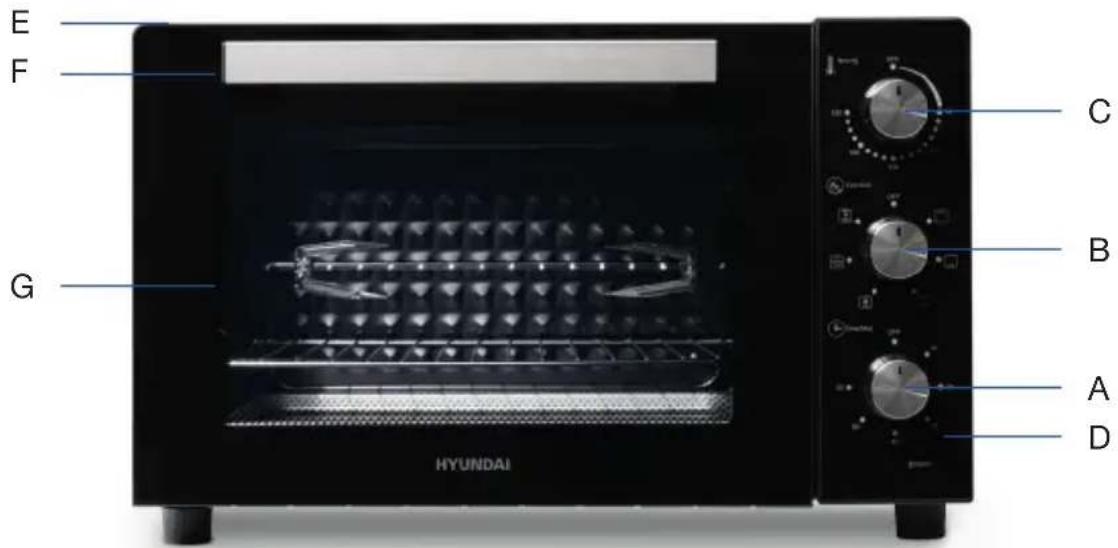

Product description:

A. Timer B. Function selection knob
C. Temperature selection knob D. Power
E. Case F. Handle
G. Front panel

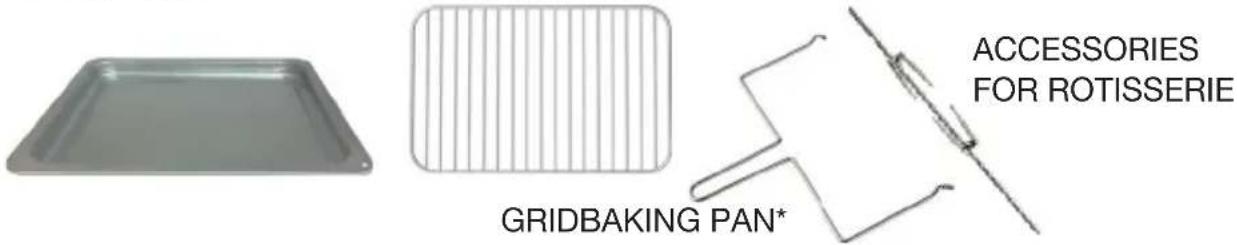

Accessories:

*It is not recommended to use it for direct contact with food, use it with baking paper or other material suitable for direct contact with food

REMOVABLE HAND FOR BAKING PAN/GRID

Control panel and instructions:

Active upper and lower resistors

Before use

• Make sure there is enough ventilation around the oven.
• Make sure the oven is completely dry before use.
• The oven must not be placed on untreated wooden surface when in use. Place the product on a heat resistant surface.
• The feet of the oven can leave some marks on the surface, remove them by using a soft damp cloth.

Rotisserie use

1. Insert the spit into one of the two square ends of the roast.
2. Insert the spit directly through the center of the food which you want to roast.
3. Put the other skewer through the pointed end of the spit, making sure the points of skewer face the spit's square end.
4. Put the two skewers into the food, then secure both skewers with the thumbscrews.
5. Fix the spit with the skewer.
6. Insert the pointed end of the spit into the drive socket, make sure the square end of the spit rests on the spit support.
7. Plug the oven.
8. Set the thermostat to 230^ C.
9. Turn the timer to the time which you require, the power indicator will light up. Normally it takes 30 minutes to roast a 2.5Kg (5.5Pd) weight chicken.
10. Set the selector to Rotisserie or Rotisserie & Convection setting, the rotisserie starts rotating.
11. When roasting is completed, turn back the timer to OFF.
12. After the oven is cooled, place the hooks of the rotisserie handle under the grooves on both sides of the spit. Lift the right side of the spit first, move towards right a little bit, so that the left side of the spit goes out of the drive socket. Then carefully move out the roasted food from the oven.
13. Take the food off the spit.

After use

• Set the timer to 0.
• Set the temperature selector to 0.
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

Cleaning and maintenance

• Unplug the appliance and allow it to completely cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean and damp cloth.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

RATING LABEL

Mod. CHN-FE45VGB

HYUNDAI

The product is made conforming with all the applicable European regulations

Read carefully the user manual

Food contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) “ The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

REV. 09.2023

HYUNDAI

MADE IN CHINA
