USER MANUAL CHN-FE30VB HYUNDAI

GENLINE PRODUCT OF HYUNDAI CORPORATION

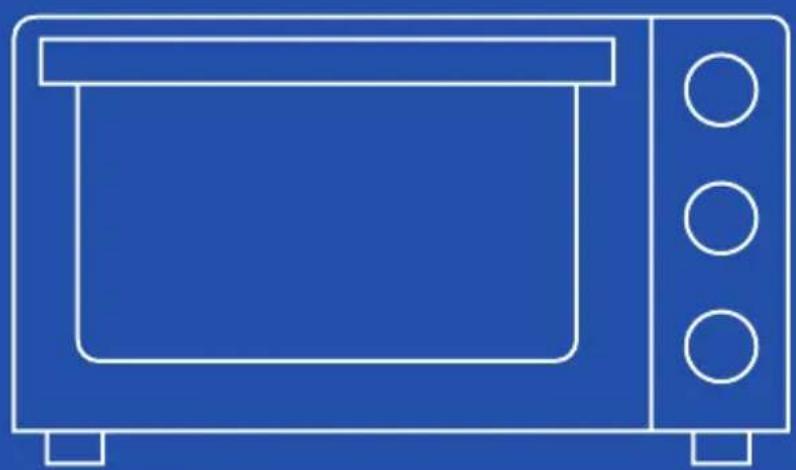

Blue line drawing of a microwave oven with three circular control knobs (no text or symbols)

Plain gray rectangular baking tray with no text or markings

TEGLIA*

Blank rectangular frame with vertical lines inside, no text or symbols present

GRIGLIA

Simple line drawing of a tool or plunger (no text or symbols)

MANICO REMOVIBILE PER TEGLIA/GRIGLIA

Thank you for purchasing electric oven CHN-FE23VB.

Ready carefully the instruction manual and keep this manual for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose. Make sure that the appliance is connected to a power outlet with an adequate power. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.

2. Do not touch the hot surfaces of the appliance.

Do not move the oven when in use.

1. Careful supervision is necessary if the appliance is used near children. Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers.

Make sure children do not play with the appliance. Cleaning and maintenance operations should not be carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.

2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. If it happens, disconnect the plug and verify the integrity of the cable. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.

3. Do not use the appliance if the cable or plug are damaged.

Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.

1. During oven operation, keep at least 10 centimeters of space on all sides of the oven to allow proper air circulation.

2. Disconnect the cable from the mains when the oven is not in use and before proceeding with any cleaning operation.

3. To disconnect the power cord, pull it out by plug.

4. Particular attention should be paid when moving a tool containing hot oil or other hot liquids inside it.

5. Do not cover the inside parts of the oven with aluminum paper. This may cause the oven to overheat.

6. Use extreme caution when removing the tray inside the oven.

7. Do not clean the appliance with metal sponges. Follow the instructions indicated on CLEANING AND MAINTENANCE paragraph.

Let cool before inserting or disconnecting part of the device before cleaning operations.

1. Never leave the appliance unattended during use.

2. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.

3. Do not place any element over the oven or cover the oven with flammable material during operation as it may cause fire. Do not use accessories different than those recommended.

by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

1. Extreme caution should be exercised when using containers whose composition is different from metal or glass.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper.

3. When the product is not in use, do not store anything other than the accessories recommended by the manufacturer in the oven.

4. Always wear protective and insulating gloves when inserting or removing objects from the hot oven.

5. Do not use the appliance for purposes other than those that were intended in this instruction manual. Any other use is to be considered improper and dangerous.

6. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.

7. Do not dismantle the product, try to repair or change the power plug in any way. Address to a customer assistance centre, in order to receive technical assistance.

8. This appliance must not be used with an external timer or separate remote control.

9. The temperature of accessible surfaces can be high during use.

10. Do not place appliance on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.
11. The aluminum tray is not suitable for contact with strongly acidic or salty food

Product description:

A. Timer B. Function selection knob
C. Temperature selection knob D. Power
E. Case F. Handle
G. Front panel

Plain gray rectangular baking tray with no text or markings

BAKING PAN*

Simple rectangular frame with vertical lines inside, no text or symbols present

GRID

Simple line drawing of a tool or brush (no text or symbols)

REMOVABLE HAND FOR BAKING PAN/GRID

*It is not recommended to use it for direct contact with food, use it with baking paper or other material suitable for direct contact with food

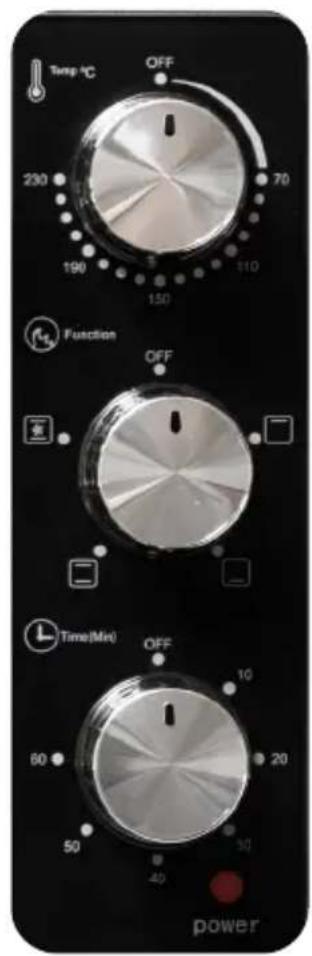

Control panel and instructions:

Temperature settings:

The thermostat is adjustable from 70^ C to 230^ C.

Setting up full

Active

upper

Active

lower

Active upper and lower resistors

The convection function is active together with the upper and

lower resistors

Timer °C

Adjustment 0-60 minutes

Before use

• Make sure there is enough ventilation around the oven.
• Make sure the oven is completely dry before use.
• The oven must not be placed on untreated wooden surface when in use. Place the product on a heat resistant surface.
• The feet of the oven can leave some marks on the surface, remove them by using a soft damp cloth.

How to use

• Turn the temperature selector to the desired position. It can be selected a temperature from 70^ C to 230^ C
• Turn the Timer clock-wise to set the desired cooking time.

• The power light will light up after timer is turned on and turn off when the timer is on 0.

• When the cooking time is over, the oven will automatically shut off and you will hear an audible sign.

• If the cooking is finished earlier than the set cooking time, please turn back the timer to "0" to turn off the oven.
• During the first use of this oven, there might be some light smoke coming out from the oven and it will disappear in 5 minutes. This is normal.
• In order to get better cooking performance, it is recommended to pre-heat the oven for about 10 minutes.

After use

• Set the timer to 0.
• Set the temperature selector to 0.
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

Cleaning and maintenance

• Unplug the appliance and allow it to completely cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean and damp cloth.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

RATING LABEL

Mod. CHN-FE23VB Mod. CHN-FE30VB

HYUNDAI

The product is made conforming with all the applicable European regulations

Read carefully the user manual

Food contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) “ The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

REV. 09.2023

MADE IN CHINA
