303141 - Power bank Aplic - Free user manual and instructions

Product Type	Power Bank with Hand Warmer
Model	303141
Brand	Aplic
Battery Capacity	1800 mAh
Input (Charging)	5V DC / 1A
Output (Device Charging)	5V / 1A
Dimensions (H x W x D)	15 mm x 41 mm x 94 mm
Weight	Approx. 100 g (estimated)
Hand Warmer Function	Two adjustable heating levels
Status LEDs	3 blue LEDs for battery level, 1 red LED for hand warmer activation
Battery Level Indication	1 LED = 30%, 2 LEDs = 70%, 3 LEDs = 100%
Activation	Multifunction button: short press to power on/off, long press (3s) to toggle hand warmer
Scope of Delivery	Power bank, MicroUSB cable, User manual
Material	Plastic (estimated)
Safety Features	Overcharge protection, short-circuit protection, temperature protection (estimated)
Disposal	WEEE compliant, separate electronic waste collection
Certification	CE, WEEE: 2012/19/EU, DE 67896761

Frequently Asked Questions - 303141 Aplic

How do I charge the power bank?

Use the included MicroUSB cable to connect the power bank's charging port to a 5V/1A USB charger. The blue LEDs will indicate the charging level.

How can I use the hand warmer function?

First, turn on the power bank by a short press of the multifunction button. Then press and hold the same button for about 3 seconds to activate level 1. A second short press switches to level 2. To turn off hand warmer, press and hold for 3 seconds again.

How many devices can I charge at once?

The power bank has a single USB output, so it can charge only one device at a time.

What is the battery capacity of this power bank?

The battery capacity is 1800 mAh, which can fully charge most smartphones to about 50-70% depending on battery size.

How do I know the remaining battery level?

Press the multifunction button briefly; the three blue LEDs show the charge level: 1 LED = 30%, 2 LEDs = 70%, 3 LEDs = 100%.

Can the hand warmer function be used while charging a device?

Yes, you can use the hand warmer and charge a device simultaneously, as they are independent functions.

Is the power bank safe to use?

Yes, it includes protections against overcharge, short-circuit, and overheating. However, do not expose to water or high temperatures.

How do I dispose of this product?

Do not dispose of it with household waste. Follow local regulations for electronic waste recycling, or return it to a collection point.

What should I do if the power bank gets wet?

Immediately dry it with a soft cloth and do not use it until completely dry. If it has been submerged, stop using it and consult a professional.

Can I charge the power bank and my phone at the same time?

Yes, you can charge the power bank via MicroUSB while simultaneously charging a phone from the USB output.

USER MANUAL 303141 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

Powerbank, 1800mAh, Hand warmer function

Thank you for choosing an aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Powerbank with hand warmer function
- MicroUSB cable
- User manual

2 Technical data

Charging voltage 5V DC / 1A

Output voltage 5V / 1A

Battery capacity 1800mAh

Dimensions (HxWxD) approx. 15mm x 41mm x 94mm

Features Two different heating levels

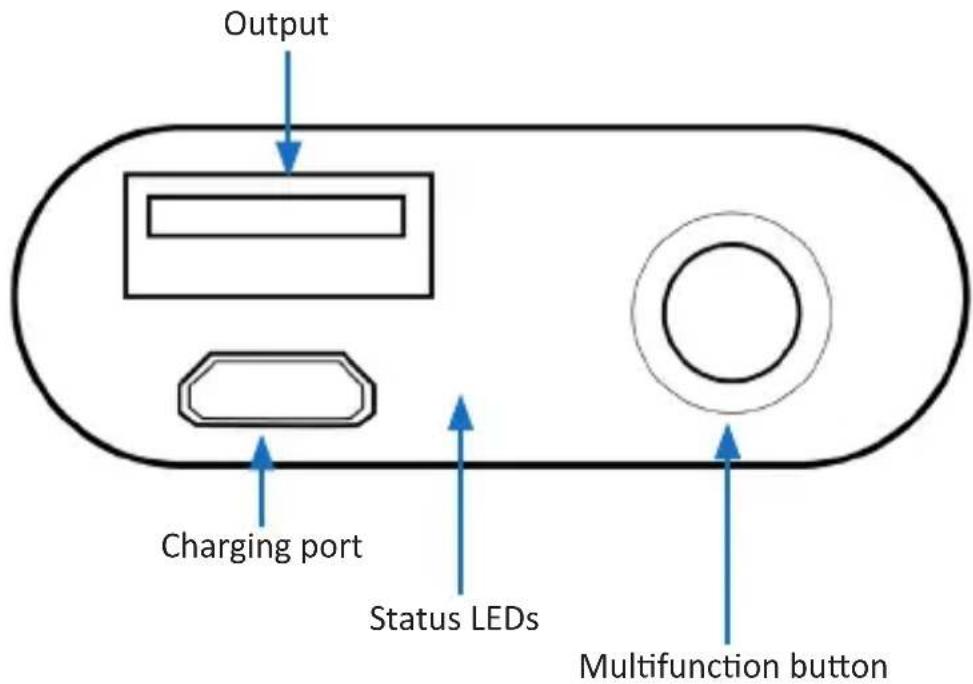

3 Produkt-Details

4 Commissioning

Take the device out of the package and remove all the packaging material. Charge the Powerbank fully before using it for the first time. Use the microUSB connection of the Powerbank (charging port) to charge it.

For charging devices with the Powerbank, use the USB port (output) and connect the terminal device to be charged with the corresponding charging cable and the Powerbank. You can switch on or switch off the Powerbank by briefly pressing the "Multifunction button".

5 Hand heater function

• To switch on the Powerbank, press the “Multifunction button” briefly. The status LEDs 1-3 light up for a short time.
• Then, press and hold the “Multifunction button” for about 3 seconds. The first level of the hand heater function is thus, enabled. Now, the device heats up to heating level 1.
• To enable the second level of the hand heater function, once again press the "Multifunction button" briefly. Now, the device heats up to heating level 2.

Press and hold the “Multifunction button” for about 3 seconds to disable the hand heater function. To disable the connected device completely, press the “Multifunction button” briefly once again.

Note! Please note that the hand warmer function is used only for low ambient temperatures.

6 Status LEDs

The blue status LEDs indicate the current charging level of the power bank.

LEDs Charging level
One blue LED 30%
Two blue LEDs 70%
Three blue LEDs 100%

The red LED indicates that the hand warmer function is activated.

Attention!

7 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a con-

sumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

9 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303141/20180312SZ141 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Notes

SERVICE

We hope you enjoy your new product in every way! If there is still something you're concerned about please feel free to let us know. You're welcome to contact our service team at any time.
