USER MANUAL 917.271530 Craftsman

Silhouette of a vintage golf club with steering wheel and driver (no text or symbols)

• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts

This product has a low emission engine which operates differently from previously built engines. Before you start the engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety Rules and Instructions before operating this equipment.

For answers to your questions about this product, Call:

1-800-659-5917

Sears Craftsman Help Line 5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

TABLE OF CONTENTS

Warranty 2

Safety Rules 3

Product Specifications 6

Assembly 8

Operation 11

Maintenance Schedule 17

Maintenance 17

Service and Adjustments....21

Storage 27

Troubleshooting 28

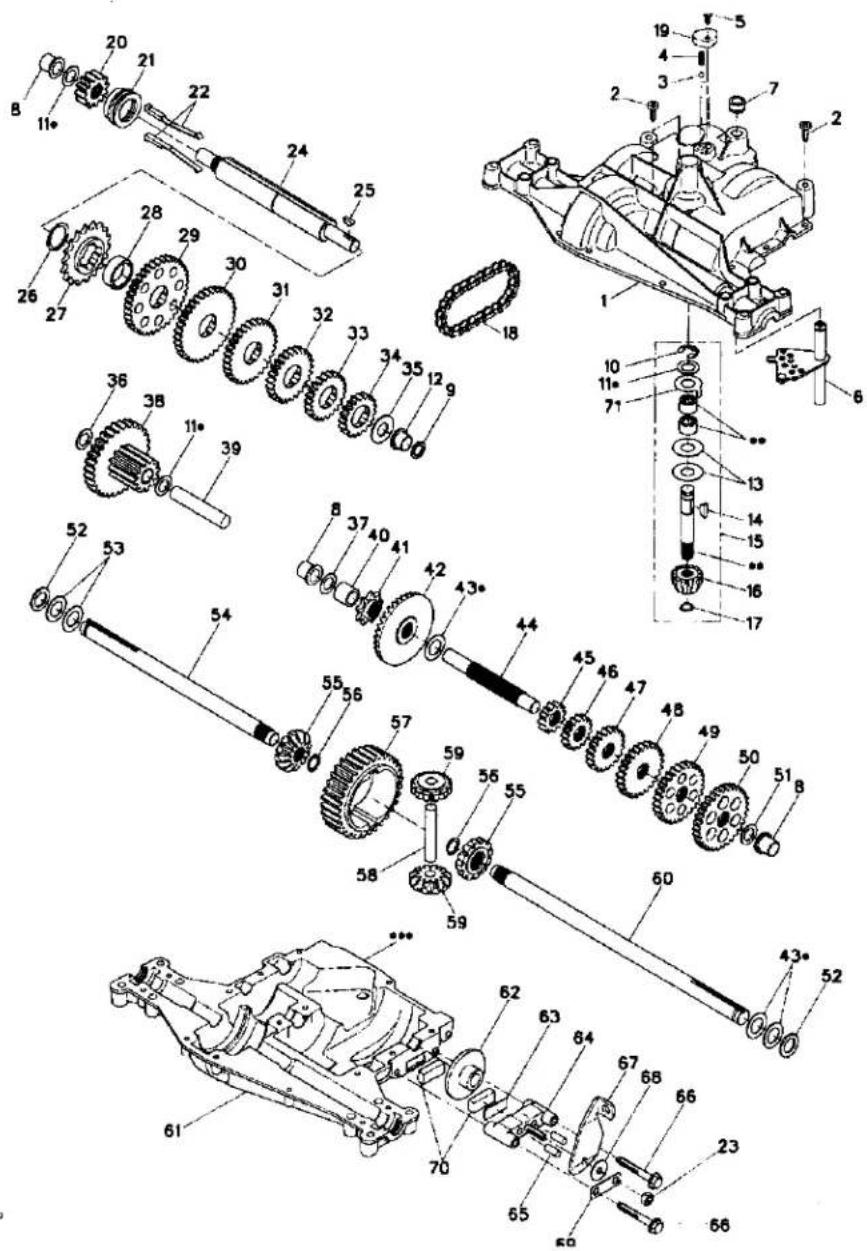

Repair Parts 32

Parts Ordering ...... Back Cover

WARRANTY

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or workmanship. Warranty service is available free of charge by taking your Craftsman riding equipment to your nearest Sears Service Center. In-home warranty service is available but a trip charge will apply. This warranty applies only while this product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts and oil filters.
• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.
• Repairs necessary because of operator abuse, including but not limited to, damage caused by towing objects beyond the capability of the riding equipment, impacting objects that bend the frame or crankshaft, or over speeding the engine.
• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused by improper storage, failure to use the proper grade and amount of engine oil, failure to keep the deck clear of flammable debris, or the failure to maintain the equipment according to the instructions contained in the owner's manual.
• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel should be used within thirty (30) days of its purchase date.
• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge. Warranty service is available free of charge by taking your Craftsman riding equipment to your nearest Sears Service Center. In-home warranty service is available but a trip charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

SAFETY RULES

IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

I. GENERAL OPERATION

- Read, understand, and follow all instructions in the manual and on the machine before starting.

- Only allow responsible adults, who are familiar with the instructions, to operate the machine.

- Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

- Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.

- Never carry passengers.

- Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

- Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

- Slow down before turning.

- Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

- Turn off blades when not mowing.

- Stop engine before removing grass catcher or unclogging chute.

- Mow only in daylight or good artificial light.

- Do not operate the machine while under the influence of alcohol or drugs.

- Watch for traffic when operating near or crossing roadways.

- Use extra care when loading or unloading the machine into a trailer or truck.

- Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.
• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.
• Follow the manufacturer's recommendations for wheel weights or counterweights to improve stability.
• Use extra care with grass catchers or other attachments. These can change the stability of the machine.
• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.
• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

DO NOT:

• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction could cause sliding.
• Do not try to stabilize the machine by putting your foot on the ground.
• Do not use grass catcher on steep slopes.

SAFETY RULES

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of another responsible adult.
• Be alert and turn machine off if children enter the area.
  • Before and when backing, look behind and down for small children.
• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.
• Use only an approved container.
• Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.
• Never refuel the machine indoors.

• Never store the machine or fuel container inside where there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.
• Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or allow objects to be thrown. Frequen check components and replace with manufacturer's recommended parts, when necessary.
• Mower blades are sharp and can cu Wrap the blade(s) or wear gloves, a use extra caution when servicing the
• Check brake operation frequently. Adjust and service as required.

• Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.
• Never carry passengers or children even with the blades off.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing
• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.
  • Before and when backing, look behind and down for small children.

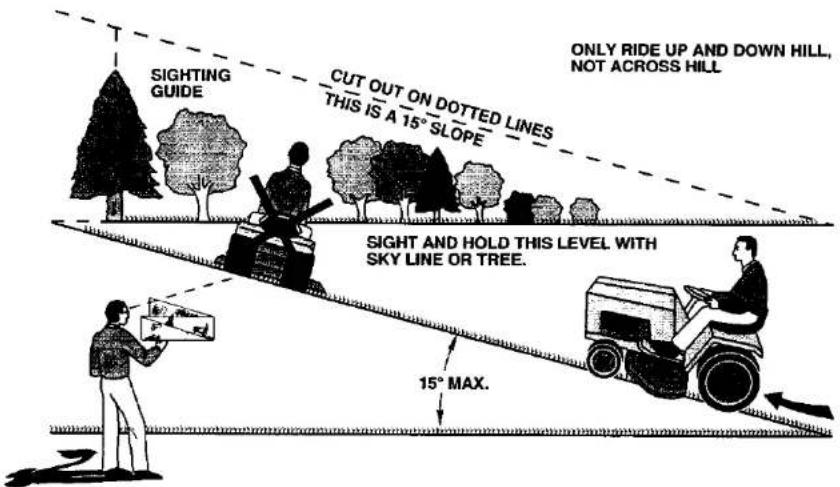

• Mow up and down slopes (15° Max), not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, nuts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

SAFETY RULES

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.
• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.
• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.

CAUTION: In order to prevent accidental starting when setting up, transporting, adjusting or making repairs, always disconnect spark plug wire and place wire where it cannot contact spark plug.

CAUTION: Do not coast down a hill in neutral, you may lose control of the tractor.

CAUTION: Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINECAPACITYAND TYPE:	1.25 GALLONSUNLEADEDREGULAR

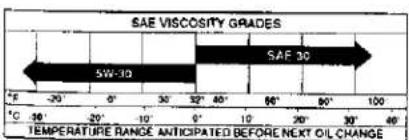

OIL TYPE(API-SF-SJ):	SAE 30(ABOVE 32°F)SAE 5W-30(Below 32°F)
OIL CAPACITY:	3.0 PINTS
SPARK PLUG:(GAP: .030")	CHAMPIONRJ19LM OR J19LM
VALVECLEARANCE:	INTAKE: .003"-.005"EXHAUST:.005"-.007"
GROUND SPEED FORWARD:(MPH):	1ST 1.12ND 1.43RD 2.24TH 3.35TH 4.46TH 4.9REVERSE: 1.4
TIREPRESSURE:	FRONT: 14 PSIREAR: 12 PSI
CHARGINGSYSTEM:	3 AMPS BATTERY5 AMPS HEADLIGHTS
BATTERY:	AMP/HR: 25MIN, CCA: 190CASE SIZE:U1R

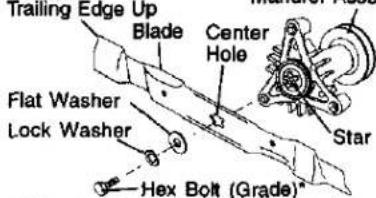

BLADE BOLTTORQUE:	27-35 FT. LBS

CONGRATULATIONS on your purchase of a new Tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact a Sears or other qualified service center. We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor properly. Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this product. Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and using your tractor.
• Follow the instructions under "Maintenance" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable location or state laws (if any). If a spark arrester used, it should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Sears service center (See REPAIR PARTS section of this manual).

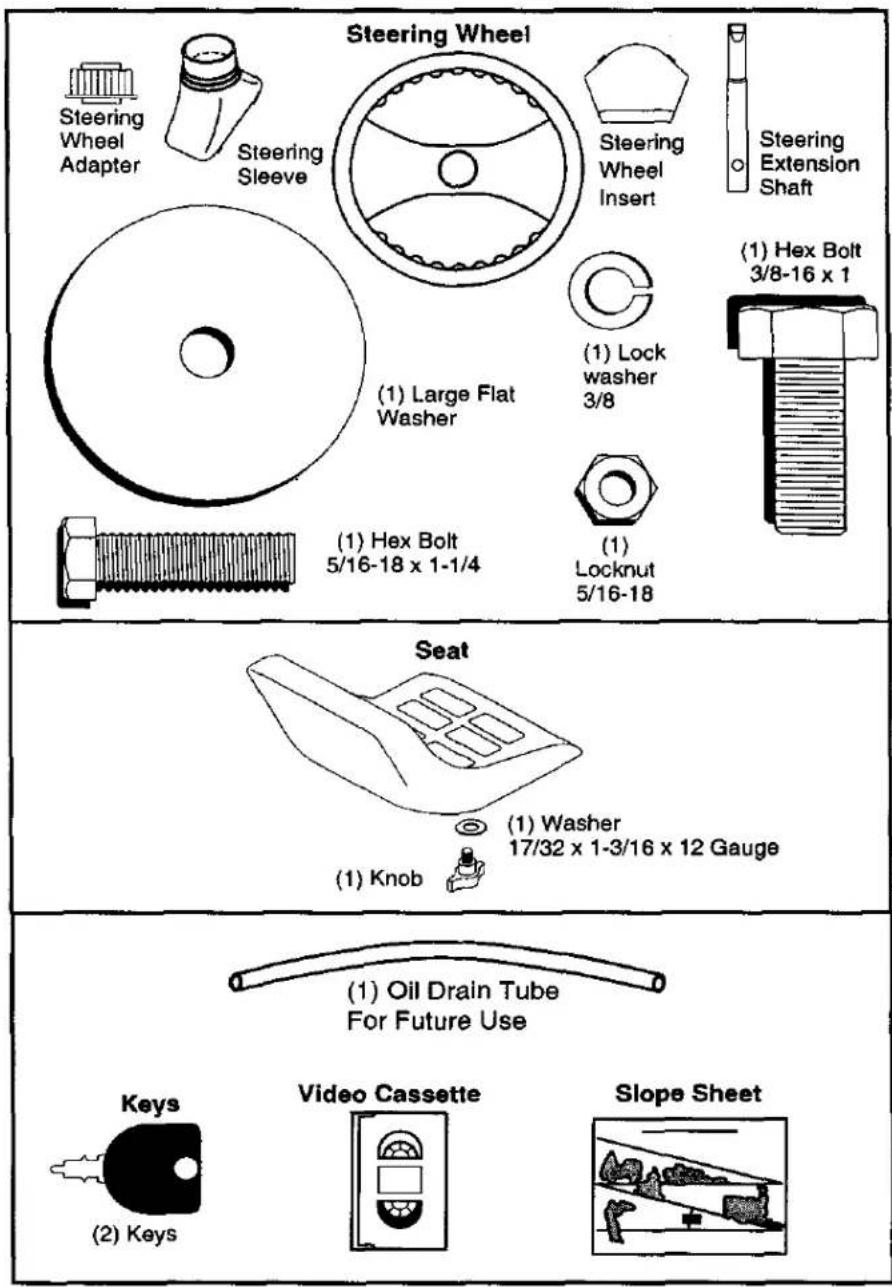

UNASSEMBLED PARTS

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes you need are listed below.

(1) 9/16" wrench

(1) Pliers

(1) 1/2" wrench

(1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

1. Remove all accessible loose parts and parts cartons from carton.
2. Cut, from top to bottom, along lines on all four corners of carton, and lay panels flat.
3. Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM SKID

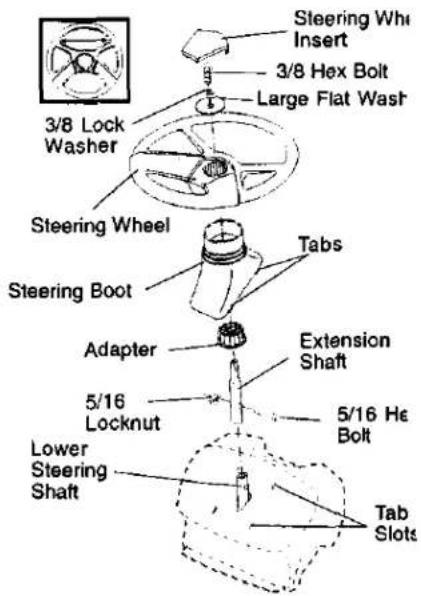

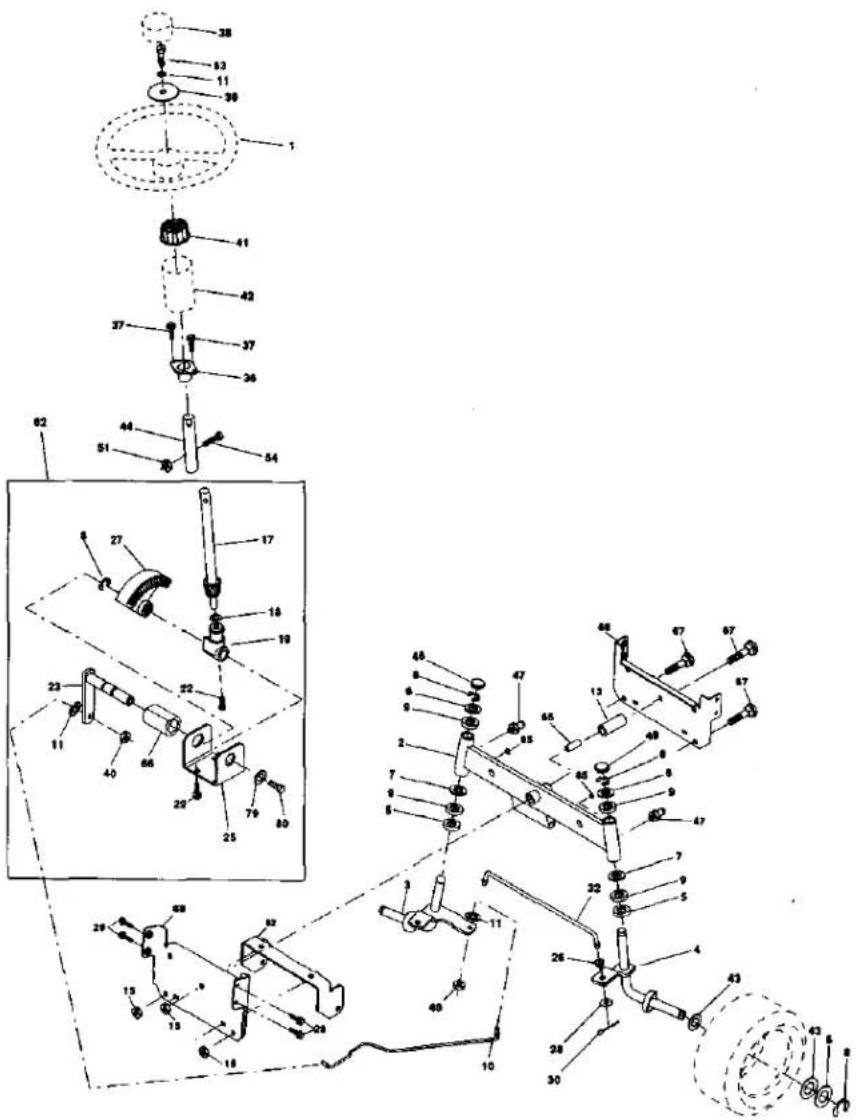

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND BOOT

1. Slide extension shaft onto lower steering shaft. Align mounting holes in extension and lower shafts and install 5/16 hex bolt and locknut. Tighten securely.
2. Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

1. Position front wheels of the tractor so they are pointing straight forward.
2. Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension.

3. Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter.

4. Assemble large flat washer, 3/8 lock washer, 3/8 hex bolt and tighten securely.

5. Snap steering wheel insert into center of steering wheel.
6. Remove protective materials from tractor hood and grill.
   IMPORTANT: Check for and remove any staples in skid that may punctu tires where tractor is to roll off skid.

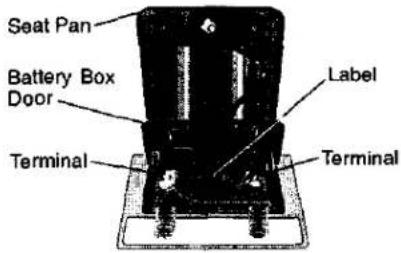

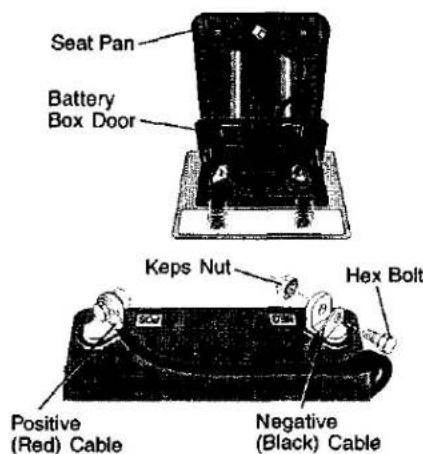

HOW TO SET UP YOUR TRACTOR CHECK BATTERY

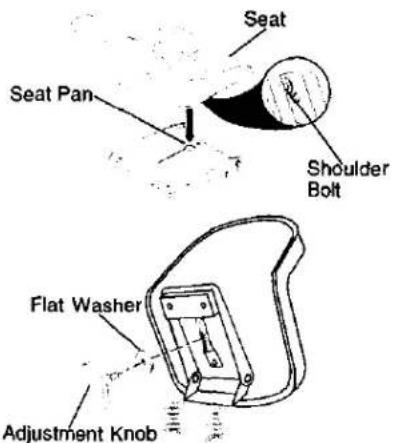

1. Lift seat pan to raised position and open battery box door.
   NOTE: If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY" in Maintenance section of this manual for charging instructions).

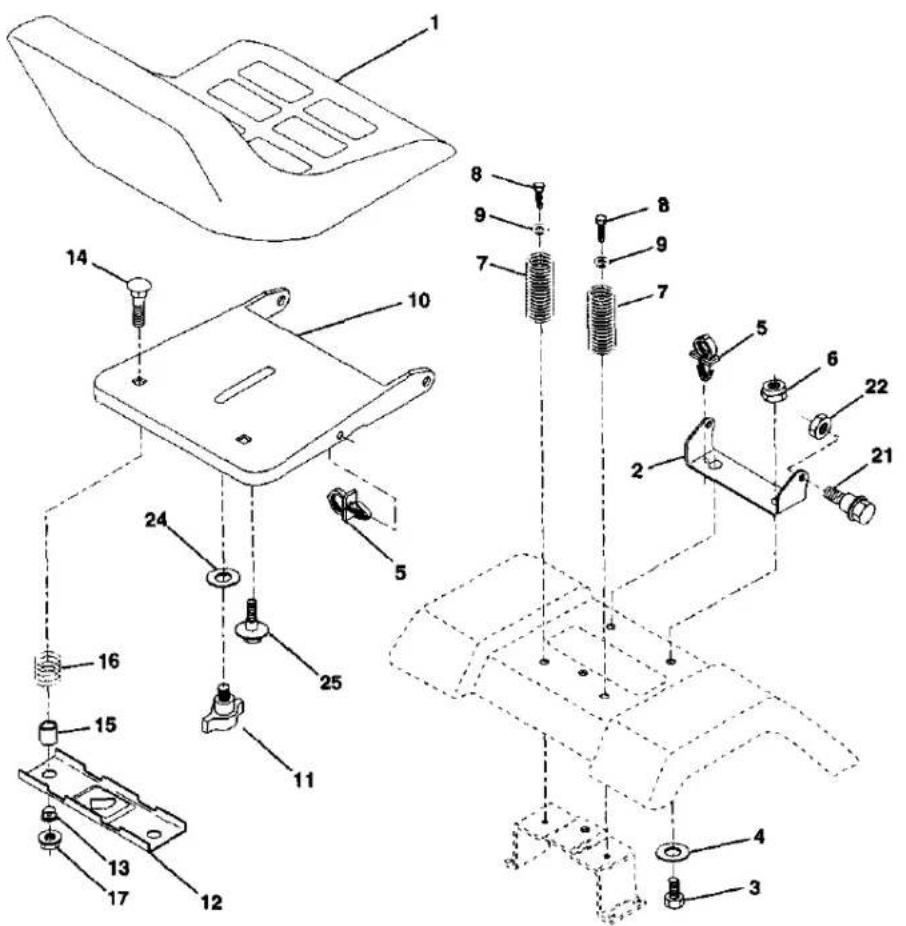

INSTALL SEAT

Adjust seat before tightening adjustment knob.

1. Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor.
2. Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.
3. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan.
4. Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor.
5. Pivot seat and pan forward and assemble adjustment knob and flat washer loosely. Do not tighten.
6. Lower seat into operating position and sit in seat.
7. Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.
8. Get off seat without moving its adjusted position.
9. Raise seat and tighten adjustment knob securely.

NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid.

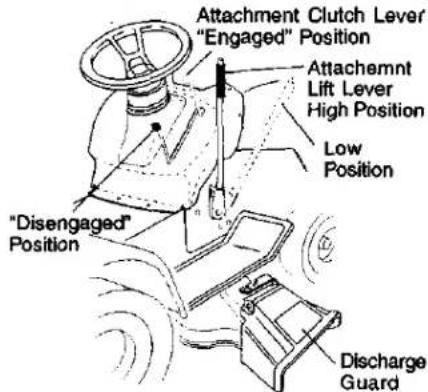

TO ROLL TRACTOR OFF SKID (See Operation section for location and function of controls)

1. Press lift lever plunger and raise attachment lift lever to its highest position.
2. Release parking brake by depressing clutch/brake pedal.
3. Place gearshift lever in neutral (N) position.
4. Roll tractor forward off skid.
5. Remove banding holding discharge guard up against tractor.

TO DRIVE TRACTOR OFF SKID (See Operation section for location and function of controls)

WARNING: Before starting, read, understand and follow all instructions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other people and objects.

1. Be sure all the above assembly steps have been completed.
2. Check engine oil level and fill fuel tank with gasoline.
3. Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.
4. Place gear shift lever in neutral (N) position.
5. Press lift lever plunger and raise attachment lift lever to its highest position.
6. Start the engine. After engine has started, move throttle control to idle position.
7. Depress clutch/brake pedal into full "BRAKE" position and hold. Move gearshift lever to 1st gear.
8. Slowly release clutch/brake pedal and slowly drive tractor off skid.
9. Apply brake to stop tractor, set parking brake and place gearshift lever in neutral position.
10. Turn ignition key to "OFF" position. Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

- Reduce tire pressure to PSI shown in "PRODUCT SPECIFICATIONS" section of this manual.

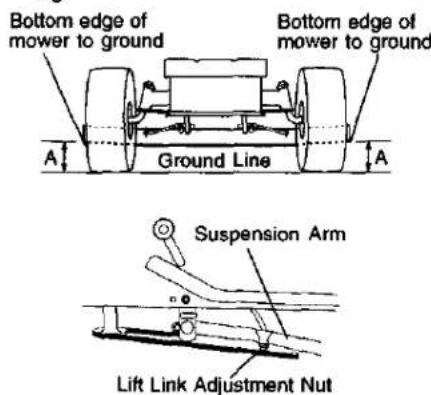

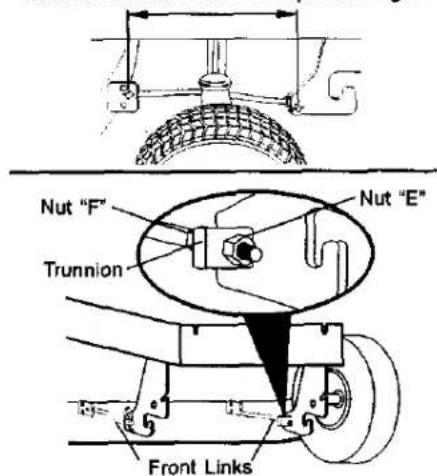

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual.

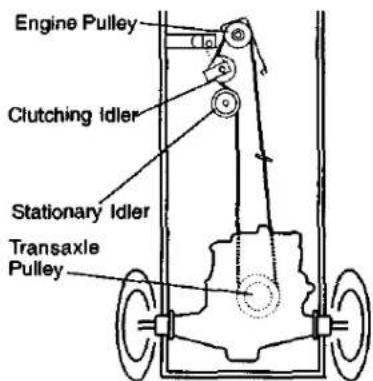

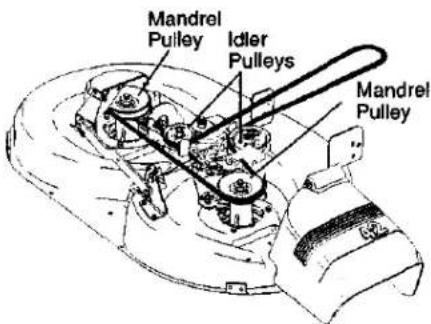

CHECK FOR PROPER POSITION OF ALL BELTS

See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments section of this manual. Verify that the belts are routed correctly.

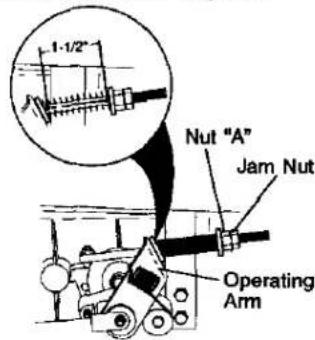

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual.

√ CHECKLIST

Before you operate and enjoy your new tractor, we wish to assure that you receive the best performance and satisfaction from this Quality Product.

Please review the following checklist:

√ All assembly instructions have been completed.

√ No remaining loose parts in carton.

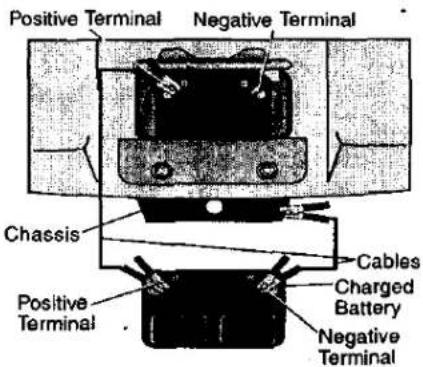

√ Battery is properly prepared and charged. (Minimum 1 hour at 6 amps).

√ Seat is adjusted comfortably and tightened securely.

√ All tires are properly inflated. (For shipping purposes, the tires were overinflated at the factory).

√ Be sure mower deck is properly leveled side-to-side/front-to-rear for best cutting results. (Tires must be properly inflated for leveling).

√ Check mower and drive belts. Be sure they are routed properly around pulleys and inside all belt keepers.

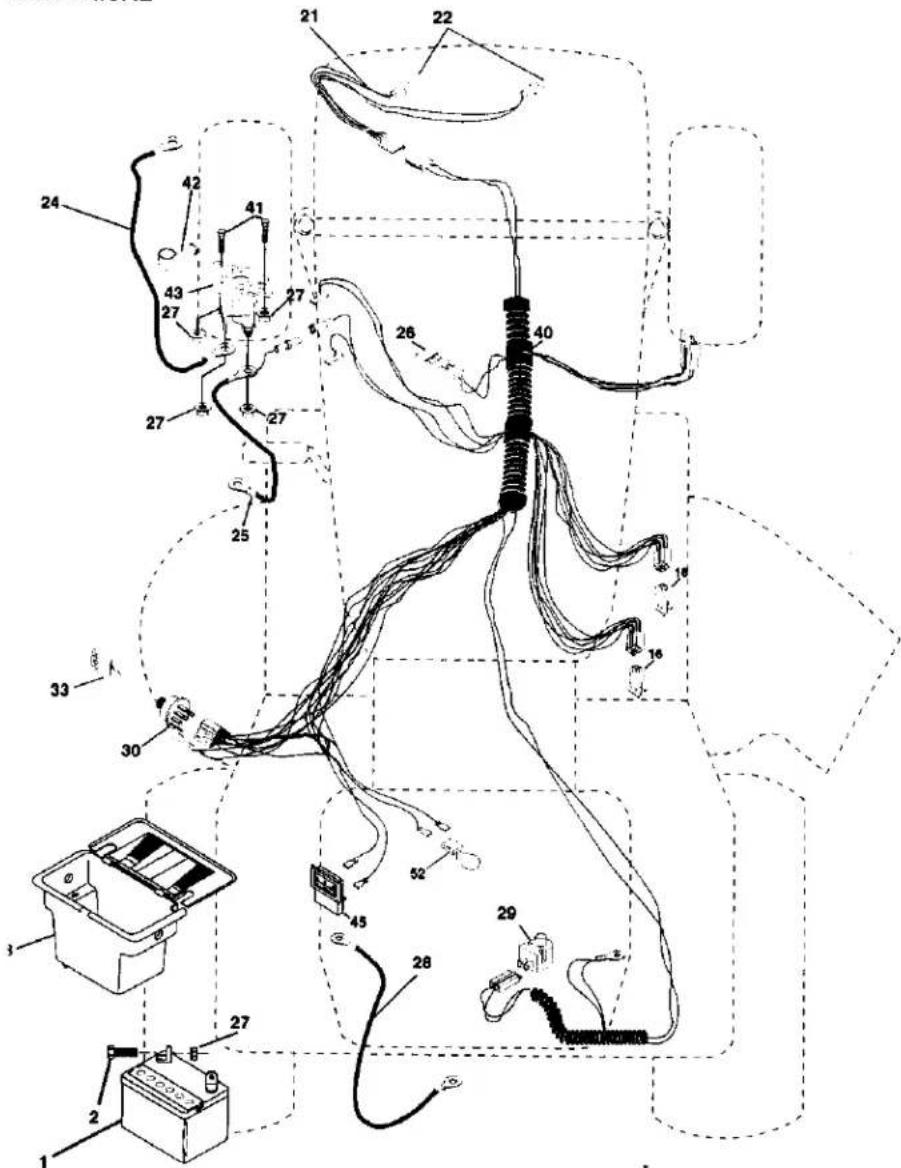

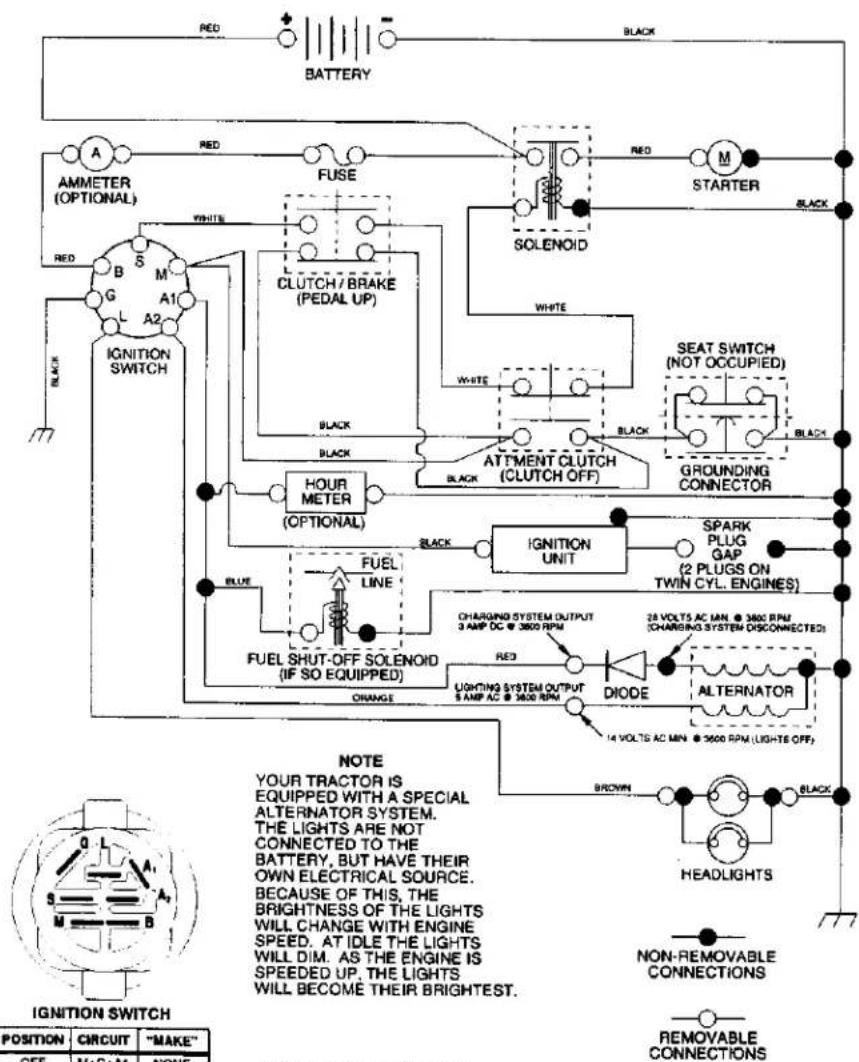

√ Check wiring. See that all connections are still secure and wires are properly clamped.

While learning how to use your tractor, pay extra attention to the following important items:

√ Engine oil is at proper level.

√ Fuel tank is filled with fresh, clean, regular unleaded gasoline.

√ Become familiar with all controls - their location and function. Operate them before you start the engine.

√ Be sure brake system is in safe operating condition.

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY

CAUTION OR WARNING

REVERSE

FORWARD

FAST

SLOW

ENGINE ON

ENGINE OFF

OIL PRESSURE

LIGHTS ON

OVER TEMP LIGHT

MOWER LIFT

FUEL

CHOKE

MOWER HEIGHT

SLOPE HAZARDS
(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL (Automatic Models only)

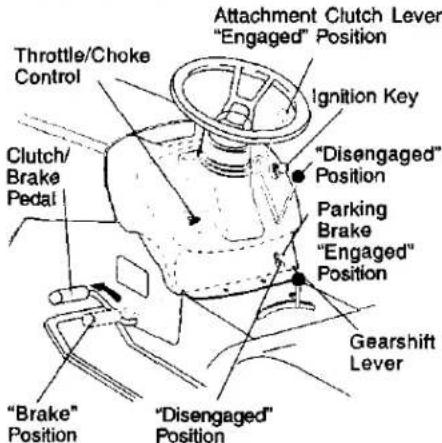

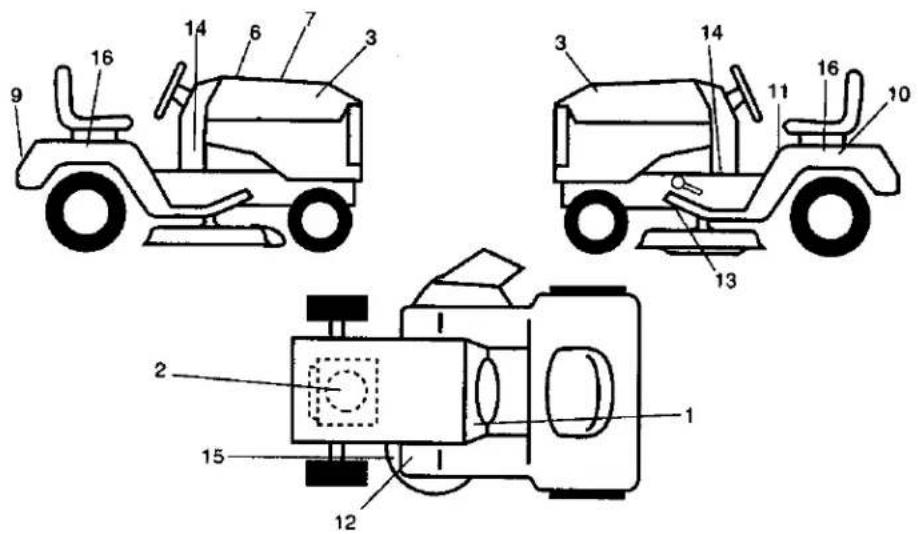

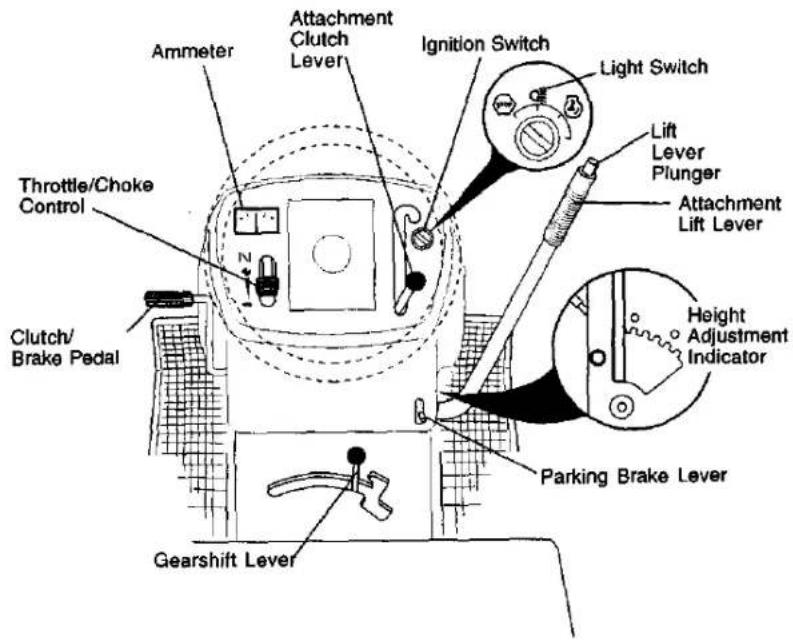

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER - Used to engage the mower blades, or other attachments mounted to your tractor. ATTACHMENT LIFT LEVER - Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for declutching and braking the tractor and starting the engine.

GEARSHIFT LEVER - Selects the speed and direction of tractor.

IGNITION SWITCH - Used for starting an stopping the engine.

LIFT LEVER PLUNGER - Used to release attachment lift lever when changing its position.

LIGHT SWITCH - Turns the headlights on and off.

PARKING BRAKE LEVER - Locks clutch/brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used for starting and controlling engine speed.

AMMETER - Indicates battery charging (+) or discharging (-).

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR TO SET PARKING BRAKE

Your tractor is equipped with an operator presence sensing switch. When engine is running, any attempt by the operator to leave the seat without first setting the parking brake will shut off the engine.

1. Depress clutch/brake pedal into full "BRAKE" position and hold.
2. Place parking brake lever in "ENGAGED" position and release pressure from clutch/brake pedal. Pedal should remain in "BRAKE" position. Make sure parking brake will hold tractor secure.

STOPPING

MOWER BLADES -

- To stop mower blades, move attachment clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into full "BRAKE" position.
• Move gearshift lever to neutral (N) position.

ENGINE -

- Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and allowing engine to idle before stopping may cause engine to "backfire".

• Turn ignition key to "OFF" position and remove key. Always remove key when leaving tractor to prevent unauthorized use.
• Never use choke to stop engine. IMPORTANT: Leaving the ignition switch in any position other than "OFF" will cause the battery to be discharged, (dead).

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause "browning" of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor completely, as described above, before leaving the operator's position; to empty grass catcher, etc.

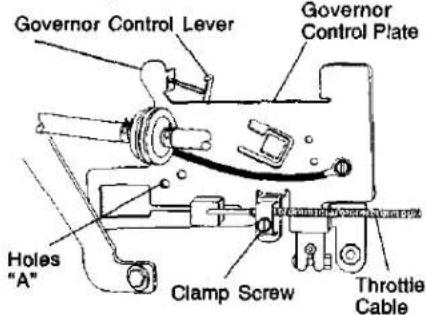

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the battery charging rate.
  • Full throttle offers the best bagging and mower performance.

TO MOVE FORWARD AND BACK- WARD

The direction and speed of movement is controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal depressed and gearshift lever in neutral (N) position.
2. Move gearshift lever to desired position.
3. Slowly release clutch/brake pedal to start movement.

IMPORTANT: Bring tractor to a complete stop before shifting or changing gears. Failure to do so will shorten the useful life of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever determines the cutting height.

• Grasp lift lever.
• Press plunger with thumb and move lever to desired position.
  The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.
• The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.
• For best cutting performance, grass over 6 inches in height should be mowed twice. Make the first cut relatively high; the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging attachment clutch control.

TO STOP MOWER BLADES - disengage attachment clutch control.

A CAUTION: Do not operate the mower without either the entire grass catcher, on mowers so equipped, or the discharge guard in place.

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.

• Choose the slowest speed before starting up or down hills.
• Avoid stopping or changing speed on hills.
• If slowing is necessary, move throttle control lever to slower position.
• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.
• Move gearshift lever to 1st gear. Be sure you have allowed room for tractor to roll slightly as you restart movement.
  • To restart movement, slowly release parking brake and clutch/brake pedal.
  • Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position with attachment lift control.
• When pushing or towing your tractor, be sure gearshift lever is in neutral (N) position.
• Do not push or tow tractor at more than five (5) MPH.

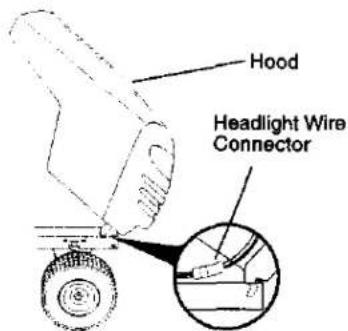

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACHMENTS

Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the factory, already filled with summer weight oil.

1. Check engine oil with tractor on level ground.
2. Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until "FULL" mark on dipstick is reached. Do not overfill.
3. For cold weather operation you should change oil for easier starting (See "OIL VISCOSITY CHART" in the Maintenance section of this manual).
   • To change engine oil, see the Maintenance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded gasoline with a minimum of
• 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.

IMPORTANT: When operating in temperatures below 32°F(0°C), use fresh, clean winter grade gasoline to help insure good cold weather starting.

WARNING: Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank filler neck. Do not overfill. Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

1. Sit on seat in operating position, depress clutch/brake pedal and set parking brake.
2. Place gear shift lever in neutral (N) position.
3. Move attachment clutch to "DISENGAGED" position.
4. Move throttle control to choke position. NOTE: Before starting, read the warm and cold starting procedures below.
5. Insert key into ignition and turn key clockwise to "START" position and release key as soon as engine starts. Do not run starter continuously for more than fifteen seconds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again. If engine still does not start, move the throttle control back to the choke position and retry.

WARM WEATHER STARTING (50° F and above)

1. When engine starts, move the throttle control to the fast position.

- The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING (50°F and below)

1. When engine starts, allow engine to run with the throttle control in the choke position until the engine runs roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the temperature.

- The attachments can also be used during the engine warm-up period. NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. See "TO ADJUST CARBURETOR" in the Service and Adjustments section of this manual.

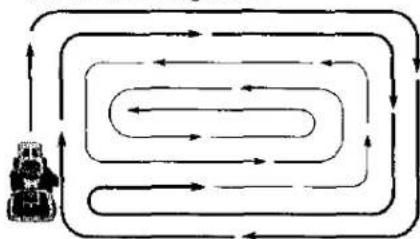

MOWING TIPS

• Tire chains cannot be used when the mower housing is attached to tractor.
• Mower should be properly leveled for best mowing performance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual.
• The left hand side of mower should be used for trimming.
• Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the tractor. This will result in a more even distribution of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished.

• If grass is extremely tall, it should be mowed twice to reduce load and possible fire hazard from dried clippings. Make first cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.
• Always operate engine at full throttle when mowing to assure better mowing performance and proper discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired.
• When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used.

MAINTENANCE

MAINTENANCE SCHEDULEFILL IN DATESAS YOU COMPLETEREGULAR SERVICE

BEFORE EACH USEEVERY 8 HOURSEVERY 15 HOURSEVERY 50 HOURSEVERY 100 HOURSEVERY SEASONBEFORE STORAGE

TRACTOR

Check Brake Operation

√

√

Check Tire Pressure

√

√

Check Operator Presence and Interlock Systems

√

Check for Loose Fasteners

√

√1

√

Sharpen/Replace Mower Blades

√4

Lubrication Chard

√

√

Check Battery Level

√

Clean Battery and Terminals

√

√

Check Transaxie Cooling

√

Adjust Blade Belt(s) Tension

√5

Adjust Motion Drive Belt(s) Tension

√6

ENGINE

Check Engine Oil Level

√

√

Change Engine Oil

√12,3

√

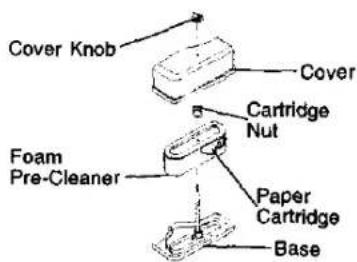

Clean Air Filter

√2

Clean Air Screen

√2

Inspect Muller/Spark Armster

√

Replace Oil Filter (if equipped)

√1,2

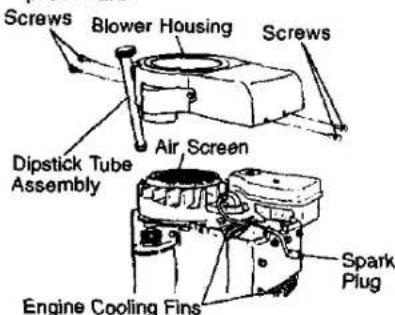

Clean Engine Cooling Fins

√2

Replace Spark Plug

√

√

Replace Air Filter Paper Cartridge

√2

Replace Fuel Filter

√

1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions
3. It equipped with oil feet, change of every 50 hours.
4 - Replace blades more often when mowing in sandy soil

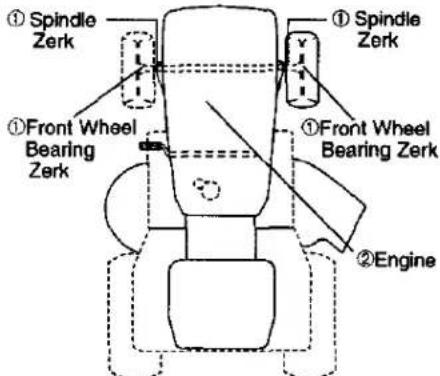

LUBRICATION CHART

①SAE OR 10W30 MOTOR OIL ②REFER TO MAINTENANCE "ENGINE" SECTION

IMPORTANT: Do not oil or grease the pivot points which have special nylon bearings. Viscous lubricants will attract dust and dirt that will shorten the life of the self-lubricating bearings. If you feel they must be lubricated, use only a dry, powdered graphite type lubricant sparingly.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.

- Once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear. A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.
2. Check brake operation.
3. Check tire pressure.
4. Check operator presence and interlock systems for proper operation.
5. Check for loose fasteners.

TRACTOR

Always observe safety rules when performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See "PRODUCT SPECIFICATIONS" section of this manual).
• Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.
• Avoid stumps, stones, deep nuts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

Be sure operator presence and interlock systems are working properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the clutch/brake pedal is fully depressed and attachement clutch control is in the disengaged position.
• When the engine is running, any attempt by the operator to leave the seat without first setting the parking brake should shut off the engine.
• When the engine is running and the attachment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.
• The attachment clutch should never operate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to allow access to blades.

2. Remove hex bolt, lock washer and flat washer securing blade.

3. Install new or resharpened blade with trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assembly, center hole in blade must align with star on mandrel assembly.

1. Reassemble hex bolt, lock washer and fiat washer in exact order as shown.

2. Tighten bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat treated. Mandrel Assembly

*A Grade 8 heat treated bolt can be identified by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening blade - but if you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration and eventual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen while on the mower.

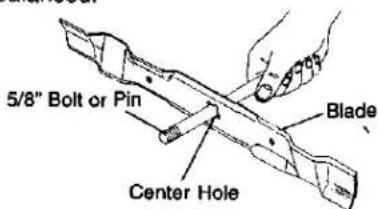

• To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone balancer, follow the instructions supplied with balancer.)

NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt or pin and hold
• the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

BATTERY

Your tractor has a battery charging system which is sufficient for normal use. However, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.
• Keep battery bolts tight.
• Keep small vent holes open.
• Recharge at 6-10 amperes for 1 hour. NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to "leak" power.

1. Open battery box door.
2. Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor.
3. Rinse the battery with plain water and dry.
4. Clean terminals and battery cable ends with wire brush until bright.
5. Coat terminals with grease or petroleum jelly.
6. Reinstall battery (See "REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classification SF-SJ Select the oil's SAE viscosity grade according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each eight (8) hours of operation. Tighten oil fill cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected before oil change. All oil must meet API service classification SF-SJ.

• Be sure tractor is on level surface.
  • Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

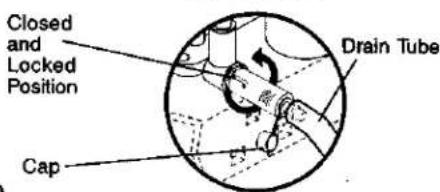

• Remove cap from end of drain valve and install the drain tube onto the fitting.
• Unlock drain valve by pushing inward slightly and turning counterclockwise.
• To open, pull out on the drain valve.
• After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown.
• Remove the drain tube and replace the cap onto to the end of the drain valve.
• Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not overfill. For approximate capacity see "PRODUCT SPECIFICATIONS" section of this manual.
• Use gauge on oil fill cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at "FULL" line on dipstick.

Oil Drain Valve

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine damage from overheating. Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine cooling fins to prevent engine damage from overheating.

1. Remove screws from blower housing and lift housing and dipstick tube assembly off engine.
2. Cover oil fill opening to prevent entry of dirt.
3. Use compressed air or stiff bristle brush to thoroughly clean engine cooling fins.
4. To reassemble, reverse above procedure.

AIR FILTER

Your engine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

1. Slide foam pre-cleaner off cartridge.
2. Wash it in liquid detergent and water.
3. Squeeze it dry in a clean cloth.
4. Saturate it in engine oil. Wrap it in clean, absorbent cloth and squeeze to remove excess oil.
   NOTE: If very dirty or damaged, replace pre-cleaner.
5. Reinstall pre-cleaner over cartridge.
6. Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

1. Remove cartridge nut.

2. Carefully remove cartridge to prevent debris from entering carburetor. Clean base carefully to prevent debris from entering carburetor.

3. Clean cartridge by tapping gently on flat surface.

NOTE: If very dirty or damaged, replace cartridge.
4. Reinstall cartridge, nut, precleaner, cover and secure with knob(s). IMPORTANT: Petroleum solvents, such as kerosene, are not to be used to clean the cartridge. They may cause deterioration of the cartridge. Do not oil cartridge. Do not use pressurized air to clean or dry cartridge.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in "PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once each season. If fuel filter becomes clogged, obstructing fuel flow to carburetor, replacement is required.

1. With engine cool, remove filter and plug fuel line sections.
2. Place new fuel filter in position in fuel line with arrow pointing towards carburetor.
3. Be sure there are no fuel line leaks and clamps are properly positioned.
4. Immediately wipe up any spilled gasoline.

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign matter.
• Keep finished surfaces and wheels free of all gasoline, oil, etc.
• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your tractor unless the electrical system, muffler, air filter and carburetor are covered to keep water out. Water in engine can result in a shortened engine life.

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.
2. Place gearshift lever in neutral (N) position.
3. Place attachment clutch in "DISENGAGED" position.
4. Turn ignition key "OFF" and remove key.
5. Make sure the blades and all moving parts have completely stopped.
6. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TRACTOR

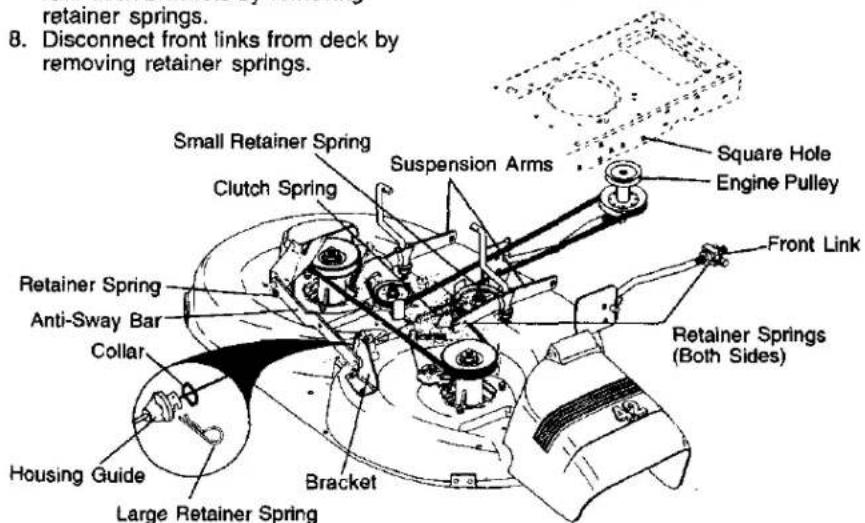

TO REMOVE MOWER

Mower will be easier to remove from the right side of tractor.

1. Place attachment clutch in "DISENGAGED" position.
   2: Move attachment lift lever forward to lower mower to its lowest position.
2. Roll belt off engine pulley
3. Remove small retainer spring, and lift clutch spring off pulley bolt.
4. Remove large retainer spring, slide collar off and push housing guide out of bracket.
5. Disconnect anti-swaybar from chassis bracket by removing retainer spring.
6. Disconnect suspension arms from rear deck brackets by removing retainer springs.

7. Disconnect front links from deck by removing retainer springs.

8. Raise lift lever to raise suspension arms. Slide mower out from under tractor.

IMPORTANT: If an attachment other than the mower deck is to be mounted on the tractor, remove the front links and hook the clutch spring into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest position.
2. Slide mower under tractor with discharge guard to right side of tractor.
3. Lower lift lever to its lowest position.
4. Install mower in reverse order of removal instructions.

Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See "PRODUCT SPECIFICATIONS" section of this manual). If tires are over or underinflated, you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.
• At the midpoint of both sides of mower, measure height from bottom edge of mower to ground. Distance "A" on both sides of mower should be the same or within 1/4" of each other.
• If adjustment is necessary, make adjustment on one side of mower only.
  • To raise one side of mower, tighten lift link adjustment nut on that side.
  • To lower one side of mower, loosen lift link adjustment nut on that side.
  NOTE: Each full turn of adjustment nut will change mower height about 1/8".
• Recheck measurements after adjusting.

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-side. If the following front-to-back adjustment is necessary, be sure to adjust both front links equally so mower will stay level side-to-side.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position.

Check adjustment on right side of tractor. Measure distance "D" directly in front and behind the mandrel at bottom edge of mower housing as shown.

• Before making any necessary adjustments, check that both front links are equal in length. Both links should be approximately 10-3/8".
• If links are not equal in length, adjust one link to same length as other link.
• To lower front of mower loosen nut "E" on both front links an equal number of turns.
• When distance "D" is 1/8" to 1/2" lower at front than rear, tighten nuts "F" against trunnion on both front links.
• To raise front of mower, loosen nut "F" from trunnion on both front links. Tighten nut "E" on both front links an equal number of turns.
• When distance "D" is 1/8" to 1/2" lower at front than rear, tighten nut "F" against trunnion on both front links.
  • Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

TO REPLACE MOWER BLADE DRIVE BELT

The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO REMOVE MOWER" in this section of this manual).
2. Work belt off both mandrel pulleys and idler pulleys.
3. Pull belt away from mower.

BELT INSTALLATION -

1. Install new belt in reverse order of removal.
2. Make sure belt is in all pulley grooves and inside all belt guides.
3. Install mower in reverse order of removal instructions.

TO ADJUST BRAKE

Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance at high speed in highest gear on a level dry concrete or paved surface, then brake must be adjusted.

1. Depress clutch/brake pedal and engage parking brake.
2. Measure distance between brake operating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen jam nut and turn nut "A" until distance becomes 1-1/2". Retighten jam nut against nut "A".

4. Road test tractor for proper stopping distance as stated above. Readjust if necessary. If stopping distance is still greater than six (6) feet in highest gear, further maintenance is necessary. Contact a Sears or other qualified service center.

With Parking Brake "Engaged"

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest.

1. Remove mower (See "TO REMOVE MOWER" in this section of this manual.)
2. Remove belt from stationary idler and clutching idler.
3. Pull belt slack toward rear of tractor. Remove belt upwards from transaxle pulley by deflecting belt keepers.
4. Pull belt toward front of tractor and remove downwards from around engine pulley.
5. Install new belt by reversing above procedure.

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steering wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toe-in or camber, contact a Sears or other qualified service center.

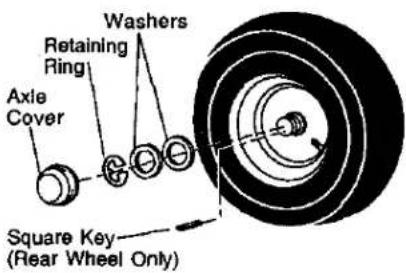

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

1. Replace washers and snap retaining ring securely in axle groove.

2. Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

TO START ENGINE WITH A WEAK BATTERY

CAUTION: Lead-acid batteries generate explosive gases. Keep sparks, flame and smoking materials away from batteries. Always wear eye protection when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the MAINTENANCE section of this manual). If "jumper cables" are used for emergency starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a 12 volt negative grounded system. The other vehical must also be a 12 volt negative grounded system. Do not use your tractor battery to start other vehicels.

TO ATTACH JUMPER CABLES -

1. Connect each end of the RED cable to the POSITIVE (+) terminal of each battery, taking care not to short against chassis.

2. Connect one end of the BLACK cable to the NEGATIVE (-) terminal of fully charged battery.

3. Connect the other end of the BLACK cable to good CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER-

1. BLACK cable first from chassis and then from the fully charged battery.
2. RED cable last from both batteries.

REPLACING BATTERY

CAUTION: Do not short battery terminals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to prevent sparking from accidental grounding.

1. Lift seat pan to raised position and open battery box door.
2. Disconnect BLACK battery cable first then RED battery cable and carefully remove battery from tractor.
3. Install new battery with terminals in same position as old battery.
4. First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely.
5. Connect BLACK grounding cable to negative (-) terminal with remaining hex bolt and keps nut. Tighten securely.
6. Close battery box door.

TO REPLACE HEADLIGHT BULB

1. Raise hood.
2. Pull bulb holder out of the hole in the backside of the grill.
3. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.
4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

- Check wiring. See electrical wiring diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

1. Raise hood.
2. Unsnap headlight wire connector.
3. Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.
4. To replace, reverse above procedure.

ENGINE

Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the customers expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL CABLE

The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening cable. If adjustment is necessary, proceed as follows:

1. With engine not running, move throttle control lever from slow to choke position. Slowly move lever from choke to fast position.

2. Check that holes "A" in governor control lever and hole in governor plate line-up. If holes "A" are not aligned, loosen clamp screw and move throttle cable until holes are aligned. Tighten clamp screw securely.

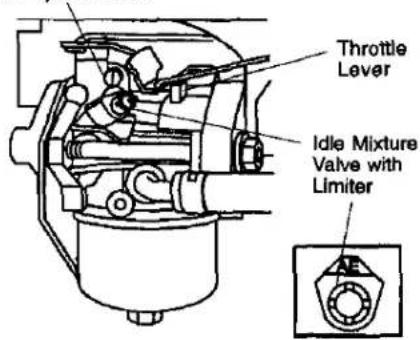

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is low emission. It is equipped with an idle fuel adjusting needle with a limiter cap, which allows some adjustment within the limits allowed by the cap. Do not attempt to remove the limiter cap. The limiter cap cannot be removed without breaking the adjusting needle.

The carburetor has been preset at the factory and adjustment should not be necessary. However, minor adjustment may be required to compensate for differences in fuel, temperature, altitude or load. If the carburetor does need adjustment, proceed as follows: In general, turning idle mixture valve in (clockwise) decreases the supply of fuel to the engine giving a leaner fuel/air mixture. Turning the idle mixture valve out (counterclockwise) increases the supply of fuel to the engine giving a richer fuel/air mixture.

IMPORTANT: Damage to the needle valve and the seat in carburetor may result if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assembled to the carburetor when making carburetor adjustments.
2. Be sure the throttle control cable is adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five minutes. Make final adjustments with engine running and shift/motion control lever in neutral (N) position.
2. Move throttle control lever to slow position. With finger, rotate and hold throttle lever against idle speed screw. Tum idle speed screw to attain 1750 RPM.
3. While still holding throttle lever against idle speed screw, turn idle mixture valve full travel clockwise then counterclockwise until engine runs rough. Turn valve to a point midway between those two positions. Release throttle lever.

ACCELERATION TEST

1. Move throttle control lever from slow to fast position. If engine hesitates or dies, turn idle mixture valve out (counterclockwise) 1/8 turn. Repeat test and continue to adjust, if necessary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do not adjust - damage may result.

IMPORTANT: Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous. If you think the engine-governed high speed needs adjusting, contact a Sears or other qualified service center, which has proper equipment and experience to make any necessary adjustments.

Idle Speed Screw

STORAGE

Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.

CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark. Allow the engine to cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

1. Clean entire tractor (See "CLEANING" in the Maintenance section of this manual).
2. Inspect and replace belts, if necessary (See belt replacement instructions in the Service and Adjustments section of this manual).
3. Lubricate as shown in the Maintenance section of this manual.
4. Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary.
5. Touch up all rusted or chipped paint surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.
• After a period of time in storage, battery may require recharging.
• To help prevent corrosion and power leakage during long periods of storage, battery cables should be disconnected and battery cleaned thoroughly (see "TO CLEAN BATTERY AND TERMINALS" in the Maintenance section of this manual).
  • After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.
• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as carburetor, fuel hose, or tank during storage. Also, experience indicates that alcohol

blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of and engine while in storage.

1. Drain the fuel tank.
2. Start the engine and let it run until the fuel lines and carburetor are empty.
3. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
   • Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See "ENGINE" in the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).
2. Pour one ounce of oil through spark plug hole(s) into cylinder(s).
3. Tum ignition key to "START" position for a few seconds to distribute oil.
4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.
• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.
• If possible, store your tractor indoors and cover it to give protection from dust and dirt.
• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM	CAUSE	CORRECTION
Will not start	1. Out of fuel.2. Engine not “CHOKED” properly.3. Engine flooded.4. Bad spark plug.5. Dirty air filter.6. Dirty fuel filter.7. Water in fuel.8. Loose or damaged wiring.9. Carburetor out of adjustment.10. Engine valves out of adjustment.	1. Fill fuel tank.2. See “TO START ENGINE” in Operation section.3. Wait several minutes before attempting to start.4. Replace spark plug.5. Clean/replace air filter.6. Replace fuel filter.7. Drain fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.8. Check all wiring.9. See “To Adjust Carburetor” in Service Adjustments section.10. Contact a Sears or other qualified service center.
Hard to start	1. Dirty air filter.2. Bad spark plug.3. Weak or dead battery.4. Dirty fuel filter.5. Stale or dirty fuel.6. Loose or damaged wiring.7. Carburetor out of adjustment.8. Engine valves out of adjustment.	1. Clean/replace air filter.2. Replace spark plug.3. Recharge or replace battery.4. Replace fuel filter.5. Drain fuel tank and refill with fresh gasoline.6. Check all wiring.7. See “To Adjust Carburetor” in Service Adjustments section.8. Contact a Sears or other qualified service center.
Engine will not turn over	1. Clutch/brake pedal not depressed.2. Attachment clutch is engaged.3. Weak or dead battery.4. Blown fuse.5. Corroded battery terminals.6. Loose or damaged wiring.7. Faulty ignition switch.8. Faulty solenoid or starter.9. Faulty operator presence switch(es).	1. Depress clutch/brake pedal.2. Disengage attachment clutch.3. Recharge or replace battery.4. Replace fuse.5. Clean battery terminals.6. Check all wiring.7. Check/replace ignition switch.8. Check/replace solenoid or starter.9. Contact a Sears or other qualified service center.
Engine clicks but will not start	1. Weak or dead battery.2. Corroded battery terminals.3. Loose or damaged wiring.4. Faulty solenoid or starter.	1. Recharge or replace battery.2. Clean battery terminals.3. Check all wiring.4. Check/replace solenoid or starter.

TROUBLESHOOTING CHART

PROBLEM	CAUSE	CORRECTION
Loss of power	Cutting too much grass/too fast.Throttle in "CHOKE" position.Build-up of grass, leaves and trash under mower.Dirty air filter.Low oil level/dirty oil.Faulty spark plug.Dirty fuel filter.Stale or dirty fuel.Water in fuel.Spark plug wire loose.Dirty engine air screen/fins.Dirty/clogged muffler.Loose or damaged wiring.Carburetor out of adjustment.Engine valves out of adjustment.	Set in "Higher Cut" position/reduce speed.Adjust throttle control.Clean underside of mower housing.Clean/replace air filter.Check oil level/change oil.Clean and regap or change spark plug.Replace fuel filter.Drain fuel tank and refill with fresh gasoline.Drain fuel tank and carbure tor, refill tank with fresh gasoline and replace fuel filter.Connect and tighten spark plug wire.Clean engine air screen/fins.Clean/replace muffler.Check all wiring.See "To Adjust Carburetor" in Service Adjustments section.Contact a Sears or other qualified service center.
Excessive vibration	Worn, bent or loose blade.Bent blade mandrel.Loose/damaged part(s).	Replace blade.Tighten blade bolt.Replace blade mandrel.Tighten loose part(s).Replace damaged parts.
Engine continues to run when operator leaves seat with with attachment clutch engaged	Faulty operator-safety presence control system.	Check wiring, switches and connections. If not contact a Sears or other qualified service center.
Poor cut - uneven	Worn, bent or loose blade.Mower deck not level.Buildup of grass, leaves, and trash under mower.Bent blade mandrel.Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.	Replace blade. Tighten blade bolt.Level mower deck.Clean underside of mower housing.Replace blade mandrel.Clean around mandrels to open vent holes.

TROUBLESHOOTING CHART

PROBLEM	CAUSE	CORRECTION
Mower blades will not rotate	1. Obstruction in clutch mechanism.2. Worn/damaged mower drive belt.3. Frozen idler pulley.4. Frozen blade mandrel.	1. Remove obstruction.2. Replace mower drive belt.3. Replace idler pulley.4. Replace blade mandrel.
Poor grass discharge	1. Engine speed too slow.2. Travel speed too fast.3. Wet grass.4. Mower deck not level.5. Low/uneven tire air pressure.6. Worn, bent or loose blade.7. Buildup of grass, leaves and trash under mower.8. Mower drive belt worn.9. Blades Improperly installed.10. Improper blades used.11. Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.	1. Place throttle control in "FAST" position.2. Shift to slower speed.3. Allow grass to dry before mowing.4. Level mower deck.5. Check tires for proper air pressure.6. Replace/sharpen blade. Tighten blade bolt.7. Clean underside of mower housing.8. Replace mower drive belt.9. Reinstall blades sharp edge down.10. Replace with blades listed in this manual.11. Clean around mandrels to open vent holes.
Headlight(s) not working (if so equipped)	1. Switch is "OFF".2. Bulb(s) burned out.3. Faulty light switch.4. Loose or damaged wiring.5. Blown fuse.	1. Turn switch "ON".2. Replace bulb(s).3. Check/replace light switch.4. Check wiring and connec tions.5. Replace fuse.
Battery will not charge	1. Bad battery cell(s).2. Poor cable connections.3. Faulty regulator (if so equipped).4. Faulty alternator.	1. Replace battery.2. Check/clean all connec tions.3. Replace regulator.4. Replace alternator.
Engine "backfires" when turning engine "OFF"	1. Engine throttle control not set at "SLOW" position for 30 seconds before stopping engine.	1. Move throttle control to "SLOW" position and allow to idle for 30 seconds before stopping engine.

TRACTOR--MODELNUMBER917.271530

SCHEMATIC

POSITION	CIRCUIT	"MAKE"
OFF	M+G+A1	NONE
RUN/LIGHT	B+A1	A2+L
RUN	B+A1	NONE
START	B+S+A1	NONE

WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING

REPAIR PARTS

TRACTOR--MODEL NUMBER 917.271530

ELECTRICAL

TRACTOR--MODEL NUMBER 917.271530

ELECTRICAL

KEY PART
NO. NO. DESCRIPTION

1	144925	Battery 12 Volt 25 AMP
2	74760412	Bolt Hex Hcl 1/4-20unc X 3/4
8	156417	Case Battery
16	153664	Switch Interlock Push-In
21	166181	Harness Socket Light W/4152J
22	4152J	Bulb Light #1156
24	4799J	Cable Battery 6ga 11" red
25	146147	Cable Battery 6 Ga W/16 Wir red
26	175158	Fuse 20 AMP
27	73510400	Nut Keps Hex 1/4-20 Unc
28	4207J	Cable Ground 6ga 12" black
29	121305X	Switch Plunger Nc Gray
30	175566	Switch Ign Delta Push-In
33	140403	Key Ign Molded Craftsman, Delta
40	170217	Harness Ign
41	71110408	Bolt Bik Hex 1/4-20unc x 1/2
42	131563	Cover Terminal Red
43	175141	Solenoid
45	121433X	Ammeter Rectangular 6 AMP
52	141940	Protection Wire Loop

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

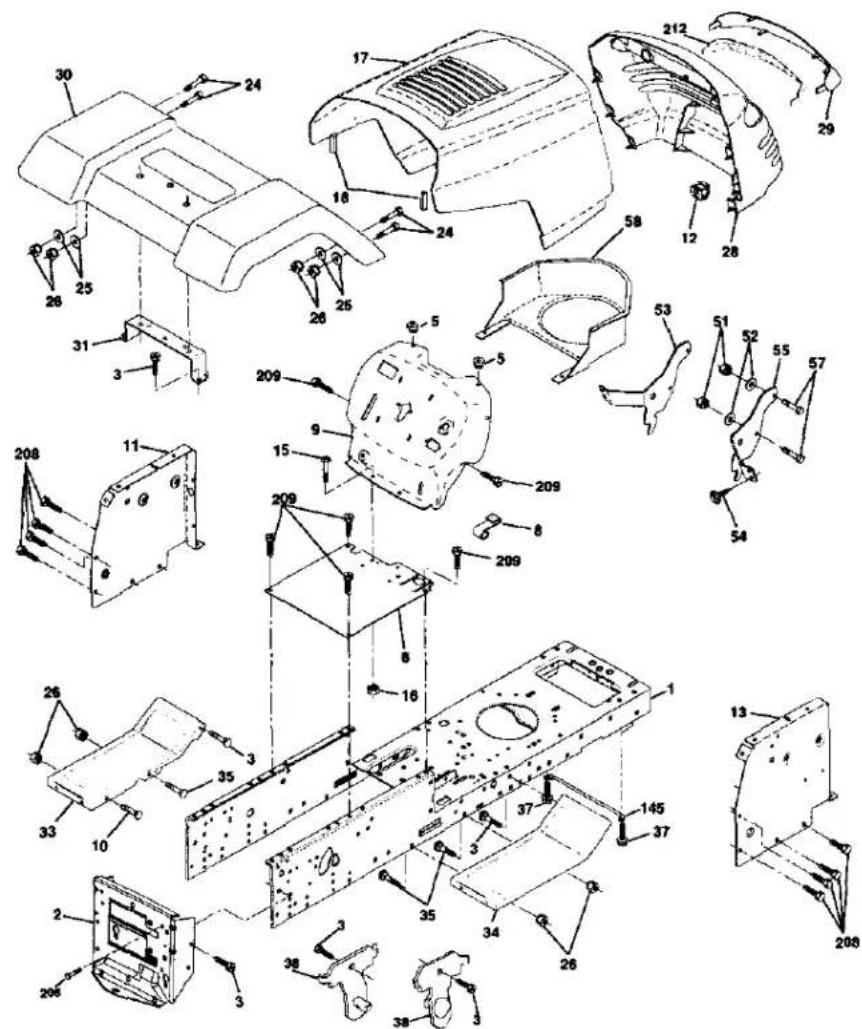

TRACTOR - MODEL NUMBER 917.271530

CHASSIS AND ENCLOSURES

TRACTOR--MODEL NUMBER 917.271530

CHASSIS AND ENCLOSURES

KEY PART
NO. NO. DESCRIPTION

1	169831	Chassis Lt Stamping
2	169061	Drawbar
3	17060612	Screw 3/8-16 x 3/4
5	155272	Bumper Hood/Dash
6	155924X015	Saddle SLKSCREFL TSDL
8	126471X	Clip Insulator .406 Mtg Hole
9	168348X010	Dash Slkscr Pim Mech Sym
10	72140608	Bolt RdHd Sqnk. 3/8-16 x 1
11	155927	Panel Asm. Dash Lh
12	145660	Clip Tinnerman Grille P/L
13	172107X010	Panel Dash Rh
15	74180512	Screw Mach Trhd 5/16-18unc x 3/4
16	73510500	Nu Keps 5/16-18unc
17	159639X558	Hood Pnt Steel Private Label
18	126938X	Bumper Hood
24	74780616	Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
25	19131312	Washer 13/32 x 13/16 x 12 Ga.
26	73800600	Nut Lock Hex w/Ins 3/8-16 Unc
28	140434	Grill/Lens Asm
29	140273X599	Lens Grille Private label
30	169465X558	Fender Pnt
31	136619	Bracket Fender Support
33	145244X558	Footrest Pnt. Lh
34	145243X558	Footrest Pnt. Rh
35	72110606	Bolt RdHd Sht. Sqnk. 3/8-16 x 3/4
37	17490508	Screw Thdrol 5/16-18 x 1/2 Tyt
38	169834	Bracket Asm. Pivot Mower Rear
51	73800400	Nut Lock Hex W/Ins. 1/4-20
52	19091416	Washer 9/32 x 7/8 x 16 Ga.
53	144697	Bracket Grille LH
54	161464	Screw Hex Wshd #8-18 x 7/8
55	144696	Bracket, Grille RH
57	74780412	Bolt Fin Hex 1/4-20 x 3/4
58	150127	Air Duct Private Label LT Engine
145	156524	Rod Pivot Chassis /Hood
206	170165	Bolt Shoulder 5/16-18 TT
208	17670608	Screw Thdrol. 3/8-16 x 1/2
209	17000612	Screw Hex Wsh Thdrol 3/8-16 BL
212	156229	Insert Lens Reflective
--	5479J	Plug Button Blk .359 Dia. Choke

NOTE: All component dimensions given in U. S.
Inches 1 inch = 25.4 mm

TRACTOR-MODEL NUMBER917.271530

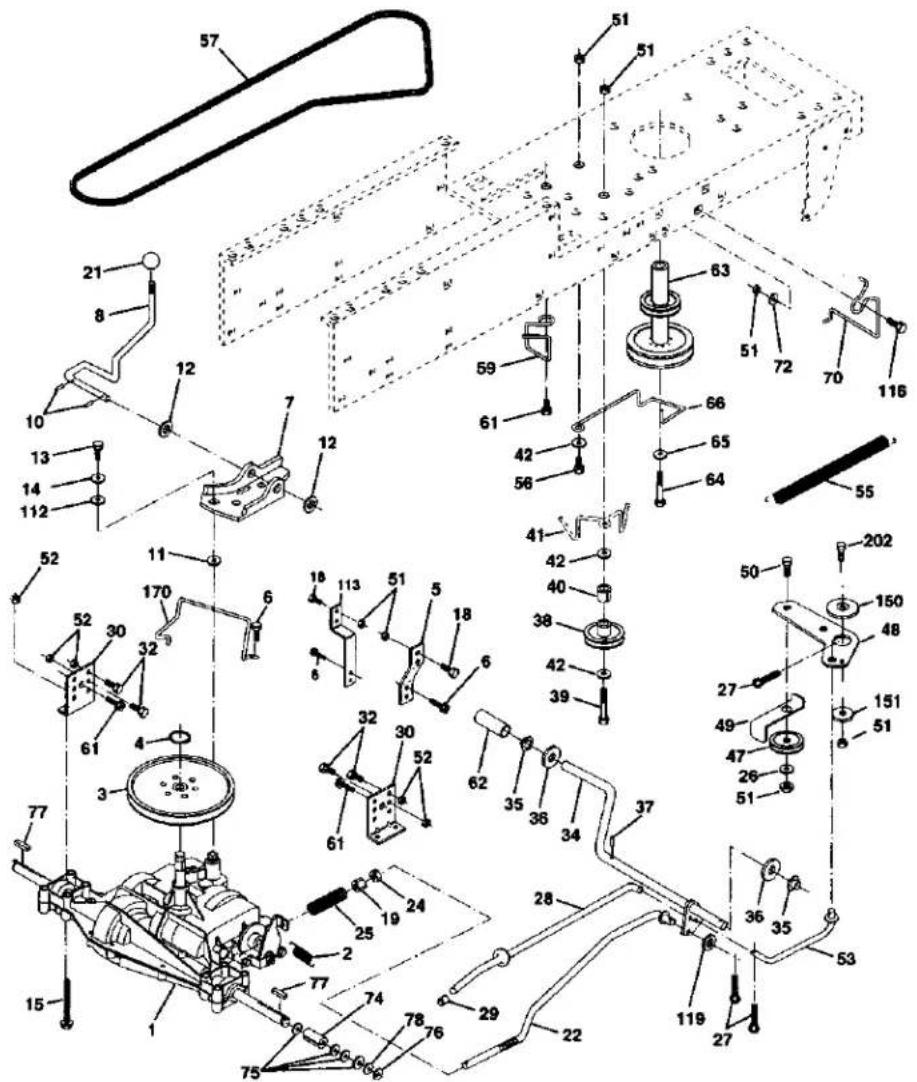

GROUND DRIVE

TRACTOR--MODEL NUMBER 917.271530

GROUND DRIVE

KEY PART

NO.	NO.	DESCRIPTION
1	----	Transaxle (See Breakdown)Dana 4360-140
2	146682	Spring Return Brake T/a Zinc
3	123666X	Pulley Transaxle 18/20" tires
4	12000028	Ring Retainer # 5100-62
5	121520X	Strap Torque 30 Degrees
6	17060512	Screw 5/16-18 x 3/4
7	162240	Bracket Saddle Shift T/a
8	131679	Rod Shf Sdl LY/YT Str Blk Zinc
10	STD561210	Pin Cotter 1/8 x 1 Cad
11	105701X	Washer Plate Shf 388 Sq Hole
12	19151216	Washer 15/32 x 3/4 x 16ga
13	74550412	Bolt 1/4-28unf Gr8 W/Patch
14	STD551125	Washer Lock Hvy Helical 1/4
15	74490544	Bolt Hex FLGHD 5/16-18 Gr.5
18	STD523710	Bolt Fin Hex 3/8-16 x 1
19	STD541437	Nut Lock Hex W/Ins. 3/8-16 Unc
21	106933X	Knob Rd 1/2-13 Plstc Thds Blk
22	130604	Rod Brake Blk Zinc 26 840
24	STD541237	Nut Hex Jam 3/8-16 Unc
25	106888X	Spring Rod Brake 2 00 Zinc
26	19131016	Washer 13/32 x 5/8 x 16 Ga
27	STD561210	Pin Cotter 1/8 x 3/4 Cad
28	145204	Rod Brake Parking Lt/Yt
29	71673	Cap Brake Parking
30	174973	Bracket Mtg Transaxle
32	STD523107	Bolt Hex Hd 5/16-18unc x 3/4
34	155071	Shaft Asm Pedal Foot
35	120183X	Bearing Nylon Blk 629 Id
36	STD551062	Washer 21/32 x 1 x 16 Ga
37	STD571810	Pin Roll 3/16 x 1"
38	131494	Pulley Idler Flat
39	74760644	Bolt Fin Hex 3/8-16 Unc X 2-3/4
40	4470J	Spacér Split 395 x 59 Bzp
41	165838	Keeper Belt Idler

KEY PART

NO.	NO.	DESCRIPTION
42	19131312	Washer 13/32 x 13/16 x 12 Ga
47	127783	Pulley Idler V Groove Plastic
48	154407	Bellcrank Clutch Gm Drv Stl
49	123205X	Retainer Belt Style Spring
50	STD523715	Bolt Hex Hd 3/8-16unc x 1-1/2
51	STD541437	Nut Crownlock 3/8-16 UNC
52	STD541431	Nut Crown Lock 5/16-18
53	105710X	Link Clutch 7 66
55	105709X	Spring Retum Clutch 6 75
56	STD523712	Bolt Fin Hex 3/8-16 unc x 1-1/4
57	160855	V-Belt Gd Drive
59	169691	Keeper Belt Centerspan
61	17060612	Screw 3/8-16 x 3/4
62	8883R	Cover Pedal Blk Round
63	140186	Pulley Eng CI Mech 38deg LT/YT
64	71170764	Bolt Hex 7/16-20 x 4 Gr 5
65	STD551143	Washer Lock Hvy Hici Spr 7/16
66	154778	Keeper Belt Engine
70	134683	Guide Belt Mower Drive RH
72	19132012	Washer 13/32 x 1-1/4 x 12 Ga
74	109502X	Spacer Axle
75	121749X	Washer 25/32 x 1 1/4 x 16 Ga
76	STD581075	E-ring #5133-75
77	123583X	Key Square 2 0 x 1845/ 1865
78	121748X	Washer 25/32 x 1-5/8 x 16ga
112	19091210	Washer 9/32 x 3/4 x 10 Ga
113	127285X	Strap Torque
116	72110610	Bolt Rdhd Sq Neck 3/8-16 x 1.25
150	165850	Bushing Bellcrank Grd. Drive
151	19133210	Washer 13/32 x 2 x 10 Ga
170	173898	Keeper Belt Transaxle Gear
202	72110612	Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm

TRACTOR--MODEL NUMBER 917.271530

STEERING

TRACTOR--MODEL NUMBER 917.271530

STEERING

KEY PART
NO. NO.
DESCRIPTION

1	139768	Wheel Steering Opp Sears Blk
2	154427	Axle Asm Front Lt
3	156483	Spindle Asm Lh
4	157473	Spindle Asm Rh
5	6266H	Washer Thrust .75 x 1.230
6	121748X	Washer 25/32 x 1-5/8 x 16 Ga.
7	19272016	Washer 27/32 x 1-1/4 x 16 Ga.
8	12000029	RingKlip#T5304-75
9	3366R	Bearing Col Strg Blk
10	169832	Draglink
11	10040600	Washer Lock Hvy Hicl Spr 3/8
13	136518	Spacer Brg Axle Front
15	145212	Nut Hexflange Lock
17	156546	Shaft Asm Strg
18	57079	Washer Thrust .515 x .750 x .033
19	160395	Support Shaft
22	165857	Screw Hex Wsh Hd Torx
23	165851	Shaft Asm Pitman
25	154406	Bracket Steering
26	126847X	Bushing Link Drag Blk LR
27	136874	Gear Sector 22 Teeth
28	19131416	Washer 13/32 x 7/8 x 16 Ga.
29	17060612	Screw 3/8-16 x 3/4
30	STD561210	Pin Cotter 1/8 x 3/4 Cad
32	130465	Rod Tie Wire Form 19.75 Mech
36	155099	Bushing Strg. 5/8 ID Dash
37	152927	Screw
38	139769	Cap Wheel Steer Opp Sears USA
39	19133812	Washer 13/32 x 2-3/8 x 12 Ga.
40	7810H	Nut Lock Center 3/8-24
41	100711L	Adaptor Wheel Strg.
42	145054X428	Boot Steering Dash P/L MTL Blk
43	121749X	Washer 25/32 x 1-1/4 x 16 Ga.
44	153720	Extension Steering Non-adjust
46	121232X	Cap Spindle Fr Top Blk
47	6855M	Fitting Grease
51	73800500	Nut Lock Hx W/Ins 5/16-18unc
54	74780520	Bolt Fin Hex 5/16-18unc
62	167902	Steering Assembly
63	74780616	Bolt Fin Hex 3/8-16unc x 1 Gr. 5
65	160367	Spacer Axle
66	154404	Bearing Arm Pittman
67	72140618	Bolt Rdhd 3/8-16 x 2-1/4
68	169827	Brace Axle
79	19132012	Washer 13/32 x 1-1/4 x 12 Ga
80	74950612	Bolt Hex Nylon 3/8-16 x 3/4
82	169835	Bracket Susp Chasis Front
85	133835	Fastner Christmas Tree

NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm

TRACTOR-MODEL NUMBER 917.271530

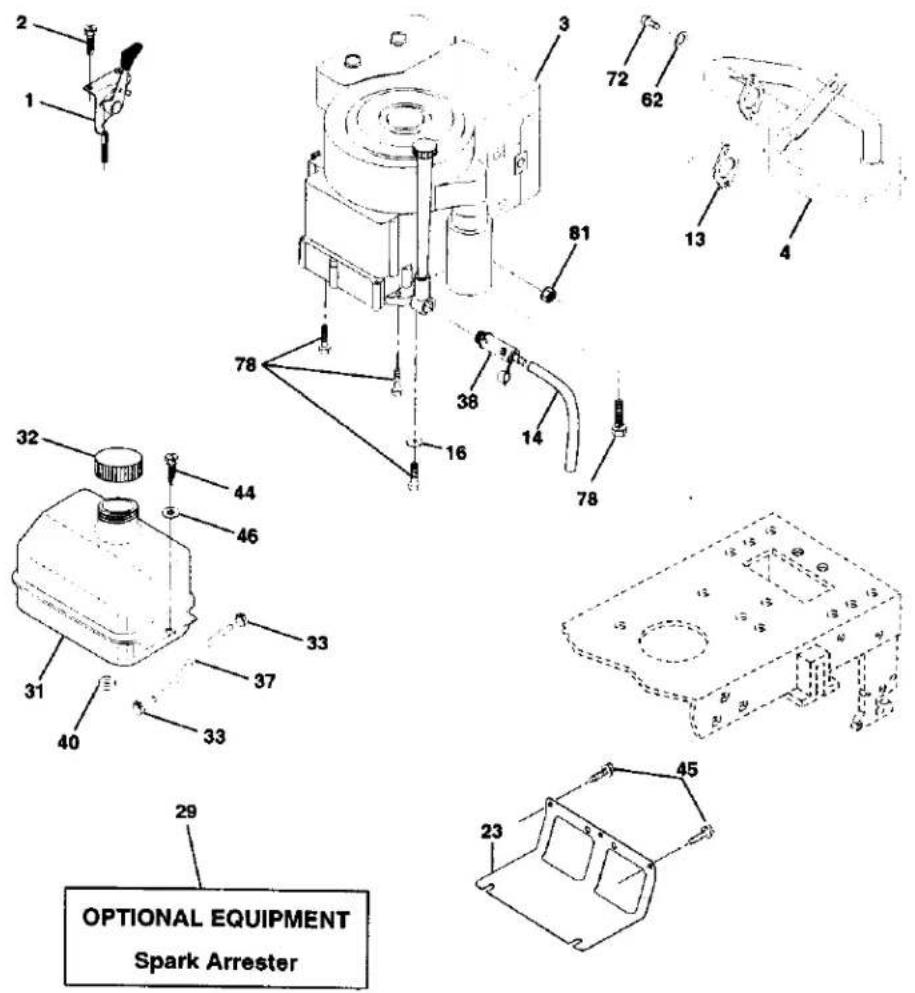

ENGINE

TRACTOR - MODEL NUMBER 917.271530

ENGINE

KEY PART

NO. NO.

DESCRIPTION

1 170545

2 177204

3 ....

[Non-Text]

4 137352

13 165291

14 148456

16 STD56

23 169837

29 137180

31 109202

32 158990

33 123487

37 137040

38 148315

40 124028

44 176704

45 170006

46 190914

62 STD55

72 710705

78 170606

78 776000 81 735104

51 752104

NOTE: All component dimensions given in U. S.

Inches 1 inch = 25.4 mm

TRACTOR--MODEL NUMBER 917.271530

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140122

2 140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 174894

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pvt St

Bolt Fin Hex 3/8-16unc X 1

Washer Flat 13/32 X 1 X 10 Ga

Clip Push-In Hinged

Locknut Hex W/Wsh 3/8-16

Spring Seat Cprsn 2 250 Blk Zi

Screw 3/8-16 X 1-1/2

Washer 13/32 X 1 X 14 Ga

Pan Seat

Knob Seat Adj. Wingnut

Bracket Mounting Switch

KEY PART

NO. NO.

13 121248X Bushing Snap Blk Nvl 50 Id

14 72050412 Bolt Rdhd Shl Nk 1/4-20x1-1/2

15 134300 Spacer Split 28x 96 Yel Zinc

16 121250X Spring Cprsn 1 27 Blk Pnl

17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc

21 171852 Bolt Shld 6/16-18 Unc-2A Blk D

22 STD541431 Nut Lock Hex *W/Ins 5/16-18

24 19171912 Washer 17/32 X 1-3/16 X 12 Ga

25 127018X Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U. S.

Inches 1 inch = 25.4 mm

TRACTOR-MODEL NUMBER917.271530

DECALS

KEY PART NO. NO.

1	156867	Decal Dash Inst Oper English
2	176675	Decal HP Engine
3	171704	Decal Hood Logo
6	133644	Decal Maint Cust SearsDomestic
7	177249	Decal Replcmnt Sears
9	163204	Decal Fender Craftsman White
10	149516	Decal Battery Dngr/Psn EngAcme
11	156439	Decal Danger Fender Eng/span

KEY PART NO. NO.

12	4900J	Decal Clutch/brake English
13	146046	Decal V-Belt Dr Sch Tractor
14	177097	Decal Panel Dash 6sp 42"
15	160396	Decal V-Belt Sch
16	163207	Decal Fender Sd 6/42
--	157199X428	Pad Footrest
--	138311	Decal Handle Lift Height Adjust
--	177089	Manual Owners English
--	177090	Manual Owners Spanish

WHEELS AND TIRES

KEY PART

NO.	NO.	DESCRIPTION
1	59192	Cap Value Tire
2	65139	Stem Value
3	106222X	Tire F Ts 15 X 6 0 - 6 Service
4	59904	Tube Inner Front #35060
5	106732X427	Rim Asm 6"front White Service
6	278H	Fitting Grease
7	9040H	Bearing Flange
8	106108X427	Rim Asm 8"rear White Service
9	124635X	Tire R Ts 18x9 5-8 Service
10	7152J	Tube Rear 9 5 X 8 Service
11	104757X428	Cap Axle Blk 1 50 X 1 00
- -	144334	Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

TRACTOR--MODEL NUMBER 917.271530

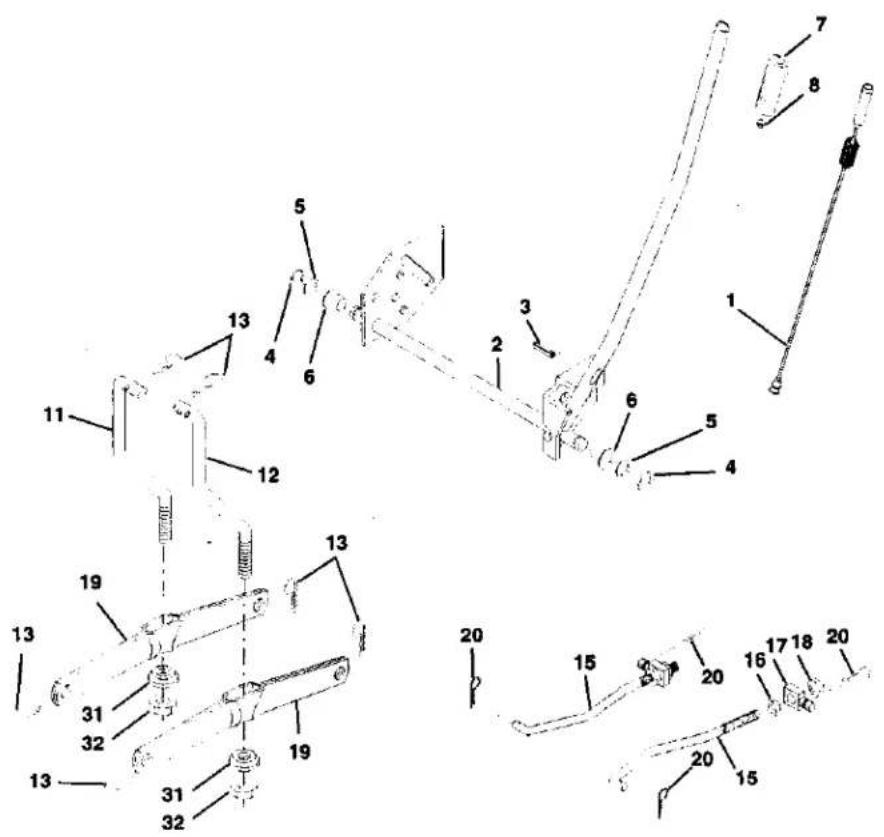

LIFT ASSEMBLY

TRACTOR--MODEL NUMBER 917.271530

LIFT ASSEMBLY

KEY PART
NO. NO. DESCRIPTION

1	159460	Wire Asm Inner/Sprg W/plunger LT
2	159471	Shaft Asm Lift
3	105767X	Pin Groove 1 500 Zinc
4	12000002	E Ring #5133-62
5	19211621	Washer Pltd 21/32 X 1 X 21ga
6	120183X	Bearing Nylon Blk 629 Id
7	125631X	Grip Handle Fluted Blk
8	122365X	Button Plunger Red
11	139865	Link Lift LH
12	139866	Link Lift RH
13	STD624008	Retainer Spring
15	173288	Link Front
16	73350800	Nut Jam Hex 1/2-13 Unc
17	130171	Trunnion Blk Zinc
18	73800800	Nut Lock W/Wsh 1/2-13unc
19	139868	Arm Suspension Rear
20	163552	Retainer Spring Zinc
31	169865	Bearing Pvt Lift
32	73540600	Nut Crownlock 3/8-24

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

TRACTOR--MODEL NUMBER 917.271530

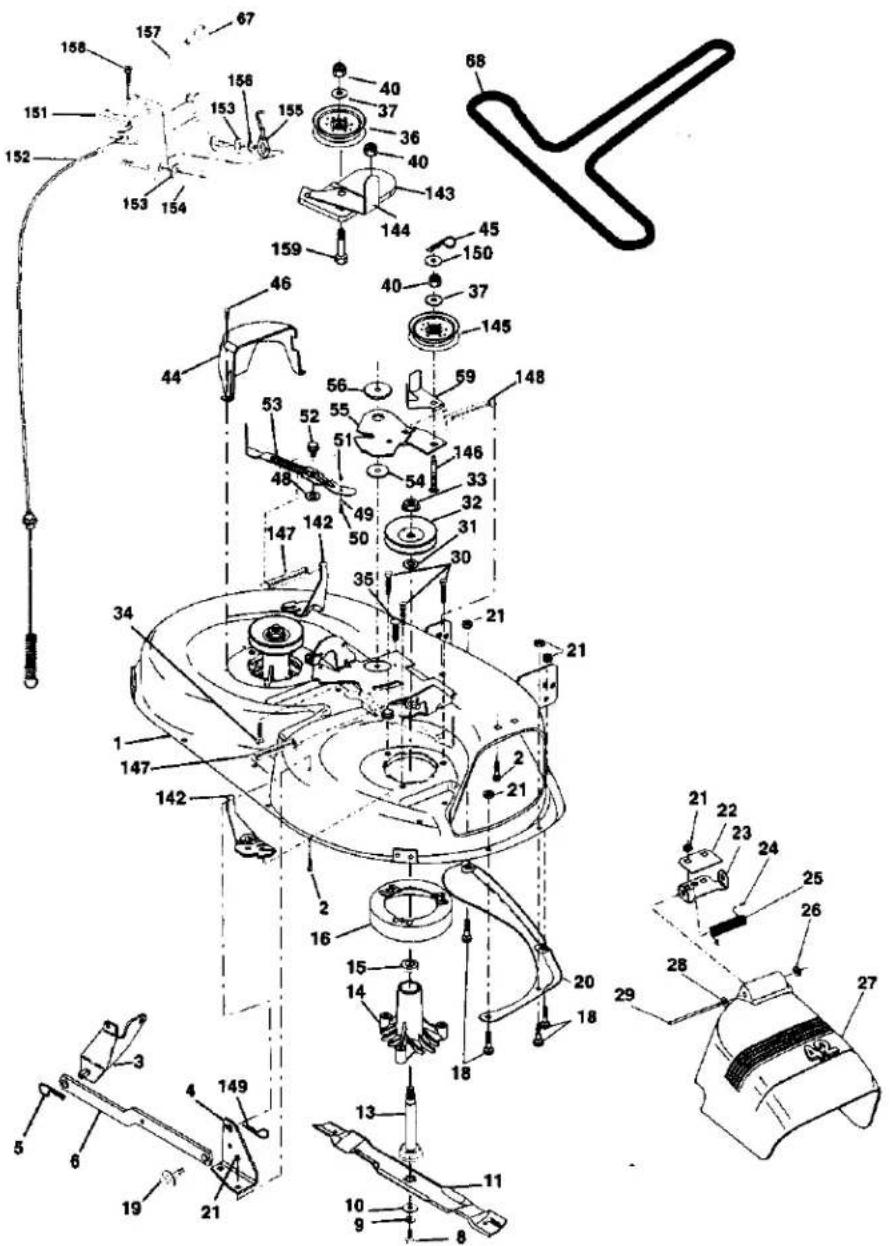

MOWER DECK

TRACTOR-MODEL NUMBER 917.271530

MOWER DECK

KEYNO.	PARTNO.	DESCRIPTION	KEYNO.	PARTNO.	DESCRIPTION
1	165892	Mower Deck Assembly, 42"	46	137729	Screw, Thd. Roll 1/4-20 x 5/8
2	STD533107	Bolt	48	133944	Washer, Hardened
3	138017	Bracket Assembly, Sway Bar, Front	49	174284	Roller Assembly, Cam Follower
4	165460	Bracket Sway Bar 38/42" Deck	50	131340	Bolt, Shoulder #10-24 Grade 5
5	STD624008	Retainer Spring	51	STD541410	Locknut
6	130832	Arm, Suspension, Rear	52	139888	Bolt, Shoulder 5/16-18 UNC
8	850857	Bolt, Hex 3/8-24 x 1.25 Gr. 8	53	131845	Arm Assembly, Pad, Brake
9	STD551137	Washer, Lock	54	133943	Washer, Hardened
10	140296	Washer, Hardened	55	155046	Arm, Idler
11	134149	Blade, Mulching	56	165723	Spacer, Retainer
13	137645	Shaft Assembly, Mandrel, Vented (Includes Key Number 12)	59	141043	Guard, TUV IdlerKnob Custom OvalV-Belt
			67	149846
			68	144959
14	128774	Housing, Mandrel, Vented	142	165890	Arm Spring Brake Mower
15	110485X	Bearing, Ball, Mandrel	143	157109	Bracket Arm Idler 42"
16	174493	Stripper, Vented Mower Deck	144	158634	Keeper Belt 42" Clutch Cable
18	72140505	Bolt, Carriage 5/16-18 x 5/8	145	165888	Pulley Idler Flat
19	132827	Bolt, Shoulder	146	171977	Bolt Carriage Idler
20	159770	Baffle, Vortex	147	131335	Spring Extension
21	STD541431	Nut Crownlock 5/16-18 UNC	148	169022	Spring Return Idler
22	134753	Stiffener Bracket	149	165898	Retainer Spring Yellow Zinc
23	131267	Bracket, Deflector	150	19091216	Washer 9/32 x 3/4 x 16 Ga.
24	105304X	Cap, Sleeve	151	169670	Bracket Clutch
25	123713X	Spring, Torsion, Deflector	152	169676	Cable Clutch 42 in
26	110452X	Nut, Push	153	169674	Washer Flat 3/8" Type B
27	130968X428	Shield, Deflector	154	169675	Spring Retainer
28	19111016	Washer 11/32 x 5/8 x 16 Ga.	155	169671	Spring Retention Lever
29	131491	Rod, Hinge	156	169672	Spacer
30	157722	Screw Thdrol Washer Head	157	169669	Rod Clutch
31	129963	Washer, Spacer	158	17720410	Screw Hex Thd Cut 1/4-20 x 5/8
32	153535	Pulley, Mandrel	159	72140614	Bolt Rdhd Sqn 3/8-16unc x 1-3/4
33	137266	Nut, Toplock, Flanged	--	130794	Mandrel Assembly (Includes
34	STD533717	Bolt			Key Numbers 8-10, 12-15, 31 and 32)
35	133835	Fastner, Christmas Tree
36	131494	Pulley, Idler, Flat	--	169583	Mower Deck, Complete(Standard Deck, Order Separately Mulcher Plate and
37	STD551037	Washer 13/32 x 13/16 x 16 Gauge
40	STD541437	Nut Crownlock 3/8-16 UNC			Gauge Wheel Components,Key Nos. 101-106 and 111-121)
44	140088	Guard, Mandrel, L.H.
45	STD624003	Racing

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.271530

DANA TRANSAXLE--MODEL NUMBER D4360-140

TRACTOR--MODEL NUMBER 917.271530

DANA TRANSAXLE--MODEL NUMBER D4360-140

KEYNO.	PARTNO.	DESCRIPTION	KEYNO.	PARTNO.	DESCRIPTION
1	170981	Housing, Upper	40	120472X	Spacer, .633 X .87 X .755
2	2274J	Screw, Tapping, 1/4-20 X .734	41	105928X	Sprocket, 9T
			42	170988	Gear, Bevel, 36T
3	134400	Ball, Detent	43	134394 *	Assy, Kit, Shim, .750 Shaft
4	105904X	Spring, Detent	44	120473X	Shaft, Drive
5	160940	Screw, Tapping, No. 10-24 X .482	45	142678	Gear, Spur, 12T
			46	143697	Gear, Spur, 15T
6	138235	Assy, Kit, Shifter	47	124641X	Gear, Spur, 20T
7	108727X	V-Ring	48	106589X	Gear, Spur, 25T
8	148266	Bearing, Flange	49	120408X	Gear, Spur, 28T
9	148269	Seal, Oil	50	105937X	Gear, Spur, 31T
10	2225J	Ring, Retaining	51	2226J	Washer, Plain, .632 X 1.00 X .060
11	134793 *	Assy, Kit, Shim, .625 Shaft	52	134401	Washer, Neoprene
12	148268	Bearing, Flange	53	2264J	Washer, Plain, .758 X 1.25 X .031
13	120415X	Washer, Plain, .632 X 1.38 X .046	54	160946	Axle, LH
14	142674	Key, Woodruff, No. 9	55	170990	Gear, Miter, 1 2T, Splined
15	170983	Assy, Kit, Input Shaft	56	160948	Ring, Retaining
16	170986	Pinion, Bevel, 12T	57	110071X	Gear, Spur, 32T
17	105909X	Ring, Retaining	58	120952X	Shaft, Cross
18	105910X	Chain, 24 Pitches	59	170991	Gear, Miter, 1 2T, Idler
19	160942	Cover, Detent	60	160950	Axle, RH
20	160943	Gear, Spur, 1 2T	61	170992	Housing, Lower
21	148267	Collar, Clutch	62	7294J	Disc, Brake
22	138236	Assy, Kit, Clutch Keys	63	108989X	Spacer, Brake Puck
23	73810500	Nut, Lock, 5/16-24	64	160952	Jaw, Brake
24	142676	Shaft, Intermediate	65	120954X	Pin, Dowel
25	2244J	Key, Woodruff, No. 61	66	160953	Screw, Tapping, 5/16-18 X 2.35
26	105916X	Ring, Retaining
27	120470X	Sprocket, 1 8T	67	138244	Lever, Actuating
28	110070X	Spacer, 1. 131 X 1.45 X .494	68	108996X	Washer, Plain, .321 X 1.00 X .055
29	142677	Gear, Spur, 37T	69	160954	Bracket, Anti-Rotation
30	142681	Gear, Spur, 35T	70	120951X	Puck, Friction
31	124644X	Gear, Spur, 30T	71	174256	Washer, Anti Rotation
32	108980X	Gear, Spur, 25T	72	120416X	Grease
33	120406X	Gear, Spur, 22T
34	134796	Gear, Spur, 19T
35	105925X	Washer, Plain, .640 X 1.37 X .061	NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
36	2228J	Washer, Plain, .632 X 1.00 X .046	• Use in various combinations to maintain properclearances.
37	170987	Washer, Plain, .632 X 1.00 X .031	•• Order Key No. 15.
38	174255	Assy, Gear, Comb., 12T & 30T	••• Silicone Sealant to be applied between Upper and LowerHousings (use Loctite Ultra Gray Silicone 5699 or equivalent).
39	124639X	Shaft, Idler

TRACTOR--MODEL NUMBER 917.271530

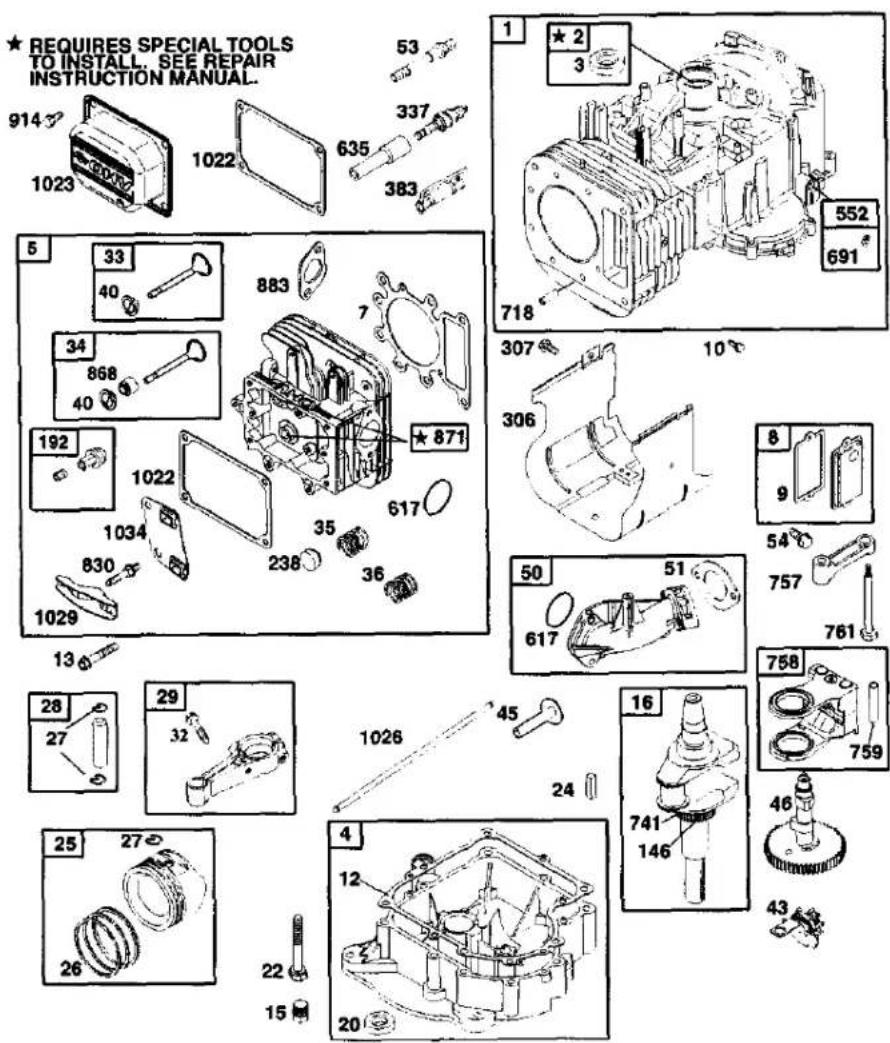

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

TRACTOR-MODEL NUMBER 917.271530

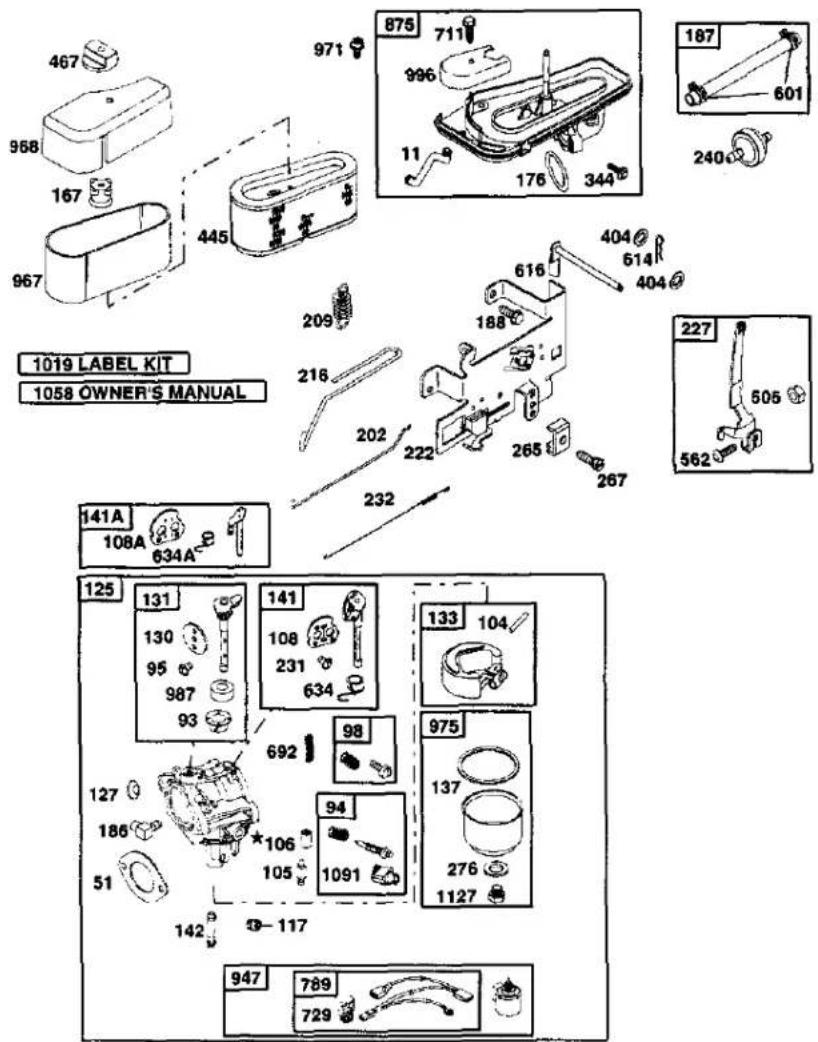

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

TRACTOR--MODEL NUMBER 917.271530

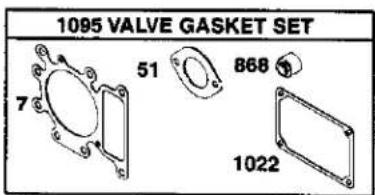

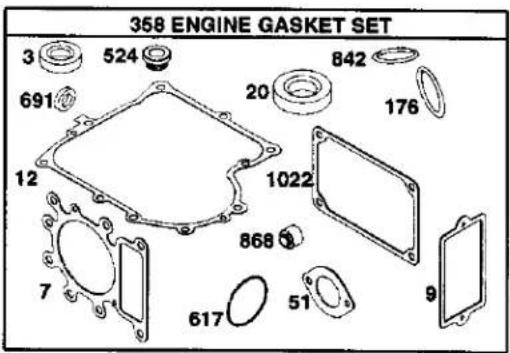

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

TRACTOR-MODEL NUMBER 917.271530

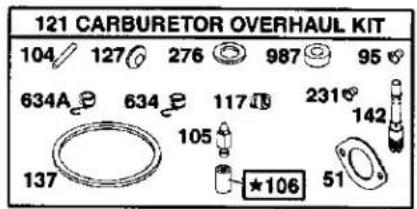

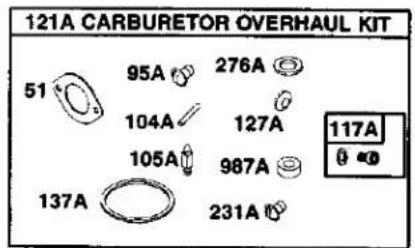

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

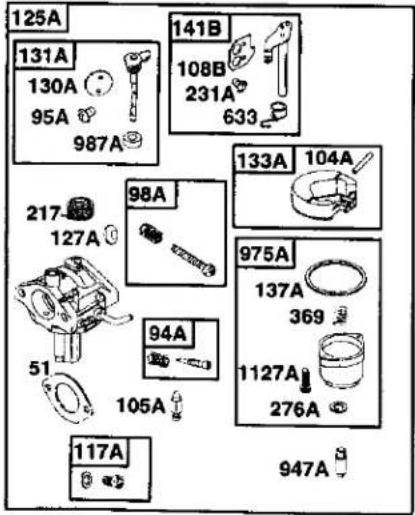

NIKKI

TRACTOR--MODEL NUMBER 917.271530

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

KEYNO.	PARTNO.	DESCRIPTION	KEYNO.	PARTNO.	DESCRIPTION
1	496412	Cylinder Assembly	104A	694918	Pin-Float Hinge
2	399265	Kit-Bushing/Seal	105	231855	Valve-Float Needle
3	391086	Seal-Oil (Magneto Side)	105A	694922	Valve-Float Needle
4	494238	Sump-Engine	106	691780	Seat-Inlet
5	691165	Head-Cylinder	108	690464	Valve-Choke(Manual Choke)
7	273280	Gasket-Cylinder Head	108A	692344	Valve-Choke(Choke-A-Matic)
8	495735	Breather Assembly	108B	695419	Valve-Choke
9	27803	Gasket-Breather	117	692408	Jet-Main (Standard)
10	691666	Screw (Breather Assembly)		692411	Jet-Main (High Altitude)
11	691328	Tube-Breather	117A	695415	Jet-Main (Standard)
12	692226	Gasket-Crankcase (.015 Thick, Std)		695416	Jet-Main (High Altitude)
		Thick, Std)	121	690191	Kit-Carburetor Overhaul (Walbro)
	692406	Gasket-Crankcase (.005 Thick)	121A	695427	Kit-Carburetor Overhaul (Nikki)
	692405	Gasket-Crankcase (.009 Thick)	125	690194	Carburetor
13	690360	Screw (Cylinder Head)	125A		Carburetor (Nikki) (Service with Waibro Carburetor)
15	690946	Plug-Oil Drain
16	690136	Crankshaft	127	695005	Plug-Welch
20	291675	Seal-Oil	127A	690727	Plug-Welch
22	692125	Screw (Crankcase Cover)	130	691750	Valve-Throttle
23	693557	Flywheel	130A	695418	Valve-Throttle
24	222698	Key-Flywheel	131	494379	Kit-Throttle Shaft
25	499284	Piston Assembly (Standard)	131A	695421	Kit-Throttle Shaft
	499286	Piston Assembly (.010 O.S.)	133	494381	Float-Carburetor
	499292	Piston Assembly (.020 O.S.)	133A	695914	Float-Carburetor
	495979	Piston Assembly (.030 O.S.)	137	281165	Gasket-Float Bowl
26	495854	Ring Set-Piston (Standard)	137A	695426	Gasket-Float Bowl
	495852	Ring Set-Piston (.010 O.S.)	141	495097	Kit-Choke Shaft (Manual Choke)
	495851	Ring Set-Piston (.020 O.S.)
	495855	Ring Set-Piston (.030 O.S.)	141A	495931	Kit-Choke Shaft (Choke-A-Matic)
27	691299	Lock-Piston Pin
28	498319	Pin-Piston (Standard)	141B	695420	Kit-Choke Shaft
	498320	Pin-Piston (.020 O.S.)
29	692419	Rod-Connecting (Standard)	142	692412	Nozzle-Carburetor
	499940	Rod-Connecting (.020 U.S.)	146	691639	Key-Timing
32	692852	Screw (Connecting Rod)	167	692297	Air Cleaner Stud Seal
33	495856	Valve-Exhaust	176	691917	O-Ring Seal (Air Cleaner)
34	495857	Valve-Intake	186	692317	Connector-Hose
35	691279	Spring-Valve (Intake)	187	691050	Line-Fuel (Cut to Required Length)
36	691279	Spring-Valve (Exhaust)
37	690456	Guard-Flywheel	188	691693	Screw (Control Bracket)
40	691752	Retainer-Valve	192	691986	Adjuster-Rocker Arm
43	691968	Slinger-Governor/Oil	202	691841	Link-Mechanical Governor
45	690564	Tappet-Valve	209	692208	Spring-Governor
46	692421	Camshaft	216	691840	Link-Choke
48	496050	Short Block (311707-0028-E1 Replacement Engine)	217	695409	Spring-Choke Return
		Manifold-Intake	222	694042	Bracket-Control
50	690193	Manifold-Intake	227	691374	Control Lever-Governor
51	692137	∅‡+ Gasket-Intake	231	691636	Screw (Choke Valve)
53	690227	Stud (Carburetor)	231A	690718	Screw (Choke Valve)
54	691148	Screw (Intake Manifold)	232	691842	Spring-Governor Link
73	690492	Screen-Rotating	238	691843	Cap-Valve
74	691674	Screw (Rotating Screen)	240	394358	Filter-Fuel
75	690582	Washer (Flywheel)	265	691024	Clamp-Casing
78	690661	Screw (Flywheel Guard)	267	695134	Screw (Casing Clamp)
93	690602	Bushing-Throttle Shaft	RPM	Settings:	Low Speed: 1900-2100
94	498030	Kit-Idle Mixture			High Speed: 3000-3200
94A	695425	Kit-Idle Mixture
95	691636	∅ Screw (Throttle Valve)		Included in Engine Gasket Set, Key. No. 358
95A	690718	∅ Screw (Throttle Valve)
98	495800	Kit-Idle Speed		Included in Carburetor Overhaul Kit, Key. No. 121 and 121A
98A	695408	Kit-Idle Speed
104	690525	∅ Pin-Float Hinge		Included in Carburetor Gasket Set, Key. No. 977 and 977A
				Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

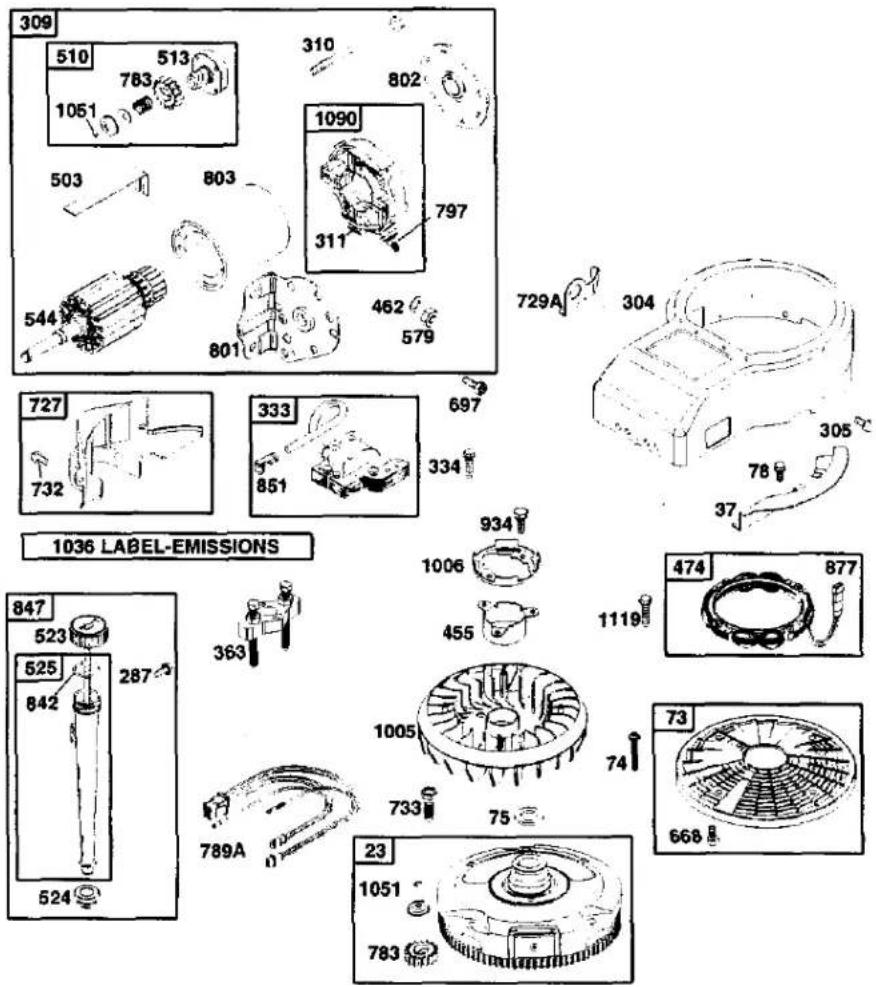

TRACTOR--MODEL NUMBER 917.271530

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

KEYNO.	PARTNO.	DESCRIPTION	KEYNO.	PARTNO.	DESCRIPTION
276	692255 ‡	Sealing Washer	789	692037	Harness-Wiring
276A	695410 ‡	Sealing Washer	789A	695050	Harness-Wiring
287	691002	Screw (Dipstick Tube)	797	693187	Nut (Brush Retainer)
304	690844	Housing-Blower	801	691429	Cap-Drive
305	690960	Screw (Blower Housing)	802	691286	Cap-End
306	690499	Shield-Cylinder	803	693757	Housing-Starter
307	691003	Screw (Cylinder Shield)	830	691095	Stud (Rocker Arm)
309	693551	Motor-Starter	842	691870	• Dipstick/Tube Seal
310	690323	Screw (Starter Motor)	847	496415	Dipstick/Tube Assembly
311	497608	Brush Set	851	692424	Terminal-Spark Plug
333	495859	Armature-Magneto	868	690968	•+ Seal-Valve
334	691061	Screw (Armature Magneto)	871	690969	Bushing-Guide
337	491055	Spark Plug	875	694942	Base-Air Cleaner
344	693675	Screw (Cable Clamp)	877	393456	Wire-Connector/Alternator
358	691580	Engine Gasket Set	883	692236	Gasket-Exhaust
363	19203	Flywheel Puller	914	690960	Screw (Rocker Cover)
369	695422	Spring-Float Bowl	934	691058	Screw (Fan Retainer)
383	89838	Wrench-Spark Plug	947	497672	Solenoid-Fuel
404	691691	Washer (Governor Crank)	947A	695423	Solenoid-Fuel
445	496894	Filter-Air Cleaner Cartridge	967	272043	Filter-Pre Cleaner
			968	691916	Cover-Air Cleaner
455	691173	Cup-Flywheel	971	692129	Screw (Air Cleaner Base)
462	691261	Washer (Starter Cable)	975	495933	Bowl-Float
467	691668	Knob-Air Cleaner	975A	695417	Bowl-Float
			977	690192	Set-Carburetor Gasket(Walbro)
474	691063	Alternator
503	691532	Strap-Starter	977A	695428	Set-Carburetor Gasket(Nikki)
505	691251	Nut (Governor Control Lever)
510	693699	Drive-Starter	987	691326	• Seal-Throttle Shaft
513	692024	Clutch-Drive	987A	690998	• Seal-Throttle Shaft
523	692014	Dipstick	996	690678	Carburetor Shield
524	281370	• Seal-Dipstick Tube	1005	695056	Fan-Flywheel
525	691398	Tube-Dipstick	1006	690452	Retainer-Fan
544	692034	Armature-Starter	1019	496758	Kit-Label
552	491986	Bushing-Governor Lever	1022	272475	•+ Gasket-Rocker Cover
562	691119	Bolt (Governor Control Lever)	1023	691192	Cover-Rocker
579	691029	Nut (Starter Cable)	1026	692003	Rod-Push (Intake)
601	95162	Clamp-Hose		692011	Rod-Push (Exhaust)
614	691620	Pin-Cotter	1029	691751	Arm-Rocker
616	692012	Crank-Governor	1034	690822	Guide-Push Rod
617	692138	• O-Ring Seal (Intake Manifold)	1036	695700	Label-Emissions
633	695414	Seal-Choke/Throttle Shaft	1051	691265	Retainer-Brush
634	690801	• Seal-Spring Assembly(Manual Choke)	1058	274789	Owner's Manual
			1090	691293	Retainer-Brush
634A	690802	• Seal-Spring Assembly(Choke-A-Matic)	1091	691333	Cap-Limiter
			1095	691581	Valve Gasket Set
635	691909	Boot-Spark Plug	1119	691183	Screw (Alternator)
668	691323	Spacer	1127	691657	Screw (Float Bowl)
691	692407	• Seal-Governor Shaft	1127A	695407	Screw (Float Bowl)
692	690572	Spring-Detent	RPM Settings:		Low Speed: 1900-2100
697	690372	Screw (Drive Cap)			High Speed: 3000-3200
711	690703	Screw (Carburetor Shield)
718	690959	Pin-Locating	• Included in Engine Gasket Set, Key. No. 358
727	490324	Cover-Starter Drive
729	691335	Clip-Wire	○ Included in Carburetor Overhaul Kit, KeNo. 121 and 121A
729A	691224	Clip-Wire
732	691002	Screw (Starter Drive Cover)	‡ Included in Carburetor Gasket Set, KeyNo. 977 and 977A
733	691658	Screw (Flywheel)
741	691284	Gear-Timing	+ Included in Valve Gasket Set, Key. No.1095
757	691714	Link-Counterweight
758	692423	Counterweight
759	691239	Pin-Counterweight	NOTE: All component dimensions given in U.
761	691096	Screw (Counterweight)	inches 1 inch = 25.4 mm
783	693713	Gear-Pinion

SERVICE NOTES

SERVICE NOTES

SERVICE NOTES

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

Operate your Tractor up and down the face of slopes (not greater than 15°), never across the face. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home... no matter who made it, no matter who sold it!

1-800-4-MY-HOME ^SM Anytime, day or night (1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals that you need to do-it-yourself, call Sears PartsDirect ^SM !

1-800-366-PART 6 a.m. - 11 p.m. CST, (1-800-366-7278) 7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon. - Sat.

© Sears, Roebuck and Co.

® Registered Trademark / ™ Trademark of Sears, Roebuck and Co. © Marca Registrada / ™ Marca de Fábrica de Sears, Roebuck and Co.
