Product Type	Wireless Phone Charger
Model	NORDMÄRKE 704.929.47
Brand	IKEA
Input	5.0V DC, 2.0A USB Type-C
Compatibility	Qi-compatible devices (Qi 1.2.4BPP)
Operating Frequency	110.3 kHz - 148 kHz
Output Power	36 dBμA/m at 3m
Indoor Use Only	Yes
LED Indicator	Power on (3 sec), charging (on), completed (off), error (flashing)
Safety Features	Temperature and power monitoring
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 25°C
Cleaning	Wipe with a moist cloth; never submerge
Disposal	Recycle separately from household waste per local regulations
RF Exposure	Keep at least 10 cm distance during operation
Warranty	Contact IKEA store for details

Frequently Asked Questions - NORDMÄRKE 704.929.47 IKEA

How do I charge my phone wirelessly?

Place your Qi-compatible device directly over the plus sign (+) on the charger. Ensure the charger is connected to power via the USB cable and adapter. Align the device properly for optimal charging.

What does the LED indicator mean?

The LED lights up for 3 seconds when powered on. It stays on during charging, turns off when charging is complete, and flashes in case of an error.

Can I use any USB cable and power adapter?

For best performance, use a USB cable and power adapter that provide 5.0V, 2.0A. The USB Type-C cable is not included. Cable length and quality affect charging speed.

Why is my phone not charging?

Make sure your device is Qi-compatible and wireless charging is enabled in settings (if required). The device must be centered on the plus sign. If the battery is completely dead, it may take a few minutes to start charging.

Is it safe to use the charger?

Yes, the charger has temperature and power monitoring for safety. Use only in dry locations, keep it away from water, and supervise children. Do not use a damaged USB cable.

How should I clean the charger?

Unplug the charger before cleaning. Wipe with a moist cloth. Never submerge the charger in water.

What is the operating and storage temperature range?

Operating temperature: 0°C to 40°C. Storage temperature: -20°C to 25°C.

Can I repair the charger myself?

No, do not attempt to repair the charger yourself. Opening or removing covers may expose you to dangerous voltage. Contact IKEA for service.

What should I do with the charger when it is no longer usable?

Dispose of the charger separately from household waste according to local environmental regulations. The crossed-out wheeled bin symbol indicates it should be recycled.

Does the charger work with phone cases?

Wireless charging works through most non-metal cases. Remove metal objects or magnetic attachments from the case to ensure proper charging.

USER MANUAL NORDMÄRKE 704.929.47 IKEA

Design and Quality IKEA of Sweden

Simple line drawing of a circular object with a cross symbol on top and a small protrusion at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular objects connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Español 10

Português 14

中文 18

繁中 22

한국어 26

日本語 30

Bahasa Indonesia 34

Bahasa Malaysia 38

عربي 42

Ins 46

Tiếng Việt 50

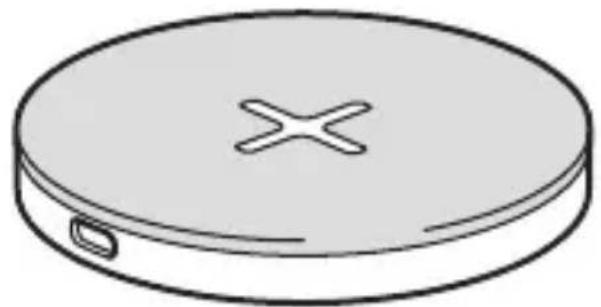

Charger features

• USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.
• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

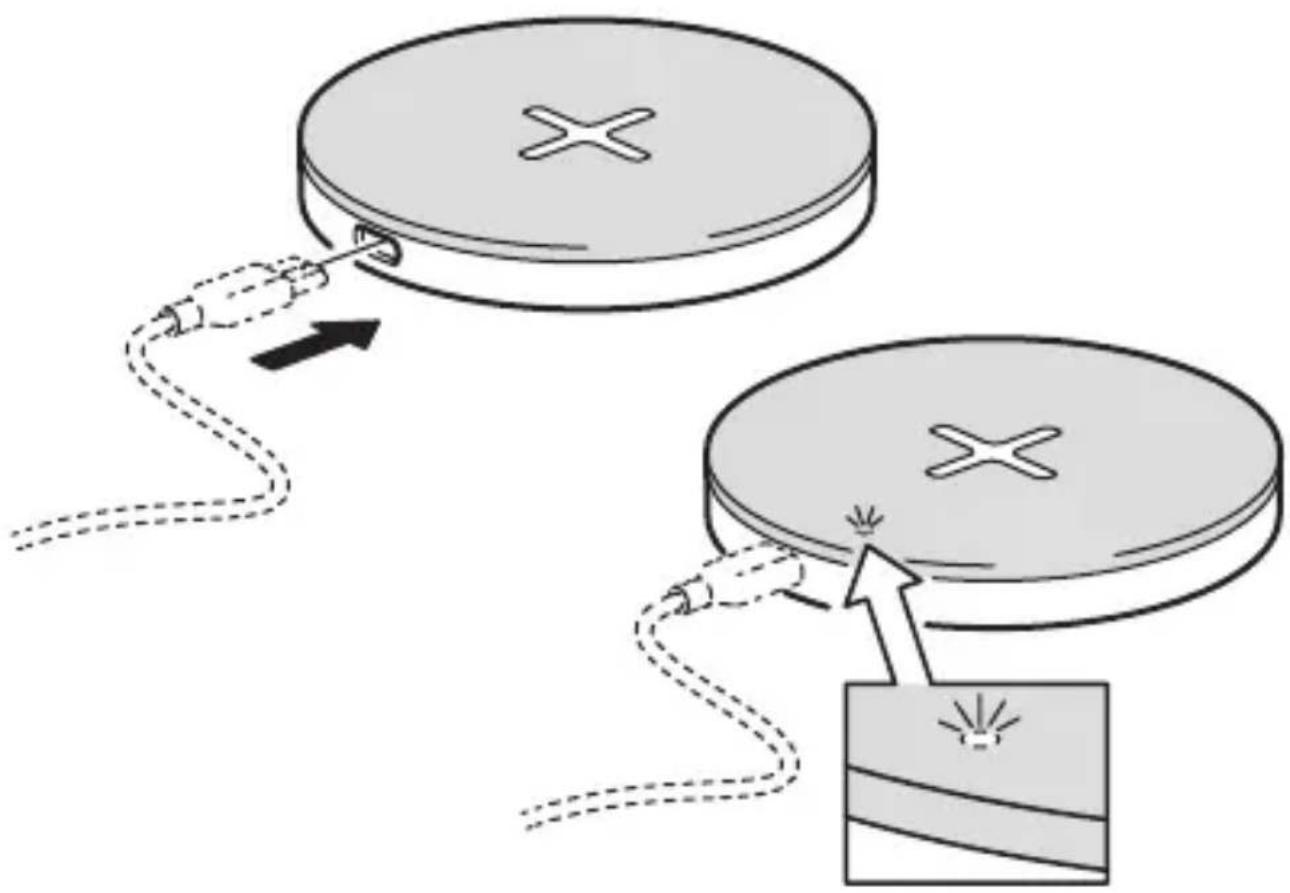

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

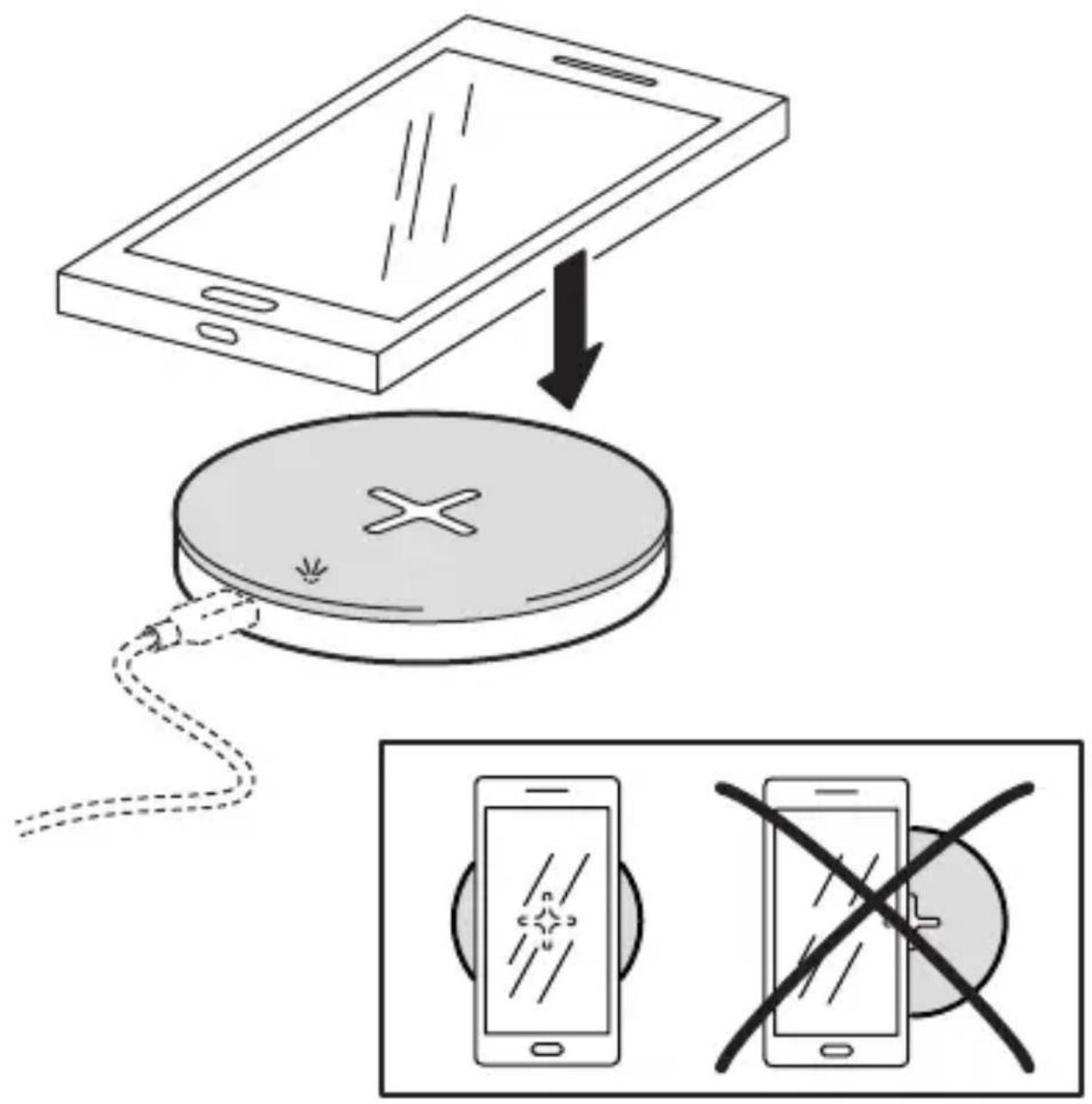

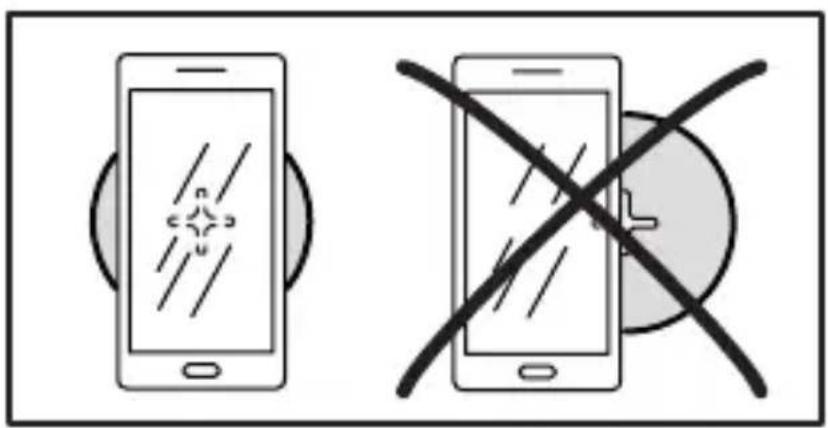

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0^ to 40^ .
• Unplug the charger from the power source before cleaning and when it is not in use.
  • To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.
• Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 110.3KHz - 148 KHz

Output power: 36 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
