Brand	IKEA
Model	NORDMÄRKE 004.772.24
Product Type	Wireless Phone Charger
Input	5V DC, 2A (USB Type-C)
Wireless Charging Standard	Qi 1.2.4 BPP
Charging Compatibility	Qi-compatible devices
LED Indicator	Power on (3s), charging (on), charged (off), error (flashing)
Safety Features	Temperature and power monitoring
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 25°C
Indoor Use Only	Yes
RF Exposure Distance	≥ 10 cm from body
Cleaning	Wipe with damp cloth; do not submerge
Included Items	Charger only (USB cable and power adapter not included)
Manufacturer	IKEA of Sweden AB
Waste Disposal	Recycle according to local regulations

Frequently Asked Questions - NORDMÄRKE 004.772.24 IKEA

How do I use the NORDMÄRKE wireless charger?

Connect the USB cable (not included) to the charger and a 5V/2A power adapter, then plug into a wall socket. Place your Qi-compatible device directly over the plus sign (+) on the charger.

What does the LED indicator mean?

The LED lights up for 3 seconds when powered on. It stays on during charging, turns off when charging is complete, and flashes if there is an error.

Which devices are compatible?

Only devices that support the Qi wireless charging standard can be charged with this charger. Check your device's specifications.

Why is my device not charging?

Ensure the device is placed directly over the plus sign (+) on the charger. The device must support Qi wireless charging, and the charger must be connected to a 5V/2A power source. If the battery is completely discharged, it may take a few minutes to start.

Can I use a different USB cable or adapter?

Yes, but the cable must be of good quality and the adapter must provide 5V DC, 2A. Using a damaged or faulty cable can damage the charger or your device.

Is it safe to leave the charger plugged in?

It is safe, but IKEA recommends unplugging the charger when not in use to save energy and for safety.

How should I clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never submerge it in water.

What should I do if the charger gets warm?

It is normal for devices to get warm during charging. They will cool down once fully charged. If excessive heat occurs, stop using and contact IKEA.

Can I use this charger outdoors?

No, the NORDMÄRKE charger is designed for indoor use only. Keep it in a dry location.

What is the RF exposure limit?

According to regulations, maintain a distance of at least 10 cm from the charger during normal operation to stay within safe RF exposure limits.

USER MANUAL NORDMÄRKE 004.772.24 IKEA

Design and Quality IKEA of Sweden

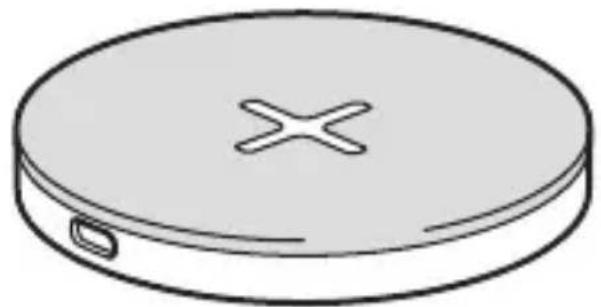

Simple line drawing of a circular object with a cross-shaped cutout on top and a small hole at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular devices connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Česky 10

Italiano 14

Magyar 18

Polski 22

Eesti 26

Latviešu 30

Lietuvių 34

Româna 38

Slovensky 42

Български 46

Hrvatski 50

Русский 54

Українська 58

Srpski 62

Slovenščina 66

70

Charger features

• USB power adapter (5V, 2A) and USB Type-C cable not included.
- Wirelessly charges Qi-compatible devices.
- Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
• LED status indicator.

Instructions for use

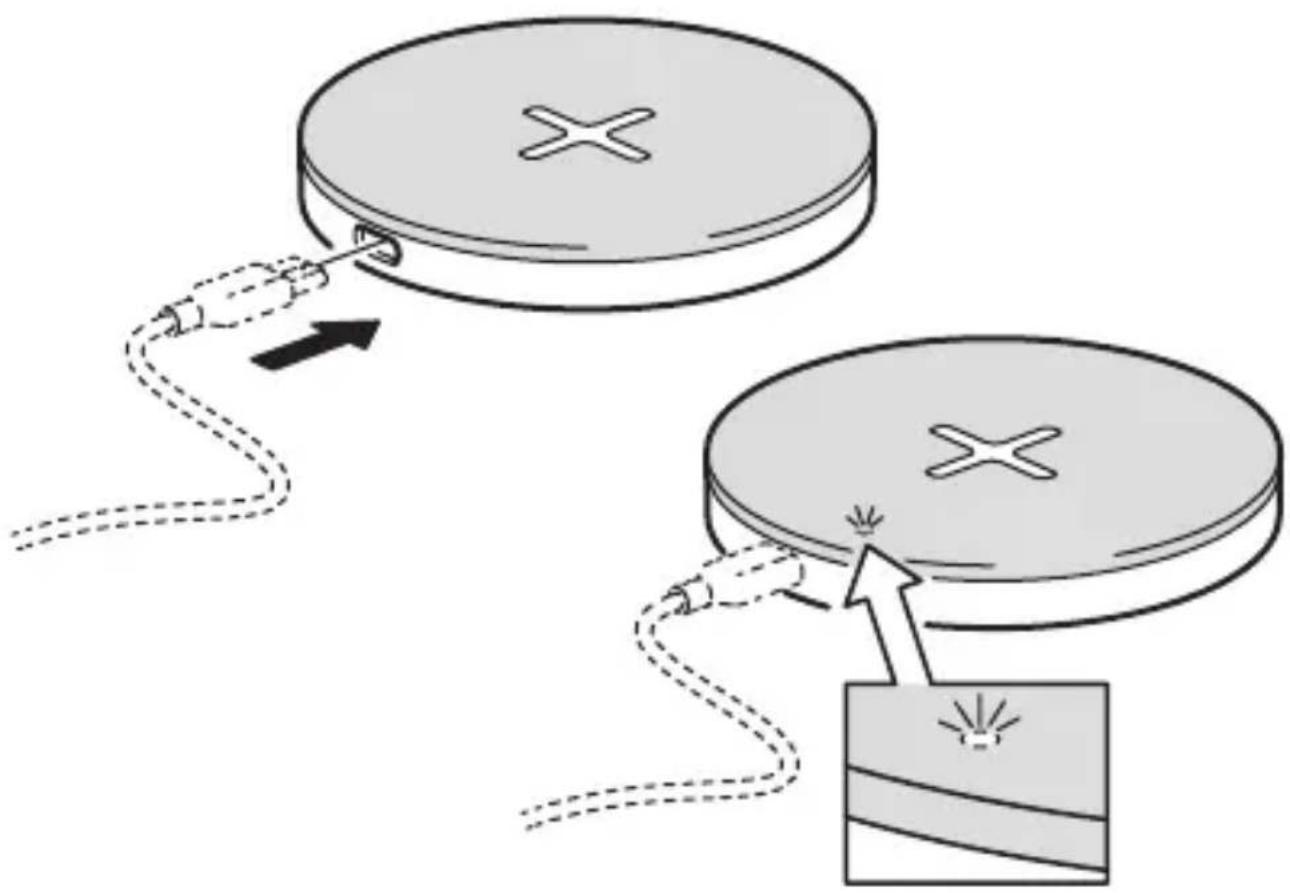

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

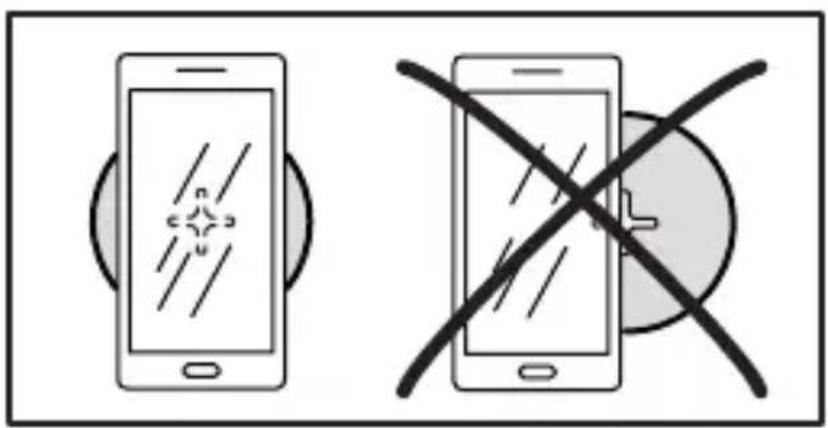

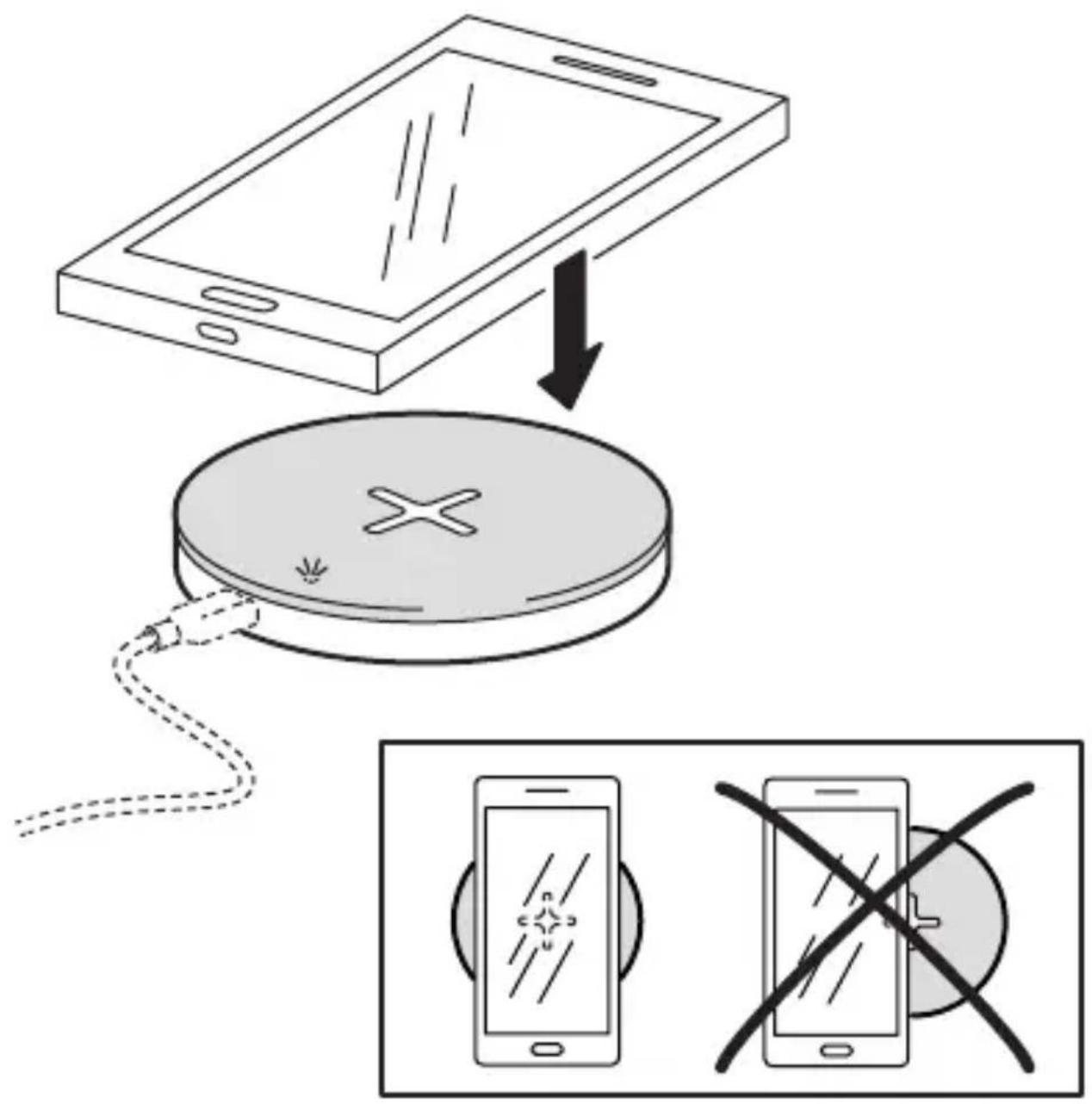

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5V DC, 2A USB Type-C

Indoor use only

Operating frequency: 113 - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
