Product Type	Wall socket / Cable box
Brand	Hazet
Model	161N-3D
Cable Length	10 m
Cable Type	H07RN-F 3G1.5 mm²
Nominal Voltage	230 V~
Nominal Current	16 A
Protection Rating	IP44
Max Power (Rolled Up)	1000 W
Max Power (Unrolled)	3000 W
Dimensions (H x W x L)	305 x 115 x 240 mm
Weight	~2.3 kg
Thermal Protection	Cut-off at 56°C ±3°C
Intended Use	Connecting electrical devices to a mains supply
Safety Features	Thermal protection switch, must be fully unrolled when load > 1000 W, do not cover
Maintenance	Clean with damp lint-free cloth; do not use aggressive cleaners
Included Accessories	Cable box
Storage Temperature	-25°C to +50°C

Frequently Asked Questions - 161N-3D Hazet

How should I use the Hazet 161N-3D cable box safely?

Always read the operating instructions before use. Ensure the cable is completely unrolled when the load exceeds 1000 W. Do not cover the cable box to avoid heat accumulation. Keep away from water and heat sources. Only use with properly fused sockets.

What is the maximum power when the cable is rolled up?

The maximum power when the cable is rolled up is 1000 W. For loads above this, the cable must be fully unrolled to prevent overheating.

What should I do if the thermal protection switch trips?

Disconnect the mains plug from the socket, unplug all devices, fully unroll the cable, and allow the cable box to cool down completely. Then press the thermal protection switch to reset.

Can I use the cable box outdoors?

Yes, but only with electrical devices approved for outdoor use. The cable box has an IP44 protection rating, meaning it is splash-proof. Always ensure the cable is not placed in water and the connection is protected.

How do I clean the Hazet 161N-3D?

Before cleaning, pull the mains plug out of the socket. Use a damp, lint-free cloth. Avoid liquids penetrating the housing or contact with electrical components. Do not use aggressive cleaners like solvents or alcohol.

What should I do if the cable is damaged?

Immediately stop using the cable box. Check the cable for damage regularly. If damaged, do not use. Repair work must be carried out exclusively by authorized personnel. Contact your distributor or the HAZET Service Centre.

Can I modify the Hazet 161N-3D cable box?

No, any modification is strictly forbidden. Changes may lead to injuries or damage, and void warranty and liability. Only use the tool as intended.

What is the protection rating of the cable box?

The protection rating is IP44, meaning it is protected against solid objects larger than 1 mm and splashing water from any direction.

How should I store the cable box when not in use?

Unplug the cable and roll it up completely. Store in a dry place protected from frost, heat, dust, and direct sunlight. The storage temperature range is -25°C to +50°C.

What is included in the delivery of the Hazet 161N-3D?

The delivery includes the cable box only. No additional accessories are provided.

USER MANUAL 161N-3D Hazet

Operating instructions

Cable Box

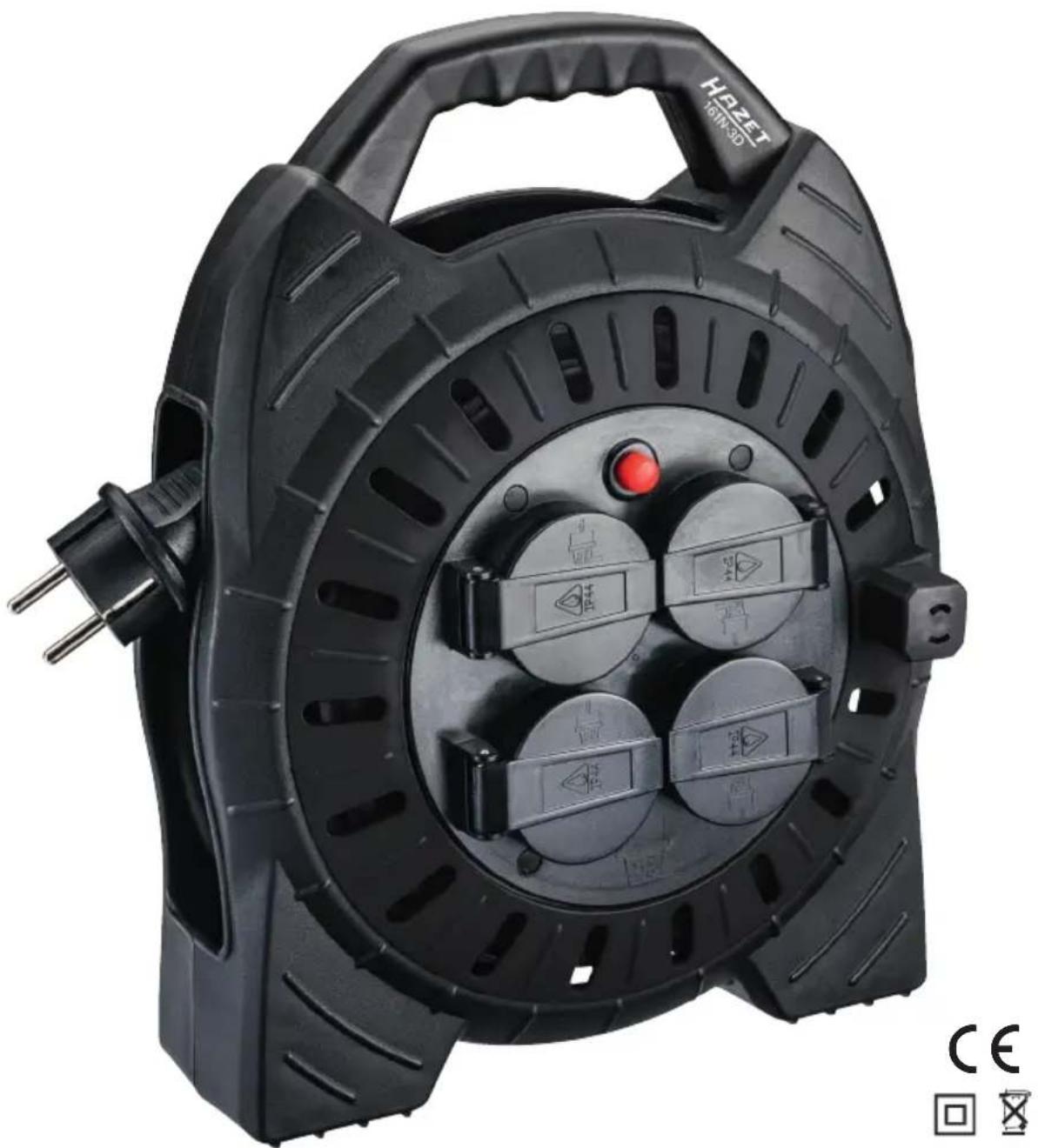

Close-up of a black Hozet air conditioner with visible warning labels and a red indicator light (no text or symbols on the device itself)

Always wear personal protective equipment!

4. Inbetriebnahme

Always wear personal protective equipment!

Always wear personal protective equipment!

Notizen / Notes

1. General information

• Please make sure that the user of the HAZET cable box carefully reads these operating instructions and fully understands all the information provided before using the it for the first time.
• These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET cable box.
• Intended use of the HAZET cable box requires adherence to all the safety instructions and other information in these operating instructions.
• For this reason, always keep these operating instructions together with your HAZET cable box.
• This HAZET cable box has been developed for specific applications. HAZET emphasises that any modification to the this cable box and/or use in a way that does not correspond to its intended application is strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate application, misuse of the tool or a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents valid for the application area of the HAZET cable box must be observed and respected.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

READ THE OPERATING INSTRUCTIONS!

The owner of this tool is obliged to observe the operating instructions and instruct any users of this tool according to the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol indicates important descriptions, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, results in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

The tool may only be used by qualified personnel. Handling by non-qualified people may lead to injuries to persons or damage to the tool or workpiece.

1. Owner's liability

• This device was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is not used as intended or used in an inappropriate way by non-qualified personnel.
• Please make sure that any person using this device or carrying out any maintenance work carefully reads these operating instructions and fully understands all the provided information before using the device.
• Modifications of any kind or any additions or modifications to the tool are prohibited.
• All safety, warning and operating information on the tool must be kept legible. Immediately replace any damaged labels or stickers.
• All specified installation values or setting ranges must be observed.
• Keep the operating instructions together with the tool at all times.
• The tool may only be used if it is in good working order.
• All safety equipment must always be within reach and should be checked regularly.

2. Intended use

Operational reliability is only guaranteed if the device is used as intended in accordance with the information provided in the operating instructions. In addition to the safety advice in these operating instructions, the general safety regulations, accident prevention regulations and environmental protection regulations valid for this tool's application range must be observed and respected. Use and maintenance must always comply with relevant local and national regulations. Please make sure that any person using this tool or carrying out any maintenance work carefully reads these operating instructions and fully understands all the provided information before using the tool.

• Any deviation from the intended use and/or any misapplication of the tool is not permitted and will be considered as improper use.
• Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the tools are void.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the owner.

3. Dangers that may arise from the tool

Before each use, check the HAZET tool for full functionality. Do not use the tool set if its functionality cannot be ensured or if damage is detected. If the tool is used when it is not in full working order, you risk severe injuries to persons and damage to property.

• Do not make any structural changes to the cable box.
• Never use tools with a defective on/off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired.
• All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.
• Safety devices and/or cover parts may not be removed.
• Never use the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect working order.
• For safety reasons any modification of HAZET tools is strictly forbidden. Any modification of the tool will result in immediate exclusion from warranty and liability.
• Keep the cable box away from heat sources.
• The cable box must not be inserted or removed with wet hands.
• To unplug from the socket, do not pull the cable, but always the plug!

• Do not pull the cable over sharp edges or objects.

• Place the cable box in a safe and dry place and check its stability.

• Avoid mechanical strain.
• Avoid running over the cable or other mechanical strain on the cable and cable box!
• Do not place the cable in water.
• When working outdoors, make sure that only electrical devices that are approved for outdoor use are plugged in.
• Operate the cable box only under the approved and suitable ambient conditions.
• Do not work with the cable box in a potentially explosive environment.
• Make sure that devices to be plugged in are switched to OFF beforehand.
• Do not use the cable box if you are under the influence of medication, alcohol or drugs.
• Do not cover the cable box. There is a risk of fire due to heat accumulation.
• The cable box is not a toy. Keep it away from children.
• Follow the instructions on the type plate. Do not remove the type plate
• Do not put them one behind the other! Do not operate covered!

Always wear personal protective equipment!

4. Commissioning

Operating the cable drum

• Unroll the cable to the desired length. At a load > 1,000 W the cable must be completely unrolled.
• Lay the cable in such a way that no tripping hazards arise.
• Insert the mains plug of the cable box into a properly fused socket.
• Connect the desired consumers. Make sure that they are set to OFF to prevent them from starting up by themselves.
• Pay attention to the nominal power / output of the consumers so that the maximum load is not too high.
• When unplugging the cable box from the socket, pull the plug, not the cable.

Thermal protection switch

The cable box has a thermal cut-off at 56^ C +/-3°C.

• Reasons for triggering the thermal protection switch can be:
• Too much heat from outside due to direct sunlight or heat sources in the vicinity
• Load limits have been exceeded. The maximum loads are 1,000 W when rolled up and 3,000 W when unrolled. (see type plate)

If the thermal protection switch has tripped, proceed as follows:

• Disconnect the mains plug of the cable box from the socket.
• Unplug all devices.
• Unroll the cable completely.
• Allow the cable box to cool down completely.
• Press the thermal protection switch.

You can then reuse the cable box.

Transport and storage:

- Improper transport or storage may damage the tool. Note the following information:

Transport

• Unplug the cable and roll up the box completely.
• The cable box is equipped with a handle for transport. Grip here for transport.

Storage

• Store in a dry place. Protected from frost and heat.
• In a place protected from dust and direct sunlight

• Protect from dust with a cover if necessary
  • Storage temperature: -25 up to +50 °C.

• Technical data

	161 N-3D
Cable length 10m
Cable type / cross-section H07RN-F 3G1,5mm2
Nominal voltage 230V~
Nominal current 16A
Protection rating IP44
Power rolled up max. 1,000W
Power unrolled max. 3,000W
Dimensions H/W/L 305x115x240mm
Weight ~2,3kg

Included in delivery

- Cable box

Always wear personal protective equipment!

6. Maintenance and care

WARNING!

Pull the mains plug out of the socket before cleaning.

• Clean the tool with a damp, lint-free cloth. Make sure that no liquids penetrate the housing or come into contact with electrical components. Do not use aggressive cleaning agents such as solvents, alcoholic cleaners, cleaning sprays etc.
  • Dry the tool before commissioning.

7. Malfunctions

• The tool has been tested several times during production. Should malfunctions nevertheless occur, please check your tool as follows:
• Check the cable for damage
• Check that the mains plug is plugged in
• Check that the thermal protection switch is activated. (see section: thermal protection switch)
• Repair work must be carried out exclusively by authorised persons.
• For customer service, please contact your distributor or the HAZET Service Centre.

④ Disposal

Within the EU this symbol indicates that this product must not be disposed of with household waste.

Old equipment contains valuable recyclable materials that should be recycled in order to avoid harming the environment or human health through uncontrolled waste disposal.

Please therefore dispose of old equipment via suitable collection systems or send the tool to the place where you bought it for disposal. The latter will then send the tool for recycling.
