161N-5D - Wall socket Hazet - Free user manual and instructions

Product Type	Wall Socket Strip (Power Strip)
Model	161N-5D
Cable Length	2 m
Cable Type	H07RN-F 3G2.5 mm²
Rated Input Voltage	220-250 V, 50/60 Hz
Rated Current	16 A
Maximum Power	3500 W
Output Voltage (Safety Plugs)	220-250 V, 50/60 Hz, 16 A
USB Output	5 V, 2.1 A
Protection Rating	IP20
Intended Use	Indoor industrial/commercial power distribution
Safety Features	Overload protection; do not cover or daisy-chain
Compliance	CE marked
Maintenance	Clean with damp lint-free cloth; no solvents
Storage Temperature	-25 °C to +50 °C
Storage Conditions	Dry, frost-free, protected from dust and direct sunlight
Included in Delivery	Socket strip, mounting accessories
Repair	Only by qualified personnel; use original spare parts

Frequently Asked Questions - 161N-5D Hazet

What is the maximum power load for the HAZET 161N-5D?

The maximum power load is 3500 W at 220-250 V.

Can I use the socket strip outdoors?

No, it has an IP20 protection rating, meaning it is only suitable for indoor use in dry environments.

Is it safe to connect multiple socket strips together?

No, do not daisy-chain socket strips. This can cause overloading and fire risk.

How should I clean the socket strip?

Disconnect from power and clean with a damp lint-free cloth. Do not use solvents or abrasive cleaners.

What should I do if the socket strip is damaged?

Do not use it. Contact HAZET customer service or an authorized dealer for repair or replacement.

Does the socket strip have USB ports?

Yes, it includes USB outputs providing 5 V, 2.1 A for charging devices.

What is the cable length?

The cable length is 2 meters.

Can I repair the socket strip myself?

No, only qualified personnel should perform repairs to ensure safety and warranty.

What are the rated voltage and frequency?

The rated input voltage is 220-250 V at 50/60 Hz.

How should I store the socket strip when not in use?

Store in a dry, frost-free place away from dust and direct sunlight, with temperature between -25 °C and +50 °C.

USER MANUAL 161N-5D Hazet

Icon of a person using a laptop inside a circular frame (no text or symbols)

Operating Instructions Socket strip

Two identical mechanical clamp clips with black and metallic components, no text or symbols visible

Exterior view of a black HAZET 131N-50 industrial control panel with three circular components and red indicator lights (no readable text or symbols)

CE

de

Inhaltsverzeichnis

1) For your information ..... 9
2) For your safety 10
3) Design and function...... 13
4) Maintenance and care...... 14

Electrical power strip with three socket plugs and a red warning symbol, accompanied by two metal bracket components (no text or labels visible)

Hand installing a black electrical panel with a red indicator light, shown through circular insets (no text or symbols visible)

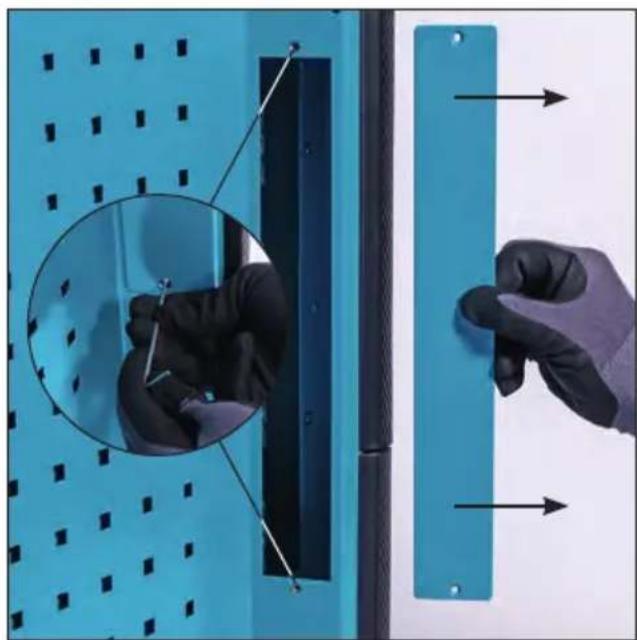

Close-up of a blue perforated metal panel with a hand adjusting a small component, showing alignment and adjustment arrows (no text or symbols)

Person charging at a blue industrial machine, showing electrical plug and battery socket (no visible text or symbols)

Hand in gloves installing a black electronic device on a blue wall, with two circular insets showing close-ups of mechanical components (no text or symbols visible)

Close-up of a blue electric bus cab with attached cable and connector, showing close-up insets (no text or symbols visible)

Exterior view of a blue industrial machine with open doors and wheels, shown with two close-up insets (no text or symbols visible)

• Please make sure that the user of the HAZET socket strip carefully reads these operating instructions and fully understands all the information provided before using the it for the first time.
• These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET socket strip.
• Intended use of the HAZET socket strip requires adherence to all the safety instructions and other information in these operating instructions.
• For this reason, always keep these operating instructions together with your HAZET socket strip.
• HAZET emphasises that any modification to this socket strip and/or use in a way that does not correspond to its intended application is strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate use, misuse of the tool, or from a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents valid for the application area of the HAZET socket strip must be observed and respected.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

READ THE OPERATING INSTRUCTIONS!

The owner of this tool is obliged to observe the operating instructions and instruct any users of this tool according to the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol indicates important descriptions, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, results in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

The tool may be used by qualified personnel only. Handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

1. Owner's liability

• This device was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is not used as intended or used in an inappropriate way by non-qualified personnel.
• Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.
• Modifications of any kind or any additions or modifications to the device are prohibited.
• All safety, warning and operating information on the tool must be kept legible. Immediately replace any damaged labels or stickers.
• All specified installation values or setting ranges must be observed.
• Always keep the operating instructions close to the tool.
• The tool may only be used if it is in good working order.
• All safety equipment must always be within reach and should be checked regularly.

2. Intended use

Operational reliability is only guaranteed if the tool is used as intended in accordance with the information in the operating instructions. In addition to the safety advice in these operating instructions, the general safety regulations, accident prevention regulations and environmental protection regulations valid for this device's application range must be observed and respected. Use and maintenance must always comply with relevant local and national regulations. Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.

• Any deviation from the intended use and/or any misapplication of the devices is not permitted and will be considered as improper use.
• Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the devices are void.
• Any personal injury or material losses caused by improper use are the sole responsibility of the owner.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

3. Dangers that may arise from using the device

Before each use, check the HAZET socket strip for full functionality. Do not use the product if its functional efficiency cannot be ensured or if damage is detected. If it is determined that the product is not in good working order but the product is used despite this, there is a danger of serious damage to body, health and property.

Electrical energy may cause serious injuries. The following fundamental safety instructions must be observed and adhered to in order to avoid electric shock, injuries or fire:

• Do not make any structural changes to the HAZET socket strip.
• Never use tools with a defective on/off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired.
• All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.
• Safety devices and/or cover parts may not be removed.
• Never use the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect working order.

• For safety reasons, any modification to HAZET products is strictly forbidden. Any modification of the tool will result in immediate exclusion from warranty and liability.

• Keep the HAZET socket strip away from heat sources.

• The HAZET socket strip must not be inserted or removed with wet hands.
• To unplug from the socket, do not pull the cable, but always the plug!
• Do not pull the cable over sharp edges or objects.
• Avoid mechanical strain.
• Do not place the cable in water.
• Operate the HAZET socket strip only under the approved and suitable ambient conditions.
• Do not work with the HAZET socket strip in a potentially explosive environment.
• Make sure that devices to be plugged in are switched to OFF beforehand.
• Do not use the HAZET socket strip if you are under the influence of medication, alcohol or drugs.
• Do not cover the HAZET socket strip. There is a risk of fire due to heat accumulation.
• The HAZET socket strip is not a toy. Keep out of reach of children.
• Follow the instructions on the type plate. Do not remove the type plate.
• When working near a HAZET socket strip, ensure that no substances or foreign particles end up near the socket strip due to operating tools such as drilling machines, grinding equipment or saws. There is a risk here that the socket strip will short circuit or become damaged.
• Do not put them one behind the other! Do not operate covered!

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

4.Operation

Operating the HAZET socket strip

• Insert the mains plug of the HAZET socket strip into a properly fused power outlet.
• Connect the desired consumers. Make sure that they are set to OFF to prevent them from starting up by themselves.
• Pay attention to the nominal power / output of the consumers so that the maximum load is not exceeded.
• When unplugging from the socket, always pull the plug, never the cable.
  • Always make sure that the HAZET socket strip is correctly installed and firmly seated.

- When working near a socket strip, ensure that no substances or foreign particles end up near the socket strip due to operating tools such as drilling machines, grinding equipment or saws. There is a risk here that the socket strip will short circuit or become damaged.

5. Malfunctions

• Should malfunctions occur, please check your device as follows:
• Check the cable for damage
• Check that the mains plug is plugged in
• Repair work must be carried out exclusively by authorised persons.
• For customer service, please contact your distributor or HAZET.

6. Technical data

	161N-5D
Cable length 2m
Cable type / cross-section H07RN-F 3G2.5mm ^2
Rated input voltage	220 – 250 V, 50/60 Hz,Ampere: 16 A
Output voltage	220 – 250 V, 50/60 Hz,Ampere: 16 A for safety plugs, 5 V 2.1 Afor USB connections
Protection rating IP20
Max. power 3,500W

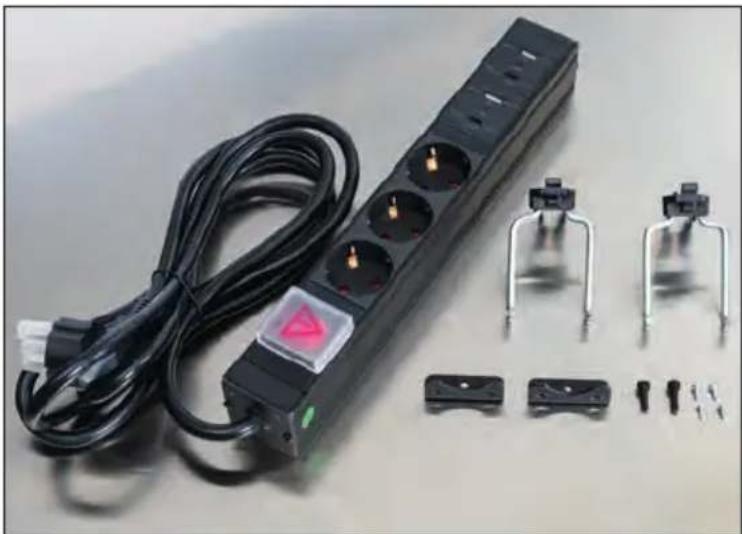

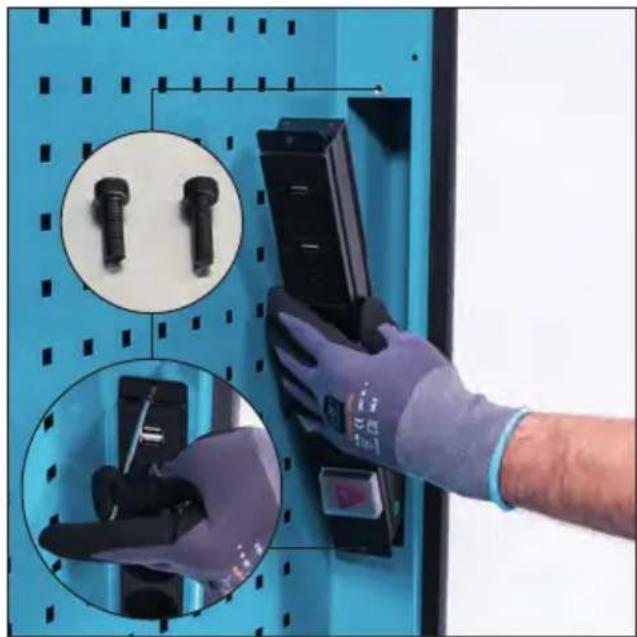

Included in delivery

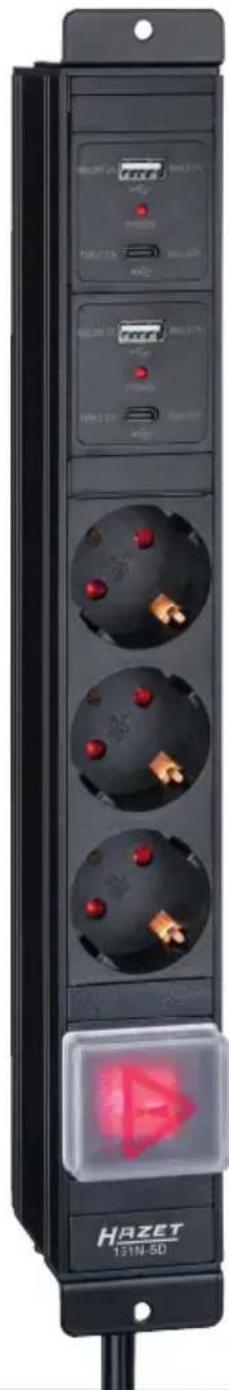

Electrical circuit setup with a black power strip, three terminal blocks, and a red warning symbol (no text or labels visible)

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

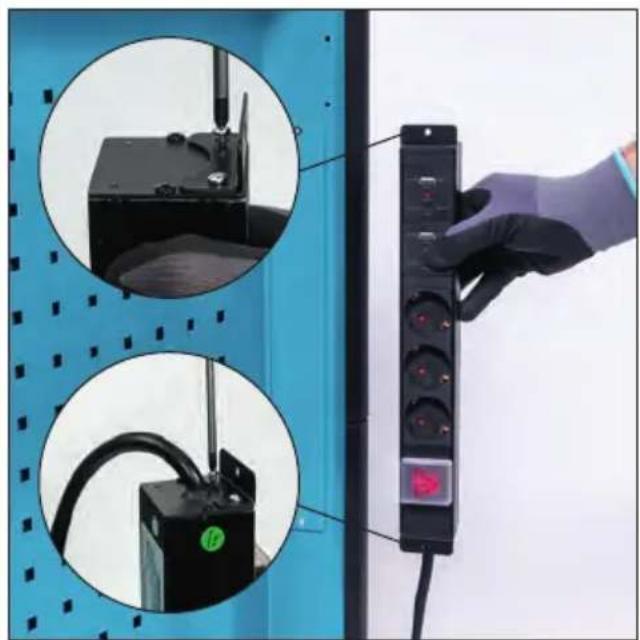

Hand installing a black electrical panel with a red indicator light, alongside two circular insets showing components mounted on a blue metal panel (no text or symbols visible)

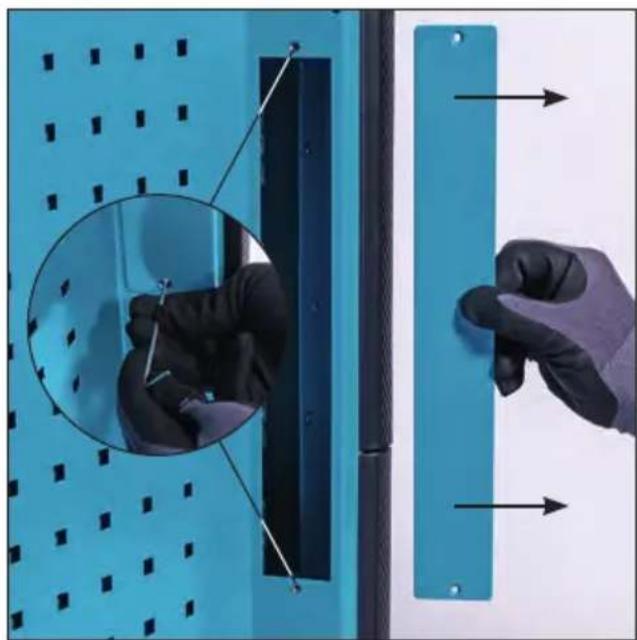

Close-up of a blue perforated metal panel with a hand adjusting a small component, showing alignment and force arrows (no text or symbols)

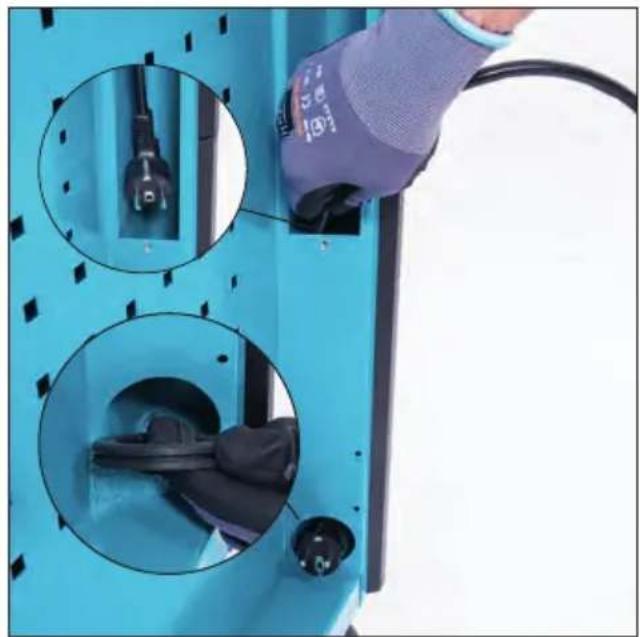

Person refueling a blue electric vehicle into a container, with two circular insets showing the engine and plug (no text or symbols visible)

Hand in gloves installing a black electronic device on a blue wall, with two circular insets showing mechanical components (no text or symbols visible)

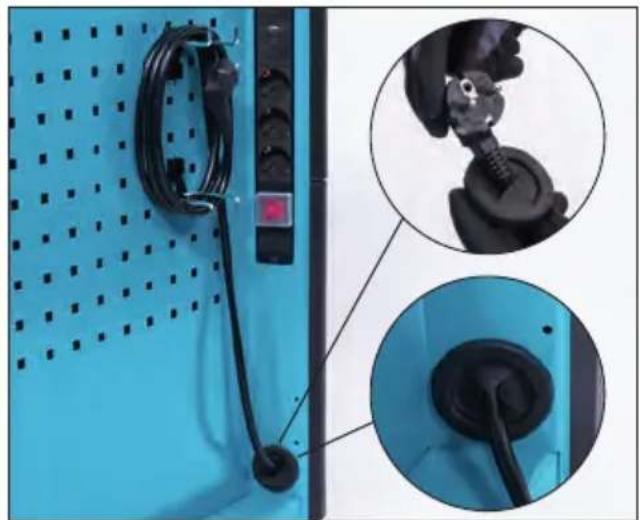

Blue electric bus cab with attached cable and connector, shown with magnified insets of the plug (no text or symbols visible)

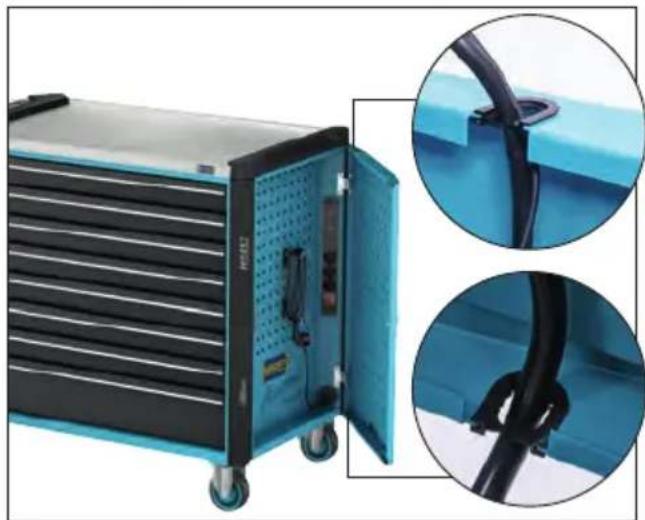

Exterior view of a blue industrial machine with open doors and wheels, shown with two close-up insets (no text or symbols visible)

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

GENERAL MAINTENANCE

Avoid the use of solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and can be damaged by their use. Use clean cleaning cloths to remove dirt, dust, oil, grease, etc.

MAINTENANCE AND CARE

Warning! Before you start cleaning, switch off the power supply of the HAZET socket strip!

• Clean the device with a damp, lint-free cloth. Make sure that no liquids penetrate the housing or come into contact with electrical components. Do not use aggressive cleaning agents such as solvents, alcoholic cleaners, cleaning sprays etc.
• Dry the device before starting the operation.
• Only use identical spare parts when servicing. The use of other parts can pose a danger or lead to product damage. To ensure safety and reliability, all repairs should be carried out by a qualified service technician.

CARE

• The mini bit screwdriver should be regularly treated with a commercial solvent-free cleaning agent without grinding additives.
• We do not recommend using dry compressed air to clean the tool. If cleaning with compressed air is the only available method, always wear safety glasses or safety goggles with side protection. If the operation is dusty, wear a dust mask.

STORAGE

• Store in a dry place. Protected from frost and heat.
  • In a place protected from dust and direct sunlight
• Protect from dust with a cover if necessary
  • Storage temperature: -25 °C up to +50 °C.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

Notizen / Notes
