302831 - Charger Bearware - Free user manual and instructions

Product Type	Charger
Brand	Bearware
Model	302831
Input Voltage	AC 100-240V, 50/60Hz
Output Voltage	DC 5V
Output Current	2A
Max Power	10W
Connector Type	USB-A
Cable Length	Approx. 1m
Dimensions	8 x 4 x 2 cm
Weight	Approx. 60 g
Material	ABS Plastic
LED Indicator	Yes (charging status)
Protection Features	Overcharge, overcurrent, short circuit
Operating Temperature	0°C to 40°C
Certifications	CE, RoHS
Warranty	1 year
Package Contents	Charger, user manual

Frequently Asked Questions - 302831 Bearware

How do I know if my device is compatible?

Your device should charge if it supports standard USB charging (5V/2A). Most smartphones, tablets, and other USB-powered devices are compatible. Check your device's specifications for input voltage and current.

Can I use this charger for fast charging?

This charger provides a standard 5V/2A output, which is not considered fast charging. For fast charging, your device must support a compatible fast charging protocol like Qualcomm Quick Charge or USB Power Delivery, which this charger does not support.

Is it safe to leave the charger plugged in overnight?

Yes, it is generally safe. The charger has overcharge and short circuit protection. However, it is recommended to unplug it when not in use to save energy and reduce wear.

What does the LED indicator mean?

The LED indicator shows charging status: typically solid red or blue when charging, and turns green or off when charging is complete. Refer to the manual for specific colors.

Can I use the charger in another country?

Yes, the charger supports input voltages from 100V to 240V, so it can be used worldwide with the appropriate plug adapter. Note that you may need a travel adapter for the physical plug shape.

What should I do if the charger gets hot?

Some warmth is normal, but if it becomes too hot to touch, unplug it immediately. Ensure it is not covered, and allow it to cool down. If overheating persists, stop using it and contact support.

How do I clean the charger?

Unplug the charger before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquids or abrasive cleaners. Ensure the charging ports are dry before use.

Is there a warranty for this product?

Yes, this Bearware charger comes with a 1-year warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

Can I charge multiple devices at once?

This charger has a single USB-A port, so it can charge only one device at a time. For multiple devices, consider using a multi-port charger or a USB hub.

Where can I find the user manual?

The user manual is available for free download in PDF format from notice-facile.com. Search for Bearware 302831 or visit the product page to access the manual in multiple languages.

USER MANUAL 302831 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

Thank you for choosing a BEARWARE product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Travel adapter
• USB adapter
• User manual

2 Technical data

Input voltage 100-240V AC~ ; max. 6A
Maximum power	• 1380W at 230V• 660W at 110V
USB output voltage 5V; max. 2500mA
Connector types	• Euro• UK• USA• Australia/China

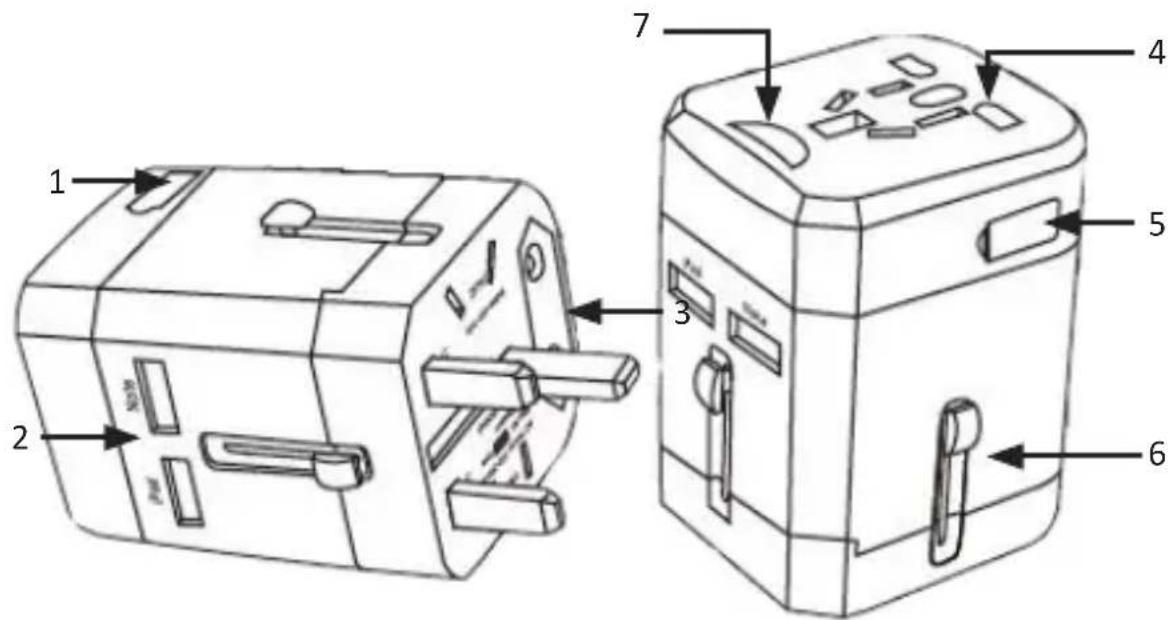

3 Product details

8 English

1 Safety fuse
2 USB ports
3 Power plug	(Specific plus for countries)
4 Sockets
5 Spare fuse
6 Slider / Release button
7 LED indicator

The LED indicator is lit during normal operation. If the LED indicator flashes, there is a possibility of an overvoltage.

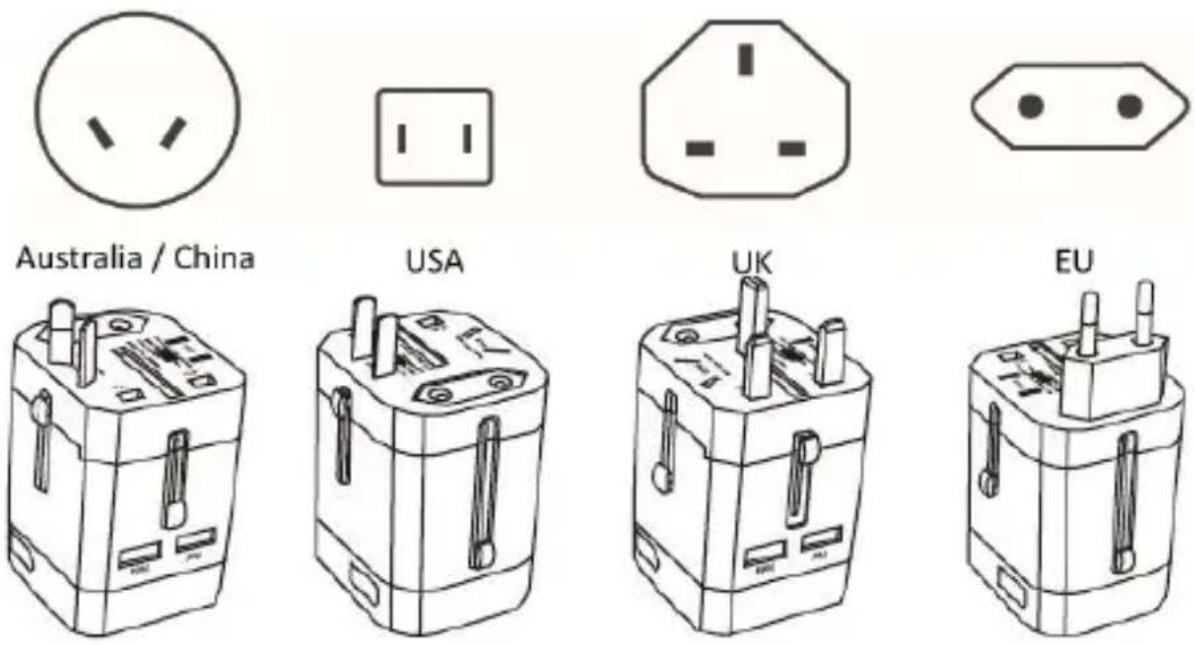

3.1 Connector types

4 Functions

Using the travel adapter of BEARWARE, you can connect your unearthed devices safely in different countries of the world. Moreover it is easy to charge your USB devices by the help of the USB adapter.

5 Set up

Take the device out of the package and remove all the packaging material. Before using it, slide all the lateral slides completely back to the original position. Select the desired connector and slide the corresponding slider up to the locking position. Now connect the desired power plug or the desired charger to the travel adapter and then insert the travel adapter into the socket.

CAUTION!

Always ensure the terminal device is compatible with the standard voltage in the respective country!

To unlock the connector after use, press the release button on the side of the device. Push the slide back into the original position.

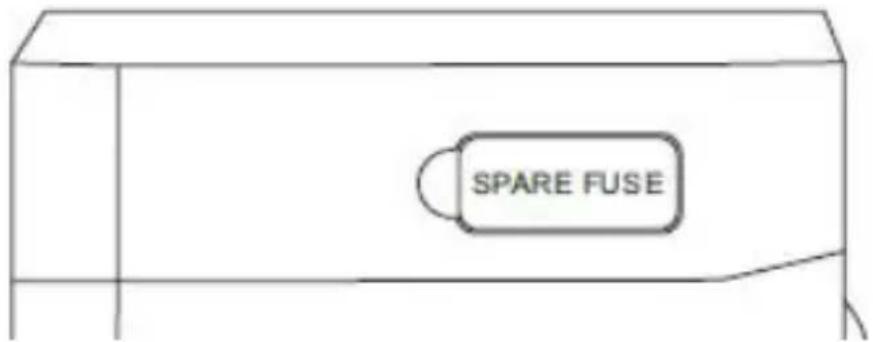

6 Spare fuse

The device has a compartment with a spare fuse. If the fuse that is used is faulty, then you can open the cover on the side and take out the spare fuse.

The in-built fuse of the device is located on the opposite connector side. Open the fuse compartment to remove the spare fuse. If necessary, you have to replace the currently used fuse.

The fuse may only be exchanged in a voltage-free condition!

CAUTION!

7 Important safety instructions for this device

• Do not use the adapter if it is damaged.
  • Always make sure that the supply voltage and the voltage of the terminal device are compatible.
• Remove the adapter from the power supply when not in use.

CAUTION!

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.

Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy.

Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly.

As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302831/20170407DG041 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
