303088 - Charger Bearware - Free user manual and instructions

Product Type	Charger
Brand	Bearware
Model	303088
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	5 V DC
Output Current	2 A
Power	10 W
Dimensions (approx.)	10 x 5 x 3 cm
Weight (approx.)	150 g
Cable Length	1 m
Connector Type	USB-A
Compatible Devices	Smartphones, tablets, cameras
Protection Features	Overcharge, overcurrent, short circuit
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Certifications	CE, RoHS
Material	ABS plastic
Care Instructions	Wipe with a dry cloth; do not use liquids
Safety Warnings	Do not expose to water or high temperatures
Spare Parts	Contact manufacturer for replacement cable

Frequently Asked Questions - 303088 Bearware

What is the input voltage range of the Bearware 303088 charger?

The charger accepts an input voltage of 100-240 V AC at 50/60 Hz, making it suitable for worldwide use.

What output does the charger provide?

It provides a 5 V DC output with a maximum current of 2 A (10 W), ideal for smartphones and other USB devices.

Can I charge my tablet with this charger?

Yes, if your tablet requires a standard 5V/2A input. However, for faster charging, check your tablet's specifications.

Is the charger compatible with iPhone and Android devices?

Yes, it uses a standard USB-A port, compatible with most smartphones, including iPhone (with a Lightning cable) and Android (with a USB-C or Micro-USB cable).

Does the charger have any safety features?

Yes, it includes overcharge protection, overcurrent protection, and short circuit protection for safe charging.

How should I clean the charger?

Unplug the charger and wipe it with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

What should I do if the charger gets wet?

Disconnect it immediately and do not use it. Allow it to dry completely before checking for damage. If in doubt, replace it.

Can I use the charger in extreme temperatures?

The charger is designed to operate between 0°C and 40°C. Avoid using it in direct sunlight or near heat sources.

Is the charger energy efficient?

Yes, it complies with ErP standards and has low standby power consumption.

Where can I find spare parts or accessories?

For replacement cables or other accessories, contact Bearware customer support. The charger itself is not user-serviceable.

USER MANUAL 303088 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

Thank you for choosing a BEARWARE product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Travel adapter
• USB adapter
• User manual

2 Technical data

Input voltage 100-240V AC~ 50/60 Hz; max. 6A
Maximum power	• 1380W at 230V• 660W at 110V
USB output voltage 5V; max. 2500mA
Connector types	• Euro• UK• USA• Australia/China

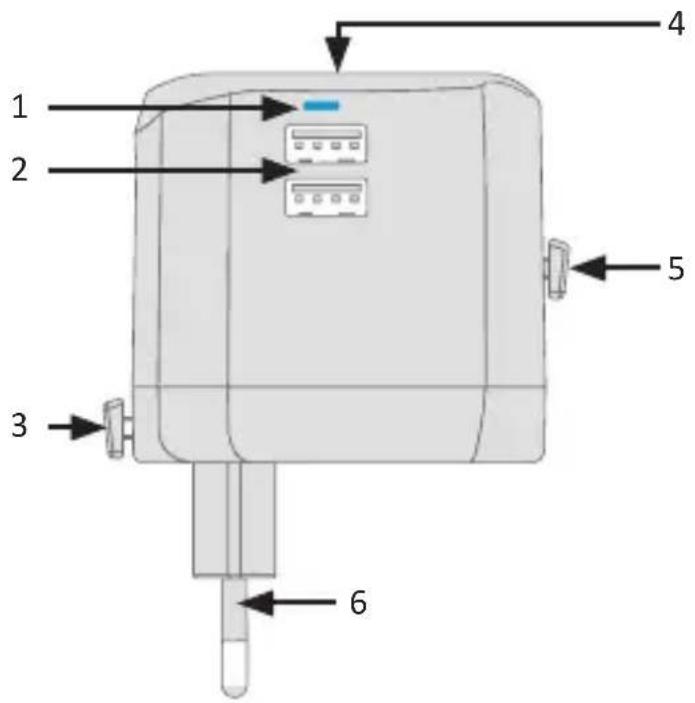

3 Product details

1	Status LEDOn – Device is switched on (Standard operation)Flashing – Possible Overvoltage. Remove a device and check the LED status again.
2 USB Ports
3 Slider / Release button
4 Connection Sockets
5 Slider / Release button
6 Power plug (Specific plus for countries)

The LED indicator lights during standard operation. If the LED indicator flashes, there is a possibility of an overvoltage

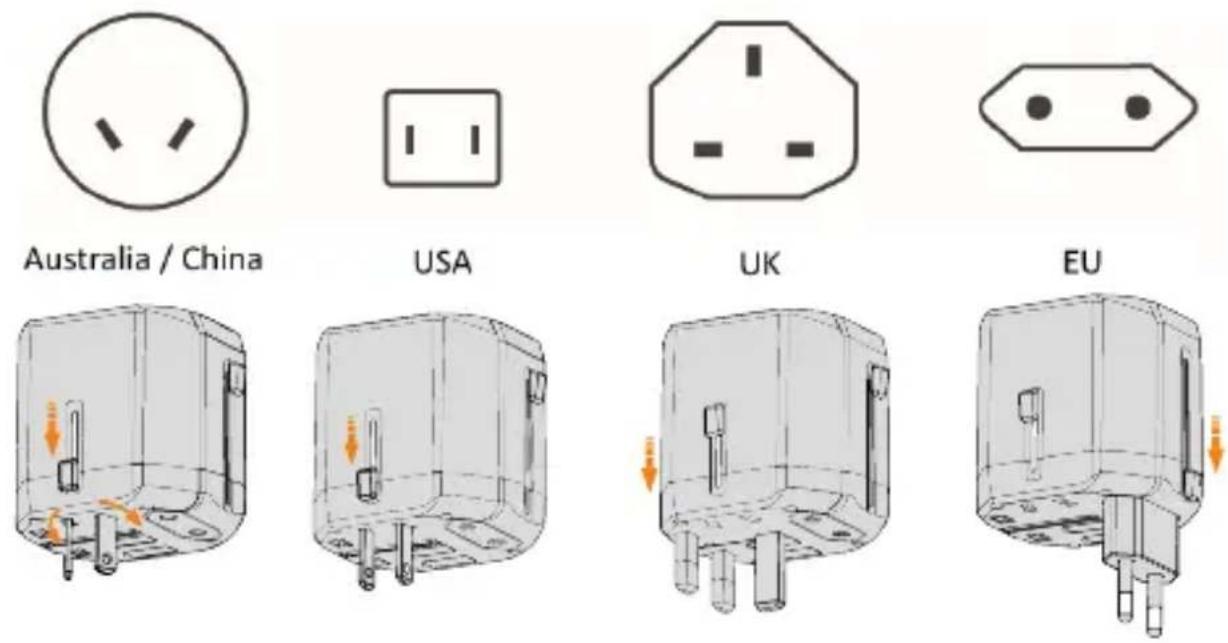

3.1 Connector types

4 Functions

Using the travel adapter of BEARWARE, you can connect your unearthed devices safely in different countries of the world.

Moreover it is easy to charge your USB devices by the help of the USB adapter.

5 Set up

Take the device out of the package and remove all the packaging material. Before using it, slide all the lateral slides completely back to the original position. Select the desired connector and slide the corresponding slider up to the locking position. Now connect the desired power plug or the desired charger to the travel adapter and then insert the travel adapter into the socket.

CAUTION!

Always ensure the terminal device is compatible with the standard voltage in the respective country!

To unlock the connector after use, press the release button on the side of the device. Push the slide back into the original position.

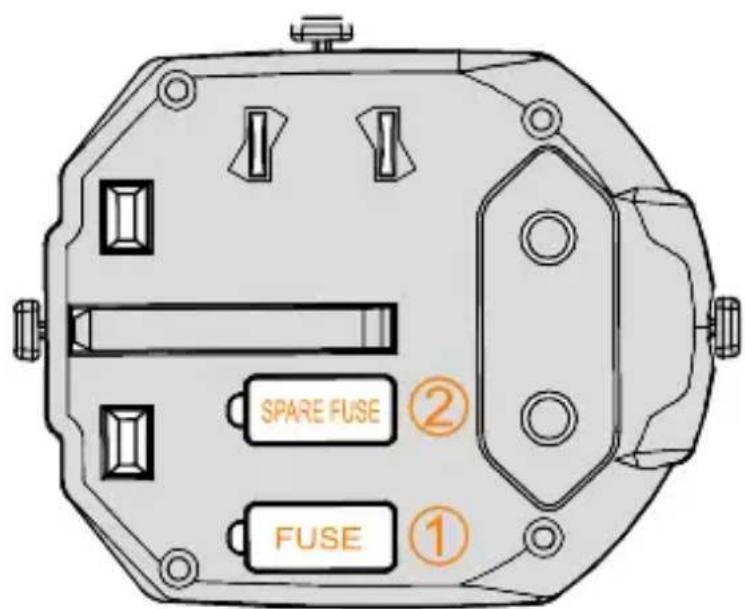

6 Spare fuse

The device has a compartment with a spare fuse. If the fuse that is used is faulty (1), you can open the cover on the bottom and take out the spare fuse (2).

Open the fuse compartment to remove the spare fuse. If necessary, you have to replace the currently used fuse. The standard fuse used for the adapter is: 250v 6a, size ∅3, 6mm * 10mm.

The fuse may only be exchanged in a voltage-free condition!

CAUTION!

7 Important safety instructions for this device

• Do not use the adapter if it is damaged.
• Always make sure that the supply voltage and the voltage of the terminal device are compatible.
• Remove the adapter from the power supply when not in use.

CAUTION!

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.

Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy.

Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly.

As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points.

The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303088/20170921DG043 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
