BKS2389 - Kitchen scale Becken - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Becken
Model	BKS2389
Capacity	5 kg
Division	1 g / 0.05 oz / 1 ml / 1/8 cup
Units of Measurement	g, oz, ml (water/milk), cup (water/milk)
Sensor Type	High precision strain gauge sensor
Platform Material	Tempered safety glass
Tare Function	Yes
Auto-Off	After approx. 60 seconds of inactivity
Manual On/Off	Yes (TARE key)
Power Source	4 x 1.5V AAA batteries (not included)
Overload Indication	Display shows "EEEE"
Low Battery Indication	Display shows "Lo" or battery symbol
Auto Zero Resetting	Yes
Cleaning	Wipe with a damp cloth; do not immerse in water
Storage	Horizontal position, avoid damp and hot environments
Warranty	2 years for manufacturing defects (from Worten)
Scope of Use	Domestic only
Batteries Included	No

Frequently Asked Questions - BKS2389 Becken

How do I turn on the scale?

Press the TARE key once to turn on the scale. The LCD will show zero.

How do I change the unit of measurement?

Press the MODE key to cycle through units: g, oz, ml (water), cup (water), ml (milk), cup (milk).

How do I use the tare function?

Place a container on the scale, then press TARE to reset to zero. Add ingredients and the display shows only their weight. Press TARE again after removing the container to reset to zero.

What does 'EEEE' mean on the display?

The scale is overloaded. The maximum capacity is 5 kg. Remove excess weight to avoid damage.

What does 'Lo' or a battery symbol mean?

The batteries are low. Replace all four AAA batteries with new ones. Insert them correctly as indicated in the battery compartment.

How do I clean the scale?

Use a damp cloth to wipe the surface. Do not immerse the scale in water or allow moisture to enter the interior.

Why does the scale turn off automatically?

The scale has an auto-off feature that activates after approximately 60 seconds of inactivity to save battery.

What type of batteries does the scale use?

It requires 4 x 1.5V AAA batteries (not included). Make sure to insert them with the correct polarity.

Can I use the scale for commercial purposes?

No, the scale is intended for domestic use only. Commercial use may damage the product and void the warranty.

How should I store the scale when not in use?

Store the scale in a horizontal position on a flat surface. Avoid damp, hot environments and do not stack objects on top of it.

USER MANUAL BKS2389 Becken

BKS2389

Digital Kitchen Scale

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee its safe use.

Please read carefully the instructions and safety measures described in this manual.

We hope you enjoy using this new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 4

1.2. Power Cord and Other Cables 5

1.3. Humidity and Water 5

1.4. Cleaning 5

1.5. General Precautions 5

1. USE AND OPERATION 6

2.1.Product Description 6

2.2. Using the Product 7

1. TECHNICAL SPECIFICATIONS 8

2. POST-SALE SERVICE 9

3. ENVIRONMENTAL PROTECTION 9

BECKEN

1. SAFETY INSTRUCTIONS

	ATTENTION
	RISK OF ELECTRIC SHOCK. DO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance, carefully read this instructions manual and keep it in a safe place as you may need to consult it in the future.

Before switching on your appliance, and to ensure a safe and correct operation, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than those provided for and it is intended only for domestic use. Any damage resulting from using the appliance outside this scope, any incorrect use and any manual modifications to the product will not be covered and will automatically void the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children aged 8 or higher and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on how to use the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

[you can trust]

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply.

Always allow the unit to cool down before cleaning.

1.5. General Precautions

• Please follow the instructions in the user's manual which help to properly install and operate this product and make the most of its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and repair service operations can only be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for purposes other than the ones originally intended, or if it is not correctly plugged in, the product may become damaged and the warranty will be voided.
• Place the scale on a hard, flat surface to guarantee the best accuracy and consistent results.
• Do not drop the scale or subject it to shocks as this may damage it.
• Do not use chemical abrasive cleaners.
• Clean the scale with a damp cloth, but do not let water in the unit.
• To protect the scale's service life do not keep it in a damp and hot environment.
• Remove the batteries from the scale if they are not to be used for a long period of time.
• If the scale does not start when you switch it on, check the batteries and make sure they are fitted in the right direction.
• If the scale has been in use for a very long time, check to see if the batteries need to be changed and then try to switch it on again.
• This scale is intended only for domestic use and should never be used commercially.
• Do not store the scale in an upright position, but in a horizontal one.
  • Make sure there is no water on the keys.
• Do not stack objects on the scale.

- Due to continuous improvements, this product is subject to change without notice. Product appearance and color on your item may differ from this manual.

2. USE AND OPERATION

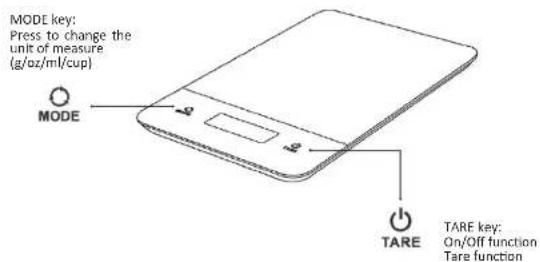

2.1. Product Description

Switching Off

The scale will switch off when "TARE" is pressed for 2 seconds.

The scale will automatically switch off after approximately 60 seconds of inactivity.

Changes in Units of Measurement (g/oz/ml/cup)

Press "MODE" once changes the unit of measurement from g/oz/ml (water)/cup (water)/ml (milk)/cup (milk).

MI/Cup Measurement

Put a container on the scale and press "TARE" to clear the weight of container.

Then, put water or milk into it, press "MODE" until "ml" or "cup" are displayed to check the volume.

2.2. Using the Product

Weighing

Step 1: Place the scales on a hard, flat surface.

Step 2: Press "TARE" once. The LCD display will show "zero".

Step 3: Put the Items on the scale, the weight will be displayed.

[you can trust]

Tare Function

Step 1: Put the container on the scale. The LCD display will show the weight of the container.

Step 2: Press "TARE" to clear the weight of the container (reset to zero). Then put items into the container. The LCD display will show the weight of the items only. Press "TARE" several times to weigh different items.

Step 3: The LCD display will show a negative amount for the container if you remove the items and the container from the scales together. Press "TARE" again and the display will show "zero" after 2 seconds.

Please note:

If the tare weight is less than 100 g, it will show:

If the tare weight is more than 100 g, it will show:

Inserting the Batteries

• Open the battery cover.
• Place 4 × 1.5 V AAA batteries as shown.
  • After placing the batteries, put the battery cover back on.
• Please be aware that placing the batteries in the wrong direction will permanently damage the electronics.

Error Messages

When the batteries are at half power, it will display:

When the batteries are low, it will display:

When the scale it not stable before weighing, it will display:

When the scale is overloaded (more than 5 kg), it will display:

.0.

BAT.

un5t

EEEE

3. TECHNICAL SPECIFICATIONS

• Equipped with a high precision strain gauge sensor system
• Tempered safety glass top
- Capacity: 5 kg
• Division: 1 g/0.05 oz/1 ml/(1/8 cups)
- Tare function
- Manual on/Auto off/Manual off
- Units of measurement: g/oz/ml/cup ('ml' and 'cup' for water or milk only)
- Auto zero resetting
• Overload/low power indication
• Power: 4 x 1.5 V AAA batteries (not included)

[you can trust]

4. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store for assistance. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong with your appliance can help prevent problems.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. This appliance is manufactured using recyclable materials disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or labels

Función de tara

Symbol of a trash bin crossed with no visible text or numbers

Função de tara

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
