Product Type	Mini Desktop Computer
Brand	ECS (Elitegroup)
Model	LIVA Q3 Plus
Processor	AMD Ryzen Embedded V1605B / R1505G / R2314
Memory	DDR4, up to 4GB or 8GB (depending on configuration)
Storage	eMMC 64GB or 128GB (optional)
Display Outputs	1x HDMI 2.0, 1x mDP 1.4
USB Ports	1x USB 2.0, 2x USB 3.2 Gen2 Type-A
Networking	Gigabit Ethernet, 802.11 b/g/n/ac/ax WiFi 6E, Bluetooth 5.x
Memory Card Slot	Micro SD
Power Supply	12V DC, 36W adapter (included)
Dimensions (W x D x H)	74mm x 74mm x 52.1mm
Operating Temperature	0°C to 40°C
Color	Black
Mounting	VESA mount compatible
BIOS	AMI BIOS with 128Mb SPI Flash ROM
Supported OS	Windows 10 / Windows 11
Cooling	Heatsink and cooling fan
Security	Kensington lock slot
Certifications	FCC, CE, RED

Frequently Asked Questions - LIVA Q3 Plus ECS

How do I connect the LIVA Q3 Plus to a monitor?

Use the HDMI 2.0 port or the mDP 1.4 port on the rear panel. Connect one end of the appropriate cable to the mini PC and the other end to your monitor.

Can I upgrade the memory or storage?

The memory is soldered and not upgradeable. Storage is via eMMC which is also fixed. You can add external storage via USB 3.2 Gen2 ports or a Micro SD card.

How to install the VESA mount?

First, mount 4 screws on the VESA bracket. Then fasten 2 screws under the mini PC case. Hold the case towards the VESA bracket, insert the screws into the holes, and slide the case down until it locks into place.

What is the maximum RAM supported?

The LIVA Q3 Plus supports up to 4GB or 8GB of DDR4 memory, depending on the specific configuration.

Does it support WiFi 6?

Yes, it supports WiFi 6E (802.11 ax) with the optional WLAN module, operating in 2.4 GHz, 5 GHz, and 6 GHz bands.

What operating systems are compatible?

The mini PC is compatible with Windows 10 and Windows 11 (based on the SOC).

How to clean the device safely?

Always unplug the power cord before cleaning. Use a soft, dry cloth. Do not spill liquids or insert objects into ventilation openings.

What ports are available on the front and rear?

Rear panel: 1x USB 2.0, 2x USB 3.2 Gen2, 1x HDMI 2.0, 1x mDP 1.4, 1x Gigabit LAN, 1x DC input, 1x Micro SD slot. Side: security lock slot. Front: power button and LED.

Is there a built-in battery?

There is a CR2032 battery for the Real-Time Clock (RTC) on the motherboard. It is not a rechargeable battery for operation.

How do I reset the device to factory settings?

If the device is running Windows, go to Settings > Update & Security > Recovery and select 'Reset this PC'. For BIOS reset, remove the CMOS battery (CR2032) for a few minutes, then reinsert.

USER MANUAL LIVA Q3 Plus ECS

Black square electronic device with gold trim and ports, no visible text or symbols

ELITEGROUP

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.1

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Windows® 11 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference
- This device must accept any interference received, including interference that may cause undesired operation.

This device is in conformity with the following EC/EMC directives:

☐ EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
EN 61000-3-2 Electromagnetic Compatibility(EMC)
Part 3-2: Limits-Limits for harmonic current emissions (equipment input current ≤ 16A per phase)
EN 61000-3-3 Electromagnetic Compatibility(EMC)
Part 3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16A per phase and not subject to conditional connection
☐ EN 55035 Information technology equipment-Immunity characteristics-Limits and methods of measurement
☐ EN 60950 Safety for information technology equipment including electrical business equipment
EN 62368 Safety for information technology equipment including electrical business equipment
□ CE marking

Safety Instructions

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0°C and 40°C.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Attention during use

• Do not step on the power cord or let anything rest on top of it.
• Do not spill water or any other liquid on your system.
• When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
  • The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, highhumidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in any way.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

This device complies with the essential requirements of the Radio Equipment Directive (RED)-2014/53/EU. This device is restricted for indoor use only when operating under 5150 MHz to 5350 MHz of frequency range.

	AT	BE BG	CZ DK	EE DE
	CY IE	IT EL ES	FR LV
	LT LU	HU MT	NL PL PT
	RO SI	SK FI	SE HR UK

Manufacturer:

Elitegroup Computer Systems Co., Ltd.

No.239, Sec.2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan

EU Single Place of Contact:

Noorderhoeve 8

2993 TP Barendrecht

The Netherlands(Holland)

Introduction

Thank you for choosing LIVA Q3 Plus Mini PC featuring AMD® Ryzen™ Embedded of great performance and with stylish and flexible design.

This mini PC is based on AMD® Ryzen™ Embedded V1605B/R1505G/R2314 Mobile platform. This latest Core-M processor is a multi-core system-on-a-chip (SoC) that integrates the next generation AMD® processor core, graphics, memory, and I/O interfaces into one solution.

It supports DDR4 up to 4GB/8GB memory, It also can add additional storage from USB Flash Drive.

The system is equipped with a set of I/O ports at the front/rear panel, including one USB 2.0 port, two USB 3.2 Gen2 Type-A ports, one Giga LAN connector, one HDMI 2.0 Tpye A port, one mDP 1.4 port, one Micro SD card slot, one DC port, one power button.

Black square electronic device with gold trim and ports, no visible text or symbols

Note:

ID design and specification may vary, please refer to actual goods you purchase.

Specifications

CPU/Chipset • AMD® Ryzen ^TM Embedded V1605B/R1505G/R2314

Memory • Support DDR4 up to 4GB/8GB

Storage • Support eMMC 64 GB/128 GB (Option)

Rear Panel I/O • 1 x USB 2.0 port• 2 x USB 3.2 Gen2 Type-A port• 1 x Giga LAN connector• 1 x HDMI 2.0 Type A port• 1 x mDP 1.4 port• 1 x Micro SD card slot• 1 x DC port

Button and LED Light • Power button• Power LED Light

LAN • 802.11 b/g/n/ac WLAN• 802.11 b/g/n/ac/ax WLAN 6E

• WLAN Module MT7922A12L Specifications

Intended Use/Category • WLAN 2.4GHz

RF output power • 20 dBm

Frequency range(MHZ) • 2412-2472 MHz

Intended Use/Category • WLAN 5GHz

RF output power • 23 dBm

Frequency range(MHZ) • 5180-5320 MHz, 5500-5700 MHz, 5745-5825 MHz

Intended Use/Category • EDR

RF output power • 16 dBm

Frequency range(MHZ) • 2402-2480 MHz

Intended Use/Category • LE

RF output power • LE 4.0 :11 dBm, LE 5.0 : 11 dBm

Frequency range(MHZ) • 2402-2480 MHz

Intended Use/Category • 6GHz

RF output power • LPI : 23 dBm , VLP : 14dBm

Frequency range(MHZ) • 5955-6415 MHz

Power Supply • ASIAN POWER DEVICES INC.WA-36N12R• SunWard Electronic TechnologyAD36BLH120300

System BIOS • AMI BIOS with 128Mb SPI Flash ROM• Supports dual display

Operation System • Windows 10/Windows 11 (base on SOC)

Heatsink Design • Heatsink and cooling fan

Operation Temp • 0~ + 40°C

Dimension • 74mm x 74mm x 52.1mm

Color • Black

Front and Rear I/O

Note:

ID design and specification may vary, please refer to actual goods you purchase.

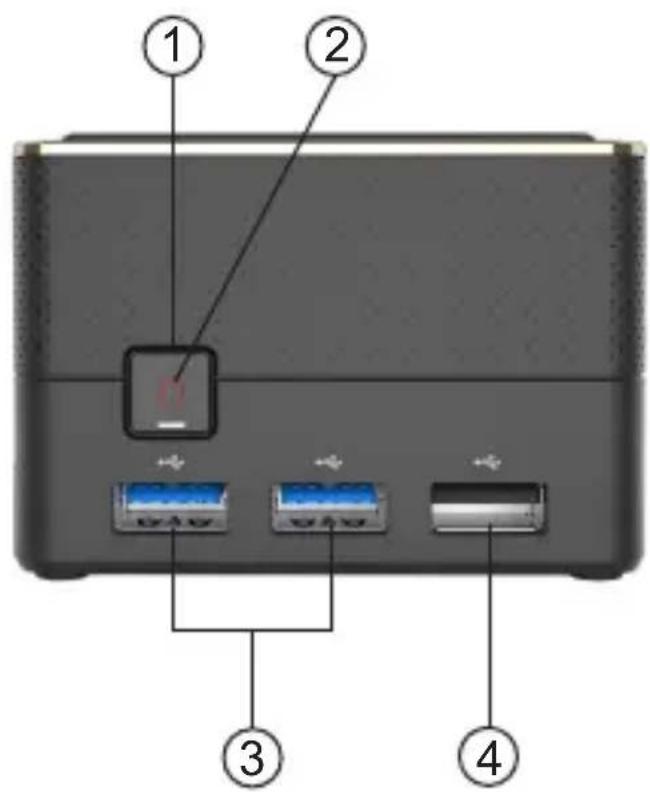

1. Power Button Use this button to power on/off the system.

2. Power State LED This is power state LED light.

3. USB 3.2 Gen2 Type-A Connect your USB 3.2 Gen2 Type-A Port device to this port.

4. USB 2.0 Port Connect your USB 2.0 device to this port.

1. HDMI Port You can connect the display device to the HDMI port.
2. Giga LAN Port Connect the RJ-45 jack to the LAN ports for Network connecting.
3. mDP Port You can connect the display device to the mDP port.
4. 12V DC_IN Port Connect the DC_IN port to the power adapter.

Side I/O

Black rectangular electronic device with ports and ventilation slots, labeled with number 9 pointing to the front panel (no text or symbols on body)

1. Security Key hole This is security key hole.

Black square electronic device with ports and ventilation slots, labeled with number 10 (no text or symbols on the device itself)

1. Micro SD card slot

This is Micro SD card slot.

Install the VESA Mount

1. Mount 4 screws on VESA bracket.

1. Fasten 2 screws under the case.

Back view of a black rectangular electronic device with ports and a vertical rod (no visible text or symbols)

LIVA Q3 Plus MINI PC USER MANUAL

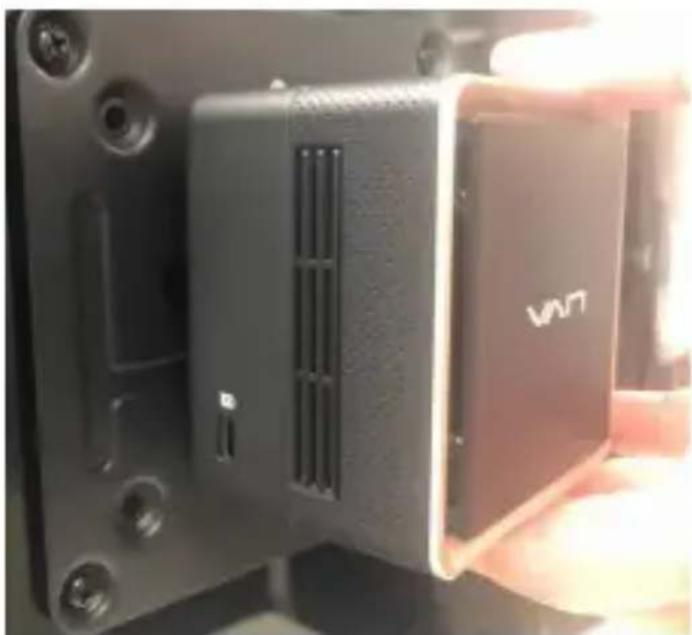

1. Hold the case towards the VESA bracket and insert the screws into the holes.

Close-up of a black electronic device with ventilation slots and a partially open top panel, being held by a hand (no visible text or symbols)

1. Slide the case down until it fixed.

Close-up of a black square electronic component labeled 'VAN' with gold light, mounted on a dark surface (no additional text or symbols visible)

Motherboard Components

Note:

Find AJ1\~2 and SCN4\~5 on the two motherboards, insert SCN4\~5 into AJ1\~2 correctly after their alignment.

LIVA Q3 Plus MINI PC USER MANUAL

Table of Motherboard Components

LABEL COMPONENTS

1. APU AMD® RyzenTM EmbeddedV1605B/R1505G/R2314

2. LED1 Power state LED

3. PWR_N1 Power On/Off button

4. SBAT1 Battery connector

5. SCN5 Motherboard connector

6. SCN4 Motherboard connector

7. SPWR_ON Power connector

8. AUSB3~4 Standard USB 3.2 Gen2 Type-A port

9. ASUSB2 Standard USB 2.0 port

10. ASHDMI HDMI connector

11. ASLAN Network connector

12. ASDP1 mDP1.4 connector

13. ASJ1 Power input port

14. ASD Micro SD card slot

15. AJ1 IO board connector

16. AJ2 IO board connector
