USER MANUAL LIVA One ECS

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

♣▲\*◇○□

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

\*□\*\*○□\*\*□\*■□

Windows ^® 7/8/10 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

◆★★★□●○◆□○○◆■★★▼□▲◆□○○★▲□■

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

✿✿✿✿☐✿✿☐■□✿✿☐■☐○✿

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

- Read and follow all instructions in the documentation before you operate your system.

- Do not use this product near water or a heated source such as a radiator.

- Set up the system on a stable surface.

- Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

- Use this product in environments with ambient temperatures between 0^ and 40^ .

- If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Attention during use

- Do not step on the power cord or let anything rest on top of it.

- Do not spill water or any other liquid on your system.

- When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

- If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

- The power cord or plug is damaged.

- Liquid has been spilled into the system.

- The system does not function properly even if you follow the operating instructions.

- The system was dropped or the cabinet is damaged.

• The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Optical Drive Safety Information

Optical drive sold with this system contains a CLASS 1 LASER PRODUCT.

CAUTION:

Invisible laser radiation when open. Do not stare into beam or view directly with optical instructions.

WARNING:

Making adjustments or performing procedures other than those specified in the user's manual may result in hazardous laser exposuer. Do not attempt to disassemble the optical drive. For your safety, have the optical drive serviced only by an authorized service provider.

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.

2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.

3. Do not expose this product to high levels of direct sunlight, high-humidity or wet conditions.

4. Do not block the air vents to this product or impede the airflow in any way.

Preface i

Introducing the PC 1

Introduction....1

Specification....2

Front and Rear I/O....3

Packing Contents......5

Pure decorative symbols without any text or labels

Installing the PC 7

System Quick Installation....7

Using BIOS 9

About the Setup Utility....9

The Standard Configuration....9

Entering the Setup Utility....9

Resetting the Default CMOS Values....10

Using BIOS....10

BIOS Navigation Keys....11

Main Menu 13

Advanced Menu....14

Chipset Menu....24

Tweak Menu....27

Security Menu....28

Boot Menu....29

Exit Menu....31

Updating the BIOS....32

Using the Software 33

About the Software DVD-ROM/CD-ROM....33

Auto-installing under Windows 7/8/10....33

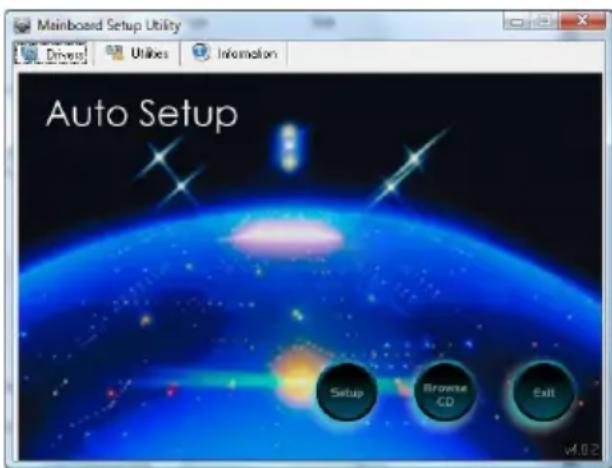

Running Setup....34

Manual Installation....36

Utility Software Reference....36

◆◆◆◆□▼◆□×

√X

Trouble Shooting 37

Start up problems during assembly....37

Start up problems after prolong use....38

Maintenance and care tips....38

Basic Troubleshooting Flowchart....39

Chapter 1 Introducing the PC

Introduction

Thank you for choosing this 1L case of great performance and with stylish and flexible design.

Supports LGA1151 Socket for Intel ^® Skylake processor and a dimension of 173mm (H)* 176mm (D)* 33mm (W), 1L SFF provides the features of low power consumption (working with a 90Watt power adaptor), and space saving. The chipset is Intel ^® H110, supporting up to 16 GB of system memory with DDR3L memory SO-DIMM, 2.5" SATA III HDD, 3 independent displays.

Exterior view of a black desktop computer tower with ventilation grilles and drive slots (no visible text or symbols)

Specification

Chipset	• Intel ® H110
CPU Support	• Supports LGA1151 Socket for Intel ® Skylake processor (up to 35W)
Memory	• 2 x SO-DIMM up to 16 GB, Dual-channel
Graphics	• Intel ® HD graphics from CPU• Support 4K resolution and DX12 for Intel Skylake-S
Storage	• Support 1 x 2.5” SATA III HDD
ODD	• Additional DVD docking support (optional)
Front Panel	• 1 x USB 3.1• 1 x Multi Card Reader
Rear Panel	• 4 x USB 3.0 (one supports 2.6A for DVD docking)• 1 x 10/100/1000 LAN RJ45• 1 x Headphone connector• 1 x COM port (optional)• 1 x HDMI (support dual dispaly)• 1 x D-Sub (VGA)• 1 x DP port• 1 x DC-IN
Power	• 90W power adaptor
OS Support	• Hardware Compatible with Windows 7/8.1/10
Expansion	• 2 x M.2 slots
Dimensions (mm)	• 173mm * 176mm * 33mm

Front and Rear I/O

1. Power Button Press the prower button to turn the system on and off.
2. Power LED This is the power LED light.
3. HDD LED This is the HDD LED light.
4. Card Reader Supports SD Card/ MMC Card/ MS Card. You can easily read phone or other files on the memory card. Digital cameras, DVs, MP3 or any other digital devices are compatible.
5. USB 3.1 Connector The USB 3.1 connector is used for USB 3.1 devices.

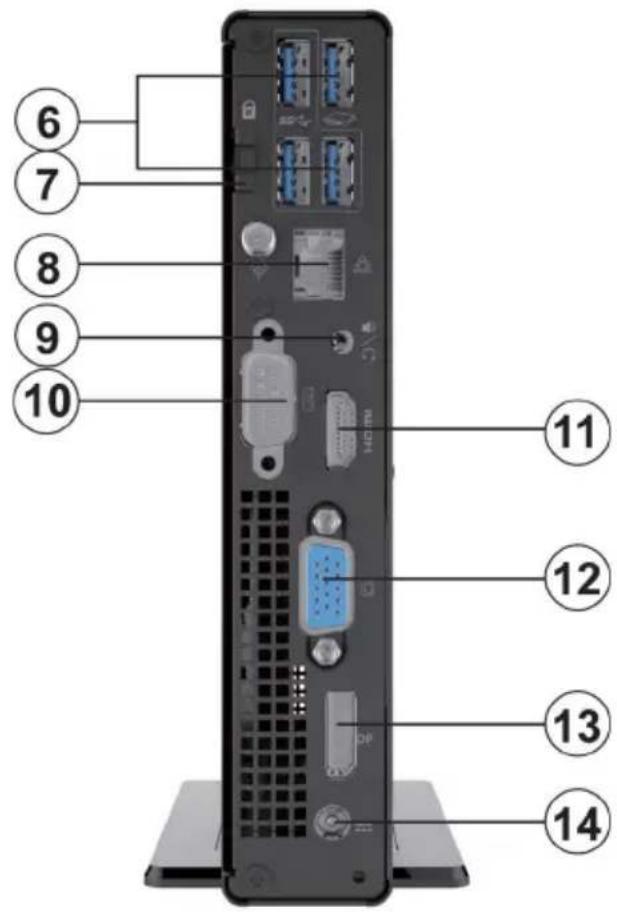

1. USB 3.0 Connectors Connecting USB 3.0 Devices.

2. Kensington This is the security lock.

3. LAN Connecting the Network.

4. HD Audio Microphone Jack/ Headphone Jack.

5. COM Port (optional) Connecting a serial port extension bracket.

6. HDMI Port Connect display device to the HDMI port.

7. D-SUB Connector Connecting VGA Monitor.

8. DP Port You can connect display device to the DP port.

9. DC Jack It is used for power adapter.

Packing Contents

Driver DVD

Illustration of a desktop computer with a blank screen and a 'User Manual' label below (no other text or symbols)

Manual

Black plastic rectangular object with two vertical slots, no visible text or symbols

Stand

Two black cables with attached plastic components, no visible text or symbols

Power

Black USB connector with two connectors (no text or symbols visible)

USB 3.1 to USB 3.0 cable

NOTE:

Please contact us immediately if any of the items is damaged or missing.

Memo

Chapter 2 Installing the PC

System Quick Installation

1. Connecting HDMI device.

Large CRT television displaying a landscape scene with a red-and-white figure on a cliff edge against a blue sky and clouds (no text or symbols visible)

Back panel of a computer interface showing ports, connectors, and a highlighted component (no readable text or symbols)

1. Connecting VGA Monitor. (D-SUB Connector)

Front view of a black CRT television displaying (no visible text or symbols)

Close-up of a server rack with a blue VGA port and a red oval highlight (no text or symbols visible)

1. The USB connector is for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible device.

Blue computer keyboard, mouse, and USB drive (no text or symbols visible)

Back panel of a computer interface showing four ports with connectors and a red circle highlighting the port (no text or symbols visible)

1. Connecting the Network. (LAN Connector)

Coiled blue network cable with connectors (no text or symbols visible)

Back panel of a network device showing multiple ports and connectors, with one port highlighted by a red circle (no text or symbols visible)

1. Connecting the Speakers or Headphones. (HD Audio Jack)

Product photo of audio equipment including two speakers and a pair of headphones (no visible text or labels)

Back panel of a network device showing ports, connectors, and a highlighted circular component (no text or symbols visible)

1. Connecting Power. (DC jack)

Electric power adapter with attached cable and ear (no visible text or symbols)

Back panel of a server rack with a highlighted socket (no visible text or symbols)

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access BIOS Setup Utility.

Resetting the Default CMOS Values

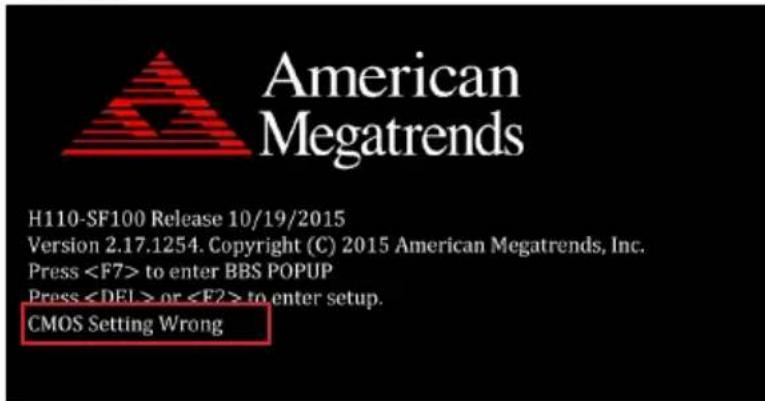

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with an icon >> ) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by an icon >>.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exit the current menu
↑↓→←	Scrolls through the items on a menu
+/- Change Opt.
Enter	Select
F1	General Help
F2	Previous Value
F3	Optimized Defaults
F4	Save & Exit

1. For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture's website for updated manual.

2. In this Gui BIOS, you can operate by mouse or keyboard. Click : select item; Double click: enter; Right click: exit.

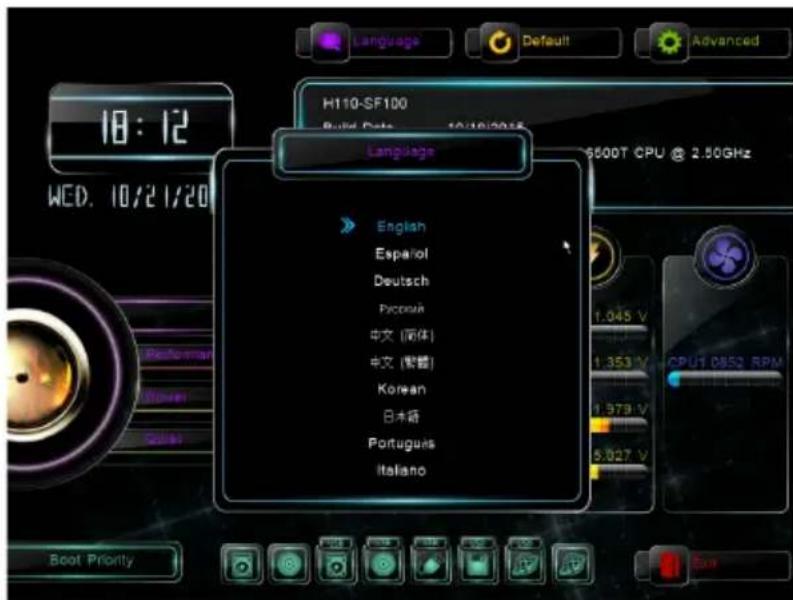

Language

Select the language icon and press or double click the left key of the mouse to display the screen. Then you can choose the language: English, Traditional Chinese, Simple Chinese, Russian, Korean, German, Spanish, Italian, Portuguese, Japanese.

Default

Select the default icon and press or double click the left key of the mouse to display the screen. Then you can load optimized defaults or not.

Advanced

Select the advanced icon and press or double click the left key of the mouse to display the screen.

Boot Priority

Select the boot priority icon and press or double click the left key of the mouse to display the screen. Then you can set the boot priority.

Exit

Select the exit icon and press or double click the left key of the mouse to display the screen. Then you can exit the BIOS setup.

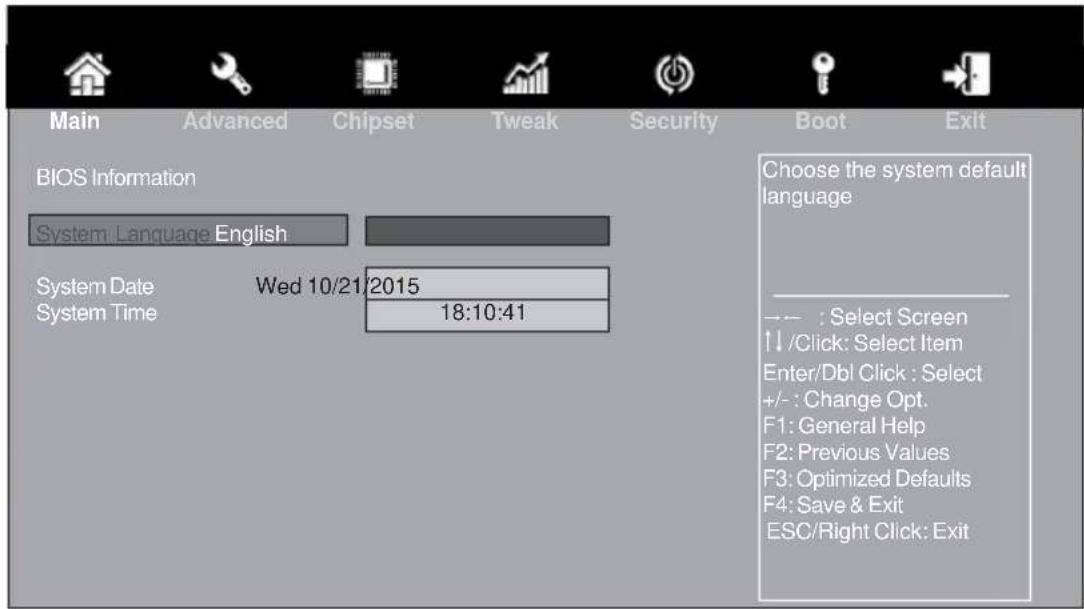

Main Menu

This menu shows the information of BIOS and enables you to set the system language, date and time.

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

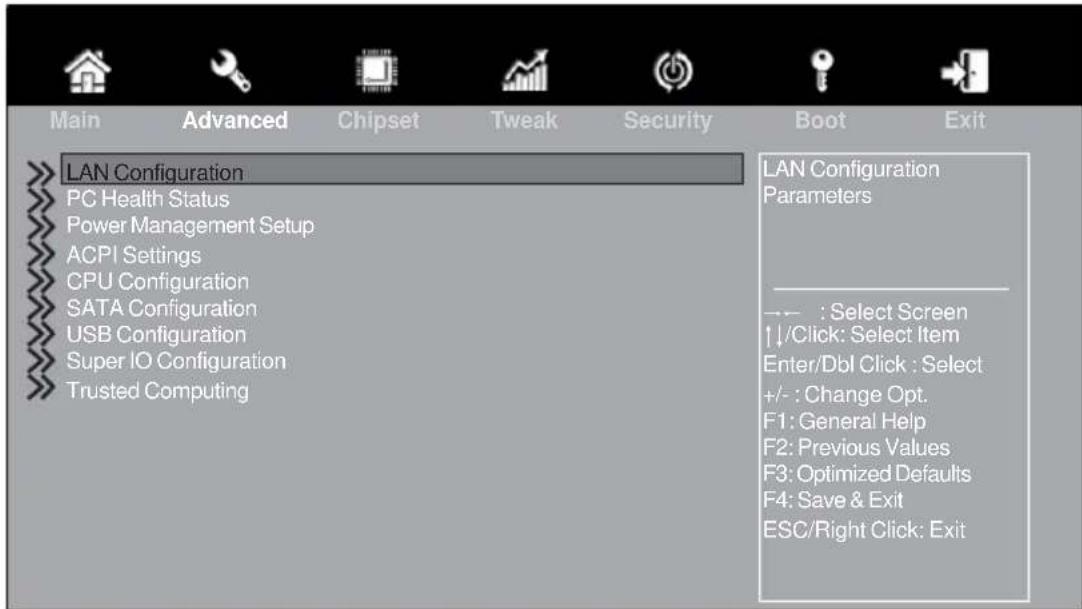

Advanced Menu

The Advanced menu items allow you to change the settings for the CPU and other system.

>> LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Onboard LAN Controller (Enabled)

Use these items to enable or disable Onboard LAN controller.

Press to return to the Advanced Menu page.

>> PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

Main Advanced Chipset Tweak Security Boot Exit
PC Health Status
CPU Temperature (DTS) 40 System Temperature 30 CPU Fan Speed 851 RPM Core Voltage 1.045 V DIMM Voltage 1.353V +12V 11.979V +3.3V 3.245V +5V 4.950V		℃
TCC Activation Temperature (DTS) 100				- - - : Select Screen ↑↓/Click: Select Item Enter/Dbl Click : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• CPU Temperature (DTS)
- System Temperature
- CPU Fan Speed
- Core Voltage
- DIMM Voltage
• +12V
• +3.3V
• +5V

Press to return to the Advanced Menu page.

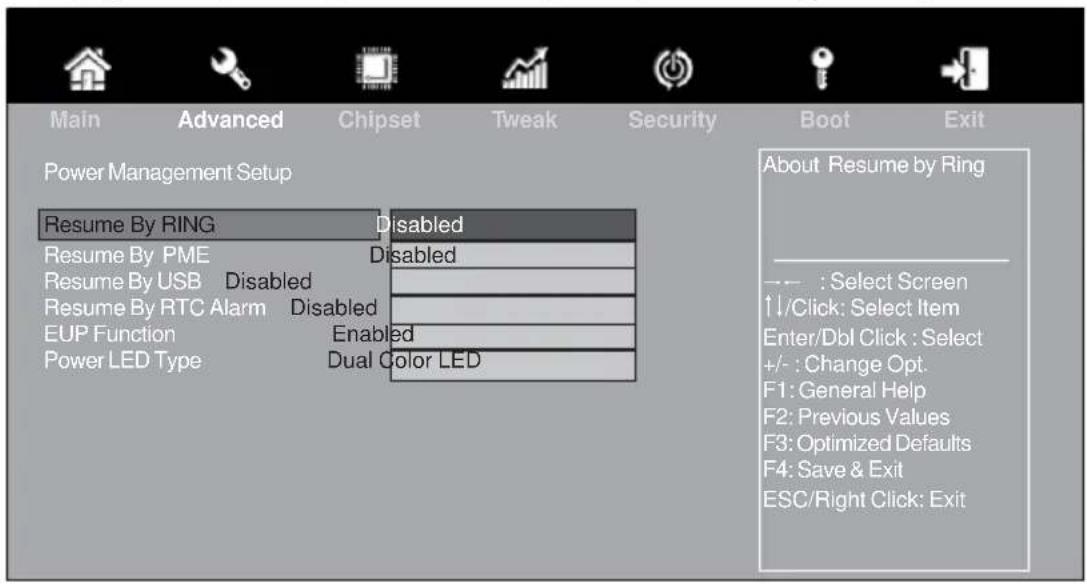

>> Power Management Setup

This page sets up some parameters for system power management operation.

Resume on RING (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem. You must use an ATX power supply in order to use this feature.

Resume By PME (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the PCI Modem or PCI/PCIE LAN card. You must use an ATX power supply in order to use this feature. Use this item to do wake-up action if inserting the PCI/PCIE card.

Resume By USB (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtimeclock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Power LED Type (Dual Color LED)

This item shows the type of the Power LED.

Press to return to the Advanced Menu page.

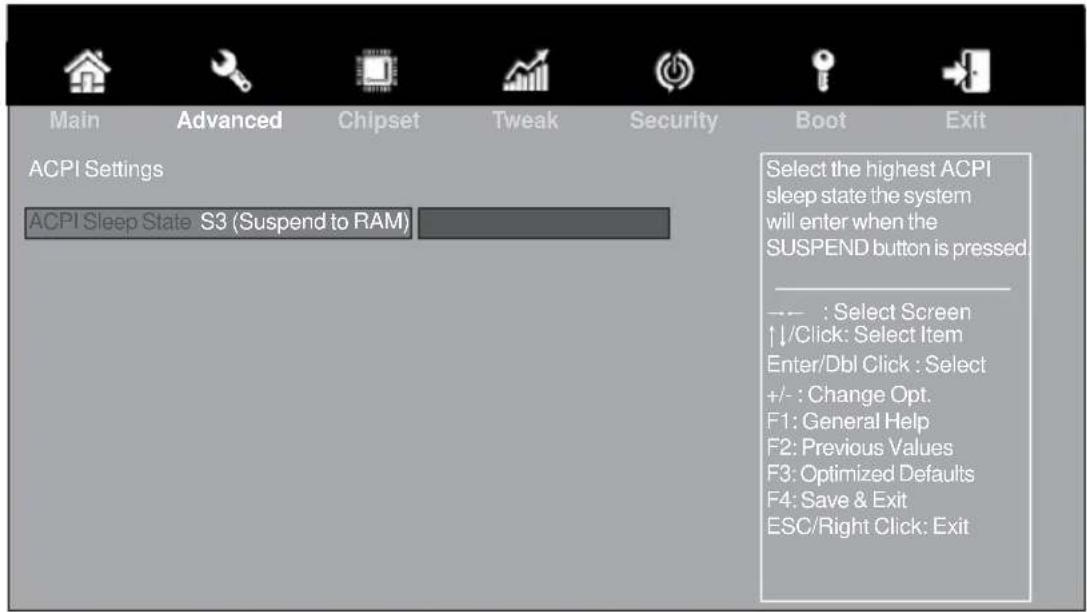

>> ACPI Settings

The item in the menu shows the highest ACPI sleep state when the system enters suspend.

ACPI Sleep State (S3(Suspend to RAM))

This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State (default).

Press to return to the Advanced Menu page.

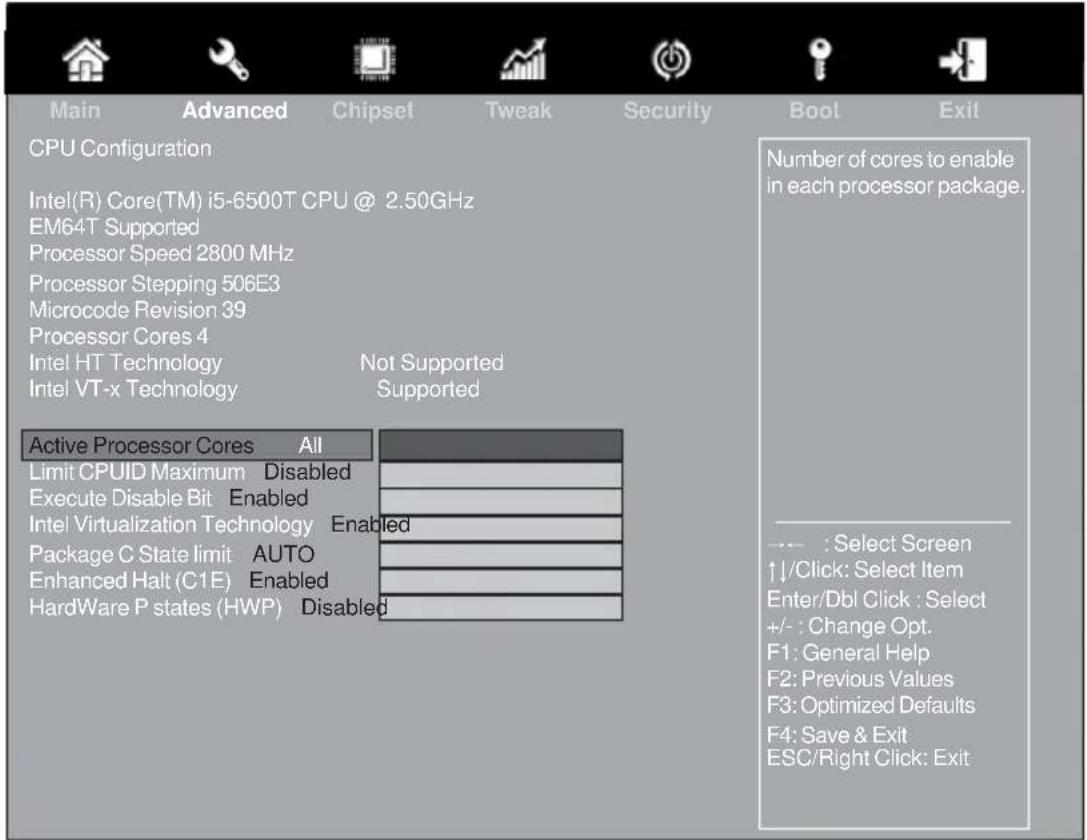

>>CPU Configuration

This item in the menu shows the information of the CPU.

Intel(R) Core(TM) i5-6500T CPU @ 2.50GHz

This is display-only field and displays the information of the CPU installed in your computer.

EM64T (Supported)

This item shows the computer supports EMT64.

Processor Speed (2800 MHz)

This item shows the current processor speed.

Processor Stepping (506E3)

This item shows the processor stepping version.

Microcode Revision (39)

This item shows the microcode revision.

Processor Cores (4)

This item shows the core number of the processor.

Intel HT Technology (Not Supported)

This item shows that your computer supports Intel HT technology or not.

Intel VT-x Technology (Supported)

This item shows that your computer supports Intel VT-x technology or not.

Active Processor Cores (All)

Use this item to control the number of active processor cores.

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT 4.0.

Excute Disable Bit (Enabled)

This item allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation. Replacing older computers with Execute Disable Bit enabled systems can halt worm attacks, reducing the need for virus related repair.

Intel Virtualization Technology (Enabled)

When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor pool Technology.

Package C State limit (AUTO)

Use this item to set the package C state limit.

Enhanced Halt (C1E) (Enabled)

Use this item to enable the CPU energy-saving function when the system is not running.

Hardware P states (HWP) (Disabled)

Use this item to enable or disable the hardware P states.

Press to return to the Advanced Menu page.

>> SATA Configuration

This item in the menu shows the mode of serial ATA configuration options.

SATA Mode (AHCI)

Use this item to select SATA mode (Disabled, AHCI Mode or RAID Mode).

SATA Port 1/M.2 (KINGSTON SV300 (120.0GB)/Not Present)

This motherboard supports one SATA channels and one M.2 channel, each channel allows one SATA/M.2 device to be installed. Use these items to configure each device on the SATA/M.2 channel.

Spin Up Device (Disabled)

Use this item to enable or disable the spin up device.

External SATA (Disabled)

Use this item to enable or disable the external SATA.

Press to return to the Advanced Menu page.

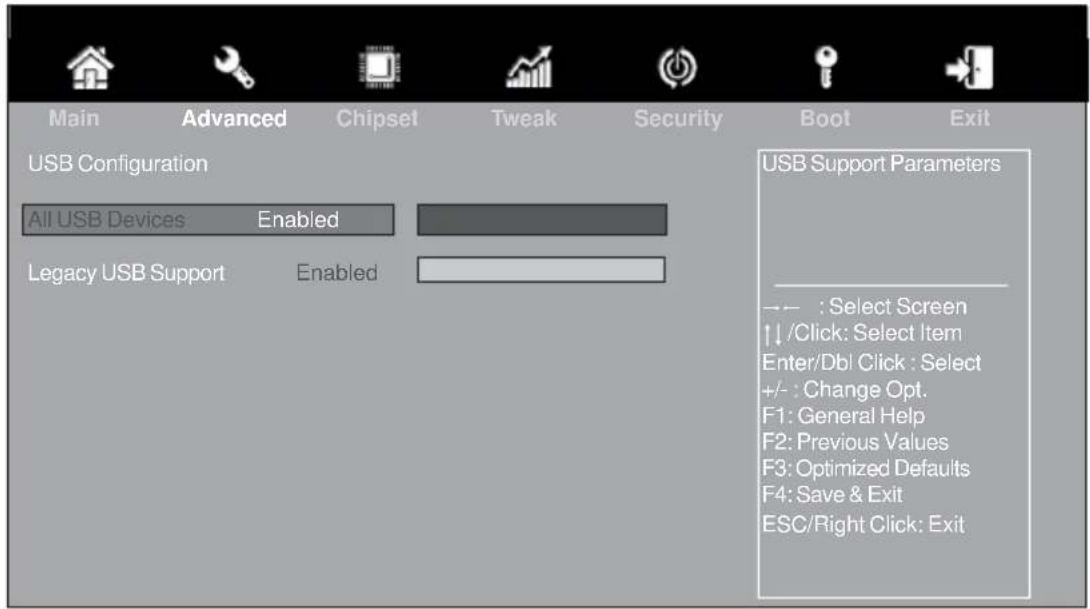

>> USB Configuration

Use this item to show the information of USB configuration.

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press to return to the Advanced Menu page.

» Super IO Configuration

Use this item to show the information of the Super IO Configuration.

Super IO Chip (IT8613)

This item shows the information of the super IO chip.

>> Serial Port 1 Configuration

Scroll to this item and press to view the following screen:

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3F8h; IRQ=4)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press to return to the Super IO Configuration page.

Press to return to the Advanced Menu page.

» Trusted Computing

Use this item to show the information of trusted computing configuration.

TPM Support (Enabled)

Use this item to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

TPM State (Enabled)

Select Enabled to display the status of TPM support for this system. Please note that a system reboot is needed before a change on the TPM state to take effect.

Pending operation (None)

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Platform Hierarchy (Enabled)

Use this item to enable or disable the platform hierarchy.

Storage Hierarchy (Enabled)

Use this item to enable or disable the storage hierarchy.

Endorsement Hierarchy (Enabled)

Use this item to enable or disable the Endorsement hierarchy.

HashPolicy (Sha-1)

Use this item to select the Hash policy to use. SHA-2 is most secure but might not be supported by all operating systems.

TPM 20 InterfaceType (CRB)

Use this item to select the communication interface to TPM 20 device.

Device Select (Atuo)

TPM 1.2 will restrict support to TPM 1.2 device, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated.

Chipset Menu

The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.

>> System Agent Configuration

Scroll to this item and press and view the following screen:

IGD Memory (64M)

This item shows the information of the IGD (Internal Graphics Device) memory (32M, 64M, 128M, 256M, or 512M).

DVMT Memory (256M)

When set to Fixed Mode, the graphics driver will reserve a fixed position of the system memory as graphics memory, according to system and graphics requirements. This item shows the information of the DVMT memory (128M, 256M, or MAX).

Press to return to the Chipset Menu page.

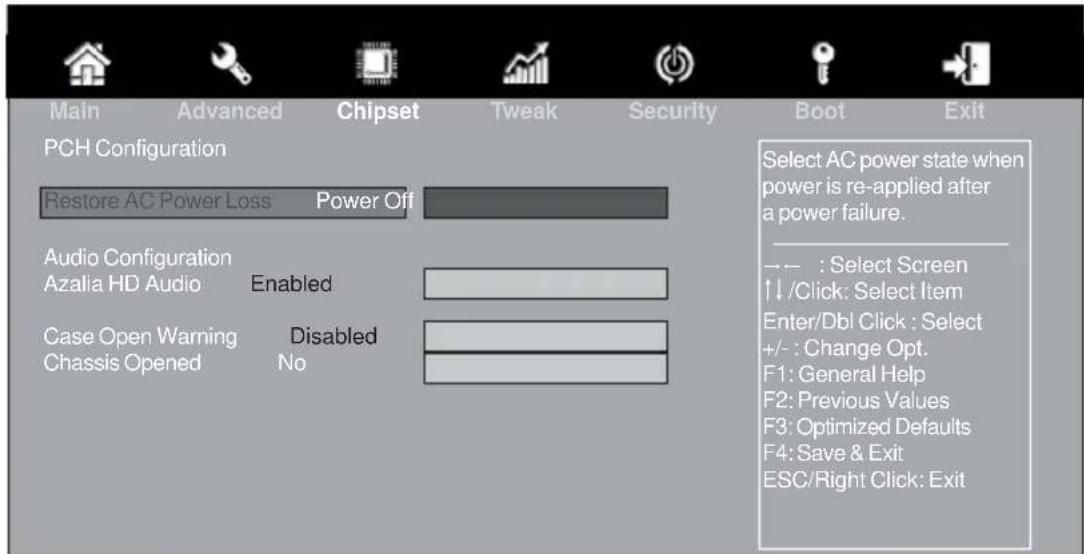

>> PCH Configuration

Scroll to this item and press and view the following screen:

Restore AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status (Power Off, Power On or Last State).

Azalia HD Audio (Enabled)

Use this item to enable or disable Azalia HD Audio.

Case Open Warning (Enabled)

This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Press to return to the Chipset Menu page.

>> ME Configuration

Scroll to this item and press and view the following screen:

ME Control (Enabled)

Use this item to enable or disable the ME Firmware.

ME FW Version (11.0.0.1180)

This item shows the ME FW version.

Tweak Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Intel(R) Core(TM) i5-6500T CPU @ 2.50GHz

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (2800 MHz)

This item shows the CPU speed.

Memory Frequency (1600 MHz)

This item shows the memory frequency.

This item shows the total memory of DDR3L.

Security Menu

This page enables you to set setup administrator and password.

Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

System Mode state (Setup)

This item shows system mode setup or not.

Secure Boot state (Not Active)

This item allows you to enable or disable the secure boot state.

Secure Boot (Enabled)

This item is used to control the secure boot flow, it is possible only if system runs in User mode.

Secure Boot Mode (Standard)

This item is used to select the secure boot mode.

Boot Menu

This page enables you to set the keyboard NumLock state and devices boot sequence.

Operation System Select (Windows 8.x / 10)

This item is used to select the operation system (Windows 7 or other OS, Windows 8.x or Manual).

Launch PXE OpROM (Disabled)

Use this item to enable or disable the PXE OpROM.

Launch Storage OpROM (Enabled)

Use this item to enable or disable the Storage OpROM.

This item enables or disables boot with initialization of a minimal set of device required to launch active boot option. Has no effect for BBS boot options.

Bootup NumLock State (On)

This item determines if the NumLock key is active or inactive at system start-up time.

Update System BIOS (Disabled)

This item enables or disables to update system BIOS.

Boot mode Select (UEFI)

Use this item to select boot mode.

These items show the boot priorities.

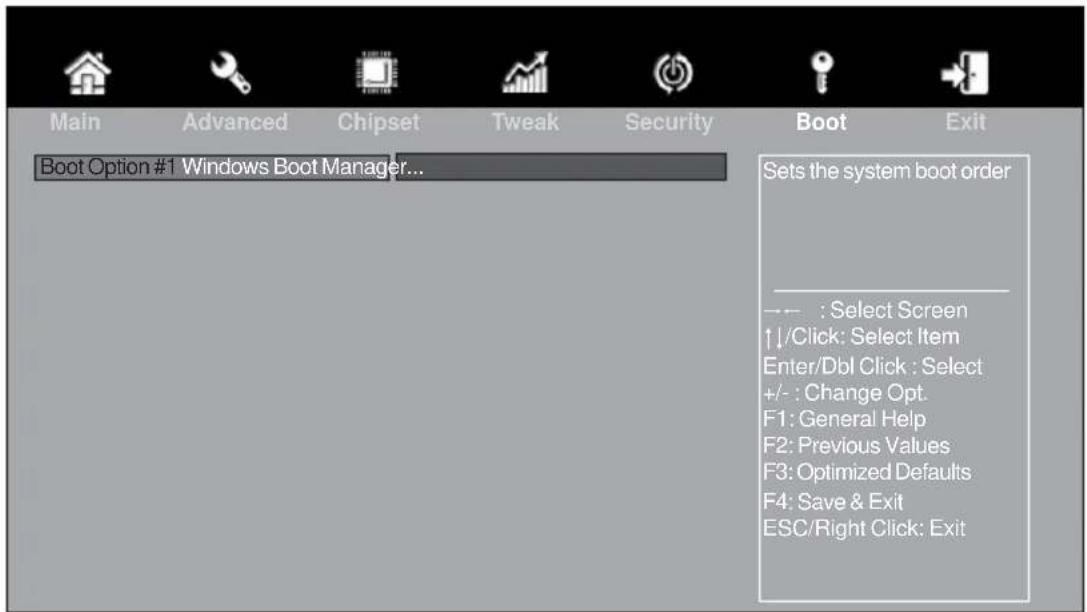

» UEFI Hard Disk Drive Priorities

Scroll to this item and press and view the following screen:

Boot Option #1

This item enables you to set the system boot order.

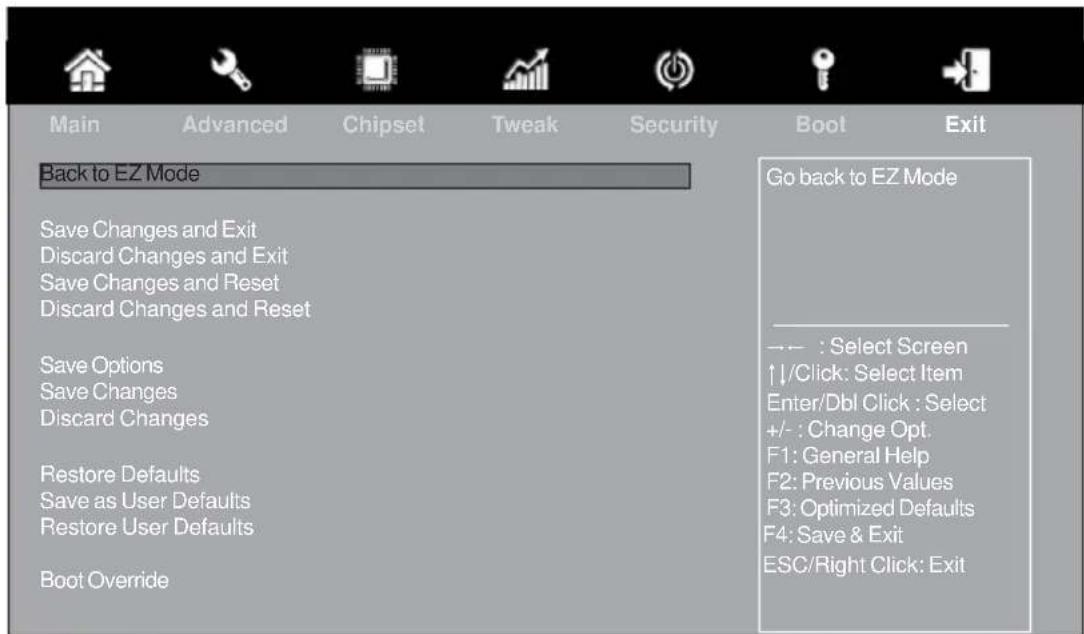

Exit Menu

This page enables you to exit system setup after saving or without saving the changes.

Save Changes and Exit

This item enables you to save the changes that you have made and exit.

Discard Changes and Exit

This item enables you to discard any changes that you have made and exit.

Save Changes and Reset

This item enables you to save the changes that you have made and reset.

Discard Changes and Reset

This item enables you to discard any changes that you have made and reset.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any changes that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

This item enables you to restore user defaults.

Boot Override

Use this item to select the boot device.

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file name of the new BIOS and then press . Example: AFUDOS.EXE 040706.ROM
7 When the installation is complete, remove the bootable device from the computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

About the Software DVD-ROM/CD-ROM

The support software DVD-ROM/CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software. Before installing any software, always inspect the folder for files named README.TXT or something similar. These files may contain important information that is not included in this manual.

1. Never try to install all software from folder that is not specified for use with your motherboard.
2. The notice of Intel HD audio installation (optional): The Intel High Definition audio functionality unexpectedly quits working in Windows Server 2003 Service Pack 1 or Windows XP Professional x64 Edition. Users need to download and install the update packages from the Microsoft Download Center "before" installing HD audio driver bundled in the Driver disk. Please log on to http://support.microsoft.com/default.aspx?scid=kb;enus:901105#appliesto for more information.

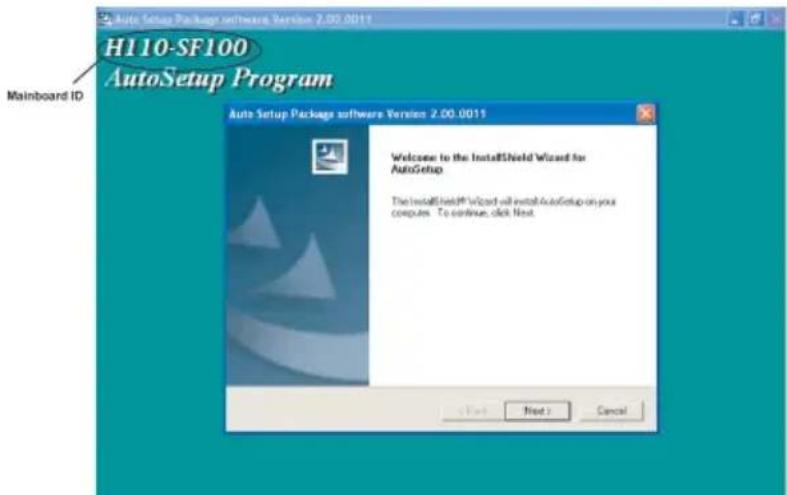

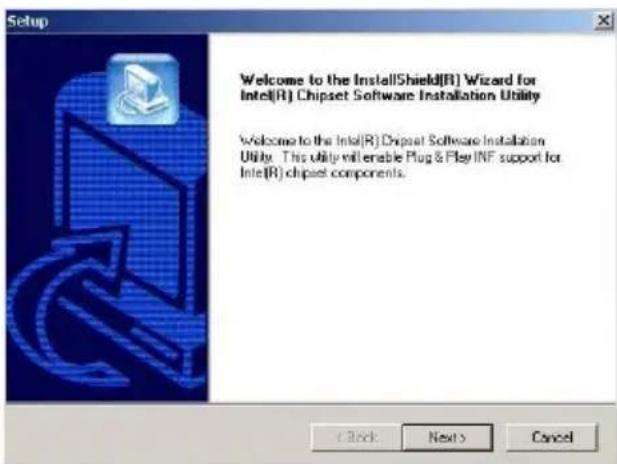

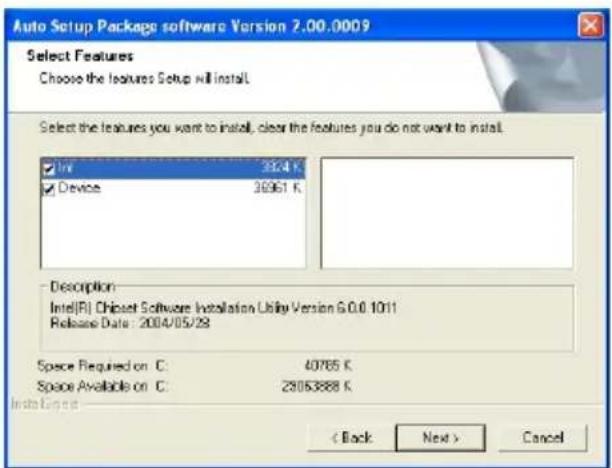

Auto-installing under Windows 7/8/10

The Auto-install DVD-ROM/CD-ROM makes it easy for you to install the drivers and software for your motherboard.

If the Auto-install DVD-ROM/CD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Refer to the Utility Folder Installation Notes later in this chapter.

The support software DVD-ROM/CD-ROM disk loads automatically under Windows 7/8/10. When you insert the DVD-ROM/CD-ROM disk in the DVD-ROM/CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

If the opening screen does not appear; double-click the file "setup.exe" in the root directory.

Using the Software

Drivers Tab

Setup	Click the Setup button to run the software installation program.Select from the menu which software you want to install.
Browse CD	The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support disk.Before installing the software from Windows Explorer, look for a file named README.TXT or something similar. This file may contain important information to help you install the software correctly.Some software is installed in separate folders for different operating systems, such as Windows 7/8/10. Always go to the correct folder for the kind of OS you are using.In install the software, execute a file named SETUP.EXE by double-clicking the file and then following the instructions on the screen.
Exit	The Exit button closes the Auto Setup window.

Utilities Tab

Lists the software utilities that are available on the disk.

Information Tab

Displays the path for all software and drivers available on the disk.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

1. Click Next. The following screen appears:

1. Check the box next to the items you want to install. The default options are recommended.

2. Click Next run the Installation Wizard. An item installation screen appears:

1. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

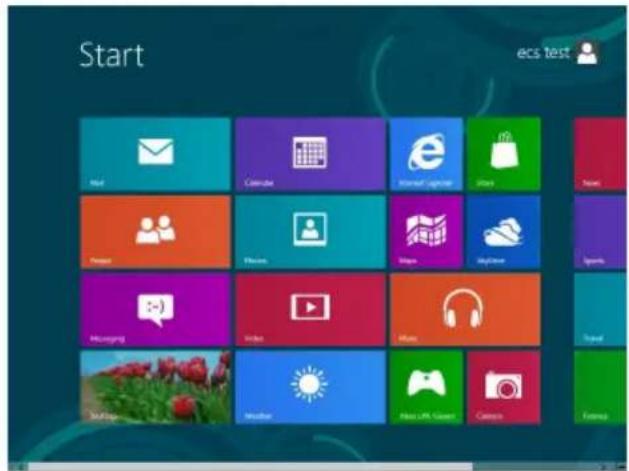

Windows 8/10 will show the following screen after system restart, you must select "Desktop" in the bottom left to install the next driver.

Using the Software

Windows 7/8/10 will appear below UAC (User Account Control) message after the system restart. You must select "Allow" to install the next driver. Continue this process to complete the drivers installation.

Manual Installation

Insert the disk in the DVD-ROM/CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your motherboard.

Look for the chipset and motherboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Utility Software Reference

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

These software(s) are subject to change at anytime without prior notice. Please refer to the support disk for available software.

Chapter 5

Trouble Shooting

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.
5. Check the 19V power connector is connected to the motherboard.
6. Check that the 19V power is fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected.

a. continuous 3 short beeps : memory not detected

b. 1 long beep and 8 short beeps : VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Ensure the CPU fan is working properly.

2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.

1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.

2. Check the system fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.

3. Remove the hard drive, optical drive or DDR memory to determine which of these component may be at fault.

Maintenance and care tips

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.

2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.

3. Routinely clean the CPU cooler fan to remove dust and hair.

4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.

5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.

6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

Basic Troubleshooting Flowchart

Memo
