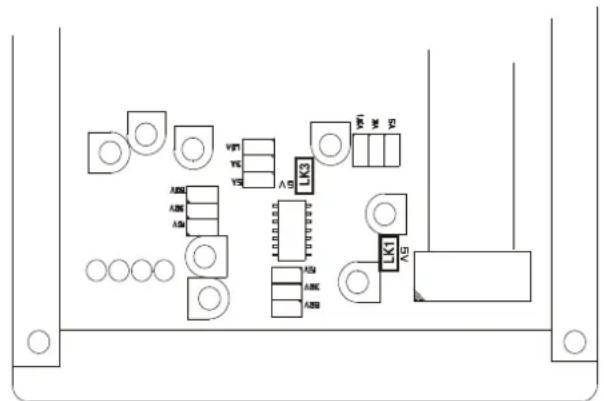

| Product Type | Precision Linear DC Power Supply |
| Model | PL068 |
| Brand | Aim TTi |
| Voltage Range | 0V to 6V |
| Current Range (High) | 1mA to 8000mA |
| Current Range (Low) | 0.1mA to 800mA |
| Voltage Setting | Coarse and fine controls |
| Current Setting | Single logarithmic control |
| Voltage Span Control | Digital setting of Vmin and Vmax (0.1V to 6V; 0 to Vmax-0.1V) |
| Settings Lock | Single button press, accuracy equals meter accuracy |
| Output Mode | Constant voltage or constant current with automatic cross-over |
| Output Switch | Electronic, non-isolating; preset values displayed when off |
| Output Terminals | Universal 4mm safety binding posts on 19mm spacing; screwless sense terminals |
| Transient Response | <50μs to within 50mV for 5% to 95% load change |
| Ripple and Noise (Normal Mode Voltage) | <0.6mVrms and 2mVp-p |
| Ripple and Noise (Normal Mode Current) | <0.6mArms; <100μArms Low I range |
| Load Regulation (Voltage) | <(0.01% + 2mV) |
| Line Regulation (Voltage) | <(0.01% + 2mV) for 10% line change |
| Display Type | Dual 4-digit LED, 10mm |
| Meter Accuracy (Voltage) | ±(0.1% + 10mV) resolution 1mV |
| Meter Accuracy (Current High Range) | ±(0.3% + 3mA) to 8A; resolution 1mA |
| Meter Accuracy (Current Low Range) | ±(0.3% + 0.3mA); resolution 0.1mA |
| Output Protection | Withstands forward voltages up to 20V (10V on 6V O/P); reverse diode clamp to 3A |
| Over-Temperature Protection | Output trips off for over-temperature |
| AC Input | 230V AC or 115V AC ±10%, 50/60Hz, Installation Category II |
| Power Consumption | 280VA max |
| Operating Range | +5°C to +40°C, 20% to 80% RH |
| Storage Range | -40°C to +70°C |
| Cooling | Intelligent variable-speed low noise fan with over-temperature trip |
| Safety Compliance | EN61010-1 |
| EMC Compliance | EN61326-1 |
| Dimensions (Single) | 107mm x 131mm (1/4 rack 3U) x 288mm L |
| Weight (Single) | 4.5kg |
