USER MANUAL INN-873 Innoliving

innoliving easy tech, easy life

PIASTRA AD INDUZIONE SINGOLA SINGLE INDUCTION COOKER

INN-873

MANUALE D'USO

USER MANUAL

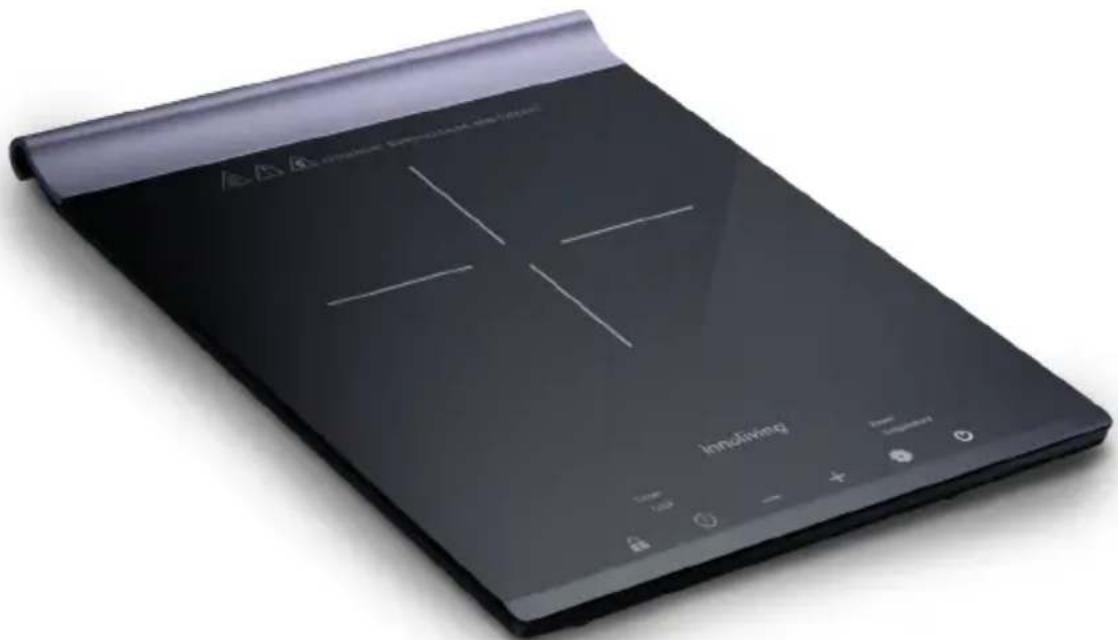

Thank you for purchasing INNOLIVING single induction cooker

Before using the appliance, carefully read the instructions for use and, in particular, the safety warnings and follow them. Keep this manual for future reference.

BEFORE USE

Before connecting the appliance, check that the mains voltage data shown on the data label correspond to those of the local electrical network. The data label is located on the appliance itself.

IMPORTANT SAFETY RULES

• Place the product on a flat, stable surface near an electrical outlet but away from any water source.
• The work surface must be heat resistant and dry.
• Make sure that the power cord does not come into contact with any part of the appliance itself. Keep the product and its power cord out of reach of children under 8 years of age.
• Never let the cord hang from a surface where a child could grab it.
• Do not attempt to move the cooking plate until it has completely cooled.
• Make sure that the cookware is correctly positioned in the center of the plate and that the pan handles are positioned securely.
• Be especially careful when using oil or other fats for cooking. Be extremely careful to ensure that you do not overheat the

food during cooking.

- Once cooking is finished, set the temperature to 0 and remove the plug from the electrical socket.

- Do not leave the product unattended in the presence of children.

- Do not place the unit near textile materials such as curtains or near inflammable materials, when in use, in order to prevent fires.

- If the power cord is damaged, it must be replaced by the manufacturer, its authorized technical assistance service or similar personnel to avoid any risk.

- The temperature of accessible surfaces may be high when the appliance is in operation. Pay particular attention when handling the product.

Do not touch the surfaces of the product during use. If this symbol is placed on a particular surface, pay particular attention when handling the product because the surface can reach particularly high temperatures.

- This product can be used by children over 8 years of age and by people with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they have received instructions for the safe use of the appliance and they understood the related dangers. Make sure that children do not play with the appliance. Cleaning and maintenance operations must not be carried out by children unless they are at least 8 years old and under supervision.

- Keep the appliance away from flammable materials.

- Do not use pans and other utensils of such dimensions that they can protrude excessively from the plates to avoid burning yourself by operating the keyboard.

- In case you want to give the appliance to another user, be sure to include the instruction manual with the appliance.

- During use, never leave the appliance unattended.

- Periodically check the appliance and cord for obvious damage. Never use the appliance if the cord or the appliance itself shows signs of damage. In this case, all repairs must be carried out by a qualified electrician.

- Use the appliance only for domestic purposes and following the indications provided in the instructions.

- To prevent electric shock, never immerse the appliance in water or other liquids, or put it in the dishwasher.

- Avoid using the appliance near hot surfaces or objects sensitive to magnetism.

- Before cleaning, always make sure to disconnect the appliance from the electricity supply.

- Never use the appliance outdoors and keep it in a dry environment.

- Do not use accessories that have not been recommended by the manufacturer, as this could pose risks to the user and damage the appliance.

- Never move the appliance by pulling on the cable and make sure that the cable cannot become entangled in any way, avoiding wrapping it around the appliance or bending it.

- Place the appliance on a flat surface with sufficient free

space around it, avoiding blocking the ventilation openings.

- Do not move the appliance when pots or pans are placed on it.

- Do not place empty pans, metal objects, flammable objector objects with low heat resistance on the plate, because they could become very hot.

• Make sure the appliance has completely cooled down before cleaning and putting it away.

- Never touch the heating plate, as it may be very hot after prolonged use.

- When the appliance is not in use, be sure to always unplug it.

- WARNING: If you notice cracks or defects in the appliance, unplug it immediately and have it checked by a qualified electrician, this is necessary to avoid possible electric shock.

- Be especially careful when cooking foods containing oil or fat, as they may catch fire if overheated.

- When using the appliance under an extractor hood, make sure you respect the minimum distance recommended by the manufacturer and, if possible, double it for greater safety

- Only use the appliance for cooking food.

- If repairs are necessary, contact the manufacturer's after-sales service or a qualified and experienced person to avoid potential dangers. Return the appliance to such services if necessary.

- This appliance must not be used with an external timer or separate remote control.

- This appliance is designed for household use only, but it

can be used in in staff kitchen areas in shops, offices, and other workplaces, on farms, by clients in hotels, motels, bed and breakfast and other professional premises and similar places.

WARNING: The induction cooking plate is only activated when an induction-suitable kitchen utensil is placed on the plate. The appliance switches off automatically for safety reasons if no pot or pan is placed on the plate. Before using your pots and pans, check whether a magnet sticks to them to determine their suitability.

WARNING: This appliance is designed for household use only, but it can be used in in staff kitchen areas in shops, offices, and other workplaces, on farms, by clients in hotels, motels, bed and breakfast and other professional premises and similar places.

WARNING: This appliance must not be used with an external timer or separate remote control.

TECHNICAL DATA

• Double induction hob:
• Voltage: 220V-240V\~50/60Hz
• Power: up to 1800W
• 10 power levels: 200-350-500-650-800-1000-1200-1400-1600-1800W
• Temperature setting: up to 240°C max
• 10 temperature settings: 60-80-100-120-140-160-180-200-220-240°C
• Time setting: 1 – 180 minutes
- Lock: press once to activate; to deactivate, hold down for 2 seconds.
- Product size: Width 300mm x Depth 380mm x Height 50mm

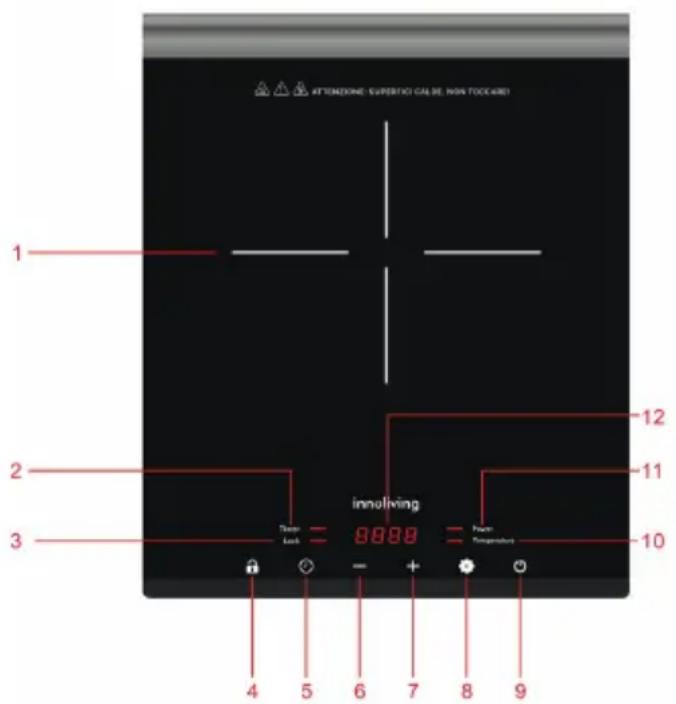

PRODUCT DESCRIPTION

1. Cooking zone
2. Timer indication light
3. Lock indication light
4. Lock button
5. Timer button
6. Down button "-"
7. Up button "+"
8. Function button(switch power and Temperature mode)
9. ON/OFF button
10. Temperature indication light
11. Power indication light
12. Display

USE

Place the cooking utensils in the center of the plate and connect the appliance. Once the appliance is connected, a beep will sound and the display will show "OFF" and the internal fan will activate briefly. Also, if the internal temperature of the pan exceeds 60°C, the display will show "H". To turn on the device, gently press the power button. The display will show "ON".

Power Mode:

Turn on the unit, press the "Function" button, The default power will be 1600W, as indicated on the display. You can adjust the power settings by pressing the "+" or "-" buttons.

Temperature mode:

To switch to the temperature display, press the "Function" button. The maximum temperature displayed will be 240°C, and you can adjust the settings by pressing the "+" or "-" buttons.

Timer Mode:

By pressing the "Timer" button, "0:00" will appear on the display. You can then set the time from 0:00 to 3:00 by pressing the "Down" or "Up" buttons. If you do not adjust the timer with the "Down" or "Up" buttons, no time limit will be set.

Lock Function:

To lock the keypad, press the padlock key once. To unlock the keyboard, press and hold the key for 2 seconds. If you activate the block function, while the induction hob is on, you can still turn it off, but all other functions will be blocked.

USABLE AND NON-USABLE COOKING UTENSILS

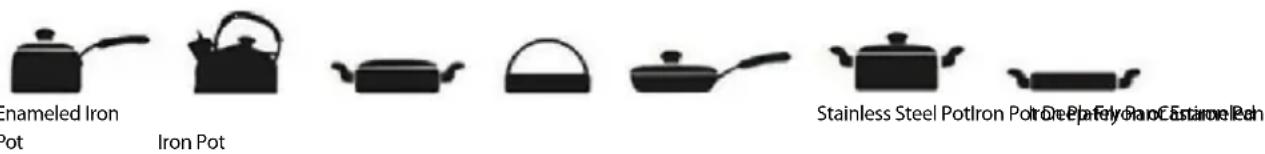

Usable Pans

Steel or iron, enameled iron, stainless steel, flat-bottom pans/pots with diameter from 12 to 26 cm.

Non-usable Pans

Heat-resistant glass, ceramic container, cooper, aluminium pans/pots Rounded-bottom pans/pots with bottom measuring less than 12 cm.

Rounded Bottom Pot

Aluminium Cooper Pot

Less than 12 cm

Pot with StandsBottom measuring Pot

Heat-Resistant Glass Pot

CLEANING

• Before cleaning, unplug and wait for the appliance to cool down.
• Wipe the housing only with a moistened cloth or sponge.
• Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish.
• The ceramic plate can also be cleaned with a damp cloth or sponge. Use a commercially available special cleansing agent for ceramic glass hobs and induction cooking plates to remove stubborn stains or discolorations on the plate.
• Do not immerse in water or any other liquid.

ERROR CODE TABLE

ERROR	CAUSE SUGGESTED SOLUTION
E0 No	pot/pan; Unsuitable cookware Use suitable cookware	suitable cookware
E1 Electrical malfunction/Short circuit Contact		the manufacturer or a competent after-sales service
E2 Temperature sensor damaged Contact		the manufacturer or a competent after-sales service
E3 Voltage too high Have your power supply		checked; Unplug the appliance, wait about 2min.and plug in the appliance again
E4 Voltage too low Have your power supply		checked; Unplug the appliance ,wait about 2min.and plug in the appliance again
E5 Temperature on the ceramic plate too high. Pot/pan empty. Pot/pan has too high temperature		Wait a few minutes and let the plate or pot/pan cool down
E6 Cooling or exhaust fan damaged Contact		the manufacturer or a competent after-sales service. Clean the louvers on the housing and restart the appliance

OVERHEATING PROTECTION

- The induction cooking plate is equipped with an overheating protection.

- If your cooking plate overheats (empty pot or pan), a prolonged bleep will sound. After a few minutes the cooking function will switch off automatically.

- If you take the pot or pan from the plate during use, a bleep will sound as well and the lamps will flash as a warning. Always switch off the appliance first before taking away the pot or pan.

	Symbol Value Unit
Model identification INN-873
Type of hob --- Domestic hob ---
Number of cooking zones and/or areas	---	1	---
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	--- Induction cooking zones	zones	---
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	--- cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm	L --- cm
	W --- cm
Energy consumption per cooking zone or area calculated per kg	EC_electric cooking	186.9 Wh/kg
Energy consumption for the hob calculated per kg EC	electric hob	186.9 Wh/kg

RATING LABEL

Innoliving Spa

Via Merloni 2/B 60131 Ancona - Italy

INN-873 PIASTRA AD INDUZIONE INDUCTION COOKER

220-240V\~50/60Hz 1800W

MADE IN CHINA

LOT n.

This product complies with all the applicable Eu Directives.

Read carefully the instruction manual

Appliance with Class II electrical insulation

The temperature of accessible surfaces may be high during the use.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)". The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25cm . The separate collection for the decommissioned equipment for recycling,

treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_01.2024
