Product Type	Outdoor Unit for Split Air Conditioner
Brand	Gorenje
Model	TITAN35OUT
Cooling Capacity	3.5 kW (approximate)
Refrigerant	R32 (GWP 675)
Power Supply	220-240 V ~ 50 Hz, 1 Phase
Outdoor Unit Fuse	T 15 A 250 VAC
Max. Tubing Length	15 m (with additional refrigerant charge)
Max. Height Difference (H)	5 m
Additional Refrigerant Requirement	20 g/m for tubing length beyond 5 m
Max. Refrigerant Charge	2.5 kg
Power Cord Specification	H07RN-F 1.0 mm² x 3
Power Connecting Cord Specification	H07RN-F 1.0 mm² x 5
Installation Requirements	Must be installed by qualified personnel; room area >10 m²
Safety Features	Auto restart after power failure; RCD recommended
Disconnection Means	Double-pole switch with contact gap ≥3 mm (if fixed wiring)
Environment	Do not install in laundry or near flammable gas
Cleaning	Clean outdoor unit with water; avoid using high pressure
Repairability	Only authorized service personnel; use genuine parts

Frequently Asked Questions - TITAN35OUT GORENJE

Can the Gorenje TITAN35OUT outdoor unit be installed in a laundry room?

No, the appliance shall not be installed in a laundry according to the safety instructions. The unit must be placed in a well-ventilated area away from moisture and flammable gases.

What is the maximum permissible length for the connecting pipes?

The maximum allowable pipe length is 15 meters, with a height difference of up to 5 meters. For lengths exceeding 5 meters, additional refrigerant charge is required at a rate of 20 g/m.

What type of refrigerant does the TITAN35OUT use?

The unit uses R32 refrigerant, which has a Global Warming Potential (GWP) of 675. R32 is flammable, so special handling precautions are necessary.

Is a residual current device (RCD) necessary for installation?

If the leakage current may exceed 10 mA, installation of an RCD with a rated residual operating current not exceeding 30 mA is advisable to prevent electric shock.

How should air be purged from the refrigerant system?

After connecting the indoor and outdoor units, use a vacuum pump to evacuate air and moisture. Run the pump for 10-15 minutes until a vacuum of 10 mm Hg is achieved. Then check for leaks before fully opening the valves.

Can I use a standard power plug for the outdoor unit?

The unit is designed for fixed wiring. The plug must remain accessible after installation. If not possible, a double-pole switching device with a contact separation of at least 3 mm must be used.

How often should the outdoor unit be cleaned?

Regular cleaning is recommended to maintain efficiency. Use only water to clean the unit; do not use high-pressure washers or chemical cleaners that may damage the components.

What is the auto restart function?

The auto restart function automatically resumes operation when power is restored after a power failure. No manual intervention is required.

Can children or untrained persons operate the air conditioner?

The appliance can be used by children aged 8 years and above only under supervision. Persons with reduced capabilities must receive instruction. Children must not play with the unit or perform cleaning without supervision.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid hazard. Do not attempt to repair it yourself.

USER MANUAL TITAN35OUT GORENJE

USERS AND INSTALLATION MANUAL – OUTDOOR UNIT R32

INSTRUCTIONS FOR USE AND INSTALLATION - R32 OUTDOOR UNIT

INSTRUCTIONS FOR USE AND INSTALLATION – OUTDOOR UNIT R32

INSTRUCTIONS FOR USE AND INSTALLATION – OUTDOOR UNIT R32

INSTRUCTIONS FOR USE AND INSTALLATION – R32 OUTDOOR UNIT

Thank you very much for purchasing this Air Conditioner. Please read this use and installation instructions carefully before installing and using this appliance and keep this manual for future reference.

USERS AND INSTALLATION MANUAL R32 – OUTDOOR UNIT

Thank you very much for purchasing this Air Conditioner. Please read this use and installation instructions carefully before installing and using this appliance and keep this manual for future reference.

Contents

Safety instructions 1

Preparation before use 2

Safety Precautions 3

Installation instruction 12

Installation diagram 12

Select the installation locations 13

Connecting of the cable 14

Wiring diagram....15

Outdoor unit installation 16

Air purging 16

Caution: Risk of fire/flammable materials

WARNING: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

Safety instructions

• To guarantee the unit works normally, please read the manual carefully before installation, and try to install strictly according to this manual.
• Do not let air enter the refrigeration system or discharge refrigerant when moving the air conditioner.
• Properly ground the air conditioner into the earth.
• Check the connecting cables and pipes carefully, make sure they are correct and firm before connecting the power of the air conditioner.
• There must be an air-break switch.
• After installing, the consumer must operate the air conditioner correctly according to this manual, keep a suitable storage for maintenance and moving of the air conditioner in the future.
• Fuse of indoor unit: T 3.15A 250VAC.
• For 2.6kW~3.5kW models, fuse of outdoor unit: T 15A 250VAC.
• For 5.3 kW models, fuse of outdoor unit: T 20A 250VAC
• The installation instructions for appliances that are intended to be permanently connected to fixed wiring and have a leakage current that may exceed 10 mA, shall state that the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable.
• Warning: Risk of electric shock can cause injury or death: Disconnect all remote electric power supplies before servicing.

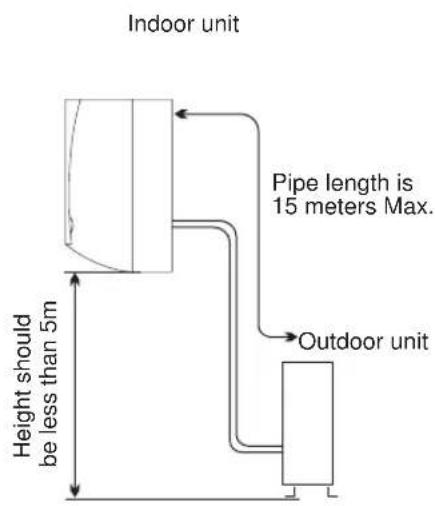

• The maximum length of the connecting pipe between the indoor unit and outdoor unit should be less than 5 meters. It will affect the efficiency of the air conditioner if the distance is longer than that length.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The batteries in the remote controller must be recycled or disposed of properly. Disposal of Scrap Batteries --- Please discard the batteries as sorted municipal waste at the accessible collection point.
• If the appliance is fixed wiring, the appliance must be fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III conditions, and these means must be incorporated in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. The appliance shall not be installed in the laundry.

Preparation before use

Note

• For the multi system, the refrigerant refers to the multi outdoor unit.
• When charging refrigerant into the system, make sure to charge in liquid state, if the refrigerant of the appliance is R32. Otherwise, chemical composition of refrigerant (R32) inside the system may change and thus affect performance of the air conditioner.
• According to the character of refrigerant (R32, the value of GWP is 675), the pressure of the tube is very high, so be sure to be careful when you install and repair the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.
• Installation of this product must be done by experienced service technicians' professional installers only in accordance with this manual.
• The temperature of the refrigerant circuit will be high; please keep the interconnection cable away from the copper tube.

Preset

Before using the air conditioner, be sure to check and preset the following.

- Remote Control presetting

Each time after the remote control is replaced with new batteries or is energized, the remote control automatically presets to heat pump mode. If the air conditioner you purchased is a Cooling Only unit, the heat pump remote controller can also be used.

- Back-light function of Remote Control (optional)

Hold down any button on the remote control to activate the backlight. It automatically shuts off 10 seconds later.

Note: Backlight is an optional function.

• Auto Restart Presetting

The air conditioner has an Auto-Restart function.

Safeguarding the environment

This appliance is made of recyclable or reusable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be reused.

For more detailed information on handling and recycling this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF APPLIANCE

This appliance is marked according to the European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE).

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Safety precautions

Symbols in this Use and Care Manual are interpreted as shown below.

Be sure not to do.

Pay attention to such a situation.

Grounding is essential.

Warning: Incorrect handling could cause a serious hazard, such as death, serious injury, etc.

Use correct power supply in accordance with the rating plate requirement. Otherwise, serious faults or hazard may occur, or a fire maybe break out.

Keep the power supply circuit breaker or plug from dirt. Connect the power supply cord to it firmly and correctly, lest an electric shock or a fire break out due to insufficient contact.

Do not use the power supply circuit breaker or pull off the plug to turn it off during operation. This may cause a fire due to spark, etc.

It is the user's responsibility to make the appliance be grounded according to local codes or ordinances by a licenced technician.

It is harmful to your health if the cool air reaches you for a long time. It is advisable to let the air flow be deflected to all the room.

Prevent the air flow from reaching the gas burners and stove.

Do not touch the operation buttons when your hands are wet.

Turn off the appliance by remote control firstly before cutting off power supply if malfunction occurs.

Never insert a stick or similar obstacle into the unit. Since the fan rotates at high speed, this may cause injury.

Do not repair the appliance yourself. If this is done incorrectly, it may cause an electric shock, etc.

Do not place any objects on the outdoor unit.

Do not bend, pull, or press the power supply cord, lest it be damaged. A damaged power supply cord may cause an electric shock or fire.

Precautions for using R32 refrigerant

The basic installation work procedures are the same as for conventional refrigerant (R410A). However, pay attention to the following points:

CAUTION

1. Transport of equipment containing flammable refrigerants

Compliance with transport regulations

1. Marking of equipment using signs

Compliance with local regulations

1. Disposal of equipment using flammable refrigerants

Compliance with national regulations

1. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

1. Storage of packed (unsold) equipment
2. Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
3. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
4. Information on servicing

6-1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

6-2 Work procedure

Work shall be undertaken under a controlled procedure to minimize the risk of flammable gas or vapor being present while the work is being performed.

6-3 General work area

• All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the
• conditions within the area have been made safe by control of flammable material.

6-4 Checking for presence of refrigerant

• The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with
• flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

CAUTION

6-5 Presence of fire extinguisher

• If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand.
• Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6-6 No ignition sources

• No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
• All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
• Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

6-7 Ventilated area

• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
• A degree of ventilation shall continue during the period that the work is carried out.
• The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

6-8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification.

At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
• The ventilation machinery and outlets are operating adequately and are not obstructed;
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials

CAUTION

which are inherently resistant to being corroded or are suitably protected against being so corroded.

6-9 Checks to electrical devices

• Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures.
• If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
• If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.
• This shall be reported to the owner of the equipment, so all parties are advised. Initial safety checks shall include:
• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• That there are no live electrical components and wiring exposed while charging, recovering or purging the system; – That there is continuity of earth bonding.

7. Repairs to sealed components

• During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is necessary to have an electrical supply to equipment during servicing,
• then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. Attention shall be paid to the following to ensure that by working on electrical
• components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals
• not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications. NOTE:
• The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

8. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while

CAUTION

live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating.

• Replace components only with parts specified by the manufacturer.
• Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

9. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure,

vibration, sharp edges, or any other adverse environmental effects. The check shall also consider the effects of aging or continual vibration from sources such as compressors or fans.

10. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the

searching for or detection of refrigerant leaks.

A halide torch (or any other detector using a naked flame) shall not be used.

14. Leak detection methods

The following leak detection methods are deemed acceptable for systems

containing flammable refrigerants:

• Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
• Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
• Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
• Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
• If a leak is suspected, all naked flames shall be removed/extinguished.
• If a leakage of refrigerant is found which requires brazing, all the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
• Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used.

• However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

- Remove refrigerant;

- Purge the circuit with inert gas;

CAUTION

• Evacuate; – Purge again with inert gas;
• Open the circuit by cutting or brazing.
• The refrigerant charge shall be recovered into the correct recovery cylinders.
• The system shall be "flushed" with OFN to render the unit safe. This
• process may need to be repeated several times.
• Compressed air or oxygen shall not be used for this task.
• Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
• This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place.
• This operation is vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall

be followed:

• Ensure that contamination of different refrigerants does not occur when using charging equipment.
• Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system, it shall be pressure tested with OFN.

The system shall be leak tested on completion of charging but prior to

• commissioning. A follow up leak test shall be carried out prior to leaving the site.

14. Decommissioning

• Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its details.
• It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.

b) Isolate system electrically.

CAUTION

c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• All personal protective equipment is available and being used correctly;
• The recovery process is always supervised by a competent person; – Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer's instructions.

h) Do not overfill cylinders. (No more than 80 % volume liquid charge).

I) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15. Labelling

• Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. • The label shall be dated and signed.
• Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16. Recovery

- When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

- When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.

- Ensure that the correct number of cylinders for holding the total system charge is available.

- All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).

- Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order.

• Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

• The recovery equipment shall be in good working order with a set of

CAUTION

instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.

• In addition, a set of calibrated weighing scales shall be available and in good working order.
• Hoses shall be complete with leak-free disconnect couplings and in good condition.
• Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in
• doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not
• mix refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
• The evacuation process shall be carried out prior to returning the compressor to the suppliers.
• Only electric heating to the compressor body shall be employed to accelerate this process.
• When oil is drained from a system, it shall be carried out safely.

CAUTION

• When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit.
• Do not place any other electrical products or household belongings under indoor unit or outdoor unit. Condensation dripping from the unit might get them wet and may cause damage or malfunction of your property.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example, open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
• Be aware that refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• The appliance shall be stored in a room without continuously operating open flames (for example, an operating gas appliance) and ignition sources (for example, an operating electric heater).
• flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
• Servicing shall only be performed as recommended by the equipment manufacturer.
• Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The installation of pipe-work shall be kept to a room with a floor area larger than 10 m².
• The installation of pipe-work shall be kept to a room with a floor area larger than 10 m².
• The pipe-work shall be in compliance with national gas regulations. The maximum refrigerant charge amount is 2.5 kg.
• Mechanical connectors used indoors shall comply with ISO 14903. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated. The
• installation of pipe-work shall be kept to a minimum.
• Mechanical connections shall be accessible for maintenance purposes.

Explanation of symbols displayed on the indoor unit or outdoor unit.

	WARNING	This symbol shows that this appliance uses a flammable refrigerant.If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

Installation instructions

Installation diagram

Outdoor unit

The above figure is only a simple representation of the unit; it may not match the external appearance of the unit you purchased. Installation must be performed in accordance with national wiring standards by authorized personnel only.

Select the installation locations

Location for installing the outdoor unit

• Where it is convenient to install and well ventilated.
• Avoid installing it where flammable gas could leak.
• Keep the required distance apart from the wall.
• The distance between the indoor and outdoor unit should be 5 meters and can go up to a maximum of 15 meters with additional refrigerant charge.
• Keep the outdoor unit away from greasy dirt and vulcanization gas exits.
• Avoid installing it by the roadside where there is a risk of muddy water.
• A fixed base where it is not subject to increased operation noise.
• Where there is not any blockage of the air outlet.
• Avoid installing under direct sunlight, in an aisle or sideway, or near heat sources and ventilation fans. Keep away from flammable materials, thick oil fog, and wet or uneven places.

Model	Max. Allowable Tubing Length at Shipment (m)	Limit of Tubing Length (m)	Limit of Elevation Difference H (m)	Required amount of additional refrigerant (g/m)
2,1k~5,3kW	5	15	5	20
7kW	5	15	5	30

If the height or pipe length is out of the scope of the table, please consult the merchant.

Connecting of the Cable

Note: For some models, it is necessary to remove the cabinet to connect to the indoor unit terminal.

- Outdoor Unit

1) Remove the access door from the unit by loosening the screw. Connect the wires to the terminals on the control board individually as follows. 2) Secure the power cord onto the control board with cable clamp. 3) Reinstall the access door to the original position with the screw. 4) Use a recognized circuit breaker for 24K model between the power source and the unit. A disconnecting device to adequately disconnect all supply lines must be fitted.

Outdoor unit Access door Terminal(inside)

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Caution:

1. Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, refer to the circuit diagram posted on the inside of the access door.
2. Confirm that the cable thickness is as specified in the power source specification.
3. Check the wires and make sure that they are all tightly fastened after cable connection.
4. Be sure to install an earth leakage circuit breaker in wet or moist areas.

Cable Specifications

Capacity (kW)	Power cord		Power connecting cord
	Type	Normal cross - sectional area	Type	Normal cross - sectional area
2,6 ; 3,5	H07RN-F	1.0mm2X3	H07RN-F	1.0mm2X5
5,3	H07RN-F	1.5mm2X3	H07RN-F	1.5mm2X5

Attention:

The plug must be accessible even after the installation of the appliance in case there is a need to disconnect it. If not possible, connect the appliance to a double-pole switching device with contact separation of at least 3 mm placed in an accessible position even after installation.

Wiring diagram

Make sure that the color of the wires in the outdoor unit and terminal No. are the same as those of the indoor unit.

- 2.6kW~5.3kW Model

Indoor unit Terminal Outdoor unit Terminal

Warning:

Before obtaining access to terminals, all supply circuits must be disconnected.

Outdoor unit installation

1. Install Drain Port and Drain Hose (for heat-pump model only)

The condensate drains from the outdoor unit when the unit operates in heating mode. In order not to disturb your neighbor and protect the environment, install a drain port and a drain hose to direct the condensate water. Just install the drain port and rubber washer to the chassis of the outdoor unit, then connect a drain hose to the port as the right figure demonstrates.

Rubber pad (optional) Place under the leg pedestal

1. Install and Fix Outdoor Unit

Fix with bolts and nuts tightly on a flat and strong floor.

If installed on the wall or roof, make sure to fix the supporter well to prevent it from shaking due to serious vibration or strong wind.

1. Outdoor Unit Piping Connection
2. Remove the valve caps from the 2-way and 3-way valve.
3. Connect the pipes to the 2-way and 3-way valves separately according to the required torque.
4. Outdoor Unit Cable Connection (see previous page)

Air purging

The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the compressor. After connecting the indoor and outdoor units, release air and moisture from the refrigerant cycle using a vacuum pump, as shown below.

Note: To protect the environment, be sure not to discharge the refrigerant to the air directly. See next page for air purging steps.

How to Purge Air Tubes:

(1) Unscrew and remove caps from 2 and 3-way valves. (2) Unscrew and remove cap from service valve. (3) Connect vacuum pump flexible hose to the service valve. (4) Start vacuum pump for 10-15 minutes until reaching a vacuum of 10 mm Hg absolutes. (5) With vacuum pump still running close the low-pressure knob on vacuum pump manifold. Then stop the vacuum pump. (6) Open 2-way valve, 1/4 turn, then close it after 10 seconds. Check tightness of all joints using liquid soap or an electronic leak detector. (7) Turn 2 and 3-way valves stem to fully close the valves. Disconnect the flexible vacuum pump hose. (8) Replace and tighten all valve caps.

INSTRUCTIONS FOR USE AND INSTALLATION - OUTDOOR UNIT R32

Caution: Fire hazard - flammable materials

Do not touch the control buttons with wet hands.

Cover Connection terminal (inside)

Outdoor unit

Caution: Risk of fire / flammable materials

CAUTION: Servicing shall only be performed in accordance with the recommendations of the equipment manufacturer. Maintenance and repairs that require the assistance of other skilled personnel shall be carried out under the supervision of a person competent in the use of flammable refrigerants.

Safety advice

• To ensure the smooth operation of the device, first read the instructions carefully and strictly follow them when installing the device.
• Do not allow air to enter the refrigeration system, or allow the refrigerant to discharge while moving the air conditioner.
• Properly ground the air conditioner.
• Carefully check the connection cables and hoses and make sure they are in good condition and securely attached before connecting the air conditioner to the power supply.
• An air shut-off switch must be installed.
• After installation, use the air conditioner properly in accordance with these instructions; ensure adequate space for future maintenance and movement of the air conditioner.
• Indoor unit fuse: T 3.15 A 250 VAC.
• Outdoor unit fuse for models 2.6 kW~3.5 kW: T 15 A 250 VAC
• Outdoor unit fuse for models 5.3 kW: T 20 A 250 VAC
• For devices intended for permanent connection to fixed wiring with a leakage current that may exceed 10 mA, the installation instructions must state that the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended.
• Warning: Danger! Electric shock can cause injury or death: Before servicing, disconnect all remote power supply units from the electrical supply.
• The connection hose between the indoor and outdoor units must not be longer than 5 meters. A longer hose will affect the efficiency of the air conditioner.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Batteries from the remote control must be disposed of and recycled properly. Disposal of waste batteries: please dispose of batteries separately from household waste at an appropriate collection point.
• If the appliance is intended for permanent connection to fixed wiring, it must be equipped with a means for disconnection from the supply mains having a contact separation in all poles that provides full disconnection under overvoltage category III conditions, and this means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• The appliance must be installed in accordance with national wiring regulations.
• Servicing shall be performed only as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• The appliance must not be installed in a laundry room.

Before first use

Note

• In multi air conditioning systems, the refrigerant is part of the outdoor unit.
• If the refrigerant R32 is intended for charging the system, charge the appliance with refrigerant in the liquid state. Otherwise, the chemical composition of the refrigerant (R32) inside the system could change, affecting the operation of the air conditioner.
• Given the refrigerant symbol (R32 – Global Warming Potential GWP value is 675), the pipe pressure is very high, so be careful during installation and repair of the appliance.
• If the power cord is damaged, it must be replaced only by the manufacturer, an authorized service center, or another qualified person to prevent hazards.
• Installation of this unit must be performed only by experienced service technicians or professional installers in accordance with this manual.
• Keep the interconnection cable away from the copper pipe, as the refrigerant piping temperature is very high.

The user is responsible for having the unit grounded by an authorized technician in accordance with local regulations.

Prevent air from entering the gas burners and stove.

Do not touch the control buttons with wet hands.

In case of malfunction, turn off the unit with the remote controller before disconnecting the power supply.

Never insert a stick or similar object into the unit. Since the fan rotates at high speed, this may cause injury.

Do not twist, pull, or press the power cord to avoid damaging it. Electric shock or fire may result from a damaged power cord.

Precautions

Warnings for R32 refrigerant

The basic installation procedure is the same as for conventional refrigerant (R410A). However, pay attention to the following:

CAUTION

Cover Connector (inside)

Outdoor unit. The images in this manual are based on the appearance of standard models. Therefore, the appearance of the air conditioner you purchased may differ.

Caution:

1. The air conditioner must always have its own electrical installation. For the wiring procedure, follow the circuit diagram on the inside of the cover.
2. Check that the cable thickness is in accordance with the specifications for the power source.
3. Inspect the wires, i.e., make sure everything is firmly secured after connecting the cable.
4. In wet or humid areas, always install a ground fault circuit interrupter.

Cable characteristics

Kapacitet (kW)	Priključni kabl		Priključni kabl
	Tip	Normalni prečni presek	Tip	Normalni prečni presek
2,6 ; 3,5	H07RN-F	1.0mm2X3	H07RN-F	1.0mm2X5
5,3	H07RN-F	1.5mm2X3	H07RN-F	1.5mm2X5

Warning:

The plug must be accessible even after the appliance is installed so that it can be unplugged if necessary. If this is not possible, connect the appliance to a double-pole switch with a contact gap of at least 3 mm, which will be in an accessible location after the appliance is installed.

Wiring diagram

Attention: Risk of fire / flammable materials

CAUTION: Servicing shall be performed only in accordance with the recommendations of the equipment manufacturer. Maintenance and repairs that require the assistance of other qualified personnel must be carried out under the supervision of a person competent in the use of flammable refrigerants.

Safety tips

• To ensure the smooth operation of the appliance, first carefully read the instructions and strictly follow them when installing the appliance.
• Do not allow air to enter the refrigeration system, or allow the refrigerant to discharge, while moving the air conditioner.
• Properly ground the air conditioner.
• Carefully check the connection cables and hoses and make sure they are in good condition and securely attached before connecting the air conditioner to the power supply.
• An air shut-off switch must be installed.
• After installation, use the air conditioner properly in accordance with this manual; ensure adequate space for maintenance and moving the air conditioner in the future.
• Indoor unit fuse: T 3.15 A 250 VAC.
• Outdoor unit fuse for models 2.6 kW~3.5 kW: T 15 A 250 VAC
• Outdoor unit fuse for models 5.3 kW: T 20 A 250 VAC
• For appliances intended for permanent connection to fixed wiring with a leakage current that may exceed 10 mA, the installation instructions must state that the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended.
• Warning: Danger! Electric shock can cause injury or death: Before servicing, disconnect all remote power supplies.
• The connection hose between the indoor and outdoor units must not be longer than 5 meters. A longer hose will affect the efficiency of the air conditioner.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Batteries from the remote control must be disposed of and recycled properly. Disposal of waste batteries: please dispose of batteries separately from household waste at an appropriate collection point.
• If the appliance is intended for permanent connection to fixed wiring, it must be equipped with a means for disconnection from the supply mains having a contact separation in all poles that provides full disconnection under overvoltage category III conditions, and this means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance must be installed in accordance with national wiring regulations.
• Servicing shall be performed only as recommended by the equipment manufacturer. Maintenance and repairs requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• The device must not be placed in a laundry room.

Before first use

Note

• In multi-split systems, the refrigerant is part of the outdoor unit.
• If the refrigerant R32 is intended for charging the system, charge the device with liquid refrigerant. Otherwise, the chemical composition of the refrigerant (R32) inside the system could change, affecting the operation of the air conditioner.
• Given the refrigerant symbol (R32 – GWP value is 675), the pipe pressure is very high, so be careful when installing and repairing the device.
• If the connection cable is damaged, it must be replaced only by the manufacturer, an authorized service center, or another qualified person to prevent danger.
• Installation of this device must be performed only by experienced service technicians - professional installers in accordance with this manual.
• Keep the interconnection cable away from the copper pipe, as the refrigerant installation temperature is very high.

The user is responsible for having the device grounded by an authorized technician in accordance with local regulations.

Prevent air from reaching gas burners and stoves.

Do not touch the control buttons with wet hands.

In case of malfunction, turn off the device with the remote control before disconnecting the power supply.

Never insert a stick or similar obstacle into the device. Since the fan rotates at high speed, this could cause injury.

Do not twist, pull, or press the connection cable to avoid damaging it. Electric shock or fire are likely consequences of a damaged connection cable.

Caution

Warnings for refrigerant R32

The basic installation procedure is the same as for conventional refrigerant (R410A). However, please note the following:

WARNING

Cover Connector (inside)

Outdoor unit The images in this manual are based on the external appearance of standard models. Therefore, the appearance of the air conditioner you purchased may differ.

Caution:

1. The air conditioner must always have its own electrical installation. For the wiring procedure, follow the circuit diagram on the inside of the cover.
2. Check that the cable thickness complies with the specifications for the power supply.
3. Inspect the wires and ensure they are all firmly secured after connecting the cable.
4. In wet or humid areas, always install an earth leakage circuit breaker.

Cable characteristics

Kapacitet (kW)	Priključni kabl		Priključni kabl
	Tip	Normalni prečni presek	Tip	Normalni prečni presek
2,6 ; 3,5	H07RN-F	1.0mm2X3	H07RN-F	1.0mm2X5
5,3	H07RN-F	1.5mm2X3	H07RN-F	1.5mm2X5

Warning:

The plug must be accessible even after the unit is installed so that it can be unplugged if necessary. If this is not possible, connect the unit to a double-pole switch with a contact gap of at least 3 mm, which will be in an accessible location after installation.

Wiring diagram

Caution: Fire hazard / flammable materials

CAUTION: Servicing shall only be performed in accordance with the recommendations of the equipment manufacturer. Maintenance and repairs that require the assistance of other skilled personnel shall be carried out under the supervision of the person competent to use flammable refrigerants.

Safety advice

• To ensure the smooth operation of the device, first read the instructions carefully and strictly follow them when installing the device.
• Do not allow air to enter the refrigeration system, or allow the refrigerant to discharge while moving the air conditioner.
• Properly ground the air conditioner.
• Carefully check the connection cables and hoses and make sure they are in good condition and securely attached before connecting the air conditioner to the power supply.
• An air shut-off switch must be installed.
• After installation, use the air conditioner properly in accordance with these instructions; ensure adequate space for future maintenance and movement of the air conditioner.
• Indoor unit fuse: T 3.15 A 250 VAC.
• Outdoor unit fuse for models 2.6 kW~3.5 kW: T 15 A 250 VAC
• Outdoor unit fuse for models 5.3 kW: T 20 A 250 VAC
• For appliances intended for permanent connection to fixed wiring with a leakage current that may exceed 10 mA, the installation instructions must state that the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended.
• Warning: Danger! Electric shock can cause injury or death: Before servicing, disconnect all remote power supplies.
• The connection hose between the indoor and outdoor units must not be longer than 5 meters. A longer hose will affect the efficiency of the air conditioner.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, as well as persons with insufficient experience and knowledge of the appliance, only if they are under supervision or have been given appropriate instructions for use of the appliance and understand the hazards involved. Children must not play with the appliance. Children without supervision must not perform cleaning or user maintenance of the appliance.
• Batteries from the remote control must be disposed of and recycled properly. Disposal of waste batteries: please dispose of batteries separately from household waste at an appropriate collection point.
• If the appliance is intended for permanent connection to fixed wiring, it must be equipped with a disconnection protection from the mains supply with separate contacts on all poles, which ensures complete disconnection under overvoltage category III conditions and must be incorporated into the fixed wiring in accordance with wiring rules.
• If the supply cord is damaged, it must be replaced only by the manufacturer, an authorized service agent, or another qualified person, to prevent a hazard.
• The appliance must be installed in accordance with national wiring regulations.
• Servicing must be performed only in accordance with the equipment manufacturer's recommendations. Maintenance and repairs that require the assistance of other skilled personnel must be carried out under the supervision of the person responsible for the use of flammable refrigerants.
• The appliance must not be installed in a laundry room.

Before first use

Note

• In multi-split systems, the refrigerant is part of the outdoor unit.
• If the refrigerant R32 is intended for charging the system, charge the appliance with refrigerant in liquid state. Otherwise, the chemical composition of the refrigerant (R32) inside the system could change, which would affect the operation of the air conditioner.
• Given the refrigerant symbol (R32 – GWP value is 675), the pipe pressure is very high, so be careful during installation and repair of the appliance.
• If the supply cord is damaged, it must be replaced only by the manufacturer, an authorized service agent, or another qualified person, to prevent a hazard.
• Installation of this appliance must be performed only by experienced service technicians - professional installers in accordance with this manual.
• Keep the interconnection cable away from the copper pipe, as the refrigerant installation temperature is very high.

The user is responsible for ensuring that the device is grounded by an authorized technician in accordance with local regulations.

Prevent air from reaching the gas burners and stove.

Do not touch the control buttons with wet hands.

In case of malfunction, turn off the device with the remote control before disconnecting the power supply.

Never insert a stick or similar obstacle into the device. Since the fan rotates at high speed, this can cause injury.

Do not twist, pull, or press the power cord to avoid damaging it. Electric shock or fire are likely consequences of a damaged power cord.

Precautions

Warnings for R32 refrigerant

The basic installation procedure is the same as for conventional refrigerant (R410A). However, pay attention to the following:

CAUTION

Cover Connector (inside)

Outdoor unit The images in this manual are based on the appearance of standard models. Therefore, the appearance of the air conditioner you purchased may differ.

Caution:

1. The air conditioner must always have its own electrical installation. For the wiring procedure, follow the circuit diagram on the inside of the cover.
2. Check that the cable thickness complies with the specifications for the power source.
3. Check the wires, that is, make sure everything is firmly attached after connecting the cable.
4. In wet or damp areas, always install a ground fault circuit interrupter.

Cable characteristics

Kapacitet (kW)	Priključni kabl		Priključni kabl
	Tip	Normalni prečni presek	Tip	Normalni prečni presek
2,6 ; 3,5	H07RN-F	1.0mm2X3	H07RN-F	1.0mm2X5
5,3	H07RN-F	1.5mm2X3	H07RN-F	1.5mm2X5

Warning:

The plug must be accessible even after the appliance is installed so that you can disconnect it if necessary. If this is not possible, connect the appliance to a double-pole switch with a contact gap of at least 3 mm that will be in an accessible location after the appliance is installed.

Wiring diagram
