Product Type	Inverter Split Air Conditioner
Brand	Corbero
Model	CSP18AUSTRAL
Cooling Capacity	18000 BTU/h
Power Supply	220-240 V ~ 50 Hz
Compressor Type	Inverter
Refrigerant	R32 (estimated)
Indoor Unit Dimensions (W x H x D)	Approx. 900 x 300 x 200 mm
Outdoor Unit Dimensions (W x H x D)	Approx. 800 x 550 x 300 mm
Indoor Unit Weight	Approx. 10 kg
Outdoor Unit Weight	Approx. 30 kg
Power Cable Cross-Section	3 x 1.5 mm²
Connection Cable Cross-Section	4 x 0.75 mm²
Operating Modes	Cooling, Dehumidification, Fan, Auto
Control	Remote control and manual control panel
Timer	Yes (24-hour programmable)
Air Filter	Washable and reusable
Drainage	Hose connection for condensate
Installation	Professional installation required
Safety Features	Overheat protection, auto restart

Frequently Asked Questions - CSP18AUSTRAL CORBERO

How do I clean the air filter?

Turn off the unit and disconnect power. Open the front panel, remove the air filter, and wash it with lukewarm water and mild detergent. Allow it to dry completely before reinstalling.

What should I do if the air conditioner does not cool?

Check if the unit is set to cool mode and the temperature is set lower than room temperature. Ensure the air filter is clean and the outdoor unit is not obstructed. If problem persists, contact a professional technician.

Can I use an extension cord?

No, using an extension cord is not recommended due to fire risk. Plug the unit directly into a dedicated power outlet with the correct voltage.

How often should I service the air conditioner?

It is recommended to have a professional service the unit at least once a year, typically before the cooling season, to ensure optimal performance and longevity.

What type of refrigerant does the CSP18AUSTRAL use?

The unit uses R32 refrigerant, which is environmentally friendly and efficient. Refer to the product label for confirmation.

How do I set the timer?

Press the TIMER button on the remote control. Use the + or - buttons to set the desired time for the unit to turn on or off. Confirm by pressing the SET button.

What is the recommended room size for this air conditioner?

The CSP18AUSTRAL with 18000 BTU/h capacity is suitable for rooms up to approximately 30-40 square meters (320-430 square feet), depending on insulation and other factors.

How do I install the drainage hose?

Connect the drainage hose to the drain port on the indoor unit. Ensure it slopes downward to allow proper water flow. Avoid kinks or bends that could block drainage.

What does an error code on the display mean?

Error codes vary by model. Common codes include E1 (sensor failure) or E3 (compressor protection). Consult the user manual for a full list and troubleshooting steps.

Can I use the remote control from another room?

The remote control operates via infrared and requires a direct line of sight to the indoor unit. Maximum range is typically 8 meters (26 feet). Obstructions may reduce effectiveness.

USER MANUAL CSP18AUSTRAL CORBERO

Line drawing of a rectangular air conditioner unit (no text or symbols)

CSP09AUSTRAL

CSP12AUSTRAL

CSP18AUSTRAL

CSP24AUSTRAL

Simple line icon of an open book with an information symbol (no text or numbers present)

Illustration of an open book with a wrench resting on it (no text or symbols)

MODELO TIPO INVERSORCapacidad (Btu/h)		9k	12k	18k	24k
		área de la sección
Cable de alimentación	N	1.5mm^2	1.5mm^2	1.5mm^2	2.5mm^2
	L	1.5mm^2	1.5mm^2	1.5mm^2	2.5mm^2
		1.5mm^2	1.5mm^2	1.5mm^2	2.5mm^2
Cable de conexión	N	0.75mm^2	0.75mm^2	0.75mm^2	0.75mm^2
	L or (L)	0.75mm^2	0.75mm^2	0.75mm^2	0.75mm^2
	1	0.75mm^2	0.75mm^2	0.75mm^2	0.75mm^2
		0.75mm^2	0.75mm^2	0.75mm^2	0.75mm^2

Nota:

Diagram of a coiled tube with two connectors and directional arrows indicating rotation (no text or symbols)

Diagram of a coiled tube with directional arrows indicating movement (no text or symbols)

Two types of electrical connectors shown in line drawings: threaded and hexagonal (no text or symbols)

Illustration of hands pulling a curved object through a pointed tip (no text or symbols)

Technical line drawing of an internal air conditioner unit showing internal components and wiring (no text or labels)

Puertos de drenaje

Diagram of a pipe connection with a brick wall and a hook, no text or symbols present

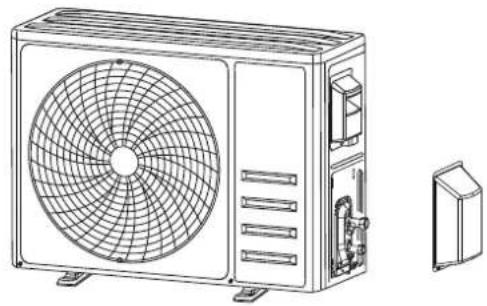

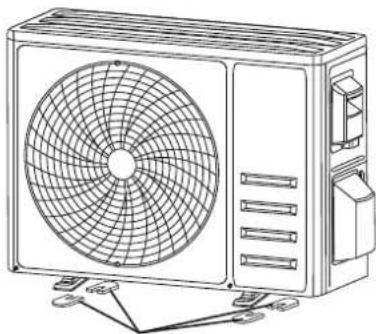

Paso6: Conecte el cable

Diagram of a pipe installation with a coiled pipe and granular material (no text or symbols)

Technical line drawing of a mechanical assembly with springs and bolts (no text or symbols)

Manguera de drenaje

Line drawing of a dual-panel air conditioner unit with fan blades and control panel (no text or symbols)

Line drawing of a front-end air conditioner unit with fan blades and a hand inserting a screwdriver (no text or symbols)

Quite la tapa de la válvula

Line drawing of a dual-panel air conditioner unit with fan blades and control panel (no text or symbols)

Mechanical diagram showing a lever mechanism with a bolt and nut (no text or symbols)

Diagram of a battery internal structure showing casing, battery pack, and terminal blocks (no text or symbols)

Technical line drawing of a remote control device with internal components and an inset showing two labeled compartments (no text or symbols present)

Nota:
